High-precision real-time segmentation network for underground track areas
Huaping ZHOU1(),Bin DENG2,Kelei SUN1,Yongqi ZHANG3,4,Tao WU5,Jin WU5
1. School of Computer Science and Engineering, Anhui University of Science and Technology, Huainan 232001, China
2. School of Electrical and Information Engineering, Anhui University of Science and Technology, Huainan 232001, China
3. Key Laboratory of Industrial Dust Prevention and Control & Occupational Health and Safety, Ministry of Education, Anhui University of Science and Technology, Huainan 232001, China
4. School of Safety Science and Engineering, Anhui University of Science and Technology, Huainan 232001, China
5. School of Economics and Management, Anhui University of Science and Technology, Huainan 232001, China
 全文: PDF(3465 KB)   HTML
摘要:

针对现有实时分割方法在低光照环境下对煤矿井下轨道区域边缘分割效果差、分割精度低的问题,提出高精度实时分割网络(HPRTSNet). 在浅层特征提取部分,设计基于Sobel算子的多尺度边缘增强模块(SMEEM),通过Sobel算子和多尺度自适应平均池化捕获轨道边缘特征,提升轨道区域的边缘表达能力. 在深层特征提取部分,提出双域融合增强模块(DFEM)融合时频域信息,有效增强对井下复杂背景的理解;构建感受野混合空洞空间金字塔池化(RHASPP)模块,扩大感受野并改善轨道特征表达. 为了优化模型性能,提出混合分割损失函数. 在自建的矿井轨道分割数据集上的实验结果表明,与现有的实时分割算法相比,HPRTSNet在分割精度与实时性方面的性能更优.

关键词: 实时分割矿井轨道无人驾驶电机车时域频域
Abstract:

To address the problems of poor edge segmentation performance and low segmentation accuracy of existing real-time segmentation methods for underground coal mine rail regions under low-light conditions, a high-precision real-time segmentation network (HPRTSNet) was proposed. In the shallow feature extraction stage, a Sobel-based multi-scale edge enhancement module (SMEEM) was designed, in which Sobel operators and multi-scale adaptive average pooling were employed to capture rail edge features, thereby enhancing edge representation of rail regions. In the deep feature extraction stage, a dual-domain fusion enhancement module (DFEM) was introduced to fuse spatial and frequency-domain information, effectively improving the understanding of the complex underground backgrounds. In addition, a receptive-field hybrid atrous spatial pyramid pooling (RHASPP) module was constructed to expand the receptive field and enhance rail feature representation. To further optimize model performance, a hybrid segmentation loss function was adopted. Experimental results on a self-built mine-track segmentation dataset demonstrated that, compared with existing real-time segmentation algorithms, HPRTSNet achieved superior performance in both segmentation accuracy and real-time efficiency.

Key words: real-time segmentation    mine track    unmanned electric locomotive    time domain    frequency domain
收稿日期: 2025-01-22 出版日期: 2026-02-03
CLC:  TP 391
基金资助: 安徽高校自然科学研究项目(2024AH040065).
作者简介: 周华平(1979—),女,教授,从事计算机视觉研究. orcid.org/0000-0002-4419-0825. E-mail:hpzhou@aust.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
周华平
邓彬
孙克雷
张咏琪
吴涛
吴劲

引用本文:

周华平,邓彬,孙克雷,张咏琪,吴涛,吴劲. 井下轨道区域高精度实时分割网络[J]. 浙江大学学报(工学版), 2026, 60(2): 332-340.

Huaping ZHOU,Bin DENG,Kelei SUN,Yongqi ZHANG,Tao WU,Jin WU. High-precision real-time segmentation network for underground track areas. Journal of ZheJiang University (Engineering Science), 2026, 60(2): 332-340.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.02.011        https://www.zjujournals.com/eng/CN/Y2026/V60/I2/332

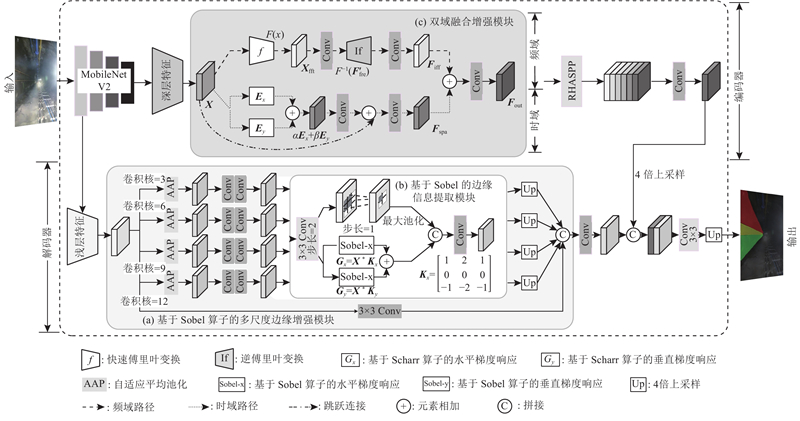

图 1  井下轨道区域高精度实时分割网络总体架构图

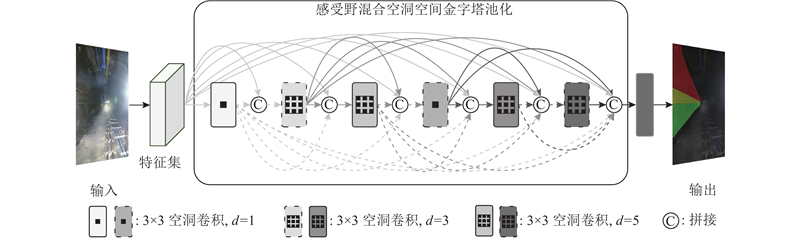

图 2  感受野混合空洞空间金字塔池化网络结构示意图

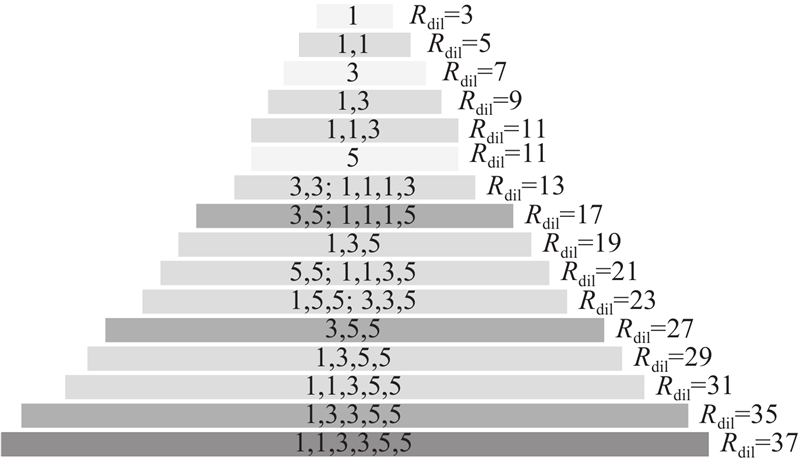

图 3  感受野混合空洞空间金字塔池化的感受野大小示意图

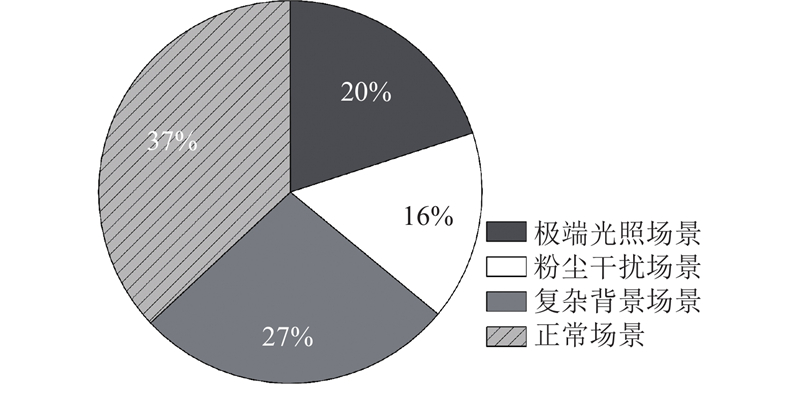

图 4  矿井轨道分割数据集的数据分布统计图
图 5  矿井轨道分割数据集的图像与标签
基线模型SMEEMDFEMRHASPP
模块
混合分割
损失函数
mIoU/%
DeeplabV3+
(MobileNetV2)
89.07
90.22
90.92
90.56
89.66
91.79
91.55
91.13
92.04
92.44
表 1  矿井轨道分割数据集上的模块消融实验

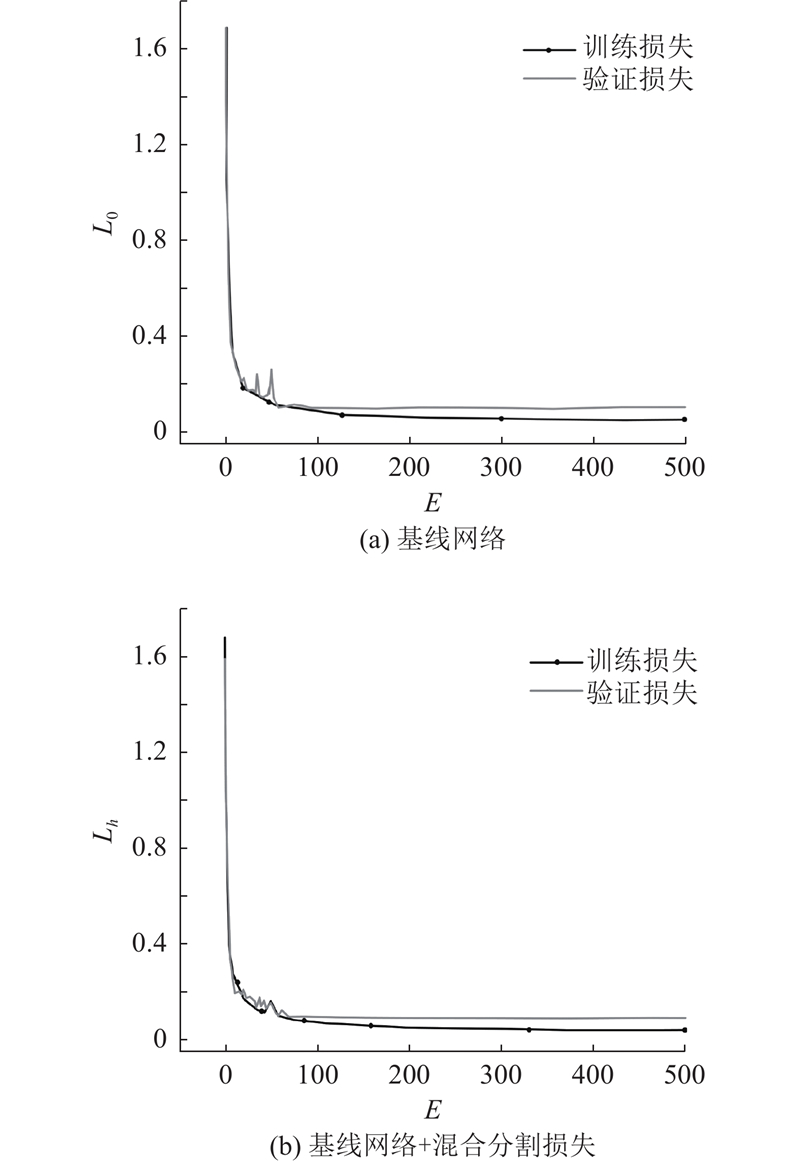

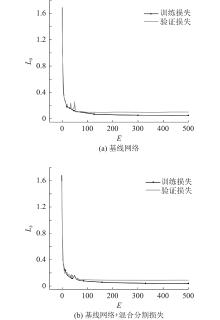

图 6  添加混合分割损失函数前后的模型分割损失对比
模型骨干名称np/106mIoU/%FPS(帧·s?1
Fast-SCNN[9]1.4481.7521.7
DFANet[10]7.8084.5023.2
ESPNet[11]ESP2.7580.5129.6
BiSeNetv1[12]ResNet184.9086.2131.3
STDC[13]STDC18.2988.1819.2
SFNet[14]ResNet1813.8187.3315.2
PP-LiteSeg-B[15]STDC212.2590.3417.1
RTFormer-Base[16]16.8791.7117.3
YOLOv10n[17]CSPNet5.7086.6044.4
U-Net[18]Vgg24.8978.89
PSPNet[19]ResNet5046.7183.46
HRNet[20]HRNet_W3229.5489.29
DeeplabV3+[21]Xception54.7193.95
SegFormer-B2[22]MiT-B227.3584.20
HPRTSNetMobileNetV29.8892.4423.5
表 2  不同模型在矿井轨道分割数据集上的性能参数对比
图 7  不同模型在矿井轨道分割数据集上的分割效果对比
