浙江大学学报(工学版)  2025, Vol. 59 Issue (5): 982-994    DOI: 10.3785/j.issn.1008-973X.2025.05.012
机械工程
基于EWT-LSTM的工业机器人关节异常检测
蒋沁诚1(),陶建峰1,2,*(),王洋洋1,张宇磊1,2,刘成良1,2
1. 上海交通大学 机械与动力工程学院,上海 200240
2. 上海交通大学 机械系统与振动国家重点实验室,上海 200240
EWT-LSTM based industrial robot joint anomaly detection
Qincheng JIANG1(),Jianfeng TAO1,2,*(),Yangyang WANG1,Yulei ZHANG1,2,Chengliang LIU1,2
1. School of Mechanical and Power Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2. State Key Laboratory of Mechanical System and Vibration, Shanghai Jiao Tong University, Shanghai 200240, China
 全文: PDF(3316 KB)   HTML
摘要:

针对工业机器人制造企业工业机器人出厂检测场景关节伺服参数异常检测问题和不添加传感器、高准确率和实时性的需求,提出基于经验小波变换(EWT)和长短时记忆网络(LSTM)的检测方法. 构建工业机器人可编程逻辑控制器-智能终端-云服务器一体化关节实时数据采集平台,无须额外添加传感器即可实现关节电流和速度信号的实时采集、存储和传输,在云端进行状态监测和异常检测. 利用EWT分解电流信号以获得特征分量,将光滑的特征分量作为LSTM模型的输入,提高了预测准确性. 针对机器人运动周期中实时信号周期不完整的问题,采用卷积神经网络和注意力机制优化的双向LSTM模型预测补全完整的周期信号,与标准信号特征分量进行差异度量,实现实时异常检测. 采用1组标准伺服参数和24组异常伺服参数进行故障注入实验,验证了利用该方法能够定位异常关节,与注入异常程度有较好的一致性,检测准确率超过90%.

关键词: 工业机器人经验小波变换长短时记忆网络异常检测云边协同
Abstract:

A novel detection method combining empirical wavelet transform (EWT) with long short-term memory (LSTM) network was proposed in order to address the challenges of joint servo parameter anomaly detection in industrial robot factory inspection scenarios, particularly under the requirements of sensor-free implementation, high accuracy and real-time performance. An integrated PLC-intelligent terminal-cloud server platform was developed for real-time joint data acquisition, enabling sensorless collection, storage and transmission of joint current and speed signals while supporting cloud-based condition monitoring and anomaly detection. EWT was employed to decompose current signals into inherently smooth characteristic components, which were directly fed into the LSTM network as input features to enhance prediction accuracy. A bidirectional LSTM architecture enhanced by convolutional neural networks (CNNs) and attention mechanisms was implemented to reconstruct complete periodic signals in order to resolve incomplete signal cycles during robotic motion. Then these reconstructed signals were compared with standard signal components through difference metrics to achieve real-time anomaly detection. Experimental validation using 1 set of standard servo parameters and 24 sets of abnormal parameters demonstrated that the proposed method achieved precise fault joint localization, maintained strong consistency with injected anomaly severity levels, and reached a detection accuracy exceeding 90%.

Key words: industrial robot    empirical wavelet transform    long short-term memory network    anomaly detection    cloud-edge collaboration
收稿日期: 2024-06-01 出版日期: 2025-04-25
CLC:  TP 242
基金资助: 上海市人工智能重大专项资助项目(2021SHZDZX0102).
通讯作者: 陶建峰     E-mail: jqc9837@sjtu.edu.cn;jftao@sjtu.edu.cn
作者简介: 蒋沁诚(1998—),男,硕士生,从事工业机器人故障诊断的研究. orcid.org/0009-0006-6808-7597.E-mail:jqc9837@sjtu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
蒋沁诚
陶建峰
王洋洋
张宇磊
刘成良

引用本文:

蒋沁诚,陶建峰,王洋洋,张宇磊,刘成良. 基于EWT-LSTM的工业机器人关节异常检测[J]. 浙江大学学报(工学版), 2025, 59(5): 982-994.

Qincheng JIANG,Jianfeng TAO,Yangyang WANG,Yulei ZHANG,Chengliang LIU. EWT-LSTM based industrial robot joint anomaly detection. Journal of ZheJiang University (Engineering Science), 2025, 59(5): 982-994.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2025.05.012        https://www.zjujournals.com/eng/CN/Y2025/V59/I5/982

图 1  工业机器人的关节运动控制系统

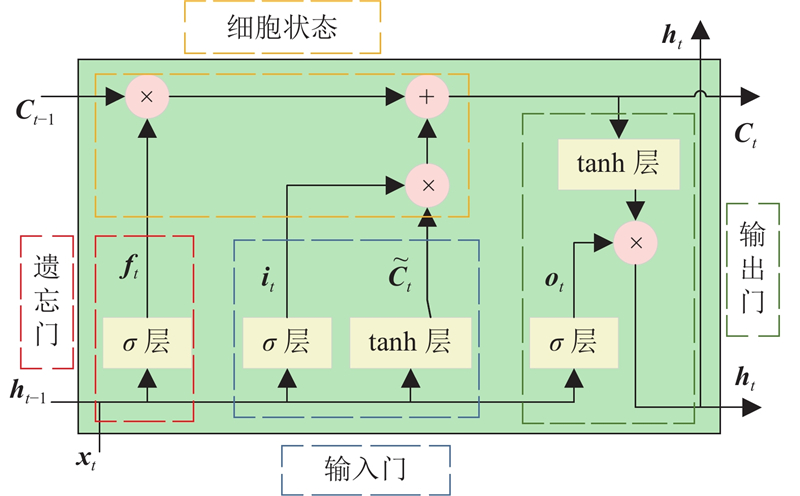

图 2  LSTM细胞结构
图 3  EWT-LSTM异常检测方法的框架

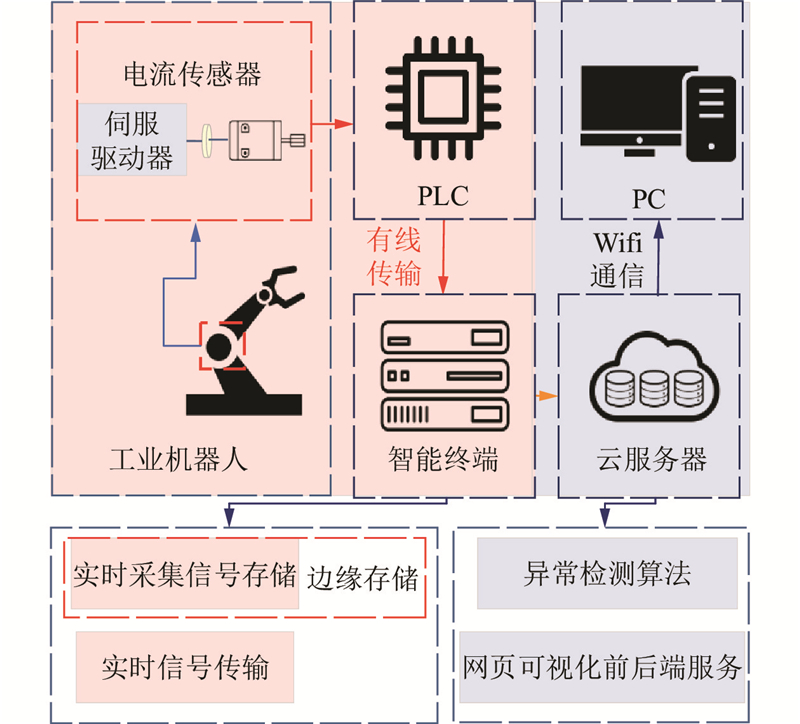

图 4  工业机器人实时数据采集平台的框架
图 5  标准信号预处理的过程
图 6  CNN-LSTM-Attention模型的架构
层编号描述详细信息输出尺寸
Layer 1InputInput_shape = (12,6)6×12
Layer 2Conv1Dfilters=128, kernel_size=1, activation=ReLU, padding='same'128×12
Layer 3AveragePooling1Dpool_size=4128×3
Layer 4ZeroPadding1Dpadding=(1, 0)128×4
Layer 5Conv1Dfilters=128, kernel_size=1, activation=ReLU, padding='same'128×4
Layer 6AveragePooling1Dpool_size=4128×1
Layer 7Dropout0.2128×1
Layer 8BidirectionalUnits=32, return_sequences=True64×1
Layer 9Dropout0.264×1
Layer 10Permute(2,1)1×64
Layer 11Denselayer_size = 64, activation='softmax'1×64
Layer 12Permute(2,1)64×1
Layer 13Concatenate[Layer 9, Layer 12]128×1
Layer 14Flatten128
Layer 15Denselayer_size = 6, activation='sigmoid'6
表 1  CNN-LSTM-Attention模型的详细信息

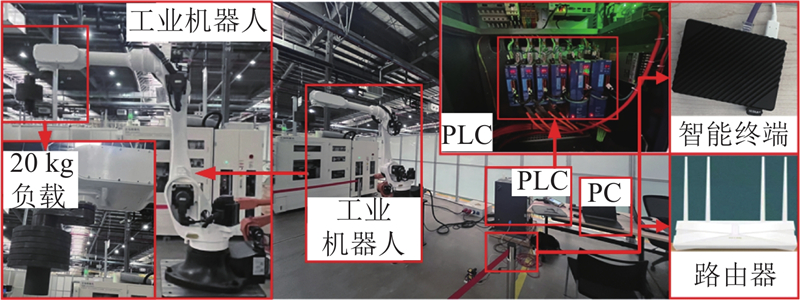

图 7  工业机器人关节异常检测试验台的实物图
设备名称型号配置
服务器CPU:Intel(R) Core(TM) i7-7700
CPU @ 3.60 GHz
内存:23.86 GB
硬盘:1.13 TB
系统:CentOS7.4
智能终端型号:NanoPi R6S
主控处理器:瑞芯微RK3588S
内存:8 GB
系统:Ubuntu 22.04
表 2  工业机器人关节异常检测试验台的硬件架构
关节编号伺服参数关节编号伺服参数
1Kp = 40, Ti = 504Kp = 60, Ti = 30
2Kp = 40, Ti = 505Kp = 50, Ti = 50
3Kp = 70, Ti = 506Kp = 70, Ti = 20
表 3  工业机器人各关节的标准伺服参数
实验组编号关节编号伺服参数
11Kp = 10, Ti = 50
21Kp = 25, Ti = 50
31Kp = 55, Ti = 50
41Kp = 70, Ti = 50
52Kp = 10, Ti = 50
62Kp = 25, Ti = 50
72Kp = 55, Ti = 50
82Kp = 70, Ti = 50
93Kp = 10, Ti = 50
103Kp = 25, Ti = 50
113Kp = 40, Ti = 50
123Kp = 55, Ti = 50
134Kp = 10, Ti = 30
144Kp = 25, Ti = 30
154Kp = 40, Ti = 30
164Kp = 70, Ti = 30
175Kp = 10, Ti = 50
185Kp = 25, Ti = 50
195Kp = 60, Ti = 50
205Kp = 70, Ti = 50
216Kp = 10, Ti = 20
226Kp = 25, Ti = 20
236Kp = 40, Ti = 20
246Kp = 55, Ti = 20
表 4  工业机器人各关节异常实验组的伺服参数设置
图 8  关节1标准信号的频域预处理

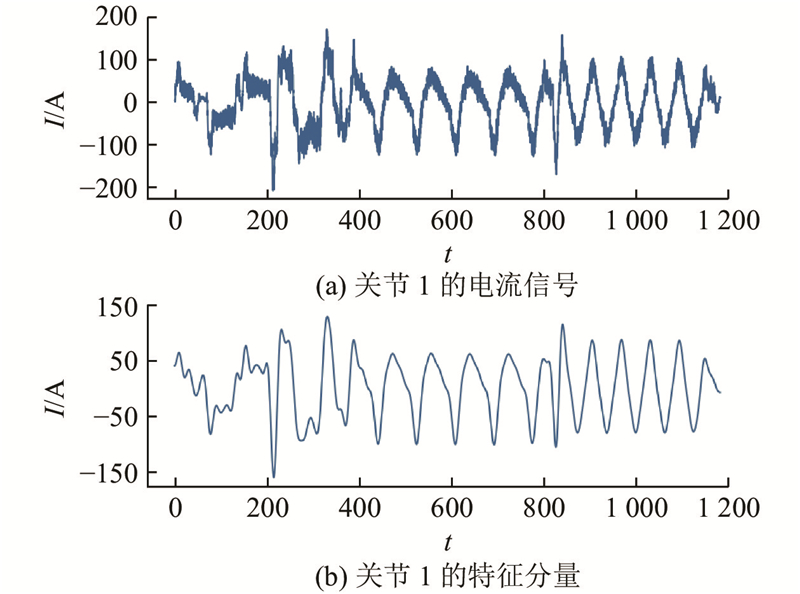

图 9  关节1标准信号特征分量的提取结果
图 10  模型训练过程中的训练和验证损失
模型MAERMSER2
RF0.053470.059250.87383
SVR0.040510.060910.87467
RNN0.042940.046300.91125
CNN0.035970.040880.93080
LSTM0.031640.036220.95399
seq2seq0.018830.022670.98197
LSTM-Attention0.014540.018630.98782
seq2seq-Attention0.012920.016910.98997
CNN-LSTM-Attention0.006910.008530.99662
表 5  利用时序预测模型预测工业机器人关节信号的评估结果
图 11  模型关节1不同输入预测结果的对比

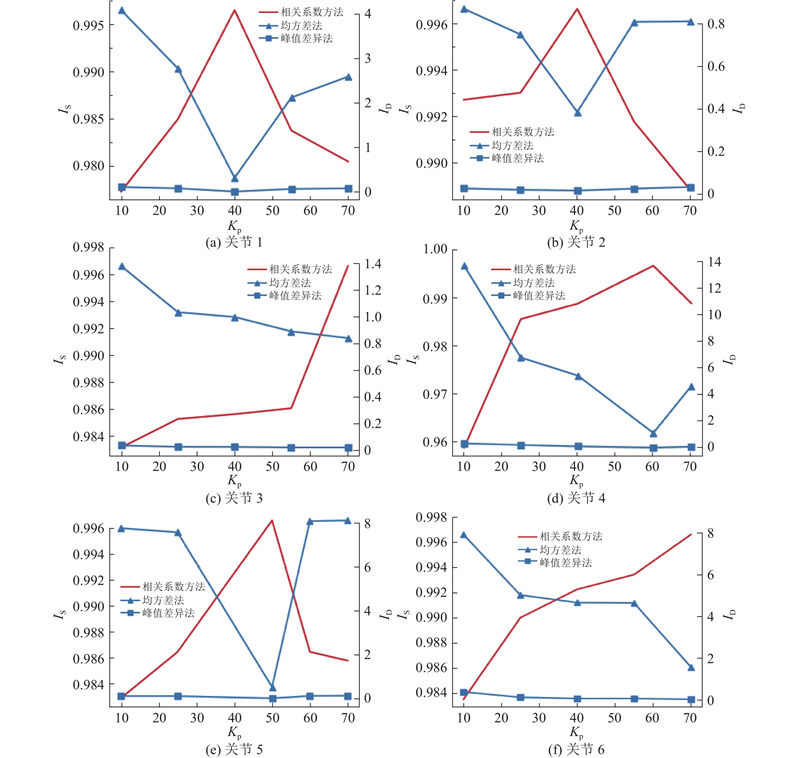

图 12  利用3种异常检测方法对工业机器人的6个关节进行异常检测得到的结果
关节编号D
相关系数法峰值差异法均方差法
11.12×10?73.656.21×10?4
28.35×10?9108.301.19×10?6
33.77×10?93.101.97×10?2
45.94×10?714.241.00×10?1
51.28×10?81.629.96×10?3
63.29×10?85.261.39×10?3
表 6  工业机器人各关节3个周期异常检测结果的方差
