面向水下场景的轻量级图像语义分割网络
郭浩然(),郭继昌*(),汪昱东
天津大学 电气自动化与信息工程学院，天津 300072
Lightweight semantic segmentation network for underwater image
Hao-ran GUO(),Ji-chang GUO*(),Yu-dong WANG
School of Electrical and Information Engineering, Tianjin University, Tianjin 300072, China
 全文: PDF(2385 KB)   HTML
摘要：

提出面向水下场景的图像语义分割网络，考虑到速度和准确度之间的权衡问题，网络采用轻量且高效的编解码器结构. 在编码器部分，设计倒置瓶颈层和金字塔池化模块，高效地提取特征. 在解码器部分，构建特征融合模块融合多水平特征，提升了分割的准确度. 针对水下图像边缘模糊的问题，使用辅助的边缘损失函数来更好地训练网络，通过语义边界的监督细化分割的边缘. 在水下语义分割数据集SUIM上的实验数据表明，对于320像素×256像素的输入图像，该网络在NVIDIA GeForce GTX 1080Ti显卡上的推理速度达到258.94帧/s，mIoU达到53.55%，能够在保证高准确度的同时，达到实时的处理速度.
关键词： 图像处理;  水下图像;  语义分割;  边缘特征;  轻量级网络
Abstract:

A semantic segmentation network was designed for underwater images. A lightweight and efficient encoder-decoder architecture was used by considering the trade-off between speed and accuracy. Inverted bottleneck layer and pyramid pooling module were designed in the encoder part to efficiently extract features. Feature fusion module was constructed in the decoder part in order to fuse multi-level features, which improved the segmentation accuracy. Auxiliary edge loss function was used to train the network better aiming at the problem of fuzzy edges of underwater images, and the edges of segmentation were refined through the supervision of semantic boundaries. The experimental data on the underwater semantic segmentation dataset SUIM show that the network achieves 53.55% mean IoU with an inference speed of 258.94 frames per second on one NVIDIA GeForce GTX 1080 Ti card for the input image of pixel 320×256, which can achieve real-time processing speed while maintaining high accuracy.
Key words: image processing    underwater image    semantic segmentation    edge feature    lightweight network
收稿日期: 2022-07-27 出版日期: 2023-07-17
CLC:  TP 391
基金资助: 国家自然科学基金资助项目（62171315）
通讯作者: 郭继昌     E-mail: 2568971284@qq.com;jcguo@tju.edu.cn
作者简介: 郭浩然（1997—），男，硕士生，从事语义分割的研究. orcid.org/0000-0001-7959-4021. E-mail： 2568971284@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
郭浩然
郭继昌
汪昱东

引用本文:

郭浩然,郭继昌,汪昱东. 面向水下场景的轻量级图像语义分割网络[J]. 浙江大学学报(工学版), 2023, 57(7): 1278-1286.

Hao-ran GUO,Ji-chang GUO,Yu-dong WANG. Lightweight semantic segmentation network for underwater image. Journal of ZheJiang University (Engineering Science), 2023, 57(7): 1278-1286.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.07.002    或    https://www.zjujournals.com/eng/CN/Y2023/V57/I7/1278

图 1  面向水下场景的轻量级图像语义分割网络总体结构
模块 模块类型 输出尺寸(W×H×C)
模块1-1
模块1-2 		3×3卷积(s = 2)
3×3卷积(s = 2) 		160×128×12
80×64×12
模块2-1
模块2-2 		倒置瓶颈层(r = 3，s = 2)
倒置瓶颈层(r = 6，s = 1) 		40×32×24
40×32×24
模块3-1
模块3-2 		倒置瓶颈层(r = 3，s = 2)
倒置瓶颈层(r = 6，s = 1) 		20×16×48
20×16×48
模块4-1
模块4-2
模块4-3
模块4-4 		倒置瓶颈层(r = 3，s = 2)
倒置瓶颈层(r = 6，s = 1)
倒置瓶颈层(r = 12，s = 1)
倒置瓶颈层(r = 18，s = 1) 		10×8×96
10×8×96
10×8×96
10×8×96
模块5 池化金字塔模块 10×8×48
表 1  所提网络的编码器组成
图 2  倒置瓶颈层与池化金字塔的结构示意图
模块 模块类型 输出尺寸(W×H×C)
第1阶段
第2阶段 		特征融合模块
特征融合模块 		20×16×48
40×32×24
第3阶段 上采样(8倍) 320×256×N
表 2  所提网络的解码器组成

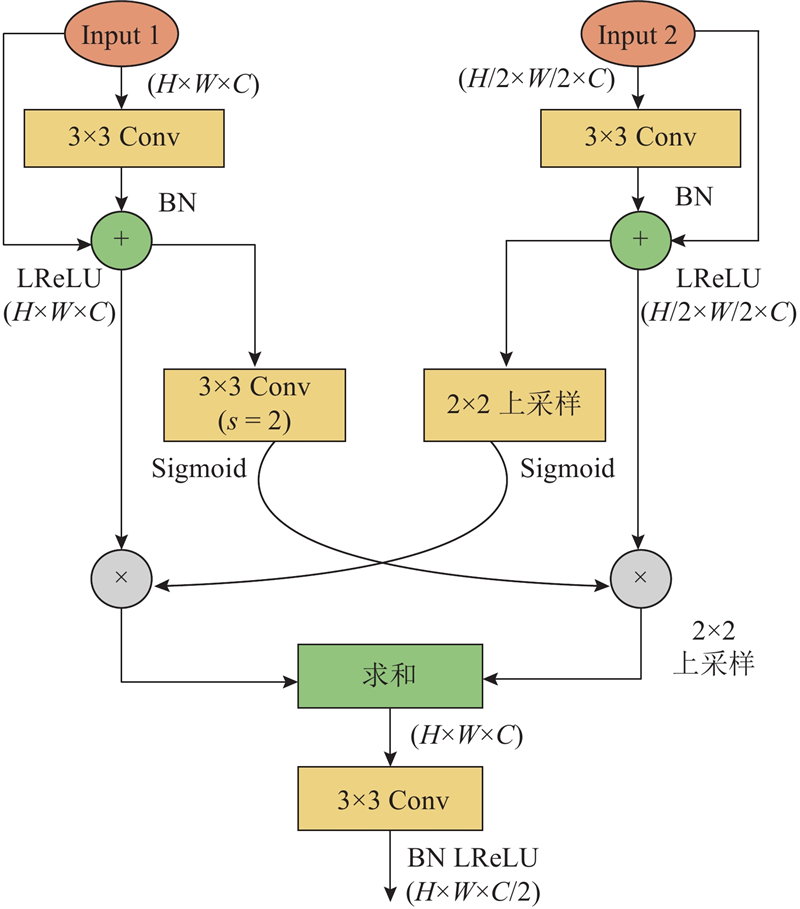

图 3  特征融合模块的结构示意图

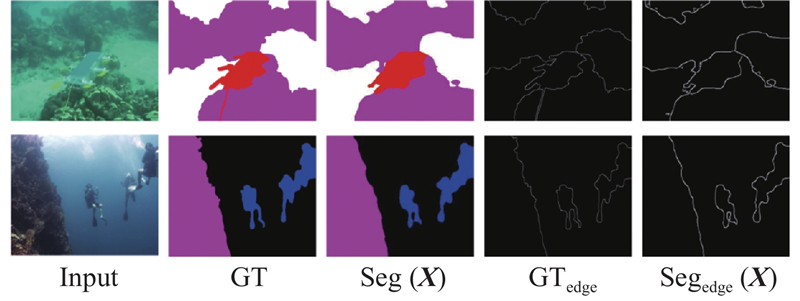

图 4  真实语义标签和分割结果的边缘特征提取
图 5  所提网络与经典网络的SUIM数据集的实验结果对比

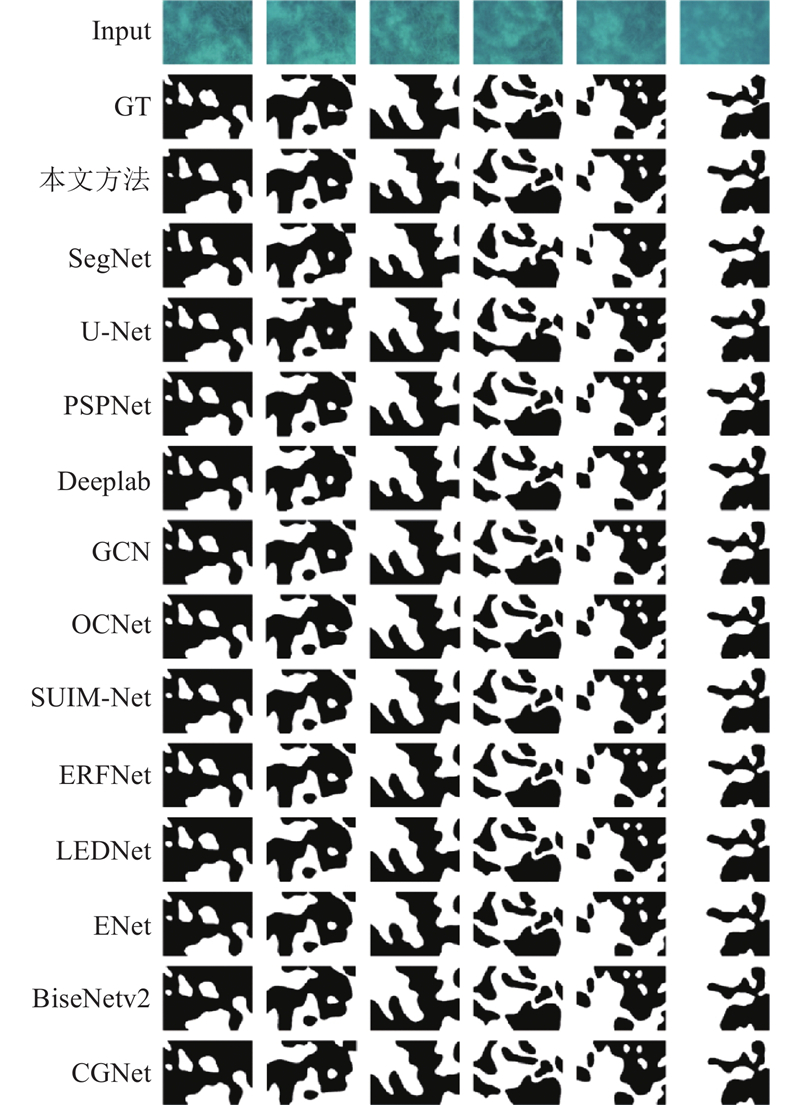

图 6  所提网络与经典网络的海草数据集实验结果对比

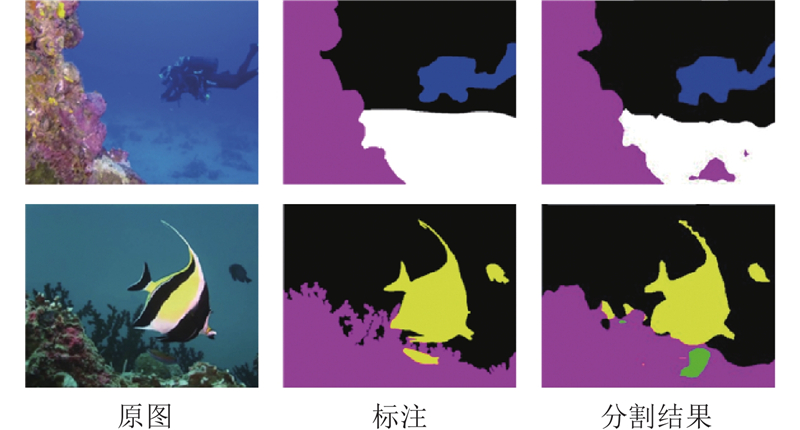

图 7  所提网络的SUIM数据集实验失败案例
语义分割模型 IoU/% mIoU/% PA/%
BW HD PF WR RO RI FV SR
本文方法 84.62 63.99 18.46 41.84 61.93 53.44 46.00 58.42 53.55 85.32
U-Net[3] 79.46 32.25 21.85 33.94 23.65 50.28 38.16 42.16 39.85 79.44
SegNet[2] 80.63 45.67 17.45 32.24 55.72 47.62 43.92 51.51 46.85 82.19
Deeplab[4] 81.82 50.26 17.05 43.33 63.60 57.18 43.59 55.35 51.52 84.27
PSPNet[7] 82.51 65.04 28.54 46.56 62.88 55.80 46.78 55.98 55.51 86.41
GCN[24] 79.32 38.57 15.09 30.38 54.25 49.94 36.09 52.02 44.46 81.28
OCNet[15] 83.14 64.03 24.31 43.11 61.78 54.92 47.41 54.97 54.30 85.89
SUIMNet[13] 80.64 63.45 23.27 41.25 60.89 53.12 46.02 57.12 53.22 85.22
LEDNet[19] 82.96 58.47 18.02 42.86 50.96 58.13 46.13 54.99 51.36 84.25
BiseNetv2[21] 83.67 59.29 18.27 39.58 56.54 58.16 47.33 56.93 52.47 84.96
ENet[14] 80.94 50.60 16.97 36.71 51.73 49.24 41.99 50.46 47.33 82.31
ERFNet[16] 83.02 52.95 17.50 41.72 49.80 53.70 45.98 54.30 50.40 83.75
CGNet[17] 81.21 60.04 17.71 42.91 53.62 57.62 46.46 53.71 51.66 83.99
表 3  各网络在SUIM数据集上的精度指标对比结果
语义分割模型 mIoU/% PA/%
0~2 m 2~6 m 0~2 m 2~6 m
本文方法 88.63 89.01 96.08 96.10
U-Net[3] 87.69 87.42 95.89 95.62
SegNet[2] 83.90 82.93 94.96 94.92
Deeplab[4] 87.36 87.93 95.84 95.88
PSPNet[7] 89.08 89.29 96.31 96.33
GCN[24] 87.37 86.97 95.82 95.73
OCNet[15] 88.96 89.41 96.26 96.35
SUIMNet[13] 88.24 88.45 95.91 95.93
LEDNet[29] 87.48 87.84 95.85 95.88
BiseNetv2[21] 88.43 88.85 96.03 96.09
ENet[14] 85.94 86.60 95.17 95.21
ERFNet[16] 86.72 87.05 95.36 95.48
CGNet[27] 87.15 87.24 95.43 95.46
表 4  各网络在海草数据集上的精度指标对比结果
语义分割模型 v/(帧·s?1) p/106 f/109
本文方法 258.94 1.45 0.31
U-Net[3] 19.98 14.39 38.79
SegNet[2] 17.52 28.44 61.39
Deeplab[4] 16.00 5.81 8.28
PSPNet[7] 6.65 27.50 49.78
GCN[24] 11.26 23.95 7.09
OCNet[15] 31.71 60.48 81.36
SUIMNet[13] 27.69 3.86 4.59
LEDNet[19] 111.73 0.92 1.78
BiseNetv2[21] 244.63 3.35 3.83
ENet[14] 117.41 0.35 0.77
ERFNet[16] 198.36 2.06 4.64
CGNet[17] 116.49 0.48 1.08
表 5  各网络的效率指标对比结果
池化金字塔模块 特征融合模块 图像预处理 辅助边缘损失函数 mIoU/%
— — — — 50.91
√ — — — 52.03
— √ — — 51.45
√ √ — — 52.26
√ √ √ — 52.66
√ √ √ √ 53.55
表 6  SUIM数据集消融实验精度指标的对比结果
基础网络 v/(帧·s?1) mIoU/%
Mobilenetv2 213.29 51.66
ResNet-18 199.27 53.90
本文方法(对称) 126.12 54.23
本文方法(非对称) 258.94 53.55
表 7  基础网络消融实验不同指标的对比结果
IoULoss CELoss OHEMCELoss BCELoss mIoU/%
√ — — — 49.91
— √ — — 51.31
— — √ — 52.66
— — √ √ 53.55
表 8  损失函数消融实验精度指标的对比结果
α mIoU/% α mIoU/%
0 52.66 0.20 52.94
0.05 53.05 0.25 52.88
0.10 53.55 0.30 52.46
0.15 53.31 — —
表 9  平衡参数α消融实验精度指标的对比结果

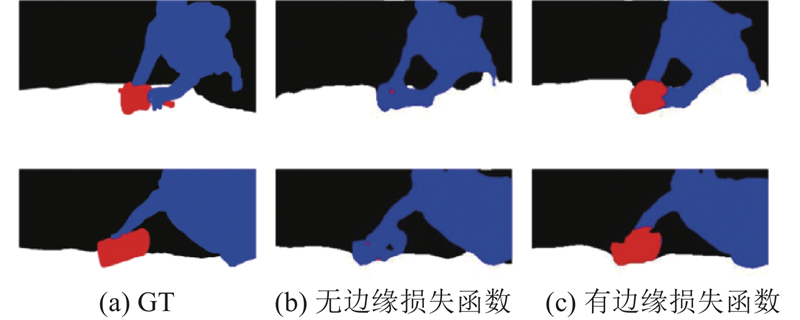

图 8  所提网络有、无边缘损失函数的对比结果
