浙江大学学报(工学版)  2023, Vol. 57 Issue (1): 190-199    DOI: 10.3785/j.issn.1008-973X.2023.01.019
计算机技术、通信工程
氧化铝增强的PdSe2/Si异质结光电探测器
贺亦菲1(),杨德仁1,2,皮孝东1,2,*()
1. 浙江大学 材料科学与工程学院,浙江 杭州 310027
2. 浙江大学杭州国际科创中心,浙江 杭州 311200
Enhanced PdSe2/Si heterojunction photodetector by Al2O3 layer
Yi-fei HE1(),De-ren YANG1,2,Xiao-dong PI1,2,*()
1. School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China
2. Hangzhou Global Scientific and Technological Innovation Center, Zhejiang University, Hangzhou 311200, China
 全文: PDF(2373 KB)   HTML
摘要:

为了降低暗电流,通过原子层沉积(ALD)生长了一层氧化铝(Al2O3)隧穿层,制备了PdSe2/Al2O3/Si异质结光电探测器. 通过优化Al2O3层的厚度,使得该探测器实现了高速和宽光谱响应. 研究结果表明,在波长为808 nm的光照射和?2 V偏压下,所制备的光电探测器与未生长Al2O3的器件相比,暗电流降低了约3个数量级,器件的光响应度达到了约为0.31 A/W,对应的比探测率约为2.5×1012 Jones,器件在零偏压下表现出明显的自驱动效应. 经过循环测试1 200次后,器件保持良好的光响应. 器件响应的上升时间和下降时间分别为7.1和15.6 μs. 结果表明,在二维层状半导体材料与Si之间引入Al2O3隧穿层,可以有效地降低器件的暗电流,有利于高性能的Si基光电探测器的制备.

关键词: 二硒化钯异质结原子层沉积(ALD)快速光响应隧穿光电探测器
Abstract:

PdSe2/Al2O3/Si heterojunction device was fabricated by inserting Al2O3 tunneling layer grown by atomic layer deposition (ALD) in order to decrease the dark current. A fast and broadband photodetector was realized by optimizing the thickness of Al2O3. Results showed that the dark current of PdSe2/Al2O3/Si device was reduced by about 3 orders of magnitude compared with the device without Al2O3 layer under 808 nm illumination and ?2 V bias voltage. The photoresponsivity of the device was about 0.31 A/W and the corresponding specific detectivity was about 2.5×10 12 Jones. The device exhibited obvious self-driving effect without bias. The device still maintained a better photoresponse after 1 200 cycles of cyclic testing. The rise time and fall time of photoresponse were 7.1 μs and 15.6 μs, respectively. The introduction of Al2O3 tunneling layer between the two-dimensional layered semiconductor material and silicon can effectively reduce the dark current of the device and is beneficial to achieving high-performance silicon-based photodetectors.

Key words: silicon    palladium diselenide    heterojunction    atomic layer deposition (ALD)    fast photoresponse    tunneling photodetector
收稿日期: 2022-04-08 出版日期: 2023-01-17
CLC:  TN 215
基金资助: 国家重点研发计划资助项目(2017YFA0205700,2018YFB2200101)
通讯作者: 皮孝东     E-mail: yf_h@zju.edu.cn;xdpi@zju.edu.cn
作者简介: 贺亦菲(1997—),女,硕士生,从事硅基光电探测器的研究. orcid.org/0000-0003-3013-7393. E-mail: yf_h@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
贺亦菲
杨德仁
皮孝东

引用本文:

贺亦菲,杨德仁,皮孝东. 氧化铝增强的PdSe2/Si异质结光电探测器[J]. 浙江大学学报(工学版), 2023, 57(1): 190-199.

Yi-fei HE,De-ren YANG,Xiao-dong PI. Enhanced PdSe2/Si heterojunction photodetector by Al2O3 layer. Journal of ZheJiang University (Engineering Science), 2023, 57(1): 190-199.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.01.019        https://www.zjujournals.com/eng/CN/Y2023/V57/I1/190

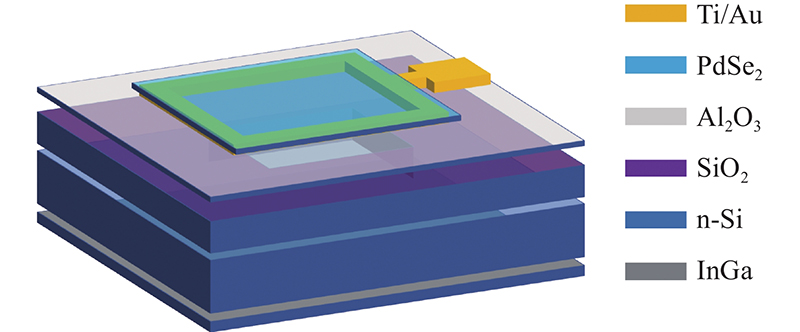

图 1  PdSe2/Al2O3/Si异质结器件的结构示意图

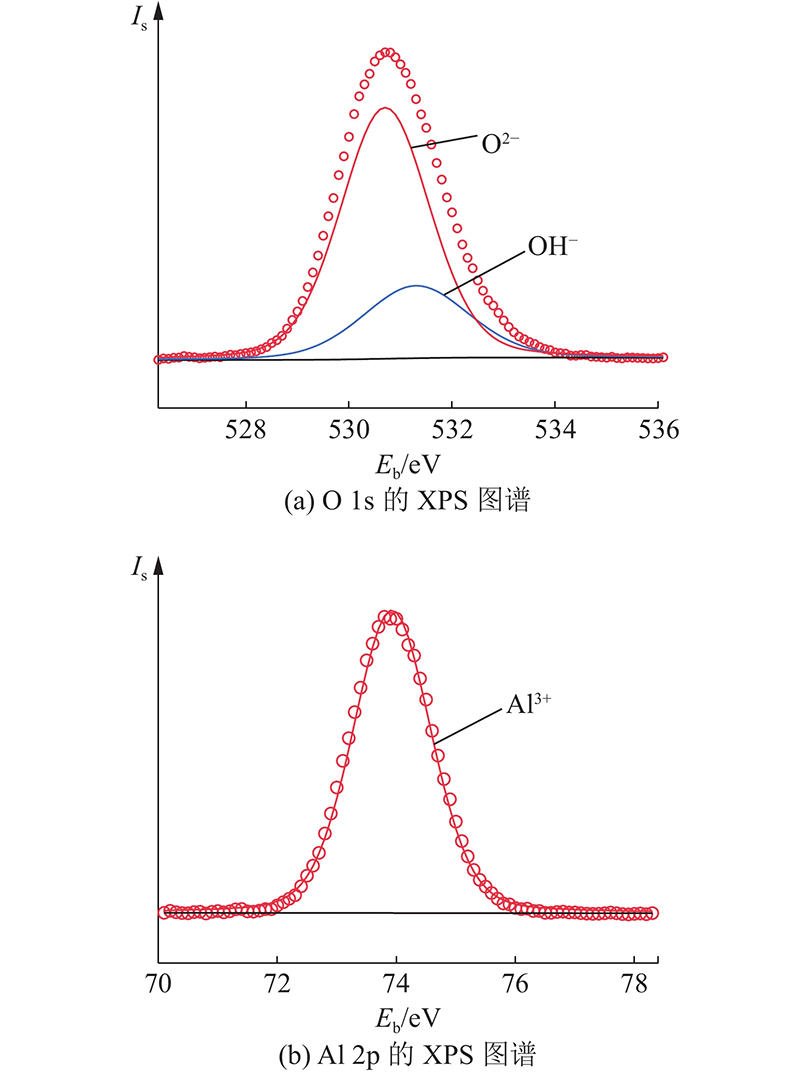

图 2  ALD生长的Al2O3薄膜的XPS图谱

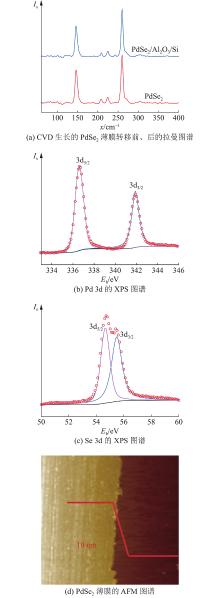

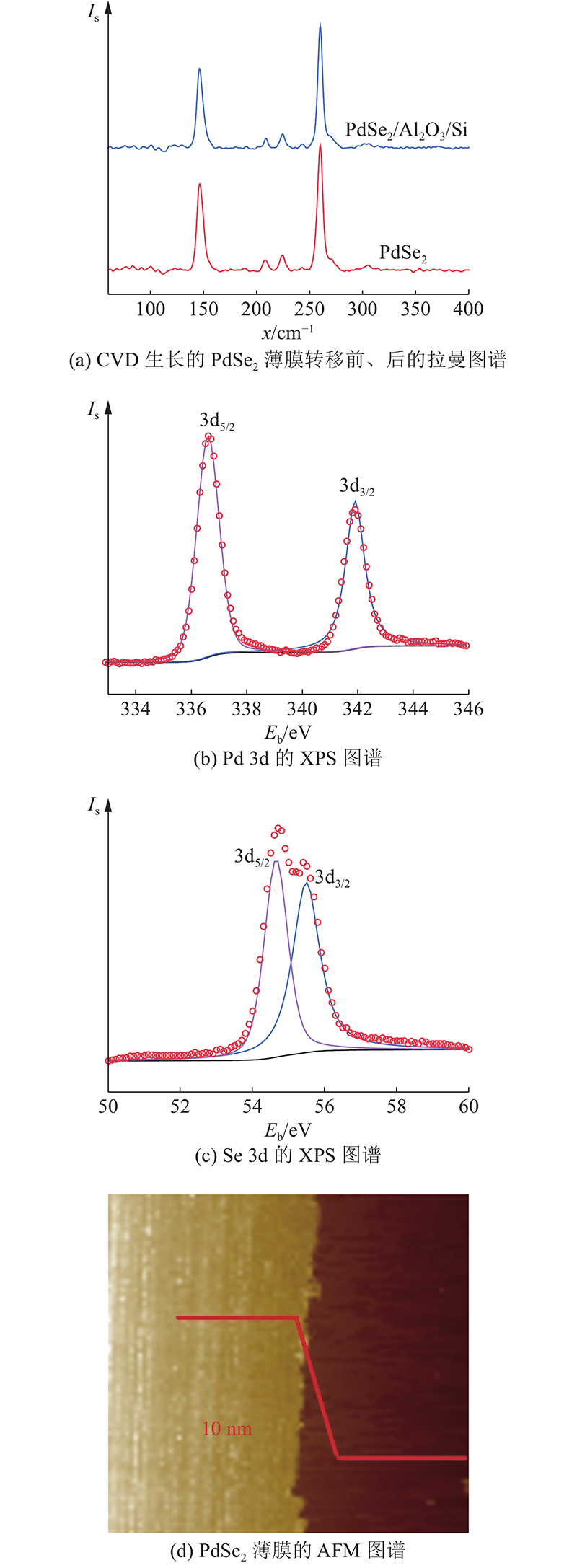

图 3  PdSe2薄膜的表征
图 4  PdSe2/Al2O3/Si异质结的TEM截面图

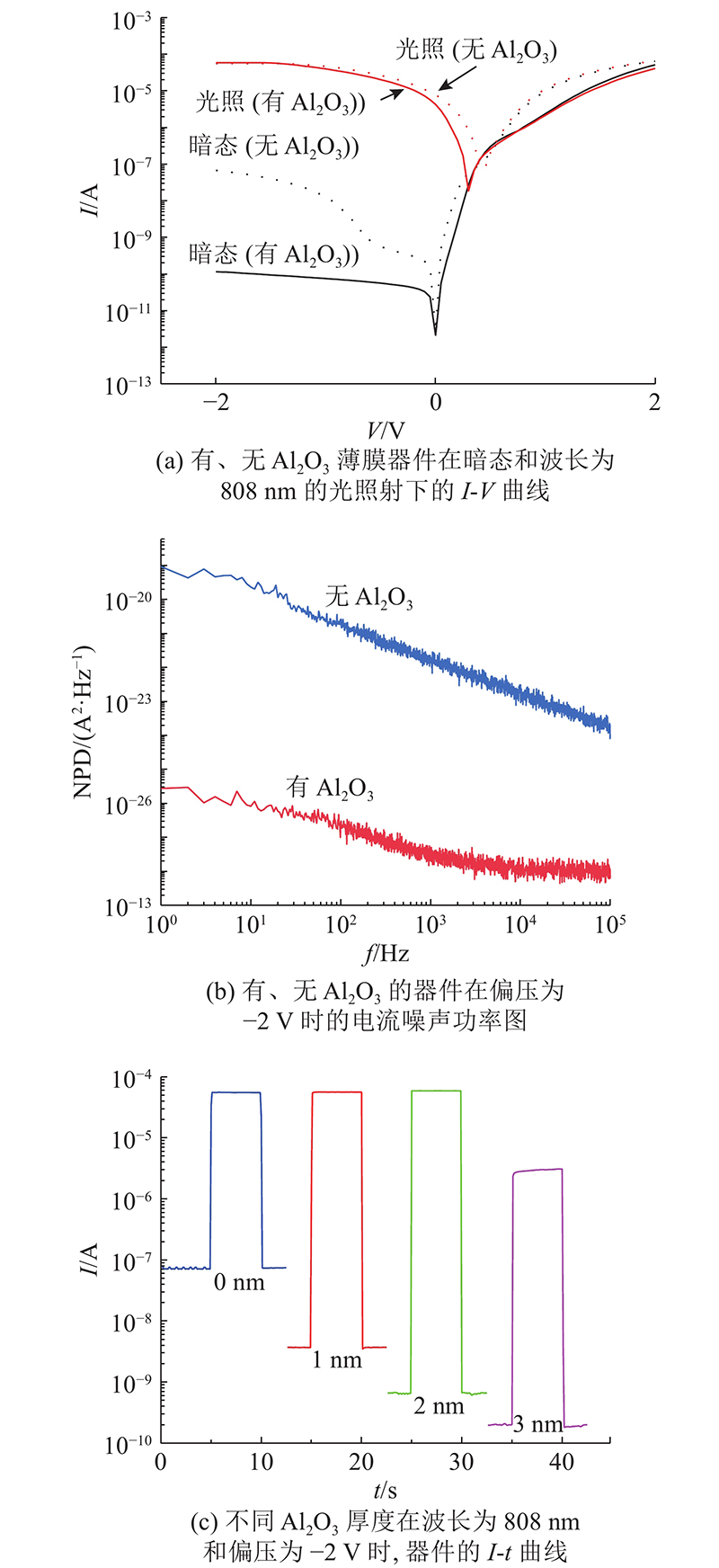

图 5  PdSe2/Al2O3/Si和PdSe2/Si异质结器件在暗态和波长为808 nm的光照射下的光电性能对比

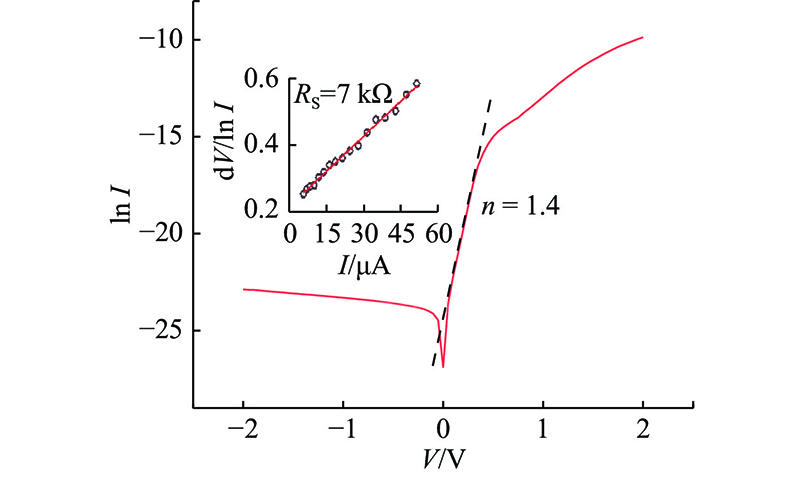

图 6  PdSe2/Al2O3/Si器件的ln I-V曲线
图 7  PdSe2/Al2O3/Si器件的1/C2-V曲线

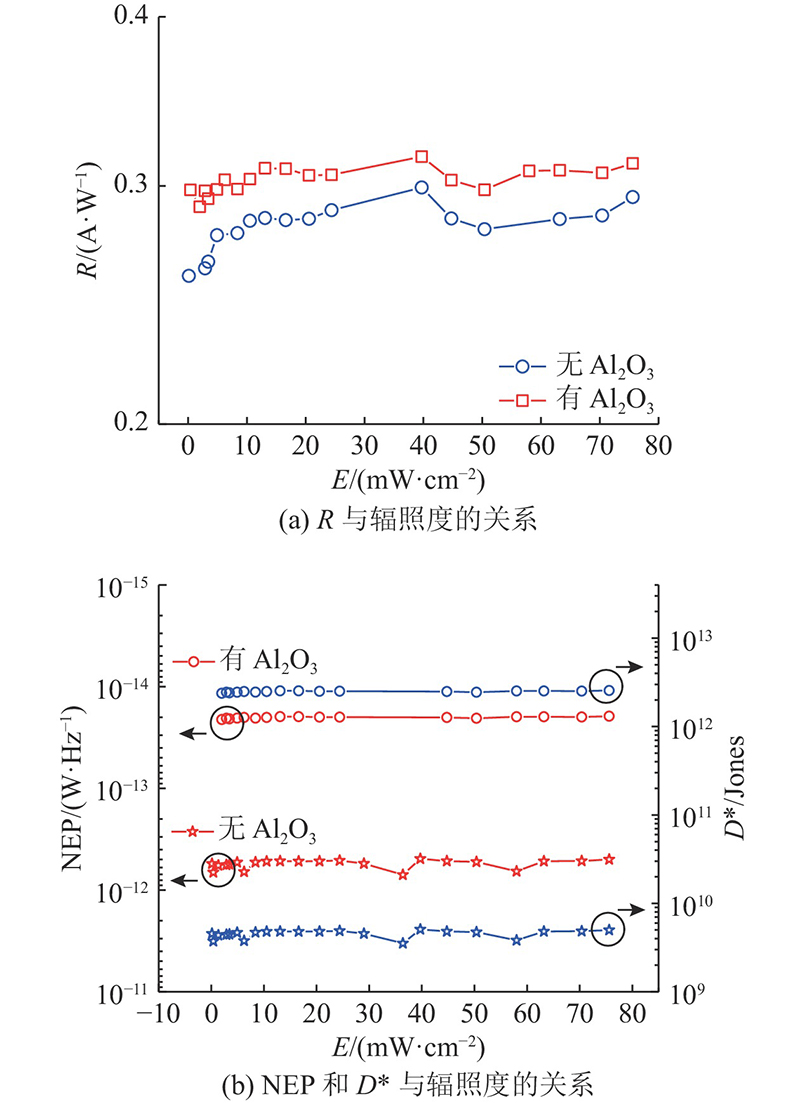

图 8  PdSe2/Al2O3/Si异质结器件的光响应与辐照度的关系
图 9  PdSe2/Al2O3/Si和PdSe2/Si异质结器件的光响应特性
图 10  PdSe2/Al2O3/Si和PdSe2/Si异质结器件的响应时间
图 11  PdSe2/Al2O3/Si异质结器件在−2 V偏压下的1 200次循环稳定性测试

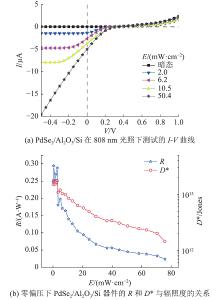

图 12  PdSe2/Al2O3/Si异质结器件的自驱动效应

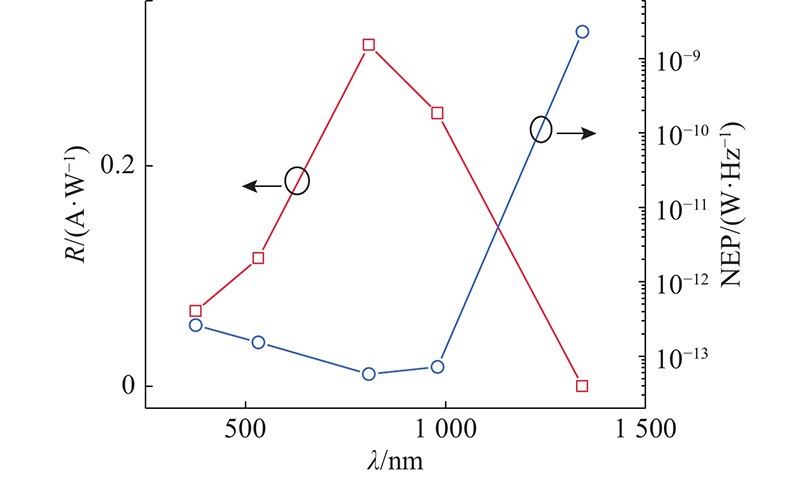

图 13  PdSe2/Al2O3/Si异质结器件在波长为375~1 342 nm的光照下的光响应特性
图 14  PdSe2/Al2O3/Si异质结器件的在波长为1 342 nm的光照下的光响应特性

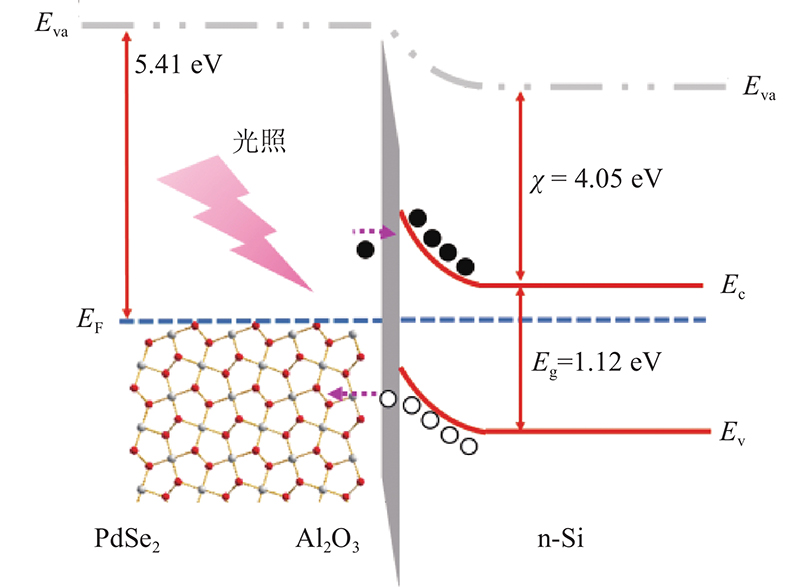

图 15  PdSe2/Al2O3/Si异质结的能带结构图
器件 ION/OFF R/(A·W?1) D*/Jones λ/nm trise, tfall/μs V/V 参考文献
Gr/Si 104 0.435 ~108 850 1200,3000 ?2 [1]
Gr/Ge 104 0.0518 ~1010 1550 23,108 0 [2]
MoS2 104 0.57 ~1010 532 70,110 ?10 [8]
MoS2 103 5.07 ~1010 500 1×105 1.5 [9]
WS2 7.3 ~1012 500 5000,7000 1 [10]
PdSe2 161.9 ~1010 655 2×108 [20]
PdSe2/Si 105 0.3 ~1013 780 38,44 0 [26]
PdSe2 1.06 156,163 [25]
Gr/AlN/Si 3.96 850 ?10 [27]
Si/Al2O3/ZnO 0.41 ~1012 940 15 0 [28]
Gr/Al2O3/GaAs 0.12 ~1011 808 8.16,98.43 0 [29]
Gr/hBN/Si 107 ~1010 725 910,1080 ?0.03 [30]
PdSe2/Al2O3/Si 105 0.31 ~1012 808 7.1,15.6 ?2 本文工作
PdSe2/Al2O3/Si 105 0.29 ~1013 808 7.1,15.6 0 本文工作
表 1  PdSe2/Al2O3/Si器件与其他二维层状材料探测器的主要性能参数对比
