浙江大学学报(工学版)  2022, Vol. 56 Issue (11): 2241-2250    DOI: 10.3785/j.issn.1008-973X.2022.11.015
计算机技术
基于多尺度融合与注意力机制的小目标车辆检测
李凯(),林宇舜*(),吴晓琳,廖飞宇
福建农林大学 交通与土木工程学院，福建 福州 350108
Small target vehicle detection based on multi-scale fusion technology and attention mechanism
Kai LI(),Yu-shun LIN*(),Xiao-lin WU,Fei-yu LIAO
School of Transportation and Civil Engineering, Fujian Agriculture and Forestry University, Fuzhou 350108, China
 全文: PDF(2082 KB)   HTML
摘要：

针对传统目标检测算法（SSD）检测小目标精度低的问题，提出基于注意力机制与多尺度信息融合方法并将其运用于车辆检测任务. 结合浅层特征图与深层特征图的优势，小目标检测分支和大中型目标检测分支的特征图采用5支路和2支路融合. 在基础网络层之间加入注意力机制模块，模型会关注包含更多信息量的通道. 实验结果表明，在自建车辆数据集上的均值平均精度（mAP）达到90.2%，比传统SSD算法提高了10.0%，其中小目标检测精度提高了17.9%；在PASCAL VOC 2012数据集上的类别平均精度mAP为83.1%，比主流的YOLOv5算法提高了6.4%. 此外，提出算法在GTX1 660 Ti PC端的检测速度可以达到25 帧/s，能够满足实时性的需求.
关键词： SSD;  特征金字塔;  多尺度融合;  注意力机制;  车辆检测
Abstract:

A method based on attention mechanism and multi-scale information fusion was proposed to resovle the problem of low accuracy of the traditional single shot multibox detector (SSD) algorithm in detecting small targets. The algorithm was applied to the vehicle detection task. The feature maps of the target detection branch were fused with 5 branches and 2 branches respectively, combining the advantages of the shallow feature map and the deep feature map. The attention mechanism module was added between the basic network layers to make the model pay attention to the channels containing more information. Experimental results showed that the mean average precision of the self-built vehicle data set reached 90.2%, which was 10.0% higher than the traditional SSD algorithm. The detection accuracy of small objects was improved by 17.9%. The mAP on the PASCAL VOC 2012 dataset was 83.1%, which was 6.4% higher than the current mainstream YOLOv5 algorithm. The detection speed of proposed algorithm on the GTX1 660 Ti PC reached 25 frame/s, which satisfied the demand of real-time performance.
Key words: SSD    FPN    multi-scale fusion    attention mechanism    vehicle detection
收稿日期: 2021-11-23 出版日期: 2022-12-02
CLC:  TP 751
基金资助: 福建省科技重大事项（2019HZ07011）；福建省自然科学基金资助项目（2020J05029）
通讯作者: 林宇舜     E-mail: 15733152192@163.com;lshun@fafu.edu.cn
作者简介: 李凯（1995—），男，硕士生，从事计算视觉研究. orcid.org/0000-0001-6319-2984. E-mail: 15733152192@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
李凯
林宇舜
吴晓琳
廖飞宇

引用本文:

李凯,林宇舜,吴晓琳,廖飞宇. 基于多尺度融合与注意力机制的小目标车辆检测[J]. 浙江大学学报(工学版), 2022, 56(11): 2241-2250.

Kai LI,Yu-shun LIN,Xiao-lin WU,Fei-yu LIAO. Small target vehicle detection based on multi-scale fusion technology and attention mechanism. Journal of ZheJiang University (Engineering Science), 2022, 56(11): 2241-2250.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.11.015    或    https://www.zjujournals.com/eng/CN/Y2022/V56/I11/2241

图 1  基于SE模块与多尺度特征融合技术的小目标检测方法网络结构图
图 2  基于SENet的注意力机制模块

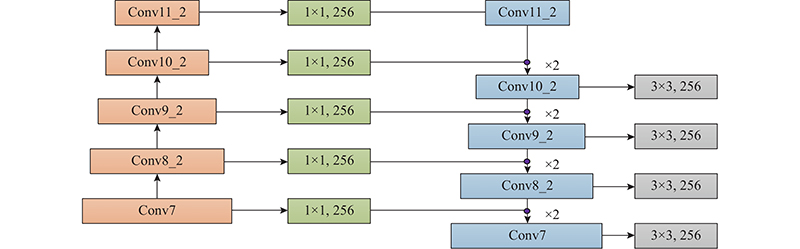

图 3  Conv7~Conv11_2特征融合图

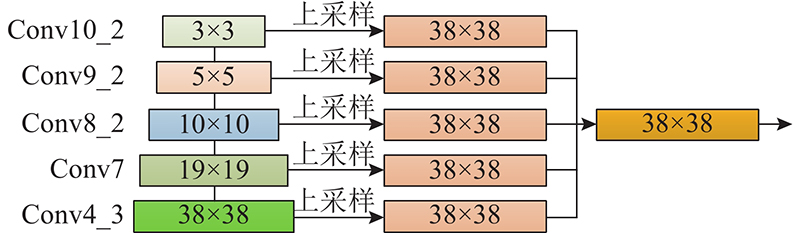

图 4  Conv4_3特征融合
图 5  自建车辆数据集样例图

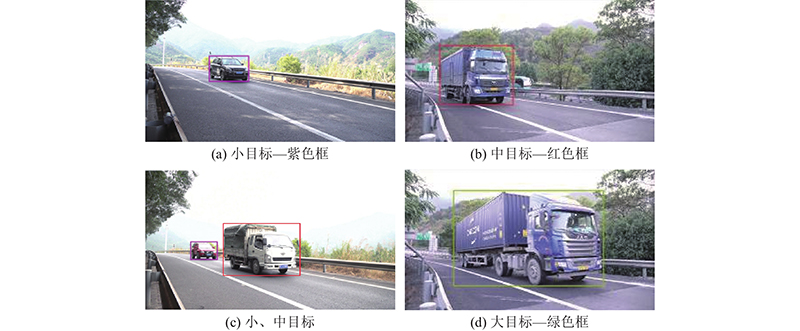

图 6  大、中、小目标检测示意图
方法 mAP/% AP/%
小目标 中目标 大目标
CenterNet 73.5 52.3 82.1 86.1
SSD 78.5 65.6 88.2 81.7
YOLOv4 79.3 67.2 83.2 87.5
YOLOv5 85.7 74.8 86.8 95.5
OURS 90.2 83.5 91.2 95.9
表 1  自建车辆数据集各方法测试结果
方法 mAP/% AP /% v/(frame·s?1)
小目标 中目标 大目标
SSD+FPN 85.1 74.6 87.3 93.4 32.0
SSD+MSIF 88.5 81.2 90.1 94.2 28.0
SSD+MSIF+SE 90.2 83.5 91.2 95.9 25.0
表 2  自建车辆数据集各类方法测试性能对比
融合方式 mAP/% v/(frame·s?1)
3支路融合 86.4 31
4支路融合 87.2 30
5支路融合 88.5 28
6支路融合 88.6 25
表 3  Conv4_3层不同融合方式性能对比

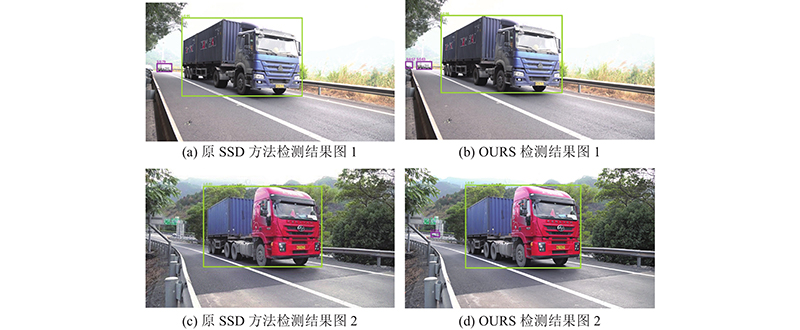

图 7  SSD与所提方法测试结果对比图
算法模型 aero bike bird boat bottle bus car cat chair cow
FasterRcnn 84.9 79.8 79.8 74.3 53.9 77.5 75.9 88.5 45.6 77.1
CenterNet 81.0 75.0 66.0 52.0 43.0 78.0 80.0 87.0 59.0 72.0
SSD 83.1 84.7 74.0 69.6 49.5 85.4 86.2 85.2 60.4 81.5
RP-SSD 88 83.8 74.8 73.2 48.9 83.9 86.8 91.0 63.2 81.9
DSSD 83.6 85.2 74.5 70.1 50.4 85.6 86.7 85.6 61.0 82.1
FSSD 84.9 86.4 74.8 63.3 50.6 84.6 87.9 86.9 63.1 83.2
YOLOv4 83.6 84.0 73.8 59.2 72.2 91.0 90.0 70.7 60.9 64.9
YOLOv5 84.2 87.6 65.9 63.3 77.0 80.2 91.5 83.7 66.5 66.4
OURS 89.8 89.8 85.4 75.5 61.5 82.5 87.5 90.5 73.9 95.6
算法模型 table dog horse mbike person plant sheep sofa train tv
FasterRcnn 55.3 86.9 81.7 80.9 79.6 40.1 72.6 60.9 81.2 61.5
CenterNet 54.0 81.0 70.0 68.0 74.0 41.0 71.0 58.0 82.0 70.0
SSD 75.1 82.0 85.9 85.3 77.7 49.6 76.1 80.0 87.4 74.4
RP-SSD 76.3 81.2 85.3 84.6 79.3 63.5 78.9 83.4 87.9 73.9
DSSD 75.4 82.5 86.2 85.4 78.6 51.2 75.9 80.5 86.7 75.1
FSSD 76.8 83.1 85.0 83.2 77.3 57.9 78.4 82.1 86.5 73.2
YOLOv4 67.3 89.6 77.4 65.2 86.0 47.7 77.4 72.3 82.6 83.3
YOLOv5 59.8 82.8 86.6 83.1 85.4 56.4 70.3 62.9 87.9 90.8
OURS 78.4 90.7 89.5 82.1 75.6 63.1 81.5 93.9 89.7 85.9
表 4  各类方法在PASCAL VOC数据测试中的AP值

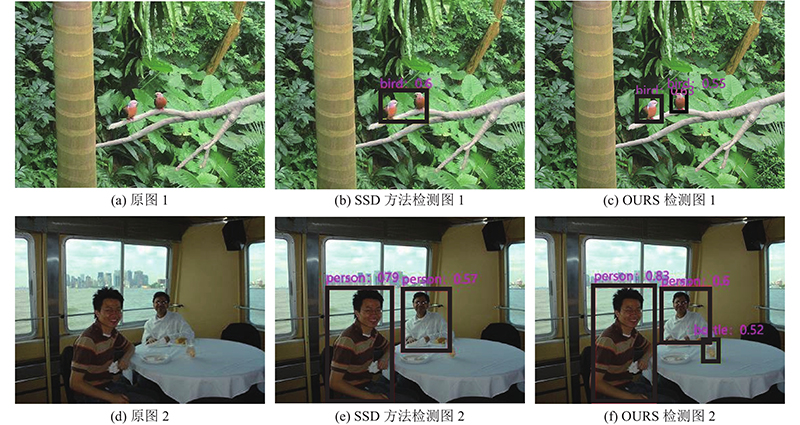

图 8  SSD算法与本文方法对小目标的检测结果对比图
方法 显卡型号 基础网络框架 mAP/% v/(frame·s?1)
Faster Rcnn Titan X VGG-16 70.4 7.0
YOLOv4 1060 Ti CSPDarknet53 75.0 35.0
YOLOv5 1060 Ti FOCUS+CSP 76.6 38.0
SSD Titan X VGG-16 75.6 46.0
RP-SSD 1080 Ti VGG-16 78.4 32.0
OURS 1060 Ti VGG-16 83.1 25.0
表 5  各类方法在PASCAL VOC数据性能对比结果
1 DALAL N, TRIGGS B. Histograms of oriented gradients for human detection [C]// IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR'05). San Diego: IEEE, 2005, 1: 886-893.
2 KUMAR P, HENIKOFF S, NG P C Predicting the effects of coding non-synonymous variants on protein function using the SIFT algorithm[J]. Nature Protocols, 2009, 4 (8): 1073- 1081
3 CHERKASSKY V, MA Y Practical selection of SVM parameters and noise estimation for SVM regression[J]. Neural networks, 2004, 17 (1): 113- 126
doi: 10.1016/S0893-6080(03)00169-2
4 GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation [C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Columbus: IEEE, 2014: 580-587.
5 GIRSHICK R. Fast r-cnn [C]// Proceedings of the IEEE International Conference on Computer Vision. Boston: IEEE, 2015: 1440-1448.
6 REN S, HE K, GIRSHICK R, et al Faster r-cnn: towards real-time object detection with region proposal networks[J]. Advances in Neural Information Processing Systems, 2015, 1137- 1149
7 REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: unified, real-time object detection [C]// IEEE Conference on Computer Vision and Pattern Recognition. Washington, DC: IEEE Computer Society. Las Vegas: IEEE, 2016: 779-788.
8 LIU W, ANGUELOV D, ERHAN D, et al. SSD: single shot multibox detector [C]// European Conference on Computer Vision, LNCS 9905. Berlin: Springer, 2016: 21-37.
9 FU C Y, LIU W, RANGA A, et al. DSSD: deconvolutional single shot detector [EB/OL]. [2021-11-23]. https://arxiv.org/abs/1701.06659v1.
10 LI Z, ZHOU F. FSSD: feature fusion single shot multibox detector [EB/OL]. [2021-11-23]. https://arxiv.org/abs/1712.00960.
11 JEONG J, PARK H, KWAK N. Enhancement of SSD by concatenating feature maps for object detection [EB/OL]. [2021-11-23]. https://arxiv.org/abs/1705.09587.
12 李航, 朱明 基于深度卷积神经网络的小目标检测算法[J]. 计算机工程与科学, 2020, 42 (4): 649- 657
LI Hang, ZHU Ming A small object detection algorithm based on deep convolutional neural network[J]. Computer Engineering and Science, 2020, 42 (4): 649- 657
doi: 10.3969/j.issn.1007-130X.2020.04.011
13 CHEN Yu-kang, ZHANG Pei-zhen, LI Ze-ming, et al. Dynamic scale training for object detection [EB/OL]. [2021-11-23].https://arxiv.org/abs/2004.12432v2.
14 LIU S, HUANG D, WANG Y. Learning spatial fusion for single shot object detection [EB/OL]. [2021-11-23]. https://arxiv.org/abs/1911.09516.
15 ZOPH B, CUBUK E D, GHIASI G, et al. Learning data augmentation strategies for object detection [C]// European Conference on Computer Vision. Springer, Cham, 2020: 566-583.
16 WANG T, ANWER R M, CHOLAKKAL H, et al. Learning rich features at high-speed for single-shot object detection [C]//Proceedings of the IEEE/CVF International Conference on Computer Vision. Long Beach: IEEE, 2019: 1971-1980.
17 HU J, SHEN L, SUN G. Squeeze and excitation networks [C]//Proceedings of the IEEE conference on computer vision and pattern recognition. Salt Lake City: IEEE, 2018: 7132-7141.
18 DUAN K, BAI S, XIE L, et al. Centernet: keypoint triplets for object detection [C]// Proceedings of the IEEE/CVF international conference on computer vision. Long Beach: IEEE, 2019: 6569-6578.
19 WANG C Y, BOCHKOVSKIY A, LIAO H Y M. Scaled-yolov4: scaling cross stage partial network [C]// Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Nashville: IEEE, 2021: 13029-13038.
20 YANG G, FENG W, JIN J, et al. Face mask recognition system with YOLOV5 based on image recognition [C]// IEEE 6th International Conference on Computer and Communications (ICCC). Seattle: IEEE, 2020: 1398-1404.
21 梁鸿, 李洋, 邵明文, 等 基于残差网络和改进特征金字塔的油田作业现场目标检测算法[J]. 科学技术与工程, 2020, 20 (11): 4442- 4450
LIANG Hong, LI Yang, SHAO Ming-wen, et al Field object detection for oilfield operation based on residual network and improved feature pyramid networks[J]. Science Technology and Engineering, 2020, 20 (11): 4442- 4450
doi: 10.3969/j.issn.1671-1815.2020.11.035
