VAE model combined with multi-domain feature for muscle fatigue analysis

doi:10.3785/j.issn.1008-973X.2026.06.019

Journal of ZheJiang University (Engineering Science)

2026, Vol. 60

Issue (6): 1317-1328 DOI: 10.3785/j.issn.1008-973X.2026.06.019

VAE model combined with multi-domain feature for muscle fatigue analysis

Bo DONG1(

),Donghao LV1,2,*(

),Dahua YU1,Xiaowei DU3

1. School of Automation and Electrical Engineering, Inner Mongolia University of Science and Technology, Baotou 014010, China
2. School of Automation, China University of Geosciences, Wuhan 430074, China
3. Department of Physical Education, Inner Monglia University of Science and Technology, Baotou 014010, China

Download:

HTML

PDF(1447KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A structure-smoothing regularized variational autoencoder (SSR-VAE) was proposed based on the variational autoencoder (VAE) in order to address the issue of single-feature reliance, limited capacity to capture complex fatigue evolution process, and unclear delineation of fatigue state in existing muscle fatigue analysis method. Time-domain, frequency-domain and nonlinear entropy feature were incorporated to enhance the model’s ability to capture the dynamic change in surface electromyography (sEMG) signal. The decoupling and temporal continuity of the latent variable space were optimized by introducing weighted KL divergence and trajectory smoothing regularization term into the loss function. A correlation-based selection mechanism was used to extract the main fatigue factor from the latent space, which effectively represented the muscle fatigue state. The experimental results show that SSR-VAE outperforms the VAE model in reconstruction performance, and the extracted main fatigue factor can be used to more clearly distinguish different fatigue stage. SSR-VAE achieved a maximum accuracy of 96.211% in muscle fatigue state classification, significantly outperforming other comparison method.

Key words： muscle fatigue surface electromyography signal variational autoencoder (VAE) latent variable feature fusion

Received: 01 July 2025 Published: 06 May 2026

CLC:

TN 911

Fund: 内蒙古自治区自然科学基金资助项目(2024MS06024)；内蒙古自治区一流学科科研专项资助项目(YLXKZX-NKD-020)；内蒙古自治区直属高校基本科研业务费资助项目(2023QNJS194).

Corresponding Authors: Donghao LV E-mail: 2023023236@stu.imust.edu.cn;wsldh2016957@imust.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Bo DONG
	Donghao LV
	Dahua YU
	Xiaowei DU

Cite this article:

Bo DONG,Donghao LV,Dahua YU,Xiaowei DU. VAE model combined with multi-domain feature for muscle fatigue analysis. Journal of ZheJiang University (Engineering Science), 2026, 60(6): 1317-1328.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.06.019 OR https://www.zjujournals.com/eng/Y2026/V60/I6/1317

融合多域特征的VAE模型在肌肉疲劳分析中的应用

针对现有肌肉疲劳分析方法中存在的特征单一、对复杂疲劳演化过程捕捉能力不足以及疲劳状态界定不清等问题，基于变分自编码器(VAE)提出结构-平滑正则化变分自编码器(SSR-VAE). 结合时域、频域和非线性熵3类特征输入，增强对表面肌电(sEMG)信号动态变化的捕捉能力. 通过在损失函数中引入加权KL散度和轨迹平滑正则化项，优化了潜变量空间的解耦性和时序连续性. 利用相关性筛选机制，从潜变量空间中提取主疲劳因子，有效表征肌肉疲劳状态. 实验结果表明，与VAE模型相比，SSR-VAE在重构性能方面表现更优，利用提取的主疲劳因子，能够更清晰地划分疲劳阶段. SSR-VAE在肌肉疲劳状态分类中的最高准确率达到96.211%，明显优于其他对比方法.

关键词： 肌肉疲劳, 表面肌电信号, 变分自编码器(VAE), 潜变量, 特征融合

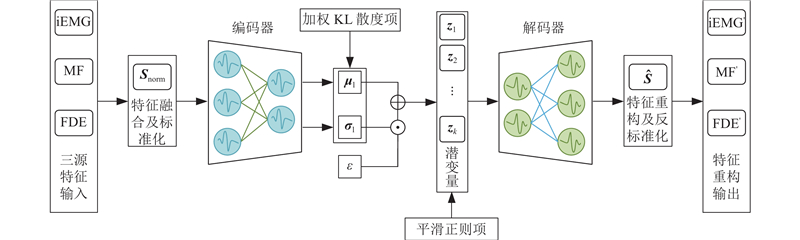

Fig.1 SSR-VAE model

Tab.1 Optimization result of KL weighted parameter

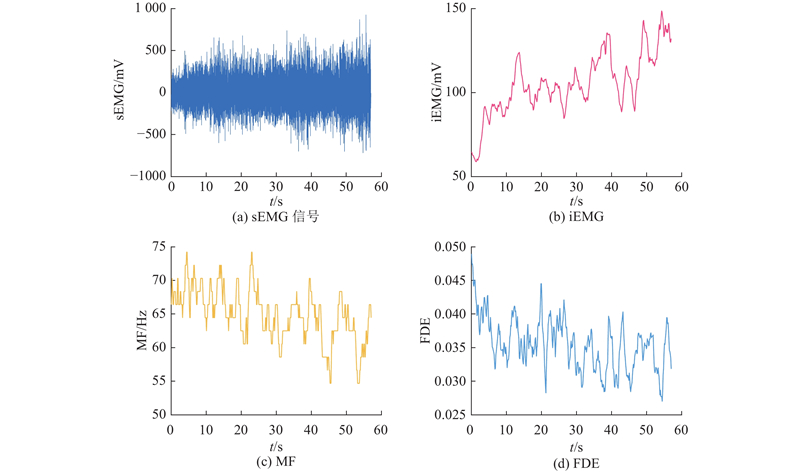

Fig.2 Feature extraction result of sEMG signal

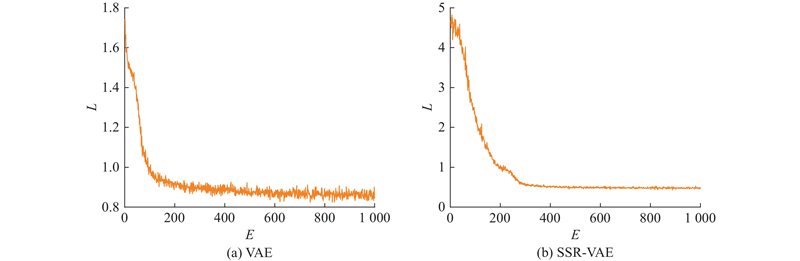

Fig.3 Convergence curve of two models

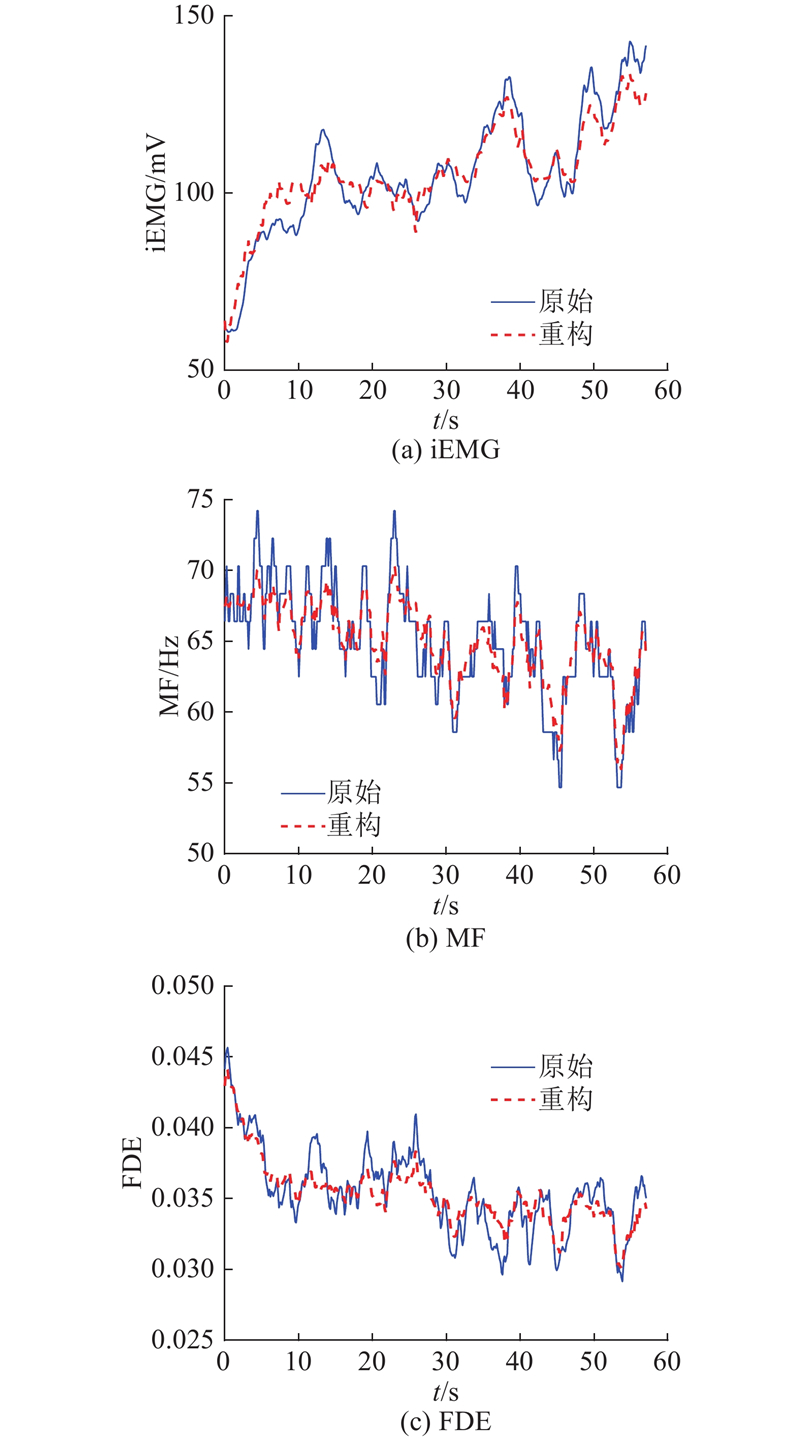

Fig.4 Feature reconstruction result of variational autoencoder model

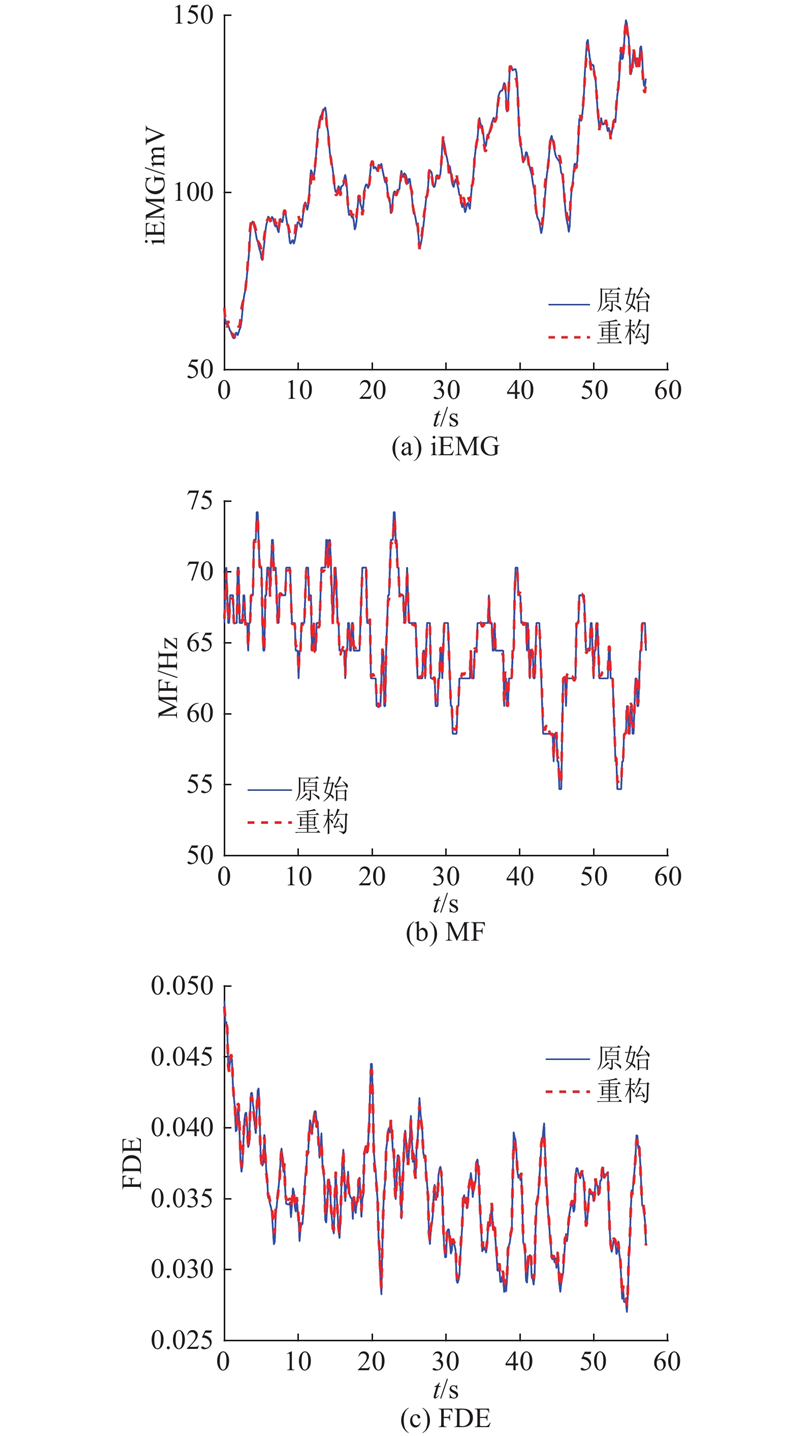

Fig.5 Feature reconstruction results of SSR-VAE

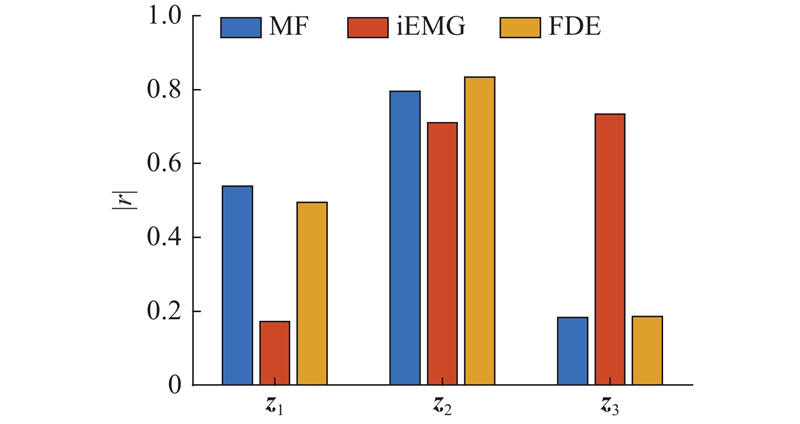

Fig.6 Correlation between latent variable and feature

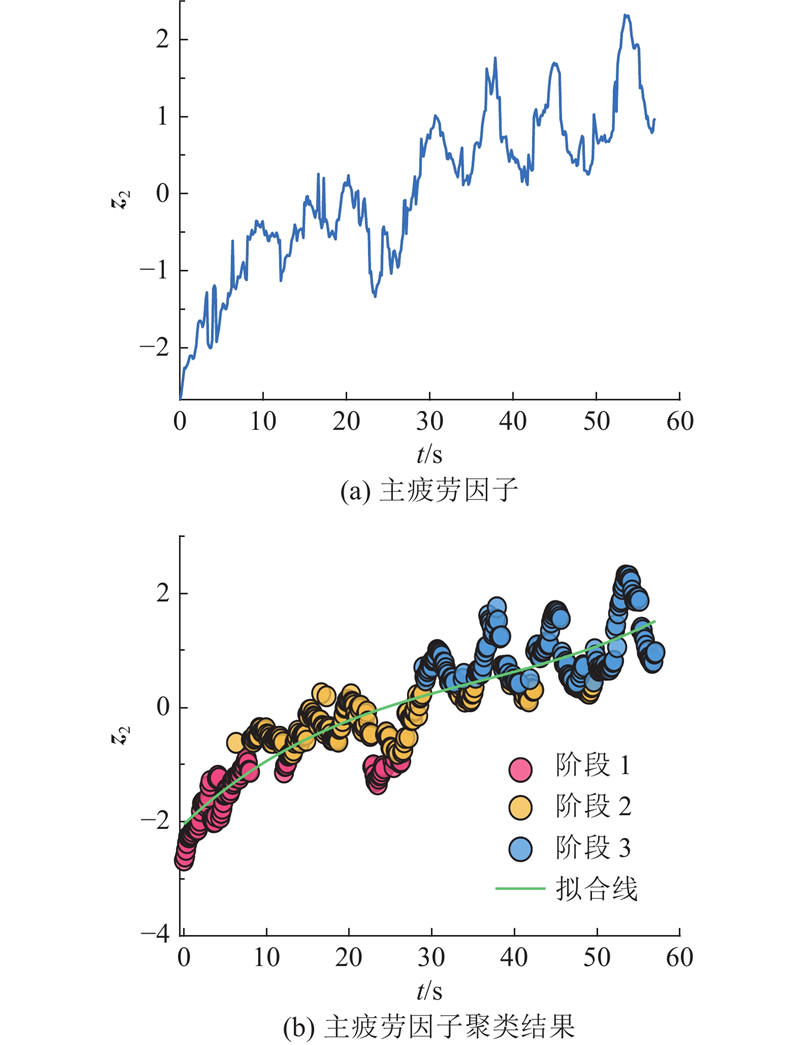

Fig.7 Main fatigue factor and clustering result

Tab.2 Quantification result of muscle fatigue in each subject

Tab.3 Result of muscle fatigue classification with different feature %

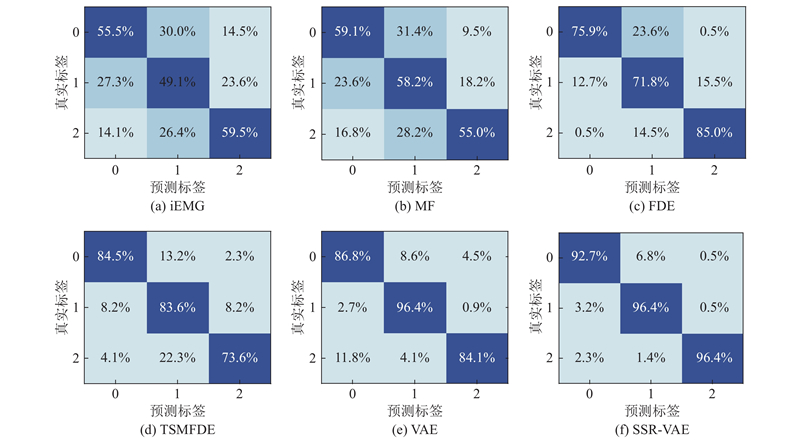

Fig.8 Confusion matrix result of muscle fatigue classification experiment
