Lightweight detection model for typical environmental terrain target in Tibetan Plateau

doi:10.3785/j.issn.1008-973X.2026.03.015

Journal of ZheJiang University (Engineering Science)

2026, Vol. 60

Issue (3): 594-603 DOI: 10.3785/j.issn.1008-973X.2026.03.015

Lightweight detection model for typical environmental terrain target in Tibetan Plateau

Weiqun LUO1(

),Jingwei LU1,Jiadi WU1,Yuying LIANG1,Chuanpeng SHEN1,Rui ZHU1,2,*(

)

1. College of Information Engineering, Xizang Minzu University, Xianyang 712082, China
2. School of Aerospace Engineering, Xiamen University, Xiamen 361102, China

Download:

HTML

PDF(3893KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An obstacle detection model AO-YOLO was proposed in order to solve the problems of low accuracy and excessive calculation of obstacle recognition in traditional methods faced by general aviation aircraft in plateau mountain application scenarios. A multi-scale expanded attention mechanism was introduced by optimizing the existing YOLOv8n model in order to enhance the ability of Neck network to fuse features of different scales. HGBlock structure was used to replace the original Bottleneck module, and lightweight convolution was used to establish the feature hierarchical relationship, so that the network can extract local and global context information at the same time. The memory-efficient attention module and lightweight convolution module were combined to design a new detection head in in order to reduce the number of model parameters and computational cost. The experimental results showed that the mAP@0.5 index of AO-YOLO increased by 2.7% and the mAP@0.5:0.95 index increased by 2.0% on the constructed plateau mountain obstacle dataset (FOD) compared with YOLOv8n, and the overall calculation amount reduced by 24.7%. The proposed model has the characteristics of high accuracy and lightweight in the highland aviation obstacle detection task.

Key words： plateau aviation obstacle detection lightweight YOLOv8n multi-scale dilated attention feature extraction

Received: 30 January 2025 Published: 04 February 2026

CLC:	TP 183
	TP 391

Fund: 西藏自治区重点研发计划资助项目（XZ202401ZY0102,XZ202403ZY0019,XZ202402ZY0017）；厦门市自然科学基金资助项目（3502Z20227179）；教育部人文社会科学规划基金资助项目（23XZJAZH001）；西藏自治区自然科学基金重点资助项目（XZ202401ZR0055）；福建省自然科学基金资助项目（2022J01058）；中国航空科学基金资助项目（2023Z032068001）；水声对抗技术重点实验室基金资助项目（JCKY2024207CH05）；西藏民族大学基金资助项目（Y2024050）.

Corresponding Authors: Rui ZHU E-mail: 1034228464@qq.com;zhurui@xmu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Weiqun LUO
	Jingwei LU
	Jiadi WU
	Yuying LIANG
	Chuanpeng SHEN
	Rui ZHU

Cite this article:

Weiqun LUO,Jingwei LU,Jiadi WU,Yuying LIANG,Chuanpeng SHEN,Rui ZHU. Lightweight detection model for typical environmental terrain target in Tibetan Plateau. Journal of ZheJiang University (Engineering Science), 2026, 60(3): 594-603.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.03.015 OR https://www.zjujournals.com/eng/Y2026/V60/I3/594

藏区高原典型环境地形目标的轻量化检测模型

为了解决通用航空飞行器在高原山区应用场景中，所面临的传统方法障碍物识别精度低和计算量过大等问题，提出障碍物检测模型AO-YOLO. 通过优化现有的YOLOv8n模型，引入多尺度扩张注意力机制，增强Neck网络对不同尺度特征的融合能力. 采用HGBlock结构替换原有的Bottleneck模块，通过轻量级卷积建立特征层次化关系，使网络能够同时提取局部与全局上下文信息. 结合内存高效的注意力模块与轻量级卷积模块，设计新的检测头，降低模型参数量与计算成本. 实验结果显示，在构建的高原山区障碍物数据集（FOD）上，相较于YOLOv8n，AO-YOLO的mAP@0.5指标提升了2.7%，mAP@0.5:0.95指标提升了2.0%，整体计算量减少了24.7%. 该模型在高原航空障碍物检测任务中具有精度较高和轻量化的特性.

关键词： 高原航空, 障碍物检测, 轻量化YOLOv8n, 多尺度扩张注意力, 特征提取

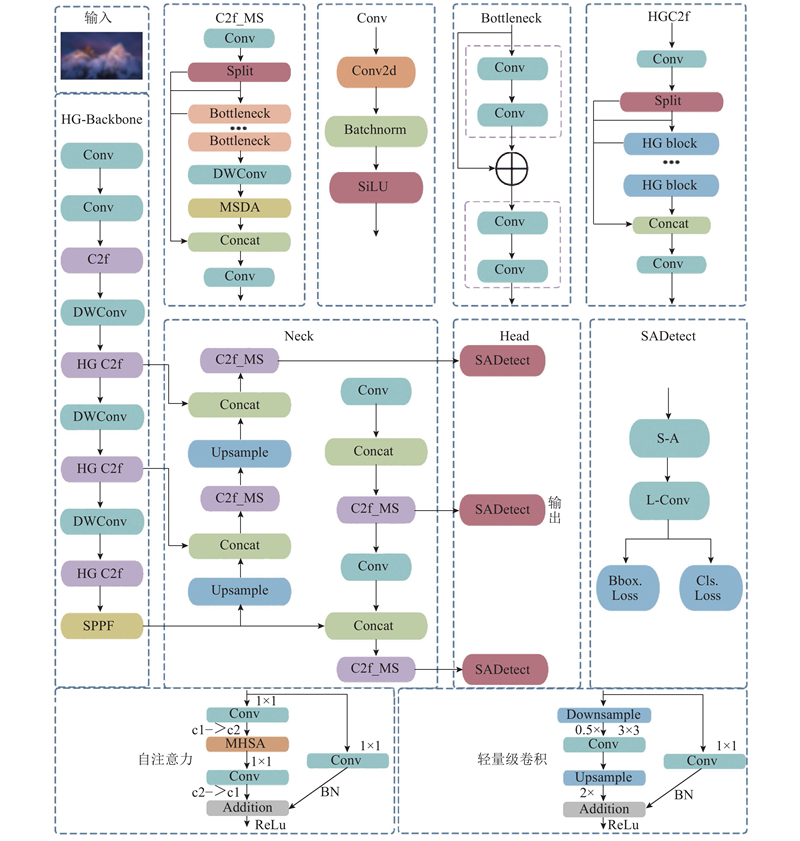

Fig.1 Structure diagram of AO-YOLO network

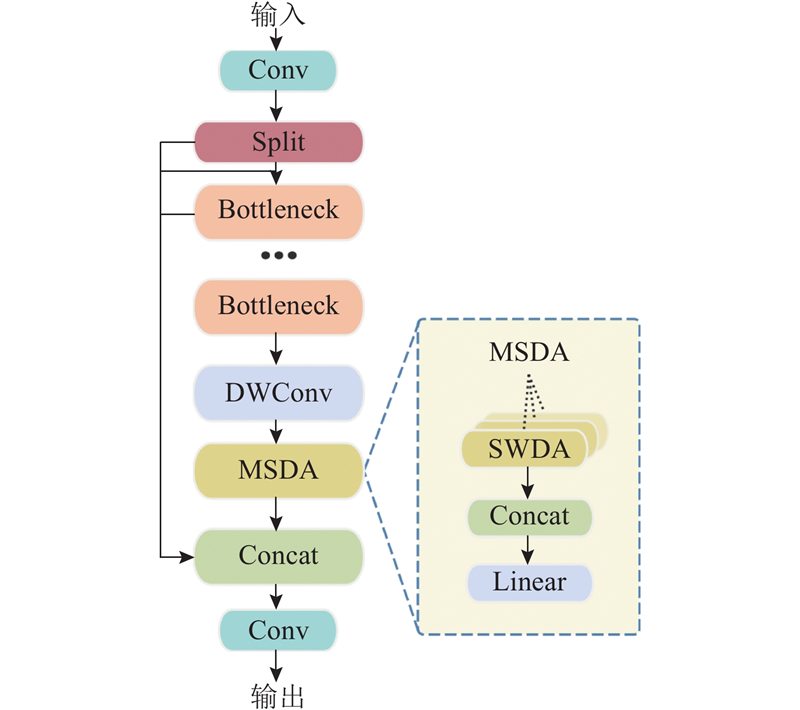

Fig.2 Structure of C2f_MS module

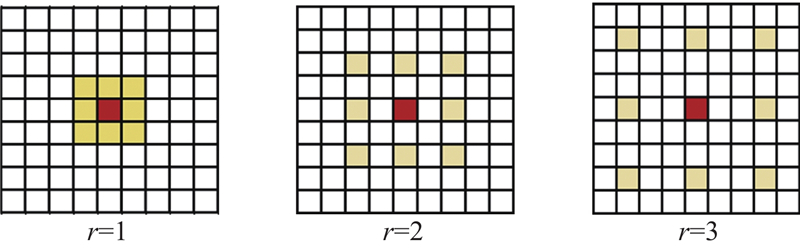

Fig.3 Schematic of receptive field controlled by expansion rate

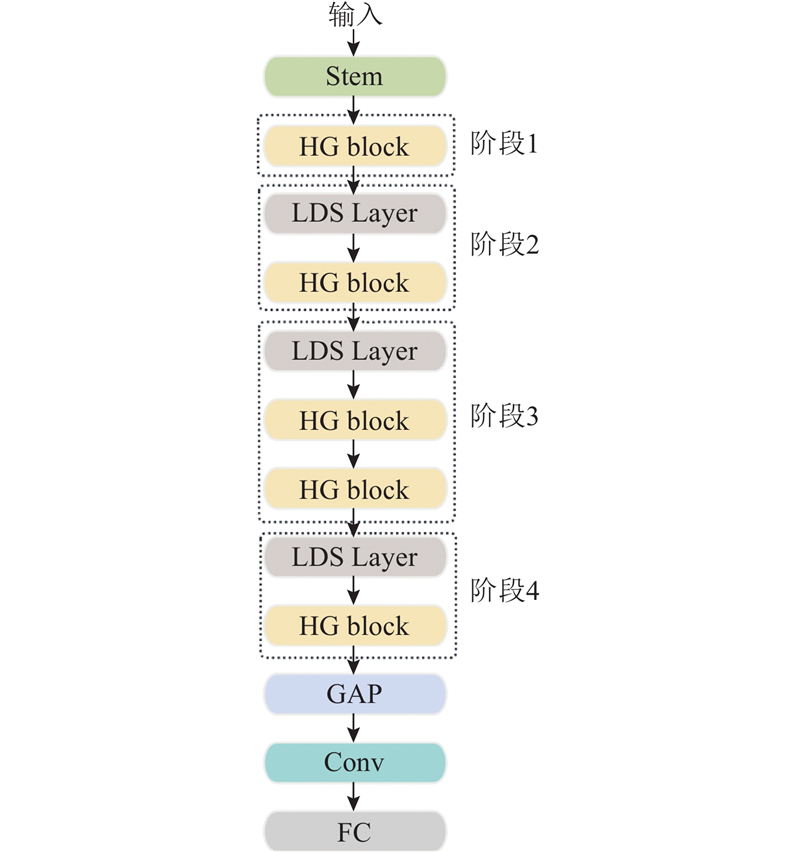

Fig.4 Structure diagram of PP-HGNetV2

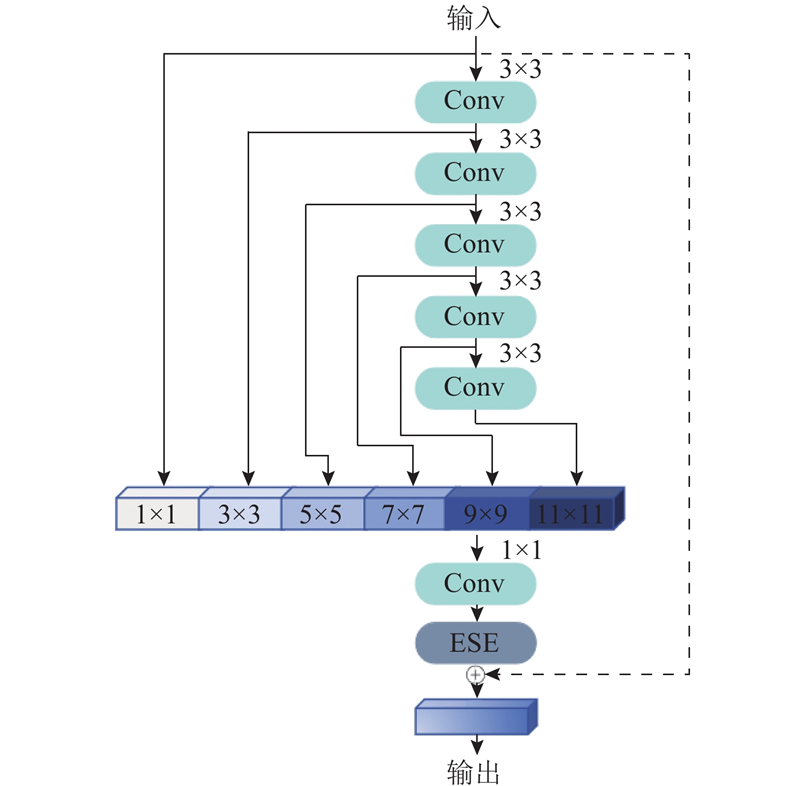

Fig.5 Structure diagram of HGBlock module

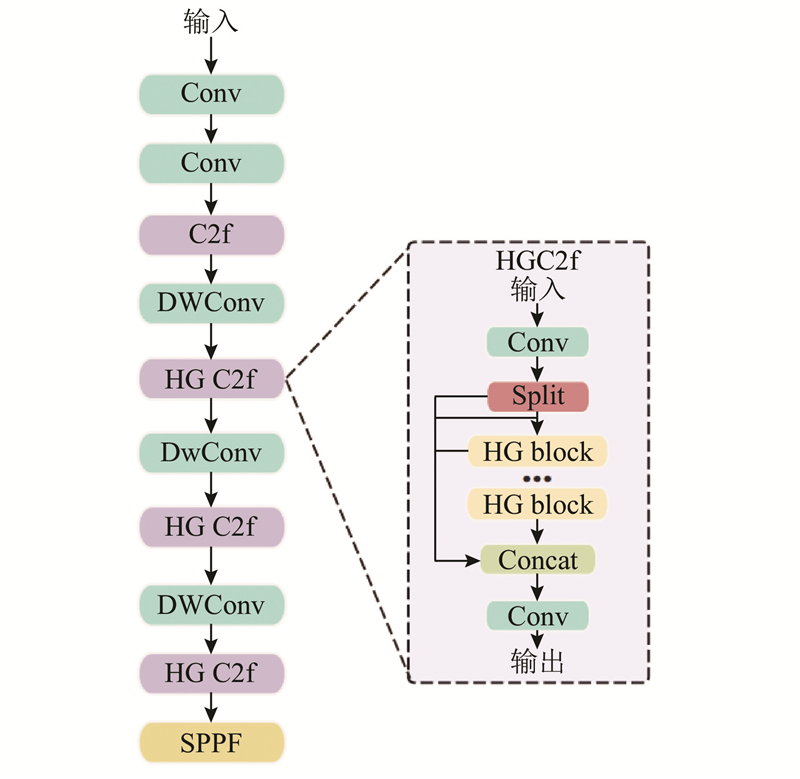

Fig.6 Refactored backbone network structure

Fig.7 Structure of SADetect

Tab.1 Setting of training parameter

Tab.2 Model comparison experiment conducted on FOD dataset

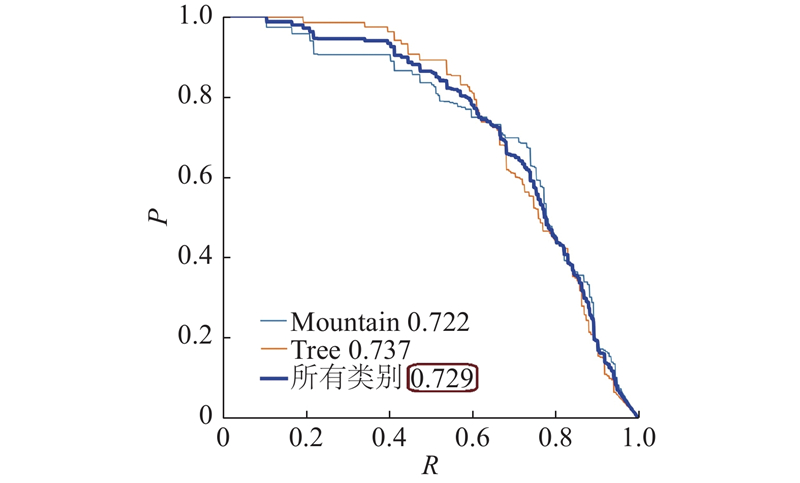

Fig.8 Precision-recall curve of YOLOv8n

Fig.9 Precision-recall curve of AO-YOLO

Tab.3 Ablation experiment of AO-YOLO model

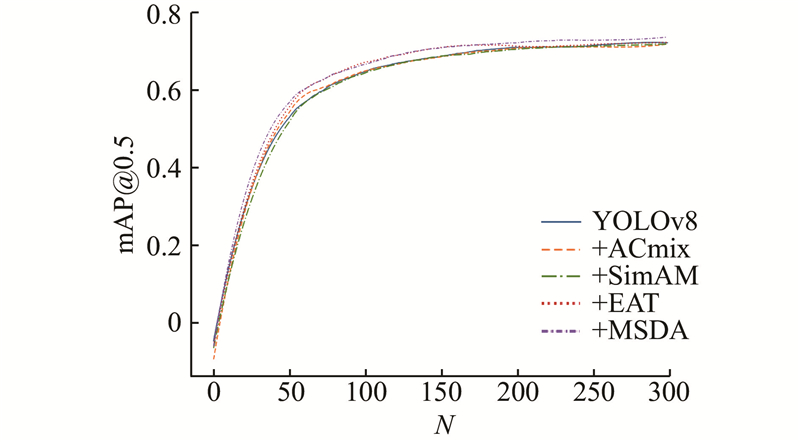

Fig.10 Comparison of different attention mechanism

Tab.4 Experimental result on VisDrone2019

Tab.5 Experimental result on NWPU VHR-10

Fig.11 Visual comparison of detection result


[1]	DALAL N, TRIGGS B. Histograms of oriented gradients for human detection [C]//Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition. San Diego: IEEE, 2005: 886–893.

[2]	GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation [C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Columbus: IEEE, 2014: 580–587.

[3]	GIRSHICK R. Fast R-CNN [C]//Proceedings of the IEEE International Conference on Computer Vision. Santiago: IEEE, 2016: 1440–1448.

[4]	REN S, HE K, GIRSHICK R, et al Faster R-CNN: towards real-time object detection with region proposal networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39 (6): 1137- 1149 doi: 10.1109/TPAMI.2016.2577031

[5]	HE K, GKIOXARI G, DOLLÁR P, et al. Mask R-CNN [C]//Proceedings of the IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 2980–2988.

[6]	赵志宏, 郝子晔改进YOLOv8的航拍小目标检测方法: CRP-YOLO[J]. 计算机工程与应用, 2024, 60 (13): 209- 218 ZHAO Zhihong, HAO Ziye Improved YOLOv8 aerial small target detection method: CRP-YOLO[J]. Computer Engineering and Applications, 2024, 60 (13): 209- 218

[7]	LIU W, ANGUELOV D, ERHAN D, et al. SSD: single shot MultiBox detector [C]// 14th European Conference on Computer Vision. Cham: Springer, 2016: 21–37.

[8]	REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: unified, real-time object detection [C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 779–788.

[9]	TANG S, ZHANG S, FANG Y. HIC-YOLOv5: improved YOLOv5 for small object detection [C]//Proceedings of the IEEE International Conference on Robotics and Automation. Yokohama: IEEE, 2024: 6614-6619.

[10]	YANG Y. Drone-view object detection based on the improved YOLOv5 [C]//Proceedings of the IEEE International Conference on Electrical Engineering, Big Data and Algorithms. Changchun: IEEE, 2022: 612–617.

[11]	韩俊, 袁小平, 王准, 等基于YOLOv5s的无人机密集小目标检测算法[J]. 浙江大学学报: 工学版, 2023, 57 (6): 1224- 1233 HAN Jun, YUAN Xiaoping, WANG Zhun, et al UAV dense small target detection algorithm based on YOLOv5s[J]. Journal of Zhejiang University: Engineering Science, 2023, 57 (6): 1224- 1233

[12]	张徐, 朱正为, 郭玉英, 等基于cosSTR-YOLOv7的多尺度遥感小目标检测[J]. 电光与控制, 2024, 31 (4): 28- 34 ZHANG Xu, ZHU Zhengwei, GUO Yuying, et al Multi-scale remote sensing small target detection based on cosSTR-YOLOv7[J]. Electronics Optics and Control, 2024, 31 (4): 28- 34

[13]	王燕妮, 张婧菲. 改进YOLOv8的无人机小目标检测算法 [J/OL]. 探测与控制学报, 2024, 46(6): 1–10. (2024-12-12). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=XDYX20241211005&dbname=CJFD&dbcode=CJFQ. WANG Yanni, ZHANG Jingfei. A modified YOLOv8 algorithm for UAV small object detection [J/OL]. Journal of Detection and Control, 2024, 46(6): 1–10. (2024-12-12). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=XDYX20241211005&dbname=CJFD&dbcode=CJFQ.

[14]	WANG G, CHEN Y, AN P, et al UAV-YOLOv8: a small-object-detection model based on improved YOLOv8 for UAV aerial photography scenarios[J]. Sensors, 2023, 23 (16): 7190 doi: 10.3390/s23167190

[15]	李岩超, 史卫亚, 冯灿面向无人机航拍小目标检测的轻量级YOLOv8检测算法[J]. 计算机工程与应用, 2024, 60 (17): 167- 178 LI Yanchao, SHI Weiya, FENG Can Lightweight YOLOv8 detection algorithm for small object detection in UAV aerial photography[J]. Computer Engineering and Applications, 2024, 60 (17): 167- 178

[16]	龙伍丹, 彭博, 胡节, 等基于加强特征提取的道路病害检测算法[J]. 计算机应用, 2024, 44 (7): 2264- 2270 LONG Wudan, PENG Bo, HU Jie, et al Road damage detection algorithm based on enhanced feature extraction[J]. Journal of Computer Applications, 2024, 44 (7): 2264- 2270

[17]	JIAO J, TANG Y M, LIN K Y, et al DilateFormer: multi-scale dilated transformer for visual recognition[J]. IEEE Transactions on Multimedia, 2023, 25: 8906- 8919 doi: 10.1109/TMM.2023.3243616

[18]	徐佩, 陈亚江融合Swin Transformer的YOLOv5口罩检测算法[J]. 智能计算机与应用, 2024, 14 (5): 83- 92 XU Pei, CHEN Yajiang Mask detection algorithm based on YOLOv5 integrating Swin Transformer[J]. Intelligent Computer and Applications, 2024, 14 (5): 83- 92

[19]	李登峰, 高明, 叶文韬结合轻量级特征提取网络的舰船目标检测算法[J]. 计算机工程与应用, 2023, 59 (23): 211- 218 LI Dengfeng, GAO Ming, YE Wentao Ship target detection algorithm combined with lightweight feature extraction network[J]. Computer Engineering and Applications, 2023, 59 (23): 211- 218

[20]	YU H, WAN C, LIU M, et al. Real-time image segmentation via hybrid convolutional-transformer architecture search [EB/OL]. (2024-03-15). https://arxiv.org/abs/2403.10413.

[21]	徐光达, 毛国君多层级特征融合的无人机航拍图像目标检测[J]. 计算机科学与探索, 2023, 17 (3): 635- 645 XU Guangda, MAO Guojun Aerial image object detection of UAV based on multi-level feature fusion[J]. Journal of Frontiers of Computer Science and Technology, 2023, 17 (3): 635- 645

[22]	张洋, 夏英多尺度特征融合的遥感图像目标检测方法[J]. 计算机科学, 2024, 51 (3): 165- 173 ZHANG Yang, XIA Ying Object detection method with multi-scale feature fusion for remote sensing images[J]. Computer Science, 2024, 51 (3): 165- 173

[23]	曹利, 徐慧英, 谢刚, 等. ASOD-YOLO: 基于YOLOv8n改进的航空小目标检测算法 [J/OL]. 计算机工程与科学, 2024, 46(9): 1–13. (2024-09-27). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=JSJK20240906002&dbname=CJFD&dbcode=CJFQ. CAO Li, XU Huiying, XIE Gang, et al. ASOD-YOLO: improved aviation small objection detection algorithm based on YOLOv8n [J/OL]. Computer Engineering and Science, 2024, 46(9): 1–13. (2024-09-27). https://kns.cnki.net/KCMS/detail/detail.aspx?filename=JSJK20240906002&dbname=CJFD&dbcode=CJFQ.

[24]	LIN T Y, GOYAL P, GIRSHICK R, et al. Focal loss for dense object detection [C]//Proceedings of the IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 2999–3007.

[25]	CAI Z, VASCONCELOS N. Cascade R-CNN: delving into high quality object detection [C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City: IEEE, 2018: 6154–6162.

[26]	LI C, LI L, JIANG H, et al. YOLOv6: a single-stage object detection framework for industrial applications [EB/OL]. (2022-09-07). https://arxiv.org/abs/2209.02976

[27]	PAN X, GE C, LU R, et al. On the integration of self-attention and convolution [C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. New Orleans: IEEE, 2022: 805–815.

[28]	YANG L, ZHANG R Y, LI L, et al. SimAM: a simple, parameter-free attention module for convolutional neural networks [C]//Proceedings of the International Conference on Machine Learning. Graz: ACM, 2021: 11863-11874.
