In-situ monitoring device for seabed terrain deformation based on MEMS sensor array

Yong-qiang GE1(

),Chen CAO1,Jia-wang CHEN1,2,*(

),Chun-ying XU3,Peng ZHOU1,Feng GAO1,Tao LIANG1,Yu-ping FANG1

1. Ocean College, Zhejiang University, Zhoushan 316021, China
2. The Engineering Research Center of Oceanic Sensing Technology and Equipment, Ministry of Education, Zhoushan 316021, China
3. College of Engineering, Shantou University, Shantou 515013, China

Download:

HTML

PDF(2028KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to meet the urgent need of environmental assessment of the trial production of gas hydrate resources in South China Sea, a seabed terrain deformation monitoring technology and device based on micro-electro-mechanical system (MEMS) sensor array was proposed. The multi-point synchronous acquisition system based on MEMS sensor array was developed, and in-situ terrain monitoring in an area of 30 m×30 m was realized in the laboratory tests. The resolution of terrain deformation monitoring was better than 5 cm level, and the monitoring error was less than 13 mm. The three-dimension seabed terrain deformation vector model was constructed. The bend angle of MEMS sensor and the length of each segment were used to determine the position of the sensor array after deformation, and the subdivision algorithm was used to fit the surface shape of the submarine terrain. The proposed seabed terrain deformation monitoring device has completed in-situ consecutively monitoring for 6 months in gas hydrate trial mining area (water depth of 1203 m). The sea trial results show that MEMS sensor array observed a maximum subsidence of 2 cm and a maximum elevation of 10 cm.

Key words： micro-electro-mechanical system (MEMS) sensor array synchronous acquisition terrain deformation reconstruction in-situ monitoring

Received: 22 September 2021 Published: 28 September 2022

CLC:

P 751

Fund: 国家自然科学基金资助项目（4197060386）；国家科技重大专项资助项目（2017YFC0307703）；海南省重大科技计划资助项目（ZDKJ202019）；浙江省重点研发计划资助项目（2018C03SAA01010，2020C03G2012430）

Corresponding Authors: Jia-wang CHEN E-mail: ge_yongqiang@zju.edu.cn;arwang@zju.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yong-qiang GE
	Chen CAO
	Jia-wang CHEN
	Chun-ying XU
	Peng ZHOU
	Feng GAO
	Tao LIANG
	Yu-ping FANG

Cite this article:

Yong-qiang GE,Chen CAO,Jia-wang CHEN,Chun-ying XU,Peng ZHOU,Feng GAO,Tao LIANG,Yu-ping FANG. In-situ monitoring device for seabed terrain deformation based on MEMS sensor array. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1732-1739.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.09.006 OR https://www.zjujournals.com/eng/Y2022/V56/I9/1732

基于MEMS传感阵列的海底地形形变原位监测装置

为了满足南海天然气水合物资源试采环境评价的迫切需要，提出基于微机电系统（MEMS）传感阵列的海底地形形变监测技术及装置. 开发基于MEMS传感阵列的多点同步采集系统，在实验室理想环境测试中，实现 $ 30\;{{\rm{m}}}\times 30\;\mathrm{m} $区域的地形原位监测，地形形变监测分辨率优于5 cm且监测误差小于13 mm. 构建三维海底地形变形矢量模型，利用MEMS传感器的扭转角和各节的长度确定传感阵列变形后的空间位置，采用细分算法拟合获得地形的表面形态. 所提海底地形形变监测装置在水深为1 203 m的天然气水合物试采区完成连续6个月的原位监测. 海试结果表明，MEMS传感阵列观测到的地形最大沉降量为2 cm，最大抬升量为10 cm.

关键词： 微机电系统(MEMS)传感阵列, 同步采集, 地形变形重构, 原位监测

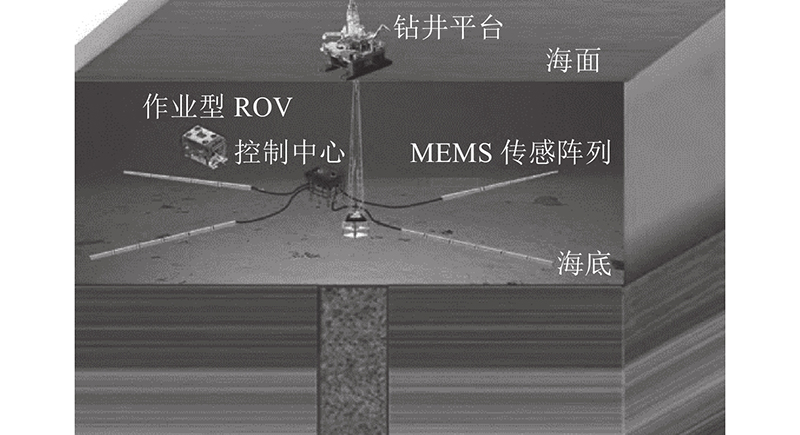

Fig.1 Schematic diagram of deployment of micro-electro-mechanical system sensor array in seabed

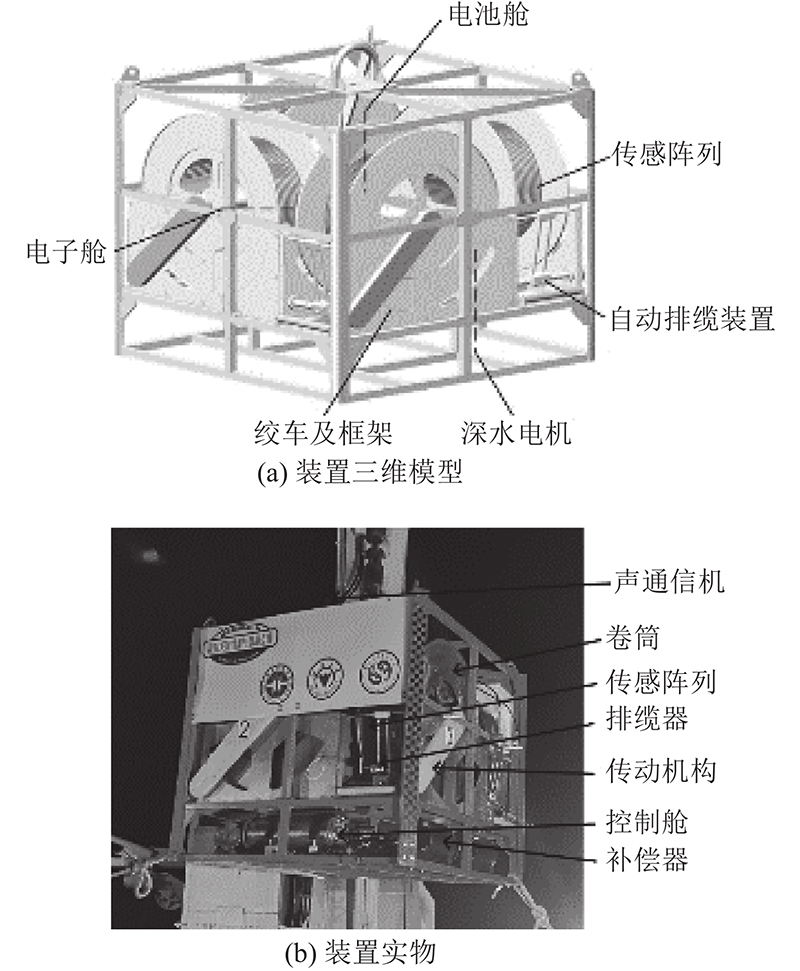

Fig.2 Terrain monitoring device

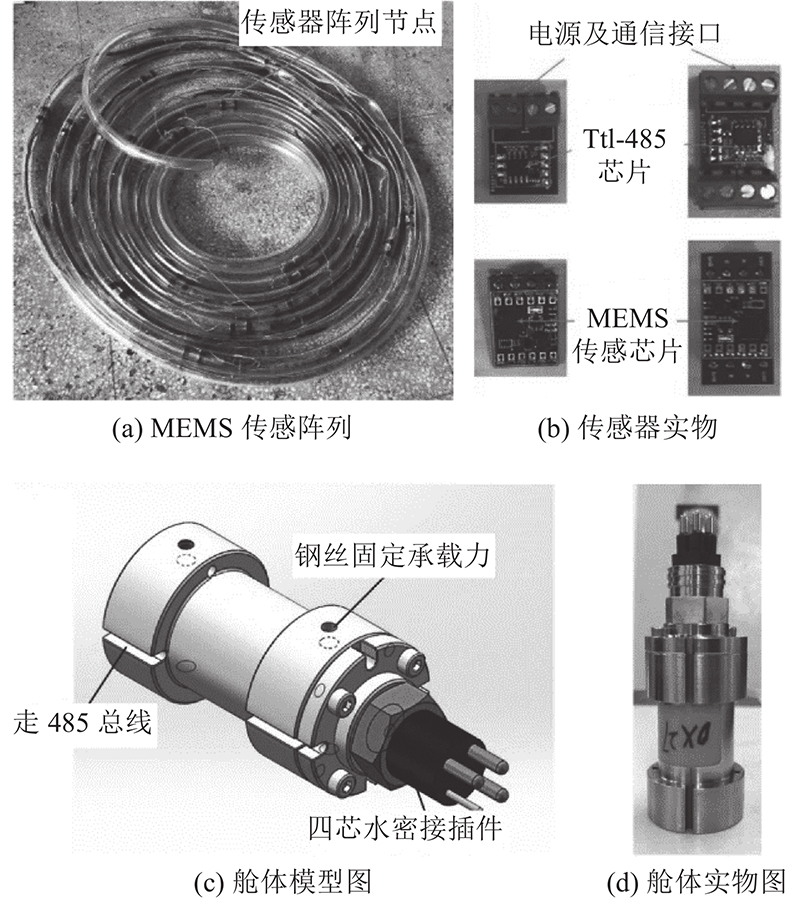

Fig.3 Micro-electro-mechanical system sensor array, sensor node and sensor chamber

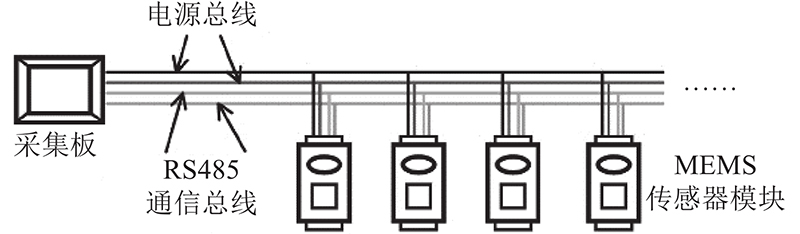

Fig.4 Cascading of sensor nodes on micro-electro-mechanical system senor array

Tab.1 Relationship between inquiry interval and data loss rate of acquisition board

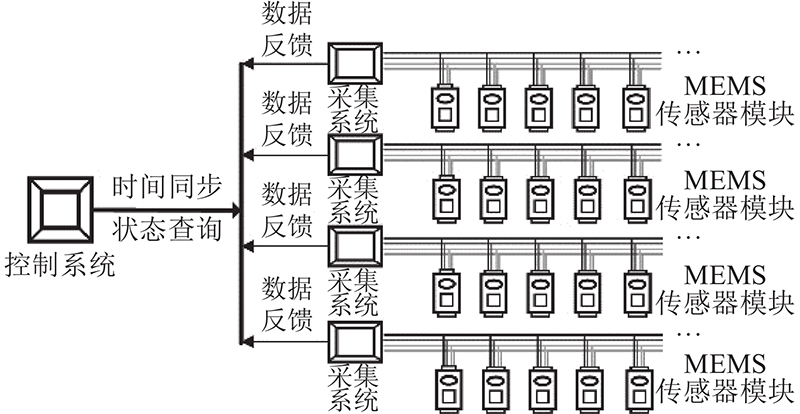

Fig.5 Schematic diagram of data acquisition and control system of micro-electro-mechanical system sensor array

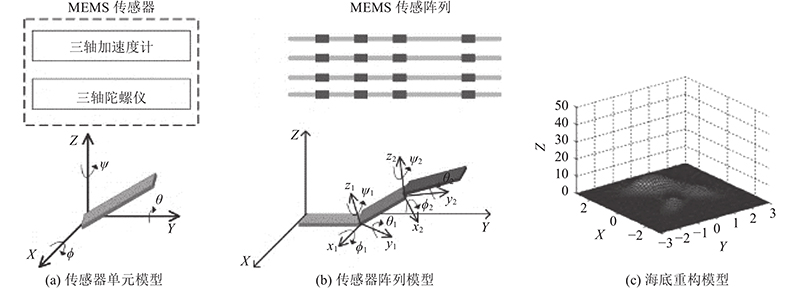

Fig.6 3D reconstruction process of terrain deformation

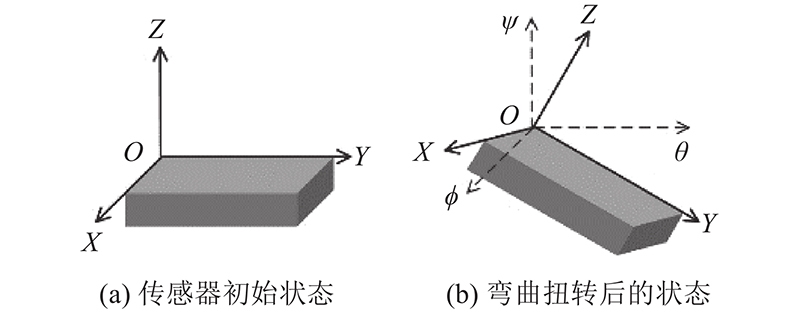

Fig.7 Schematic diagram of micro-electro-mechanical system sensor bending and torsion

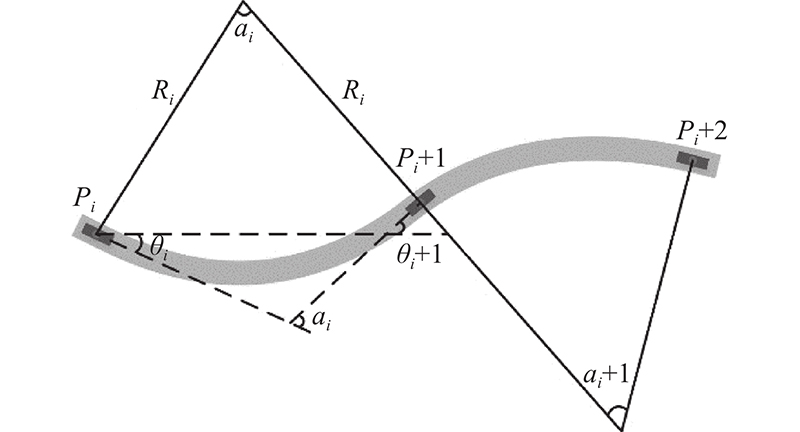

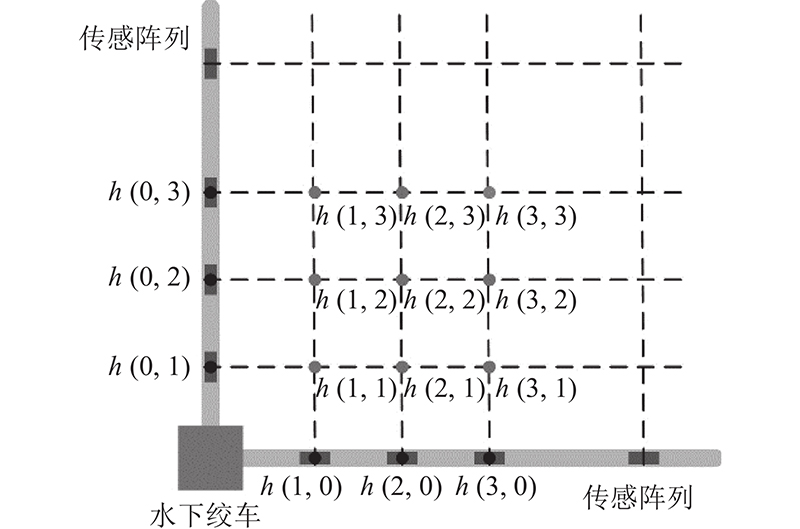

Fig.8 Arc model of micro-electro-mechanical system sensor array

Fig.9 Monitoring area of micro-electro-mechanical system sensor array

Fig.10 Schematic diagram of interpolation algorithm

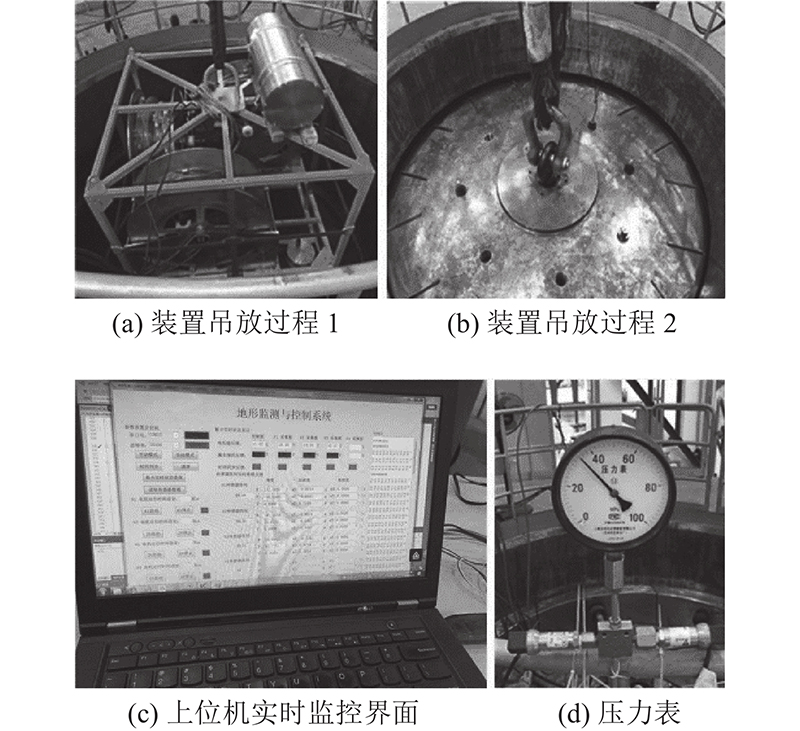

Fig.11 35 MPa pressure test of terrain monitoring system

Tab.2 Monitoring performance of micro-electro-mechanical system sensor array

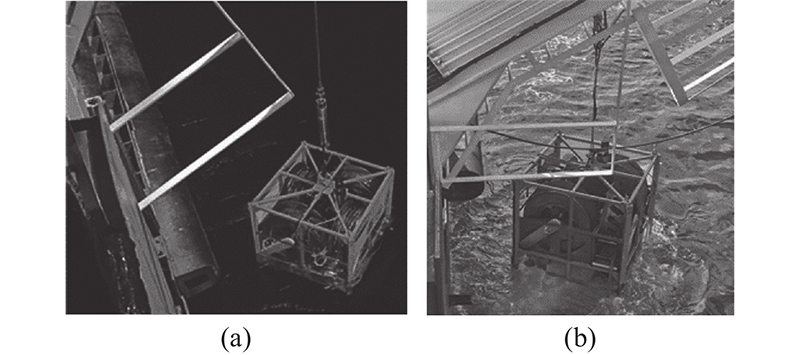

Fig.12 Deployment and recovery of terrain deformation monitoring device

Fig.13 Terrain deformation monitoring device in seabed

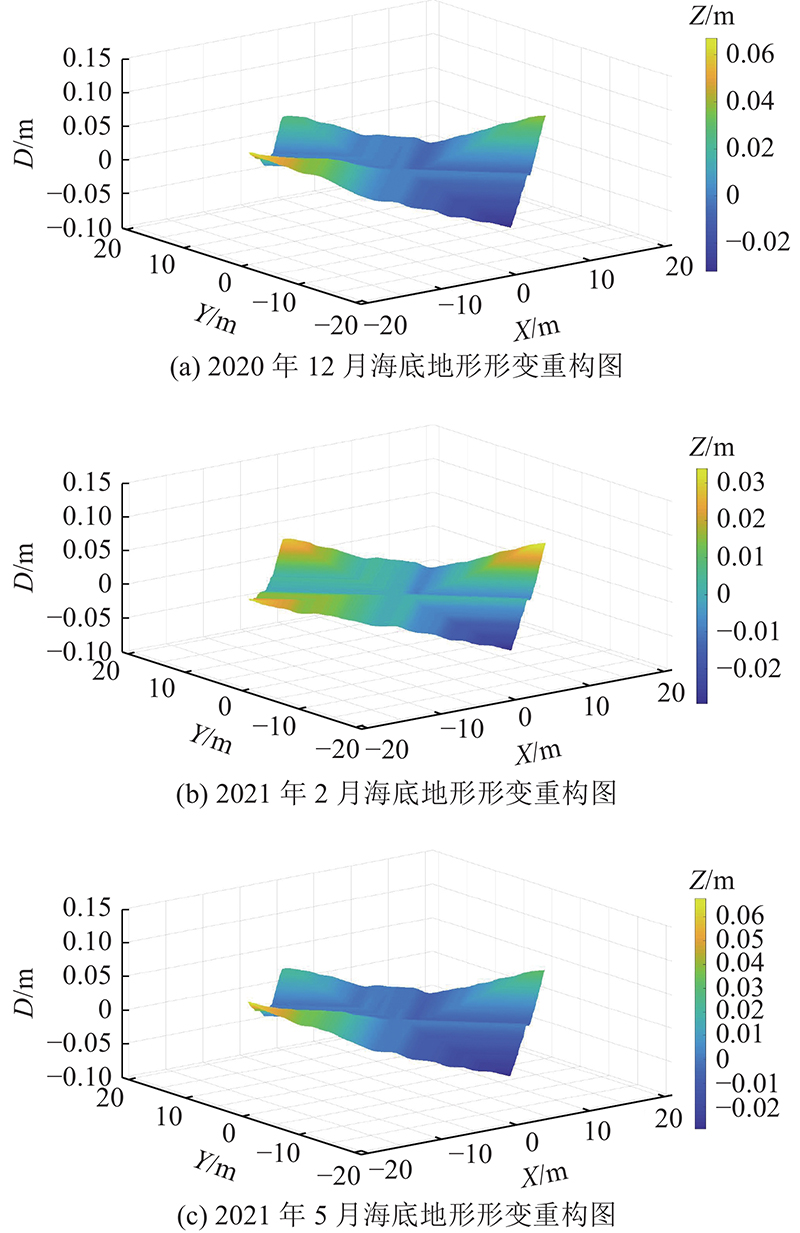

Fig.14 3D mapping of seabed terrain deformation
