Bearing characteristics of cement-fly ash mixing pile composite foundation

doi:10.3785/j.issn.1008-973X.2022.09.005

Journal of ZheJiang University (Engineering Science)

2022, Vol. 56

Issue (9): 1724-1731 DOI: 10.3785/j.issn.1008-973X.2022.09.005

Bearing characteristics of cement-fly ash mixing pile composite foundation

Sheng-quan ZHOU1(

),Hao-jin ZHANG1,Rui WANG1,Yong-fei ZHANG2,Dong-wei LI3

1. School of Civil Engineering and Architecture, Anhui University of Science and Technology, Huainan 232001, China
2. Hefei Branch of JZFZ Architectural Design Company Limited , Hefei 230000, China
3. School of Civil and Architectural Engineering, East China University of Technology, Nanchang 330013, China

Download:

HTML

PDF(1970KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A model test of cement-fly ash mixing pile (CFMP) composite foundation was carried out. By analyzing the signal of strain gauge and earth pressure sensor, the stress transfer characteristics of pile body and fly ash foundation during loading were explored. Results showed that the load settlement curve of CFMP composite foundation was slow reduction type, and the bearing capacity of CFMP composite foundation was 2.2 times of that of fly ash foundation. Pile side resistance distribution along the depth of the pile was unimodal, and the peak value was at the middle of the pile. When the pile top load was accumulated to 1 600 N, pile side resistance reached the limit value, and pile side resistance appeared softening with the increase of the load. When the pile top load reached 800 N, the effect of pile tip bearing layer was prominent, and the pile tip resistance ratio entered a period of rapid rise. And the mechanical properties that mainly to bear the pile side resistance were presented by CFMP.

Key words： model test cement-fly ash mixing pile (CFMP) load transfer load-carrying property pile side resistance

Received: 15 September 2021 Published: 28 September 2022

CLC:

TU 473

Fund: 国家自然科学基金资助项目（42061011，41977236）；江西省自然科学基金资助项目（20192ACBL20002）；安徽省建筑科学研究设计院资助课题（2022-JKYL-006）；安徽理工大学2021研究生创新基金资助项目（2021CX2038）

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Sheng-quan ZHOU
	Hao-jin ZHANG
	Rui WANG
	Yong-fei ZHANG
	Dong-wei LI

Cite this article:

Sheng-quan ZHOU,Hao-jin ZHANG,Rui WANG,Yong-fei ZHANG,Dong-wei LI. Bearing characteristics of cement-fly ash mixing pile composite foundation. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1724-1731.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.09.005 OR https://www.zjujournals.com/eng/Y2022/V56/I9/1724

水泥−粉煤灰搅拌桩复合地基承载特性

开展水泥?粉煤灰搅拌桩（CFMP）复合地基模型试验，分析应变片及土压力传感器的信号，探究加载过程中桩身及粉煤灰地基中的应力传递特性. 结果表明：CFMP复合地基荷载沉降曲线为缓降型，CFMP复合地基的承载能力是粉煤灰地基的2.2倍；桩侧摩阻力沿桩身深度呈单峰分布，阻力峰值位于桩身中端；当桩顶荷载累加至1 600 N时，桩侧摩阻力到达极限值，并随荷载增加出现侧摩阻力软化现象；当桩顶荷载达到800 N时，桩端持力层的作用凸显，桩端阻力比进入迅速上升期，CFMP呈现以承担桩侧摩阻力为主的受力性状.

关键词： 模型试验, 水泥?粉煤灰搅拌桩(CFMP), 荷载传递, 承载性能, 桩侧摩阻力

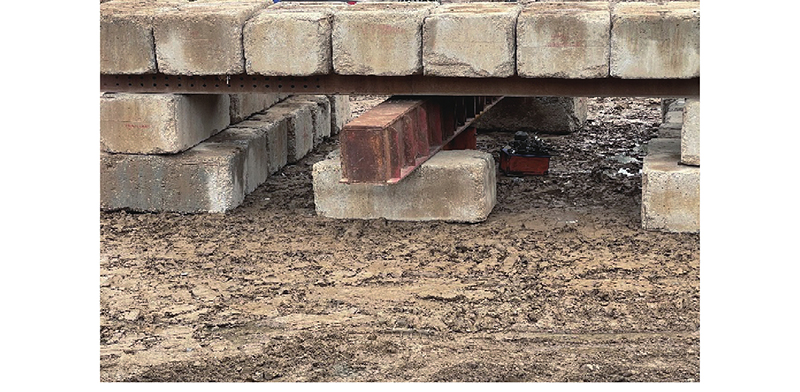

Fig.1 Cement-fly ash mixing pile composite foundation field static load test diagram

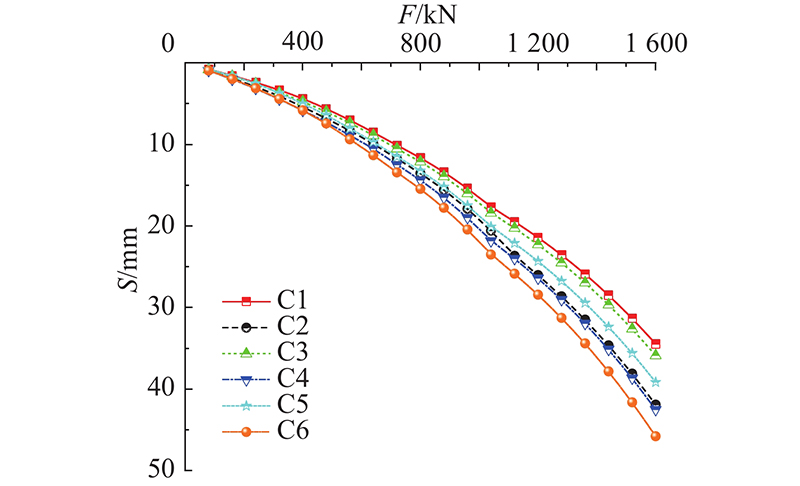

Fig.2 Field static load-displacement curve of cement-fly ash mixing pile composite foundation

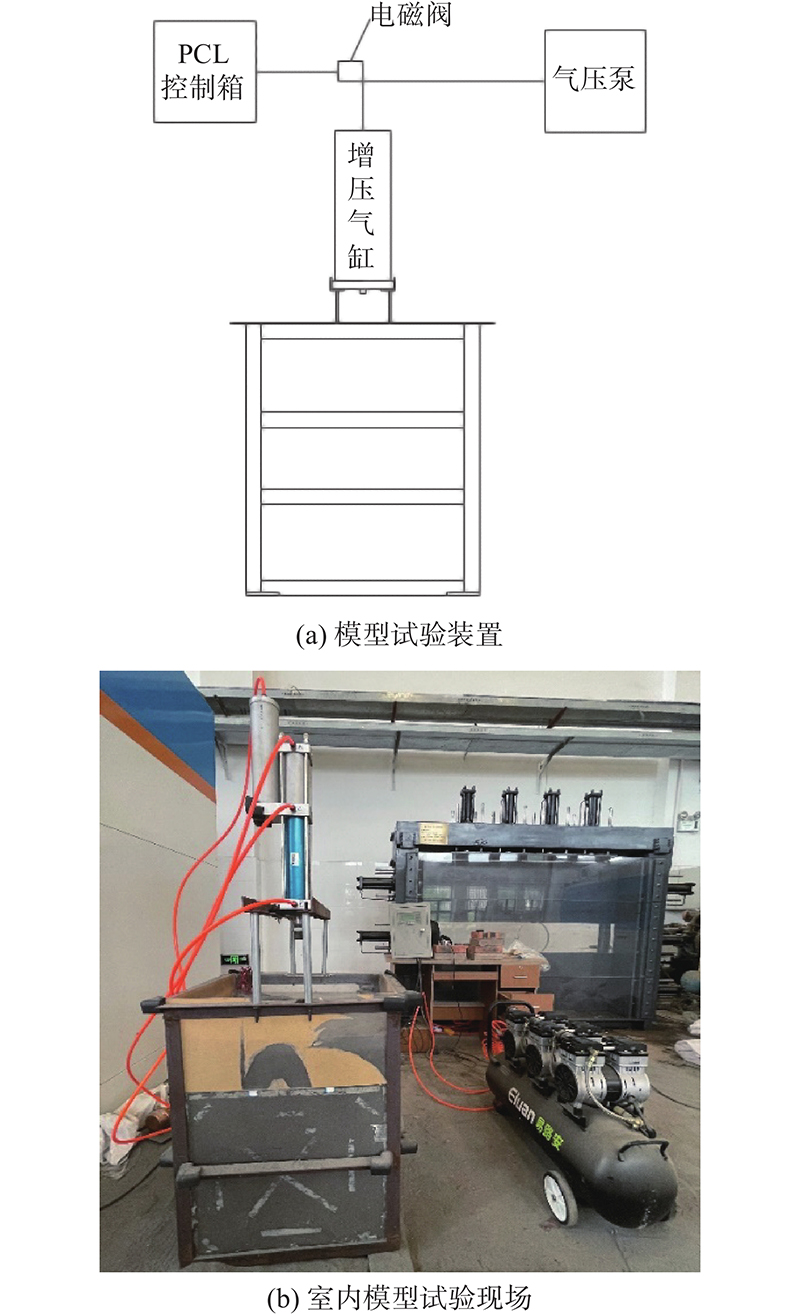

Fig.3 Model test layout of cement-fly ash mixing pile composite foundation

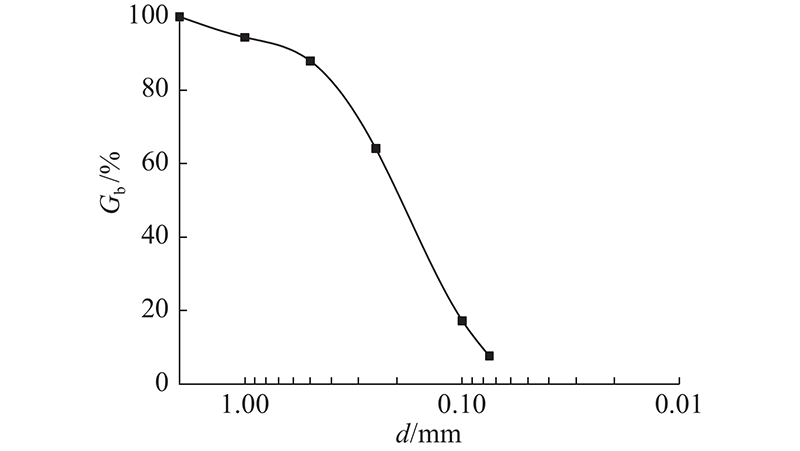

Fig.4 Fly ash particle grading curve

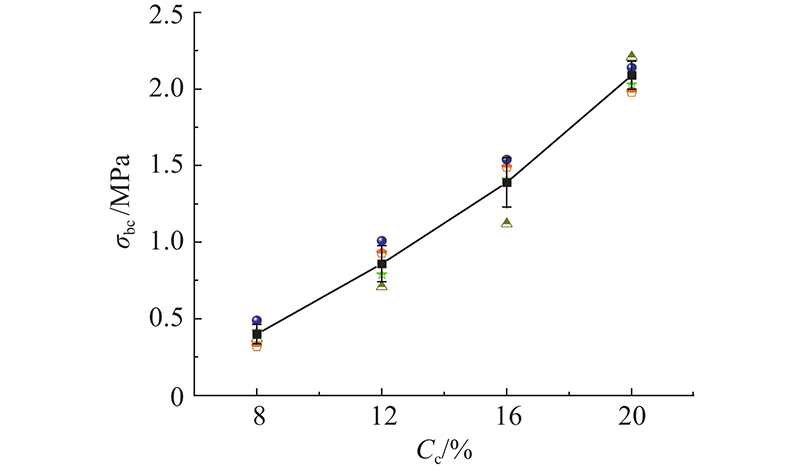

Fig.5 Strength curve of cement fly ash test block

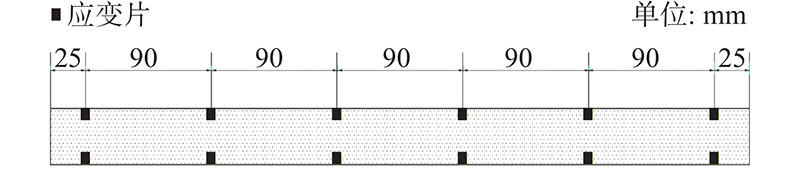

Fig.6 Diagram of pile strain gauge sticking

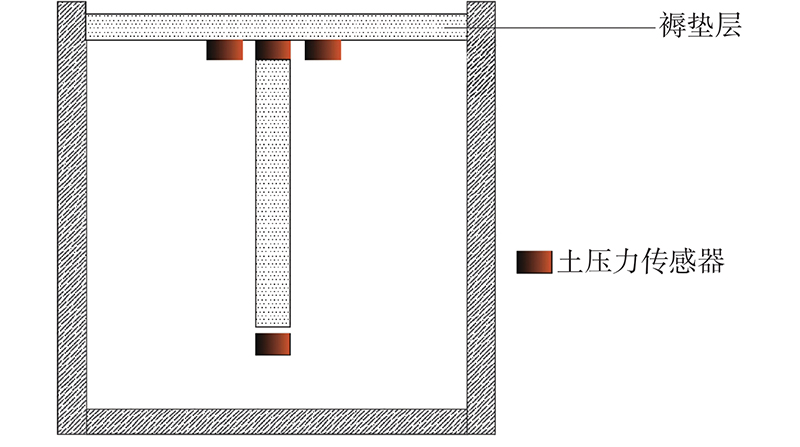

Fig.7 Earth pressure sensor layout

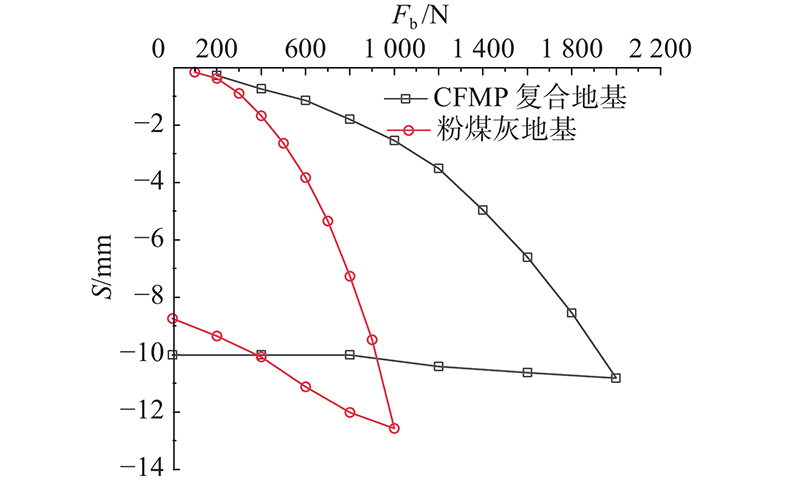

Fig.8 Model test vertical load-displacement curve

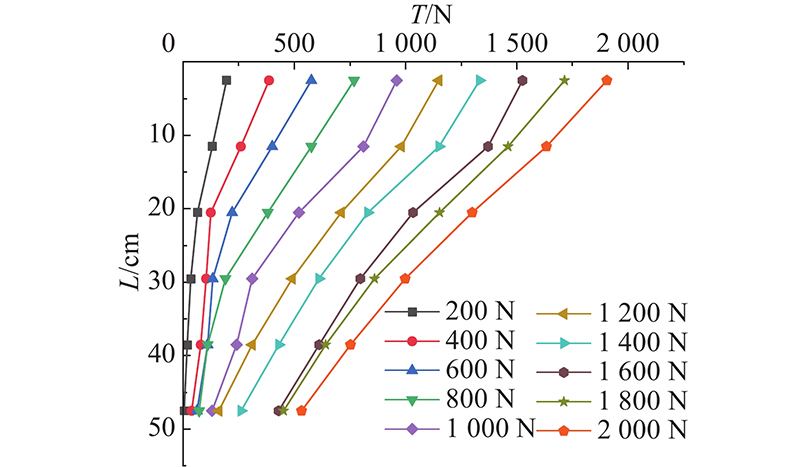

Fig.9 Under various load pile axial force curve

Tab.1 Reduction of pile axial force along pile body under various loads

Fig.10 Lateral friction resistance curves of piles under various loads

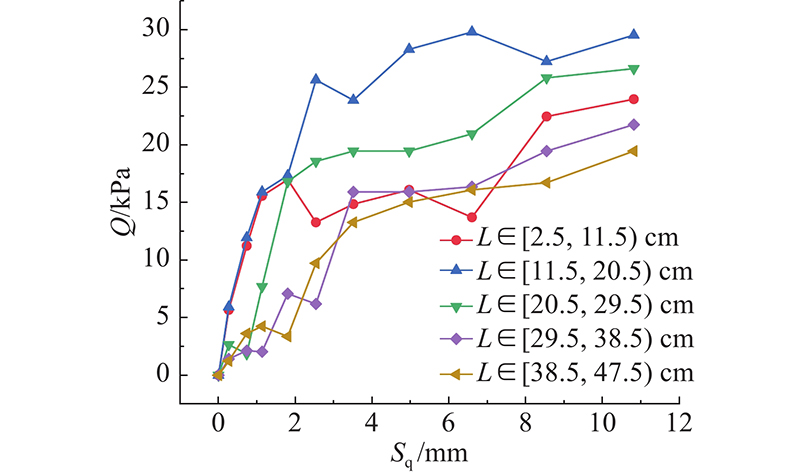

Fig.11 Lateral friction of different piles and relative displacement curve of pile-soil

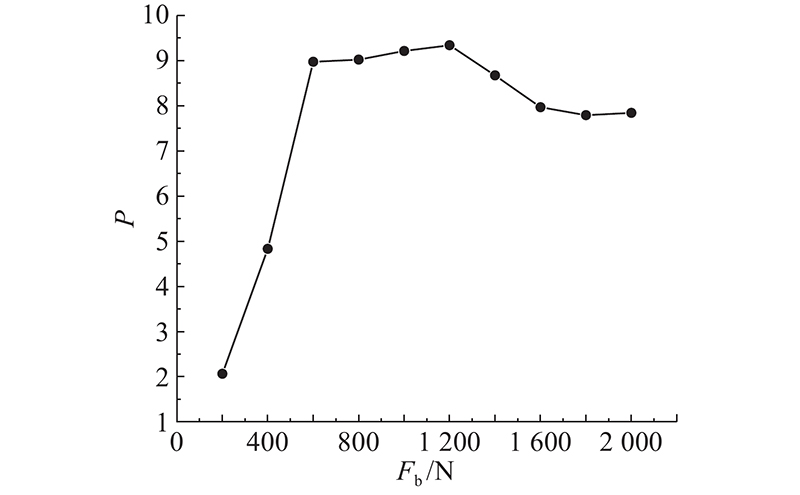

Fig.12 Pile-soil stress ratio curve of cement-fly ash mixing pile composite foundation under vertical load

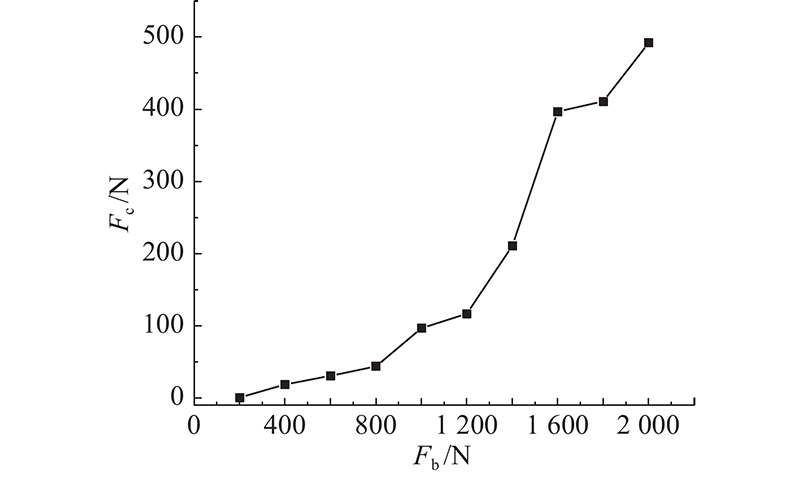

Fig.13 Pile tip resistance curves of cement-fly ash mixing pile composite foundation under different loads

Fig.14 Pile tip resistance ratio curves of cement-fly ash mixing pile composite foundation under different loads


[1]	冯培峰电厂粉煤灰高值化利用现状与最新进展[J]. 中国资源综合利用, 2020, 38 (11): 100- 104 FENG Pei-feng Progress and development of high value utilization for coal fly ash from power plant[J]. China Resources Comprehensive Utilization, 2020, 38 (11): 100- 104 doi: 10.3969/j.issn.1008-9500.2020.11.028

[2]	JIN Y, FENG W P, ZHENG D P, et al Structure refinement of fly ash in connection with its reactivity in geopolymerization[J]. Waste Management, 2020, 118: 350- 359 doi: 10.1016/j.wasman.2020.08.049

[3]	MIMURA Y, VIMONSATIT V, HORIGUCHI I, et al Tensile mechanical properties of fly ash concrete at early age for thermal stress analysis[J]. Journal of Infrastructure Preservation and Resilience, 2020, 14

[4]	周盛全, 张勇飞, 徐颖, 等冲击荷载作用下改良水泥-粉煤灰试样力学特性研究[J]. 振动与冲击, 2021, 40 (2): 119- 126 ZHOU Sheng-quan, ZHANG Yong-fei, XU Ying, et al Research on the dynamic mechanical properties of stabilized cement-fly ash samples[J]. Journal of Vibration and Shock, 2021, 40 (2): 119- 126

[5]	ZHOU S Q, ZHANG Y F, ZHOU D W et al Fly ash foundation reinforced by cement-soil mixing piles[J]. Dyna Ingeniería E Industria, 2020, 95 (2): 198- 204

[6]	ZHOU S Q, ZHANG Y F, ZHOU D W et al Experimental study on mechanical properties of fly ash stabilized with cement[J]. Advances in Civil Engineering, 2020, 6410246

[7]	张传军, 闫强刚, 王秀海, 等强夯法处理粉煤灰地基效果评价[J]. 中国海洋大学学报, 2012, 42 (增1): 182- 186 ZHANG Chuan-jun, YAN Qiang-gang, WANG Xiu-hai et al Evaluation on effectiveness of dynamic compaction treatment of fly ash ground[J]. Periodical of Ocean University of China, 2012, 42 (增1): 182- 186

[8]	李志强穿越粉煤灰沉淀池场区高速公路路基处理方法[J]. 科学技术与工程, 2019, 19 (17): 307- 313 LI Zhi-qiang Reinforcement method of expressway roadbed crossing fly ash settling basin[J]. Science Technology and Engineering, 2019, 19 (17): 307- 313 doi: 10.3969/j.issn.1671-1815.2019.17.046

[9]	刘香, 史海中, 周鑫炉渣粉煤灰回填地基的强夯设计参数研究[J]. 水利水电技术, 2019, 50 (4): 179- 189 LIU Xiang, SHI Hai-zhong, ZHOU Xin Study on design parameter of dynamic compaction for foundation backfilled with blast-furnace slag fly ash[J]. Water Resources and Hydropower Engineering, 2019, 50 (4): 179- 189

[10]	蔡波. 强夯法在处理饱和粉煤灰地基中的应用[J]. 港工技术, 2007(5): 41-43. CAI Bo. Application of dynamic consolidation in saturated fly ash ground treatment[J]. Port Engineering Technology, 2007(5): 41-43.

[11]	朱胜明, 马晓燕, 赵静生粉煤灰填料强夯技术在加固软弱地基中的应用[J]. 建筑技术, 2001, 32 (3): 184- 185 ZHU Sheng-ming, MA Xiao-yan, ZHAO Jing-sheng Heavy ramming backfill fly ash applied to consolidation of soft soil base[J]. Architecture Technology, 2001, 32 (3): 184- 185 doi: 10.3969/j.issn.1000-4726.2001.03.018

[12]	郑刚, 夏博洋, 周海祚, 等桩体模量对水泥土搅拌桩复合地基破坏影响研究[J]. 中国公路学报, 2020, 33 (9): 146- 154 ZHENG Gang, XIA Bo-yang, ZHOU Hai-zuo, et al Effect of column elasticity modulus on composite foundation failure of deep mixed columns[J]. China Journal of Highway and Transport, 2020, 33 (9): 146- 154 doi: 10.3969/j.issn.1001-7372.2020.09.015

[13]	袁文俊, 蔡梓淇, 谢松, 等基于强度试验的水泥土搅拌桩施工综合参数研究[J]. 湖南大学学报: 自然科学版, 2018, 45 (增1): 46- 51 YUAN Wen-jun, CAI Zi-qi, XIE Song, et al Study on construction technology coordination parameters of cement soil mixed piles based on strength tests[J]. Journal of Hunan University: Natural Sciences, 2018, 45 (增1): 46- 51

[14]	朱俊樸, 张建辉, 王鹏, 等大范围软土一级公路水泥土搅拌桩路基沉降数值模拟[J]. 铁道科学与工程学报, 2020, 17 (6): 1390- 1395 ZHU Jun-pu, ZHANG Jian-hui, WANG Peng, et al Numerical simulation of settlement of cement-soil mixing pile subgrade of large-scale soft soil first-class highway[J]. Journal of Railway Science and Engineering, 2020, 17 (6): 1390- 1395

[15]	SAWA K, TOMOHISA S, TACHIBANA M, et al Hardening treatment of muddy soil with coal fly ashes[J]. Journal of the Society of Materials Science, 2000, 49 (3): 348- 351 doi: 10.2472/jsms.49.348

[16]	HATUNGIMANA D, TAŞKÖPRÜ C, İÇHEDEF M, et al Compressive strength, water absorption, water sorptivity and surface radon exhalation rate of silica fume and fly ash based mortar[J]. Journal of Building Engineering, 2019, 23: 369- 376 doi: 10.1016/j.jobe.2019.01.011

[17]	王驰, 徐永福, 叶冠林砼芯水泥土搅拌桩复合地基工作特性分析[J]. 浙江大学学报: 工学版, 2014, 48 (9): 1610- 1617 WANG Chi, XU Yong-fu, YE Guan-lin Analysis of work characteristics of concrete-cored DCM pile composite foundation[J]. Journal of Zhejiang University: Engineering Science, 2014, 48 (9): 1610- 1617

[18]	衣平, 娄国充粉煤灰地基的处理及应用[J]. 粉煤灰综合利用, 2007, (3): 3- 4 YI Ping, LOU Guo-chong Treatment and application of fly ash foundation[J]. Fly Ash Comprehensive Utilization, 2007, (3): 3- 4 doi: 10.3969/j.issn.1005-8249.2007.03.001

[19]	刘煜民, 黄平, 魏智勇, 等从试桩看深层搅拌桩在粉煤灰地基中的应用[J]. 武汉大学学报: 工学版, 2007, 40 (增.1): 219- 222 LIU Yu-min, HUANG Ping, WEI Zhi-yong, et al Application of deep mixing pile to fly ash foundation with pile experiments[J]. Engineering Journal of Wuhan University, 2007, 40 (增.1): 219- 222

[20]	胡贺松, 彭振斌, 杨坪, 等软土水泥搅拌桩复合地基沉降特性试验研究[J]. 中南大学学报: 自然科学版, 2009, 40 (3): 803- 807 HU He-song, PENG Zhen-bin, YANG Ping, et al Settlement characteristic of composite foundation for cement mixing piles in soft soil[J]. Journal of Central South University: Science and Technology, 2009, 40 (3): 803- 807

[21]	章定文, 范礼彬, 刘松玉, 等水泥土搅拌桩复合地基固结机理室内模型试验[J]. 中国公路学报, 2014, 27 (12): 1- 9 ZHANG Ding-wen, FANG Li-bin, LIU Song-yu, et al Laboratory model tests on consolidation mechanism of soft clay improved by deep mixing cement columns[J]. China Journal of Highway and Transport, 2014, 27 (12): 1- 9 doi: 10.3969/j.issn.1001-7372.2014.12.001

[22]	张伟丽, 蔡健, 林奕禧, 等水泥土搅拌桩复合地基荷载传递机理的试验研究[J]. 土木工程学报, 2010, 43 (6): 116- 121 ZHANG Wei-li, CAI Jian, LIN Yi-xi et al Experimental study of the load transfer mechanism of cement-soil pile composite foundation[J]. China Civil Engineering Journal, 2010, 43 (6): 116- 121 doi: 10.15951/j.tmgcxb.2010.06.016

[23]	MA Y, CAO J, HE Y, et al The optimization research on treatment of the soft clay foundation[J]. Applied Mechanics and Materials, 2012, 152: 809- 815

[24]	KITAZUME M Application of physical modelling for investigating ground failure pattern[J]. Physical Modelling in Geotechnics, 2006, 1: 63- 74

[25]	龚晓南. 复合地基理论及工程应用: 第3版[M]. 北京: 中国建筑工业出版社, 2018.

[26]	龚晓南广义复合地基理论及工程应用[J]. 岩土工程学报, 2007, 29 (1): 1- 13 GONG Xiao-nan Generalized composite foundation theory and engineering application[J]. Chinese Journal of Geotechnical Engineering, 2007, 29 (1): 1- 13 doi: 10.3321/j.issn:1000-4548.2007.01.001

[27]	中华人民共和国住房和城乡建设部. 建筑地基处理技术规范: JGJ 79−2012 [S]. 北京: 中国建筑工业出版社, 2012.

[28]	徐超, 叶观宝水泥土搅拌桩复合地基的变形特性与承载力[J]. 岩土工程学报, 2005, (5): 600- 603 XU Chao, YE Guan-bao Deformation characteristics and bearing capacity of soil-cement mixed pile composite foundation[J]. Chinese Journal of Geotechnical Engineering, 2005, (5): 600- 603 doi: 10.3321/j.issn:1000-4548.2005.05.024

[29]	赵春风, 李永刚, 钱涛水泥土搅拌桩复合地基桩土应力比的解析算法[J]. 中南大学学报:自然科学版, 2012, 43 (6): 2390- 2395 ZHAO Chun-feng, LI Yong-gang, QIAN Tao Analytical calculation of pile-soil stress ratio of cement-soil mixed pile composite foundation[J]. Journal of Central South University: Science and Technology, 2012, 43 (6): 2390- 2395
