浙江大学学报(工学版)  2024, Vol. 58 Issue (8): 1704-1716    DOI: 10.3785/j.issn.1008-973X.2024.08.017
交通工程、土木工程
考虑层理倾角的炭质板岩蠕变损伤本构模型
胡涛涛1(),贺韶君1,王栋2
1. 长安大学 公路学院,陕西 西安 710064
2. 山东华宇工学院 能源与建筑工程学院,山东 德州 253034
Creep damage intrinsic model of carbonaceous slate considering laminar inclination
Taotao HU1(),Shaojun HE1,Dong WANG2
1. School of Highway, Chang'an University, Xi'an 710064, China
2. School of Energy and Architectural Engineering, Shandong Huayu Institute of Technology, Dezhou 253034, China
 全文: PDF(2035 KB)   HTML
摘要:

针对层状岩体的各向异性特征,以炭质板岩为研究对象,开展不同层理倾角炭质板岩的蠕变力学试验. 基于蠕变试验结果,建立可以描述不同层理倾角炭质板岩加速蠕变的改进Nishihara非线性损伤蠕变本构模型,推导该模型的一维、三维本构方程. 研究结果表明,炭质板岩的蠕变过程存在明显的应力阈值. 当应力小于阈值时,炭质板岩只发生衰减蠕变;当应力达到或大于阈值时,开始发生稳态蠕变;当应力达到或超过破坏应力时,炭质板岩发生加速蠕变并发生蠕变破坏. 模型参数反演辨识结果表明,改进Nishihara蠕变模型能够很好地描述炭质板岩的整个蠕变过程. 基于参数辨识结果,对模型参数与围压和层理倾角的关系进行探讨,得到损伤参数c与层理倾角的关系式,分析损伤参数d与黏滞系数对加速蠕变阶段的影响.

关键词: 炭质板岩层理倾角蠕变特性本构模型参数辨识
Abstract:

Carbonaceous slate was taken as the research object and creep mechanical tests were conducted on carbonaceous slate with different bedding dip angles in response to the anisotropic characteristics of layered rock masses. An improved Nishihara nonlinear damage creep constitutive model that can describe the accelerated creep of carbonaceous slate with different bedding angles was established based on the creep test results. The one-dimensional and three-dimensional constitutive equations of the model were derived. Results show that there is a significant stress threshold in the creep process of carbonaceous slate. Only attenuation creep occurs in carbonaceous slate when the stress level is less than the threshold. Steady-state creep begins to occur when the stress level reaches or exceeds the threshold. The carbonaceous slate undergoes accelerated creep and creep failure when the stress level reaches or exceeds the failure stress. The inversion identification results of model parameters indicate that the improved Nishihara creep model can effectively describe the entire creep process of carbonaceous slate. The relationship between model parameters and confining pressure and bedding angle was discussed based on the parameter identification results. The relationship between damage parameter c and layer inclination angle was obtained. The effects of damage parameter d and viscosity coefficient to accelerate creep stage were analyzed.

Key words: carbonaceous slate    laminar inclination    creep characteristic    constitutive model    parameter identification
收稿日期: 2023-12-07 出版日期: 2024-07-23
CLC:  TP 393
基金资助: 国家自然科学基金资助项目(52378388);长安大学中央高校基本科研业务费专项资金资助项目(300102213211).
作者简介: 胡涛涛(1985—),男,副教授,从事隧道工程的研究. orcid.org/0000-0002-7177-9344. E-mail:tthu@chd.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
胡涛涛
贺韶君
王栋

引用本文:

胡涛涛,贺韶君,王栋. 考虑层理倾角的炭质板岩蠕变损伤本构模型[J]. 浙江大学学报(工学版), 2024, 58(8): 1704-1716.

Taotao HU,Shaojun HE,Dong WANG. Creep damage intrinsic model of carbonaceous slate considering laminar inclination. Journal of ZheJiang University (Engineering Science), 2024, 58(8): 1704-1716.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.08.017        https://www.zjujournals.com/eng/CN/Y2024/V58/I8/1704

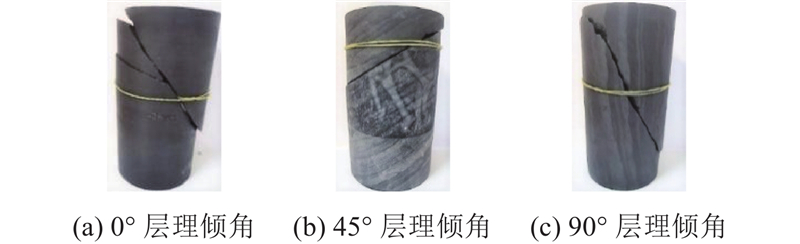

图 1  不同层理倾角的试样破坏图片
θ/(°)p/MPaσt/MPa
第1级第2级第3级第4级第5级
051224364860
0101326395265
0151428425670
4510510151924
4515613192531
90101223354759
90151427415468
表 1  不同层理倾角炭质板岩的分级加载蠕变试验方案

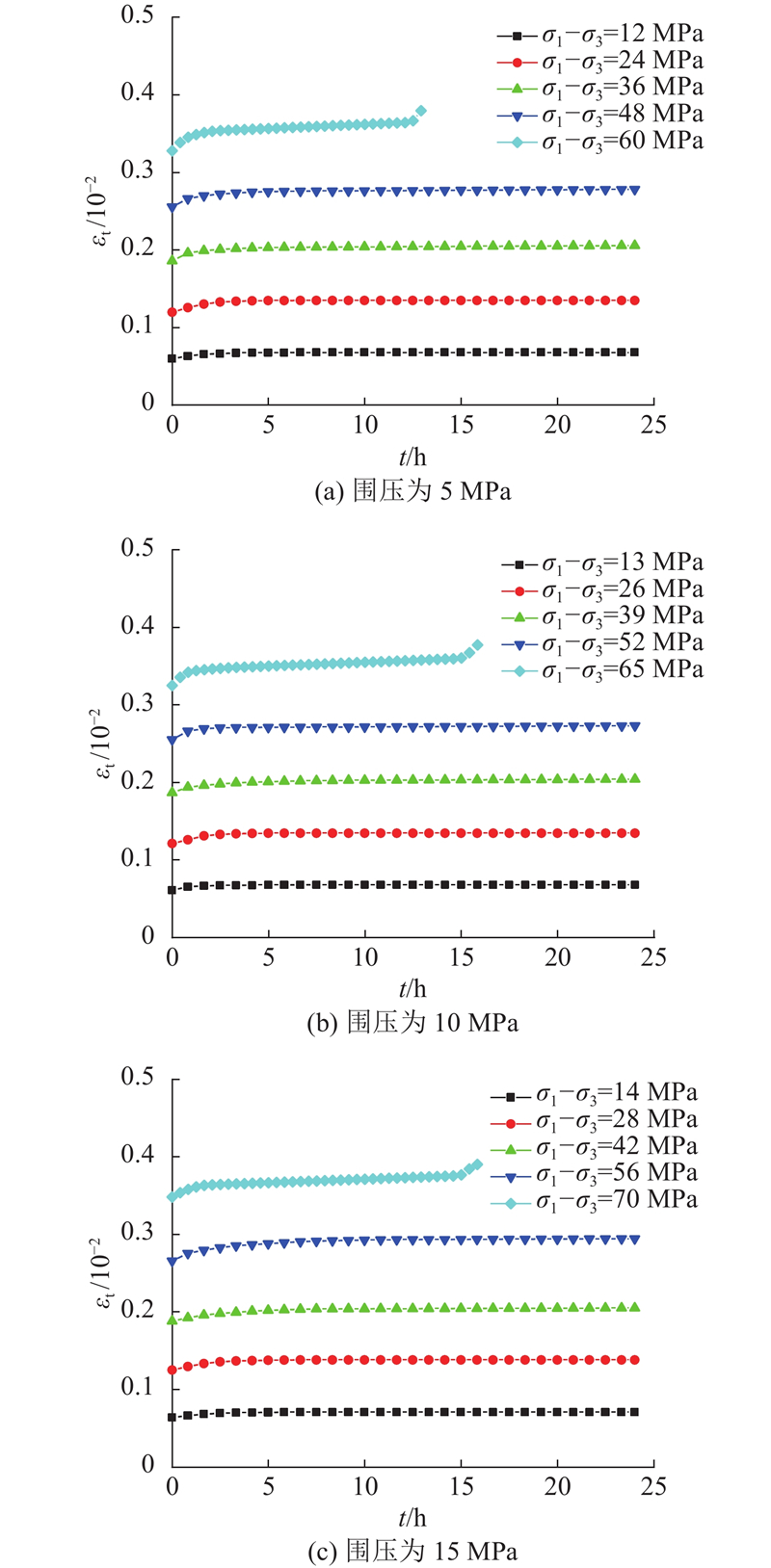

图 2  0°层理倾角炭质板岩的分级加载蠕变曲线
图 3  45°层理倾角炭质板岩的分级加载蠕变曲线

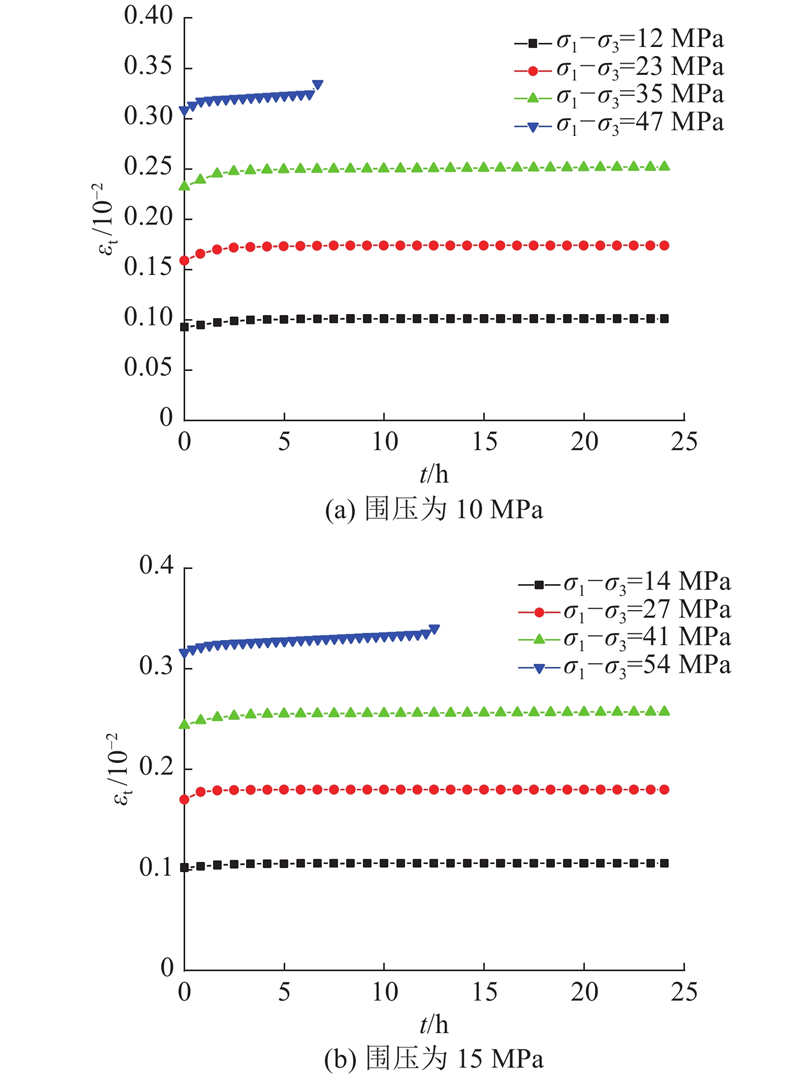

图 4  90°层理倾角炭质板岩的分级加载蠕变曲线

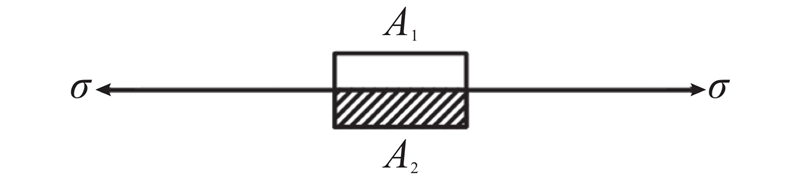

图 5  弹塑性层状损伤元件
图 6  黏性损伤元件

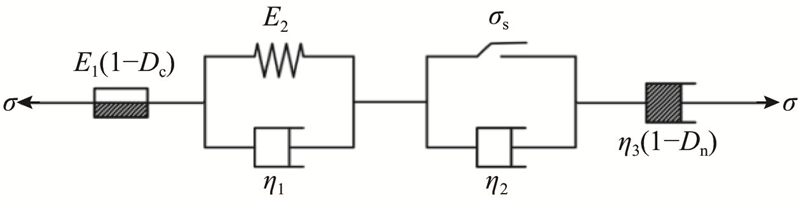

图 7  改进Nishihara非线性黏弹塑性蠕变模型

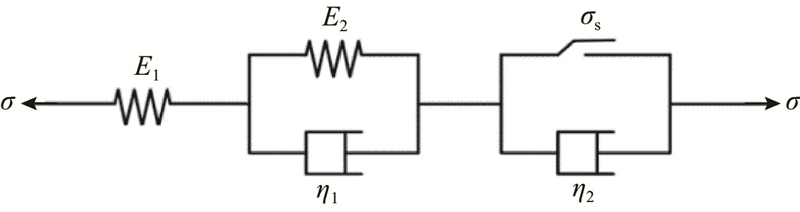

图 8  Nishihara模型的示意图

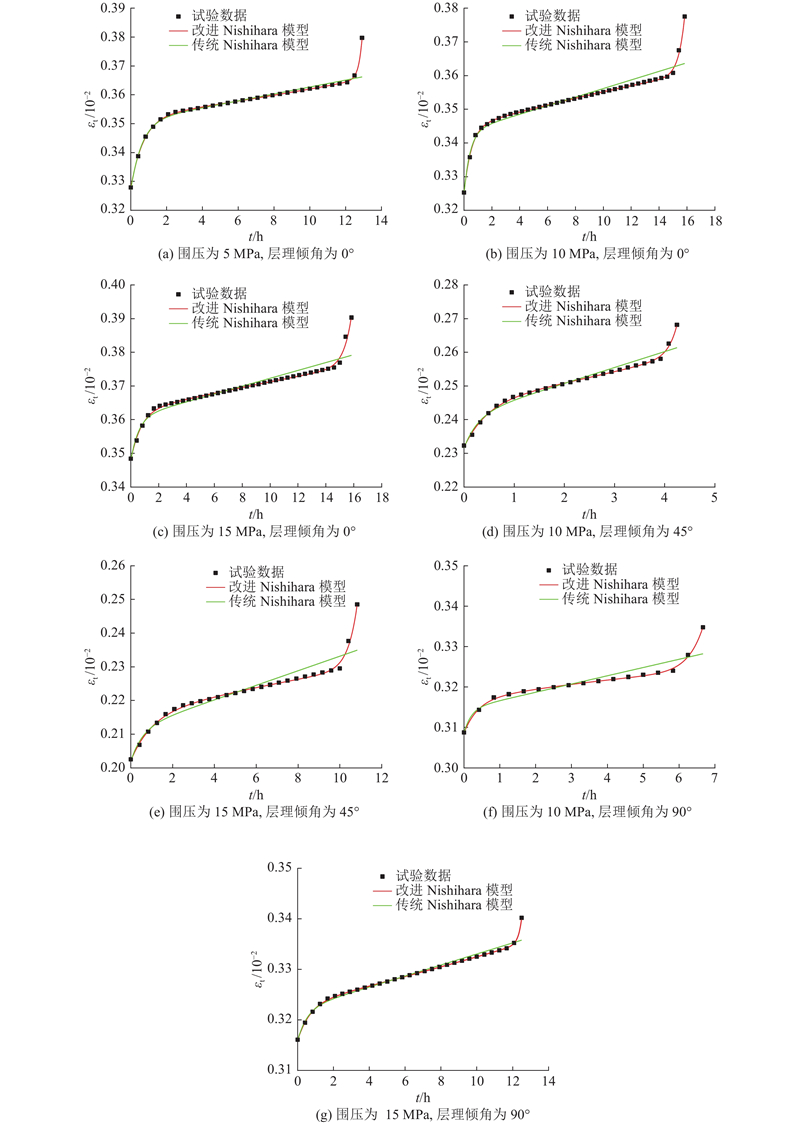

图 9  传统和改进Nishihara蠕变模型的拟合曲线
p/MPaSij/MPaE1/GPaE2/GPaη1/(GPa·h)η2/(GPa·h)η3/(GPa·h)cdR2
51220.03149.57206.070.9996
2420.08154.47211.190.9966
3619.32222.34227.363580.580.9953
4818.75253.63311.7011902.830.9971
6018.31246.96174.45109.773.603 2×1050.00235.030.9997
101321.25188.53186.020.9854
2621.49187.59247.630.9909
3920.81273.81464.564284.290.9945
5220.36340.45226.5416819.230.9997
6519.99329.98174.83144.3833541.080.00862.220.9985
151421.89205.91312.290.9955
2822.41209.95329.290.9969
4222.31264.51661.2312515.250.9987
5620.98225.25564.5815635.210.9946
7020.12482.04356.82144.7031182.070.00371.740.9946
表 2  0°层理倾角炭质板岩改进Nishihara蠕变模型参数
p/MPaSij/MPaE1/GPaE2/GPaη1/(GPa·h)η2/(GPa·h)η3/(GPa·h)cdR2
1055.99123.77224.560.9987
107.6383.12176.430.9932
158.29201.24135.851241.020.9996
198.19143.2966.0112.083182.850.0115.670.9981
1567.0596.64117.560.9991
1310.22190.94393.470.9973
1911.67373.81222.532517.730.9992
2512.37183.29186.1455.313464.380.00952.220.9967
表 3  45°层理倾角炭质板岩改进Nishihara蠕变模型参数
p/MPaSij/MPaE1/GPaE2/GPaη1/(GPa·h)η2/(GPa·h)η3/(GPa·h)cdR2
101212.98136.51259.460.9968
2314.46155.12201.050.9982
3515.08202.90254.324438.780.9959
4715.23580.14225.9335.996679.860.01082.240.9981
151413.70323.48550.760.9947
2715.87276.99159.380.9978
4116.82367.70507.975322.290.9993
5417.09769.91525.6968.5722744.760.001035.310.9997
表 4  90°层理倾角炭质板岩改进Nishihara蠕变模型参数

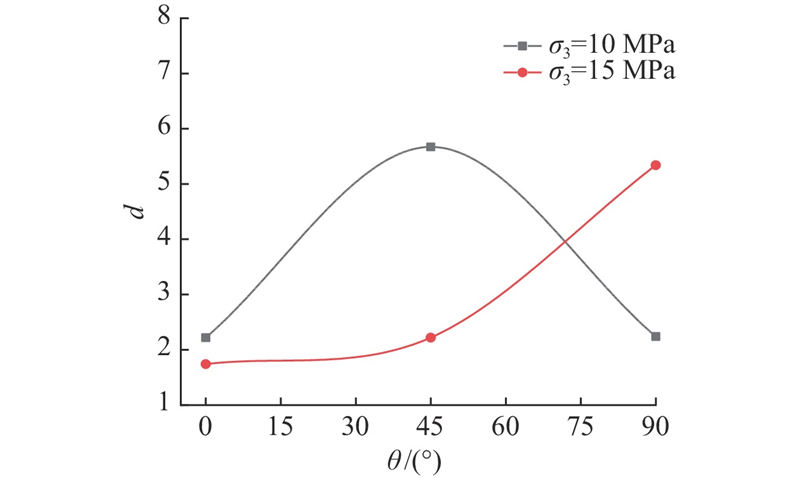

图 10  损伤参数d随层理倾角的变化规律

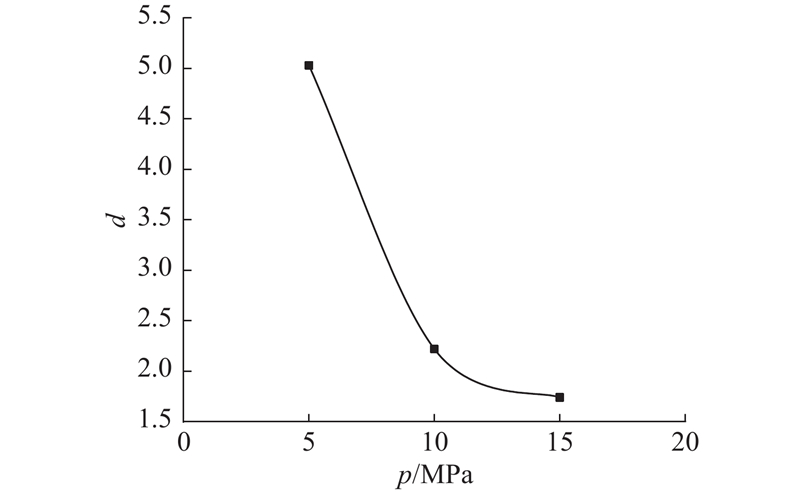

图 11  损伤参数d随围压的变化规律

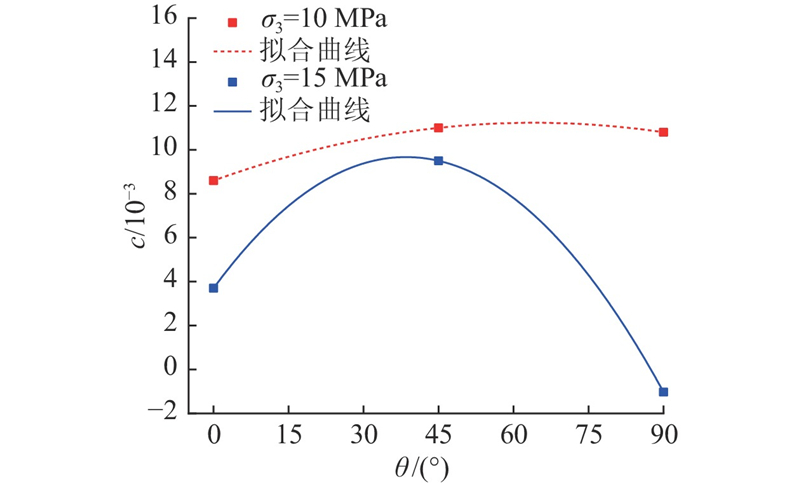

图 12  损伤参数c随层理倾角的变化规律

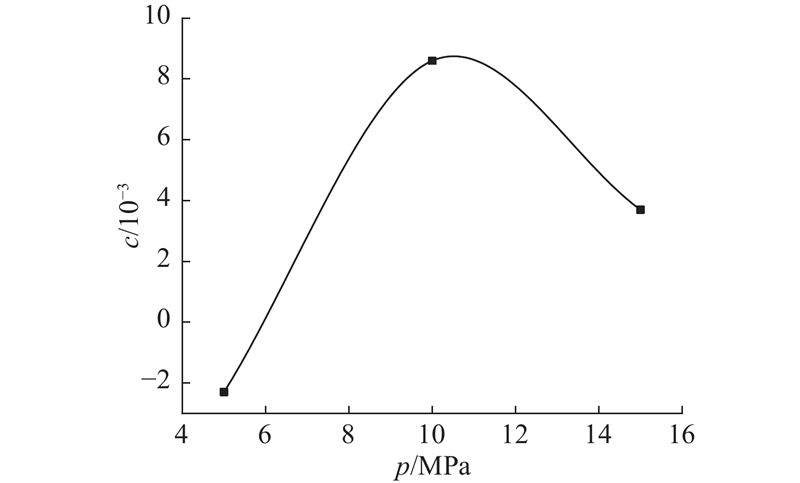

图 13  损伤参数c随围压的变化规律
图 14  改进Nishihara蠕变模型参数与围压的关系

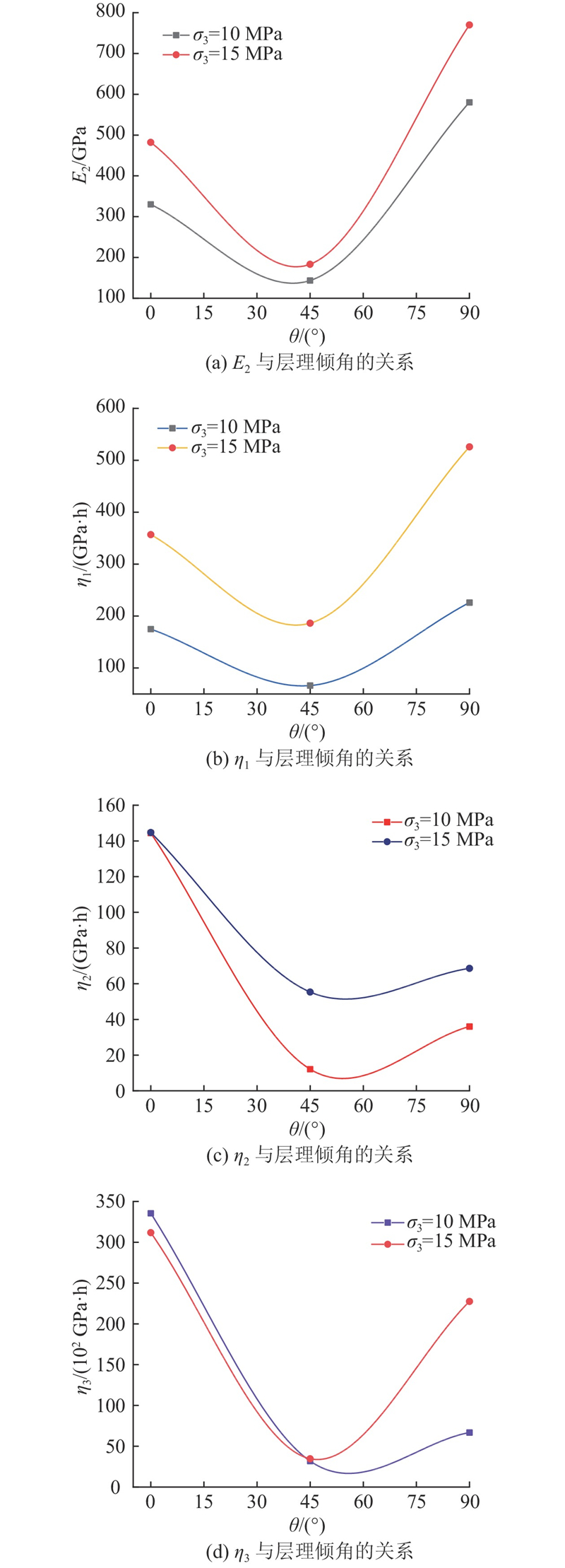

图 15  改进Nishihara蠕变模型参数与层理倾角的关系

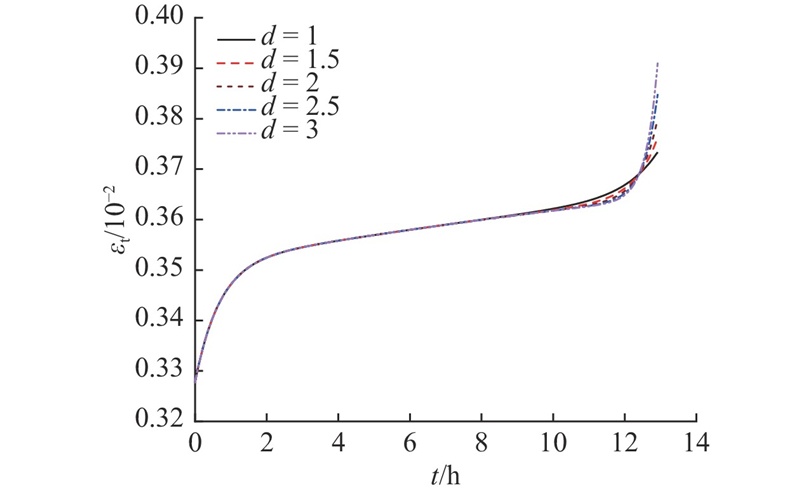

图 16  损伤参数d对加速蠕变的影响

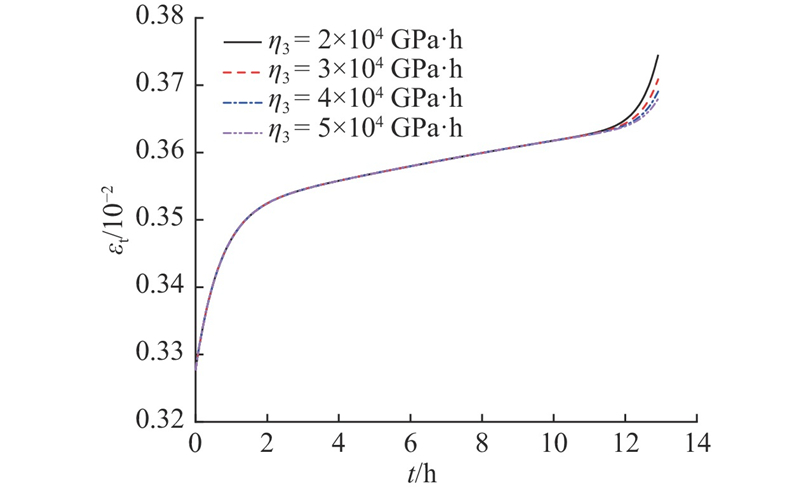

图 17  蠕变速率η3对加速蠕变的影响
