浙江大学学报(工学版)  2021, Vol. 55 Issue (11): 2115-2124    DOI: 10.3785/j.issn.1008-973X.2021.11.012
能源与动力工程
高温热解煤气放电性能的影响因素
赵一飞(),方梦祥*(),史勇敏,夏芝香,岑建孟
浙江大学 能源清洁利用国家重点实验室,浙江 杭州 310027
Factors affecting discharge performance of high-temperature coal pyrolysis gas
Yi-fei ZHAO(),Meng-xiang FANG*(),Yong-min SHI,Zhi-xiang XIA,Jian-meng CEN
State Key Laboratory of Clean Energy Utilization, Zhejiang University, Hangzhou 310027, China
 全文: PDF(1521 KB)   HTML
摘要:

为了提高电除尘器净化高温热解煤气时的除尘效率及稳定性,采用实验室高温放电系统研究电除尘器中温度、气氛、气体调质以及电源极性等因素对热解煤气放电性能的影响. 研究结果表明:提高温度,热解煤气的放电电流上升,起晕电压、击穿电压下降,不利于颗粒脱除. 对于高温热解煤气,降低CH4的体积分数、提高H2、CO2的体积分数,使放电电流减小,起晕电压和击穿电压升高,更利于颗粒脱除. 添加水蒸气,起晕电压升高,放电电流减小,电晕放电区间更宽,伏安特性曲线向右偏移,优化了放电性能. 在高温下通过正极性电源施加电压,标准煤气及添加水蒸气调质后的热解煤气都具有较高的击穿电压及正电晕放电区域,性能优于负极性电源.

关键词: 高温热解煤气放电气氛水蒸气电源极性
Abstract:

A laboratory high-temperature discharge system was used to study factors affecting discharge performance of high-temperature coal pyrolysis gas for improving the dust remove efficiency and stability of high-temperature coal pyrolysis gas dust removal, focusing on the influence of temperature, atmosphere, conditioning optimization and power supply polarity on the discharge characteristics of pyrolysis gas. Results show that, increasing the temperature, the discharge current of the pyrolysis gas increases, and the corona and breakdown voltage decrease, which is not conducive to particle removal. For high-temperature pyrolysis gas, reducing the volume fraction of CH4 and increasing the volume fraction of H2 and CO2 reduce the discharge current, increase the corona and breakdown voltage, which is more conducive to particle removal. With adding water vapor, the corona initiation voltage increases, the discharge current obviously decreases, the corona discharge interval is wider, and the V-I characteristic curve shifts to the right, which has a more obvious optimization effect on the discharge performance. Applying voltage via positive polarity power supply at high temperature, the standard gas and the pyrolysis gas after tempering with water vapor have higher breakdown voltage and positive corona discharge area, and the performance is better than that of the negative polarity power supply.

Key words: high-temperature pyrolysis gas    discharge    atmosphere    water vapor    power supply polarity
收稿日期: 2020-12-17 出版日期: 2021-11-05
CLC:  TK 01
基金资助: 国家重点研发计划资助项目(2018YFB0605000)
通讯作者: 方梦祥     E-mail: 21827010@zju.edu.cn;mxfang@zju.edu.cn
作者简介: 赵一飞(1997—),男,硕士生,从事高温静电除尘技术研究. orcid.org/0000-0002-9661-4589. E-mail: 21827010@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
赵一飞
方梦祥
史勇敏
夏芝香
岑建孟

引用本文:

赵一飞,方梦祥,史勇敏,夏芝香,岑建孟. 高温热解煤气放电性能的影响因素[J]. 浙江大学学报(工学版), 2021, 55(11): 2115-2124.

Yi-fei ZHAO,Meng-xiang FANG,Yong-min SHI,Zhi-xiang XIA,Jian-meng CEN. Factors affecting discharge performance of high-temperature coal pyrolysis gas. Journal of ZheJiang University (Engineering Science), 2021, 55(11): 2115-2124.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.11.012        https://www.zjujournals.com/eng/CN/Y2021/V55/I11/2115

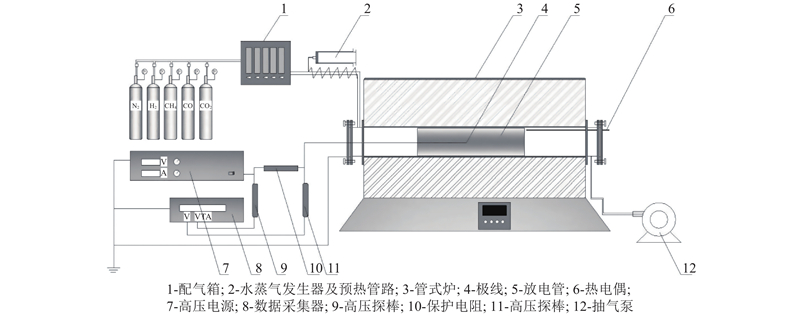

图 1  高温放电实验系统示意图
气氛组别 φB/%
CH4 H2 CO CO2 N2
标准煤气 49.3 26.0 11.2 8.0 5.75
1 70.0 16.0 6.6 4.8 3.50
2 35.0 33.8 14.5 10.4 7.50
3 40.0 40.0 8.8 6.4 4.00
4 57.4 15.0 12.8 9.0 6.61
5 44.0 23.0 20.0 7.0 5.20
6 55.4 29.2 ? 9.0 6.50
7 43.5 22.6 9.6 20.0 5.00
8 53.2 28.1 12.1 ? 6.21
9 44.0 23.0 10.0 7.0 15.00
表 1  高温热解煤气实验气氛

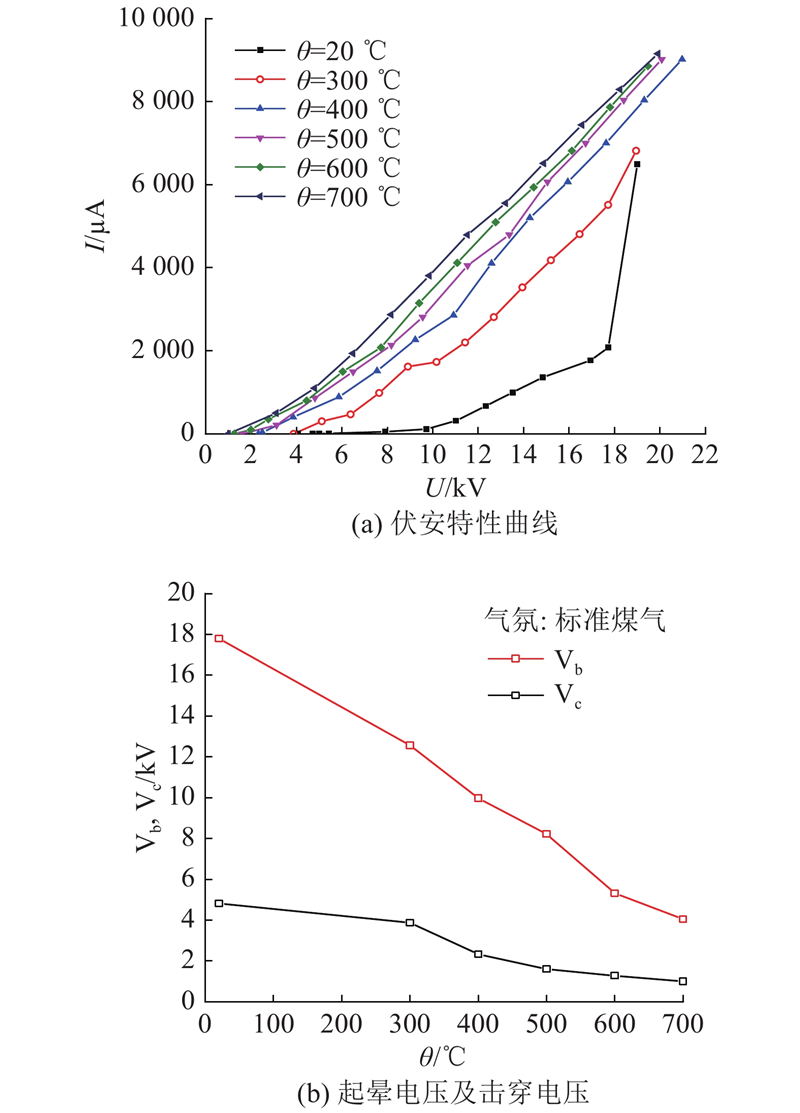

图 2  温度对热解煤气放电的影响

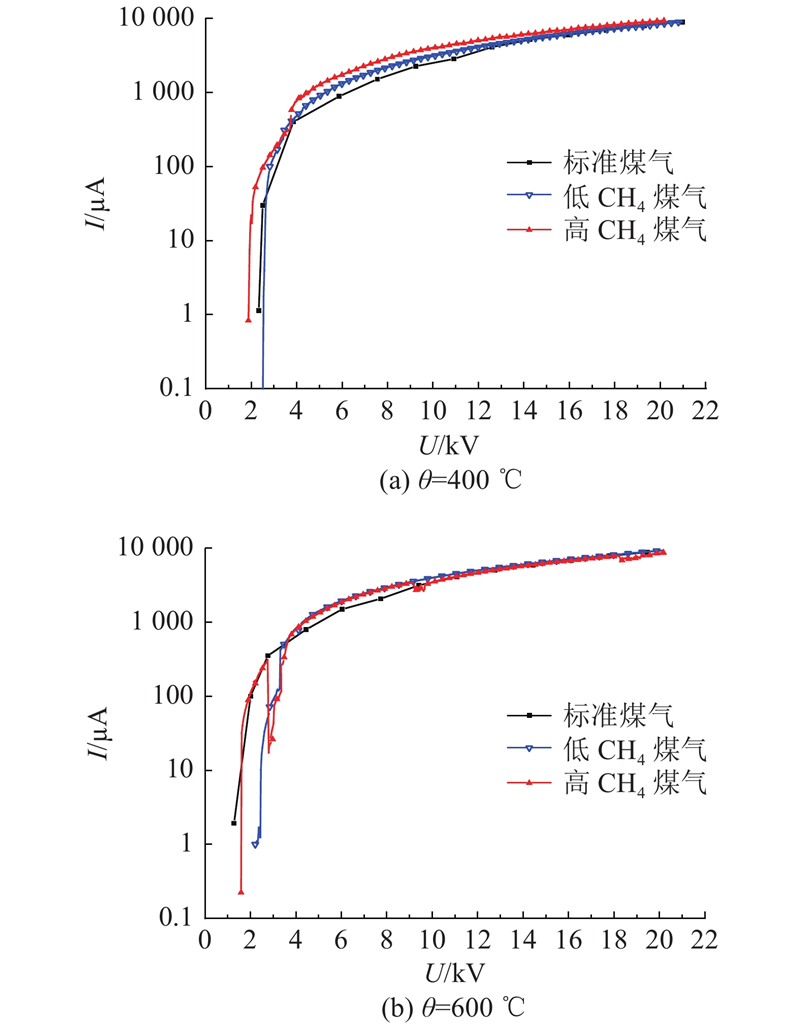

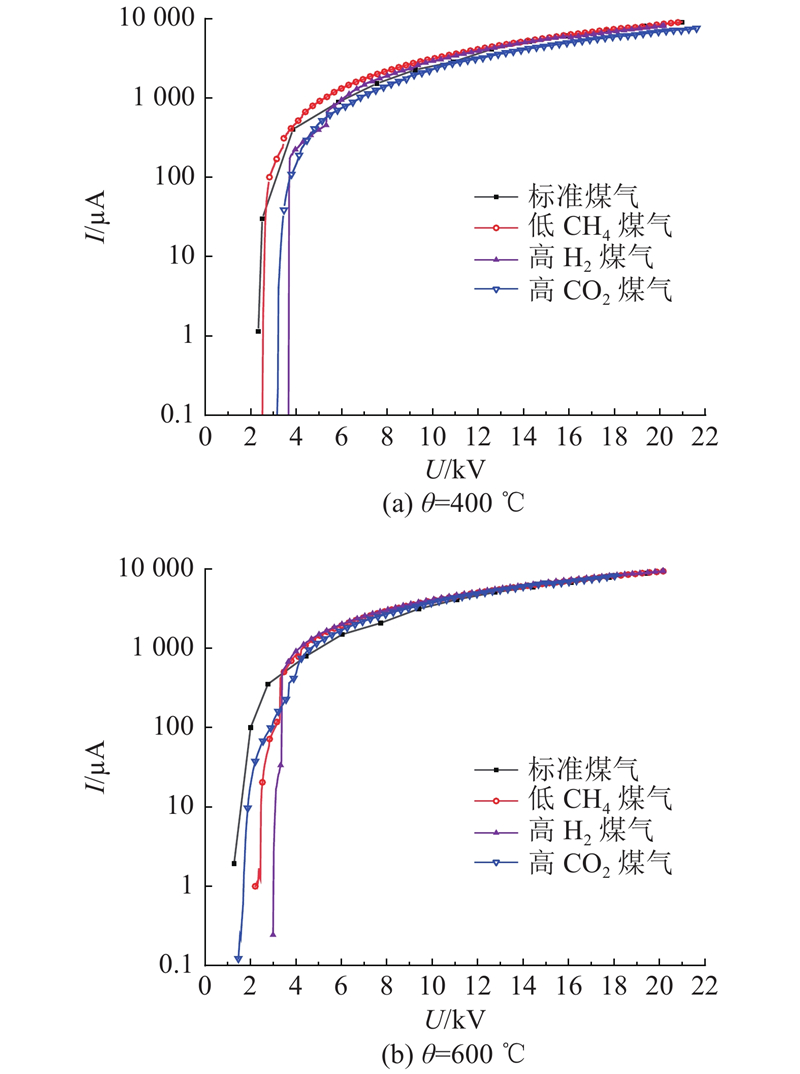

图 3  不同温度下CH4体积分数对热解煤气放电的影响
图 4  600 ℃下碳丝的生长
气氛组别 φB/%
CH4 H2 CO CO2 N2 C2H4
入口 70.0 16.0 6.6 4.8 3.5 0
出口 66.0 21.0 8.7 3.5 3.3 0.1
表 2  600 ℃放电管进出气体成分对比

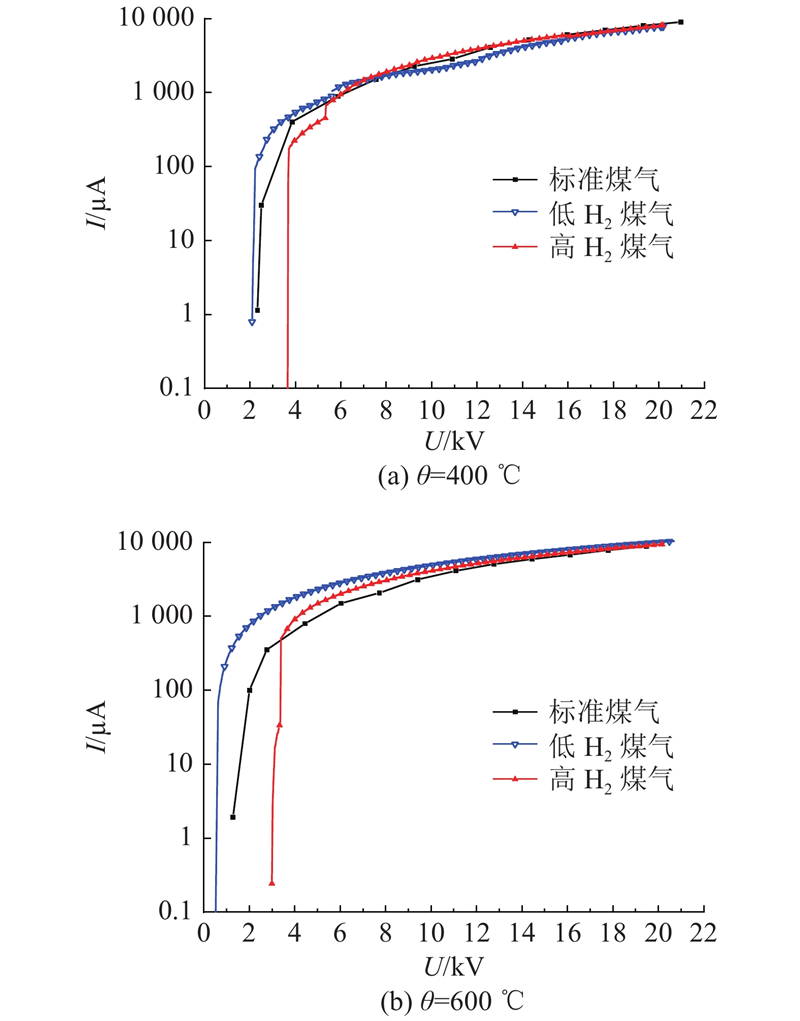

图 5  不同温度下H2体积分数对热解煤气放电的影响
气氛组别 φB/%
CH4 H2 CO CO2 N2
入口 40.0 40.0 8.8 6.4 4.0
出口 44.3 38.1 12.4 4.85 3.6
表 3  高 φ(H2)气氛放电管进出气体成分对比
图 6  低 φ(H2)煤气放电实验中碳丝的生长

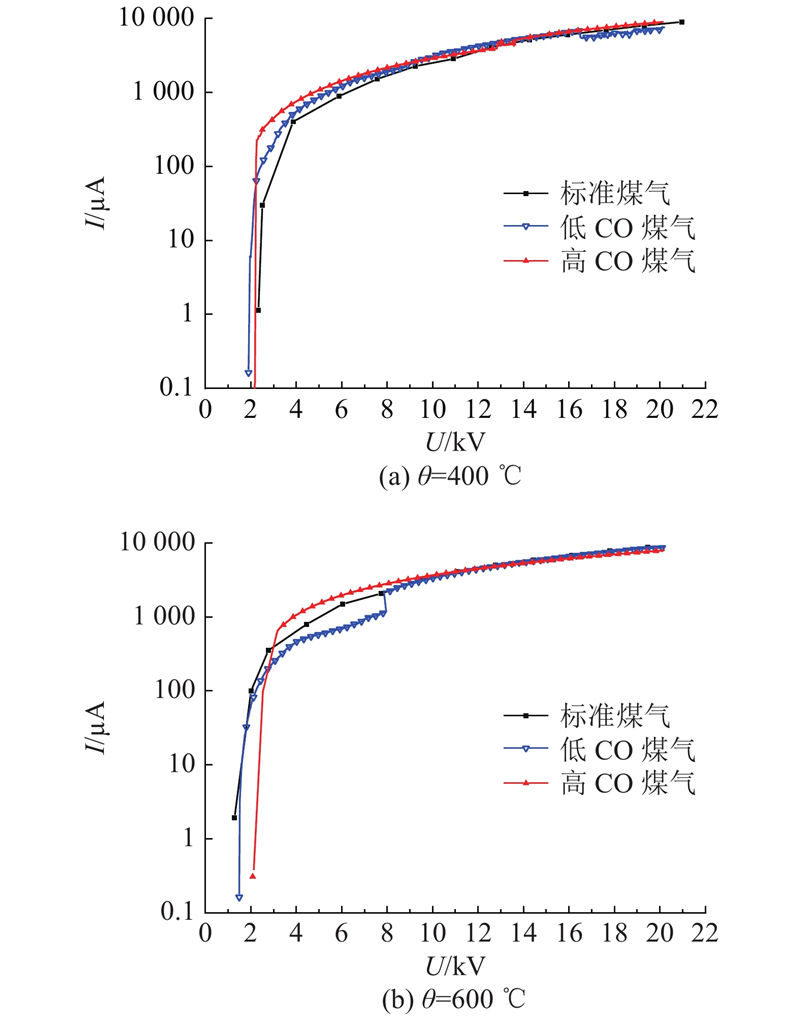

图 7  不同温度下CO体积分数对热解煤气放电的影响

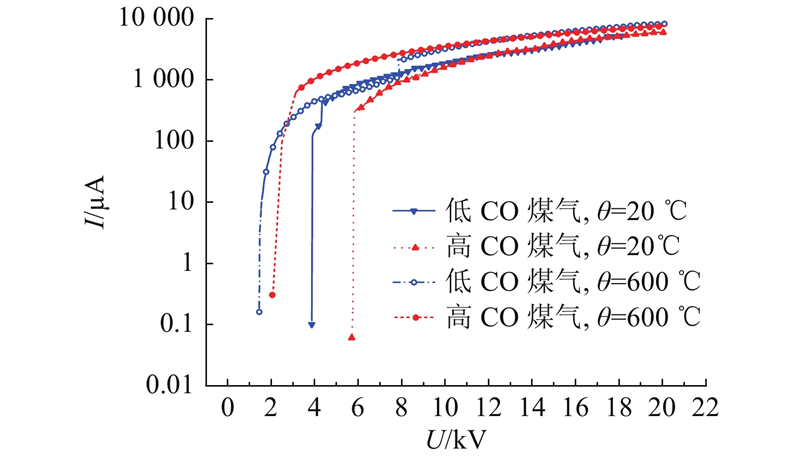

图 8  CO在20、600 ℃时的放电特性对比

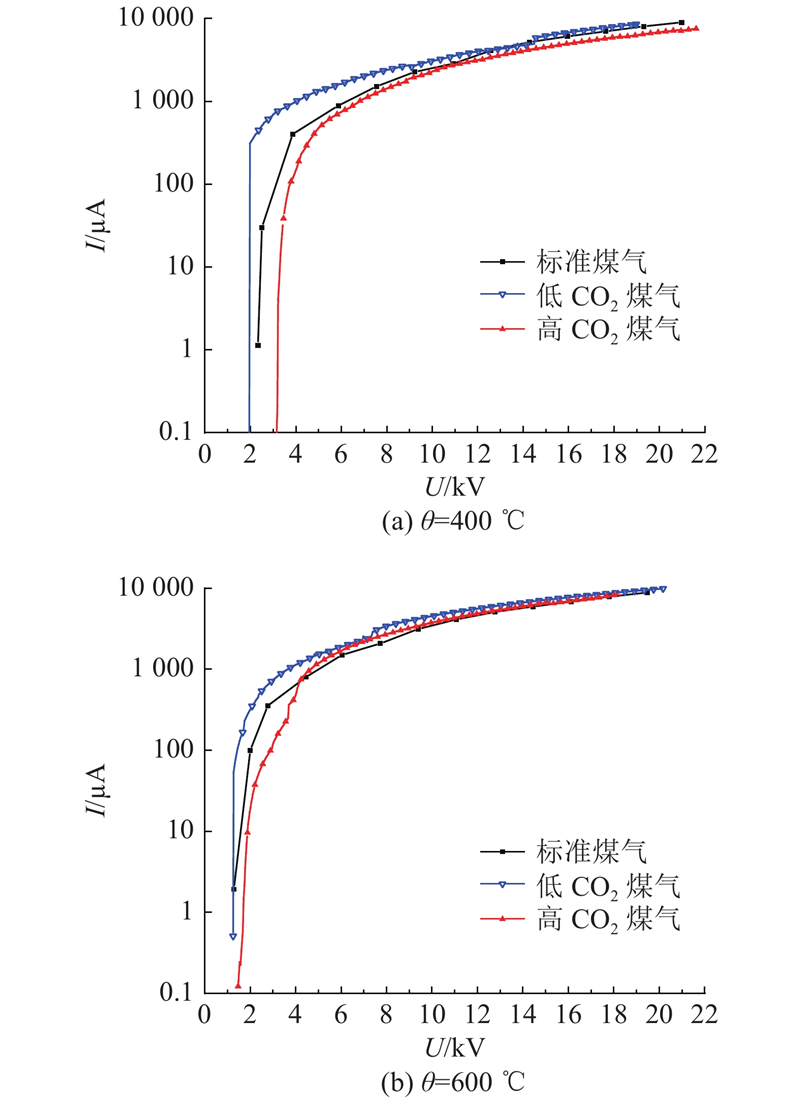

图 9  不同温度下CO2体积分数对热解煤气放电的影响

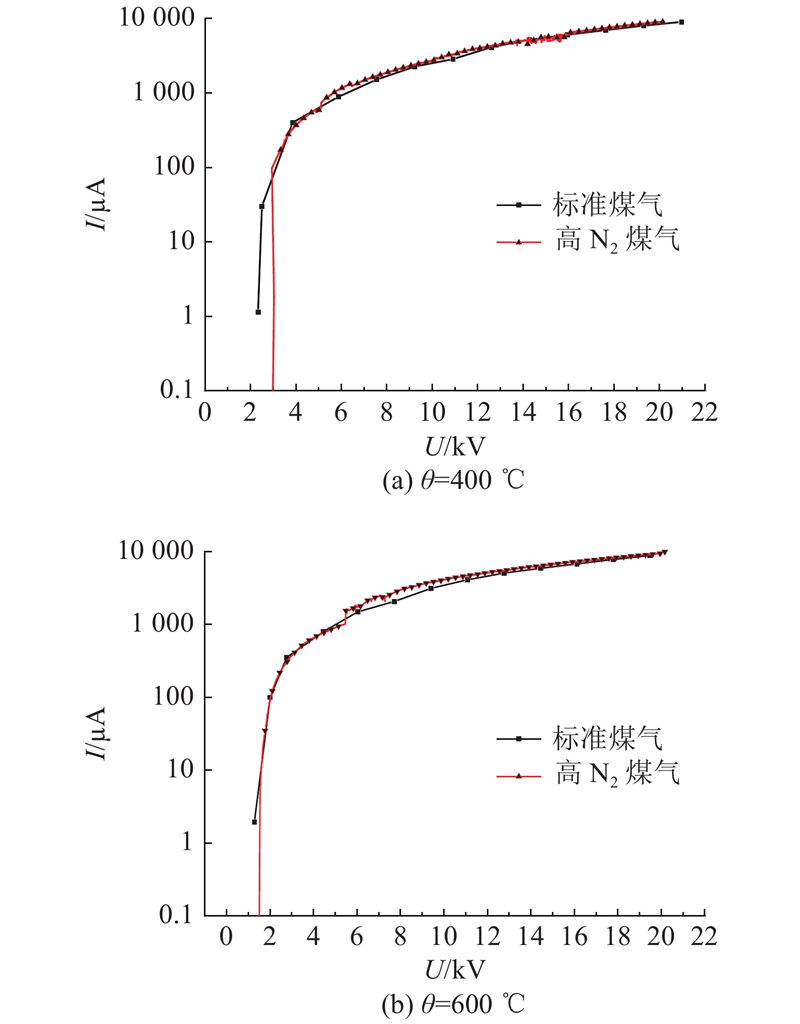

图 10  不同温度下N2体积分数对热解煤气放电的影响
图 11  气氛调质对热解煤气放电的优化效果
气氛
组别
φB/%
H2O 标准煤气
调质煤气1 10 90
调质煤气2 30 70
调质煤气3 50 50
表 4  调质煤气的气体成分

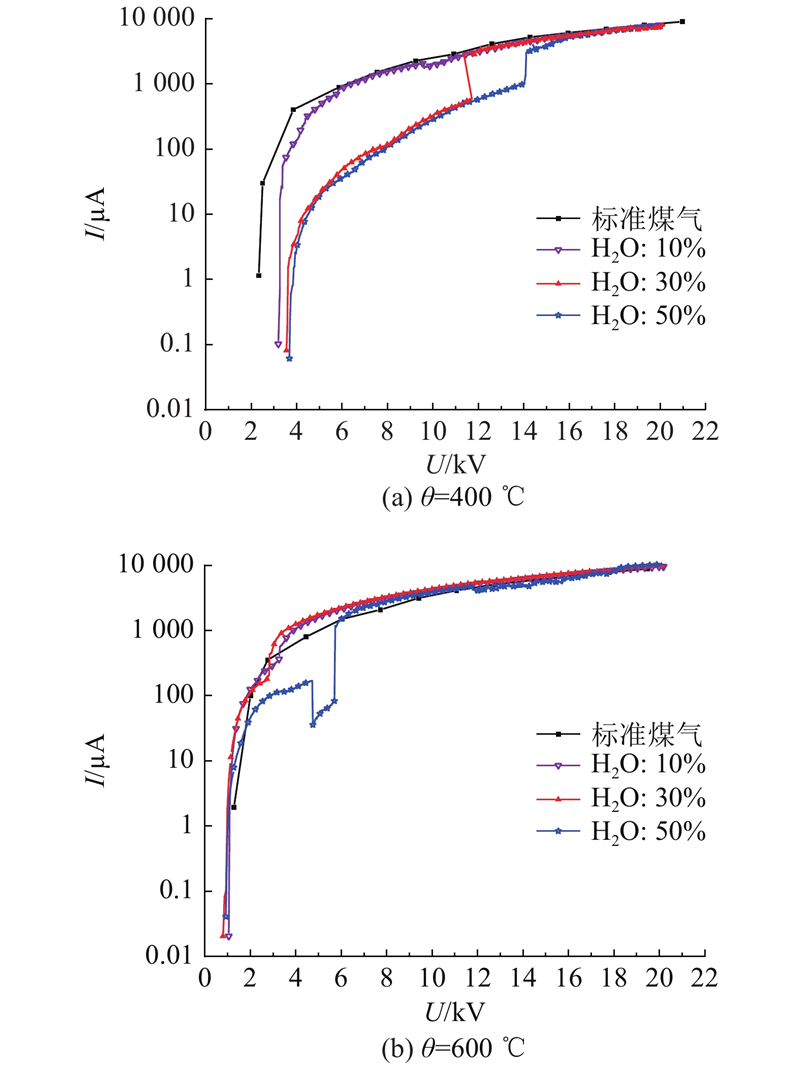

图 12  不同温度下H2O体积分数对热解煤气放电的影响

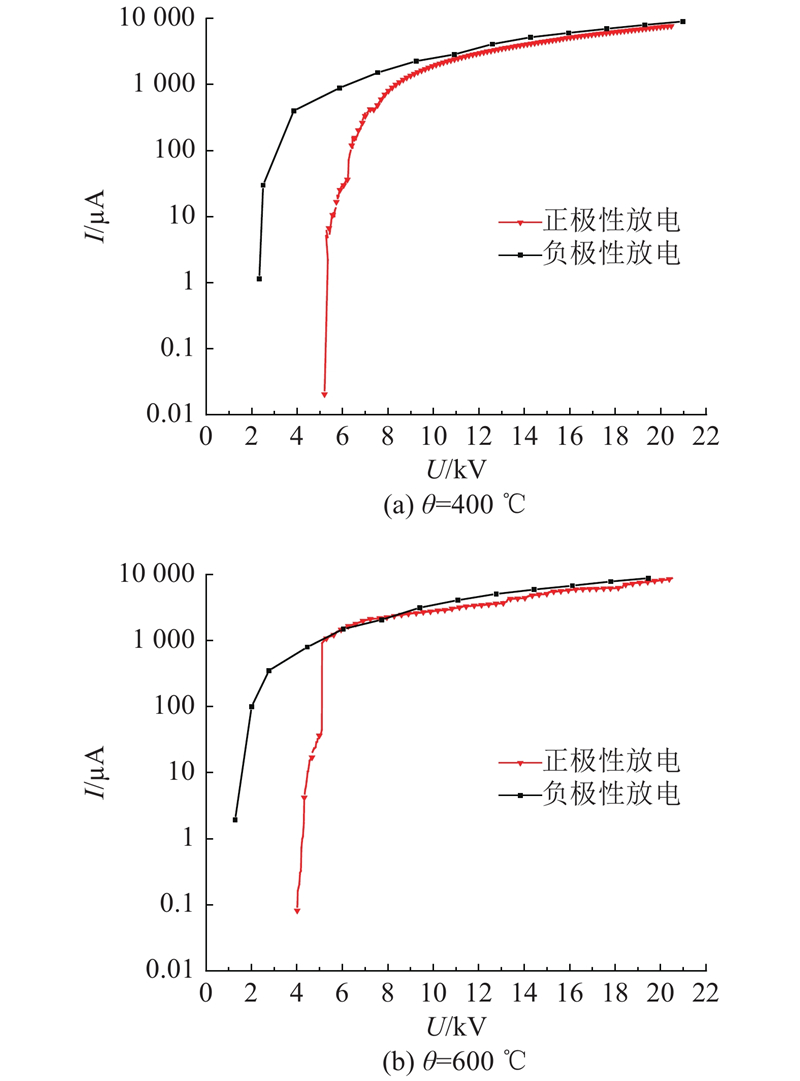

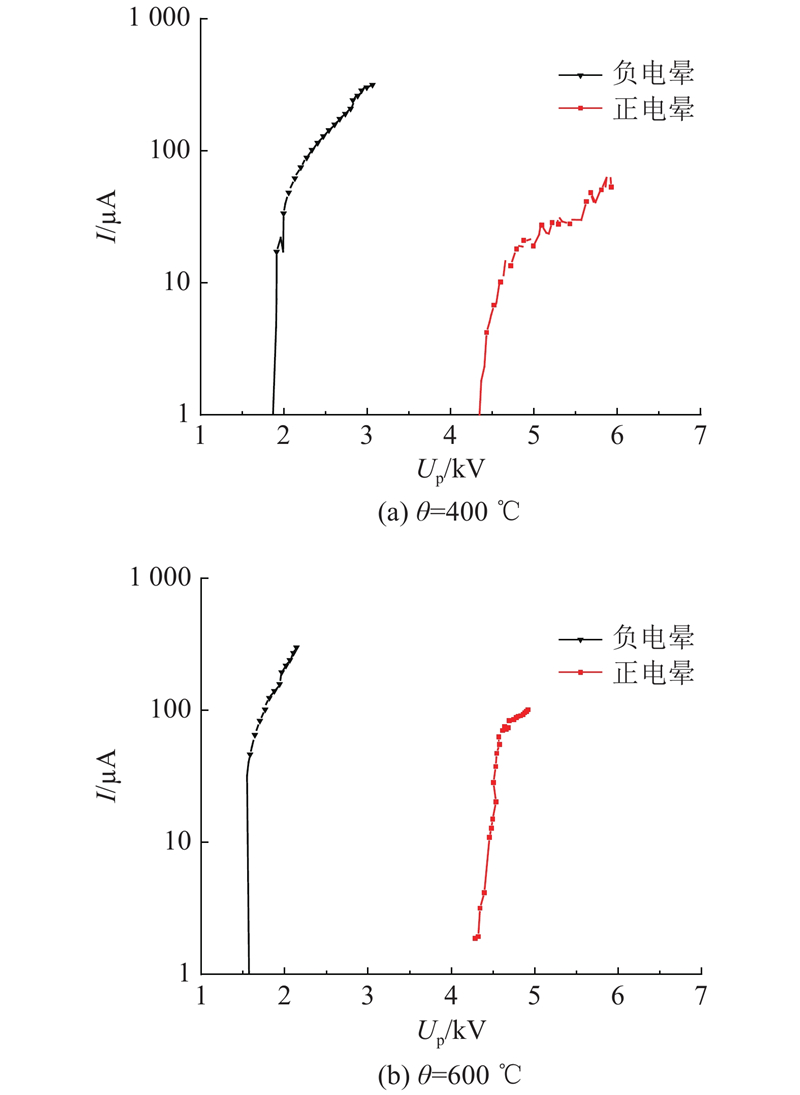

图 13  400、600 ℃下正极性电源对热解煤气放电的影响
图 14  400、600 ℃下正极性电源对高 φ(CH4)煤气放电的影响

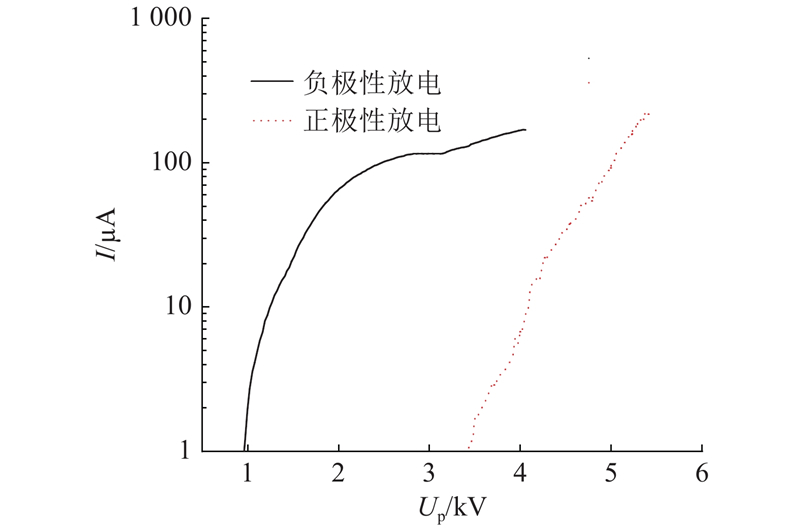

图 15  600 ℃下正极性电源对调质煤气3放电的影响
