浙江大学学报(工学版)  2026, Vol. 60 Issue (7): 1464-1474    DOI: 10.3785/j.issn.1008-973X.2026.07.009
计算机与控制工程
基于多尺度特征相似性匹配的低照度目标检测
于鑫淼(),夏楠*(),江佳鸿,郝子莹,把云胜
大连工业大学 信息科学与工程学院,辽宁 大连 116034
Low-light target detection based on multi-scale feature similarity matching
Xinmiao YU(),Nan XIA*(),Jiahong JIANG,Ziying HAO,Yunsheng BA
School of Information Science and Engineering, Dalian Polytechnic University, Dalian 116034, China
 全文: PDF(3657 KB)   HTML
摘要:

针对低照度场景下图像细节不明显而造成对比度下降的问题,提出先增强后检测的技术方法. 提出细节增强模块,用于捕获图像中的目标细节并增强图像对比度;构建多尺度特征提取网络,通过低级特征提取模块与特征融合策略,充分捕获图像在网络浅层的细节信息;设计相似性匹配网络,对原特征图和增强特征图进行多尺度分割和特征相似性匹配,对关键信息进行重要性加权,强化有效特征的表达并抑制冗余噪声. 结合YOLOv12目标检测器,所提算法在夜间目标检测数据集ExDark和自建数据集上的平均精度均值分别达到了83.4%和80.4%,显著优于PE-YOLO等现有主流算法. 在COCO和DarkFace数据集上的对比实验结果验证了算法的泛化性. 所提算法通过增强图像的细节特征和对比度,提升了低照度场景下目标检测模型的性能.

关键词: 自动驾驶低照度目标检测多尺度特征提取相似性匹配重要性加权
Abstract:

An enhancement-first, detection-later technical method was proposed to tackle the problem of reduced contrast caused by indistinct image details in low-light scenarios. A detail enhancement module was put forward to capture the target details in images and improve the image contrast. A multi-scale feature extraction network was constructed to fully capture the detailed information of images in the shallow layers of the network through the low-level feature extraction module and the feature fusion strategy. A similarity matching network was designed, which performed multi-scale segmentation and feature similarity matching on the original and enhanced feature maps, weighted the importance of key information, enhanced the representation of effective features and suppressed the redundant noise. When combined with the YOLOv12 target detector, the proposed method achieved the mean average precision of 83.4% and 80.4% on the nighttime target detection dataset ExDark and the self-built dataset, respectively, which significantly outperformed the existing mainstream algorithms such as PE-YOLO. The generalizability of the proposed method was validated by the results of comparative experiments conducted on the COCO and the DarkFace datasets. By enhancing the detailed features and contrast of images, the proposed algorithm improves the performance of target detection models in low-light scenarios.

Key words: autonomous driving    low-light target detection    multi-scale feature extraction    similarity matching    importance weighting
收稿日期: 2025-05-28 出版日期: 2026-05-23
CLC:  TP 391.4
基金资助: 辽宁省科技计划联合计划资助项目(2025-MSLH-049).
通讯作者: 夏楠     E-mail: 13065369922@163.com;xianan@dlpu.edu.cn
作者简介: 于鑫淼(2000—),男,硕士生,从事深度学习目标检测研究. orcid.org/0009-0009-7617-1045. E-mail:13065369922@163.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
于鑫淼
夏楠
江佳鸿
郝子莹
把云胜

引用本文:

于鑫淼,夏楠,江佳鸿,郝子莹,把云胜. 基于多尺度特征相似性匹配的低照度目标检测[J]. 浙江大学学报(工学版), 2026, 60(7): 1464-1474.

Xinmiao YU,Nan XIA,Jiahong JIANG,Ziying HAO,Yunsheng BA. Low-light target detection based on multi-scale feature similarity matching. Journal of ZheJiang University (Engineering Science), 2026, 60(7): 1464-1474.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.07.009        https://www.zjujournals.com/eng/CN/Y2026/V60/I7/1464

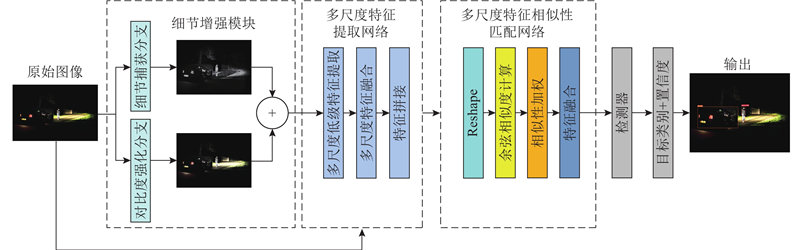

图 1  基于多尺度特征相似性匹配的低照度目标检测方法

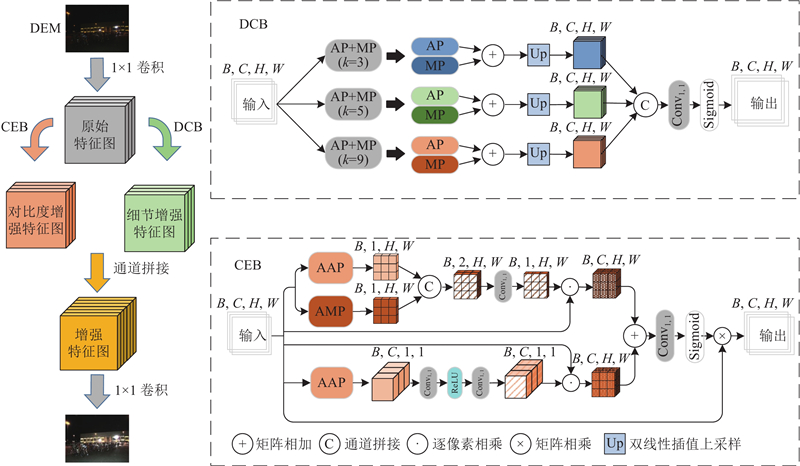

图 2  细节增强模块结构

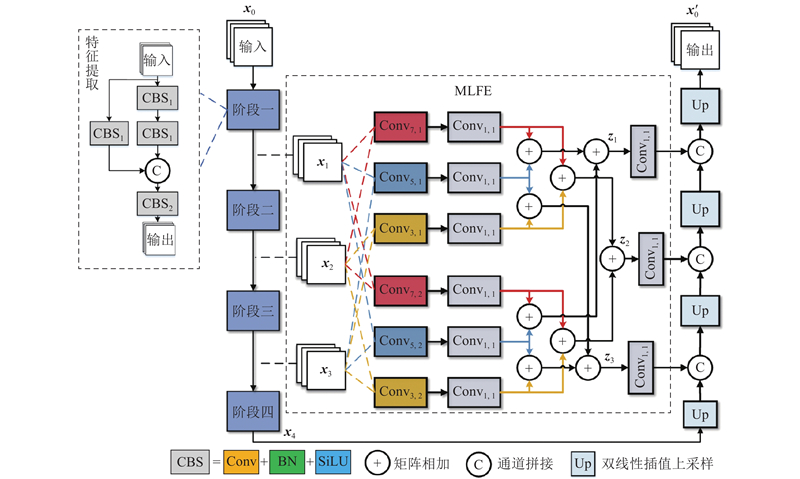

图 3  多尺度特征提取网络

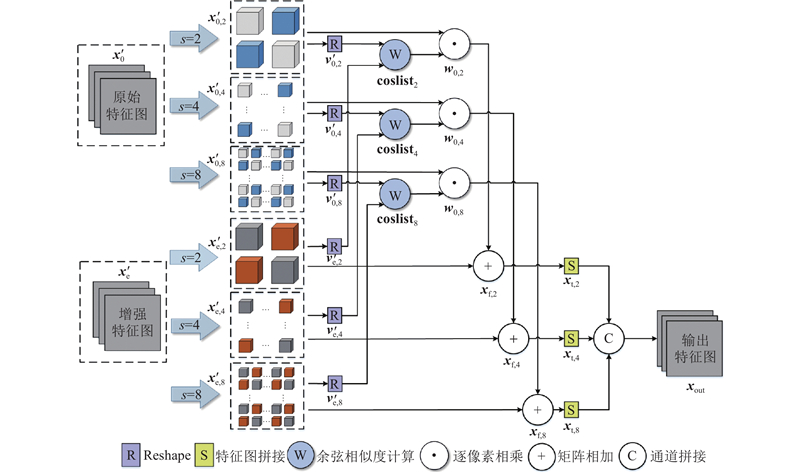

图 4  多尺度特征相似性匹配网络
方法AP/%mAP/%FPS/
(帧·s?1)
自行车瓶子公交车汽车椅子杯子摩托车行人桌子
Faster R-CNN[8]83.072.374.685.082.678.677.281.681.082.781.372.079.371.1
Mask R-CNN[9]87.474.478.187.983.180.280.681.078.376.683.270.680.268.5
RetinaNet [10]84.573.272.786.580.876.876.875.973.478.376.667.176.974.6
YOLOv10[31]85.276.482.787.480.975.975.379.282.582.380.674.679.893.7
YOLOv11[32]87.676.982.487.581.276.377.080.981.979.681.074.480.592.7
YOLOv12[33]88.776.882.088.181.976.077.381.282.482.981.474.781.191.5
RT-DETR[7]85.176.681.487.081.275.681.381.882.282.883.770.980.884.0
DENet[16]85.675.277.884.483.577.978.779.580.683.582.374.080.394.1
IAT[34]86.575.677.488.783.279.681.180.577.683.180.376.480.988.8
PE-YOLO[18]88.775.479.890.683.977.882.582.478.782.580.873.481.491.2
WSA-YOLO[17]88.078.881.392.684.678.580.380.980.784.381.977.182.487.2
本研究方法89.381.582.694.286.177.679.682.082.984.583.174.283.485.0
表 1  所提方法与经典算法、最新优化算法在ExDark数据集上的检测精度与速度对比
方法AP/%mAP/%FPS/
(帧·s?1)
自行车公交车汽车货车摩托车行人
RetinaNet [10]76.177.666.564.268.868.270.266.0
YOLOv10[31]76.679.269.168.973.772.973.482.6
YOLOv11[32]77.381.469.769.373.673.074.081.5
YOLOv12[33]79.083.176.375.772.077.477.180.3
RT-DETR[7]78.980.371.972.671.269.974.176.2
DENet[16]78.780.774.974.372.774.876.083.6
IAT[34]81.282.677.876.673.974.977.879.4
PE-YOLO[18]80.782.477.979.276.479.579.379.9
WSA-YOLO[17]81.683.479.279.376.578.979.878.4
本研究方法82.384.079.477.978.680.280.477.6
表 2  所提方法与最新优化算法在自建数据集上的检测精度与速度对比
方法COCO数据集DarkFace数据集
mAP/%FPS/(帧·s?1)mAP/%FPS/(帧·s?1)
YOLOv11[32]54.0102.669.879.6
YOLOv12[33]54.499.071.289.3
RT-DETR[7]54.790.870.775.2
IAT[34]54.994.870.886.3
PE-YOLO[18]55.898.171.878.2
WSA-YOLO[17]56.196.772.476.6
本研究方法56.394.174.075.9
表 3  不同算法在COCO和DarkFace数据集上的检测精度对比
DEMMSFEMFSMmAP/%FLOPs/GNp/M
×××81.121.69.3
××81.938.715.1
×82.276.928.3
83.4121.534.5
表 4  不同改进措施对网络性能的影响
s = 2s = 4s = 8mAP/%FLOPs/GFPS/(帧·s?1)
×82.588.391.8
×82.8103.690.5
×82.9115.989.5
83.1121.589.0
表 5  不同尺度对特征相似性匹配网络性能的影响
方法mAP/%FPS/(帧·s?1)
所提网络+YOLOv576.380.7
所提网络+YOLOv879.682.6
所提网络+YOLOv1082.186.0
所提网络+YOLOv1182.786.2
所提网络+YOLOv1283.485.1
表 6  所提网络在不同检测器上的检测性能
方法mAP/%FPS/(帧·s?1)
DENet[16]+YOLOv1280.791.3
IAT[34]+YOLOv1281.587.5
PE[18]+YOLOv1282.689.4
WSA[17]+YOLOv1283.185.6
本研究方法+YOLOv1283.485.1
表 7  不同网络在相同检测器上的检测性能

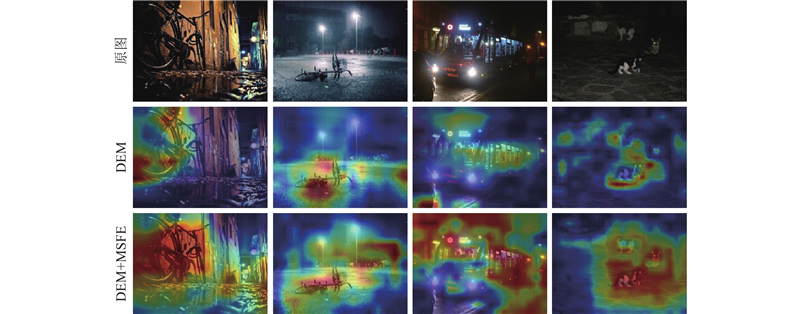

图 5  采用DEM和MSFE时模型对低照度场景下目标的关注程度

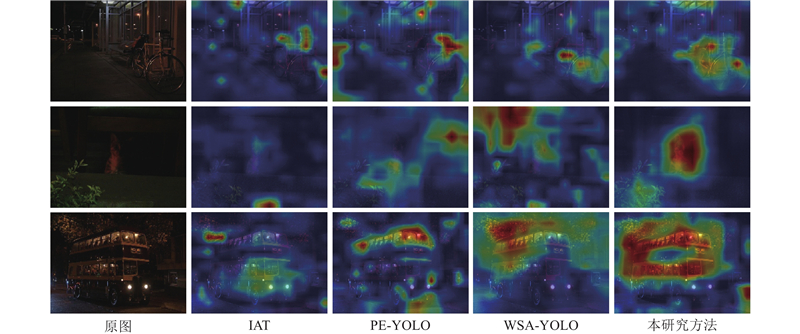

图 6  不同算法对低照度场景下目标的关注程度

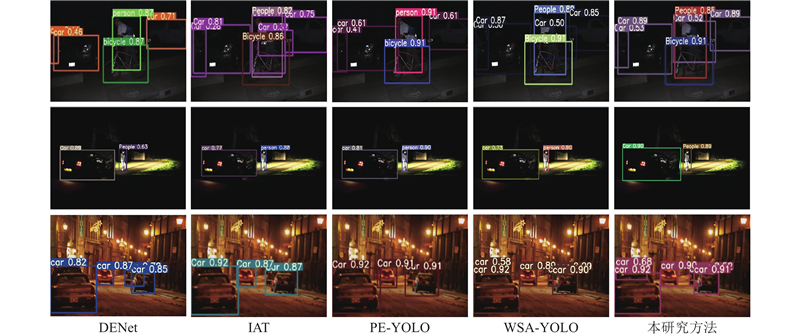

图 7  目标检测任务中不同算法的置信度分布可视化对比
1 WANG W, WANG X, YANG W, et al Unsupervised face detection in the dark[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45 (1): 1250- 1266
doi: 10.1109/TPAMI.2022.3152562
2 TENG S, HU X, DENG P, et al Motion planning for autonomous driving: the state of the art and future perspectives[J]. IEEE Transactions on Intelligent Vehicles, 2023, 8 (6): 3692- 3711
doi: 10.1109/TIV.2023.3274536
3 WANG S, CHEN M A LiDAR multi-object detection algorithm for autonomous driving[J]. Applied Sciences, 2023, 13 (23): 12747
doi: 10.3390/app132312747
4 YI A, ANANTRASIRICHAI N A comprehensive study of object tracking in low-light environments[J]. Sensors, 2024, 24 (13): 4359
doi: 10.3390/s24134359
5 PIZER S M, AMBURN E P, AUSTIN J D, et al Adaptive histogram equalization and its variations[J]. Computer Vision, Graphics, and Image Processing, 1987, 39 (3): 355- 368
doi: 10.1016/S0734-189X(87)80186-X
6 RAHMAN S, RAHMAN M M, ABDULLAH-AL-WADUD M, et al An adaptive gamma correction for image enhancement[J]. EURASIP Journal on Image and Video Processing, 2016, (1): 35
7 LV W, ZHAO Y, CHANG Q, et al. RT-DETRv2: improved baseline with bag-of-freebies for real-time detection Transformer [EB/OL]. (2024-07-24) [2025-07-16]. https://arxiv.org/abs/2407.17140.
8 REN S, HE K, GIRSHICK R, et al Faster R-CNN: towards real-time object detection with region proposal networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39 (6): 1137- 1149
doi: 10.1109/TPAMI.2016.2577031
9 HE K, GKIOXARI G, DOLLÁR P, et al. Mask R-CNN [C]// Proceedings of the IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 2980–2988.
10 LIN T Y, GOYAL P, GIRSHICK R, et al. Focal loss for dense object detection [C]// Proceedings of the IEEE International Conference on Computer Vision. Venice: IEEE, 2017: 2999–3007.
11 LIU W, ANGUELOV D, ERHAN D, et al. SSD: single shot MultiBox detector [C]// European Conference on Computer Vision. Amsterdam: Springer, 2016: 21–37.
12 REDMON J, DIVVALA S, GIRSHICK R, et al. You only look once: unified, real-time object detection [C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 779–788.
13 江泽涛, 施道权, 雷晓春, 等 一种基于Night-YOLOX的低照度目标检测方法[J]. 电子学报, 2023, 51 (10): 2821- 2830
JIANG Zetao, SHI Daoquan, LEI Xiaochun, et al A low-illumination object detection method based on night-YOLOX[J]. Acta Electronica Sinica, 2023, 51 (10): 2821- 2830
doi: 10.12263/DZXB.20221396
14 LIU Y, LI S, ZHOU L, et al Dark-YOLO: a low-light object detection algorithm integrating multiple attention mechanisms[J]. Applied Sciences, 2025, 15 (9): 5170
doi: 10.3390/app15095170
15 PENG D, DING W, ZHEN T A novel low light object detection method based on the YOLOv5 fusion feature enhancement[J]. Scientific Reports, 2024, 14: 4486
doi: 10.1038/s41598-024-54428-8
16 QIN Q, CHANG K, HUANG M, et al. DENet: detection-driven enhancement network for object detection under adverse weather conditions [C]// Proceedings of the Asian Conference on Computer Vision. Macao: Springer, 2023: 491–507.
17 HUI Y, WANG J, LI B WSA-YOLO: weak-supervised and adaptive object detection in the low-light environment for YOLOv7[J]. IEEE Transactions on Instrumentation and Measurement, 2024, 73: 2507012
18 YIN X, YU Z, FEI Z, et al. PE-YOLO: pyramid enhancement network for dark object detection [C]// Proceedings of the 32nd International Conference on Artificial Neural Networks. Heraklion: Springer, 2023: 163–174.
19 江泽涛, 李慧, 雷晓春, 等 一种基于SAM-MSFF网络的低照度目标检测方法[J]. 电子学报, 2024, 52 (1): 81- 93
JIANG Zetao, LI Hui, LEI Xiaochun, et al A low-light object detection method based on SAM-MSFF network[J]. Acta Electronica Sinica, 2024, 52 (1): 81- 93
doi: 10.12263/DZXB.20220666
20 ZHOU R, LI P, ZHANG M, et al A low-light image enhancement algorithm incorporating cross-mixed attention and receptive field expansion mechanism[J]. IEEE Access, 2024, 12: 45773- 45784
doi: 10.1109/ACCESS.2024.3381514
21 ZHOU W, CHEN Z. Deep multi-scale features learning for distorted image quality assessment [C]// Proceedings of the IEEE International Symposium on Circuits and Systems. Daegu: IEEE, 2021: 1–5.
22 GUO H, BIN Y, HOU Y, et al. IQMA network: image quality multi-scale assessment network [C]// Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops. Nashville: IEEE, 2021: 443–452.
23 LIU Y, WANG L, CHENG J, et al Multiscale feature interactive network for multifocus image fusion[J]. IEEE Transactions on Instrumentation and Measurement, 2021, 70: 5019316
24 ZHANG Y, GUO W, WU C, et al FANet: an arbitrary direction remote sensing object detection network based on feature fusion and angle classification[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61: 5608811
25 ZHAO W, KANG Y, CHEN H, et al Adaptively attentional feature fusion oriented to multiscale object detection in remote sensing images[J]. IEEE Transactions on Instrumentation and Measurement, 2023, 72: 5008111
26 VASWANI A, SHAZEER N, PARMAR N, et al. Attention is all you need [C]// Proceedings of the 31st Conference on Neural Information Processing Systems. Long Beach: Curran Associates Inc, 2017: 6000–6010.
27 JIANG J, XIA N, YU X A feature matching and compensation method based on importance weighting for occluded human pose estimation[J]. Journal of King Saud University-Computer and Information Sciences, 2024, 36 (5): 102061
doi: 10.1016/j.jksuci.2024.102061
28 LOH Y P, CHAN C S Getting to know low-light images with the Exclusively Dark dataset[J]. Computer Vision and Image Understanding, 2019, 178: 30- 42
doi: 10.1016/j.cviu.2018.10.010
29 YU F, CHEN H, WANG X, et al. BDD100K: a diverse driving dataset for heterogeneous multitask learning [C]// Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Seattle: IEEE, 2020: 2633–2642.
30 WEN L, DU D, CAI Z, et al UA-DETRAC: a new benchmark and protocol for multi-object detection and tracking[J]. Computer Vision and Image Understanding, 2020, 193: 102907
doi: 10.1016/j.cviu.2020.102907
31 CHEN H, CHEN K, DING G, et al. YOLOv10: real-time end-to-end object detection [C]// Proceedings of the 38th International Conference on Neural Information Processing Systems. Vancouver: Curran Associates Inc, 2024: 107984–108011.
32 KHANAM R, HUSSAIN M. YOLOv11: an overview of the key architectural enhancements [EB/OL]. (2024-10-14) [2025-07-16]. https://arxiv.org/abs/1911.11907.
33 TIAN Y, YE Q, DOERMANN D. YOLOv12: attention-centric real-time object detectors [EB/OL]. (2025-02-18) [2025-07-16]. https://arxiv.org/abs/2407.17140.
34 CUI Z, LI K, GU L, et al. You only need 90K parameters to adapt light: a light weight transformer for image enhancement and exposure correction [C]// Proceedings of the British Machine Vision Conference. London: BMVA Press, 2022: 21–24.
35 LIN T Y, MAIRE M, BELONGIE S, et al. Microsoft COCO: common objects in context [C]// European Conference on Computer Vision. Zurich: Springer, 2014: 740–755.
