浙江大学学报(工学版)  2023, Vol. 57 Issue (11): 2285-2293    DOI: 10.3785/j.issn.1008-973X.2023.11.016
电气工程
基于组合零样本学习的接触网吊弦线缺陷识别
顾桂梅1(),贾耀华1,赵岩浩2,张文辉2,闫炳旭3
1. 兰州交通大学 自动化与电气工程学院,甘肃 兰州 730070
2. 中国铁路兰州局集团有限公司,甘肃 兰州 730030
3. 中国铁路郑州局集团有限公司,河南 郑州 450015
Defect identification for catenary dropper line based on compositional zero-shot learning
Gui-mei GU1(),Yao-hua JIA1,Yan-hao ZHAO2,Wen-hui ZHANG2,Bing-xu YAN3
1. School of Automation and Electrical Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2. China Railway Lanzhou Bureau Group Co. Ltd, Lanzhou 730030, China
3. China Railway Zhengzhou Bureau Group Co. Ltd, Zhengzhou 450015, China
 全文: PDF(1081 KB)   HTML
摘要:

目前现场接触网吊弦缺陷图像严重不足,导致模型特征学习不充分,识别准确率难以得到有效提高,为此提出基于组合零样本学习的接触网吊弦线缺陷识别方法. 采用以ResNet-50作为主干网络的视觉特征提取模块提取图像视觉特征;使用预训练的Word2Vec词向量对标签组合图中的节点特征进行初始化,并通过2层图卷积网络学习标签组合图中各节点之间的依赖关系,从而优化组合标签节点的语义特征,改善最终的识别效果;将提取到的视觉特征和优化后的组合标签节点的语义特征相对齐,构建相似度函数计算图像视觉特征与组合标签语义特征之间的相似度得分,并通过交叉熵损失完成图像组合标签的预测. 仿真实验结果表明:所提方法对可见类样本的类平均检测准确率为93.5%,对不可见类样本的类平均检测准确率为86.5%.

关键词: 接触网吊弦缺陷识别组合零样本学习ResNet-50网络图卷积网络词向量
Abstract:

Defect identification method for catenary dropper line based on compositional zero-shot learning was proposed, aiming at the problem of insufficient learning of model features and difficulty in effectively improving the recognition accuracy caused by the serious lack of image of catenary defects on site. The visual feature extraction module using ResNet-50 as the backbone network was used to extract image visual features. The pre-trained Word2Vec word vector was used to initialize the node features in the label combination graph. The dependence relationship between the nodes in the label combination graph was learned through the 2-layer graph convolutional networks, thereby optimizing the semantic features of the combined label nodes and improving the final recognition effect. The extracted visual features were matched with the semantic features of the optimized combined label nodes, and the similarity function was constructed to calculate the similarity score between the visual features of the image and the semantic features of the combined label. The prediction of the combined label was completed through the cross-entropy loss. The simulation results show that the proposed method has an average class detection accuracy of 93.5% for seen samples and 86.5% for unseen samples.

Key words: catenary dropper    defect identification    compositional zero-shot learning    ResNet-50 network    graph convolution network    word vector
收稿日期: 2023-01-12 出版日期: 2023-12-11
CLC:  U 225.4
基金资助: 甘肃省科技计划资助项目(20JR10RA216)
作者简介: 顾桂梅(1970—),女,教授,从事接触网智能监测和故障监测诊断研究. orcid.org/0000-0003-0485-5535. E-mail: 386509464@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
顾桂梅
贾耀华
赵岩浩
张文辉
闫炳旭

引用本文:

顾桂梅,贾耀华,赵岩浩,张文辉,闫炳旭. 基于组合零样本学习的接触网吊弦线缺陷识别[J]. 浙江大学学报(工学版), 2023, 57(11): 2285-2293.

Gui-mei GU,Yao-hua JIA,Yan-hao ZHAO,Wen-hui ZHANG,Bing-xu YAN. Defect identification for catenary dropper line based on compositional zero-shot learning. Journal of ZheJiang University (Engineering Science), 2023, 57(11): 2285-2293.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.11.016        https://www.zjujournals.com/eng/CN/Y2023/V57/I11/2285

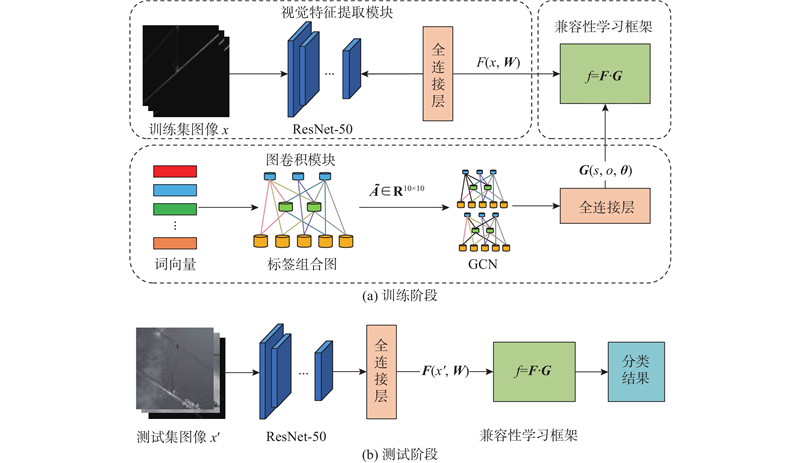

图 1  组合零样本学习(CZSL)方法框架图
图 2  基于数据集的标签组合图

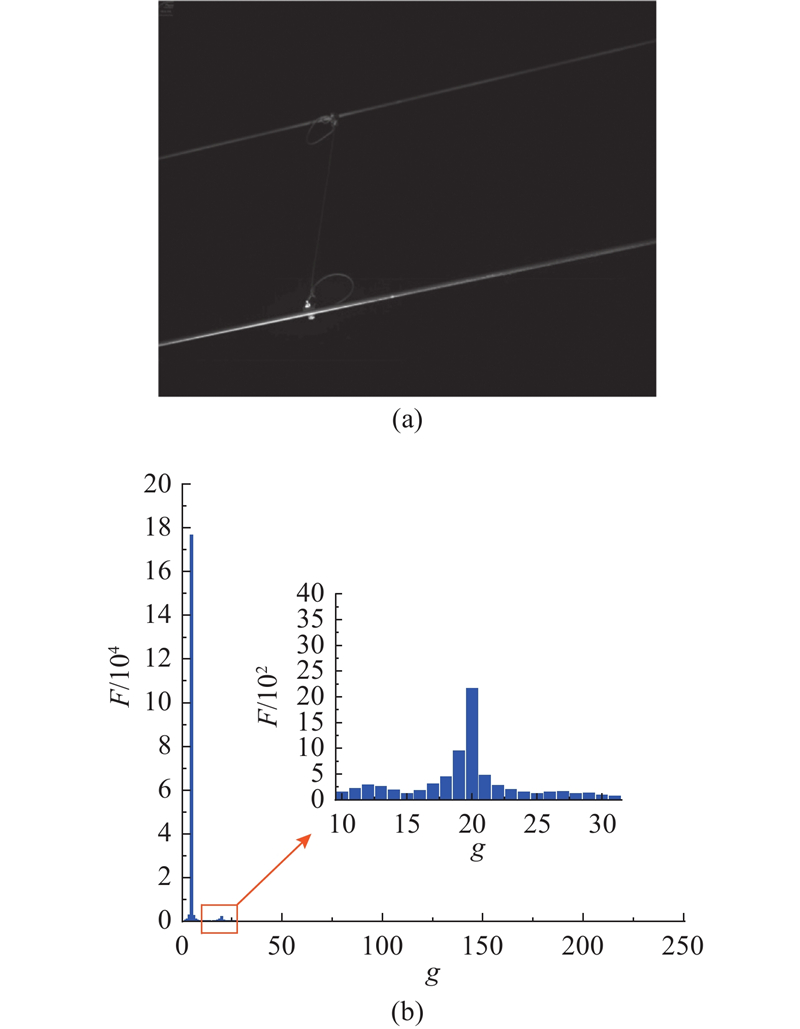

图 3  原始吊弦图像及其直方图分布
图 4  CLAHE增强后吊弦图像及其直方图分布
样本名称 样本类型 N
训练集 验证集 测试集
正常吊弦(normal dropper) 可见类样本 1500 200 500
松弛绞线(slack cable) 可见类样本 1500 200 500
断裂绞线(broken cable) 可见类样本 1500 200 500
松弛吊弦(slack dropper) 不可见类样本 0 100 100
断裂吊弦(broken dropper) 不可见类样本 0 100 100
总计 4500 800 1700
表 1  数据集样本类型及数量
网络层 参数 输出大小
conv1 7×7,64×64,stride2 112×112
conv2_x 3×3Max Pool,stride2 56×56
$ \left[\begin{array}{l}1\times 1,64\\ 3\times 3,64\\ 1\times 1,256\end{array}\right]\times 3 $
conv3_x $ \left[\begin{array}{l}1\times 1,128\\ 3\times 3,128\\ 1\times 1,512\end{array}\right]\times 4 $ 28×28
conv4_x $ \left[\begin{array}{l}1\times 1,256\\ 3\times 3,256\\ 1\times 1,1\;024\end{array}\right]\times 6 $ 14×14
conv5_x $ \left[\begin{array}{l}1\times 1,512\\ 3\times 3,512\\ 1\times 1,2\;048\end{array}\right]\times 3 $ 7×7
表 2  ResNet-50主干网络参数
α Accs/% Accu/% α Accs/% Accu/%
0 88.0 82.9 2 93.5 86.5
1 89.3 84.2 3 91.7 85.3
表 3  不同自连接权重下算法性能对比

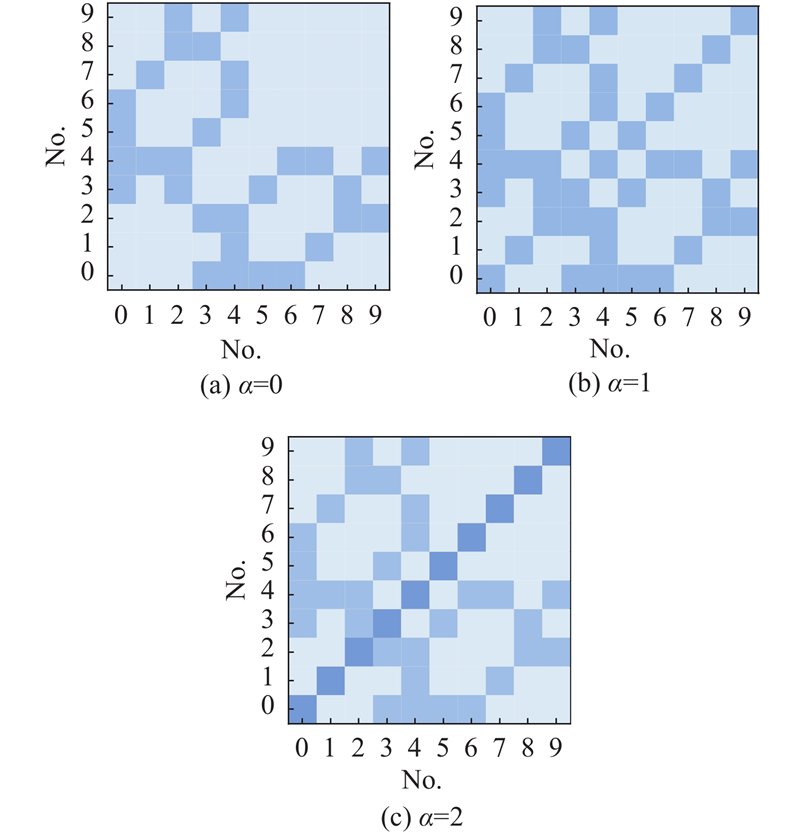

图 5  邻接矩阵可视化图
L Accs/% Accu/%
2 93.5 86.5
4 77.2 63.1
6 56.6 46.7
表 4  不同GCN层数时算法性能对比
网络 Accs/% Accu/% M t/ms
ResNet-18 87.6 80.2 13 511 232 5.6
ResNet-50 93.5 86.5 27 022 408 17.2
ResNet-101 94.1 86.9 46 014 528 40.5
Vgg-16 88.2 78.3 152 274 752 55.4
表 5  不同视觉特征提取网络下的算法性能对比
算法 Accs/% Accu/% H/%
TMN 87.0 61.3 71.9
LE+ 90.5 73.7 81.2
AttOp 88.5 75.7 81.6
SymNet 91.5 82.7 86.9
CZSL 93.5 86.5 89.9
表 6  CZSL与其他算法的检测准确率对比

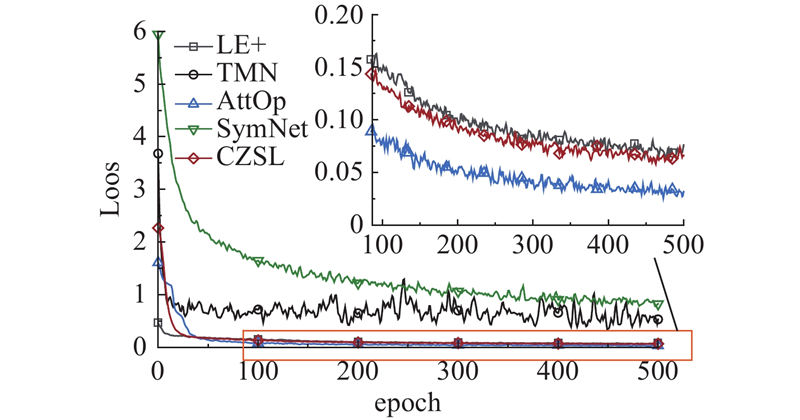

图 6  CZSL与其他算法的训练集损失曲线
算法 M t/ms
AttOp 24 394 837 14.7
LE+ 24 665 132 14.6
SymNet 26 434 081 20.4
TMN 24 337 733 30.0
CZSL 27 022 408 17.2
表 7  CZSL与其他算法的网络参数对比

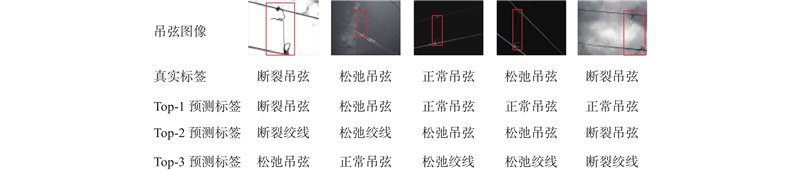

图 7  CZSL检测效果定性分析
