浙江大学学报(工学版)
浙江大学学报(工学版)  2019, Vol. 53 Issue (2): 207-213    DOI: 10.3785/j.issn.1008-973X.2019.02.001
能源工程
基于CFD分析的电动汽车电池包加热方法
黄钰期1(),梅盼1,陈晓济2,*(),邓长水2
1. 浙江大学 能源工程学院，浙江 杭州 310017
2. 福建易动力电子科技股份有限公司，福建 龙岩 364101
Heating strategy for electric vehicular battery pack based on CFD analysis
Yu-qi HUANG1(),Pan MEI1,Xiao-ji CHEN2,*(),Chang-shui DENG2
1. College of Energy Engineering, Zhejiang University, Hangzhou 310017, China
2. Fujian E-power Electronic Technology Co. Ltd, Longyan 364101, China
 全文: PDF(1359 KB)   HTML
摘要：

锂离子电池对温度环境要求严苛，在低温下常出现失效、寿命衰退等现象. 因此，为电池包设计高效、均匀且节能的加热方案，成为电动汽车在北方环境下发展的关键. 引入计算流体动力学（CFD）的仿真计算方法，并采用多孔介质理论对电池包中电池模块进行简化分析，对电动汽车电池包在加热过程中的温升特性进行仿真分析计算，将仿真计算结果与实测数据进行对比验证，证明所采用的仿真方法及多孔介质简化模型可有效应用于电动汽车电池包的加热方案评估. 根据分析结果对加热方案提出修正，并设计分块化的加热方案，即对局部加热功率进行控制. 计算结果显示，优化后的分块加热方案，在总体功率降低167 W（约7%）的情况下，仍然可在50 min内将电池包从?13 °C加热到5 °C，并且将电池包中电池区域最大温差控制在5 °C以内.
关键词： 锂离子电池;  加热;  仿真计算;  多孔介质简化;  实验验证
Abstract:

The performance of lithium batteries relies significantly on the ambient temperature. They often become ineffective or demonstrate a shortened lifespan at low temperatures. Therefore, designing an effective, uniform, and energy-efficient heating system for the battery pack becomes the key to the development of electric vehicles in northern environment. The method of numerical simulation adopted from computational fluid dynamics (CFD) was introduced, and the porous theory was used to conduct a simplified analysis of battery module in the battery pack. The rise of temperature during the heating process of the battery pack of electric vehicles was simulated, and the simulation and experimental results were compared. Results showed that the combination of simulation method and porous simplification model was effective in evaluating the heating system of electric vehicle battery pack. The heating strategy was modified based on the analysis results, and a heating system that consisted of multiple heating zones was designed, which can keep the heating power of each part in control. Results showed that there was an overall power reduction of 167 W (about 7%) under the optimized multi-zone heating system, and the battery pack can still be heated from ?13 °C to 5 °C within 50 minutes, with the maximum temperature difference within the zones of the battery pack being kept under 5 °C.
Key words: lithium battery    heating    numerical simulation    porous simplification    experimental verification
收稿日期: 2018-01-10 出版日期: 2019-02-21
CLC:  TU 111
通讯作者: 陈晓济     E-mail: huangyuqi@zju.edu.cn;epower_cxj@163.com
作者简介: 黄钰期（1979—），女，副教授，博士，从事车辆热管理及仿真分析研究. orcid.org/0000-0003-3152-5021. E-mail： huangyuqi@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
黄钰期
梅盼
陈晓济
邓长水

引用本文:

黄钰期,梅盼,陈晓济,邓长水. 基于CFD分析的电动汽车电池包加热方法[J]. 浙江大学学报(工学版), 2019, 53(2): 207-213.

Yu-qi HUANG,Pan MEI,Xiao-ji CHEN,Chang-shui DENG. Heating strategy for electric vehicular battery pack based on CFD analysis. Journal of ZheJiang University (Engineering Science), 2019, 53(2): 207-213.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.02.001    或    http://www.zjujournals.com/eng/CN/Y2019/V53/I2/207

图 1  电池包物理模型及电芯装配实物图
图 2  电池包仿真分析六面体网格模型
图 3  计算模型网格无关性检查
参数 参数取值
注：1) 将电芯考虑为多孔介质后，取均值1.8作为综合导热系数.
内含电芯个数 4 320
单电芯体积/m3 1.654×10?5
环境温度/°C ?13
目标温度/°C 5
电池包体积/m3 0.228
空气体积/m3 0.1（估算）
电芯总体积/m3 0.071 45
塑料件、电线、传感器、插头等配件体积/m3 0.056 55（估算）
电池包外壳对流换热系数/（W·m?2·K?1） 5~20，仿真计算取5[23-25]
电池包外壳表面积/m2 2.844 5
电芯物性参数 密度/（kg·m?3） 2 018
比热容/
（J·kg?1·K?1） 		1 282
导热系数/
（W·m?1·K?1） 		0.9（径向），2.7（周向/
轴向）1)
硅胶加热材料物性参数 密度/（kg·m?3） 1 180
比热容/
（J·kg?1·K?1） 		1 750
导热系数/
（W·m?1·K?1） 		4
外壳及加热块（钢）物性参数 密度/（kg·m?3） 8 030
比热容/
（J·kg?1·K?1） 		502.48
导热系数/
（W·m?1·K?1） 		16.27
表 1  电池包计算参数
图 4  电池包中加热片及测点相对位置

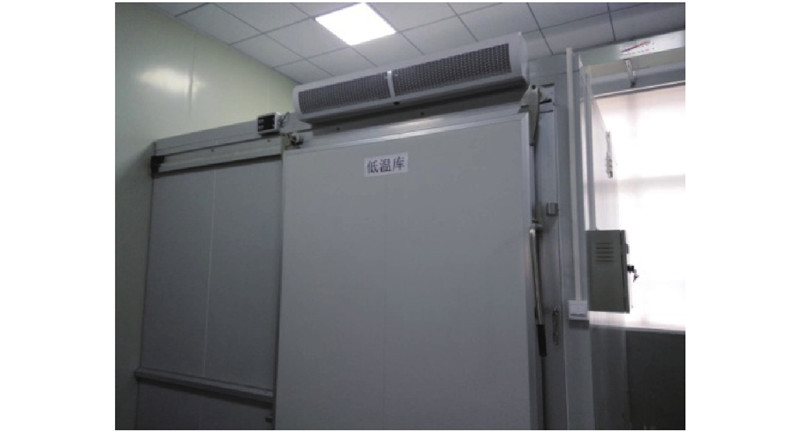

图 5  测试所用恒温舱照片

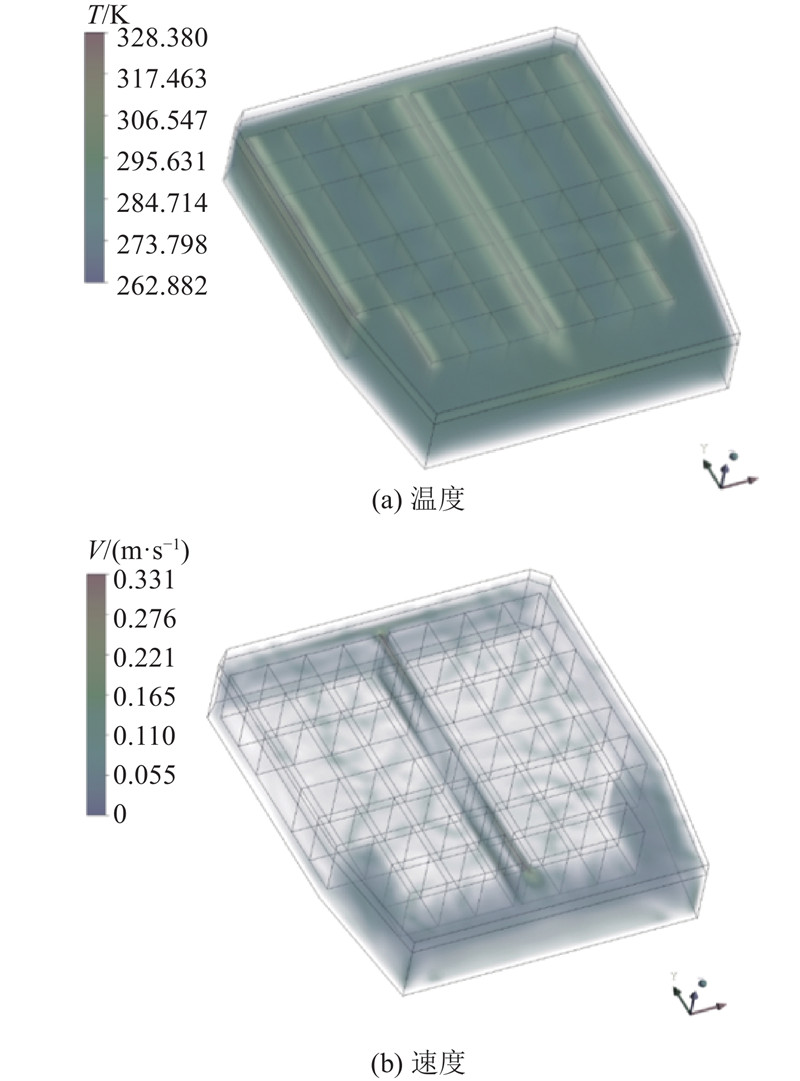

图 6  电池包温度及速度分布示意图

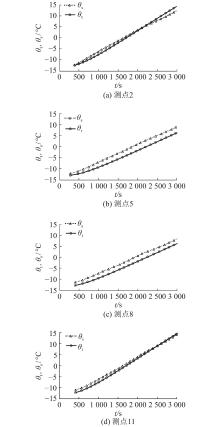

图 7  测点仿真温度与测试温度对比曲线

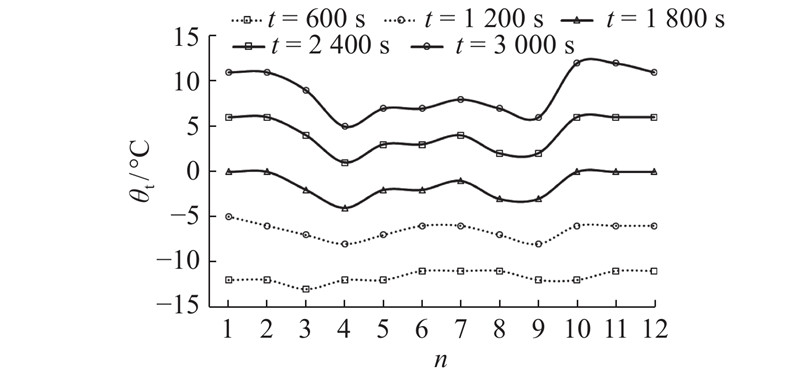

图 8  原方案实验测量点在不同时刻的温度分布

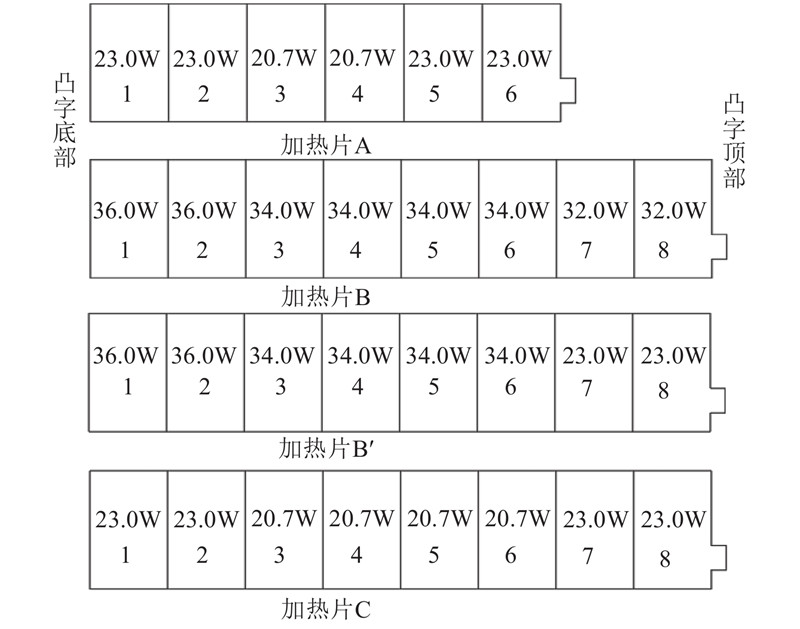

图 9  非均匀加热条件下优化方案的加热功率布置
W
方案类型 名称 加热功率
分块1 分块2 分块3 分块4 分块5 分块6 分块7 分块8
注：B'板为最外侧的2块B型板
原方案 A板 31.70 31.70 31.70 31.70 31.70 31.70 ? ?
B板 31.25 31.25 31.25 31.25 31.25 31.25 31.25 31.25
A板 23.00 23.00 20.70 20.70 23.00 23.00 ? ?
优化方案 B板 36.00 36.00 34.00 34.00 34.00 34.00 32.00 32.00
B'板 36.00 36.00 34.00 34.00 34.00 34.00 23.00 23.00
C板 23.00 23.00 20.70 20.70 20.70 20.70 23.00 23.00
表 2  原方案与优化方案各分块加热功率设置
图 10  优化方案的电池包中不同加热片位置

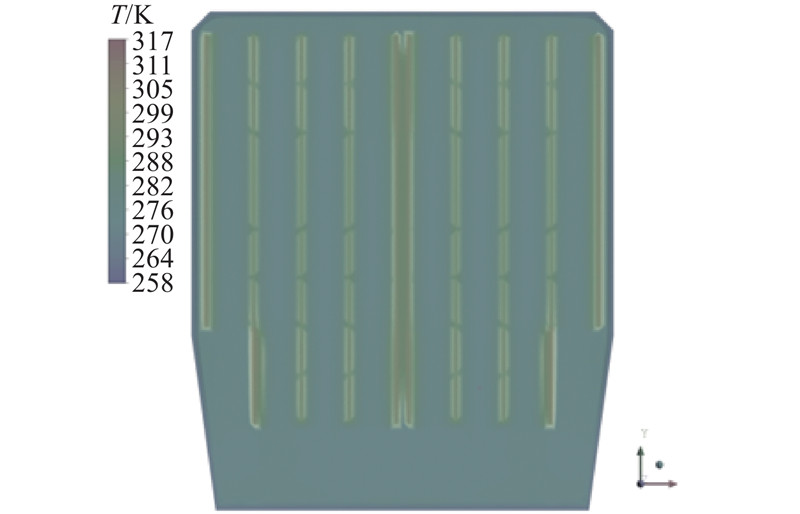

图 11  优化方案的电池区中截面温度分布云图

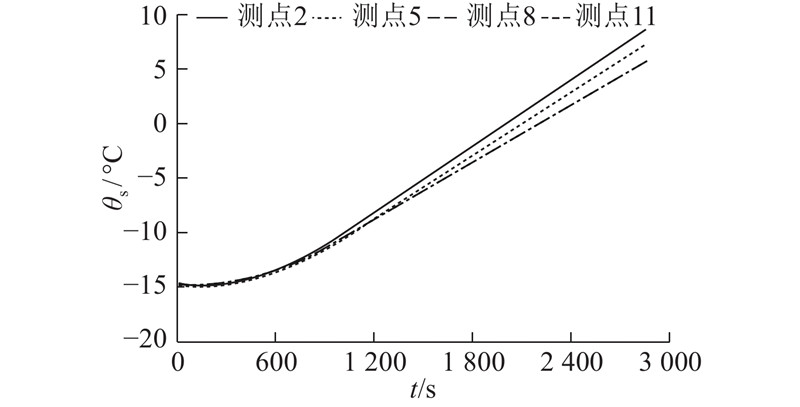

图 12  优化后各主要测点仿真温升曲线
