Salt resistance of modified bentonite in complex environment
Wei YANG1,2,3(),Meng-jian REN1,2,3,Ren-peng CHEN1,2,3,*(),Xue-ying LIU1,2,3,Xin KANG1,2,3
1. Key Laboratory of Building Safety and Energy Efficiency of Ministry of Education, Hunan University, Changsha 410082, China
2. National Center for International Research Collaboration in Building Safety and Environment, Hunan University, Changsha 410082, China
3. College of Civil Engineering, Hunan University, Changsha 410082, China
Download: HTML     PDF(1474KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The bentonite was modified with sodium polyacrylate, and the microstructure characteristics of the material were analyzed by scanning electron microscope (SEM), Fourier transform infrared spectroscopy (FTIR), Zeta potential and BET in order to enhance the salt resistance of geosynthetic clay liner (GCL). Results show that the bentonite particles have a good combination with the polymer, and new hydrophilic functional groups appear on the surface of the modified bentonite. The dispersion of the modified bentonite is more uniform, and the lamella structure is clearer. The specific surface area of the modified soil decreases and the average pore diameter increases as the small pores are wrapped and filled by the modifier. The swelling properties of the modified bentonite with different pH, cation types and cation concentrations showed that the swelling performance of modified bentonite was significantly improved. The results of the permeability test showed that the permeability coefficient of the modified soil was reduced from 10?8 m/s of the bentonite to the order of 10?9 m/s, and the impermeability of the modified soil was significantly enhanced in the same concentration of salt solution.

Key words： modified bentonite      salt-resistance      geosynthetic clay liner (GCL)      swelling      permeability
Received: 14 January 2021      Published: 27 October 2021
CLC:  TU 411
Fund:  国家自然科学基金资助项目（52078207，51938005）；国家自然科学基金青年科学基金资助项目（41807261）；湖南省科技计划资助项目（2019RS1030）
Corresponding Authors: Ren-peng CHEN     E-mail: yangwei86@hnu.edu.cn;chenrp@hnu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Wei YANG
Meng-jian REN
Ren-peng CHEN
Xue-ying LIU
Xin KANG
Cite this article:

Wei YANG,Meng-jian REN,Ren-peng CHEN,Xue-ying LIU,Xin KANG. Salt resistance of modified bentonite in complex environment. Journal of ZheJiang University (Engineering Science), 2021, 55(10): 1885-1893.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.10.010     OR     https://www.zjujournals.com/eng/Y2021/V55/I10/1885


复杂环境条件下改性膨润土的抗盐性能

为了增强膨润土防水毯(GCL)的抗盐性，使用聚丙烯酸钠对膨润土进行改性，采用扫描电镜(SEM)、傅里叶变换红外光谱(FTIR)、Zeta电位和自动比表面及孔隙度分析仪(BET)，分析材料的微观结构及特性. 结果表明，膨润土颗粒与聚合物发生了良好的结合作用，改性膨润土表面出现新的亲水官能团，土颗粒分散更均匀，片层结构更清晰. 在改性剂作用下原有小孔隙被包裹和填充，改性土比表面积减小，平均孔径增大. 改性土在不同pH、阳离子类型和不同浓度盐溶液作用下的自由膨胀试验结果表明，改性土的膨胀性能提升显著. 渗透试验结果显示，改性土水中渗透系数由原土的10?8 m/s减少至10?9 m/s数量级，且在同浓度盐溶液中抗渗性能有明显增强.


关键词： 改性膨润土,  抗盐性,  膨润土防水毯(GCL),  膨胀性,  渗透性
%
w(SiO2) w(Al2O3) w(Fe2O3) w(CaO) w(Na2O) w(MgO) w(K2O) w(TiO2) w(P2O5) w(SO3)
62.839 16.337 5.817 5.399 3.614 3.224 1.331 1.331 0.255 0.136
Tab.1 Chemical composition of bentonite
mB /(cmol·kg?1) 0.5m(Ca2+)/(cmol·kg?1) 0.5m(Mg2+)/(cmol·kg?1) m(Na+)/(cmol·kg?1) m(K+)/(cmol·kg?1)
83.69 4.76 2.12 71.70 5.11
Tab.2 Cation exchange capacity of bentonite

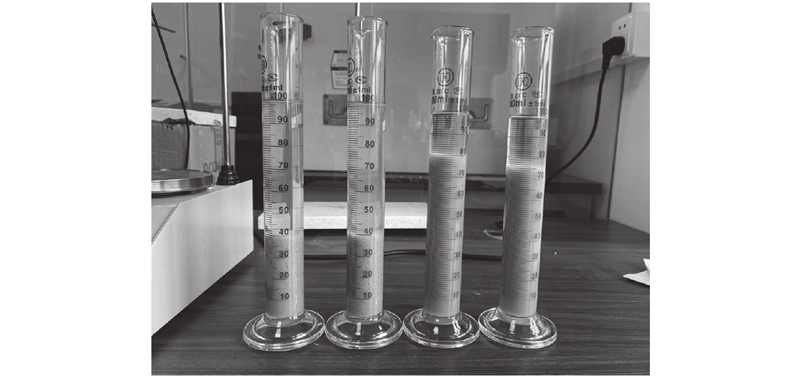

Fig.1 Picture of swelling test
土样 mF /(mL·(2g)?1) m /(mL·(2g)?1)
原土 37.0 23.5
改性土 74.0 43.5
Tab.3 Expansion performance of bentonite and modified bentonite

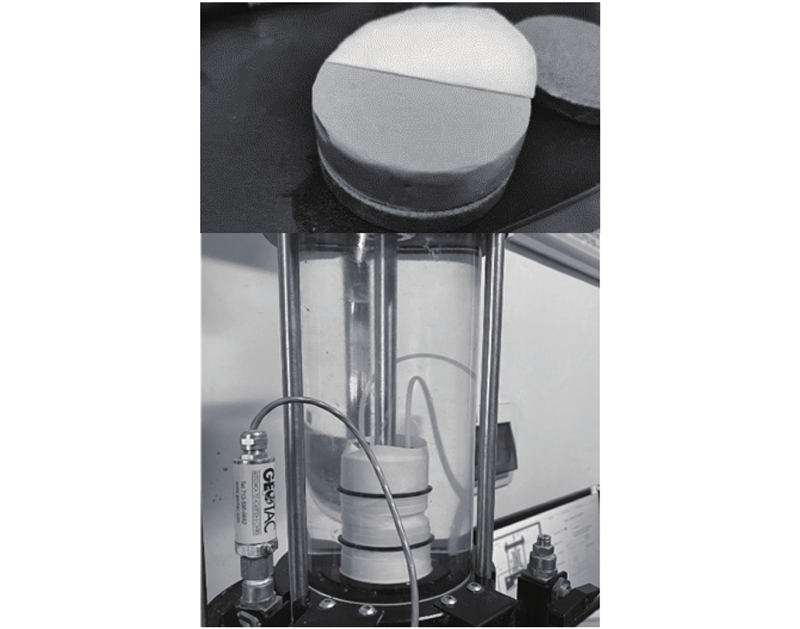

Fig.2 Picture of soil sample and device for permeability test

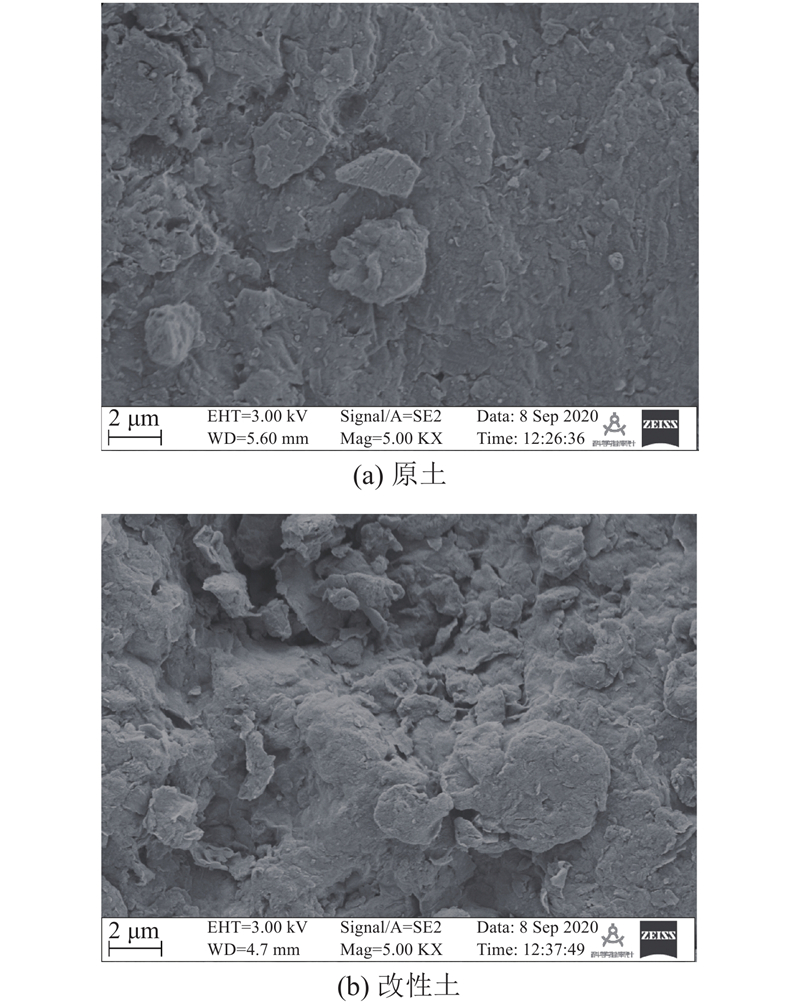

Fig.3 Picture of scanning electron microscope

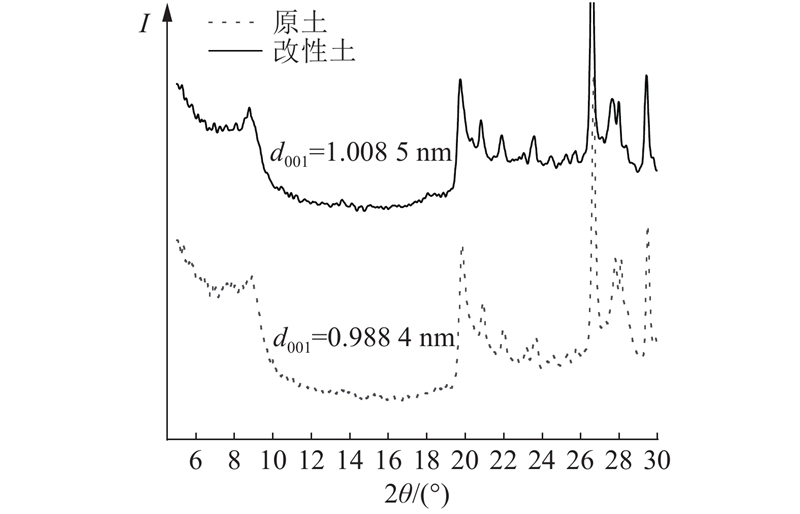

Fig.4 X-ray diffraction pattern of bentonite and modified bentonite
Fig.5 Infrared absorption spectrum of bentonite and modified bentonite

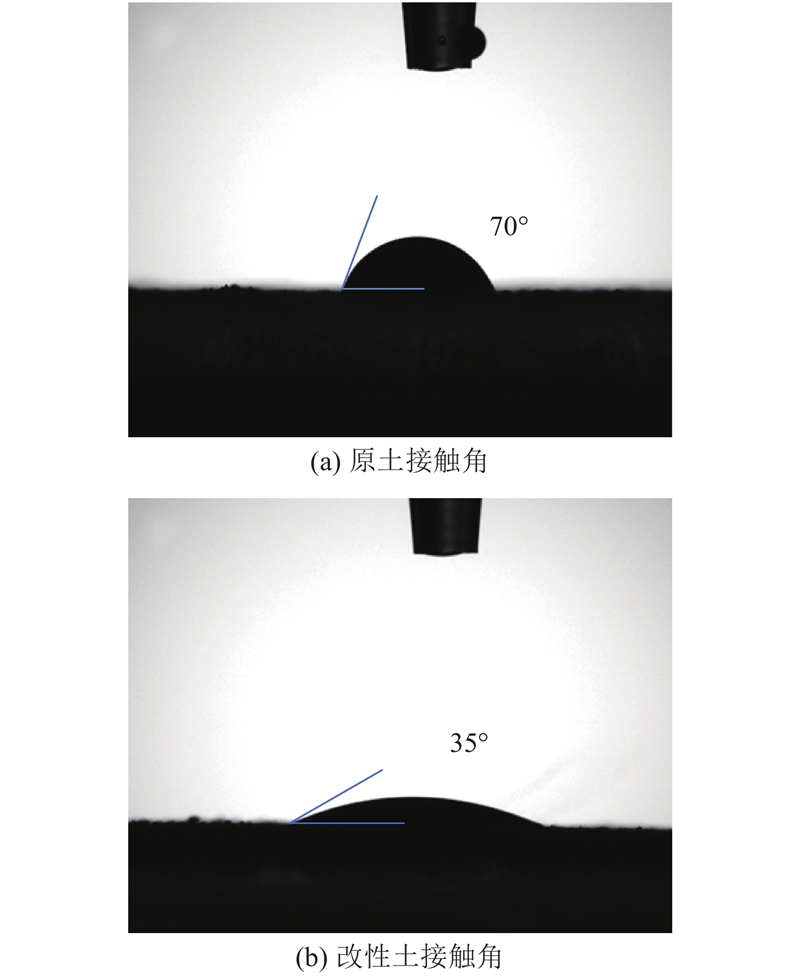

Fig.6 Contact angle of bentonite and modified bentonite
Fig.7 Zeta potential of bentonite and modified bentonite

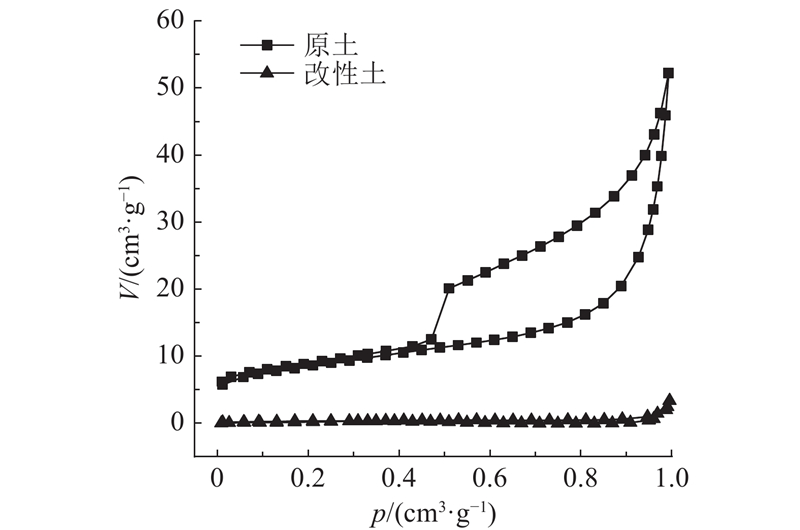

Fig.8 N2 adsorption-desorption curve of bentonite and modified bentonite
土样 s /(m2·g?1) v /(cm3·g?1) r /nm
原土 30.006 8 0.080 795 10.770 3
改性土 1.315 9 0.005 201 15.810 7
Tab.4 Specific surface area and pore size of bentonite and modified bentonite

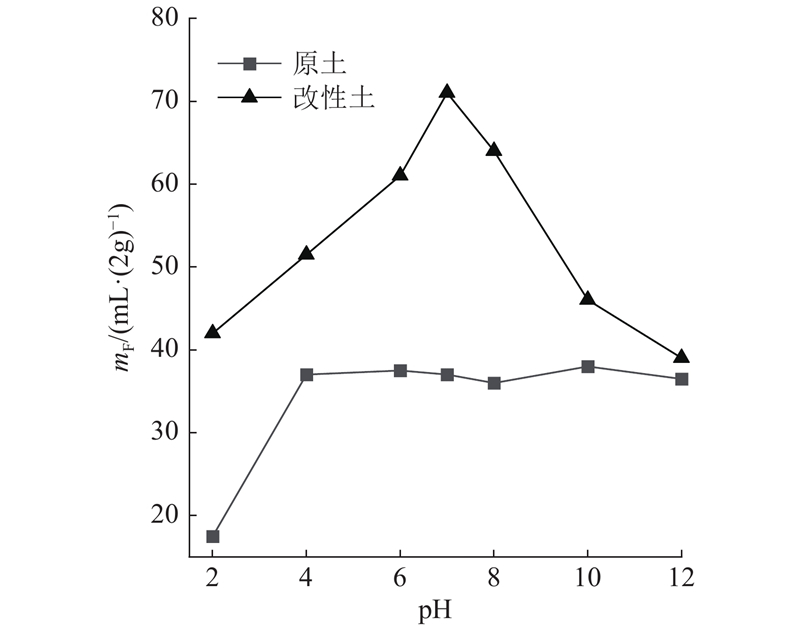

Fig.9 Swelling under different pH
pH mF /(mL·(2g)?1) pp /%
原土 改性土
2 17.5 42.0 140.0
4 37.0 51.5 39.2
6 37.5 61.0 62.7
8 37.0 71.0 91.2
10 36.0 64.0 77.8
12 38.0 46.0 21.1
Tab.5 Improved swelling performance of modified bentonite under different pH
Fig.10 Free swelling in different salt solutions

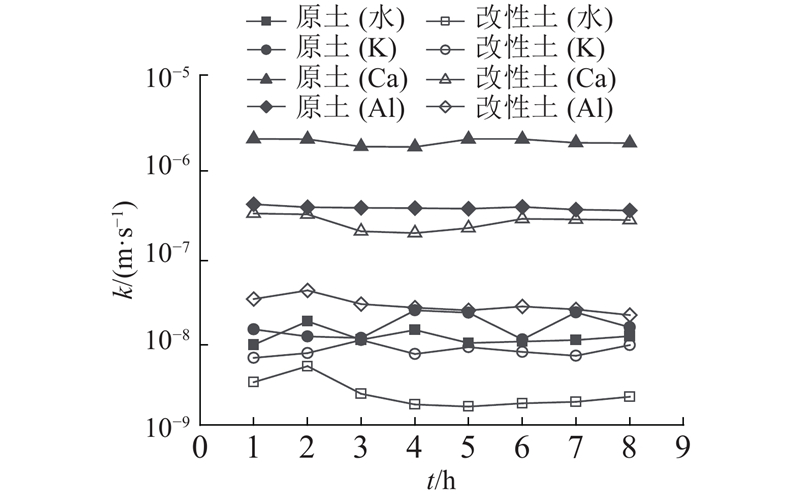

Fig.11 Permeability coefficient in different cationic solutions

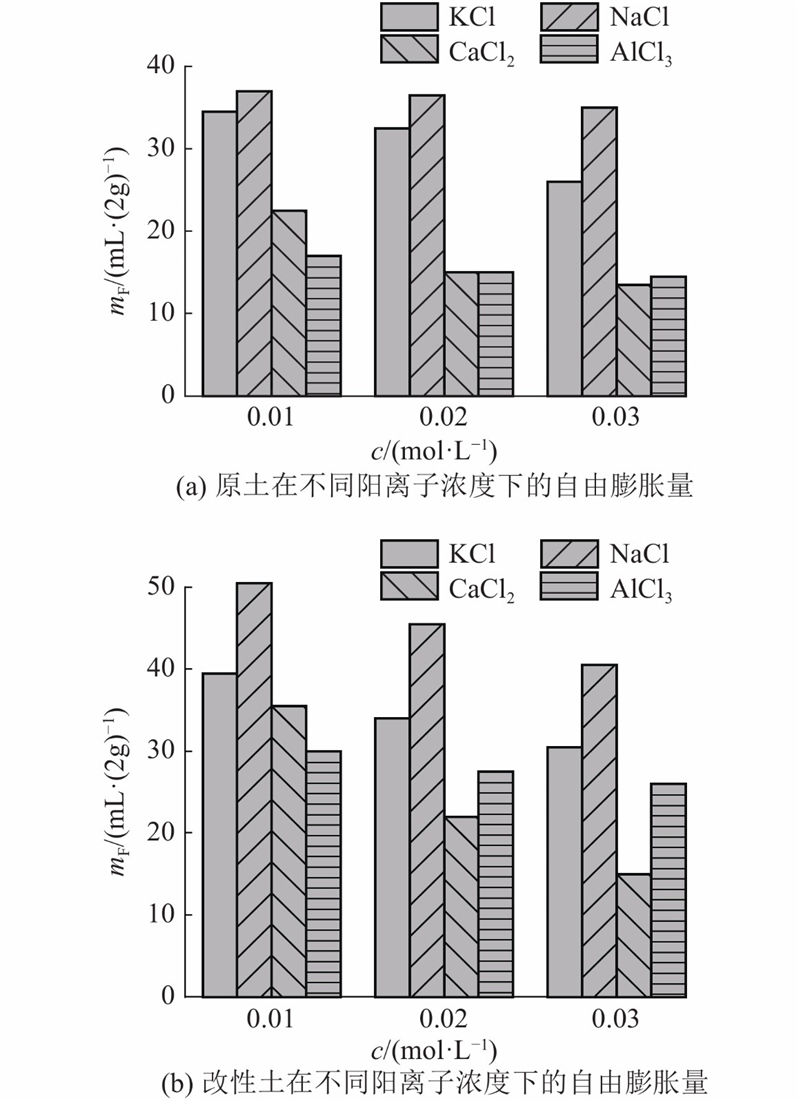

Fig.12 Free swelling in different cation concentrations
溶液 mF /(mL·(2g)?1) pp /%
原土 改性土
NaCl (0.01 mol/L) 37.0 50.5 36.5
NaCl (0.02 mol/L) 36.5 45.5 24.7
NaCl (0.03 mol/L) 35.0 40.5 15.7
KCl (0.01 mol/L) 34.5 39.5 14.5
KCl (0.02 mol/L) 32.5 34.0 4.6
KCl (0.03 mol/L) 26.0 30.5 17.3
CaCl2 (0.01 mol/L) 22.5 35.5 57.8
CaCl2 (0.02 mol/L) 15.0 22.0 46.7
CaCl2 (0.03 mol/L) 13.5 15.0 11.5
AlCl3 (0.01 mol/L) 17.0 30.0 76.5
AlCl3 (0.02 mol/L) 15.0 27.5 83.3
AlCl3 (0.03 mol/L) 14.5 26.0 79.3
Tab.6 Improved swelling performance in different cation concentrations
