Journal of ZheJiang University (Engineering Science)  2026, Vol. 60 Issue (8): 1832-1840    DOI: 10.3785/j.issn.1008-973X.2026.08.022

Adaptive neural network-based deadlock-free vehicle scheduling algorithm for unsignalized intersections
Huixia LIU1(),Rongjing WANG2,Yuxuan GAO2,Meng CAO1,Suying SHENG1,Youpeng MA1
1. School of Electrical Engineering and Automation, Nantong University, Nantong 226019, China
2. School of Zhang Jian, Nantong University, Nantong 226019, China
Download: HTML     PDF(1670KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Petri nets were used to simulate intersection traffic, and an effective vehicle scheduling optimization algorithm was subsequently proposed. In response to the potential vehicle deadlock phenomenon, a deadlock detection and recovery method was developed to enhance the safety and reliability of traffic flow. An improved genetic algorithm was employed to generate the training and testing datasets for a BP neural network. Meanwhile, an attention mechanism module and Bayesian optimization technique were integrated into the BP model, resulting in a high-performance adaptive neural network. This neural network was then applied to solve the deadlock-free vehicle scheduling optimization problem of unsignalized intersections. In the experimental validation, the proposed algorithm was compared with not only traditional intelligent optimization algorithms such as the improved genetic algorithm, particle swarm optimization, and the sparrow search algorithm, but also the Transformer model and the multi-agent reinforcement learning algorithm. Results show that the adaptive neural network achieves both high efficiency and superior performance in solving the deadlock-free vehicle scheduling optimization problem of unsignalized intersections.



Key wordsunsignalized intersections      vehicle scheduling optimization      deadlock      adaptive neural network      attention mechanism      Bayesian optimization
Received: 17 June 2025      Published: 16 July 2026
CLC:  TP 301
Fund:  江苏省“双创博士”项目(JSSCBS20211103);南通大学大学生创新创业训练计划项目(202410304065Z);江苏省研究生科研与实践创新计划项目(SJCX25_2010).
Cite this article:

Huixia LIU,Rongjing WANG,Yuxuan GAO,Meng CAO,Suying SHENG,Youpeng MA. Adaptive neural network-based deadlock-free vehicle scheduling algorithm for unsignalized intersections. Journal of ZheJiang University (Engineering Science), 2026, 60(8): 1832-1840.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.08.022     OR     https://www.zjujournals.com/eng/Y2026/V60/I8/1832


基于自适应神经网络的无信号交叉口车辆无死锁调度算法

借助Petri网模拟车辆在交叉口的通行情况, 提出有效的车辆调度优化算法. 针对交叉口可能出现的死锁现象, 设计死锁检测和修复方法, 保证车辆通行的安全性和可靠性. 基于改进的遗传算法生成BP神经网络的训练数据集和测试数据集, 将注意力机制模块和贝叶斯优化技术融入BP网络模型中, 再利用所构建的高性能自适应神经网络求解无信号交叉口车辆无死锁调度优化问题. 开展对比实验,验证所提算法的性能, 对比算法包括传统智能优化算法(如改进遗传算法、粒子群算法和麻雀搜索算法)、Transformer模型和多智能体强化学习算法. 结果表明,自适应神经网络在求解无信号交叉口车辆无死锁调度优化问题上兼具高效性与优异性.


关键词: 无信号交叉口,  车辆调度优化,  死锁,  自适应神经网络,  注意力机制,  贝叶斯优化

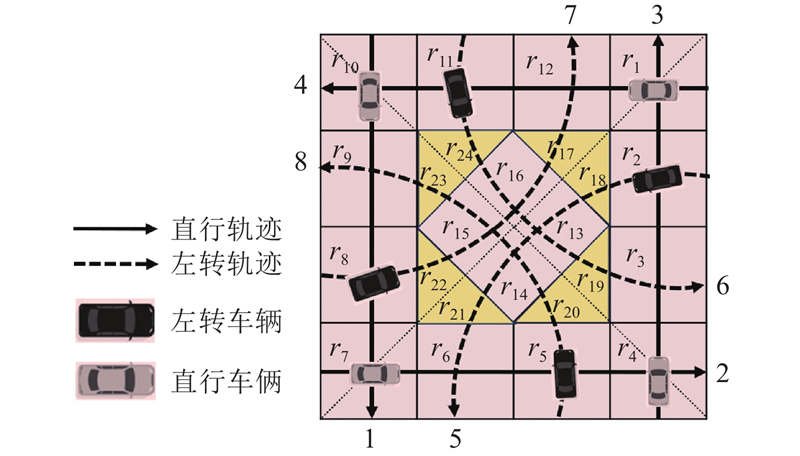

Fig.1 Unsignalized intersection scenario and vehicle motion schematic

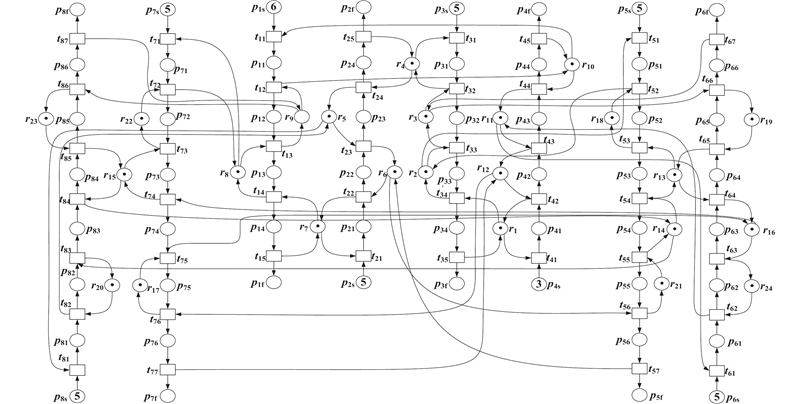

Fig.2 Two-way four-lane Petri net model

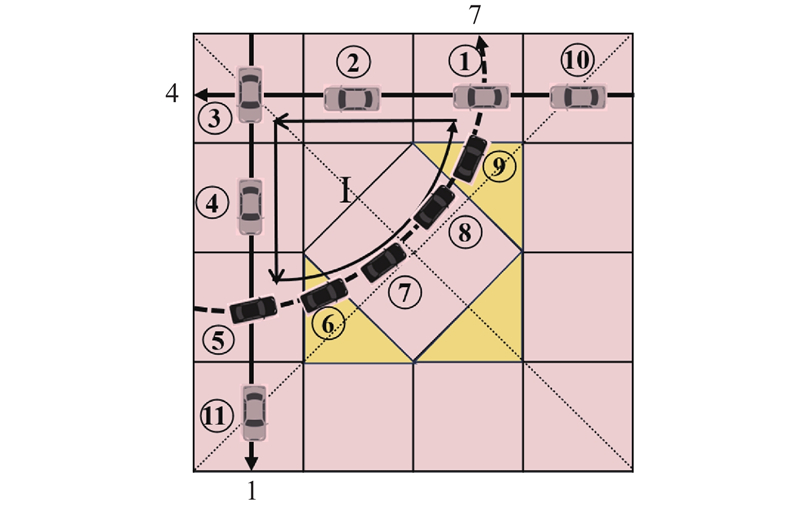

Fig.3 Deadlock phenomenon at unsignalized intersection

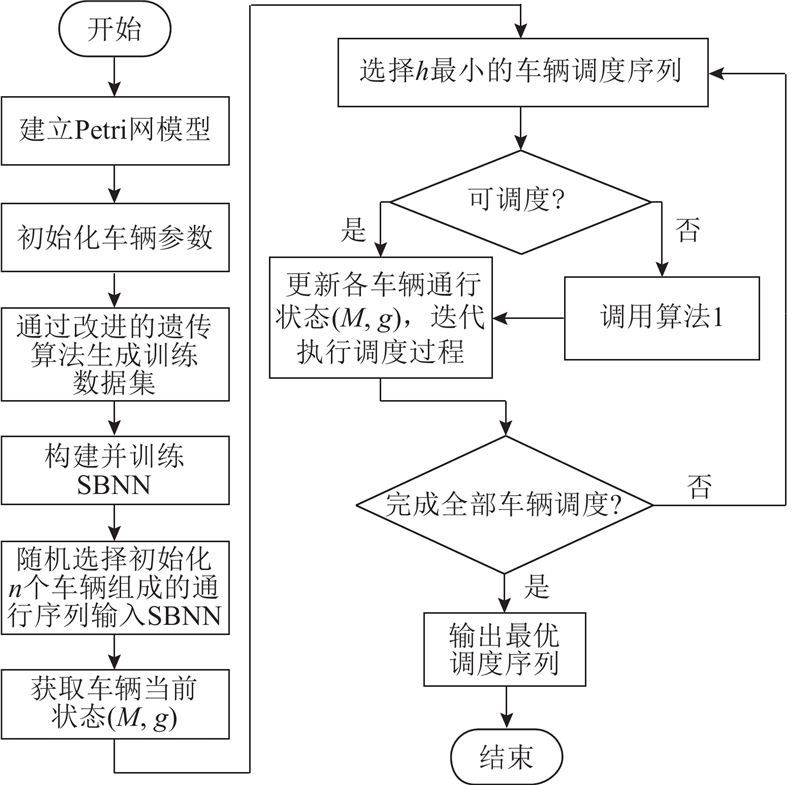

Fig.4 Flowchart of adaptive neural network-based deadlock-free vehicle scheduling algorithm for unsignalized intersections
参数数值
路径段数4~6
路段长度/m8(普通段),3.0或5.6(转弯段)
道路总长度/m32~56
车道宽度/m3.6
车辆速度/(m·s?1)4~17
车流量情况/(辆·min?1)15~33(逐实验算例递增)
Tab.1 Simulation environment parameters
算例GAPSOSSATransformerMARLSBNN
tt/str/mstt/str/mstt/str/mstt/str/mstt/str/mstt/str/ms
In019.7346.779.6360.7310.0252.088.635.589.925.789.257.30
In0210.8948.4410.5869.7711.0154.1211.575.7410.146.2410.229.26
In0311.6758.3411.2987.8711.4760.3012.976.3711.656.9410.6510.41
In0412.7061.7111.5991.0812.2170.3513.366.4412.008.1010.9110.62
In0513.6270.8812.49110.8812.7277.7915.708.0112.508.7311.2612.21
In0614.0675.0013.47120.7114.1887.4817.348.2715.709.7312.5213.31
In0715.5781.8714.99128.1315.1098.8617.848.5816.689.8213.8813.81
In0816.9390.2116.58141.4116.49106.9918.668.8019.0010.3815.5114.85
In0917.71103.7017.64152.3117.86121.7420.238.8222.8010.3917.5015.65
In1019.11107.7118.72163.8719.03183.8525.599.1726.8410.6817.7018.30
Tab.2 Total vehicle travel time and computational time under different algorithms

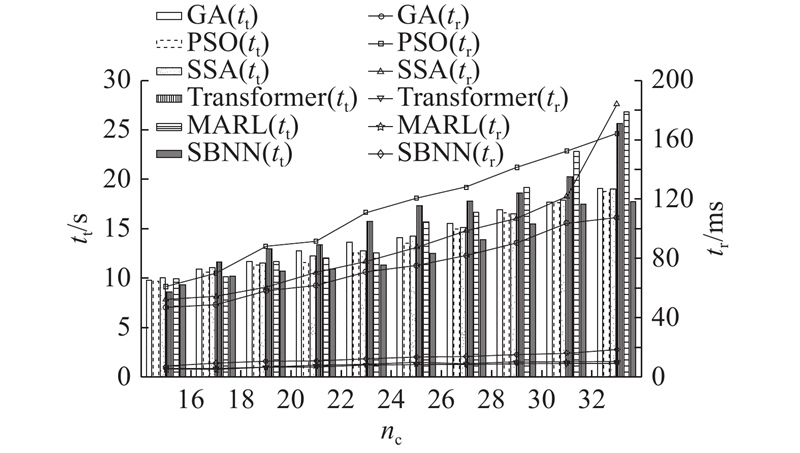

Fig.5 Total vehicle travel time and computational time of different algorithms under different number of vehicles

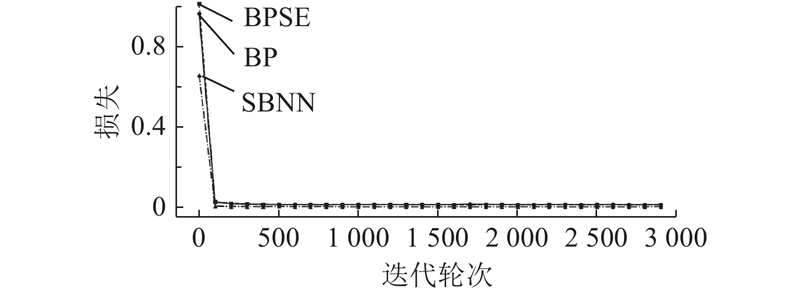

Fig.6 Change of test loss with number of iteration rounds

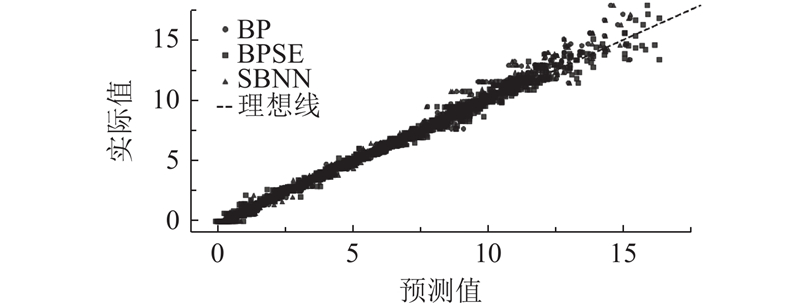

Fig.7 Comparison of predicted values and actual values of different models
[1]   左志强, 刘正璇, 王一晶 基于车路云一体化的混合交通系统优化控制综述[J]. 控制与决策, 2023, 38 (3): 577- 594
ZUO Zhiqiang, LIU Zhengxuan, WANG Yijing A survey of optimal control for mixed traffic system with vehicle-road-cloud integration[J]. Control and Decision, 2023, 38 (3): 577- 594
[2]   曹阳 基于模拟退火的交叉口自适应信号控制优化研究[J]. 交通运输工程与信息学报, 2018, 16 (1): 49- 55
CAO Yang Optimization of adaptive signal control using simulated annealing algorithm[J]. Journal of Transportation Engineering and Information, 2018, 16 (1): 49- 55
doi: 10.3969/j.issn.1672-4747.2018.01.008
[3]   王立夫, 刘一铄, 孔芝, 等 多车道交叉口交通信号与混合车辆轨迹协同优化框架[J]. 控制与决策, 2024, 39 (11): 3567- 3576
WANG Lifu, LIU Yishuo, KONG Zhi, et al Integrated optimization framework for traffic signal and mixed vehicle trajectory at multi-lane intersection[J]. Control and Decision, 2024, 39 (11): 3567- 3576
doi: 10.13195/j.kzyjc.2023.1616
[4]   MIAO S, LIU H, CAO M, et al. Application of effective transition covers on deadlock control of unsignalized intersection systems [C]// Proceedings of the International Conference on Networking, Sensing and Control. Hangzhou: IEEE, 2024: 1–6.
[5]   WEI Y, NING H, CHEN R, et al. A novel approach to conflict-free vehicle scheduling of unsignalized intersection based on heuristic algorithm [C]// Proceedings of the 2023 IEEE 26th International Conference on Intelligent Transportation Systems. Bilbao: IEEE, 2023: 2605–2610.
[6]   DULERA S, YADAV R, CHATURVEDI M. Graph based conflict-free scheduling of autonomous vehicles at unsignalized intersections [C]// Proceedings of the 17th International Conference on Communication Systems and Networks. Bengaluru: IEEE, 2025: 96–101.
[7]   WANG B, GONG X, WANG Y, et al Coordination for connected and autonomous vehicles at unsignalized intersections: an iterative learning-based collision-free motion planning method[J]. IEEE Internet of Things Journal, 2024, 11 (3): 5439- 5454
doi: 10.1109/JIOT.2023.3306572
[8]   LI Y, LIU M, YANG Q, et al Collision-free autonomous scheduling at unsignalized intersection using conflict graph tree search[J]. IEEE Internet of Things Journal, 2024, 11 (8): 14563- 14578
doi: 10.1109/JIOT.2023.3342865
[9]   孙宁, 吴伟豪, 赵风财, 等 基于增强型Dijkstra算法的无信号灯交叉路口智能车辆调度研究[J]. 计算机应用研究, 2022, 39 (1): 188- 193
SUN Ning, WU Weihao, ZHAO Fengcai, et al Vehicle scheduling at unsignalized intersections based on enhanced Dijkstra algorithm[J]. Application Research of Computers, 2022, 39 (1): 188- 193
[10]   赵幸. 无信号灯交叉路口智能网联车辆多目标协同调度方法研究 [D]. 南京: 东南大学, 2019.
ZHAO Xing. Multi-obejective scheduling for cooperative driving of connected and automated vehicles at non-signalized intersection [D]. Nanjing: Southeast University, 2019.
[11]   金立生, 郭柏苍, 谢宪毅, 等 基于行车安全场模型的交叉口车辆控制算法[J]. 西南交通大学学报, 2022, 57 (4): 753- 760
JIN Lisheng, GUO Baicang, XIE Xianyi, et al Cooperative control algorithm for vehicle at intersection based on driving safety field model[J]. Journal of Southwest Jiaotong University, 2022, 57 (4): 753- 760
[12]   李金龙, 刘伟 基于改进麻雀搜索算法的无信号交叉路口车辆调度优化[J]. 计算机系统应用, 2024, 33 (3): 233- 244
LI Jinlong, LIU Wei Vehicle scheduling optimization at unsignalized intersection based on improved sparrow search algorithm[J]. Computer Systems and Applications, 2024, 33 (3): 233- 244
[13]   XU H, ZHANG Y, LI L, et al Cooperative driving at unsignalized intersections using tree search[J]. IEEE Transactions on Intelligent Transportation Systems, 2020, 21 (11): 4563- 4571
doi: 10.1109/TITS.2019.2940641
[14]   RAHMANI S, BAGHBANI A, BOUGUILA N, et al Graph neural networks for intelligent transportation systems: a survey[J]. IEEE Transactions on Intelligent Transportation Systems, 2023, 24 (8): 8846- 8885
doi: 10.1109/TITS.2023.3257759
[15]   SUN Y, XU T, LI J, et al MMH-STA: a macro-micro-hierarchical spatio-temporal attention method for multi-agent trajectory prediction in unsignalized round abouts[J]. IEEE Transactions on Vehicular Technology, 2023, 72 (9): 11237- 11250
doi: 10.1109/TVT.2023.3268373
[16]   LIU J, HANG P, NA X, et al Cooperative decision-making for CAVs at unsignalized intersections: a MARL approach with attention and hierarchical game priors[J]. IEEE Transactions on Intelligent Transportation Systems, 2025, 26 (1): 443- 456
doi: 10.1109/TITS.2024.3503092
[17]   AZADANI M N, BOUKERCHE A A novel multimodal vehicle path prediction method based on temporal convolutional networks[J]. IEEE Transactions on Intelligent Transportation Systems, 2022, 23 (12): 25384- 25395
doi: 10.1109/TITS.2022.3151263
[18]   SEONG H, JUNG C, LEE S, et al. Learning to drive at unsignalized intersections using attention-based deep reinforcement learning [C]// Proceedings of the IEEE International Intelligent Transportation Systems Conference. Indianapolis: IEEE, 2021: 559–566.
[19]   SHU H, LIU T, MU X, et al Driving tasks transfer using deep reinforcement learning for decision-making of autonomous vehicles in unsignalized intersection[J]. IEEE Transactions on Vehicular Technology, 2022, 71 (1): 41- 52
doi: 10.1109/TVT.2021.3121985
[20]   蒋明智, 吴天昊, 张琳 基于深度强化学习的无信号交叉口车辆协同控制算法[J]. 交通运输工程与信息学报, 2022, 20 (2): 14- 24
JIANG Mingzhi, WU Tianhao, ZHANG Lin Deep reinforcement learning based vehicular cooperative control algorithm at signal-free intersection[J]. Journal of Transportation Engineering and Information, 2022, 20 (2): 14- 24
[21]   XING K, ZHOU M, LIU H, et al Optimal Petri-net-based polynomial-complexity deadlock-avoidance policies for automated manufacturing systems[J]. IEEE Transactions on Systems, Man, and Cybernetics - Part A: Systems and Humans, 2009, 39 (1): 188- 199
doi: 10.1109/TSMCA.2008.2007947
[22]   YAO X Evolving artificial neural networks[J]. Proceedings of the IEEE, 1999, 87 (9): 1423- 1447
doi: 10.1109/5.784219
