Journal of ZheJiang University (Engineering Science)  2026, Vol. 60 Issue (4): 763-771    DOI: 10.3785/j.issn.1008-973X.2026.04.008

Small object detection algorithm for optical remote sensing images based on fusion attention mechanism
Yaolian SONG1(),Chi PENG1,Jingmin TANG1,*(),Xuanzhi ZHAO1,Guicai YU2
1. Faculty of Information Engineering and Automation, Kunming University of Science and Technology, Kunming 650500, China
2. School of Physics and Electronic Information Engineering, Qinghai Minzu University, Xining 810007, China
Download: HTML     PDF(2536KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A small object detection algorithm FMCM-YOLO based on feature enhancement and fusion attention mechanism was proposed, aiming at the challenges of limited feature extraction, foreground-background confusion, and severe missed and false detections in small object detection in optical remote sensing images. Firstly, a four-head detection model was designed and a small target detection layer was added to detect numerous small objects in optical remote sensing images. Secondly, a feature enhancement module was proposed in the backbone network, which improved feature extraction capability by designing a multi-branch convolutional structure and introducing dilated convolution of different sizes. Thirdly, channel and spatial attention mechanisms were incorporated into the neck network, and a residual structure was introduced to focus on small objects, facilitating the distinction between targets and backgrounds. Finally, MPDIoU was adopted as the model’s loss function to accelerate convergence and enhance detection performance for small objects. Experimental results demonstrated that the mAP50 of the proposed algorithm on the two public datasets, USOD and AI-TOD, reached 89.9% and 60.6% respectively, which were 2.8 and 5.9 percentage points higher than those of the baseline algorithm YOLOv5m. Especially, the mean average precision for extremely tiny, tiny, and small objects increased by 2.1, 6.5, and 5.1 percentage points, respectively. These results proved that the FMCM-YOLO algorithm effectively improved the detection performance of small targets in optical remote sensing images.



Key wordsoptical remote sensing image      small target detection      YOLOv5      feature enhancement      attention mechanism
Received: 26 July 2025      Published: 19 March 2026
CLC:  TP 753
Fund:  国家自然科学基金资助项目(62261056);国防科技重点实验室基金资助项目(23JCJQLB3301);汉江国际国家实验室开放基金资助项目(KF2024025);教育部产学合作协同育人项目(231107173102719).
Corresponding Authors: Jingmin TANG     E-mail: 39217149@qq.com;tang_min213@163.com
Cite this article:

Yaolian SONG,Chi PENG,Jingmin TANG,Xuanzhi ZHAO,Guicai YU. Small object detection algorithm for optical remote sensing images based on fusion attention mechanism. Journal of ZheJiang University (Engineering Science), 2026, 60(4): 763-771.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.04.008     OR     https://www.zjujournals.com/eng/Y2026/V60/I4/763


基于融合注意力机制的光学遥感图像小目标检测算法

针对光学遥感图像中小目标检测特征提取受限、前背景混淆、漏检误检严重等问题,提出基于特征增强和融合注意力机制的小目标检测算法FMCM-YOLO. 设计四头检测模型,添加小目标检测层,用于检测光学遥感图像中众多小目标;在主干网络中提出特征增强模块,通过设计多分支卷积结构引入不同尺寸的空洞卷积,提高特征提取能力;在颈部网络中融合通道和空间注意力机制,并引入残差结构聚焦小目标,更易区分目标和背景;将MPDIoU作为模型损失函数,提升收敛速度,增强对小目标的检测能力. 实验结果表明,所提算法在USOD和AI-TOD这2个公开数据集上的mAP50分别达到89.9%和60.6%,相较于基线算法YOLOv5m分别提高了2.8和5.9个百分点,非常微小、微小和小目标的平均均值精度分别提升了2.1、6.5和5.1个百分点,可以看出FMCM-YOLO算法有效提升了光学遥感图像中小目标的检测性能.


关键词: 光学遥感图像,  小目标检测,  YOLOv5,  特征增强,  注意力机制

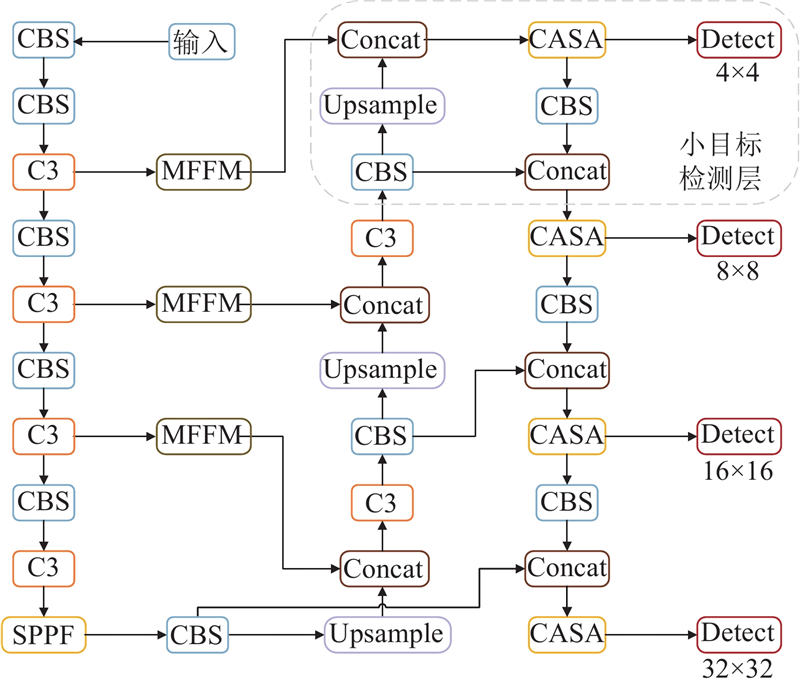

Fig.1 Structure of FMCM-YOLO

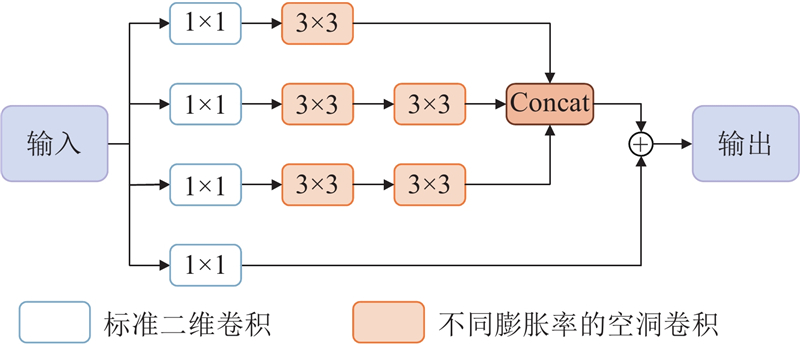

Fig.2 Structure of MFFM

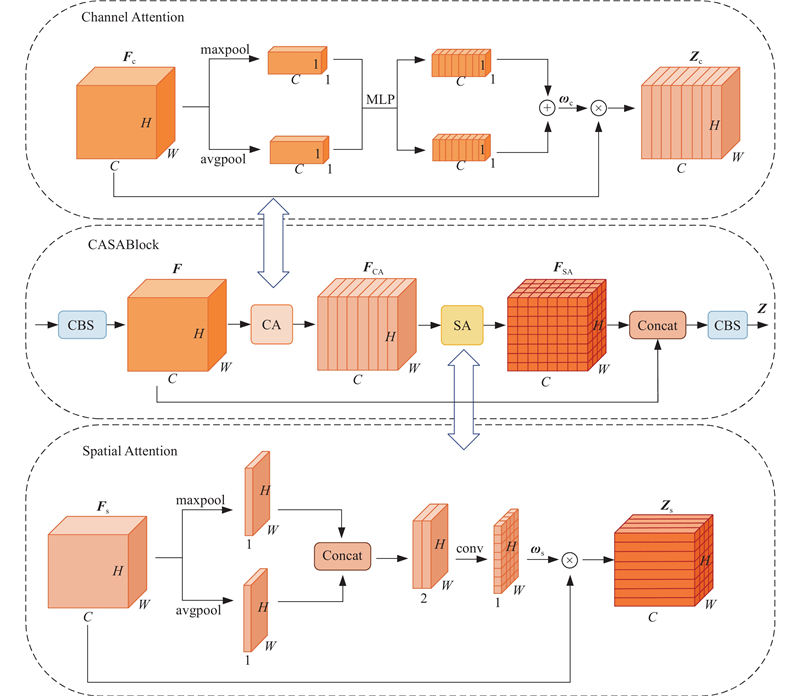

Fig.3 Structure of CASABlock
Fig.4 Structure of CASA

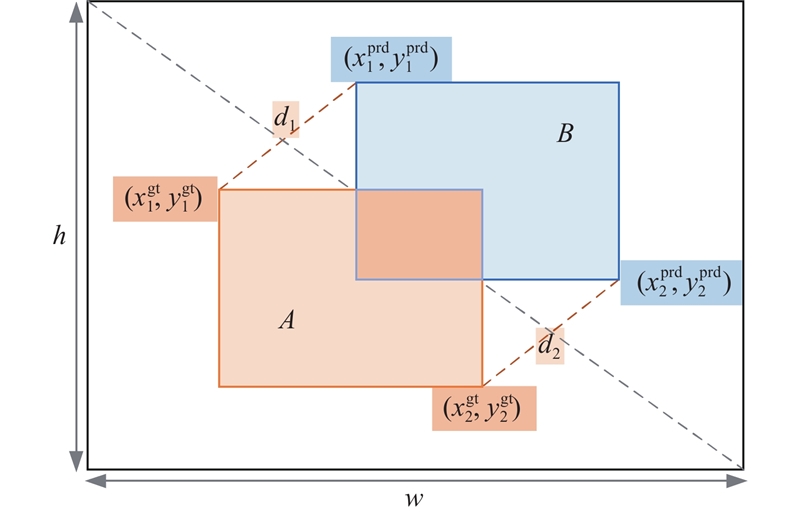

Fig.5 Parameters of MPDIoU loss function
Fig.6 Size distribution of target instance in dataset
参数数值参数数值
批次大小16权重衰减系数0.005
训练轮次300学习率动量0.937
初始学习率0.01图片尺寸640×640
Tab.1 Model training hyperparameter settings
序号小目标层MFFMCASAMPDIoUP/%R/%mAP50/%mAP50:95/%Params/106GFLOPs
A88.581.587.131.920.8547.9
B89.782.087.932.721.2956.3
C89.583.287.831.921.6252.1
D91.482.488.633.320.9248.3
E89.983.188.232.820.8547.9
F91.784.089.133.022.1362.3
G90.783.088.732.722.1362.2
H91.383.389.032.921.3356.4
I91.583.789.332.921.6551.8
J92.384.189.934.122.1362.3
Tab.2 Analysis of ablation experiment results with different combinations of improvement points
模型P/%R/%mAP50/%mAP50:95/%Params/106FPS
RefineDet88.182.485.131.435.6832
YOLOv5m88.581.587.131.920.85258
YOLOv8m90.582.287.632.429.74155
TPH-YOLOv591.083.789.532.145.36134
MSFE-YOLO-m91.683.589.633.159.5137
LS-YOLO90.883.689.333.922.6153
L-FFCA-YOLO91.382.889.333.25.10165
FMCM-YOLO(本研究算法)92.384.189.934.122.13169
Tab.3 Performance comparison results of different algorithms on USOD
模型mAP50/%mAP50:95/%mAPvt/%mAPt/%mAPs/%FPS
DedectoRS32.814.8010.828.361
M-CenterNet40.714.56.115.019.478
YOLOv5m54.721.710.522.127.0258
HANet53.722.110.922.227.3178
FFCA-YOLO61.727.712.624.931.8171
L-FFCA-YOLO58.325.511.723.230.1165
FMCM-YOLO(本研究算法)60.626.712.628.632.1169
Tab.4 Performance comparison results of different algorithms on AI-TOD
类别mAP50/%
FMCM-YOLOYOLOv5m
all60.654.7
airplane66.964.3
bridge50.444.9
storage-tank88.977.9
ship78.975.0
swimming-pool51.751.2
vehicle77.769.9
person39.231.3
wind-mill33.423.3
Tab.5 Comparison of detection performance of various types of targets in AI-TOD dataset before and after improvement

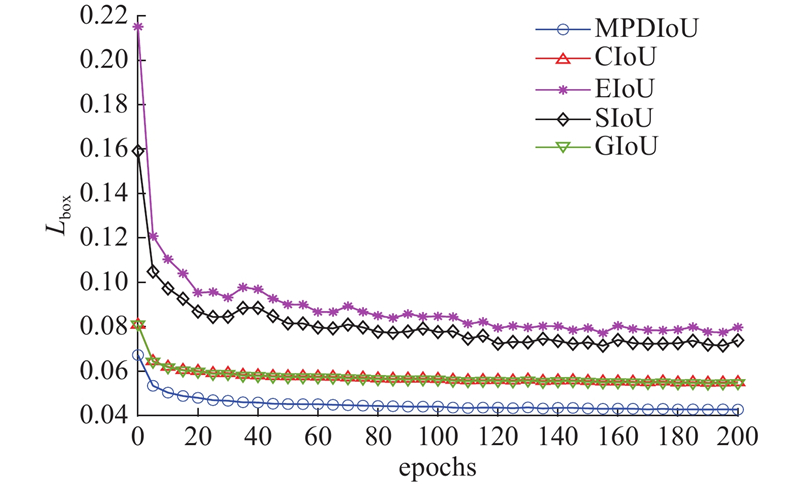

Fig.7 Comparison of effects of different loss functions

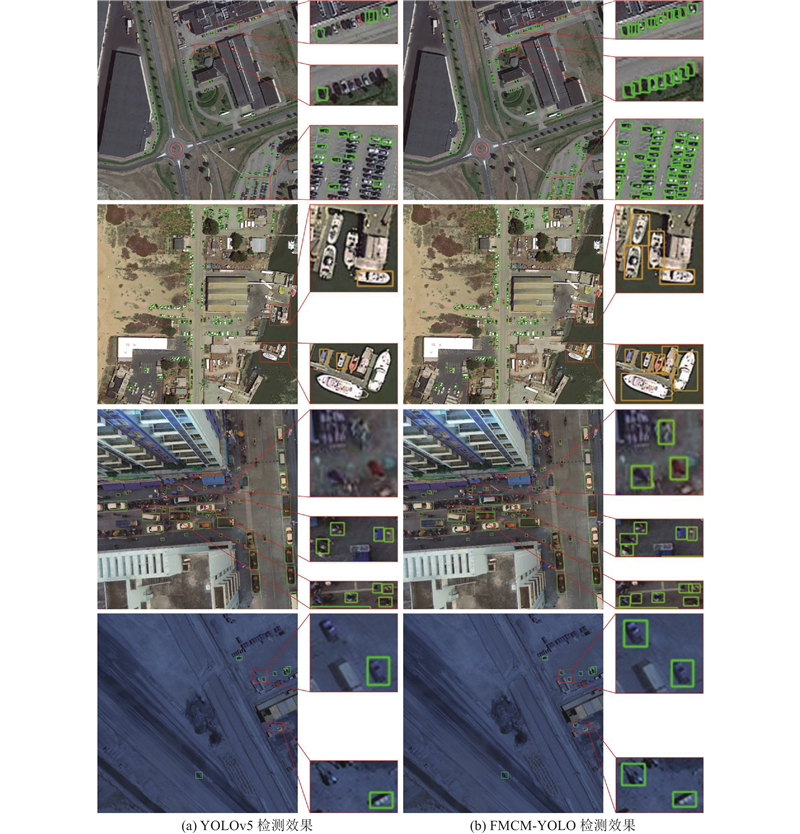

Fig.8 Comparison of visual detection effects before and after model improvement
