Journal of ZheJiang University (Engineering Science)  2026, Vol. 60 Issue (3): 546-555    DOI: 10.3785/j.issn.1008-973X.2026.03.010

Mobile-based human fall detection method for photovoltaic power plant construction
Binbin LI1(),Chao ZHANG2,Tao QIN1,Changsheng CHEN1,Xingyan LIU3,Jing YANG1,4,*()
1. Electrical Engineering College, Guizhou University, Guiyang 550025, China
2. China Power Construction Group Guizhou Engineering Limited Company, Guiyang 550025, China
3. Power Grid Planning and Research Center of Guizhou Power Grid Limited Company, Guiyang 550025, China
4. Guizhou Provincial Key Laboratory of Internet+Intelligent Manufacturing, Guiyang 550025, China
Download: HTML     PDF(7437KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A mobile-based CMD-YOLO detection method was proposed in order to address the challenges of complex background, difficulty in detecting human fall, and limited on-site deployment in photovoltaic power plant construction. YOLOv8 was used as the baseline and the traditional C2f module was replaced with an improved dual-branch convolution fusion module (C2f-Dualconv) in order to enhance feature extraction and computational efficiency. The original neck network was replaced with a lightweight cross-scale feature fusion module (CCFM), introducing a multi-scale dilated Transformer attention (MSDA) between the backbone and the neck. The experiment was deployed on the Orange Pi5 Pro RK3588 platform. Results showed an average accuracy of 88.6%, with parameter count and computational load reduced by 31.3% and 22.2% respectively. Single-image detection time was 0.0297 s, and average power consumption was 2.2647 W. CMD-YOLO effectively addresses key challenges in fall detection at photovoltaic power plant through its advantage of low parameter count, low power consumption and high real-time performance. CMD-YOLO operates stably in resource-constrained field environment, providing reliable support for real-time detection on mobile device.



Key wordshuman fall detection      YOLOv8      lightweight      low power consumption      attention mechanism      mobile deployment
Received: 10 July 2025      Published: 04 February 2026
CLC:  TP 391
  TU 714
Fund:  国家自然科学基金资助项目(61640014,52267003);贵州省科技支撑计划资助项目(黔科合支撑[2023]一般411,黔科合支撑[2024]一般051,黔科合支撑[2025]一般008);贵州省基础研究计划资助项目(黔科合基础MS[2025]596);贵州省科技成果转化项目(黔科合成果-LH[2024]重大028,黔科合成果LH[2025]重点009);贵州省教育厅工程研究中心资助项目(黔教技[2022]040);中国电建集团科技资助项目(DJ-ZDXM-2022-44).
Corresponding Authors: Jing YANG     E-mail: gs.libb24@gzu.edu.cn;jyang7@gzu.edu.cn
Cite this article:

Binbin LI,Chao ZHANG,Tao QIN,Changsheng CHEN,Xingyan LIU,Jing YANG. Mobile-based human fall detection method for photovoltaic power plant construction. Journal of ZheJiang University (Engineering Science), 2026, 60(3): 546-555.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2026.03.010     OR     https://www.zjujournals.com/eng/Y2026/V60/I3/546


面向光伏电站建设的移动端人体跌倒检测方法

针对光伏电站建设中背景复杂、人体跌倒检测困难及现场部署受限的问题,提出基于移动端的CMD-YOLO检测方法. 该方法以YOLOv8为基线,使用改进的双分支卷积融合模块(C2f-Dualconv)替换传统C2f模块,以提高特征提取和计算效率. 采用轻量化跨尺度特征融合模块(CCFM)替换原颈部网络,在主干与颈部间引入多尺度空洞注意力机制(MSDA). 实验部署在Orange Pi5 Pro RK3588平台上,结果显示平均精度达到88.6%,参数量和运算量分别降低了31.3%和22.2%,单张检测时间为0.029 7 s,平均功耗为2.264 7 W. CMD-YOLO以低参数量、低功耗和高实时性的优势,有效应对光伏电站跌倒检测中的关键挑战,并能在资源受限的现场稳定运行,为移动端的实时检测提供可靠的支持.


关键词: 人体跌倒检测,  YOLOv8,  轻量化,  低功耗,  注意力机制,  移动端部署

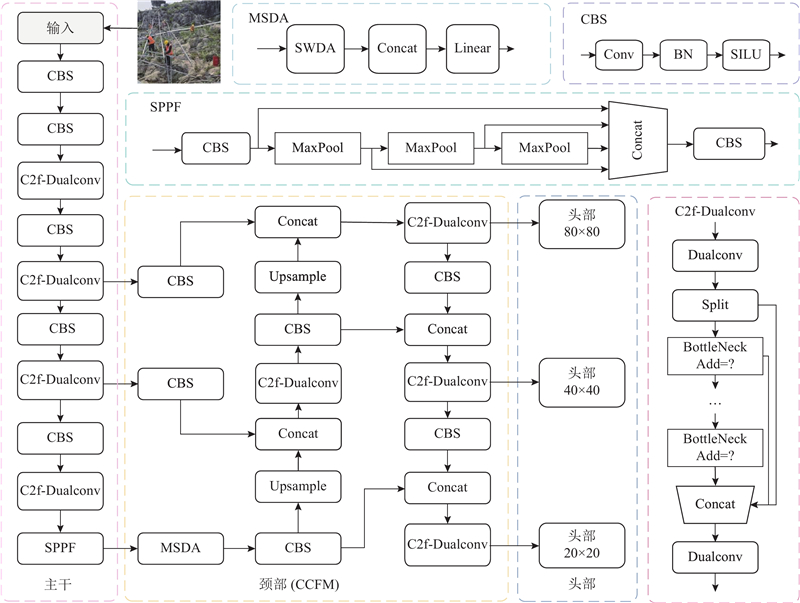

Fig.1 Structure of CMD-YOLO model

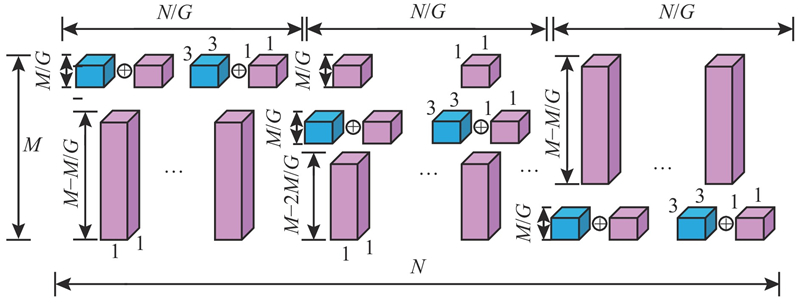

Fig.2 Diagram of DualConv structure

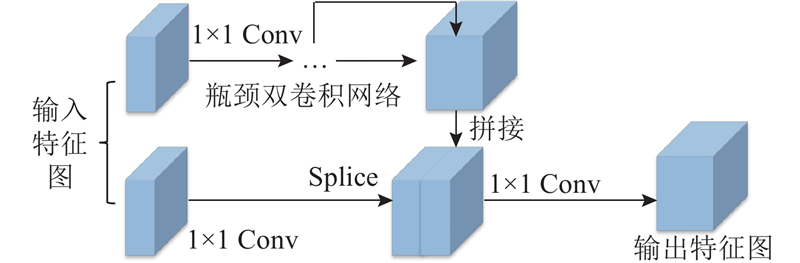

Fig.3 Diagram of C2f-DualConv structure

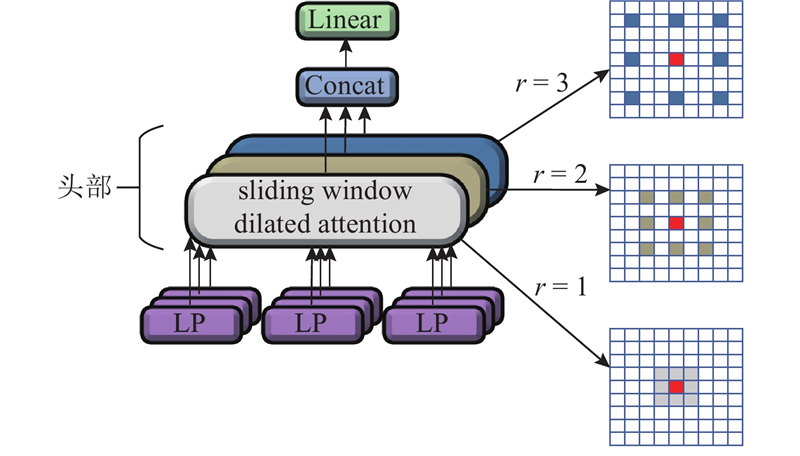

Fig.4 Diagram of MSDA structure

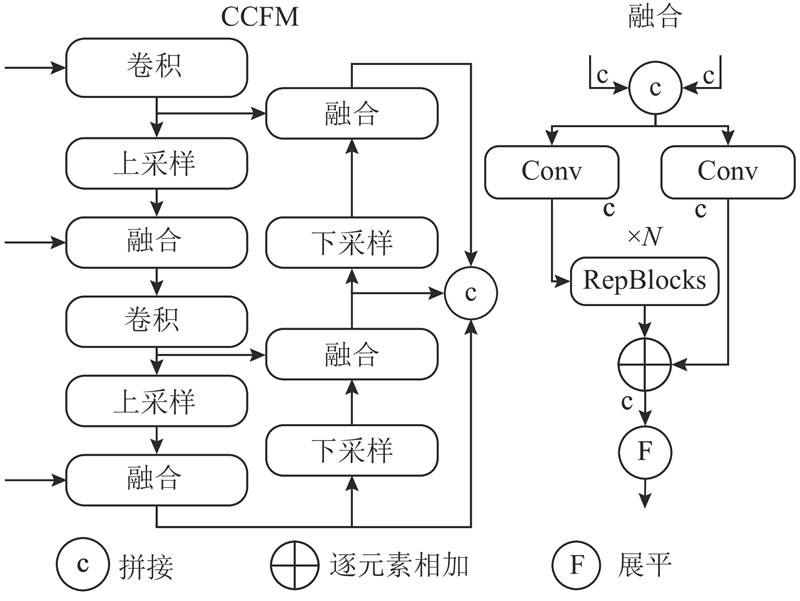

Fig.5 Diagram of CCFM structure
Fig.6 Effect comparison diagram of neck network before and after optimization
Fig.7 Fall detection dataset
标签OdEd总计
Fallen120236064808
Falling106732014268
Normal225467629016
Tab.1 Statistical table of labels for each category in dataset
Fig.8 Data augmentation diagram
类型名称配置
训练系统Windows 10
CPUIntel Core i9-12900K
GPURTX-3090
内存RAM32 GB
部署系统Ubuntu20.04
CPUCortex-A76,A55
GPUARMMali-G610
内存RAM8 GB
Tab.2 Training and deployment platform specification
模块设置mAP50/
%
P/
%
R/
%
NP/
106
FLOPs/
109
CCFMMSDAC2f-Dualconv
85.786.980.83.008.1
86.082.382.71.966.6
86.386.681.63.308.4
86.387.481.92.707.4
86.686.783.02.246.8
86.785.982.13.007.7
86.686.481.81.786.1
88.687.884.52.066.3
Tab.3 Comparison result of ablation experiment

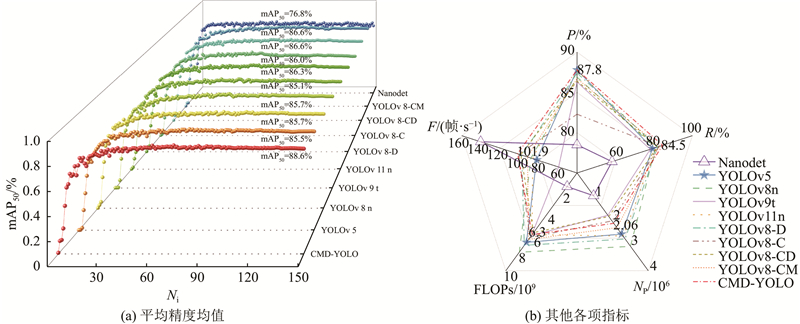

Fig.9 Training test result of each model
模型mAP50/%P/%R/%NP/106FLOPs/109F/(帧·s?1)
Nanodet76.878.558.20.931.4140.3
YOLOv585.587.879.32.507.182.1
YOLOv8n85.786.980.83.008.188.0
YOLOv9t85.786.378.11.736.459.2
YOLOv11n85.187.781.42.586.386.2
YOLOv8-D86.387.781.92.707.497.6
YOLOv8-C86.082.382.71.966.6100.7
YOLOv8-CD86.686.481.81.786.198.6
YOLOv8-CM86.686.783.02.246.891.6
CMD-YOLO88.687.884.52.066.3101.9
Tab.4 Overall performance test result of each model

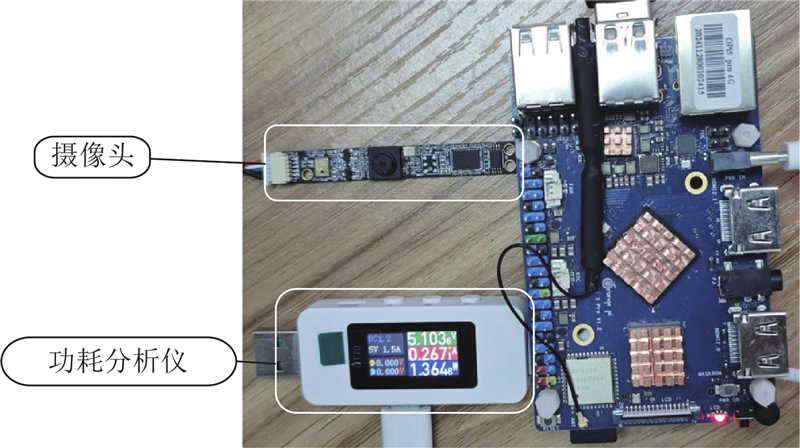

Fig.10 Physical picture of Orange Pi5 Pro RK3588
模型A/MBS/sP/W
YOLOv55.000.02862.4869
YOLOv8n5.160.02672.5165
YOLOv9t8.450.05892.1433
YOLOv11n5.540.05872.4517
CMD-YOLO5.080.02972.2647
Tab.5 Performance comparison of various model after deployment

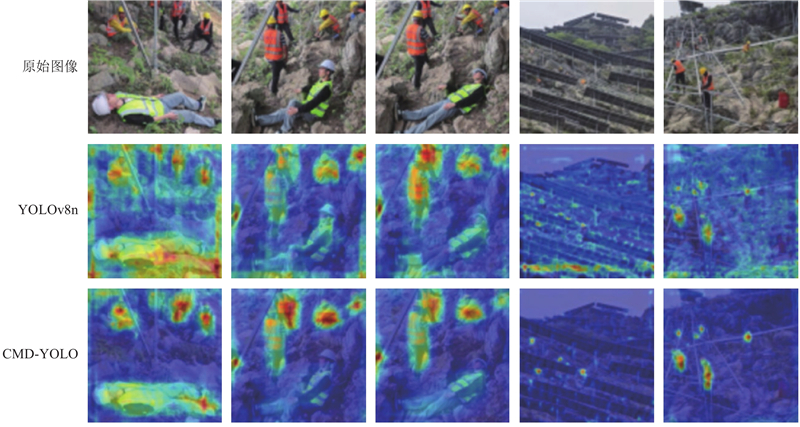

Fig.11 Comparison chart of heat map effect
Fig.12 Comparison of visualization effect of different models
