Time-series gene driven feature representation model
Jian-ping HUANG1(),Ke CHEN2,Jian-song ZHANG1,Si-qi SHEN1
1. Net Zhejiang Electric Power Limited Company, Hangzhou 310063, China
2. Information Communication Branch, Net Zhejiang Electric Power Limited Company, Hangzhou 310016, China
Download: HTML     PDF(881KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The concept of "evolutionary genes" was defined to capture the underlying user behaviors in time series and describe how these behaviors lead to the generation of time series. A unified framework was proposed. A classifier was learned to identify different evolutionary genes of segments, and an adversarial generator was adopted to estimate the distribution of segments for evolutionary genes. The model consists of three main components: gene identification which aims at learning the corresponding genes of segments; gene generation which aims at learning to generate segments from genes; gene application which aims at modeling behavioral evolution and applying the learned genes to predict future values and events. The experiments of this study were based on one synthetic dataset and five real datasets. Results demonstrate that the method not only achieves good prediction results, but also provides effective explanations for the results.

Key words： time series      evolutionary gene      generation model      adversarial generator      representation learning
Received: 11 July 2022      Published: 17 July 2023
CLC:  TP 399
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jian-ping HUANG
Ke CHEN
Jian-song ZHANG
Si-qi SHEN
Cite this article:

Jian-ping HUANG,Ke CHEN,Jian-song ZHANG,Si-qi SHEN. Time-series gene driven feature representation model. Journal of ZheJiang University (Engineering Science), 2023, 57(7): 1354-1364.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.07.010     OR     https://www.zjujournals.com/eng/Y2023/V57/I7/1354


时序基因驱动的特征表示模型

定义“演变基因”的概念来捕获时间序列所隐含的用户行为，描述这些行为如何导致时间序列的产生. 提出统一的框架，通过学习分类器来识别片段的不同演变基因，采用对抗性生成器估计片段的分布来实现演变基因. 该模型有3个主要组成部分：基因识别，旨在学习片段的相应基因；基因生成，旨在学习从基因中生成片段；基因应用，旨在建模行为演变，将学习到的基因应用于未来值和事件的预测中. 本研究的实验基于1个合成数据集和5个真实数据集，相关结果表明，该方法不仅可以获得好的预测结果，而且能够提供对结果的有效解释.


关键词： 时间序列,  演变基因,  生成模型,  对抗性生成器,  特征学习

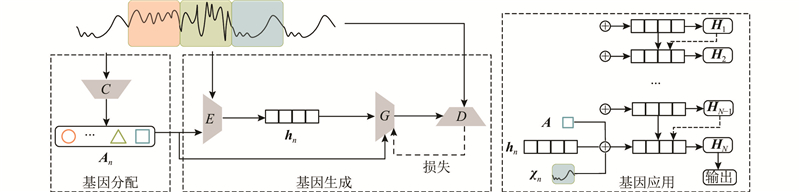

Fig.1 Structure of GeNE model
