Improved YOLOv5s flame and smoke detection method in road tunnels
Qing-lu MA1,2(),Jia-ping LU1,Xiao-yao TANG1,Xue-feng DUAN3
1. School of Traffic and Transportation, Chongqing Jiaotong University, Chongqing 400074, China
2. Chongqing Key Laboratory of "Human-Vehicle-Road" Cooperation and Safety for Mountain Complex Environment, Chongqing 400074, China
3. Ningxia Jiaotou Expressway Management Limited Company, Yinchuan 750000, China
Download: HTML     PDF(3978KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An improved YOLOv5s for visual detection of smoke and fire in early-stage road tunnel fires was proposed to solve the problem of smoke and fire confusion and the requirement for real-time detection. The convolutional block attention module (CBAM) was introduced into YOLOv5s to improve the accuracy of detecting smoke with obscure contour features and initial tunnel flame with crucial features. The Focus module in the backbone network was replaced, the number of convolutional layers in BottleneckCSP was reduced, and the efficiency of the smoke and flame feature extraction network was improved. The CIoU was used to replace the original GIoU loss function to accelerate the convergence rate of the model. A data set containing 10 000 images of tunnel smoke and flame was used as the training sample. YOLOv5s and improved YOLOv5s-PRO were used for comparative test analysis. The model was validated by using the video data of the Zhenwu Mountain tunnel fire that occurred on March 6, 2021, in Chongqing, China. The experimental results showed that the detection accuracy of the algorithm reached up to 91.53%, which was 3.21% higher than YOLOv5s, and the detection speed reached 6.12 ms, which was 0.42 ms better than YOLOv5s. The YOLOv5s-PRO has higher detection accuracy and a faster rate, which can be applied to smoke and flame detection of actual road tunnel.



Key wordstunnel engineering      tunnel flame and smoke detection      attention module      deep learning      YOLOv5s
Received: 03 April 2022      Published: 21 April 2023
CLC:  U 459
Fund:  国家社会科学基金资助项目(20VYJ023);宁夏回族自治区交通运输厅科技资助项目(NJGF20200301)
Cite this article:

Qing-lu MA,Jia-ping LU,Xiao-yao TANG,Xue-feng DUAN. Improved YOLOv5s flame and smoke detection method in road tunnels. Journal of ZheJiang University (Engineering Science), 2023, 57(4): 784-794.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.04.016     OR     https://www.zjujournals.com/eng/Y2023/V57/I4/784


改进YOLOv5s的公路隧道烟火检测方法

针对公路隧道初期火灾烟火混淆且检测实时性要求高的问题,提出改进YOLOv5s的隧道烟火视觉检测方法. 该方法通过在YOLOv5s中引入卷积注意力模块(CBAM),提高对轮廓特征不明显的隧道烟雾及初期火焰重要特征检测的准确率. 替换骨干网络中的Focus模块,降低BottleneckCSP的卷积层数目,提升烟火特征提取网络效率. 用CIoU替换原有的GIoU损失函数,加快模型的收敛速度. 实验以10 000张隧道烟火数据集为训练样本,用YOLOv5s和改进后的YOLOv5s-PRO进行对比试验分析,用2021年3月6日重庆真武山隧道火灾视频数据验证模型. 实验结果表明,该算法的检测精度达到91.53%,比YOLOv5s提高了3.21%,检测速度达到6.12 ms,比YOLOv5s提高了0.42 ms,检测精度较高,速度较快,可以应用于实际公路隧道的烟火检测.


关键词: 隧道工程,  隧道烟火检测,  注意力模块,  深度学习,  YOLOv5s

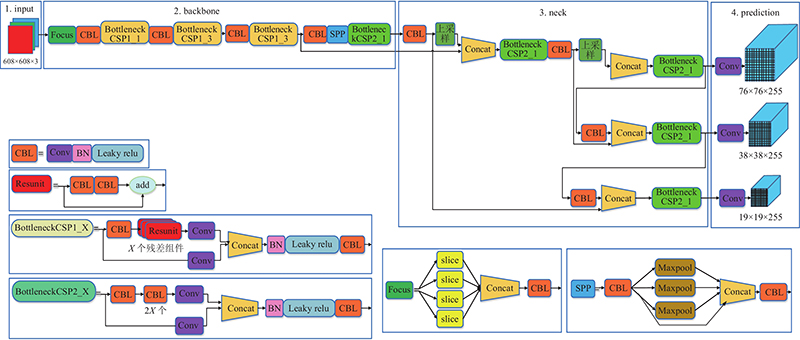

Fig.1 YOLOv5s frame structure

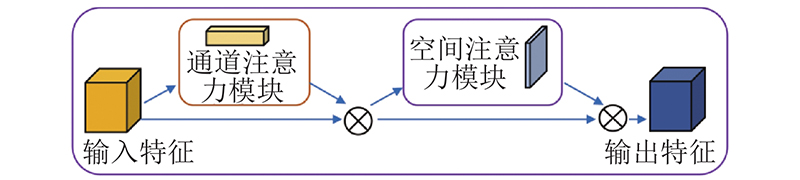

Fig.2 Structure diagram of CBAM frame

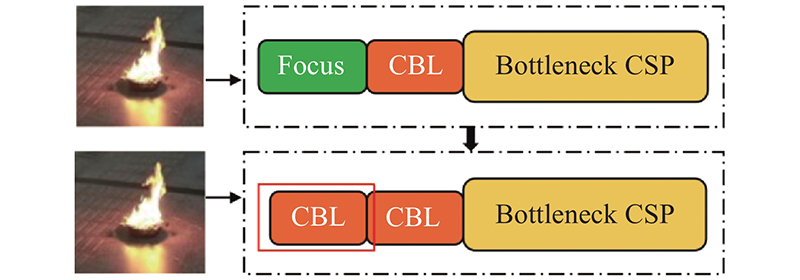

Fig.3 Schematic diagram of replacement structure
Fig.4 BottleneckCSP-2 modular

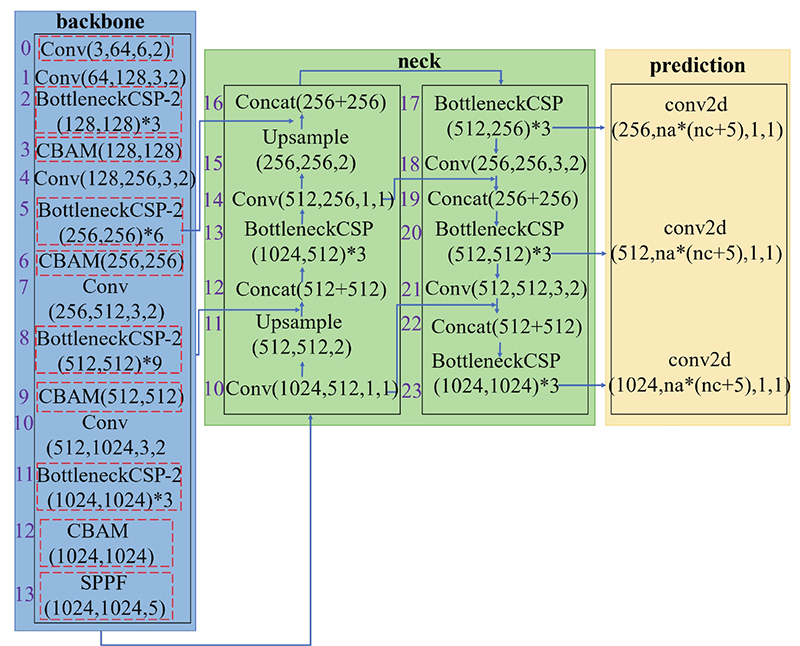

Fig.5 Improved YOLOv5s network
序号 M1 P1/104 Q1/ GLOPs M1 P2/104 Q2/ GLOPs (P1P2)/ 104 (Q1Q2)/ GLOPs
0 Focus 0.3520 0.3539 Conv 0.0640 0.0590 0.2880 0.2949
1 CBL 1.8560 0.4719 CBL 1.8560 0.4719 0.0000 0.0000
2 BottleneckCSP 1.9904 0.4981 BottleneckCSP-2 1.7792 0.4456 0.2112 0.0524
3 CBL 7.3984 0.4719 CBAM 0.0610 0.0156 ?0.0610 ?0.0156
4 BottleneckCSP 16.1152 1.0224 CBL 7.3984 0.4719 0.0000 0.0000
5 CBL 29.5424 0.4719 BottleneckCSP-2 10.7392 0.6816 5.3760 0.3408
6 BottleneckCSP 64.1792 1.0224 CBAM 0.2146 0.0137 ?0.2146 ?0.0137
7 SPP 65.6896 0.2621 CBL 29.5424 0.4719 0.0000 0.0000
8 BottleneckCSP 124.8768 0.4981 BottleneckCSP-2 60.8768 0.9699 3.3024 0.0524
9 CBL 118.0672 0.4719 CBAM 0.8290 0.0133 ?0.8290 ?0.0133
10 CBL 118.0672 0.4719 0.0000 0.0000
11 BottleneckCSP-2 111.7184 0.4456 13.1584 0.0524
12 CBAM 3.2866 0.0131 ?3.2866 ?0.0131
13 SPPF 65.6896 0.2621 0.0000 0.0000
总量 430.0672 5.5443 412.1224 4.8071 17.9448 0.7372
Tab.1 Comparison of parameter quantity and calculation quantity of original YOLOv5s and YOLOv5s-PRO structure

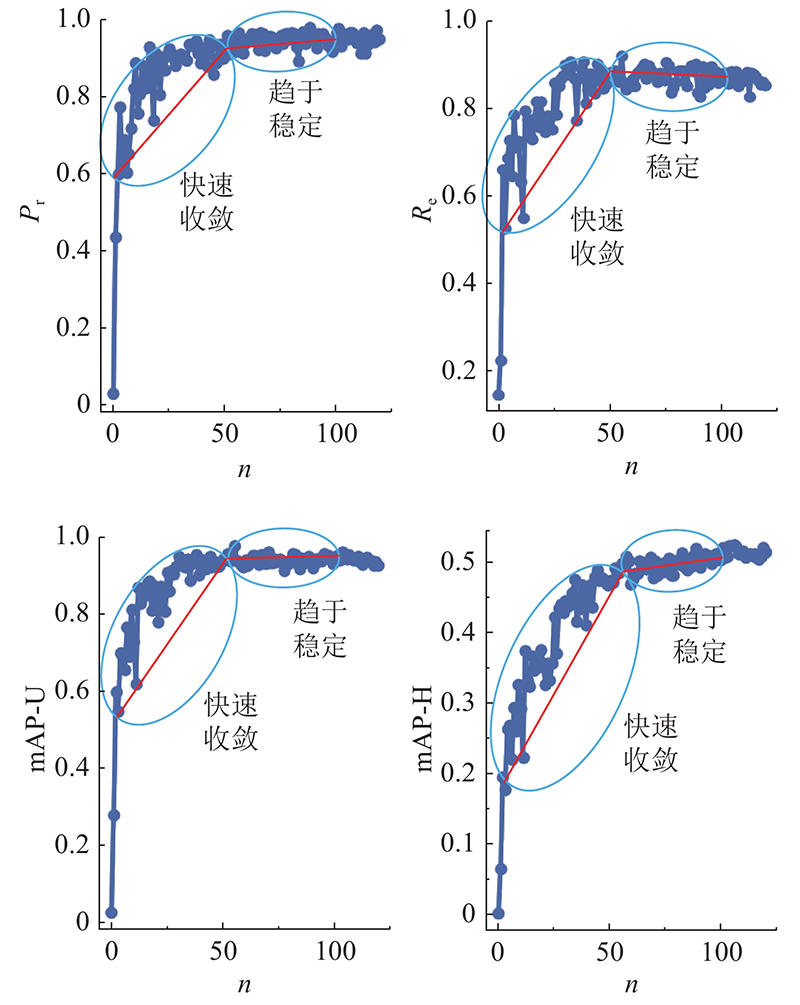

Fig.6 YOLOv5s-PRO loss curve
Fig.7 Average accuracy curve of YOLOv5s-PRO
n Pr Re mAP-U mAP-H
103 0.9612 0.8552 0.9376 0.5240
105 0.9466 0.8656 0.9193 0.5245
104 0.9576 0.8830 0.9287 0.5233
106 0.9634 0.8824 0.9314 0.5224
100 0.9619 0.8763 0.9258 0.5216
88 0.9754 0.9000 0.9279 0.5195
118 0.9685 0.8590 0.9144 0.5206
109 0.9362 0.8603 0.9226 0.5157
82 0.9258 0.8850 0.9307 0.5133
97 0.9270 0.8835 0.9301 0.5127
108 0.9541 0.8679 0.9184 0.5132
114 0.9320 0.8758 0.9257 0.5121
119 0.9458 0.8516 0.9047 0.5144
92 0.9594 0.8445 0.9145 0.5129
107 0.9613 0.8485 0.9205 0.5118
98 0.9140 0.8568 0.9173 0.5112
112 0.9613 0.8254 0.9074 0.5118
96 0.9299 0.8733 0.9225 0.5100
87 0.9509 0.8831 0.9176 0.5104
94 0.9605 0.8530 0.9167 0.5097
Tab.2 Statistical table of YOLOv5s-PRO training data
Fig.8 Test results of verification set
Fig.9 YOLOv5s deep fire feature detection drawing

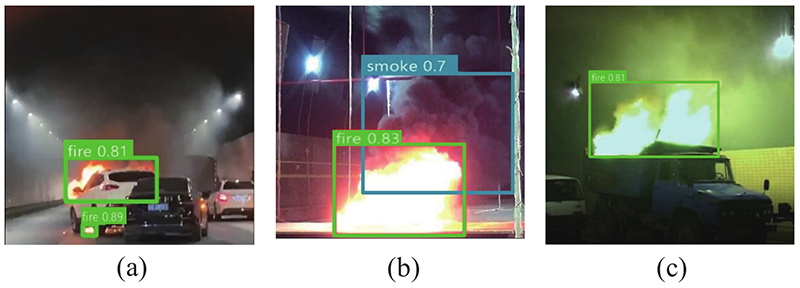

Fig.10 YOLOv5s-PRO deep fire feature detection drawing

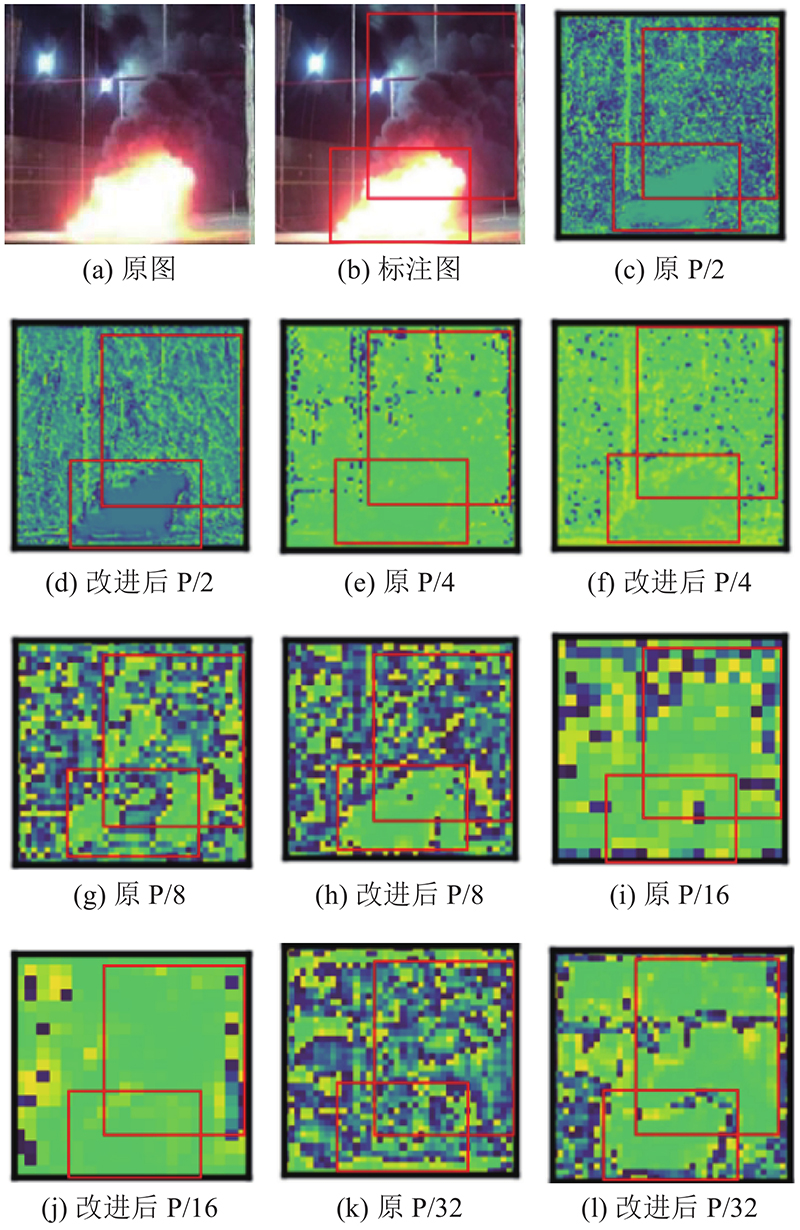

Fig.11 Analysis of middle characteristic layer of backbone network

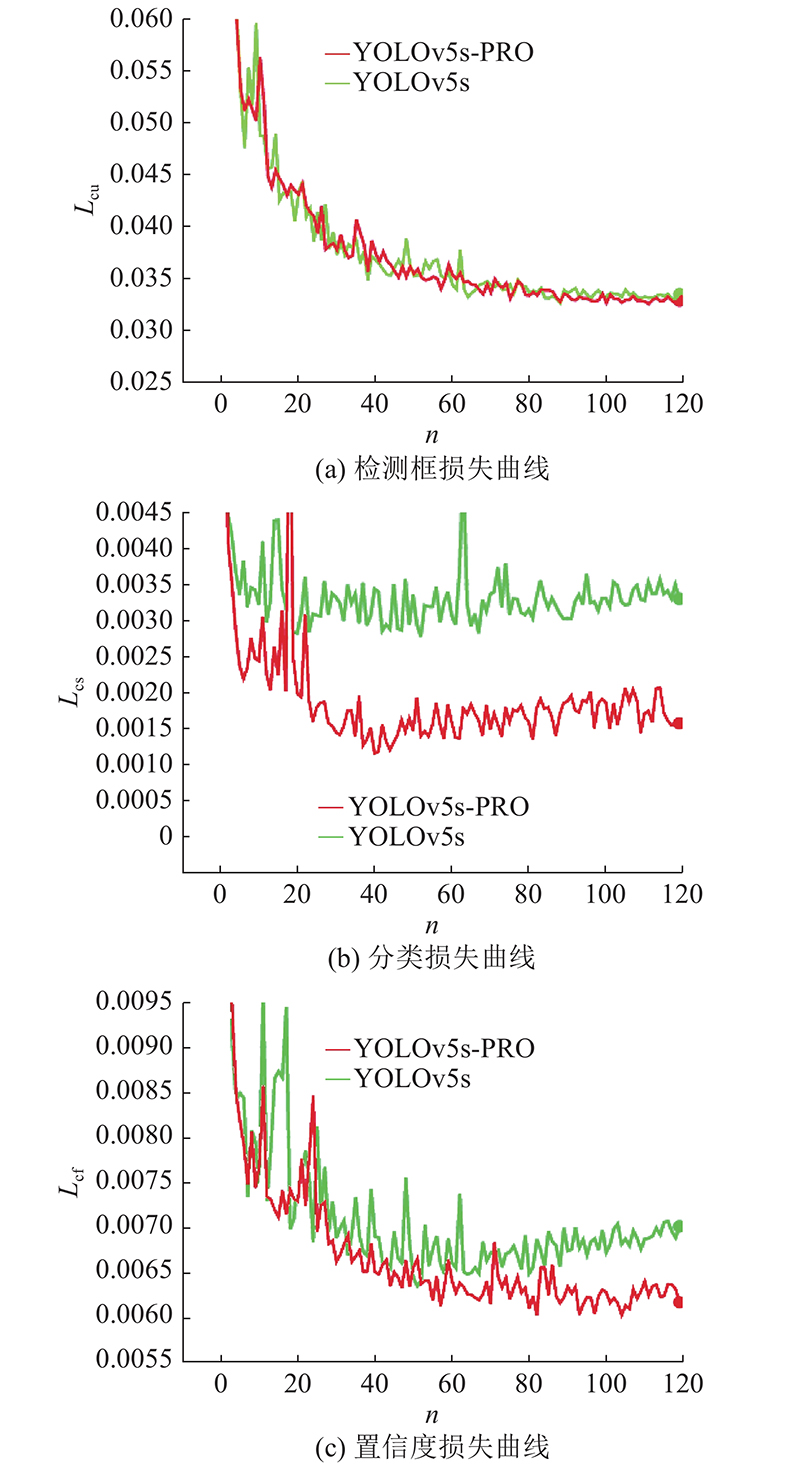

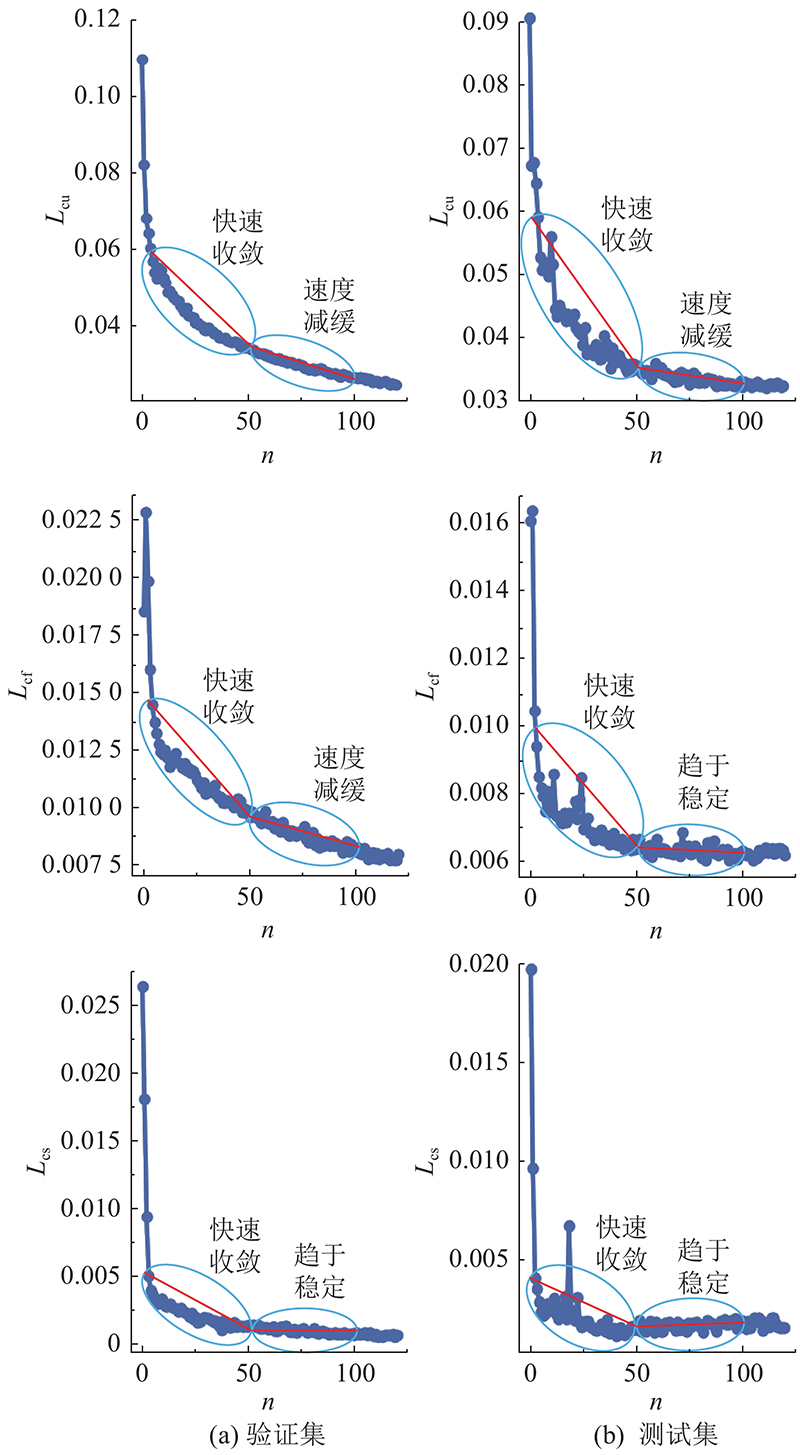

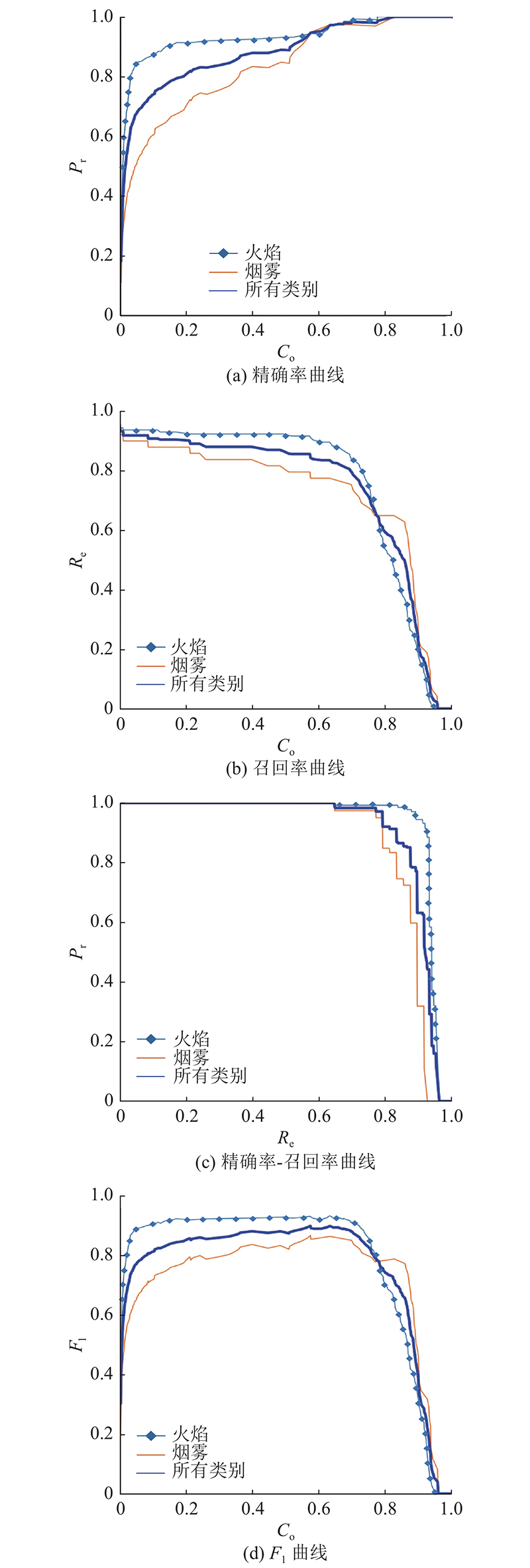

Fig.12 Loss curve during training

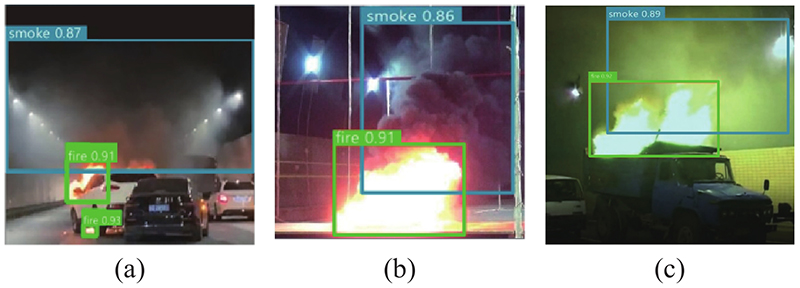

Fig.13 Verification results of smoke and flame detection
数据集 F1 F2 F1? F2 S1 S2 S1? S2 mAP1 mAP2 mAP1? mAP2 t1/ms t2/ms (t1? t2)/ms
95.28 96.74 ?1.46 90.81 92.63 ?1.82 93.12 94.69 ?1.57 6.53 6.09 0.44
90.33 91.61 ?1.28 83.38 89.78 ?6.40 87.41 90.70 ?3.29 6.51 6.11 0.40
88.78 90.89 ?2.11 81.61 87.52 ?5.91 84.42 89.21 ?4.79 6.57 6.17 0.40
均值 91.46 93.08 ?1.62 85.27 89.98 ?4.71 88.32 91.53 ?3.21 6.54 6.12 0.42
Tab.3 Test performance of original YOLOv5s and YOLOv5s-PRO structure %

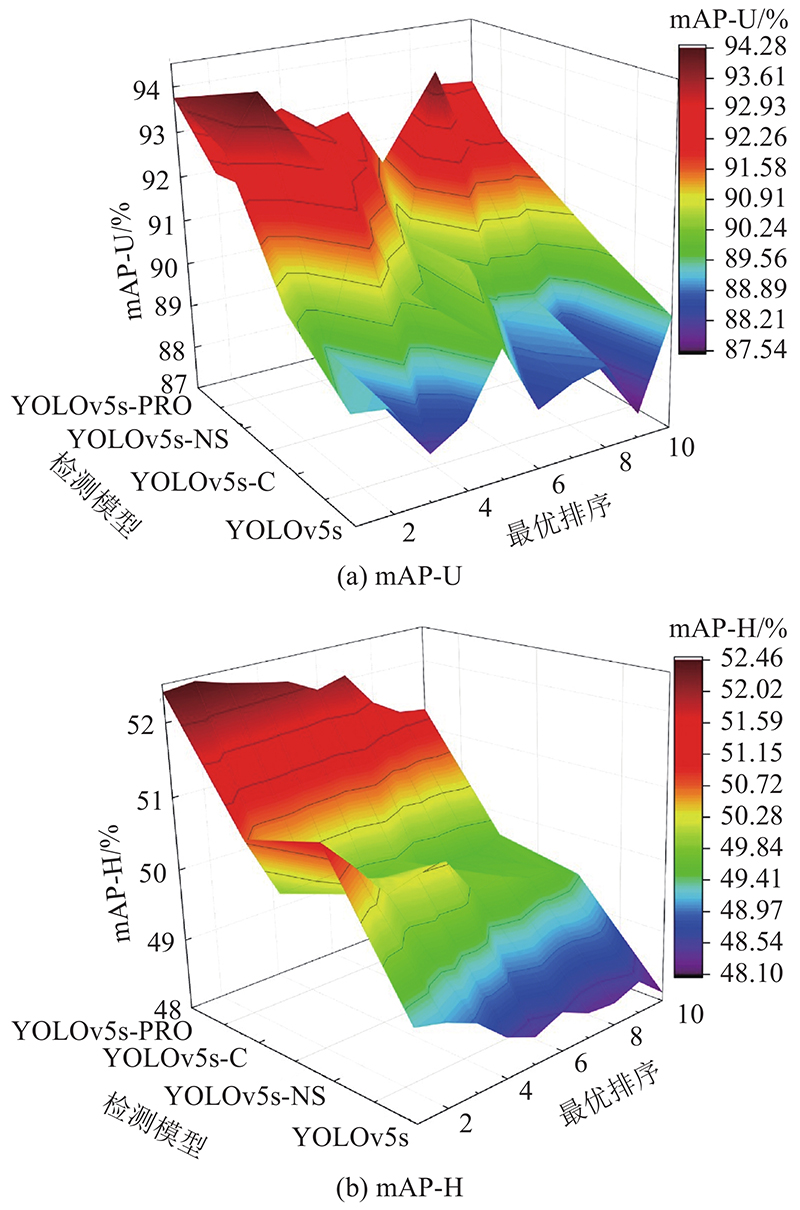

Fig.14 Performance evaluation of improved schemes and YOLOv5s-PRO
Fig.15 Fire test of Zhenwu Mountain Tunnel in Chongqing

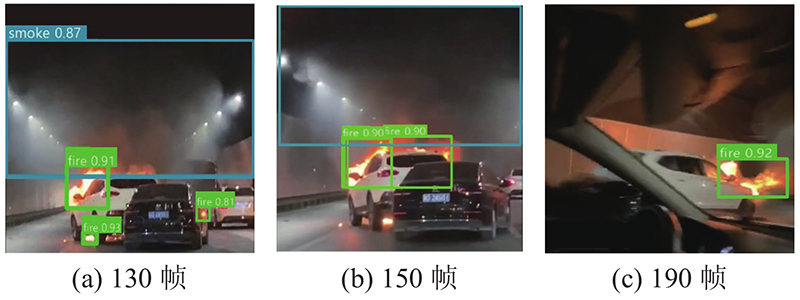

Fig.16 Fire misdiagnosis of Zhenwu Mountain Tunnel in Chongqing
类别 nd nn nf Pd/% Pa/%
火焰 381 11 7 97.11 98.16
烟雾 357 17 0 95.24 100.00
Tab.4 Statistics of Zhenwu Mountain Tunnel fire video test results
