浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (1): 209-218    DOI: 10.3785/j.issn.1008-973X.2023.01.021

Performance optimization of matrix converter based on specific harmonic elimination
Yu-xiang XU1(),Pei-liang WANG2,*(),Zhi-duan CAI1,Neng-wei LEI1,Yong-feng JIANG2
1. School of Science and Engineering, Huzhou College, Huzhou 313000, China
2. School of Engineering, Huzhou University, Huzhou 313000, China
Download: HTML     PDF(2224KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The specific harmonic near the resonance point of input side was selected as the suppression object aiming at the problem that input LC filter of matrix converter was easy to cause input current resonance. A method of input filter parameter optimization and resonance suppression based on specific harmonic elimination was proposed to improve input performance. The working principle of input LC filter and conventional resonance suppression method was analyzed. Multiple constraints were used to optimize the design of filter parameters. The damping resistance was selected based on the suppression effect of specific harmonics near the resonance point, and the specific optimization design steps were given. The idea of specific harmonic elimination was introduced into the active resonance suppression method, and the strategy of using notch filter to collect the specific harmonic quantity in the filter capacitor and feed it back to the control loop was proposed. The simulation model based on Matlab/Simulink software was constructed. The simulation results showed that the total harmonic distortion of input current was reduced by 98.5% and 99.3% respectively by using the proposed input filter parameter optimization method and active resonance suppression method. The system has good stability after suppression processing.

Key words： specific harmonic      matrix converter      parameter optimization      resonance suppression      notch filter
Received: 14 August 2021      Published: 17 January 2023
CLC:  TM 46
Fund:  国家自然科学基金资助项目（61573137）；浙江省自然科学基金资助项目（LY19F030002）；浙江省文化和旅游厅科研与创作项目资助项目（2021KYY066）；浙江省建设厅建设科研资助项目（2021K218）；湖州市公益性应用研究资助项目（2021GZ15）；湖州学院校级科研资助项目（2021HXKJ03）
Corresponding Authors: Pei-liang WANG     E-mail: keyan_xyx@163.com;wpl@zjhu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yu-xiang XU
Pei-liang WANG
Zhi-duan CAI
Neng-wei LEI
Yong-feng JIANG
Cite this article:

Yu-xiang XU,Pei-liang WANG,Zhi-duan CAI,Neng-wei LEI,Yong-feng JIANG. Performance optimization of matrix converter based on specific harmonic elimination. Journal of ZheJiang University (Engineering Science), 2023, 57(1): 209-218.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.01.021     OR     https://www.zjujournals.com/eng/Y2023/V57/I1/209


基于特定谐波消除的矩阵变换器性能优化方法

针对矩阵变换器输入LC滤波器容易引起输入电流谐振的问题，选择输入侧谐振点附近的特定谐波作为抑制对象，提出基于特定谐波消除的输入滤波器参数优化与谐振抑制方法，以提升输入性能. 分析输入LC滤波器及常规谐振抑制方法的工作原理，采用多个约束条件对滤波参数进行最优设计，以谐振点附近特定谐波的抑制效果作为阻尼电阻的选择依据，给出具体的优化设计步骤. 将特定谐波消除的思想引入主动谐振抑制方法中，提出采用陷波滤波器采集滤波电容中特定谐波量反馈到控制回路的策略. 搭建基于Matlab/Simulink的仿真模型，仿真实验表明，利用所提的输入滤波器参数优化方法和主动谐振抑制方法，使得输入电流总谐波畸变率分别下降了98.5%和99.3%. 抑制处理后的系统具有良好的稳定性.


关键词： 特定谐波,  矩阵变换器,  参数优化,  谐振抑制,  陷波滤波器

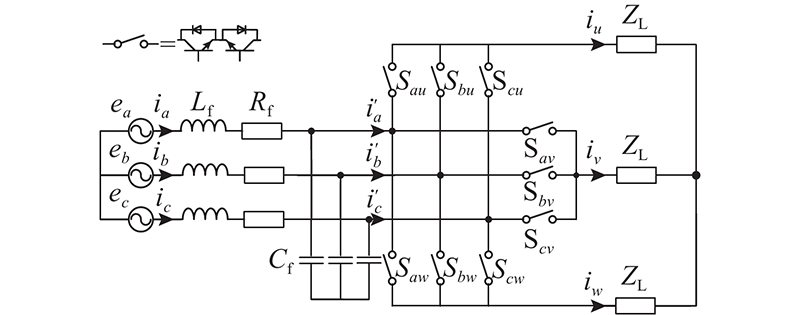

Fig.1 Topology of three-phase to three-phase matrix converter

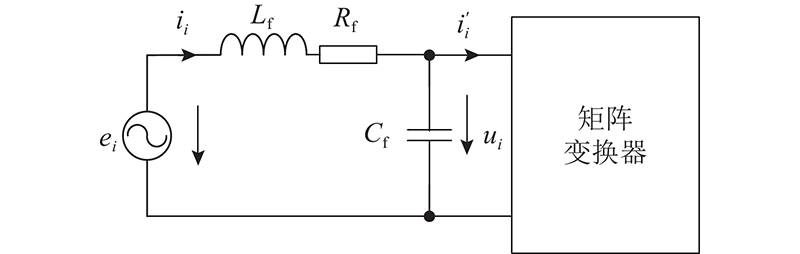

Fig.2 Equivalent circuit diagram of input side of MC
Fig.3 Equivalent circuit diagram of input side based on passive damping method
参数 数值
输入电压幅值Em /V $110\sqrt 2 $
输入电压频率fi /Hz 50
滤波电感Lf /mH 1.5
滤波电感等效电阻Rf /Ω 0.075
滤波电容Cf /μF 18.8
输出电流设定值Io* /A 3.5/6.5
输出频率fo /Hz 70
负载电感L /mH 7.5
负载电阻R /Ω 20
开关频率fs /kHz 10
Tab.1 Simulation parameters of matrix converter
Io*/A Rd/Ω ηi / %
i = 13 i = 17 i = 19 i = 23 i = 25
3.5 10 0.31 0.22 0.03 0.12 0.07
3.5 15 0.49 0.10 0.28 0.13 0.06
3.5 33 0.35 0.19 0.65 0.26 0.07
6.5 10 0.09 0.03 0.05 0.06 0.03
6.5 15 0.10 0.06 0.04 0.05 0.03
6.5 33 0.10 0.15 0.28 0.26 0.10
Tab.2 Harmonic content near resonance point in input current under different damping resistances
Fig.4 Block diagram of specific harmonic extraction module

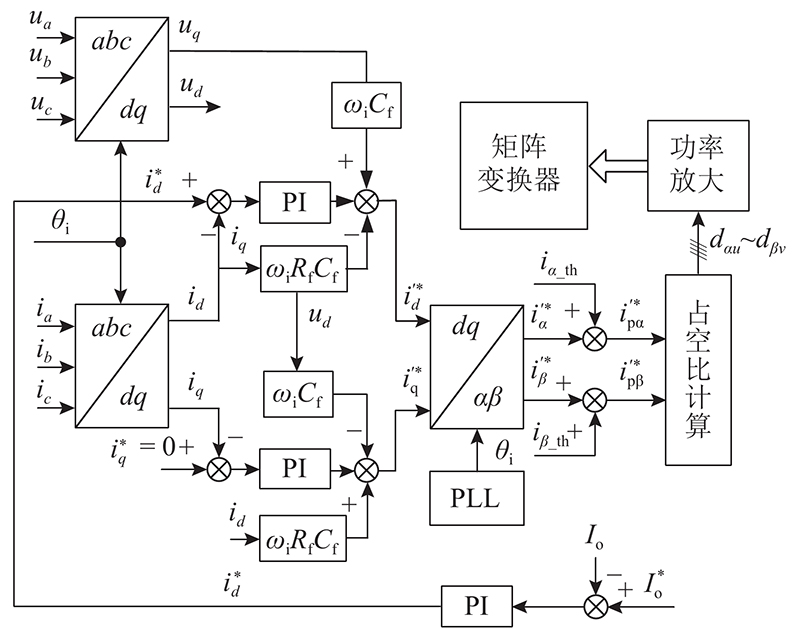

Fig.5 Block diagram of double closed loop control strategy based on specific harmonic elimination method
Fig.6 Static simulation results under undamped method
Fig.7 Static simulation results of input side under different Rd

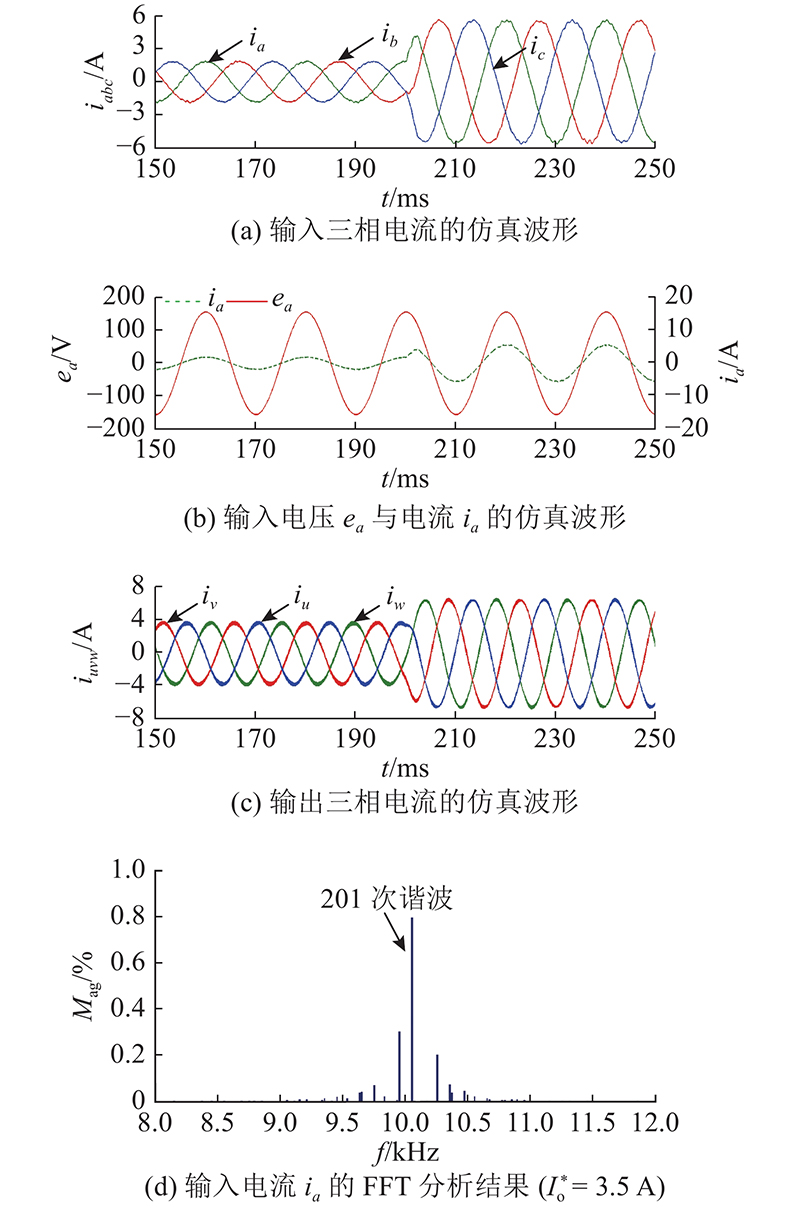

Fig.8 Dynamic simulation results of input and output (Rd = 33 Ω)
Fig.9 Dynamic simulation results of specific harmonic elimination method
Fig.10 Dynamic simulation results of input three-phase current under different methods

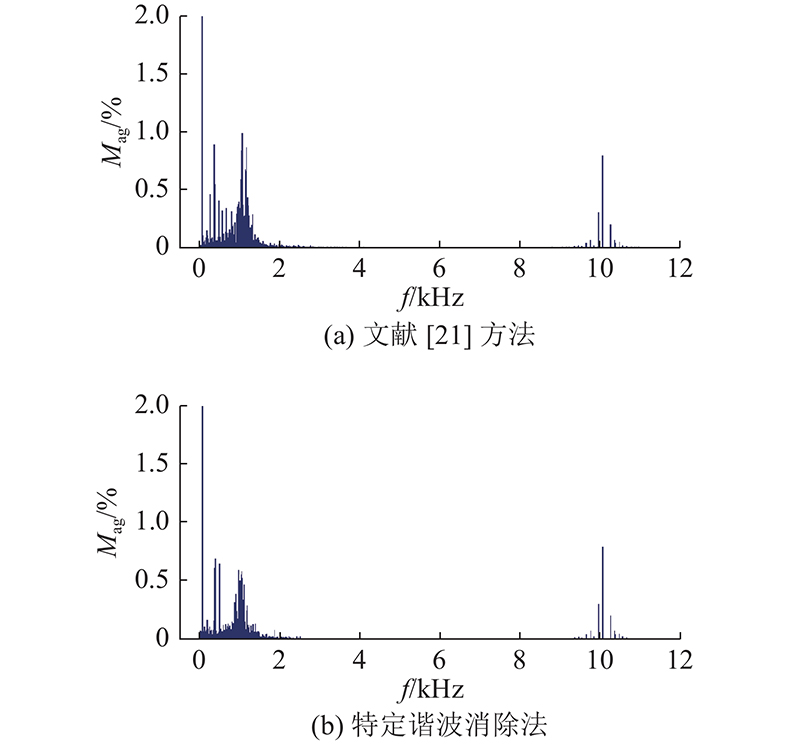

Fig.11 Simulation results of input current ia under different methods (Io* = 3.5 A)
Io*/A 谐振抑制方法 ηi /%
i = 13 i = 17 i = 19 i = 23 i = 25
3.5 方法1 0.35 0.19 0.65 0.26 0.07
3.5 方法2 0.08 0.31 0.59 0.25 0.11
6.5 方法1 0.10 0.15 0.28 0.08 0.10
6.5 方法2 0.18 0.16 0.33 0.12 0.05
Tab.3 Specific harmonic content in input current under different methods
Fig.12 Simulation results of output phase voltage uu under different methods
