Journal of ZheJiang University (Engineering Science)  2022, Vol. 56 Issue (11): 2251-2259    DOI: 10.3785/j.issn.1008-973X.2022.11.016

3D point cloud super-resolution with dynamic residual graph convolutional networks
Fan ZHONG(),Zheng-yao BAI*()
School of Information Science and Engineering, Yunnan University, Kunming 650500, China
Download: HTML     PDF(1454KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A 3D point cloud super-resolution network with dynamic residual graph convolution (PSR-DRGCN) was proposed to efficiently extract of local information from 3D point clouds of non-European data in super-resolution. The network includes feature extraction module, DRGCN module and upsampling module. For the input point cloud, the feature extraction module locates k nearest points of each point in 3D space by k-NN algorithm and then converts the local geometry information into the high dimensional feature space through a multi-layer pointwise convolution. The DRGCN module converts the local geometry feature of each point into the semantic feature through a multi-layer graph convolution. It dynamically adjusts the neighbor space of the point in each layer to increase the receptive field range and effectively fuse the semantic information of different levels through residual connection, which makes the extraction of local geometric information efficient. The upsampling module adds the number of points and maps them from feature space to 3D space. The results showed that at 2× magnification of the high-resolution point cloud generated by PSR-DRGCN, the similarity indexes CD, EMD and F-score compared with the second network were increased by 10.00%, 4.76% and 16.84% respectively. Compared with the second network, the similarity indexes at 6× magnification were increased by 2.35%, 40.00% and 0.58% respectively. In all cases, the optimal effect was achieved on the mean and the std indicators and the generated high-resolution point cloud quality was high.



Key words3D point cloud      super-resolution      dynamic GCN      semantic feature      deep learning
Received: 29 November 2021      Published: 02 December 2022
CLC:  TP 391.4
Fund:  云南省重大科技专项计划资助项目(202002AD080001)
Corresponding Authors: Zheng-yao BAI     E-mail: zffhost@mail.ynu.edu.cn;baizhy@ynu.edu.cn
Cite this article:

Fan ZHONG,Zheng-yao BAI. 3D point cloud super-resolution with dynamic residual graph convolutional networks. Journal of ZheJiang University (Engineering Science), 2022, 56(11): 2251-2259.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.11.016     OR     https://www.zjujournals.com/eng/Y2022/V56/I11/2251


采用动态残差图卷积的3D点云超分辨率

为了在超分辨率中对非欧数据的3D点云进行局部信息高效提取,提出采用动态残差图卷积的3D点云超分辨率网络(PSR-DRGCN),该网络包括特征提取模块、DRGCN模块及上采样模块. 对于输入的3D点云, 特征提取模块采用k-近邻(k-NN)算法在3D空间中找到每个点对应的k个邻居,通过逐点卷积把局部几何信息转换到高维特征空间中;DRGCN模块利用多层图卷积操作将3D空间中每个点的局部几何特征抽象为语义特征,在每一层对点的近邻空间进行动态调整以增加感受野范围,并通过残差连接融合多层次语义信息,从而对局部几何信息高效提取;上采样模块将特征空间中的点进行上采样并转换到3D空间中. 实验结果表明,PSR-DRGCN生成的高分辨率点云在放大尺度为2倍时,相似性指标CD、EMD、F-score相比第2网络分别优化了10.00%,4.76%,16.84%;当放大尺度为6倍时,相似性指标相比第2网络分别优化了2.35%,40.00%,0.58%;在所有情况下的均值与标准差指标上达到最优效果,生成的高分辨率点云质量高.


关键词: 3D点云,  超分辨率,  动态图卷积网络,  语义特征,  深度学习

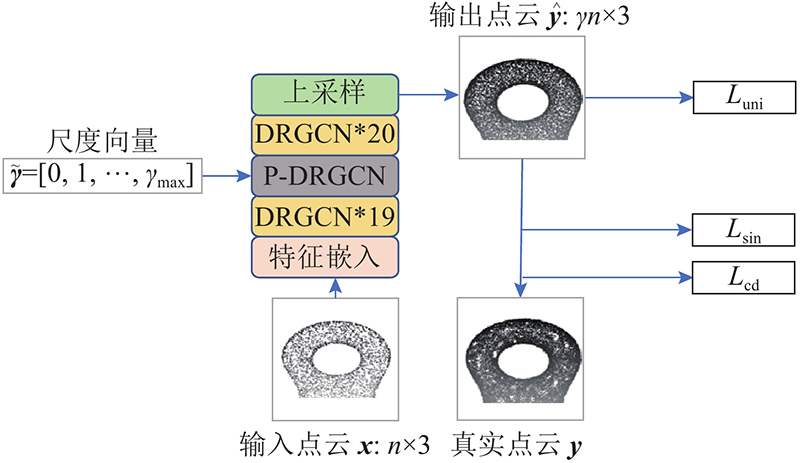

Fig.1 llustration of PSR-DRGCN architecture

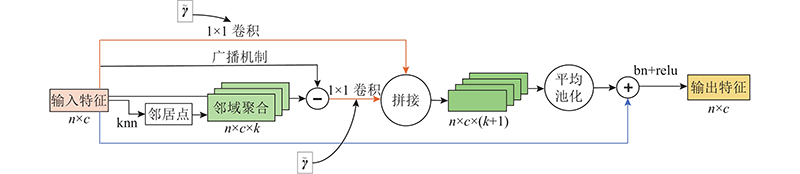

Fig.2 DRGCN module

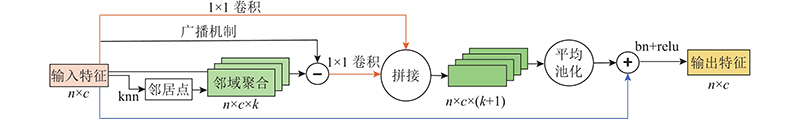

Fig.3 P-DRGCN module
Fig.4 Scale predict network

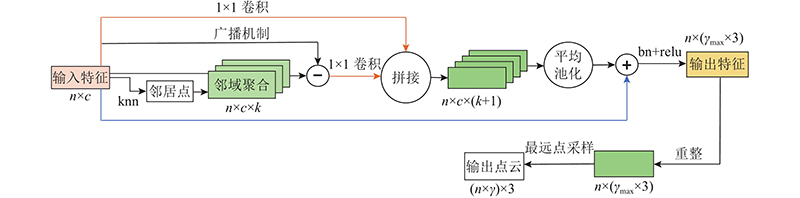

Fig.5 Upsampling module
方法 CD EMD F-score NUC mean std CD EMD F-score NUC mean std
注:CD、EMD、NUC、mean、std指标均为10?3数量级
AR-GCN ? ? ? ? ? ? 8.6 18.0 70.09% 339.0 2.9 3.3
PU-GAN 16.0 9.0 32.17% 249.0 12.0 15.0 9.7 16.0 69.75% 202.0 3.0 3.1
AR-GCN x16sample 15.0 13.0 36.98% 273.0 6.7 8.2 13.0 13.0 54.05% 288.0 6.6 8.0
PC-SR 15.0 12.0 52.82% 188.0 2.8 3.3 14.0 19.0 72.18% 211.0 2.8 3.1
Meta-PU 10.0 6.3 53.20% 163.0 2.6 2.9 8.7 7.8 74.05% 192.0 2.6 2.7
PSR-DRGCN 9.0 6.0 70.06% 154.0 2.4 2.3 8.8 7.6 70.12% 183.0 2.4 2.2
方法 CD EMD F-score NUC mean std CD EMD F-score NUC mean std
AR-GCN ? ? ? ? ? ? 8.1 22.0 74.63% 344.0 3.4 4.4
PU-GAN 12.0 13.0 58.56% 287.0 11.0 18.0 9.1 8.5 70.61% 212.0 4.7 5.7
AR-GCN x16sample 12.0 14.0 59.41% 293.0 6.5 7.9 11 14.0 62.70% 298.0 6.5 7.8
PC-SR 14.0 22.0 70.02% 225.0 2.7 2.9 9.3 25.0 72.92% 232.0 2.6 2.8
Meta-PU 8.5 14.0 72.98% 267.0 2.5 3.0 8.3 16.0 73.74% 274.0 3.0 3.4
PSR-DRGCN 8.3 8.4 73.56% 243.0 2.3 2.1 7.9 9.8 74.23% 210.0 2.2 2.0
Tab.1 Performance comparison in point cloud super-resolution
网络 D/(10?2) k t/ms
mean std
Pointnet++ 3.13 3.74 1 480 25.30
PU-net 0.46 0.55 777 10.40
AR-GCN 0.29 0.33 785 15.60
PU-GAN 0.30 0.31 684 14.30
DGCNN 2.90 3.20 1 842 41.60
PC-SR 2.64 2.90 844 21.30
Meta-PU 0.29 0.27 2 756 90.20
PSR-DRGCN 0.24 0.22 1 282 12.30
Tab.2 Performance comparison in parameters and inference time
方法 CD EMD F-score NUC mean std
注:CD、EMD、NUC、mean、std指标均为10?3数量级
RGCN 11.0 15.0 63.36% 224.0 55.0 57.0
DRGCN 9.0 6.0 70.06% 154.0 2.4 2.3
Tab.3 Performance comparison in 2× dynamic neighbor and residual connection

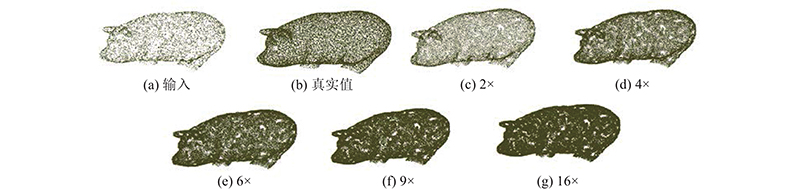

Fig.6 Visual performance compression in 2×, 4×, 6×, 9×, 16× scale

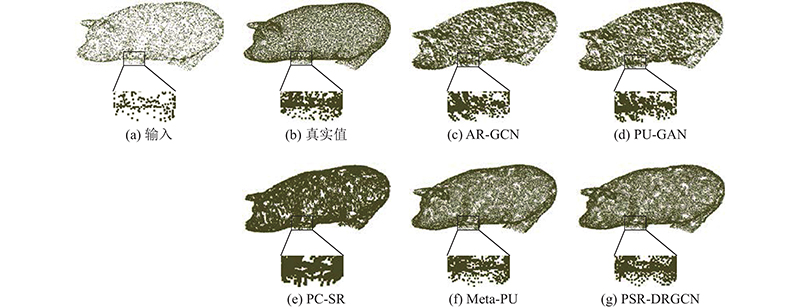

Fig.7 visual performance compression in different SR networks(pig)
Fig.8 error visual performance compression in different SR networks
