浙江大学学报(工学版)  2026, Vol. 60 Issue (12): 2642-2651    DOI: 10.3785/j.issn.1008-973X.2026.12.010
计算机技术
基于改进YOLOv8的无人机仓储盘点检测算法
袁小平(),郑新文,彭聪
中国矿业大学 信息与控制工程学院,江苏 徐州 221000
UAV-based warehouse inventory object detection algorithm using improved YOLOv8
Xiaoping YUAN(),Xinwen ZHENG,Cong PENG
School of Information and Control Engineering, China University of Mining and Technology, Jiangsu 221000, China
 全文: PDF(2161 KB)   HTML
摘要:

针对原始YOLOv8n算法在无人机仓储货物盘点任务中识别精度不足的问题,提出改进的目标检测算法. 为了提升对密集堆叠货物的识别能力,引入能够适应目标重叠情况并放宽目标框宽高比约束的Inner-EIoU作为边界框损失函数. 在特征提取部分,将C2f模块中的标准卷积替换为结合多维注意力机制的全维度动态卷积,在快速空间金字塔池化模块中采用FocalModulation方法,以增强特征表达能力. 为了减少模型参数规模并提高推理速度,使用基于LAMP剪枝准则的通道剪枝方法对模型进行轻量化处理. 在自建仓储数据集上的实验结果表明,改进后算法的mAP50达到94.2%,模型大小仅为2.8 MB,推理速度提升至135帧/s,验证了该方法在边缘计算设备上部署的可行性.

关键词: 无人机;  目标检测;  仓储盘点;  注意力机制;  轻量化模型
Abstract:

An improved object detection algorithm was proposed aiming at the issue of insufficient recognition accuracy of the original YOLOv8n algorithm in the task of drone-based warehouse inventory. Inner-EIoU, which was adaptable to target overlap and relaxed aspect ratio constraints, was introduced as the bounding box loss function in order to enhance the recognition capability for densely stacked goods. The standard convolution in the C2f module was replaced with omni-dimensional dynamic convolution that incorporated a multi-dimensional attention mechanism in the feature extraction stage. The FocalModulation method was applied to the spatial pyramid pooling-fast module in order to improve feature representation. A channel pruning method based on the LAMP criterion was used for model lightweighting in order to reduce the parameter scale of the model and increase inference speed. The experimental results on a self-built warehouse dataset showed that the improved algorithm achieved mAP50 of 94.2%, with model size of only 2.8 MB and inference speed of 135 frames/s, demonstrating the feasibility for deployment on edge computing device.

Key words: drone    object detection    warehouse inventory    attention mechanism    lightweight model
收稿日期: 2025-09-30 出版日期: 2026-10-21
CLC:  TP 391
基金资助: 国家级大学生创新训练项目(202410290039Z).
作者简介: 袁小平(1966—),男,教授,从事图像处理、深度学习方向的研究. orcid.org/0000-0002-7936-0070. E-mail:1941@cumt.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
袁小平
郑新文
彭聪

引用本文:

袁小平,郑新文,彭聪. 基于改进YOLOv8的无人机仓储盘点检测算法[J]. 浙江大学学报(工学版), 2026, 60(12): 2642-2651.

Xiaoping YUAN,Xinwen ZHENG,Cong PENG. UAV-based warehouse inventory object detection algorithm using improved YOLOv8. Journal of ZheJiang University (Engineering Science), 2026, 60(12): 2642-2651.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.12.010    或    https://www.zjujournals.com/eng/CN/Y2026/V60/I12/2642

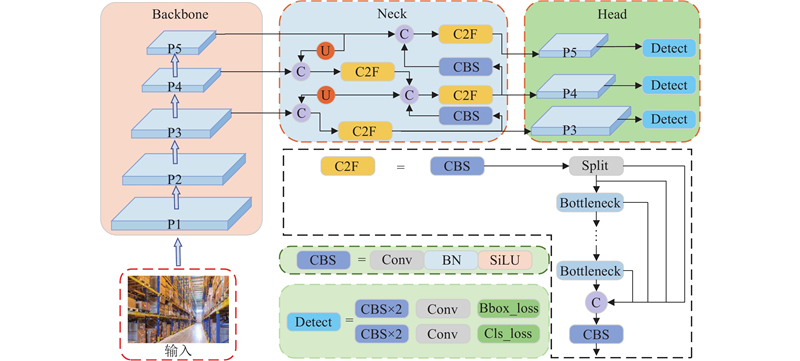

图 1  YOLOv8的网络结构

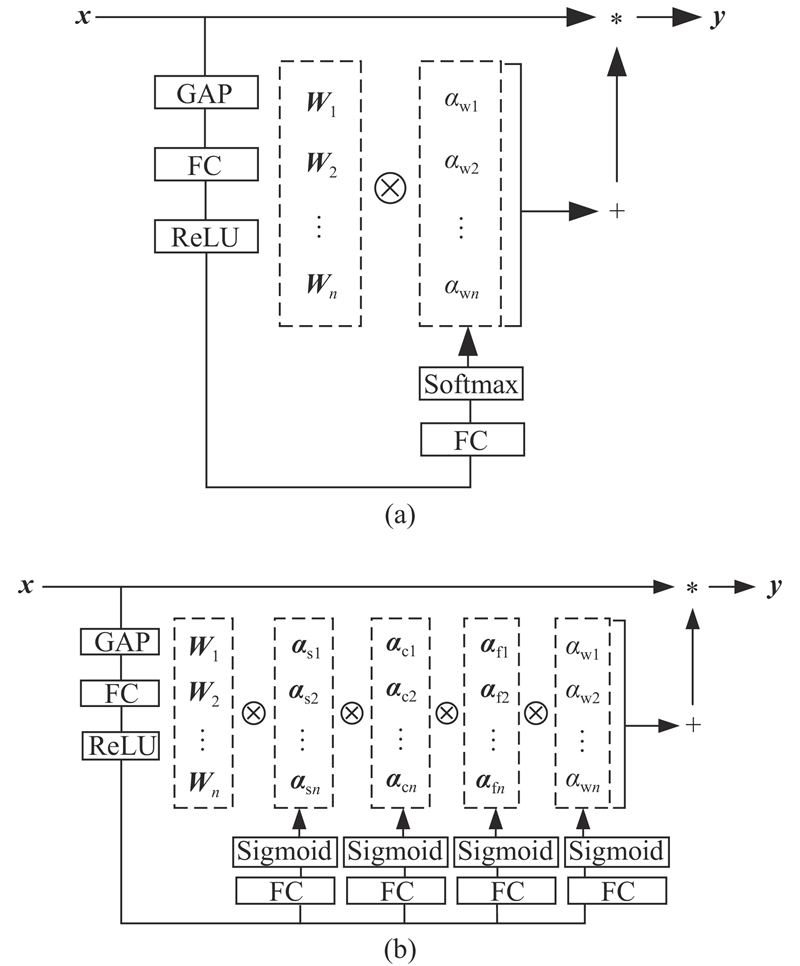

图 2  传统卷积与全维度动态卷积的结构对比

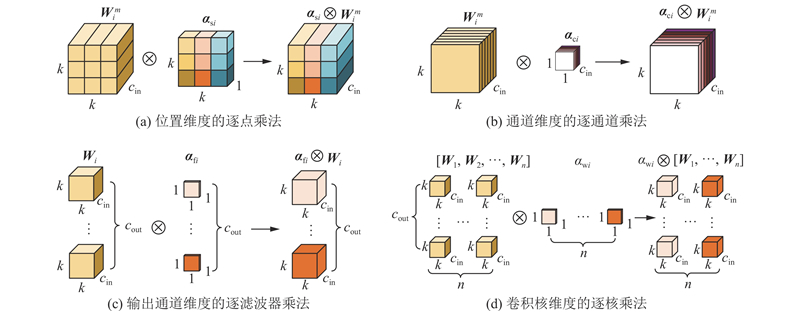

图 3  4种维度注意力机制的生效方式

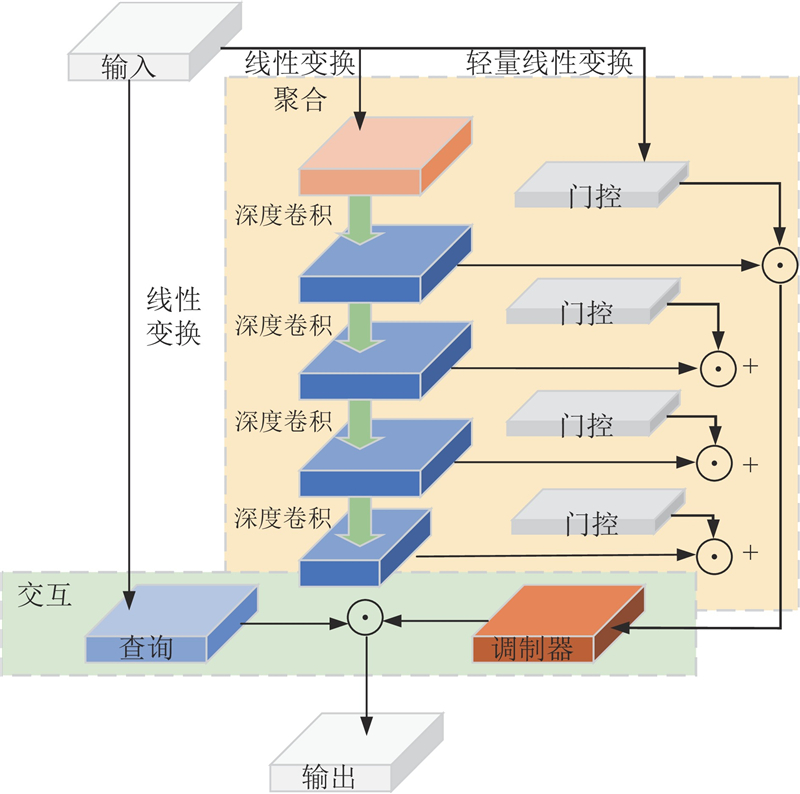

图 4  FocalModulation网络的结构

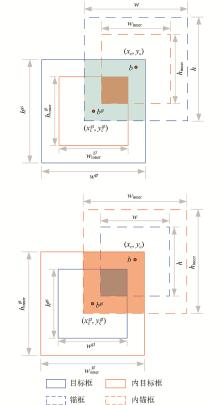

图 5  Inner-IoU目标检测中目标框与锚框及内部区域的示意图

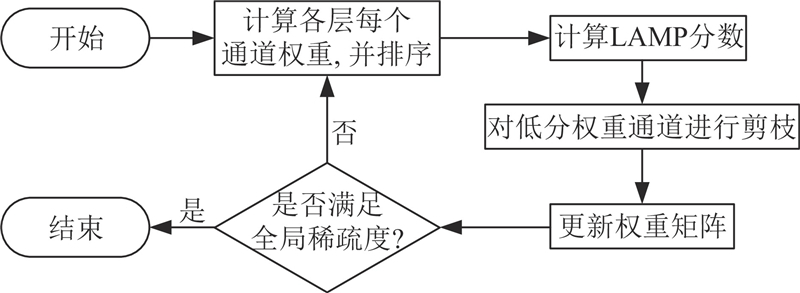

图 6  LAMP剪枝的流程图
数据集类别图像数量标注框数量
训练集1 7285 488
验证集4511 479
测试集239840
总计2 4187 807
表 1  数据集类别与标注框信息
模型mAP50/%P/%R/%
YOLOv8n90.2286.8988.55
YOLOv8n_DIoU89.8885.6790.26
YOLOv8n_GIoU91.4288.8188.92
YOLOv8n_EIoU90.1586.8789.67
YOLOv8n_Inner-EIoU91.4388.2688.58
表 2  损失函数的实验结果
模型mAP50/%P/%R/%Sp/106
YOLOv8n90.2286.8988.553.01
YOLOv8n_C2f-FasterBlock90.5386.8487.482.95
YOLOv8n_C2f-MSBlock90.0386.5388.262.95
YOLOv8n_C2f-ODConv91.6487.9388.813.75
表 3  注意力模块的实验结果
模型mAP50/%Sp/106F/(帧·s?1)
SPPF90.223.01118.4
FocalModulation91.603.11117.5
SPPELAN91.053.18110.9
表 4  SPPF模块的实验结果
实验编号Inner-EioUC2f-ODConvFocalModulationmAP50/%Sp/106F/(帧·s?1)Sm/MB
0———90.223.01118.46.0
1√——91.433.01116.46.0
2√√—92.313.751007.1
3√√√93.713.86102.57.3
表 5  YOLOv8n消融实验结果

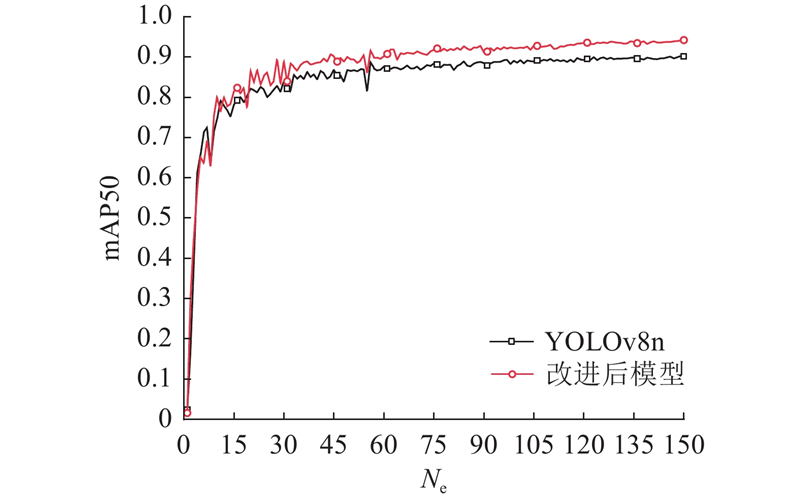

图 7  YOLOv8n原模型与改进后模型的mAP50训练曲线
FcSp/106FLOPs/109mAP50/%Sm/MB
1.03.017.893.77.7
1.51.275.494.22.8
1.71.024.693.22.4
2.00.994.192.72.1
2.50.813.291.71.8
3.00.742.387.41.6
表 6  LAMP剪枝在不同加速比下的性能对比实验

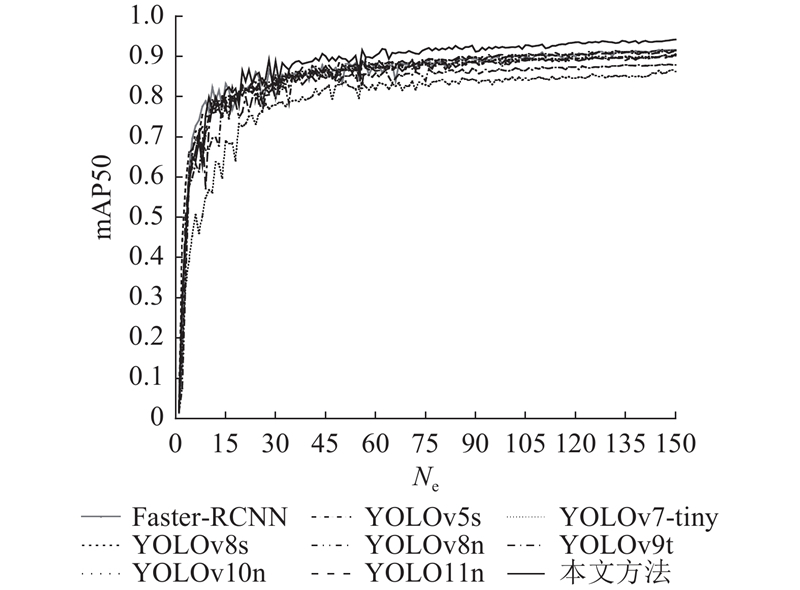

图 8  不同算法的mAP50比较
模型Sp/106FLOPs/109mAP50/%Sm/MB
Faster RCNN41.220891.654.9
YOLOv8n3.018.790.26.2
YOLOv8s11.2828.791.67.1
YOLOv5s7.216.088.014.1
YOLOv7-Tiny6.2105.386.623.9
YOLOv9t1.977.689.94.6
YOLOv10n2.36.791.34.8
YOLO11n2.626.691.95.0
本文方法1.275.494.22.8
表 7  不同算法的性能对比

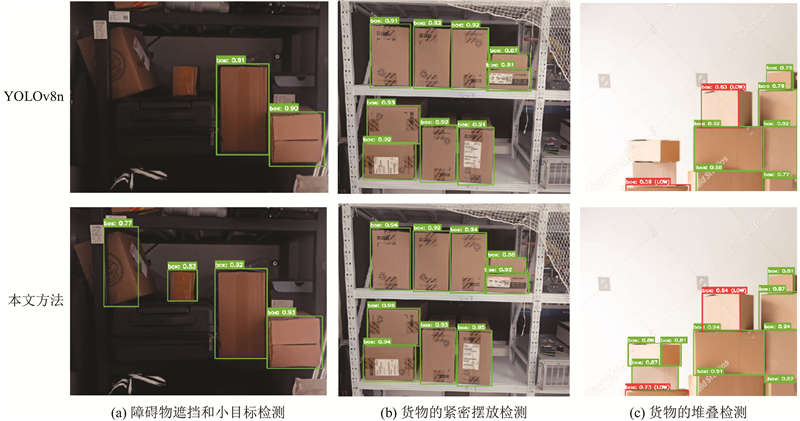

图 9  改进前、后的模型在不同场景下的检测效果对比
