浙江大学学报(工学版)  2026, Vol. 60 Issue (9): 1980-1990    DOI: 10.3785/j.issn.1008-973X.2026.09.015
计算机技术、自动控制技术
基于混合空洞注意力机制的图卷积强化学习
宋莉1,2(),宛袁玉3,*(),宋明黎2
1. 浙大城市学院 计算机与计算科学学院,浙江 杭州 310015
2. 浙江大学 计算机科学与技术学院,浙江 杭州 310027
3. 浙江大学 软件学院,浙江 宁波 315100
Graph convolutional reinforcement learning via hybrid dilated attention mechanism
Li SONG1,2(),Yuanyu WAN3,*(),Mingli SONG2
1. School of Computer and Computing Science, Hangzhou City University, Hangzhou 310015, China
2. College of Computer Science and Technology, Zhejiang University, Hangzhou 310027, China
3. School of Software Technology, Zhejiang University, Ningbo 315100, China
 全文: PDF(1974 KB)   HTML
摘要:

针对复杂高动态多智能体强化学习中多样化动态信息捕捉困难、计算复杂的难题,提出基于混合空洞注意力的多智能体图卷积强化学习算法,以平衡计算复杂度和感受野大小,提高学习效率. 获取能够捕捉多智能体动态交互的图动态矩阵. 混合空洞注意力机制利用Bagging融合了多头注意力和多尺度空洞注意力机制的优点,使模型有效地学习不同类型特征. 在损失函数中添加正则化项以促进模型稳定性并解决过拟合问题. 为了平衡动作的探索与利用,采用改进的暂时拓展贪心方法选择多智能体动作. 仿真结果表明,在复杂动态环境中,所提方法的策略优化准确性和稳定性优于现有方法.

关键词: 多智能体图强化学习混合空洞注意力机制暂时拓展贪心方法策略优化
Abstract:

A multi-agent graph convolutional reinforcement learning based on hybrid dilated attention was proposed to address the challenges of capturing diverse dynamic information and computational complexity in complex high-dynamic multi-agent reinforcement learning. The multi-agent graph convolutional reinforcement learning with ensemble-based hybrid dilated attention was proposed to balance computational complexity and receptive field size in order to enhance learning efficiency. The dynamics matrix of the underlying graph was obtained to capture the dynamic interactions of multiple agents. The hybrid dilated attention mechanism used the Bagging method to combine the advantages of the multi-head attention and the multi-scale dilated attention mechanisms in order to enable the model to effectively learn different types of features. A regularization was added into the loss function to enhance the stability of the model and address the overfitting problem. The improved temporally extended greedy method was utilized to choose the multi-agent’s actions in order to achieve the exploration and exploitation trade-off of actions. The simulation results demonstrate that the proposed method achieves higher accuracy and greater stability in policy optimization than the existing approaches in complex dynamic environments.

Key words: multi-agent    graph reinforcement learning    hybrid dilated attention mechanism    temporally-extended greedy method    policy optimization
收稿日期: 2025-08-17 出版日期: 2026-07-20
CLC:  TP 181
基金资助: 浙江省自然科学基金联合基金资助项目(LHZSD24F020001);国家自然科学基金资助项目(62306275, U20B2066);浙江大学上海高等研究院繁星科学基金资助项目(SN-ZJU-SIAS-001);中央高校基本科研业务费专项资金资助项目(226-2023-00048).
通讯作者: 宛袁玉     E-mail: slili516@zjsru.edu.cn;wanyy@zju.edu.cn
作者简介: 宋莉(1991—),女,博士,从事图多智能体强化学习算法研究. orcid.org/0000-0003-2616-5156. E-mail:slili516@zjsru.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
宋莉
宛袁玉
宋明黎

引用本文:

宋莉,宛袁玉,宋明黎. 基于混合空洞注意力机制的图卷积强化学习[J]. 浙江大学学报(工学版), 2026, 60(9): 1980-1990.

Li SONG,Yuanyu WAN,Mingli SONG. Graph convolutional reinforcement learning via hybrid dilated attention mechanism. Journal of ZheJiang University (Engineering Science), 2026, 60(9): 1980-1990.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.09.015        https://www.zjujournals.com/eng/CN/Y2026/V60/I9/1980

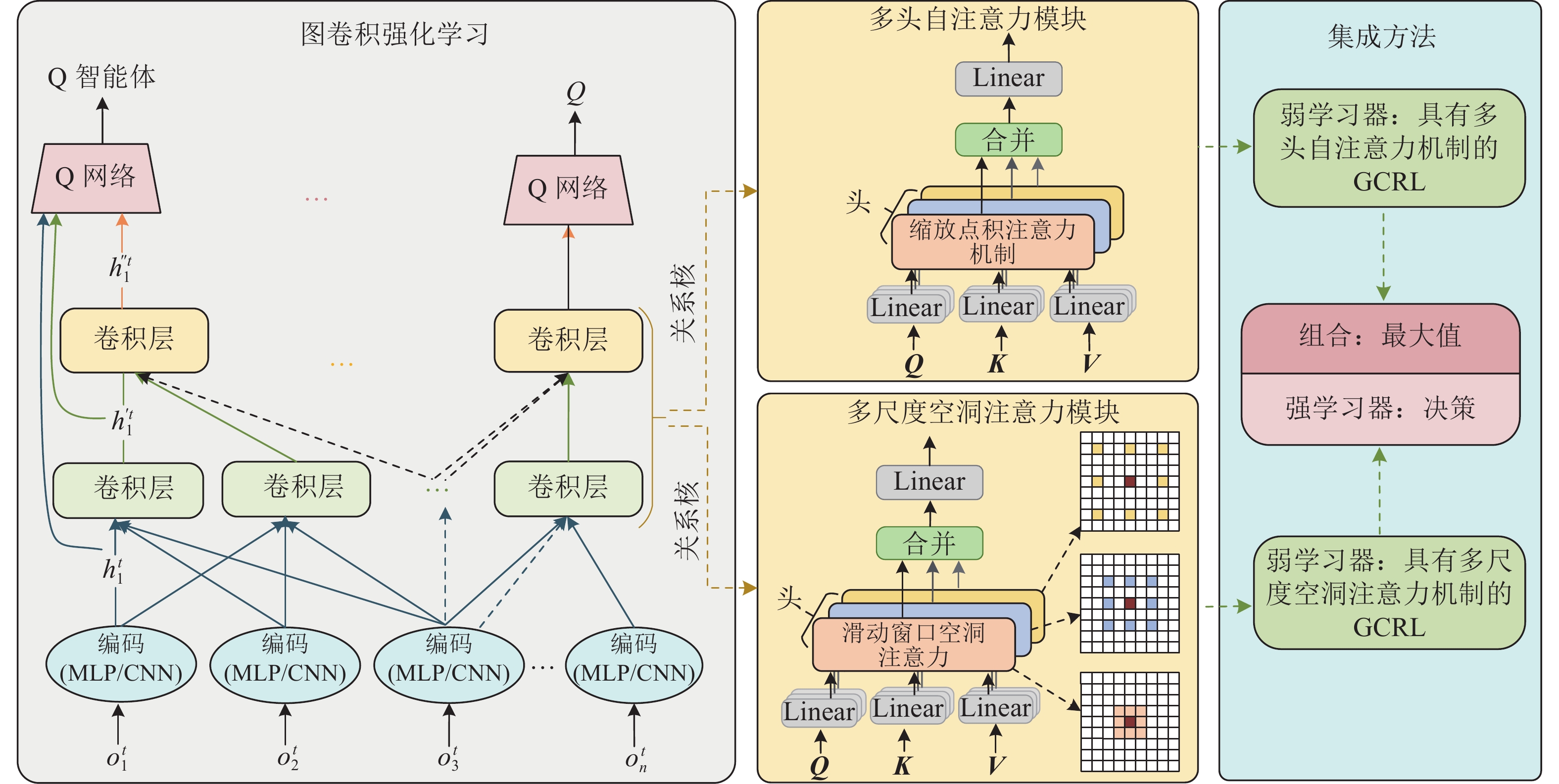

图 1  基于混合空洞注意力机制的多智能体强化学习框架

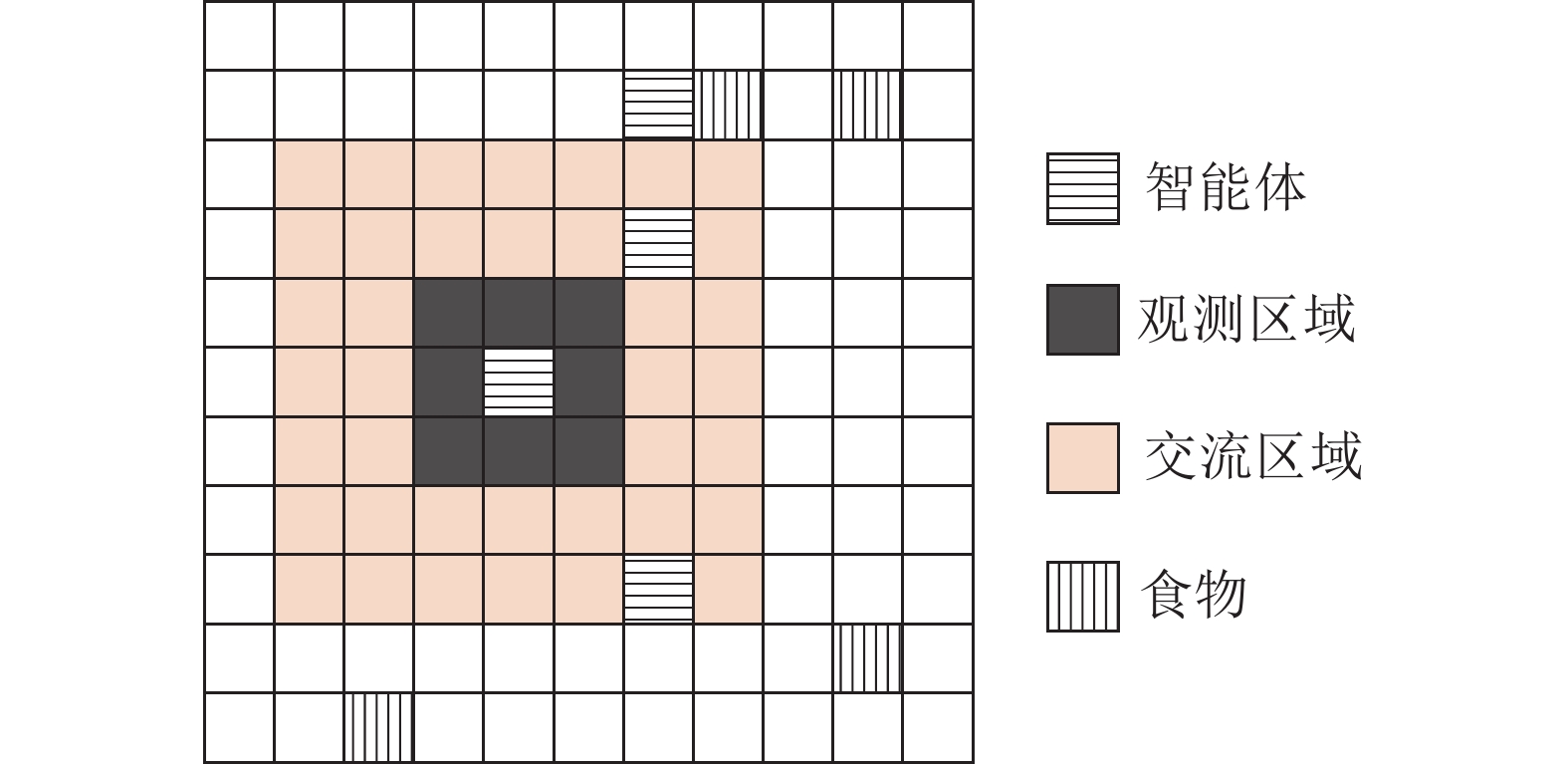

图 2  Surviving环境

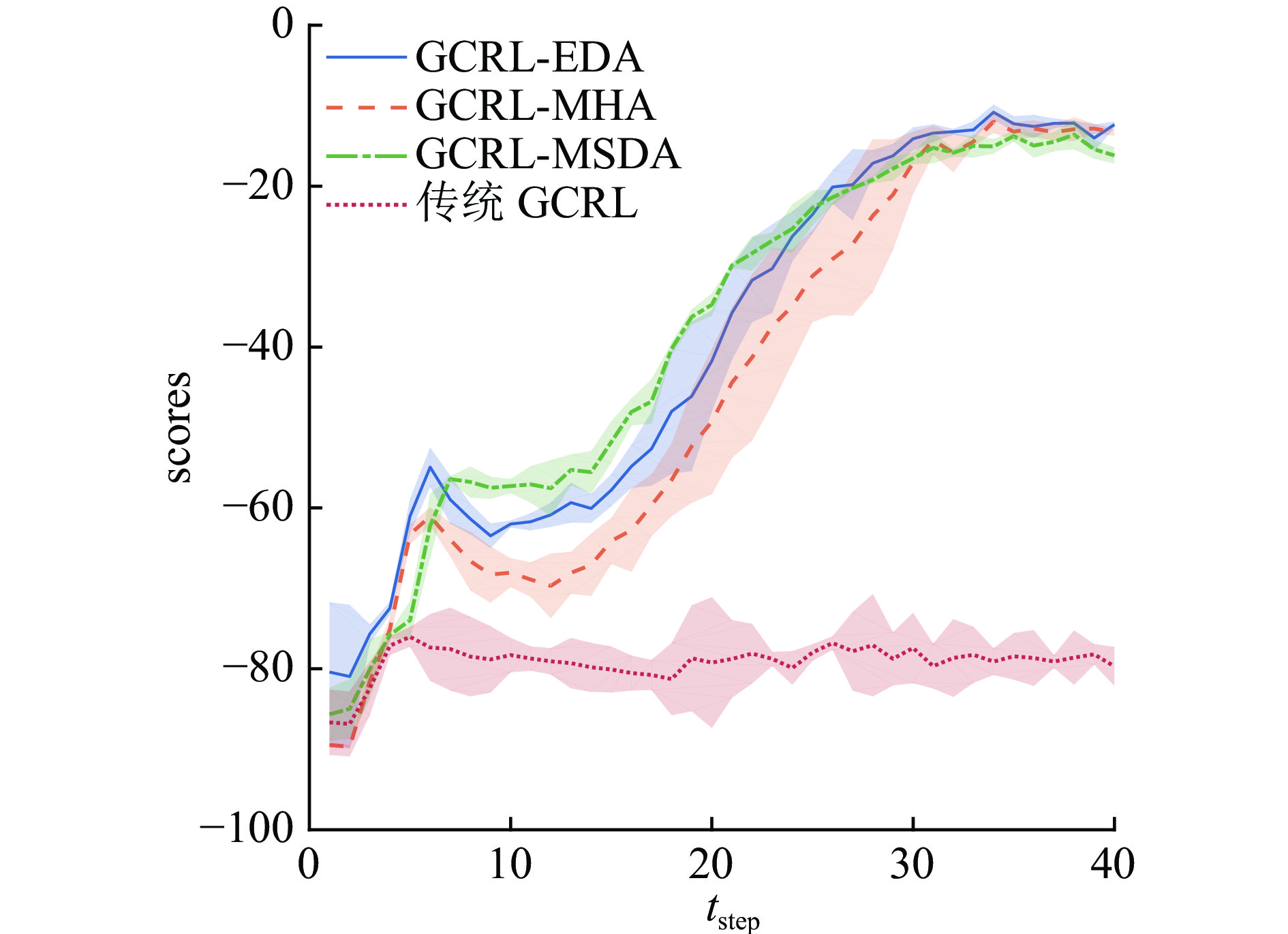

图 3  所提算法与基准算法的分数对比

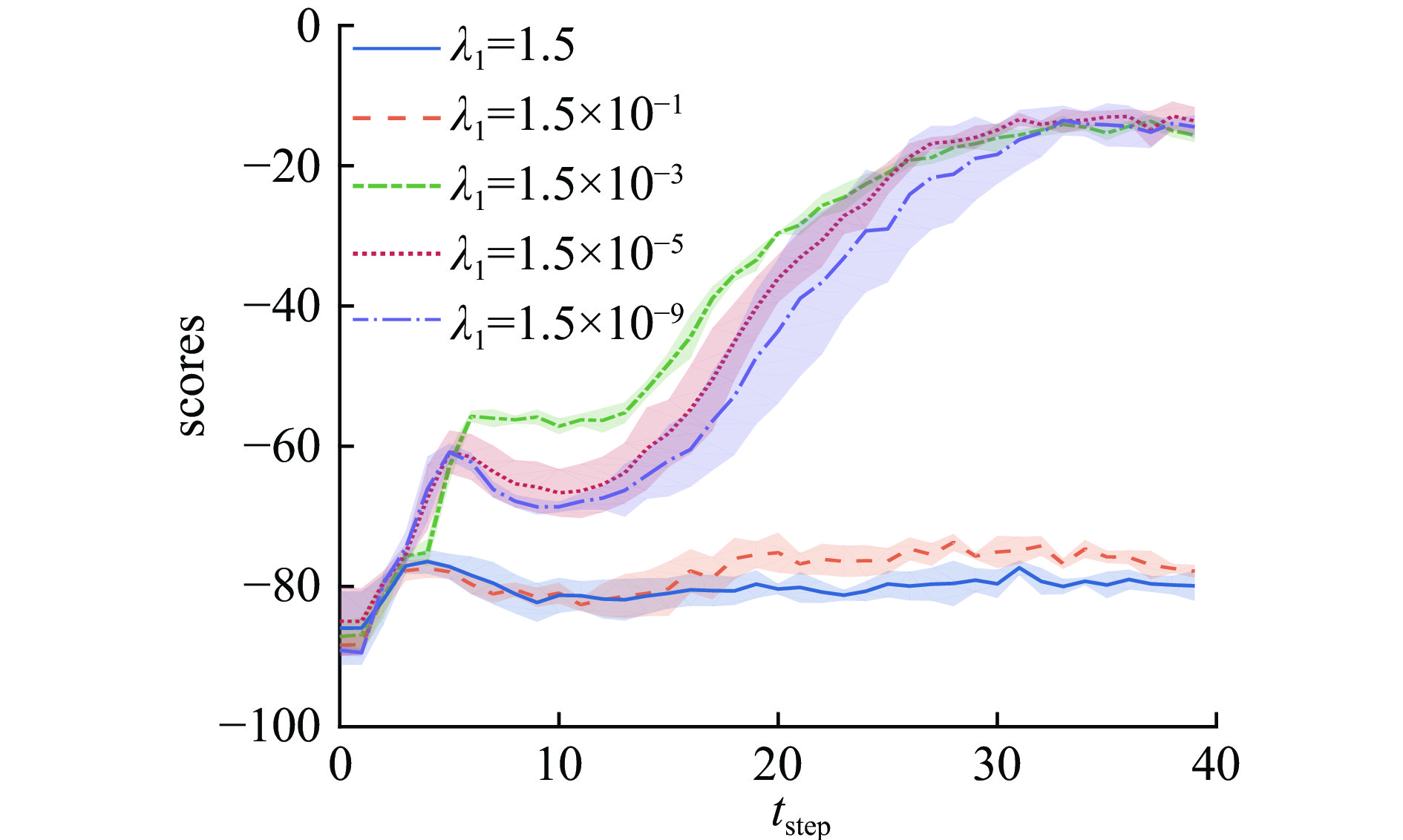

图 4  不同图正则化系数下所提出算法的分数

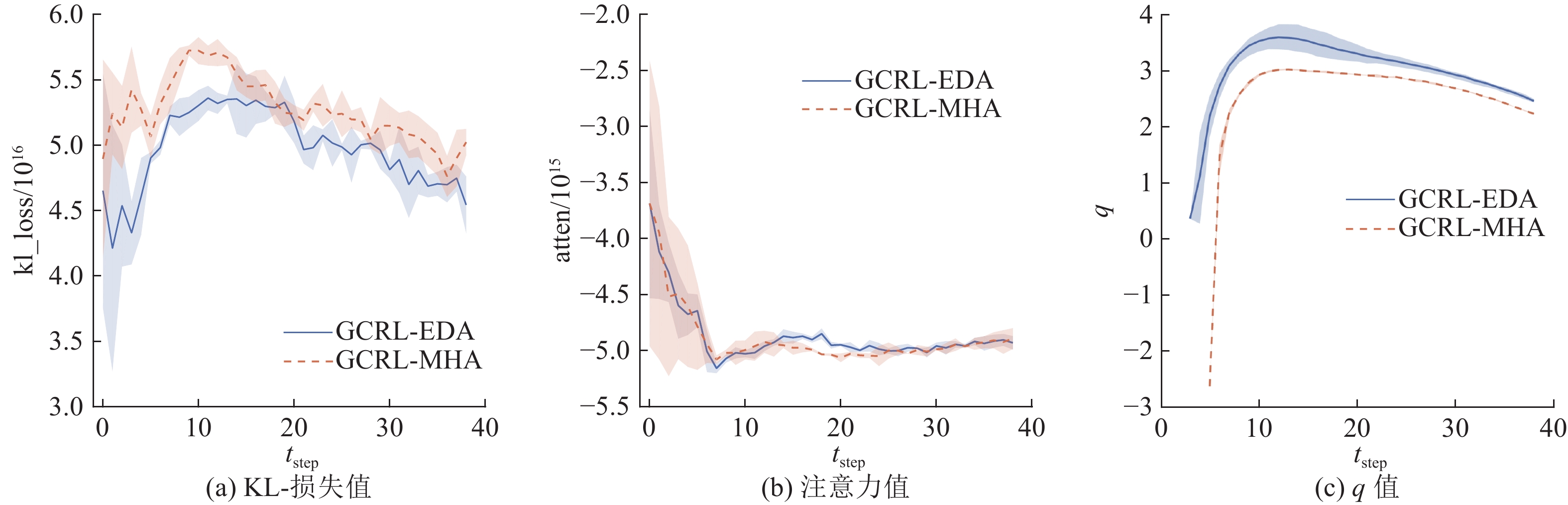

图 5  Surviving环境中所提算法和基准算法的结果
算法损失值KL-lossattenq成功率
传统GCRL6.15×10163.99×1016–3.93×10158.800.68
GCRL-MHA7.54×10135.02×1016–4.87×10159.210.71
GCRL-MSDA6.82×10104.58×1016–4.89×101511.590.89
GCRL-EDA6.88×1074.54×1016–4.93×101512.020.92
表 1  所提算法与基准算法收敛时的实验结果

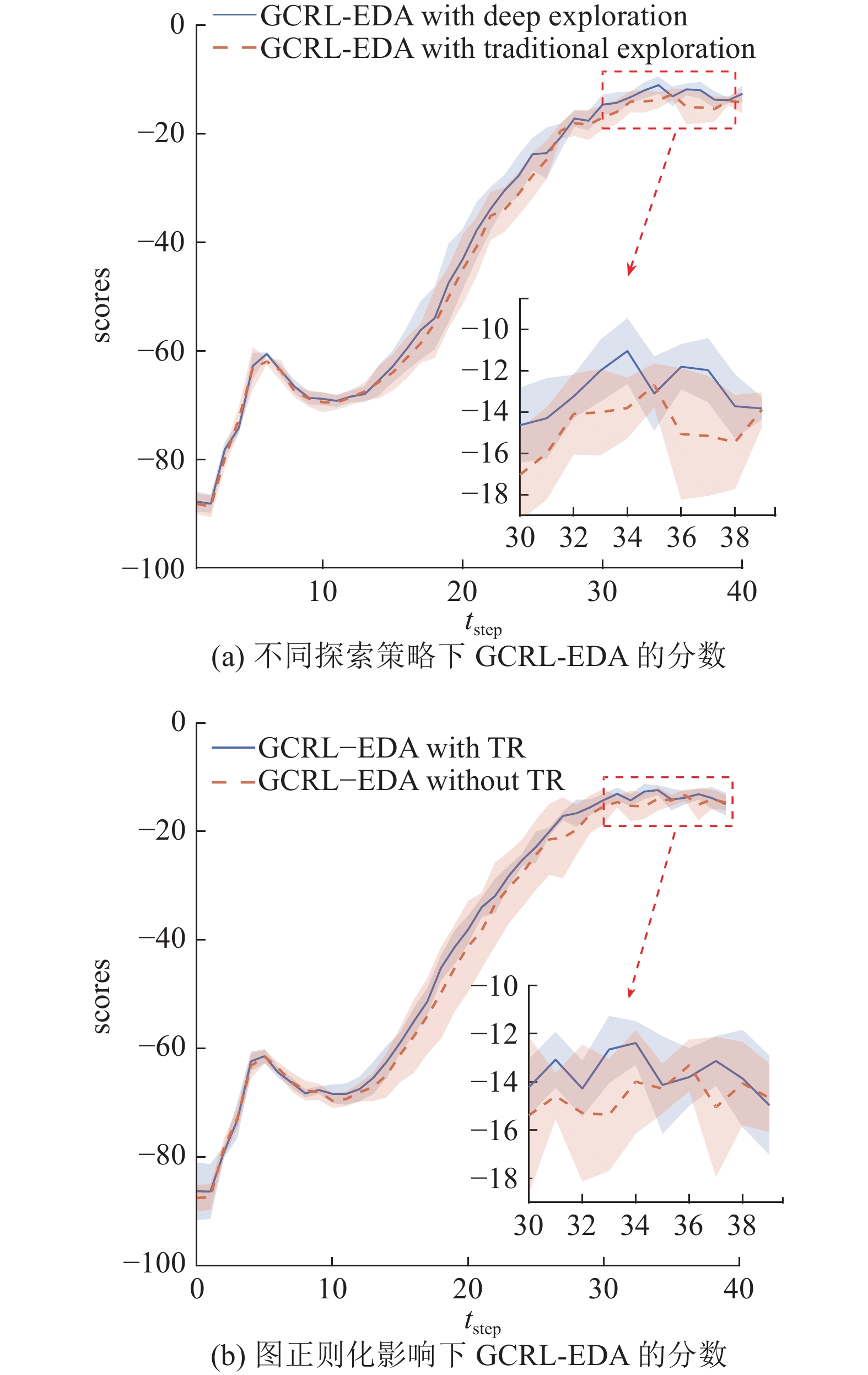

图 6  不同策略和图正则化的消融实验结果

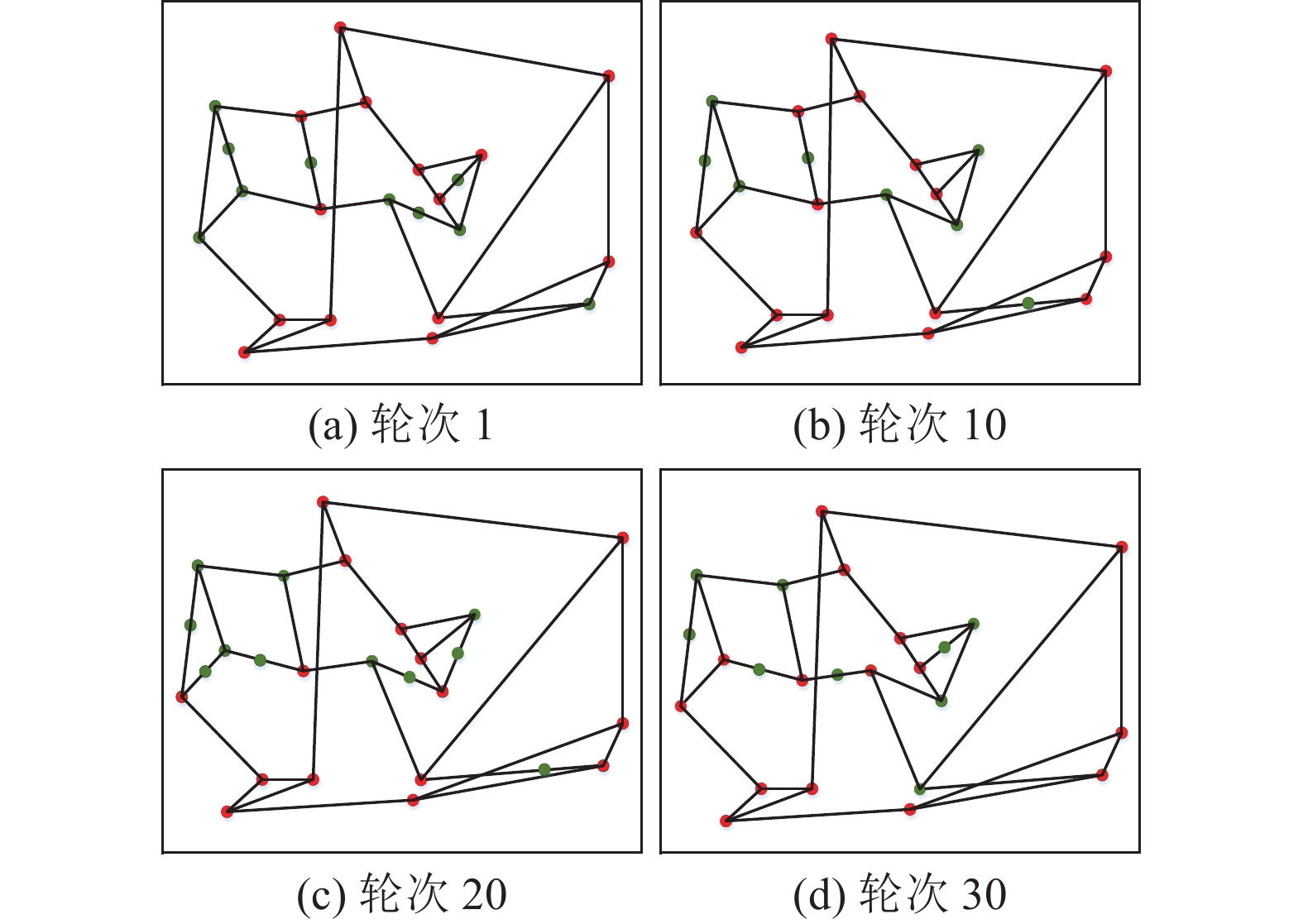

图 7  学习过程中变化图的动态节点
轮次scores
GCRL-MHAGCRL-MSDAGCRL-EDA
169.56118.05130.85
1076.1079.9454.12
2020.4525.3621.26
3024.1322.8722.41
表 2  GCRL-MHA、GCRL-MSDA、GCRL-EDA的分数

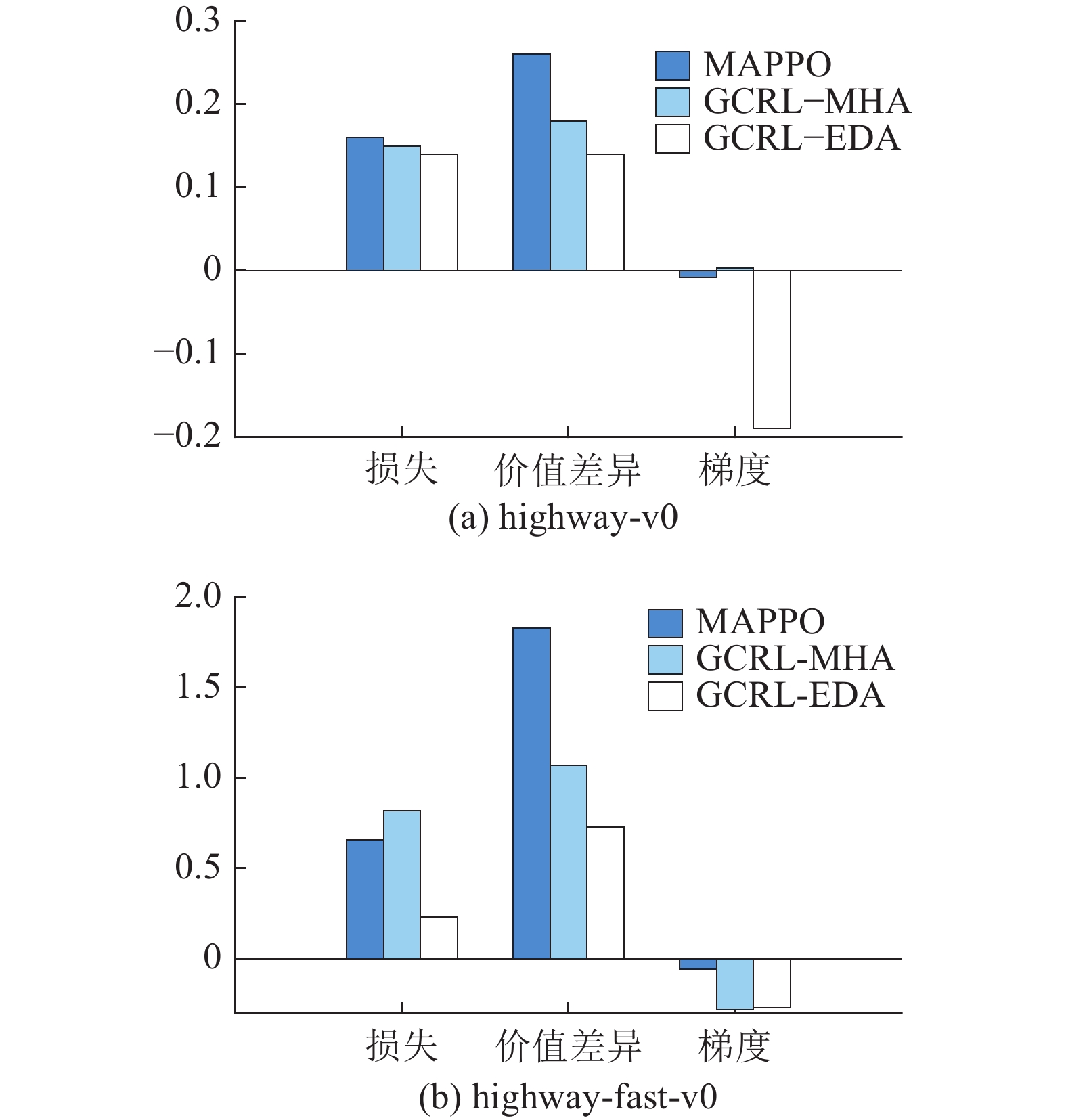

图 8  高速路环境下所提算法与基准算法的实验结果

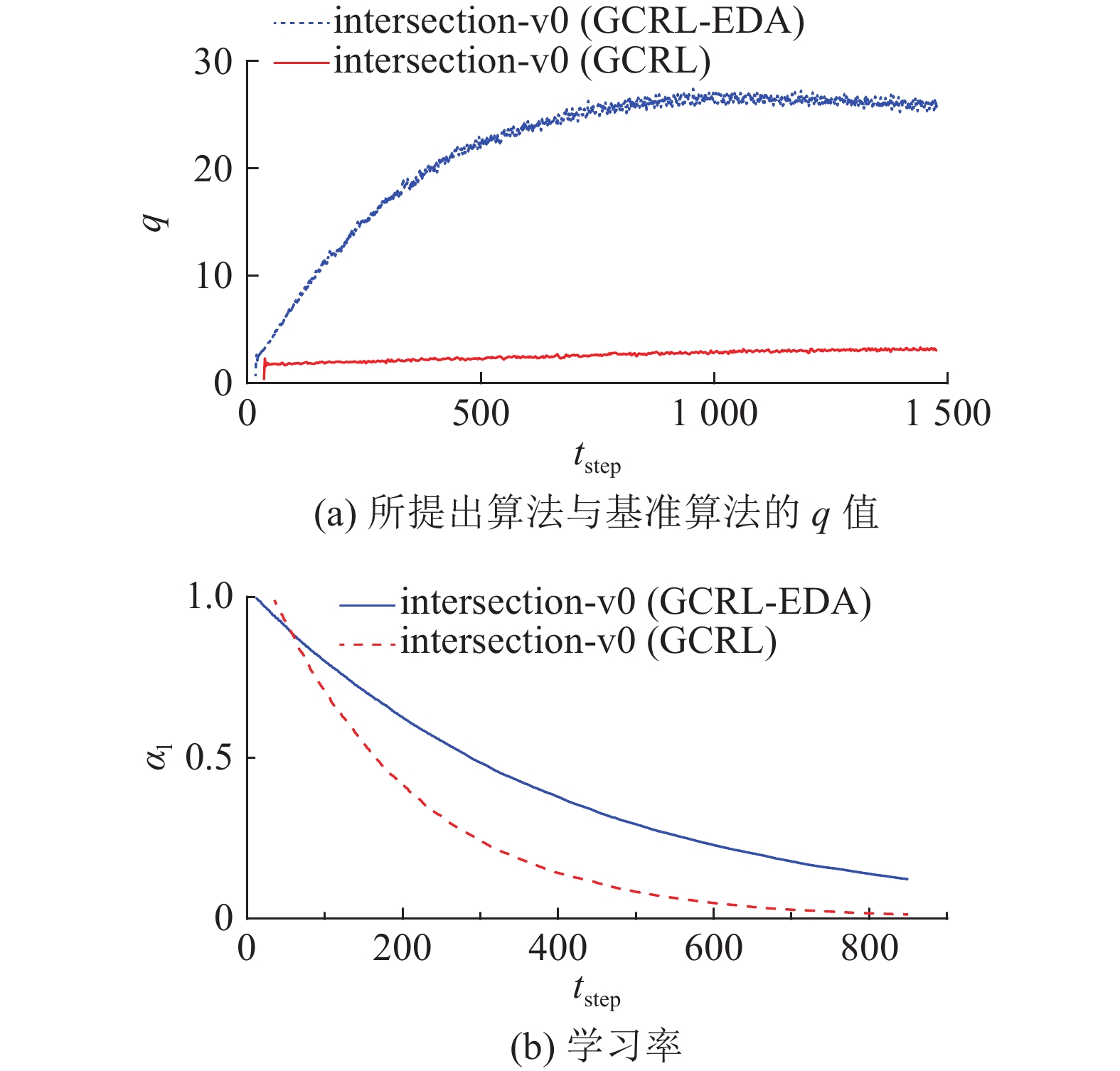

图 9  交汇路口环境中所提算法与基准算法的q值和学习率

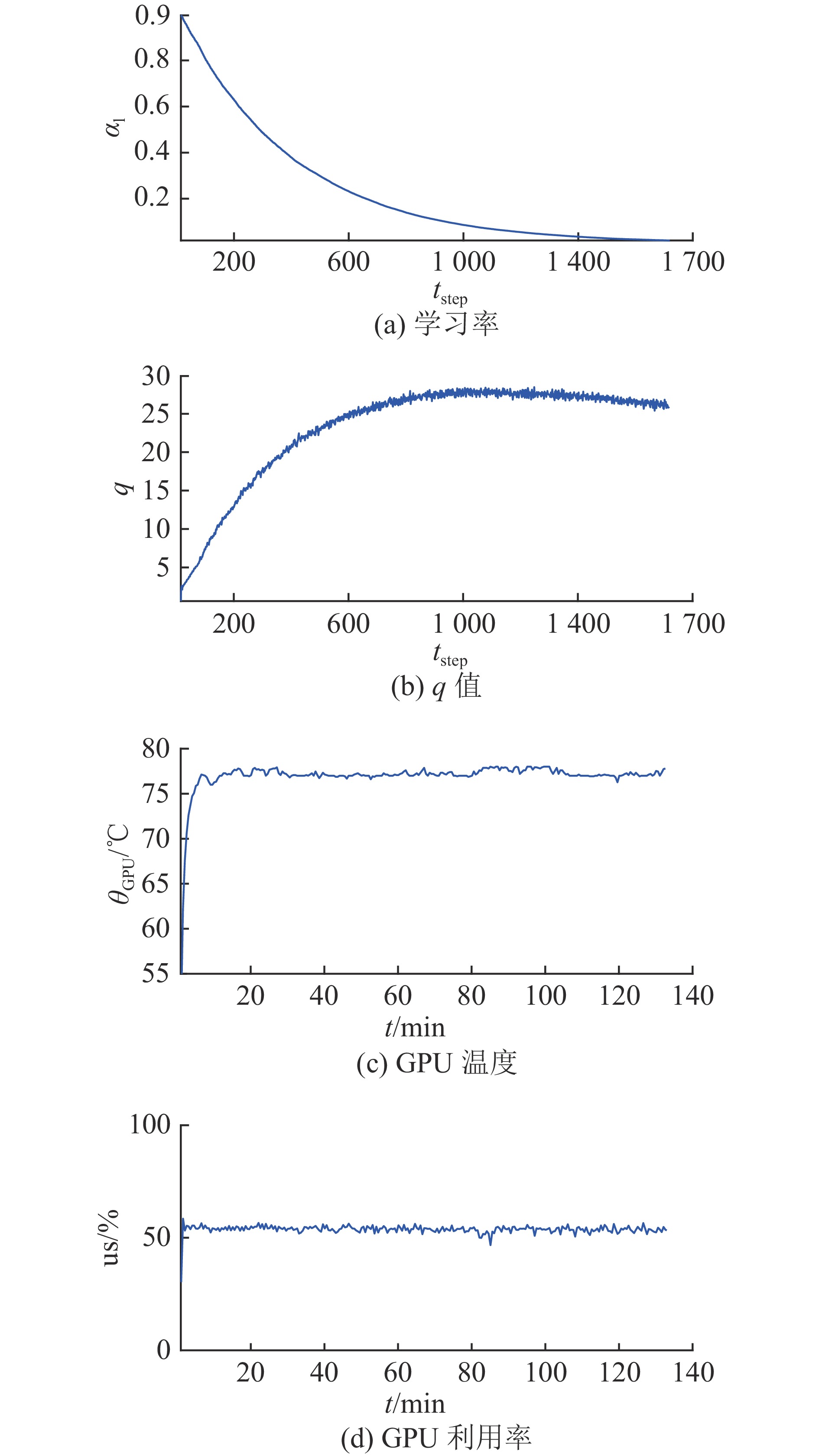

图 10  所提出算法在快速高速路环境下的学习率、q值、GPU温度及利用率

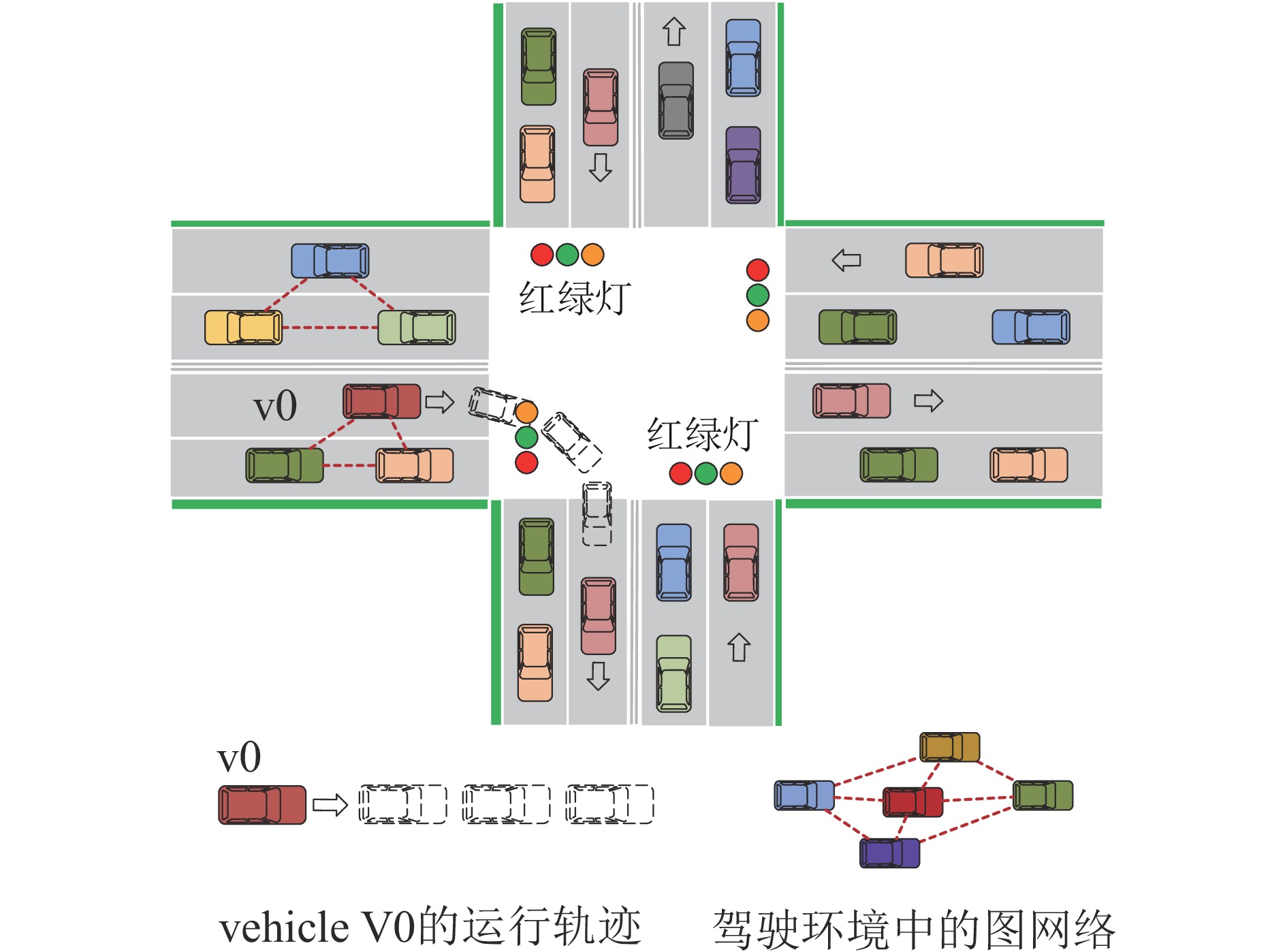

图 11  十字路口城市车辆间的部分交互图网络
