Text detection of highway traffic sign based on improved EAST
Jiuyuan HUO(),Hao JIANG,Chen CHANG
School of Electronics and Information Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
 全文: PDF(2562 KB)   HTML
摘要:

针对高速公路场景中交通标识文本检测精度与稳定性较差的问题,提出基于高效准确文字检测(EAST)算法思路的交通标识文本检测算法(ETST). 该算法通过引入3类模块,提升高速公路交通标识文本的检测性能. 利用基于颜色阈值分割与形状分析的传统标识预检测模块,快速筛选图像中的潜在标识区域. 融合多尺度注意力增强模块,增强提出算法对不同尺度文本的识别能力. 提出改进型并行补丁感知注意力模块(NPPA),强化所提算法对局部结构特征的感知与表达能力. 通过对多尺度特征图的联合融合,ETST能够有效整合底层纹理与高层语义信息,提升小尺寸与模糊文本的检测效果. 在ICDAR2015、CCTSDB、Total-Text等数据集上的实验证明,ETST在准确率、召回率及F1分数等核心指标上均优于现有算法,对图片的处理速度大于10帧/s,满足准实时应用需求,具有较高的检测精度与计算效率.

关键词: 交通标识文本检测交通标识文本检测算法多尺度注意力机制小目标文本检测并行补丁感知模块多尺度特征提取
Abstract:

A traffic sign text detection algorithm (efficient traffic sign text detection, ETST) based on the efficient and accurate text detection (EAST) algorithm was proposed in order to address the issue of poor accuracy and stability in traffic sign text detection in highway scenarios. The detection performance of highway traffic sign text was improved by introducing three types of modules. Potential marker regions in an image can be quickly screened by utilizing a traditional marker pre-detection module based on color threshold segmentation and shape analysis. The recognition ability of the proposed algorithm for text at different scales was improved by integrating a multi-scale attention enhancement module. An improved parallel patch-aware attention module (NPPA) was proposed to enhance the ability of the proposed algorithm to perceive and represent local structural features. ETST effectively combined low-level texture cues with high-level semantic information by fusing multi-level feature maps in order to enhance discrimination of challenging text instances. Experiments on datasets such as ICDAR2015, CCTSDB and Total-Text demonstrated that ETST outperformed existing algorithms in key metrics such as accuracy, recall and F1 score, while achieving a processing speed of over 10 frames per second. Then the requirement of near real-time application was satisfied, and decent detection accuracy and computational efficiency were confirmed.

Key words: traffic sign text detection    traffic sign text detection algorithm    multi-scale attention mechanism    small target text detection    parallel patch attention module    multi-scale feature extraction
收稿日期: 2025-09-23 出版日期: 2026-07-20
CLC:  TP 391
基金资助: 国家自然科学基金资助项目(62262038);甘肃省重点研发计划资助项目(25YFGA045).
作者简介: 火久元(1978—),男,教授,博士,从事计算机软件、物联网、大数据分析与挖掘、智能计算、遥感图像处理等研究. orcid.org/0000-0003-2395-4133. E-mail:huojy@mail.lzjtu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
火久元
姜灏
常琛

引用本文:

火久元,姜灏,常琛. 基于改进EAST的高速公路交通标识文本检测[J]. 浙江大学学报(工学版), 2026, 60(9): 1881-1889.

Jiuyuan HUO,Hao JIANG,Chen CHANG. Text detection of highway traffic sign based on improved EAST. Journal of ZheJiang University (Engineering Science), 2026, 60(9): 1881-1889.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.09.005        https://www.zjujournals.com/eng/CN/Y2026/V60/I9/1881

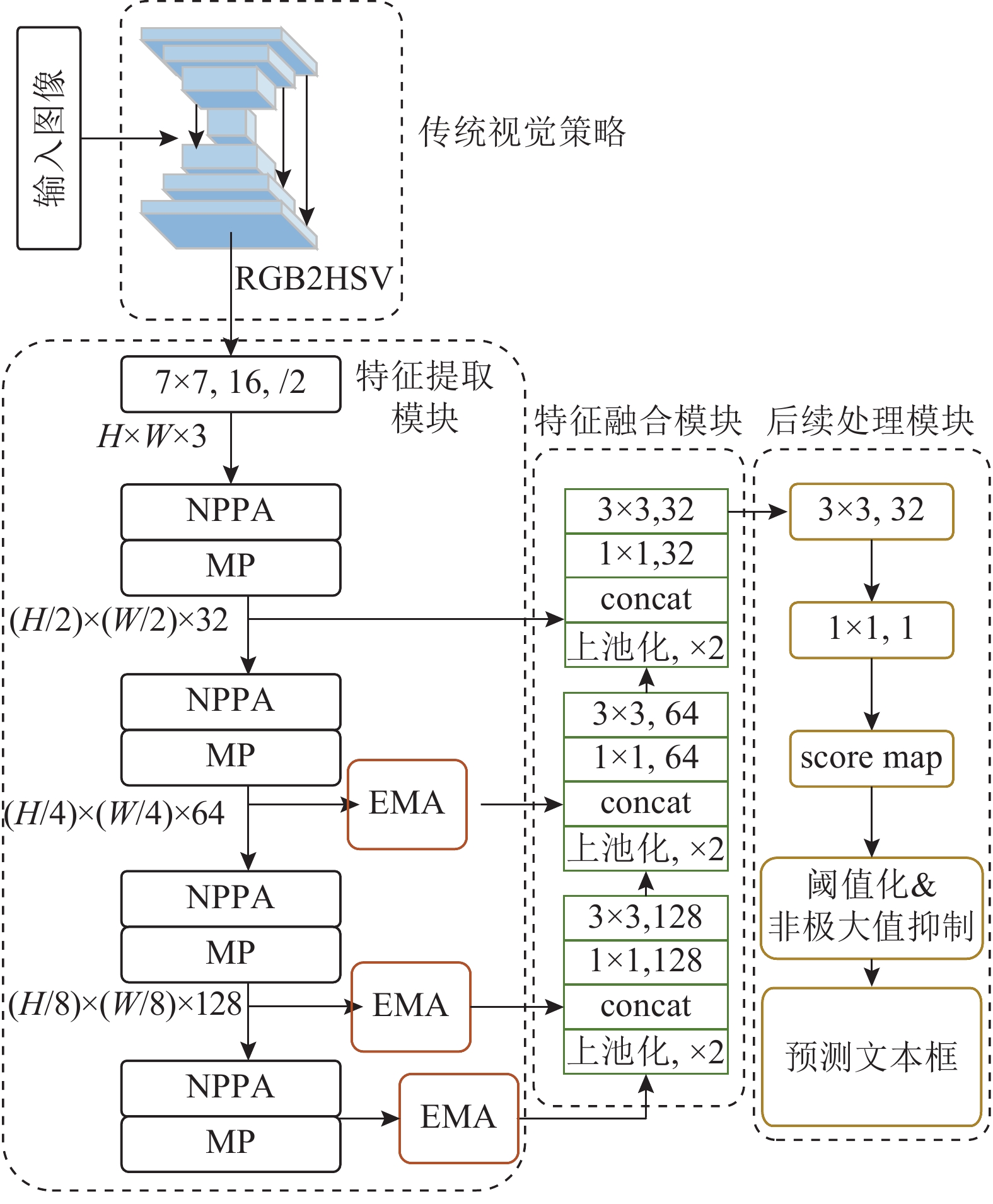

图 1  提出的ETST算法结构

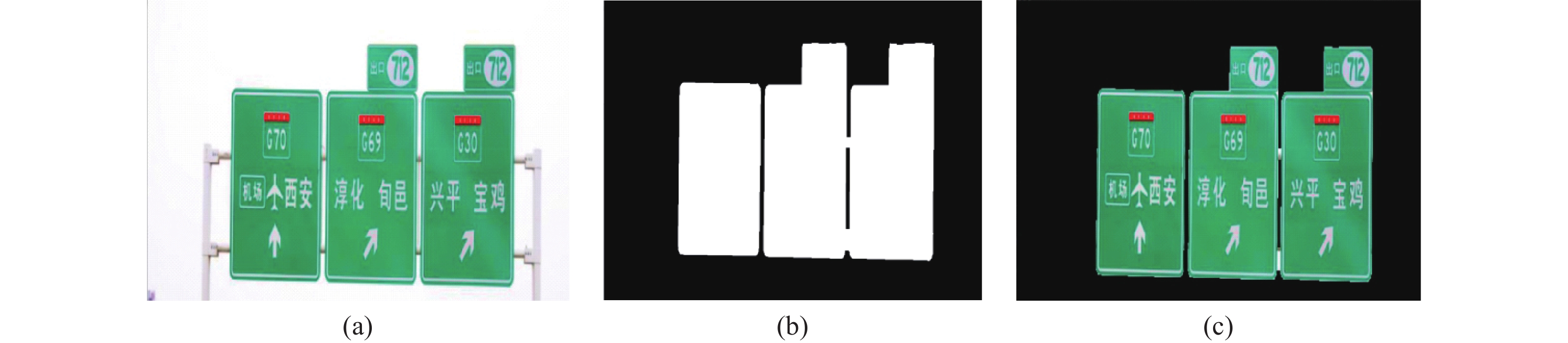

图 2  RGB2HSV转换结果

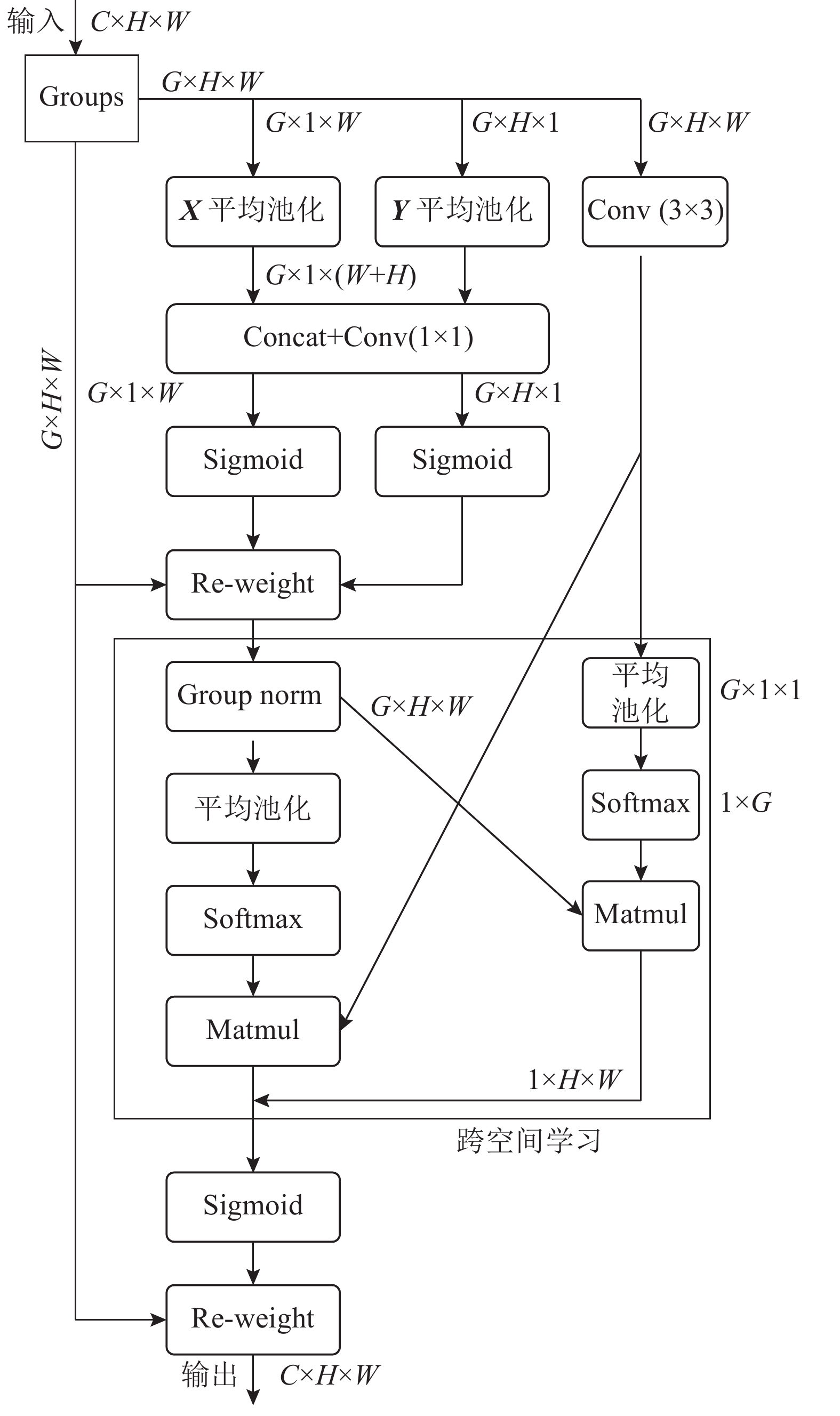

图 3  EMA模块的结构

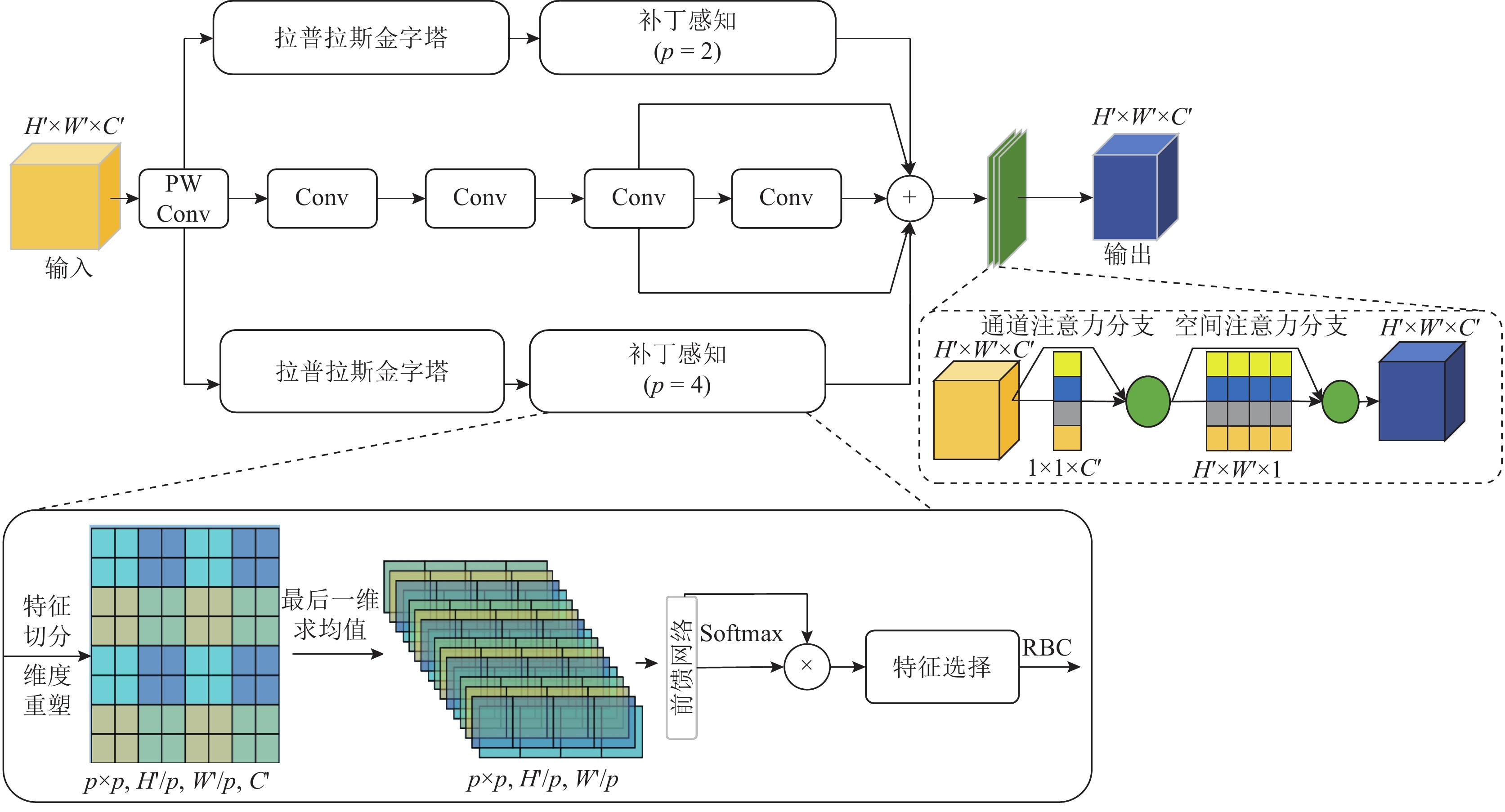

图 4  改进型并行化补丁感知模块的结构
方法ICDAR2015Total-text
P/%R/%F1/%v/(帧·s?1)P/%R/%F1/%v/(帧·s?1)
EAST83.278.680.813.280.976.278.511.6
DBNet84.082.783.322.081.279.980.620.3
SegLink86.979.583.05.986.182.684.44.9
PSENet84.384.584.48.087.682.384.87.3
ETST(本文算法)87.483.185.112.486.584.985.710.3
表 1  在ICDAR2015与Total-text数据集上使用不同算法的检测结果
方法CCTSDBGS highway sign
P/%R/%mAP@0.5 /%v/(帧·s?1)P/%R/%mAP@0.5 /%v/(帧·s?1)
YOLOv587.384.586.158.284.982.083.752.4
YOLOv889.586.288.365.187.884.686.560.3
Faster R-CNN85.182.784.49.282.780.281.98.7
RetinaNet86.083.285.032.584.280.982.428.7
ETST(本文算法)88.687.989.218.591.188.491.816.8
表 2  在CCTSDB与GS高速公路标识数据集上使用不同算法的检测结果
方法P/%R/%F1/%v/(帧·s?1)
YOLOv580.675.477.947.5
YOLOv884.979.281.954.6
Faster R-CNN77.273.175.16.3
RetinaNet79.874.877.224.7
ETST(本文算法)86.381.483.812.5
表 3  在GS高速公路标识小目标数据集上使用不同算法的检测结果
方法EMANPPALossP/%R/%F1/%
M176.176.876.5
M280.479.680
M384.280.582.1
M486.381.283.7
M585.280.782.8
M688.283.585.8
表 4  在ETST模块上的消融实验结果
方法P/%R/%F1/%
基础算法EAST76.176.876.5
本文算法(PPA)82.778.880.7
本文算法(PPA1)83.279.581.3
本文算法(NPPA)84.280.582.1
表 5  改进型并行化补丁感知模块的消融实验结果
图 5  通用文字检测器与本文算法的部分可视化结果
