浙江大学学报(工学版)
浙江大学学报(工学版)  2024, Vol. 58 Issue (1): 1-9    DOI: 10.3785/j.issn.1008-973X.2024.01.001
计算机技术
基于小世界理论的区块链Kademlia网络改进方法
赵越1,2(),赵赫1,谭海波1,2,*(),余斌3,俞望年1,2,马志宇1,2
1. 中国科学院合肥物质科学研究院，安徽 合肥 230031
2. 中国科学技术大学，安徽 合肥 230026
3. 安徽中科晶格技术有限公司，安徽 合肥 230088
Improved method for blockchain Kademlia network based on small world theory
Yue ZHAO1,2(),He ZHAO1,Haibo TAN1,2,*(),Bin YU3,Wangnian YU1,2,Zhiyu MA1,2
1. Hefei Institutes of Physical Science, Chinese Academy of Sciences, Hefei 230031, China
2. University of Science and Technology of China, Hefei 230026, China
3. Anhui ZhongKeJingGe Technology Limited Company, Hefei 230088, China
 全文: PDF(1194 KB)   HTML
摘要：

针对当前区块链Kademlia网络研究中通常以牺牲安全性为代价提升可扩展性的问题，提出基于小世界理论的区块链Kademlia网络改进方法. 该方法遵循小世界理论的思想，提出置换扩容节点的概率公式，概率与节点间距离呈反比，节点置换次数和额外增加的节点数量可以根据实际情况灵活调整. 通过理论分析和实验验证，证明了采用该方法改造的网络能够达到最终的稳定状态. 实验结果显示，利用该方法将全网广播交易消息时须经历的传输层级减少了15.0%~30.8%，加快了定位节点的速率. 与其他改变网络结构的优化算法相比，该方法降低了网络的结构化程度，增强了网络的安全性.
关键词： 区块链;  Kademlia网络;  小世界理论;  安全性
Abstract:

An improved method for the blockchain Kademlia network based on small world theory was proposed aiming at the issue of sacrificing security to improve scalability in the current research of the blockchain Kademlia network. The idea of the small world theory was followed, and a probability formula for replacing expansion nodes was proposed. The probability was inversely proportional to the distance between nodes. The number of node replacements and additional nodes could be flexibly adjusted according to actual conditions. The theoretical analysis and experimental verification demonstrate that the network transformed by this method can reach a stable state. The experimental results showed that the transmission hierarchy required for broadcasting transaction messages throughout the network was reduced by 15.0% to 30.8% and the rate of locating nodes was increased. The level of network structure was reduced and network security was enhanced compared to other optimization algorithms that modify the network structure.
Key words: blockchain    Kademlia network    small world theory    security
收稿日期: 2023-05-11 出版日期: 2023-11-07
CLC:  TP 311
基金资助: 国家重点研发计划资助项目（2021YFB2700800）
通讯作者: 谭海波     E-mail: agszy@mail.ustc.edu.cn;hbtan@hfcas.ac.cn
作者简介: 赵越（2000—），男，硕士生，从事区块链技术的研究. orcid.org/0009-0001-0576-9105. E-mail： agszy@mail.ustc.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
赵越
赵赫
谭海波
余斌
俞望年
马志宇

引用本文:

赵越,赵赫,谭海波,余斌,俞望年,马志宇. 基于小世界理论的区块链Kademlia网络改进方法[J]. 浙江大学学报(工学版), 2024, 58(1): 1-9.

Yue ZHAO,He ZHAO,Haibo TAN,Bin YU,Wangnian YU,Zhiyu MA. Improved method for blockchain Kademlia network based on small world theory. Journal of ZheJiang University (Engineering Science), 2024, 58(1): 1-9.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.01.001    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I1/1

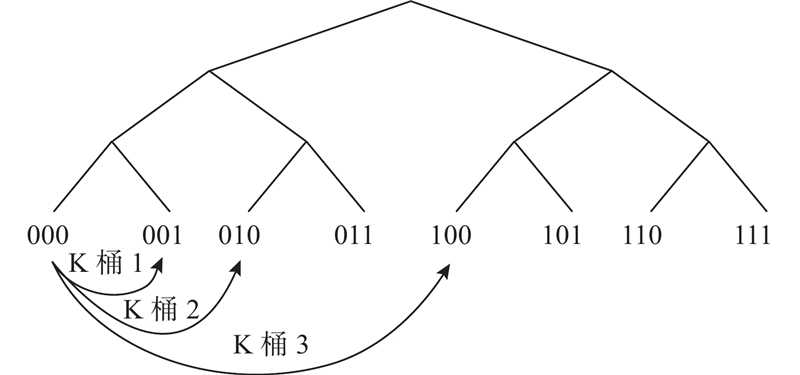

图 1  8节点二叉前缀树

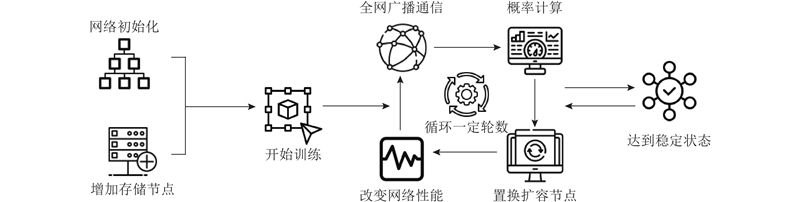

图 2  小世界Kad的工作流程图

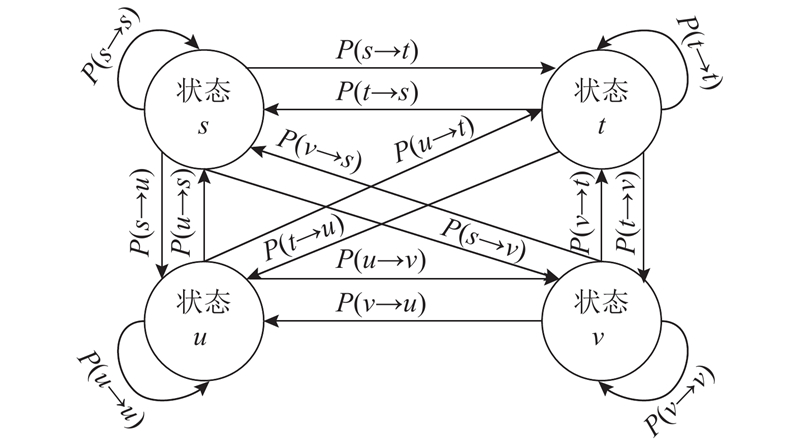

图 3  节点a的四状态转换图

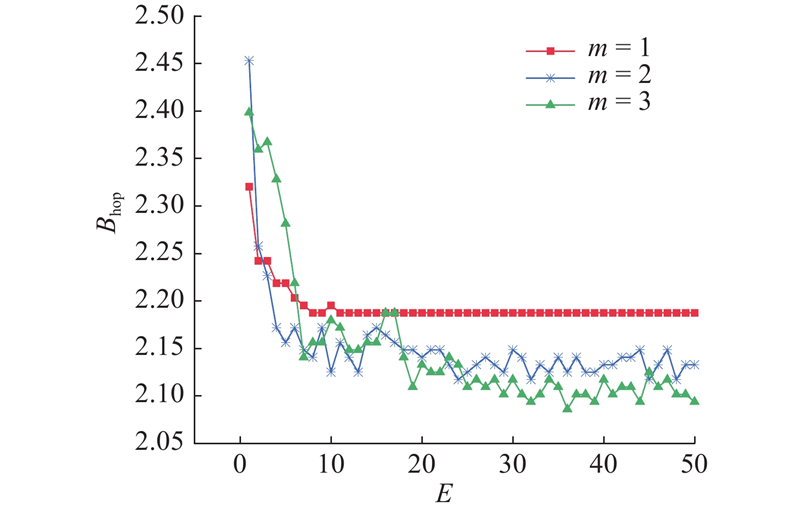

图 4  不同初始状态时算法的平均广播跳数
图 5  不同维度时算法的平均广播跳数
图 6  不同比例时算法的平均广播跳数

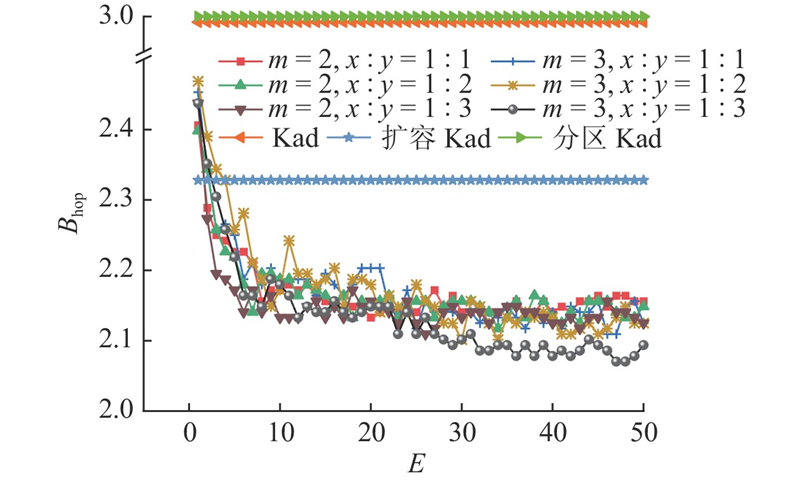

图 7  不同参数组合时提出模型与其他模型的对比

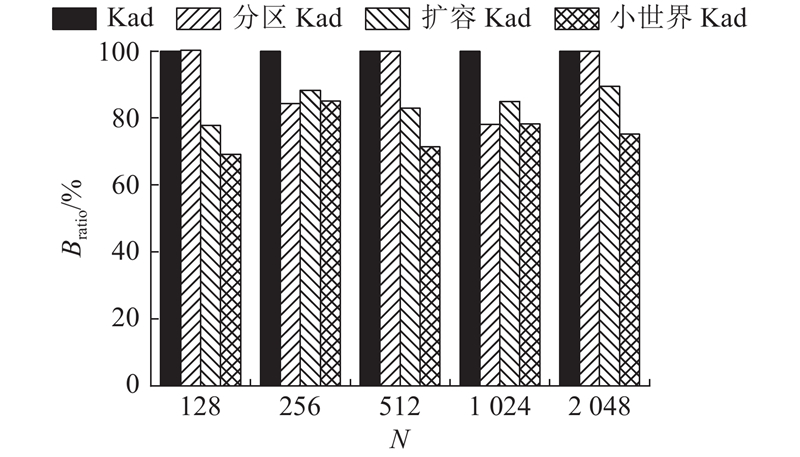

图 8  平均广播跳数的优化比例
图 9  调整后的平均广播跳数优化比例

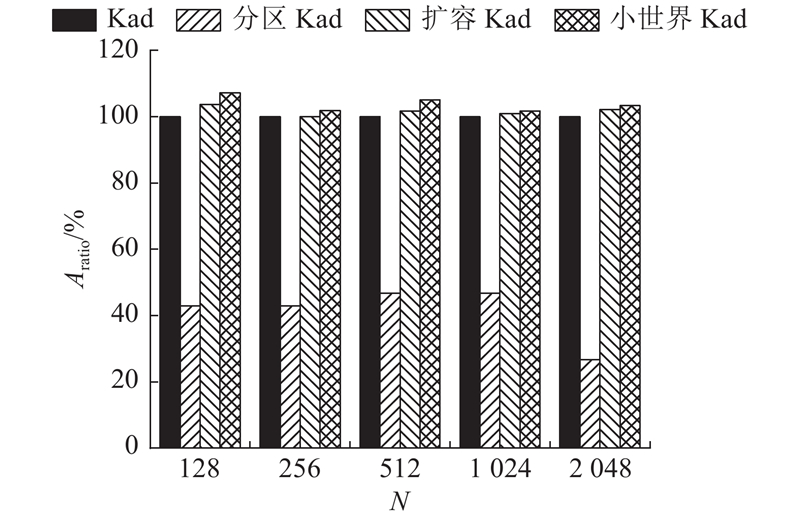

图 10  平均查找跳数的优化比例

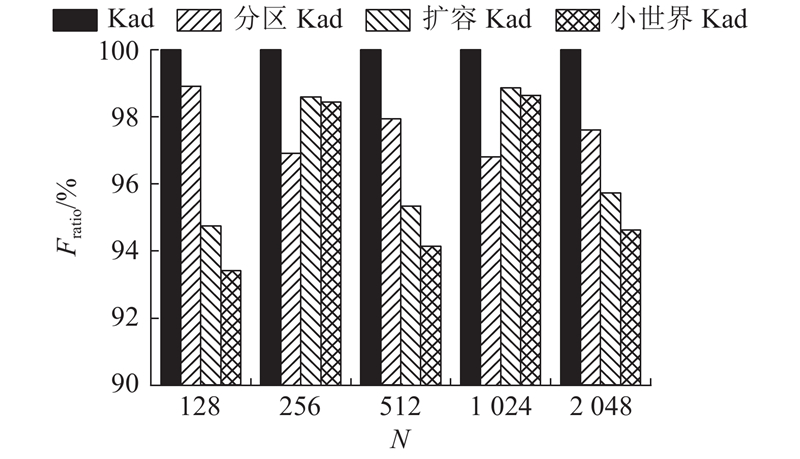

图 11  发动50%的日蚀攻击的虚假节点数量优化比例
1 RUAN P, CHEN G, DINH T T A, et al Fine-grained, secure and efficient data provenance on blockchain systems[J]. Proceedings of the VLDB Endowment, 2019, 12 (9): 975- 988
doi: 10.14778/3329772.3329775
2 KLEINBERG J. The small-world phenomenon: an algorithmic perspective [C]// Proceedings of the 32nd Annual ACM Symposium on Theory of Computing. Portland: ACM, 2000: 163-170.
3 YU B, LI X, ZHAO H, et al A scalable blockchain network model with transmission paths and neighbor node subareas[J]. Computing, 2022, 104 (10): 2253- 2277
doi: 10.1007/s00607-021-00913-1
4 LIANG G. An improved Kademlia routing algorithm for P2P network [C]// 2009 International Conference on New Trends in Information and Service Science. Beijing: IEEE, 2009: 63-66.
5 ZHANG Y, VENKATAKRISHNAN S B. Kadabra: adapting Kademlia for the decentralized web [EB/OL]. (2023-02-14)[2023-05-11]. https://arxiv.org/pdf/2210.12858.pdf.
6 EISENBARTH J P, CHOLEZ T, PERRIN O Ethereum’s peer-to-peer network monitoring and sybil attack prevention[J]. Journal of Network and Systems Management, 2022, 30 (4): 65
doi: 10.1007/s10922-022-09676-2
7 XU G, GUO B, SU C, et al Am I eclipsed? a smart detector of eclipse attacks for Ethereum[J]. Computers and Security, 2020, 88: 101604
doi: 10.1016/j.cose.2019.101604
8 MILGRAM S The small world problem[J]. Psychology Today, 1967, 2 (1): 60- 67
9 WATTS D J, STROGATZ S H Collective dynamics of ‘small-world’ networks[J]. Nature, 1998, 393 (6684): 440- 442
doi: 10.1038/30918
10 WATTS D J, DODDS P S, NEWMAN M E Identity and search in social networks[J]. Science, 2002, 296 (5571): 1302- 1305
doi: 10.1126/science.1070120
11 ZOU F, LI Y, ZHANG L, et al. CCAN: cache-based CAN using the small world model [C]// International Conference on Web-Age Information Management. Berlin: Springer, 2004: 167-175.
12 高伟. 基于小世界特性的 P2P 网络搜索优化技术的研究 [D]. 成都: 电子科技大学, 2010.
GAO Wei. A study of P2P network search optimization technology based on small-world characteristics [D]. Chengdu: University of Electronic Science and Technology of China, 2010.
13 SERENA L, FERRETTI S, DANGELO G Cryptocurrencies activity as a complex network: analysis of transactions graphs[J]. Peer-to-Peer Networking and Applications, 2022, 15 (2): 839- 853
doi: 10.1007/s12083-021-01220-4
14 WANG T, ZHAO C, YANG Q, et al Ethna: analyzing the underlying peer-to-peer network of ethereum blockchain[J]. IEEE Transactions on Network Science and Engineering, 2021, 8 (3): 2131- 2146
doi: 10.1109/TNSE.2021.3078181
15 SOHN I. Modeling and implementing small world network [C]// International Conference on Information and Communication Technology Convergence. Jeju: IEEE, 2016: 414-416.
16 WRIGHT P E Statistical complexity of the power method for Markov chains[J]. Journal of Complexity, 1989, 5 (2): 119- 143
doi: 10.1016/0885-064X(89)90001-0
17 PETER L Q, HALIM F. Routing in small world networks [EB/OL]. (2007-12-18)[2023-05-11]. http://citeseerx.ist.psu.edu/viewdoc/download;jsessionid=0097D97AABC11B06D73091E7EB60EDC1?doi=10.1.1.129.1445&rep=rep1&type=pdf.
18 魏战争, 刘彩虹 中型网络中交换机连接技术的探讨[J]. 科学技术创新, 2010, (18): 69
WEI Zhanzheng, LIU Caihong Discussion on switch connection technology in medium-sized network[J]. Scientific and Technological Innovation, 2010, (18): 69
doi: 10.3969/j.issn.1673-1328.2010.18.070
19 KARAME G O, ANDROULAKI E, CAPKUN S. Double-spending fast payments in bitcoin [C]// Proceedings of the 2012 ACM Conference on Computer and Communications Security. Raleigh: ACM, 2012: 906-917.
20 DOULIGERIS C, MITROKOTSA A DDoS attacks and defense mechanisms: classification and state-of-the-art[J]. Computer Networks, 2004, 44 (5): 643- 666
doi: 10.1016/j.comnet.2003.10.003
21 DOUCEUR J R. The sybil attack[C]// International Workshop on Peer-to-Peer Systems. Berlin: Springer, 2002: 251-260.
22 MARCUS Y, HEILMAN E, GOLDBERG S Low-resource eclipse attacks on Ethereum’s peer-to-peer network[J]. Cryptology Eprint Archive, 2018, (236): 1- 15
