浙江大学学报(工学版)
浙江大学学报(工学版)  2023, Vol. 57 Issue (3): 542-551    DOI: 10.3785/j.issn.1008-973X.2023.03.012
土木工程
基于离心模型试验的近断层单桩水平承载特性研究
张聪1(),冯忠居1,*(),王富春1,关云辉2,张福强3
1. 长安大学 公路学院，陕西 西安 710064
2. 陕西建工机械施工集团有限公司，陕西 西安 710064
3. 海南省交通运输厅，海南 海口 570204
Horizontal bearing characteristics of near-fault single pile based on centrifugal model test
Cong ZHANG1(),Zhong-ju FENG1,*(),Fu-chun WANG1,Yun-hui GUAN2,Fu-qiang ZHANG3
1. Highway School, Chang’an University, Xi’an 710064, China
2. SCEGC Mechanized Construction Group Limited Company, Xi’an 710064, China
3. Hainan Province Transportation Hall, Haikou 570204, China
 全文: PDF(2339 KB)   HTML
摘要：

为了探明断层发育区桥梁单桩的水平承载特性及受力机理，通过土工离心模型试验，选取断层与桩基水平距离、断层埋深变化参数为变量，研究近断层桥梁单桩水平极限承载力、桩侧土抗力、桩身弯矩及桩身剪力变化规律. 试验结果表明：断层的存在抑制了桩侧土抗力的发挥，进而影响单桩水平承载特性. 当断层与桩基水平距离由1 倍桩径增加至5 倍桩径时，断层两侧桩基水平极限承载力影响度为1.38%~61.47%，桩身弯矩逐渐减小且衰减较快，桩身剪力逐渐减小；当断层埋深由0 cm减至28 cm时，桩基水平极限承载力影响度为13.07%~51.60%. 近断层单桩水平承载力设计时，可以根据桩侧岩土体受断层影响范围，确定断层与桩基水平距离临界值与合理桩长.
关键词： 桩基础;  单桩;  断层;  离心模型试验;  水平承载特性
Abstract:

In order to explore the horizontal bearing characteristics and stress mechanism of bridge pile foundations in fault development areas, through the geotechnical centrifugal model test, the selected variables were horizontal distance between the fault and the pile foundation, and the buried depth of the fault . The variation rules of horizontal ultimate bearing capacity, pile side soil resistance, pile bending moment, and pile shear force of a single pile near-fault bridge were studied. Test results show that the existence of faults inhibits the development of soil resistance on the side of the pile, and affects the horizontal bearing characteristics of a single pile. When the horizontal distance between the fault and the pile foundation increased from 1 to 5 times the pile diameter, the influence degree of the horizontal ultimate bearing capacity of the single pile on both sides of the fault was 1.38%－61.47%. The bending moment of the pile decreased gradually and attenuated rapidly, and the shearing force of the pile decreased gradually. When the buried depth of the fault was reduced from 0 cm to 28 cm, the influence degree of the horizontal ultimate bearing capacity of the single pile on both sides of the fault was 13.07%－51.60%. In the design of horizontal bearing capacity of the single pile near-fault, the critical value of the horizontal distance between fault and pile foundation and reasonable pile length can be determined according to the range of rock and soil affected by the fault.
Key words: pile foundation    single pile    fault    centrifugal model test    horizontal bearing characteristics
收稿日期: 2022-03-18 出版日期: 2023-03-31
CLC:  U 433.15
基金资助: 国家自然科学基金资助项目（51708040）；中央高校基本科研业务费专项资金资助项目（300102218115）；福建省交通运输科技项目（JXFZ2020-XM0189）；海南省交通科技项目（HNZXY2015-045R）
通讯作者: 冯忠居     E-mail: zhangcong@chd.edu.cn;ysf@gl.chd.edu.cn
作者简介: 张聪（1994—），男，博士生，从事岩土工程研究. orcid.org/0000-0001-9687-4770. E-mail： zhangcong@chd.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
张聪
冯忠居
王富春
关云辉
张福强

引用本文:

张聪,冯忠居,王富春,关云辉,张福强. 基于离心模型试验的近断层单桩水平承载特性研究[J]. 浙江大学学报(工学版), 2023, 57(3): 542-551.

Cong ZHANG,Zhong-ju FENG,Fu-chun WANG,Yun-hui GUAN,Fu-qiang ZHANG. Horizontal bearing characteristics of near-fault single pile based on centrifugal model test. Journal of ZheJiang University (Engineering Science), 2023, 57(3): 542-551.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.03.012    或    https://www.zjujournals.com/eng/CN/Y2023/V57/I3/542

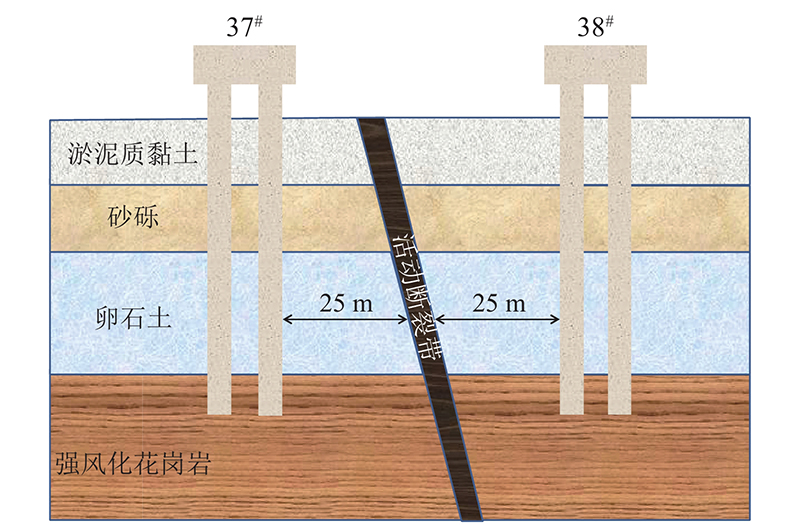

图 1  桩基与断层相对位置关系
图 2  离心试验机及模型箱
物理量 量纲 数值
原型 离心模型
尺寸l L 1 1/n
水的质量分数w 1 1 1
密度ρ ML?3 1 1
应变ε 1 1 1
应力σ ML?1T?2 1 1
质量m M 1 1/n3
力F MLT?2 1 1/n2
土抗力p ML?1T?2 1 1/n
容重γ ML?2T?2 1 n
加速度a LT?2 1 n
时间t T 1 1/n2
角度α 1 1 1
变形u L 1 1/n
表 1  近断层单桩水平承载特性离心模型试验中物理量的相似关系

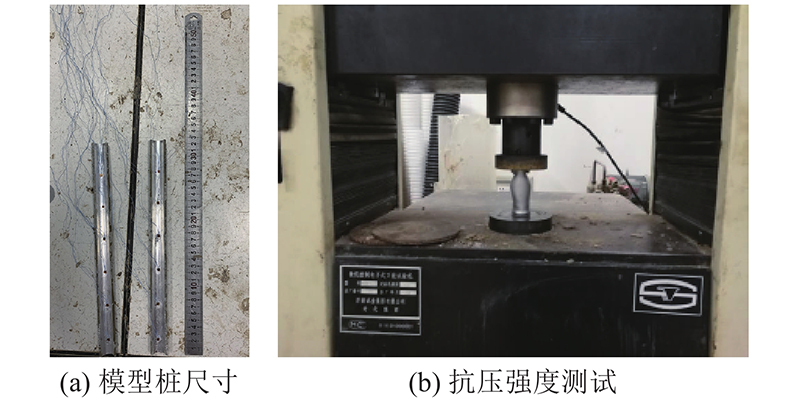

图 3  模型桩的抗压强度测试
模型土 ρ/（kg·m?3） E/MPa φ/（°） C/kPa
粉质黏土 18.00 28 20 26
持力层 25.00 56 — —
表 2  近断层单桩水平承载特性离心模型试验的土层参数

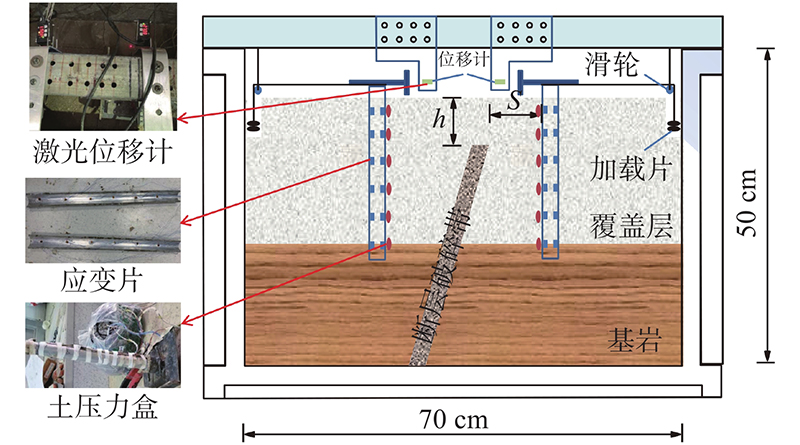

图 4  模型示意图及测试元件布设
类型 S/cm h/cm
对比桩 无断层 0
试验桩 1D、2D、3D、4D、5D 0
试验桩 3D 0、24、28、32
表 3  近断层单桩水平承载特性离心模型试验的工况
图 5  断层与桩基不同水平距离工况下的桩基荷载-位移曲线

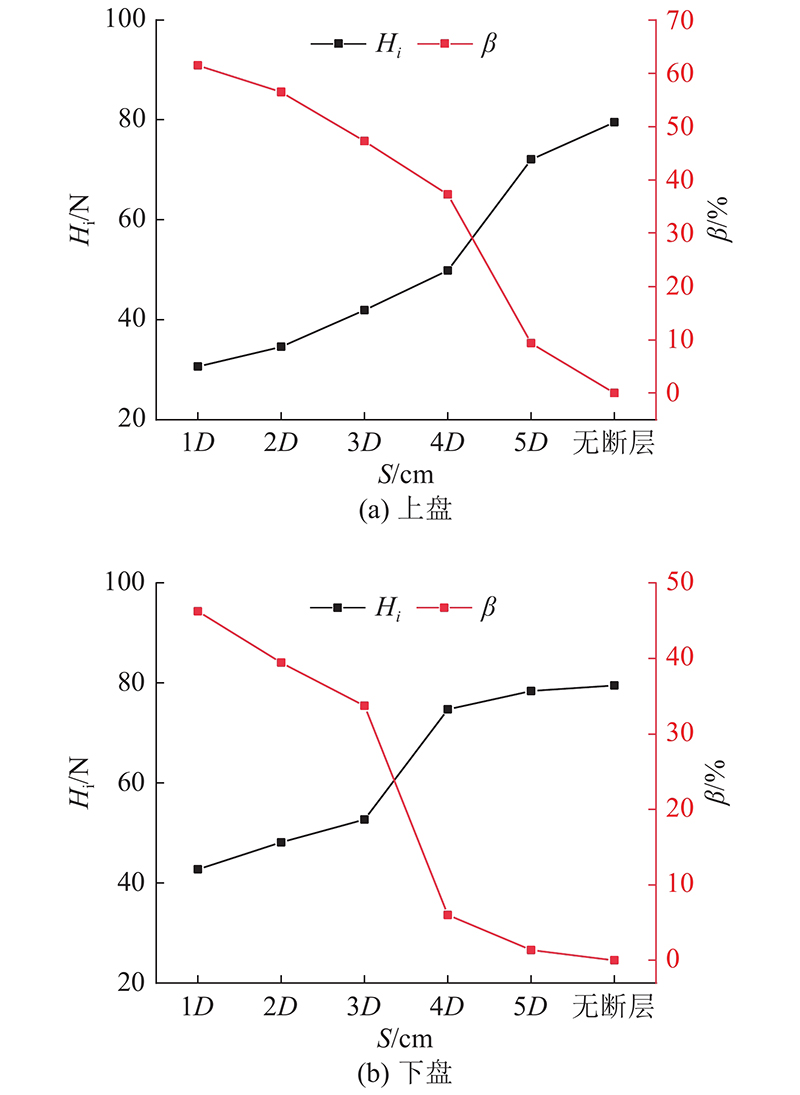

图 6  断层与桩基不同水平距离工况下的桩基水平极限承载力及影响度变化

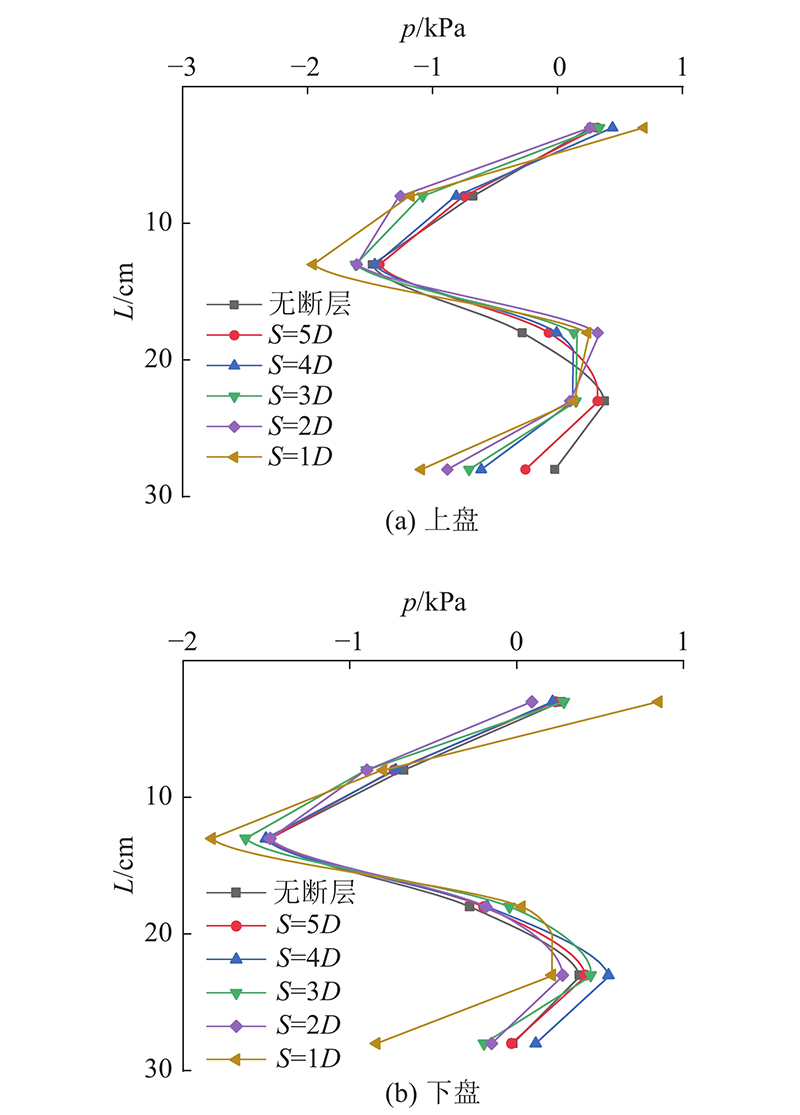

图 7  断层与桩基不同水平距离工况下的桩侧土抗力变化

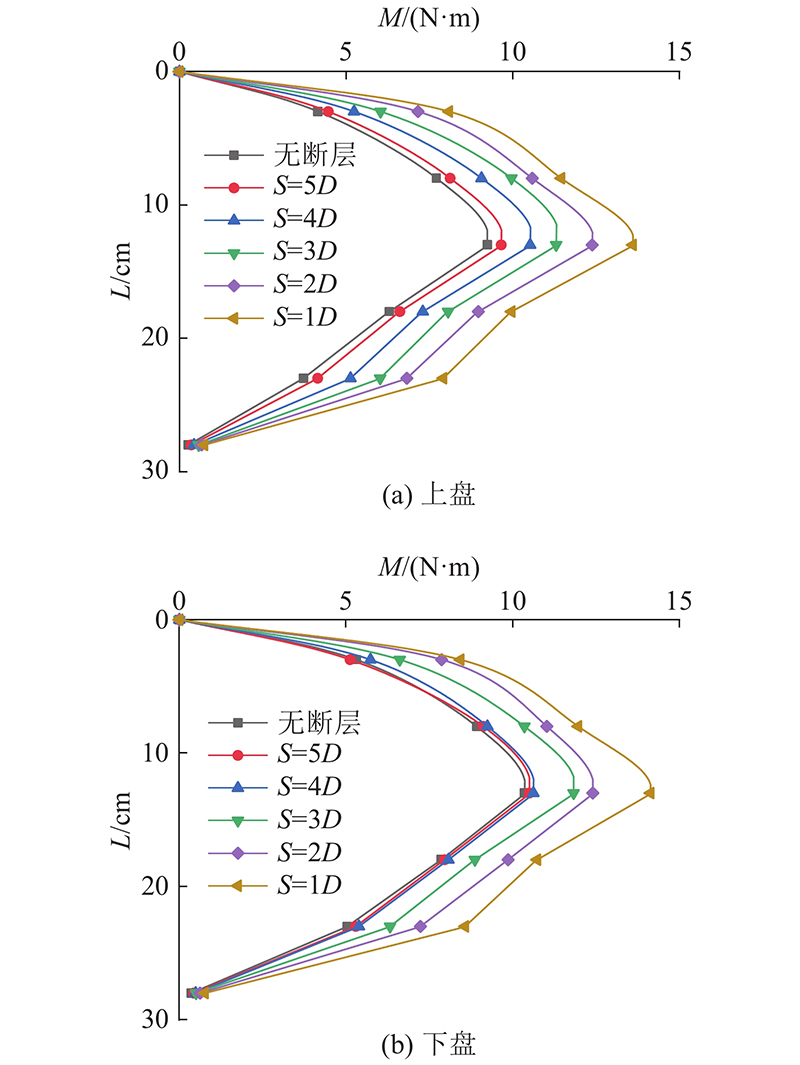

图 8  断层与桩基不同水平距离工况下的桩身弯矩变化

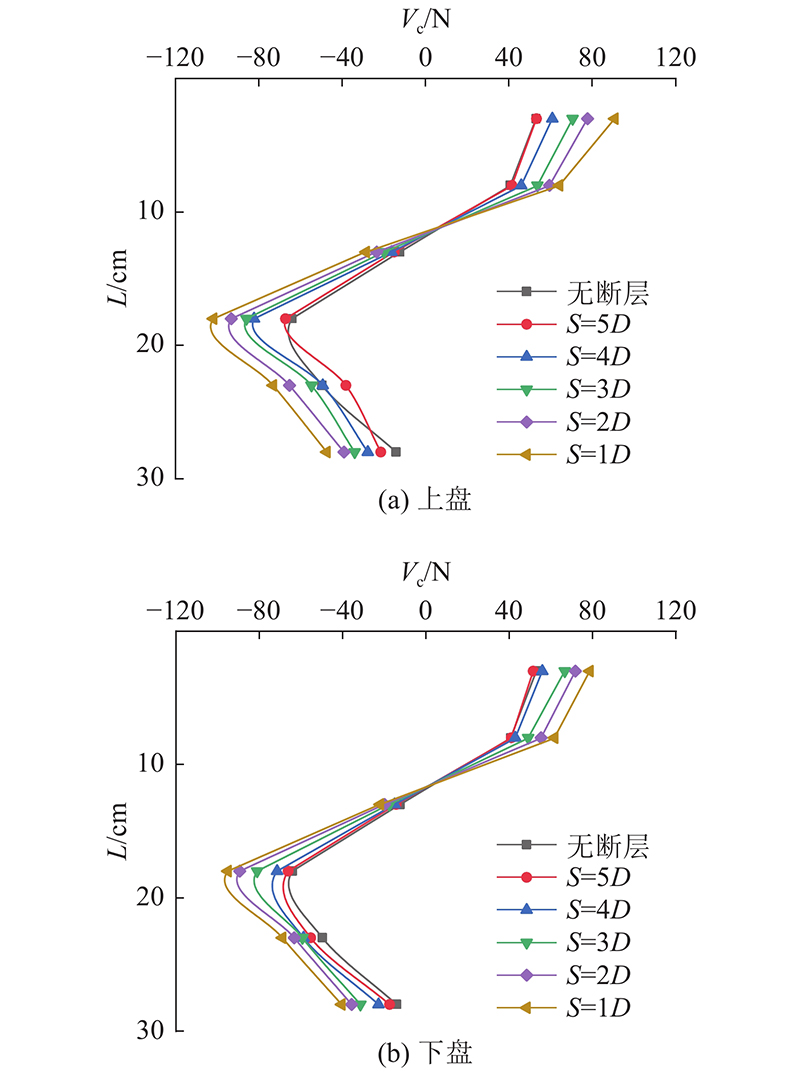

图 9  断层与桩基不同水平距离工况下的桩身剪力变化

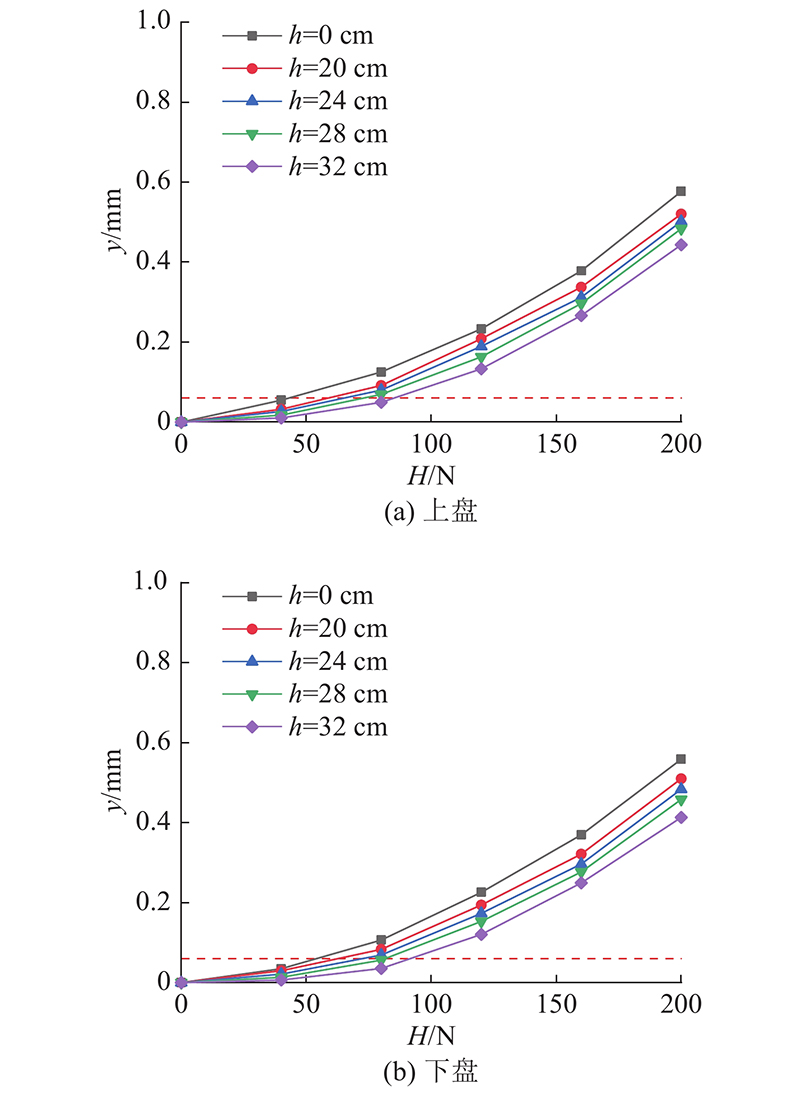

图 10  不同断层埋深工况下的桩基荷载-位移曲线

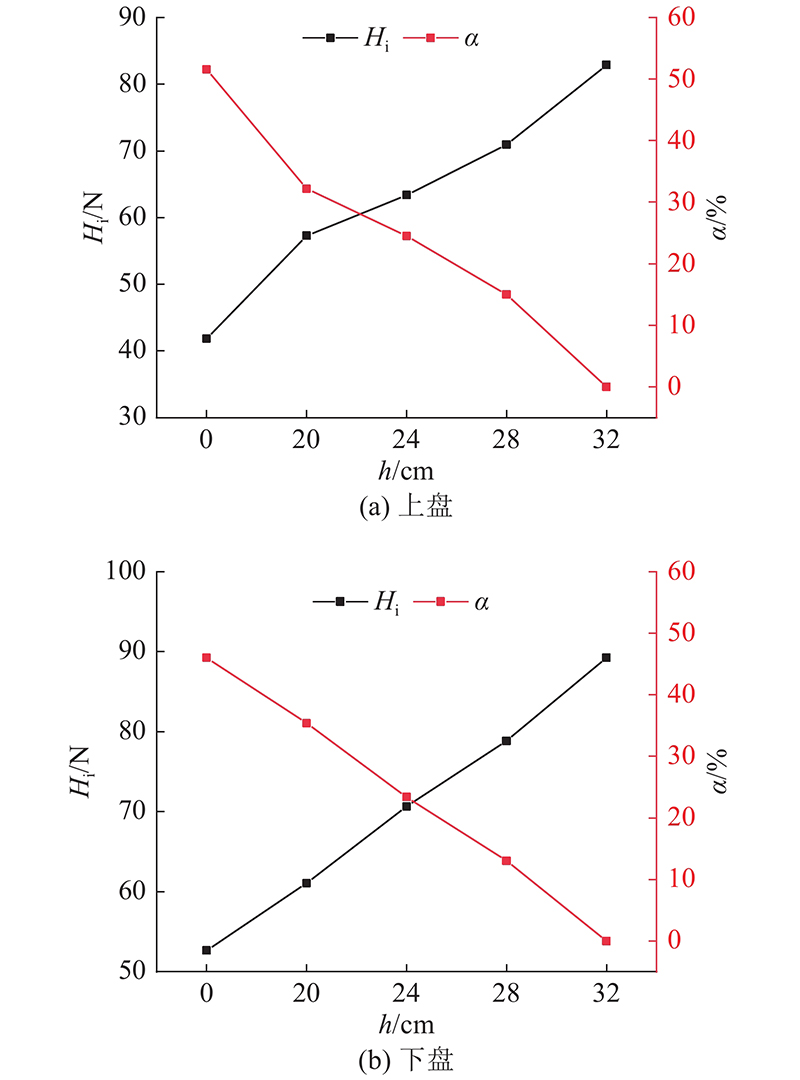

图 11  不同断层埋深工况下的桩基水平极限承载力及影响度变化
图 12  不同断层埋深工况下的桩侧土抗力变化

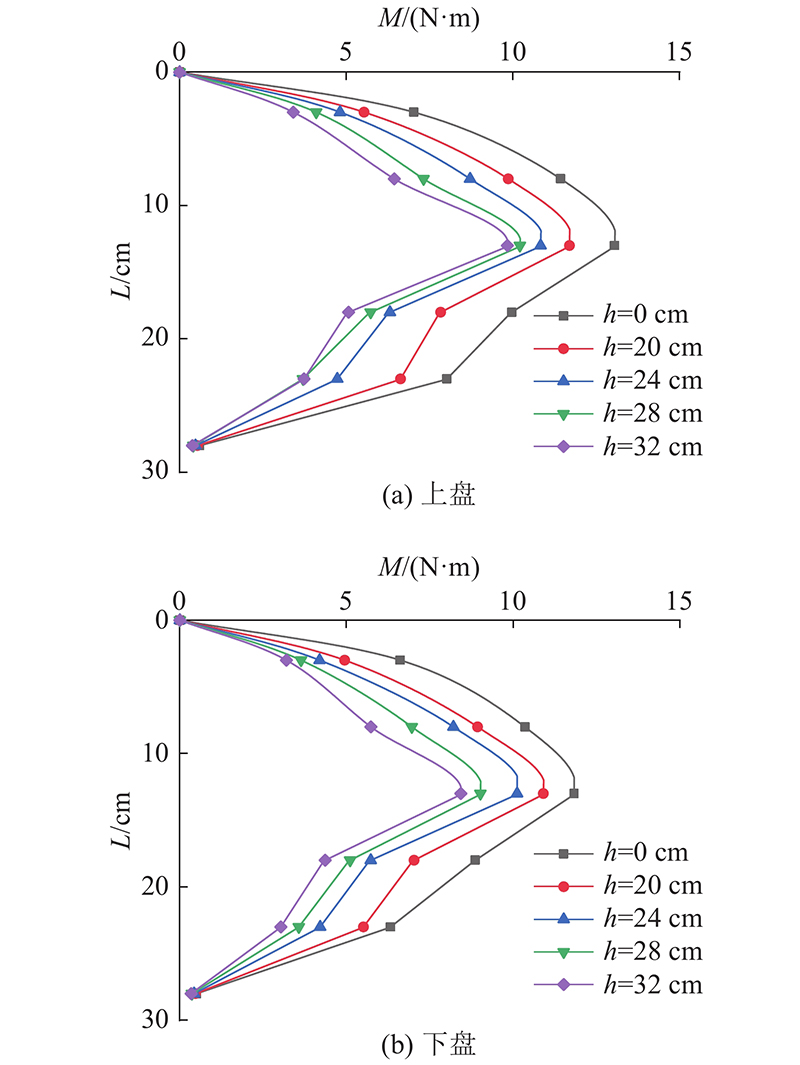

图 13  不同断层埋深工况下的桩身弯矩变化

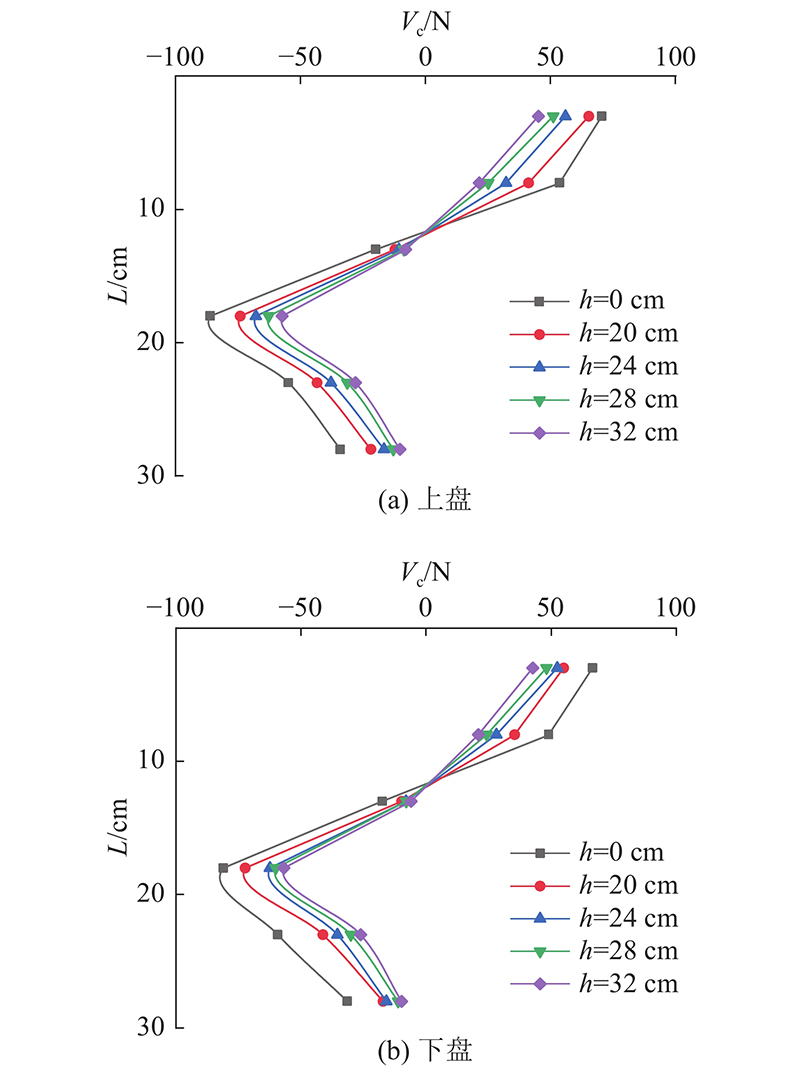

图 14  不同断层埋深工况下的桩身剪力变化
