Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (5): 991-998    DOI: 10.3785/j.issn.1008-973X.2021.05.020

Numerical study on dynamic behaviors of Al2O3 nanofluid droplet impacting on solid wall
Ding-hua HU(),Shi-yu LIU
School of Energy and Power Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
Download: HTML     PDF(1277KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The dynamical behavior of nanofluid droplet impacting on the solid wall was numerically studied. A two-dimensional numerical model based on the phase-field method was established, and the Kistler dynamic contact angle model was introduced to describe the evolution of droplet contact angle and three-phase contact line during spreading. The influences of nanoparticle volume fraction, inertia force and droplet diameter on the spreading and retraction behaviors of water-based Al2O3 nanofluid droplets were studied in terms of spreading factor and dimensionless height. Results indicated that the nanoparticles with volume fraction over a certain value made the fluid exhibit obvious shear-thinning characteristics, which can increase the viscous dissipation of droplets and suppress the spreading and retraction process of droplets. The increase of droplet initial velocity would increase the maximum spreading diameter and the time to reach the stable state when it impacts on the solid surface, while the increase of droplet diameter would lengthen the oscillation period of the droplet. It is also found that the nanoparticles of 4% volume fraction can suppress the influence of increase of droplet initial velocity and diameter, and help the droplet faster to reach stable state.

Key words： nanofluid      droplet      surface impingement      volume fraction      phase-field method
Received: 12 May 2020      Published: 10 June 2021
CLC:  TQ 21.1
Fund:  国家自然科学基金青年基金资助项目（51706102）；中央高校基本科研业务费专项资金资助项目（30917011325）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Ding-hua HU
Shi-yu LIU
Cite this article:

Ding-hua HU,Shi-yu LIU. Numerical study on dynamic behaviors of Al2O3 nanofluid droplet impacting on solid wall. Journal of ZheJiang University (Engineering Science), 2021, 55(5): 991-998.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.05.020     OR     http://www.zjujournals.com/eng/Y2021/V55/I5/991


Al2O3纳米流体液滴撞击壁面的动力学行为数值研究

针对纳米流体液滴撞击固体壁面的动力学行为，建立基于相场方法描述液滴动态过程的二维数值模型，引入Kistler动态接触角模型以模拟铺展过程中液滴动态接触角变化以及三相接触线的迁移. 通过模拟分析液滴铺展因子、无量纲高度的变化研究不同纳米颗粒体积分数、惯性力和液滴直径等因素对水基Al2O3纳米流体液滴撞击壁面的铺展回缩过程的影响机制. 结果表明：超过一定体积分数的纳米颗粒使流体表现出明显的剪切稀化特性，增加液滴的黏性耗散，抑制液滴的铺展回缩过程；液滴撞击速度的增加会增大其撞击壁面时最大铺展直径和达到稳定状态的耗时，直径的增加使液滴振荡周期加长；体积分数为4%的纳米颗粒可以抑制上述两者带来的影响，使液滴更快到达稳定状态.


关键词： 纳米流体,  液滴,  撞击壁面,  体积分数,  相场方法
Fig.1 Physical model of liquid droplet impacting solid surface
$\varphi _{\rm{p}} $/% m n
1 0.0060 0.599
2 0.0118 0.614
3 0.0458 0.641
4 0.2562 0.678
Tab.1 Power-law parameters of nanodroplet

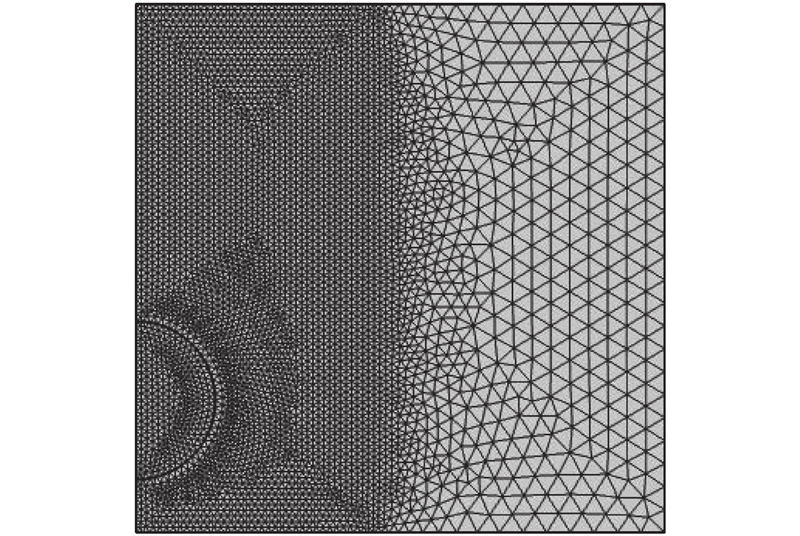

Fig.2 Mesh refinement for droplet
Fig.3 Verification of grid independence
Fig.4 Comparison and validation of droplet impingement experiments results[31-33] and simulation results based on proposed model

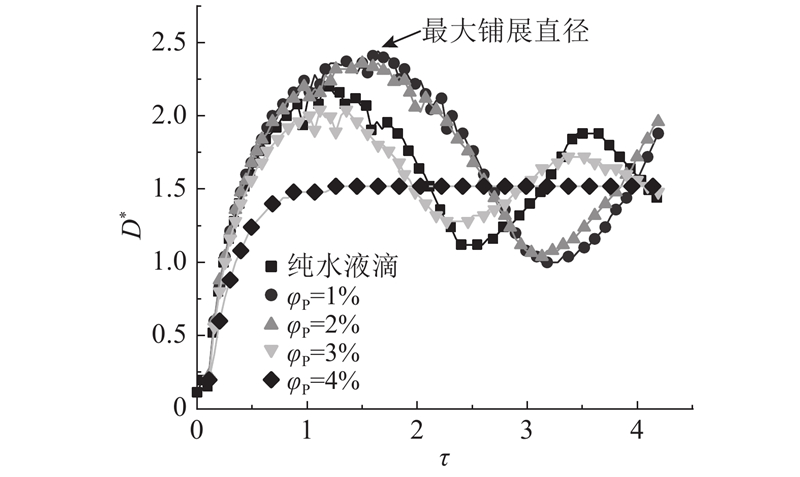

Fig.5 Variation curves of spreading factor for pure water droplets and nanofluid droplets with different nanoparticle volume fractions

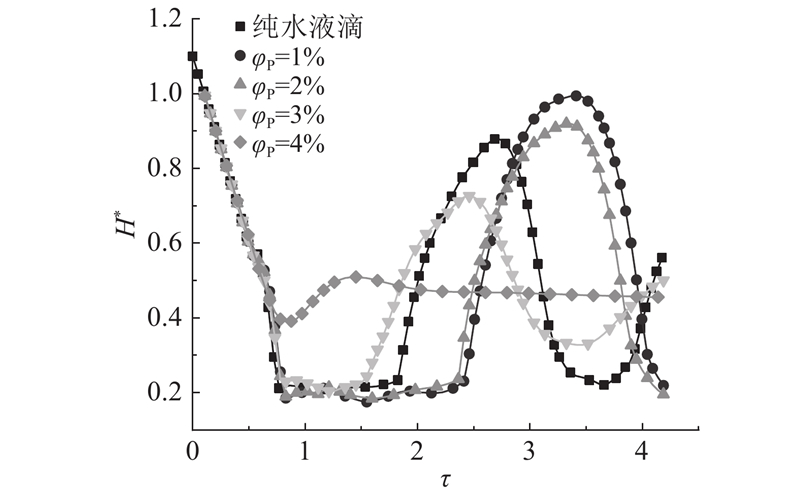

Fig.6 Variation curves of dimensionless height for pure water droplets and nanofluid droplets with different nanoparticle volume fractions
Fig.7 Variation curves of spreading factor for pure water droplets and nanofluid droplets with different nanoparticle volume fractions at different initial velocities

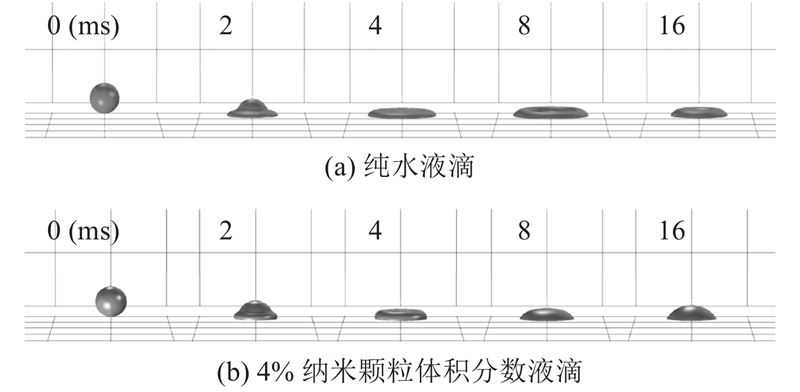

Fig.8 Simulation results of pure water droplet and 4% volume fraction nano droplet at same time
Fig.9 Variation curves of spreading factor for pure water droplets and nanofluid droplets of different nanoparticle volume fractions with different droplet diameters
Fig.10 Maximum spreading factor of pure water droplets and nanofluid droplets of different nanoparticle volume fractions with different droplet diameters
