Journal of ZheJiang University (Engineering Science)  2019, Vol. 53 Issue (2): 220-227    DOI: 10.3785/j.issn.1008-973X.2019.02.003
Energy Engineering
Effect of bowl-shaped secondary air distribution on combustion efficiency and NOx mass concentration
Xiao-qiang XIE1(),Jian-guo YANG1,*(),Chao-yang ZHU2,Chuan-huai LIU2,Hong ZHAO1,Zhi-hua WANG1
1. State Key Laboratory of Clean Energy Utilization, Zhejiang University, Hangzhou 310027, China
2. Fengtai Power Generation Branch of Huaizhe Coal and Power Co. Ltd, Huainan 232131, China
Download: HTML     PDF(1373KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The combustion process in a 600 MW supercritical opposite-wall-firing boiler under the conditions of equal and bowl-shaped secondary air distribution (BSAD) was numerically simulated. The influence of varying secondary air distribution deviation on the particle mass concentration field, CO volume fraction field, furnace temperature and NOx generation was analyzed. The calculated results were compared with experimental data. The simulation results showed that BSAD enhanced the mixing between pulverized coal and air, decreased the bias of average CO volume fraction and particle mass concentration along the furnace width, reduced the average CO volume fraction in flue gas, carbon mass fraction in fly ash at the furnace exit, and improved the combustion efficiency of opposite-wall-firing boiler. BSAD did harm to the average NOx mass concentration in flue gas at the furnace exit, however, the NOx mass concentration varied within 3.5% when the deviation of the secondary air distribution was less than 20%. By combining the effects of BSAD on horizontal CO volume fraction distribution and average NOx mass concentration in flue gas at the furnace exit, the appropriate deviation of BSAD for the boiler is recommended to be 20% when the boiler utilizes frequently-fired coal. The variation trend of numerical results of average CO volume fraction in flue gas, carbon mass fraction in fly ash, average NOx mass concentration at the furnace exit is consistent with the in-situ experimental results. In practical operation, the effect of BSAD on declining average CO volume fraction is more significant, the reduction of average CO volume fraction at the economizer exit reaches 95% when the deviation of secondary air distribution equals to 20%.

Key words： boiler      opposite-wall-firing      bowl-shaped secondary air distribution (BSAD)      CO volume fraction      carbon mass fraction      NOx mass concentration
Received: 01 January 2018      Published: 21 February 2019
CLC:  TK 224
Corresponding Authors: Jian-guo YANG     E-mail: xiexiaoqiang@zju.edu.cn;yjg@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xiao-qiang XIE
Jian-guo YANG
Chao-yang ZHU
Chuan-huai LIU
Hong ZHAO
Zhi-hua WANG
Cite this article:

Xiao-qiang XIE,Jian-guo YANG,Chao-yang ZHU,Chuan-huai LIU,Hong ZHAO,Zhi-hua WANG. Effect of bowl-shaped secondary air distribution on combustion efficiency and NOx mass concentration. Journal of ZheJiang University (Engineering Science), 2019, 53(2): 220-227.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.02.003     OR     http://www.zjujournals.com/eng/Y2019/V53/I2/220


碗式配风对燃烧效率与NOx质量浓度的影响

对600 MW超临界前后墙对冲燃烧锅炉在均等配风和碗式配风下的燃烧进行数值模拟，分析不同偏差程度碗式配风对炉内颗粒质量浓度场、CO体积分数场、炉膛温度、NOx生成的影响，并与试验结果进行对比. 模拟结果表明，燃烧器碗式配风改善了炉内宽度方向上的风、煤混合过程，减小了CO体积分数和煤粉颗粒质量浓度偏差，降低了炉膛出口烟气中CO的平均体积分数和飞灰中碳的质量分数，从而有效提高了前后墙对冲燃烧锅炉的燃烧效率. 燃烧器碗式配风对炉膛出口烟气中NOx的平均质量浓度有不利影响，但是当碗式配风风量偏差不大于20%时，NOx平均质量浓度变化不大于3.5%. 综合燃烧器碗式配风对水平截面CO分布特征和炉膛出口烟气中NOx的平均质量浓度的影响，在燃烧常用煤种的条件下，碗式配风的风量偏差宜控制在20%以内. 炉膛出口烟气中CO的平均体积分数、飞灰中碳的质量分数、NOx平均质量浓度的模拟值与热态试验值变化趋势一致. 在实际应用中碗式配风对CO平均体积分数的降低效果更加显著，当碗式配风的风量偏差达到20%时，省煤器出口烟气中CO的平均体积分数降低幅度达95%.


关键词： 锅炉,  前后墙对冲燃烧,  碗式配风 (BSAD),  CO体积分数,  碳质量分数,  NOx质量浓度
工业分析wB/% Q/（MJ·kg?1） 元素分析wB/%
M A V C H O N S
7.00 26.00 26.13 21.30 56.37 3.72 5.54 1.00 0.37
Tab.1 Proximate and elemental analyses of coal used in boiler (as received basis)

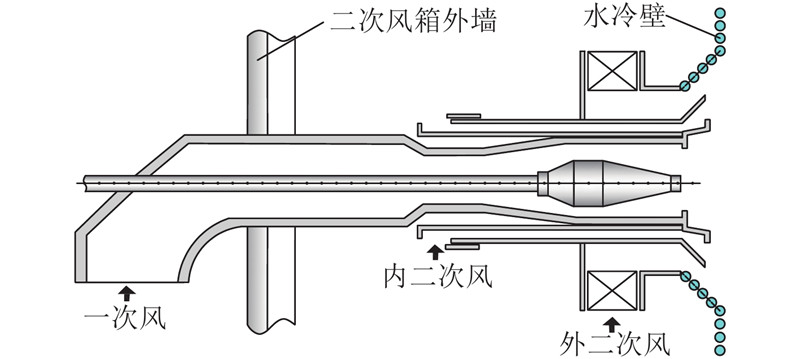

Fig.2 Structural diagram of HT-NR3 low NOx swirl burner
名称 qm /（kg·s?1） θa / °C r/%
一次风 133.4 75 23.00
内二次风 62.8 345 10.83
外二次风 267.8 345 46.17
燃尽风 116.0 345 20.00
Tab.2 Main operating parameters of boiler under rated condition
工况 配风方式 D/%
中间燃烧器 两侧燃烧器
1 均等配风 0 0
2 10%碗式配风 ?5 +5
3 20%碗式配风 ?10 +10
4 30%碗式配风 ?15 +15
Tab.3 Outer secondary air distribution of burners under different BSAD conditions

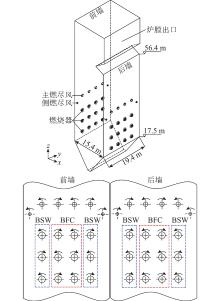

Fig.1 Structure of boiler furnace and layouts of burners and over-fire air ports
截面 H/m 截面位置说明
Z1 17.5 冷灰斗与水冷壁衔接位置
Z2 19.9 第1层燃烧器中心
Z3 24.9 第2层燃烧器中心
Z4 29.8 第3层燃烧器中心
Z5 32.5 燃烧器区域出口
Z6 36.8 主燃尽风中心
Z7 42.5 燃尽风区域出口
Tab.4 Position description of furnace’s horizontal cross-sections

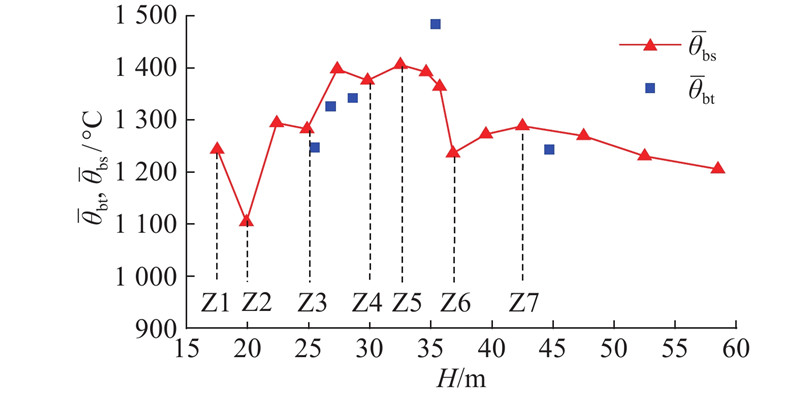

Fig.3 Comparison between measured and simulated average temperature at horizontal cross-sections along furance height

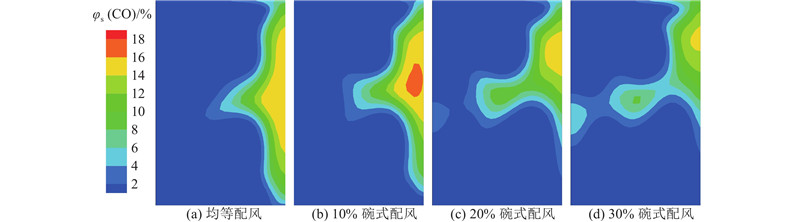

Fig.5 Effect of bowl-shaped air distribution on CO volume fraction field at exit of over fire air region

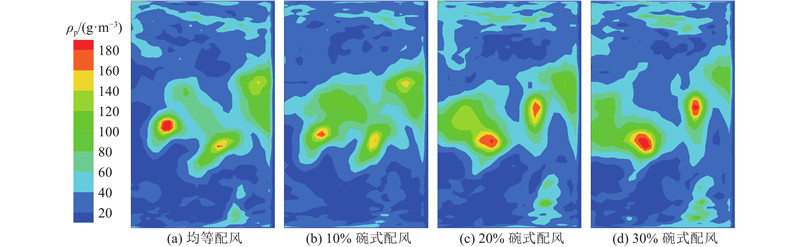

Fig.6 Effect of bowl-shaped air distribution on particle mass concentration field at exit of burner region

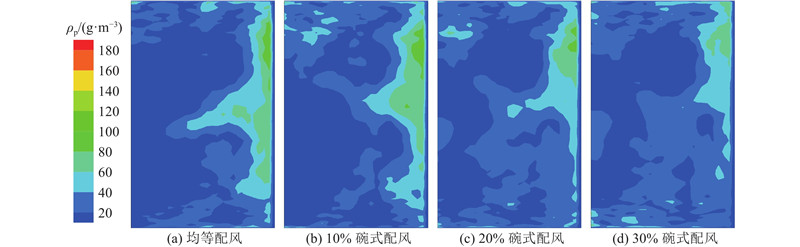

Fig.7 Effect of bowl-shaped air distribution on particle mass concentration field at exit of over fire air region

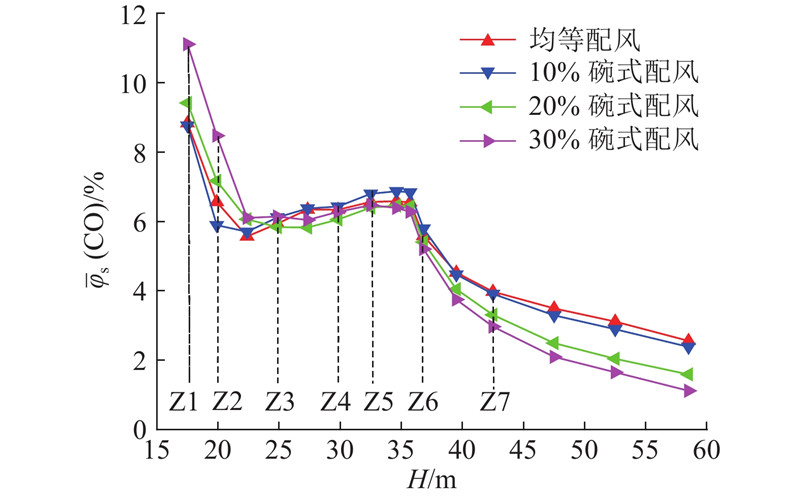

Fig.8 Variation of average CO volume fraction at horizontal cross-sections along furnace height
配风方式 $\overline \varphi_{\rm s}\left({\rm O}_2\right)$/
% 		$\overline \varphi_{\rm s}\left({\rm CO}\right)$/
% 		$w_{\rm s}\left({\rm C}\right)$/
% 		$\overline \rho_{\rm s}\left({\rm NO}_x\right)$/
（mg·m?3）1)
注：1）NOx质量浓度折算到6%O2体积分数
均等配风 2.17 0.435 6 3.27 314
10% 碗式配风 2.21 0.404 4 3.47 312
20% 碗式配风 2.08 0.285 6 2.21 325
30% 碗式配风 1.94 0.230 9 1.38 388
Tab.5 Numerical results of gas parameters at furnace exit under various air distribution conditions

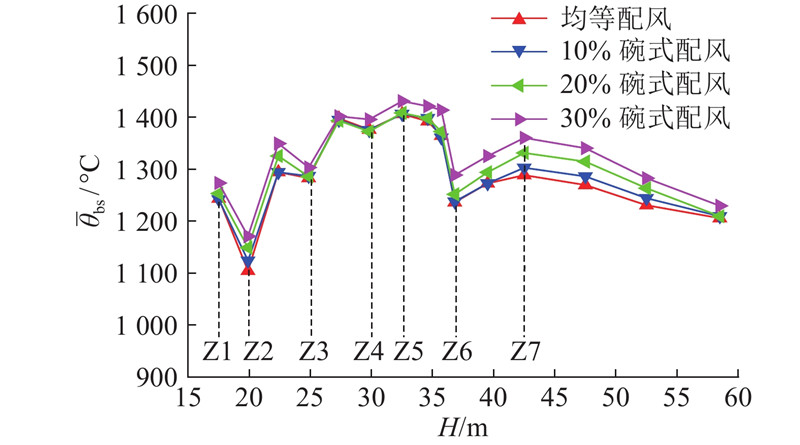

Fig.9 Variation of average temperature at horizontal cross-sections along furnace height

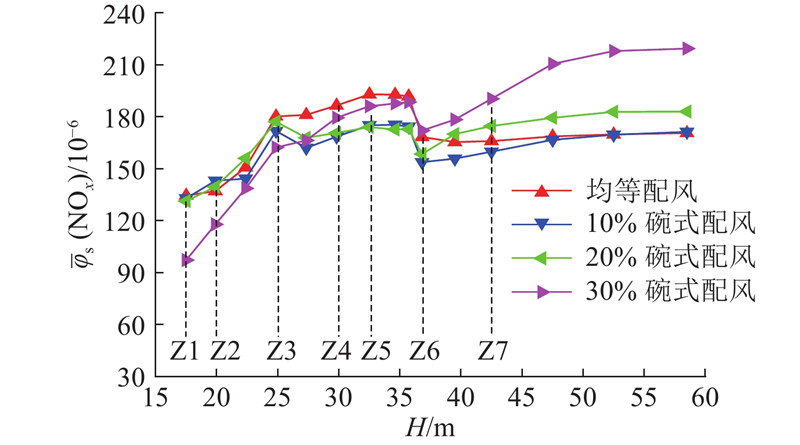

Fig.10 Variation of average NOx volume concentration at horizontal cross-sections along furnace height

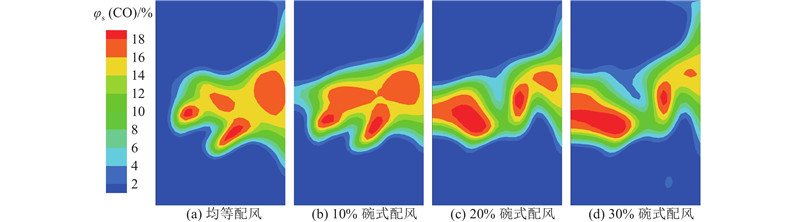

Fig.4 Effect of bowl-shaped air distribution on CO volume fraction field at exit of burner region
配风方式 $\overline \varphi_{\rm t}\left({\rm O}_2\right)$/
% 		$\overline \varphi_{\rm t}\left({\rm CO}\right)$/
% 		$w_{\rm t}\left({\rm C}\right)$/
% 		$\overline \rho_{\rm t}\left({\rm NO}_x\right)$/
（mg·m?3）1)
注：1）NOx质量浓度折算到6%O2体积分数
均等配风 2.10 0.232 4 3.34 302
10% 碗式配风 2.06 0.064 1 2.89 326
20% 碗式配风 2.01 0.012 0 2.14 306
Tab.6 Experimental results of gas parameters at economizer exit under various air distribution conditions
