Chinese Journal of Engineering Design  2024, Vol. 31 Issue (5): 670-680    DOI: 10.3785/j.issn.1006-754X.2024.04.132
Whole Machine and System Design
Design and experimental study of hydraulic system of self-propelled Panax notoginseng combine harvester
Manman LI1,2(),Quanhe YANG1,2,Kaiting XIE2,3,Yuan WANG1,2,Donghui XU4,Zhaoguo ZHANG1,2()
1.Faculty of Modern Agricultural Engineering, Kunming University of Science and Technology, Kunming 650500, China
2.Research Center on Mechanization Engineering of Chinese Medicinal Materials of Yunnan Province, Kunming 650500, China
3.Faculty of Mechanical and Electrical Engineering, Kunming University of Science and Technology, Kunming 650500, China
4.School of Mechanical and Electrical Engineering, Qiqihar University, Qiqihar 161000, China
Download: HTML     PDF(4019KB)
Export: BibTeX | EndNote (RIS)

Abstract

Aiming at the problems of high labor intensity, low efficiency and high cost of Panax notoginseng harvesting in hilly and mountainous areas, the hydraulic system of the self-propelled Panax notoginseng combine harvester was studied. Firstly, the hydraulic system of the key working components of the whole machine was theoretically analyzed, calculated and designed, and the selection for hydraulic components was completed. Then, the hydraulic system simulation model was established by AMESim software, and the simulation analysis for the working state of each hydraulic component was carried out to verify the feasibility of the hydraulic system design scheme. Finally, a prototype was manufactured and the field test was carried out to test the working performance of the hydraulic system of the whole machine. The test results showed that the average speed deviations of the hydraulic motors driving the first-stage lifting chain, the vibrating wheel, the second-stage lifting chain and the lifting device were 1.15%, 2.05%, 5.10% and 4.09%, respectively. The average retraction synchronization deviation rates of lifting, inclination adjustment and dumping hydraulic cylinders were 0.63%, 1.16% and 0.62%, respectively, and the average retraction locking deviation rates were 0.34%, 0.66% and 0.33%, respectively. The average extension synchronization deviation rate and the average extension locking deviation rate of dumping hydraulic cylinder were 0.56% and 0.30%, respectively. The results indicate that the designed hydraulic system can meet the operation requirements of self-propelled Panax notoginseng combine harvester, which can provide theoretical basis and reference for the design of the hydraulic system of rhizome combine harvesters in hilly and mountainous areas.



Key wordsPanax notoginseng      combine harvester      hydraulic system      simulation analysis      field test
Received: 19 April 2024      Published: 30 October 2024
CLC:  TH 137.9
Corresponding Authors: Zhaoguo ZHANG     E-mail: limanman@stu.kust.edu.cn;zzg@kust.edu.cn
Cite this article:

Manman LI,Quanhe YANG,Kaiting XIE,Yuan WANG,Donghui XU,Zhaoguo ZHANG. Design and experimental study of hydraulic system of self-propelled Panax notoginseng combine harvester. Chinese Journal of Engineering Design, 2024, 31(5): 670-680.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.04.132     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I5/670


自走式三七联合收获机液压系统设计与试验研究

针对丘陵山区三七收获劳动强度大、效率低及成本高等问题,开展自走式三七联合收获机液压系统研究。首先,对整机关键工作部件的液压系统进行理论分析、计算与设计,完成了液压元件选型。然后,利用AMESim软件建立液压系统仿真模型,开展各液压元件工作状态仿真分析,验证了液压系统设计方案的可行性。最后,制造样机并开展田间试验,完成了对整机液压系统工作性能的测试。试验结果显示:驱动一级升运链、振动轮、二级升运链与提升装置的液压马达的平均转速偏差分别为1.15%,2.05%,5.10%,4.09%;升降、倾角调节与倾卸液压缸的平均收回同步偏差率分别为0.63%,1.16%,0.62%,平均收回锁止偏差率分别为0.34%,0.66%,0.33%;倾卸液压缸的平均伸出同步偏差率与平均伸出锁止偏差率分别为0.56%,0.30%。结果表明,所设计的液压系统满足自走式三七联合收获机的作业要求,可为丘陵山区根茎类联合收获机液压系统的设计提供理论基础与参考。


关键词: 三七,  联合收获机,  液压系统,  仿真分析,  田间试验

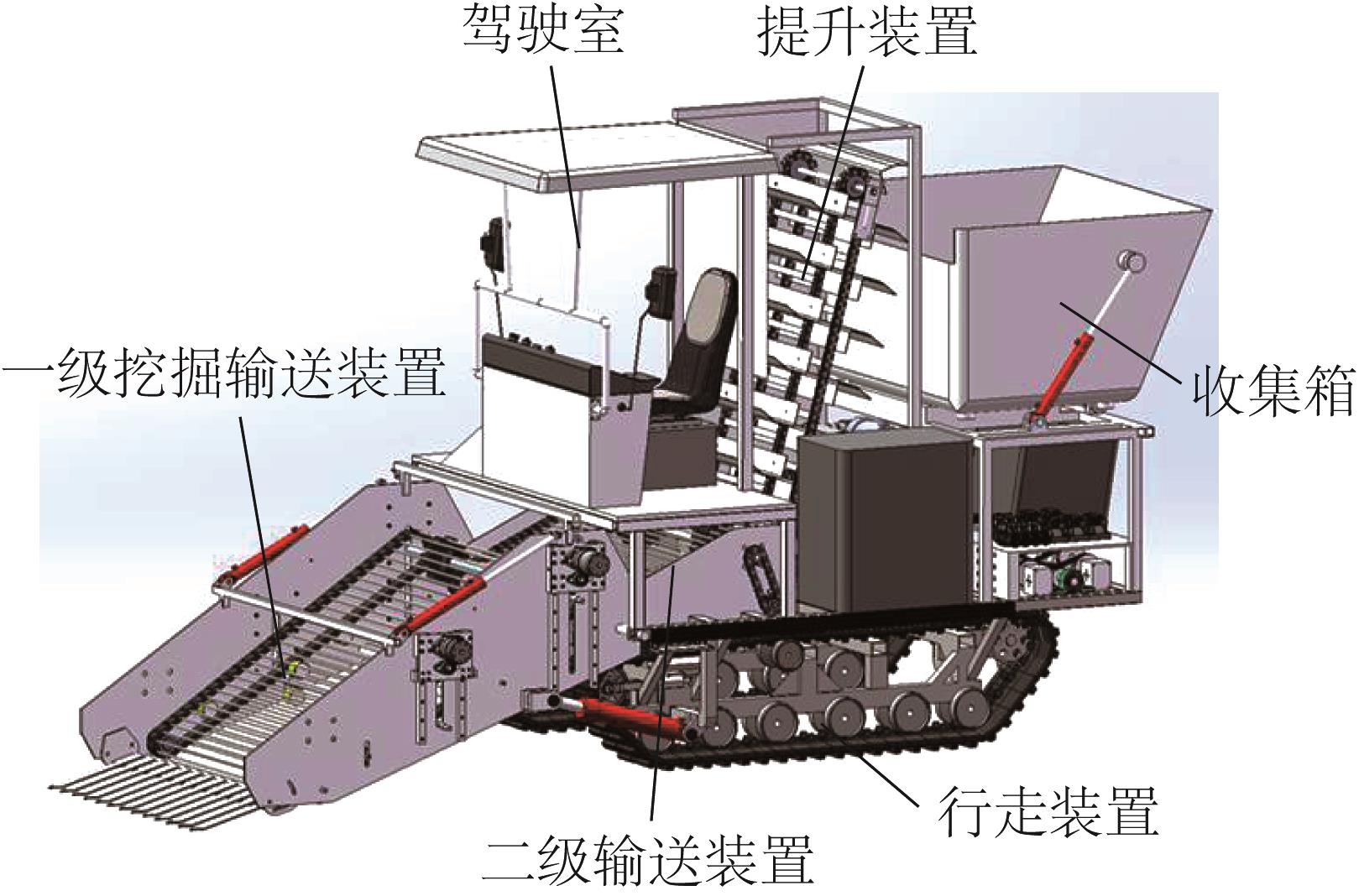

Fig.1 Three-dimensional model of self-propelled Panax notoginseng combine harvester

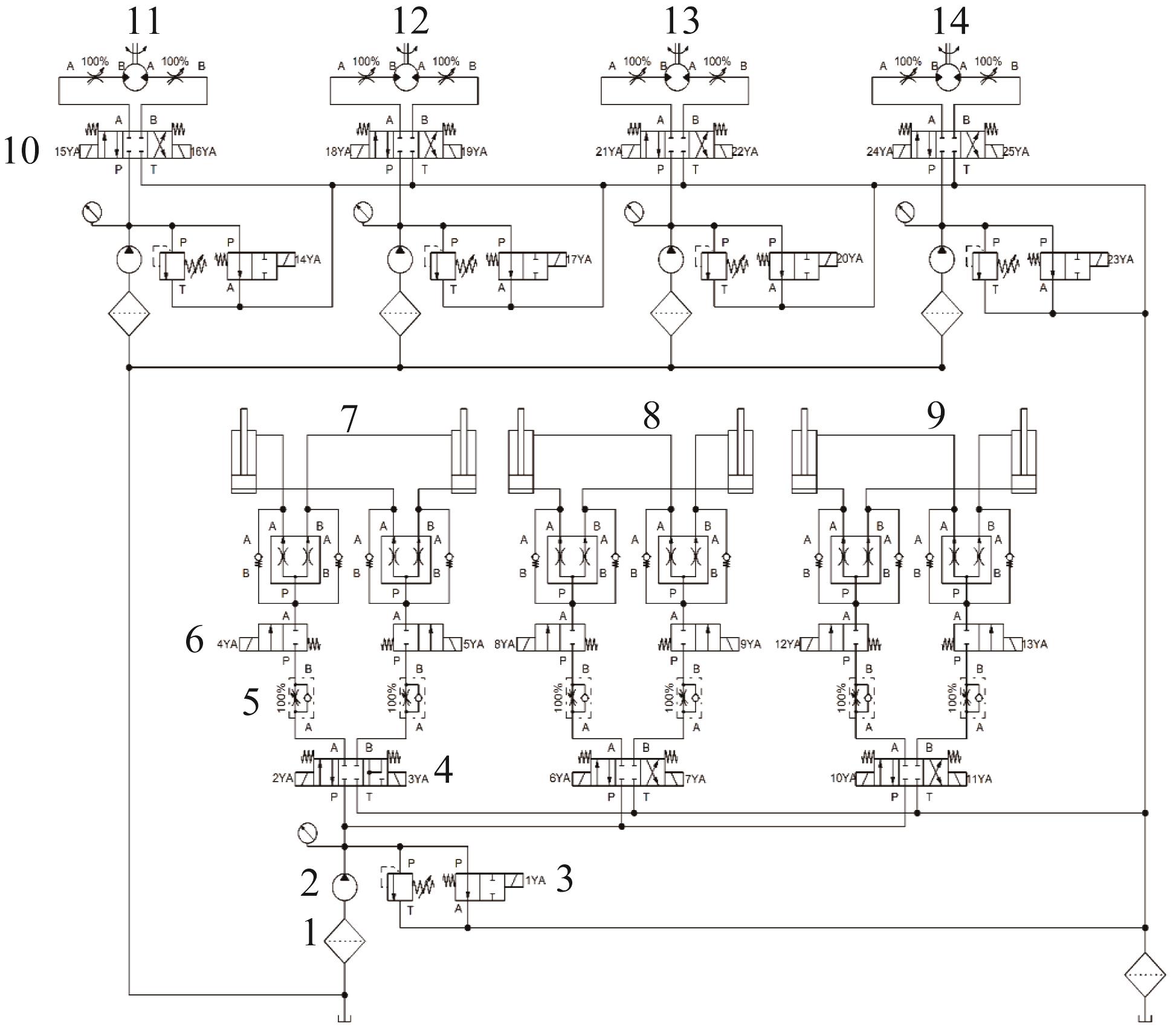

Fig.2 Overall principle of hydraulic system of self-propelled Panax notoginseng combine harvester

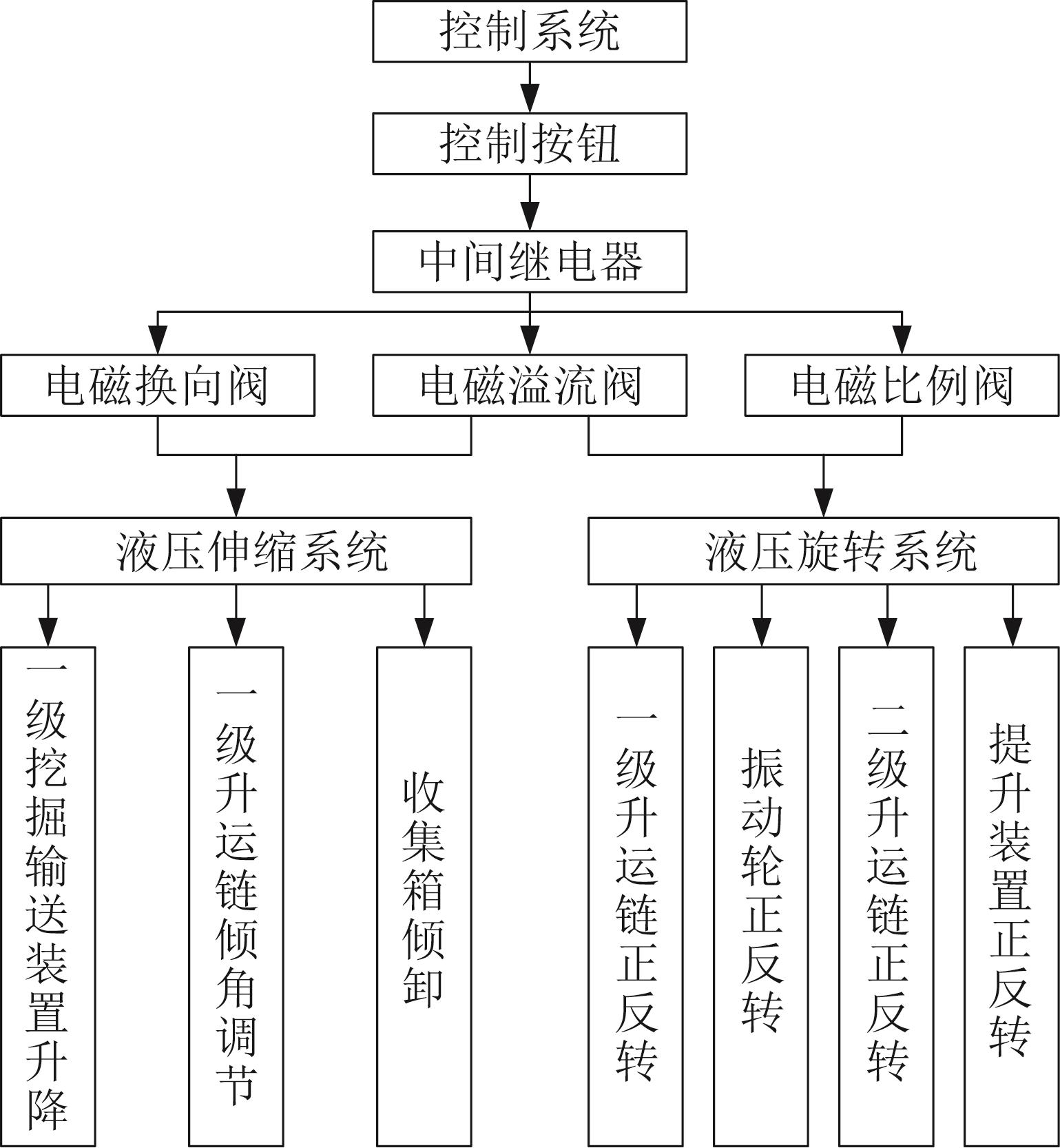

Fig.3 Control block diagram of hydraulic system of self-propelled Panax notoginseng combine harvester
液压马达计算参数所选型号及相关参数
一级升运链驱动液压马达

最大扭矩:372.28 N·m

理论排量:289.02 mL/r

最高转速:114.65 r/min

型号:BMR-400

最大扭矩:418 N·m

理论排量:392.9 mL/r

最高转速:140 r/min

振动轮驱动液压马达

最大扭矩:178.76 N·m

理论排量:89.10 mL/r

最高转速:120.00 r/min

型号:BMR-125

最大扭矩:220 N·m

理论排量:120.9 mL/r

最高转速:440 r/min

二级升运链驱动液压马达

最大扭矩:99.17 N·m

理论排量:49.43 mL/r

最高转速:133.76 r/min

型号:BMR-100

最大扭矩:178 N·m

理论排量:98.2 mL/r

最高转速:551 r/min

提升装置驱动液压马达

最大扭矩:37.73 N·m

理论排量:18.81 mL/r

最高转速:254.78 r/min

型号:BMR-50

最大扭矩:89 N·m

理论排量:52.9 mL/r

最高转速:730 r/min

Table 1 Calculation parameters and selection of each hydraulic motor
液压缸计算参数所选型号及相关参数
一级挖掘输送装置升降液压缸

缸径:31.02 mm

杆径:17.42 mm

型号:HSG-63

缸径:63 mm

杆径:35 mm

行程:400 mm

一级升运链倾角调节液压缸

缸径:17.67 mm

杆径:9.92 mm

型号:HSG-40

缸径:40 mm

杆径:25 mm

行程:300 mm

收集箱倾卸液压缸

缸径:20.77 mm

杆径:11.66 mm

型号:HSG-80

缸径:80 mm

杆径:50 mm

行程:350 mm

Table 2 Calculation parameters and selection of each hydraulic cylinder
液压泵计算参数所选型号及相关参数
一级升运链驱动液压泵理论排量:30.03 mL/r

型号:CBS-S32

理论排量:32 mL/r

最高工作压力:25 MPa

液压缸驱动液压泵理论排量:20.08 mL/r
振动轮驱动液压泵理论排量:9.67 mL/r

型号:CBN-310

理论排量:10 mL/r

最高工作压力:20 MPa

二级升运链驱动液压泵理论排量:8.76 mL/r
提升装置驱动液压泵理论排量:8.99 mL/r
Table 3 Calculation parameters and selection of each hydraulic pump
Fig.4 Simulation model of hydraulic system of self-propelled Panax notoginseng combine harvester

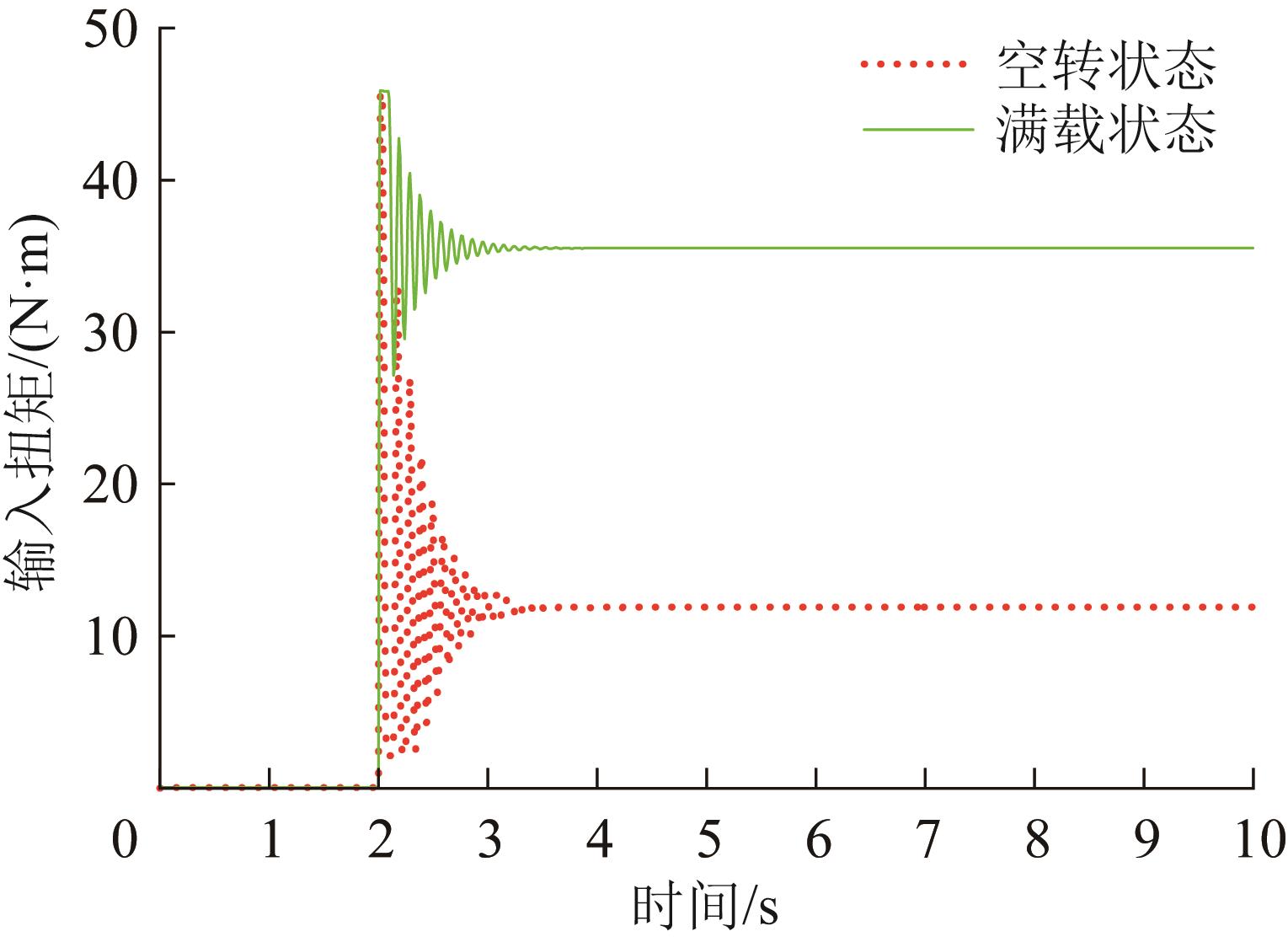

Fig.5 Input torque curves of hydraulic pump driving first-stage lifting chain

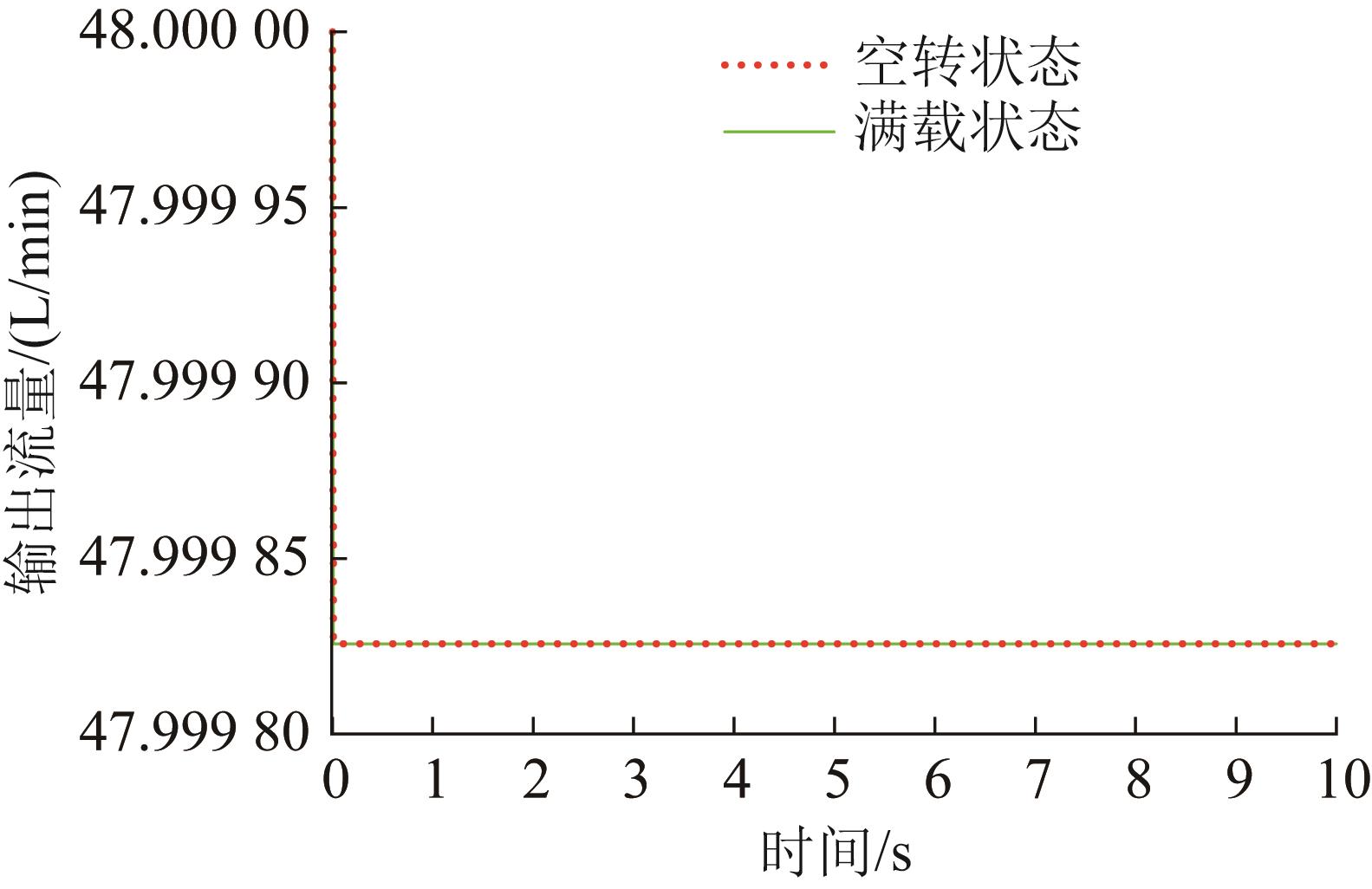

Fig.6 Output flow curves of hydraulic pump driving first-stage lifting chain

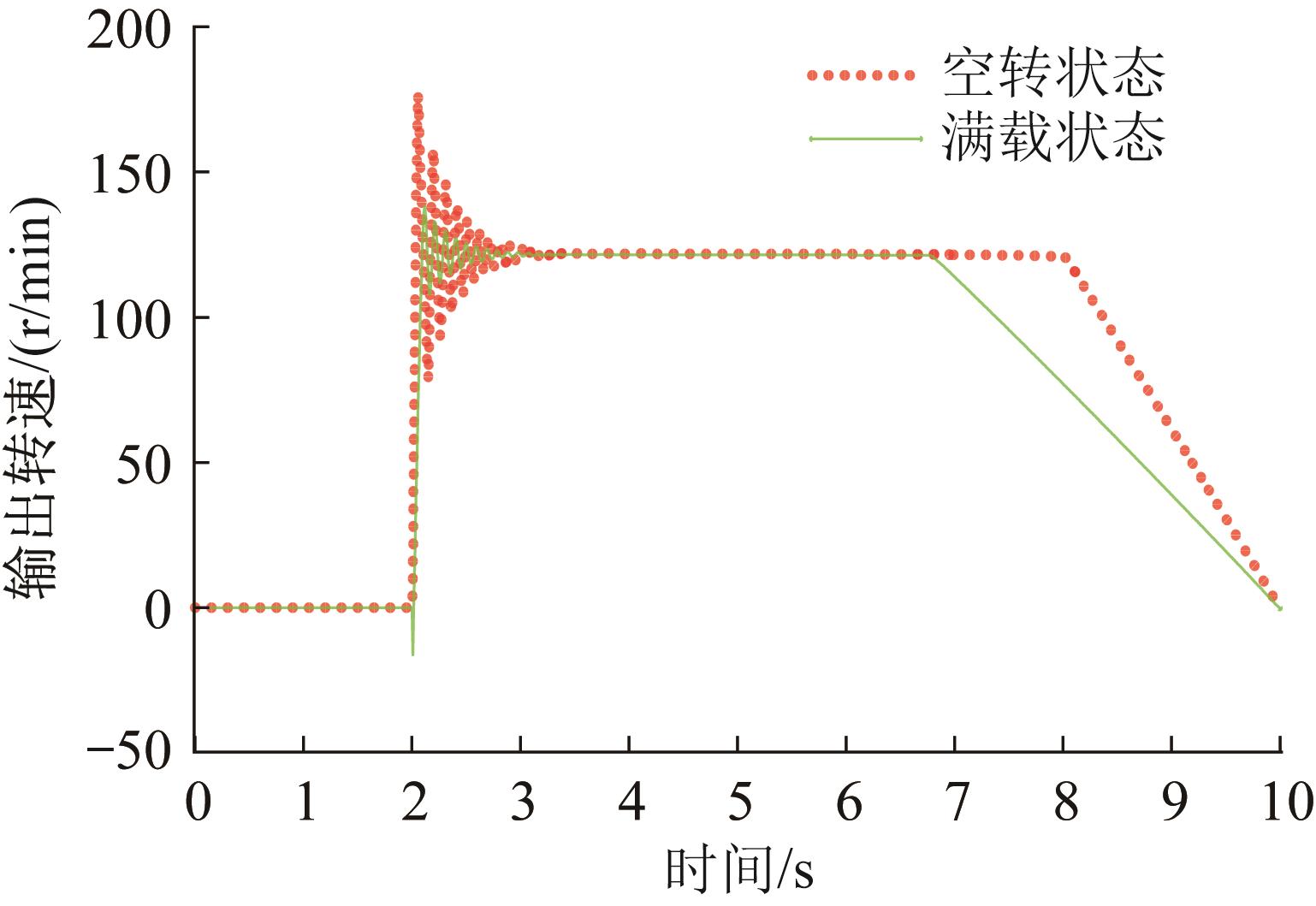

Fig.7 Output speed curves of hydraulic motor driving first-stage lifting chain

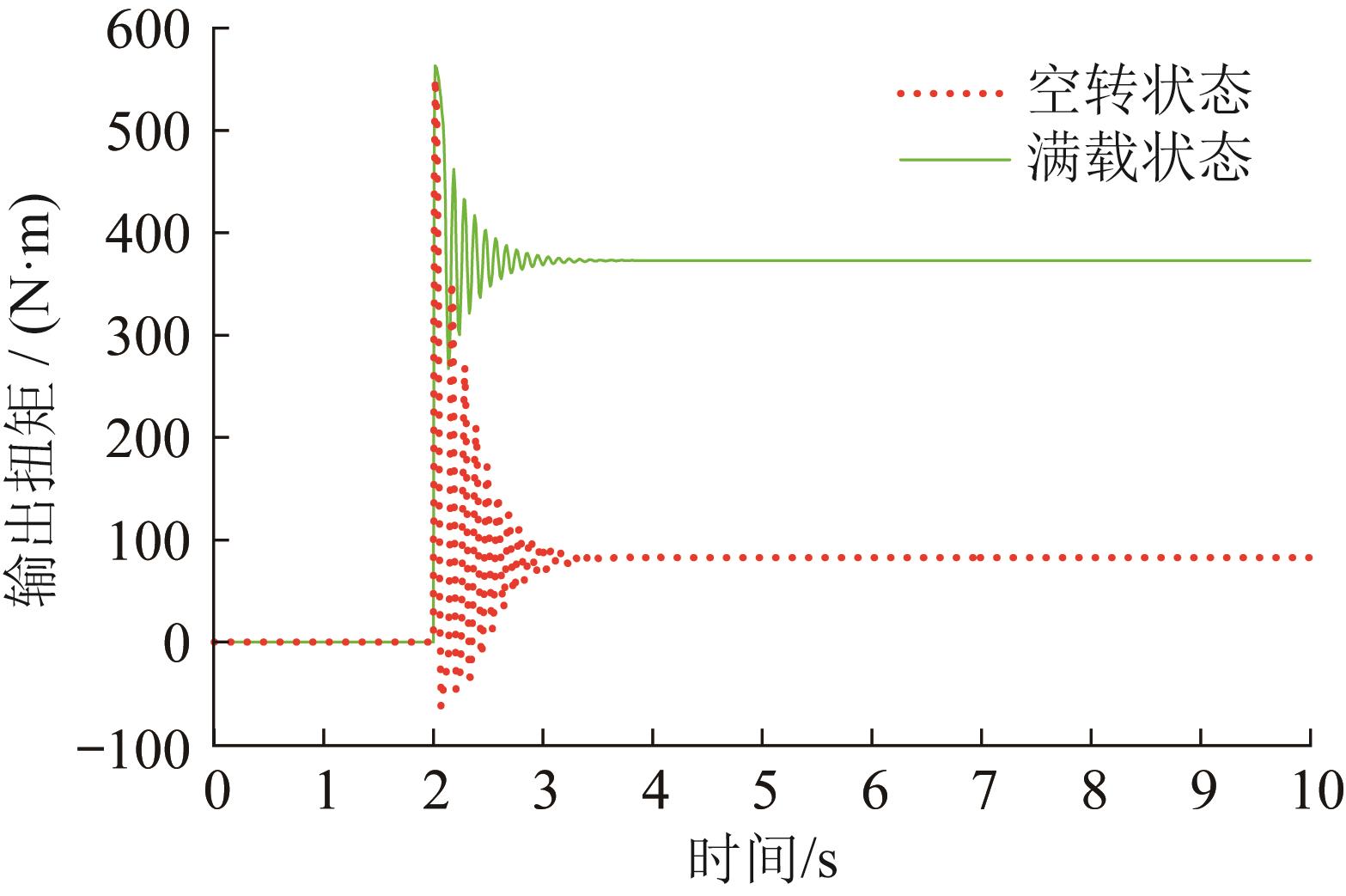

Fig.8 Output torque curves of hydraulic motor driving first-stage lifting chain

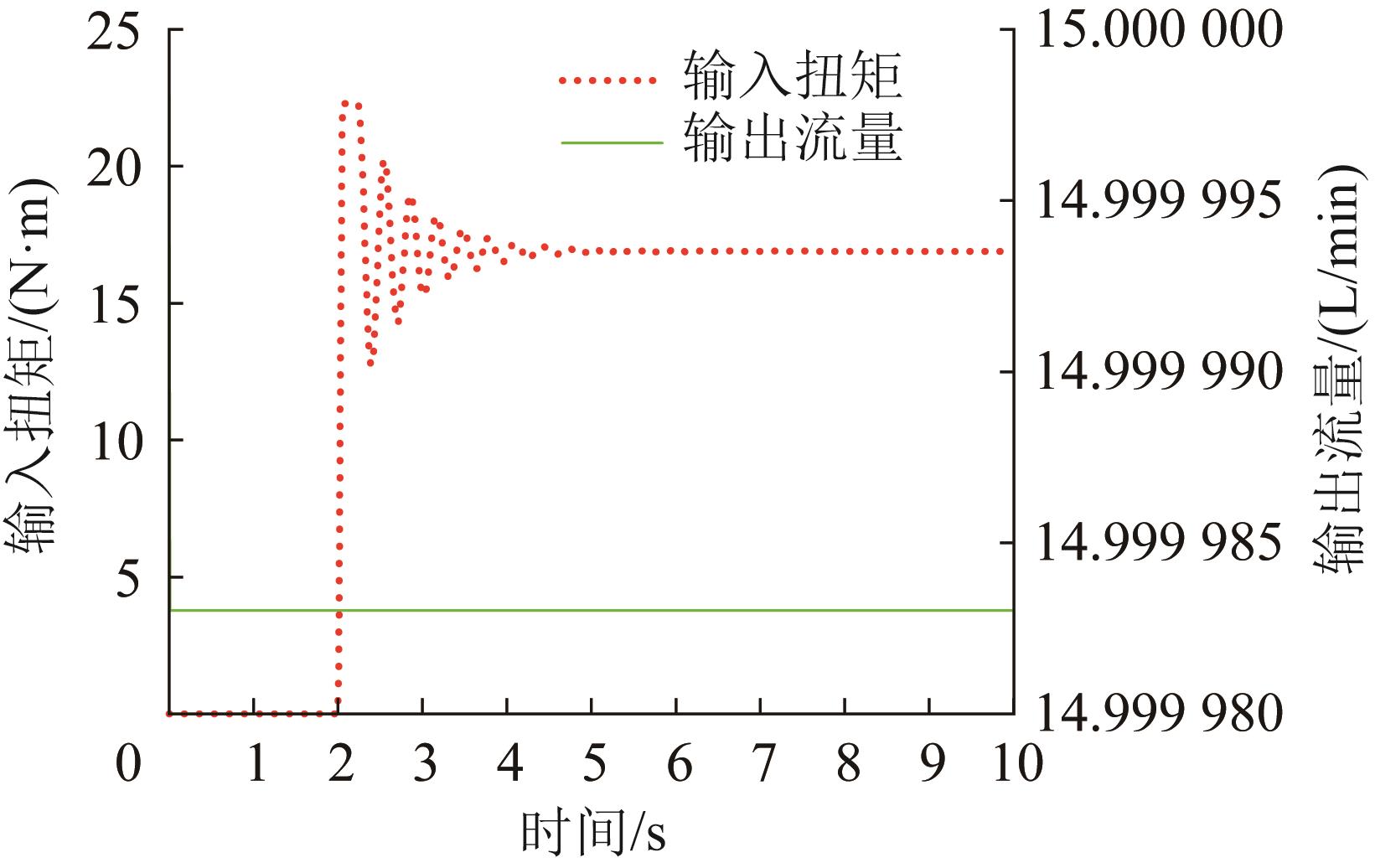

Fig.9 Input torque and output flow curves of hydraulic pump driving vibrating wheel

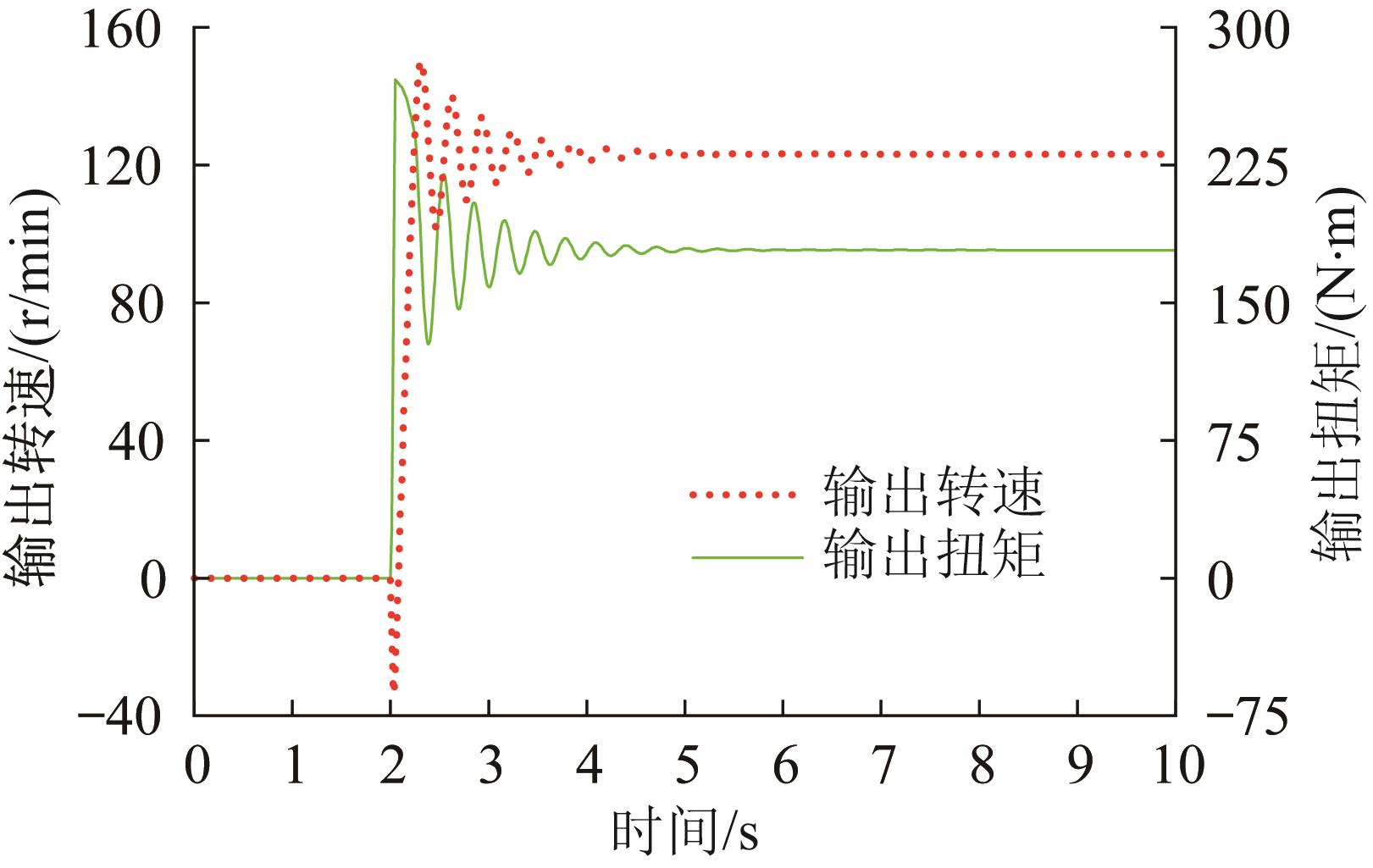

Fig.10 Output speed and output torque curves of hydraulic motor driving vibrating wheel

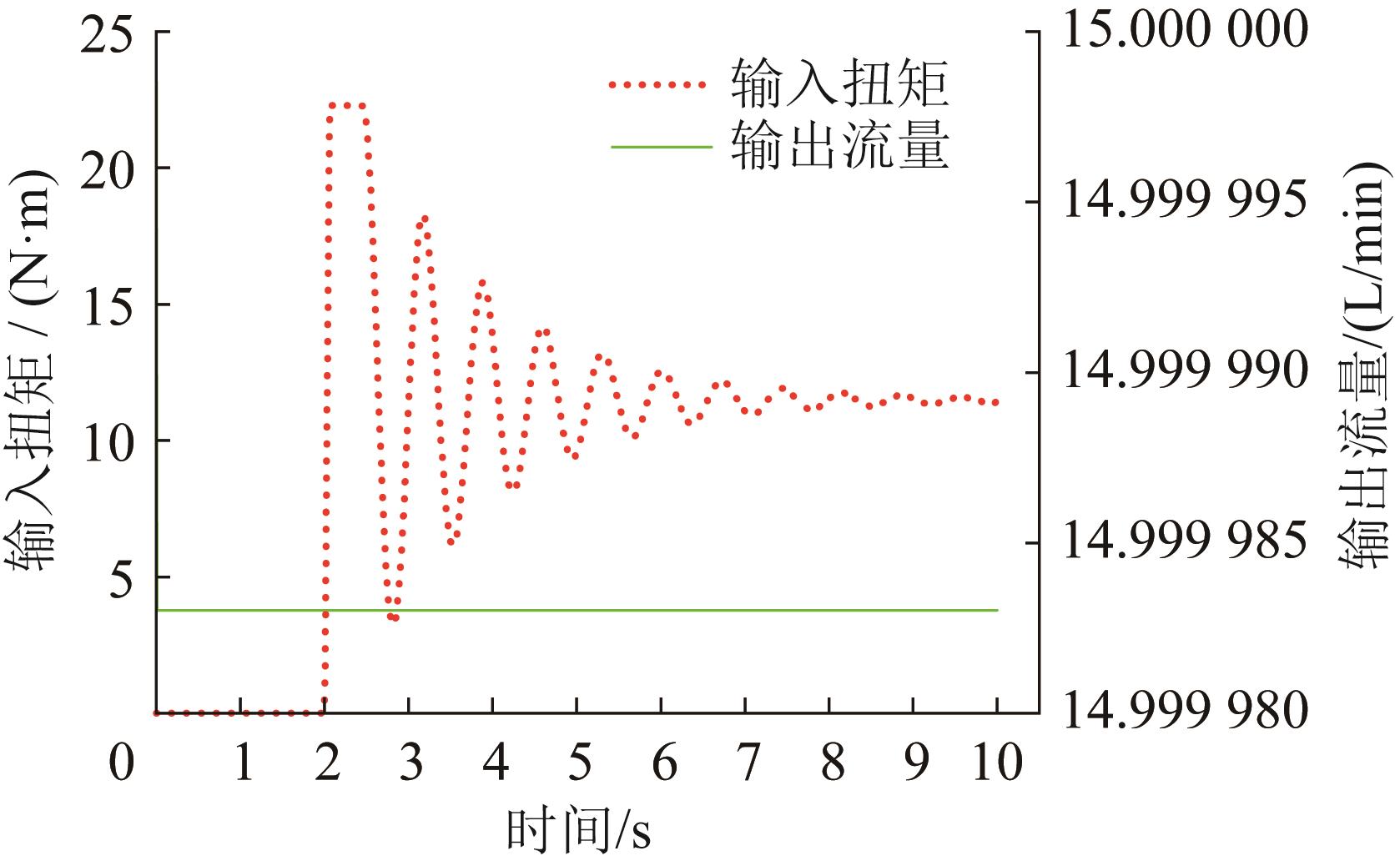

Fig.11 Input torque and output flow curves of hydraulic pump driving second-stage lifting chain

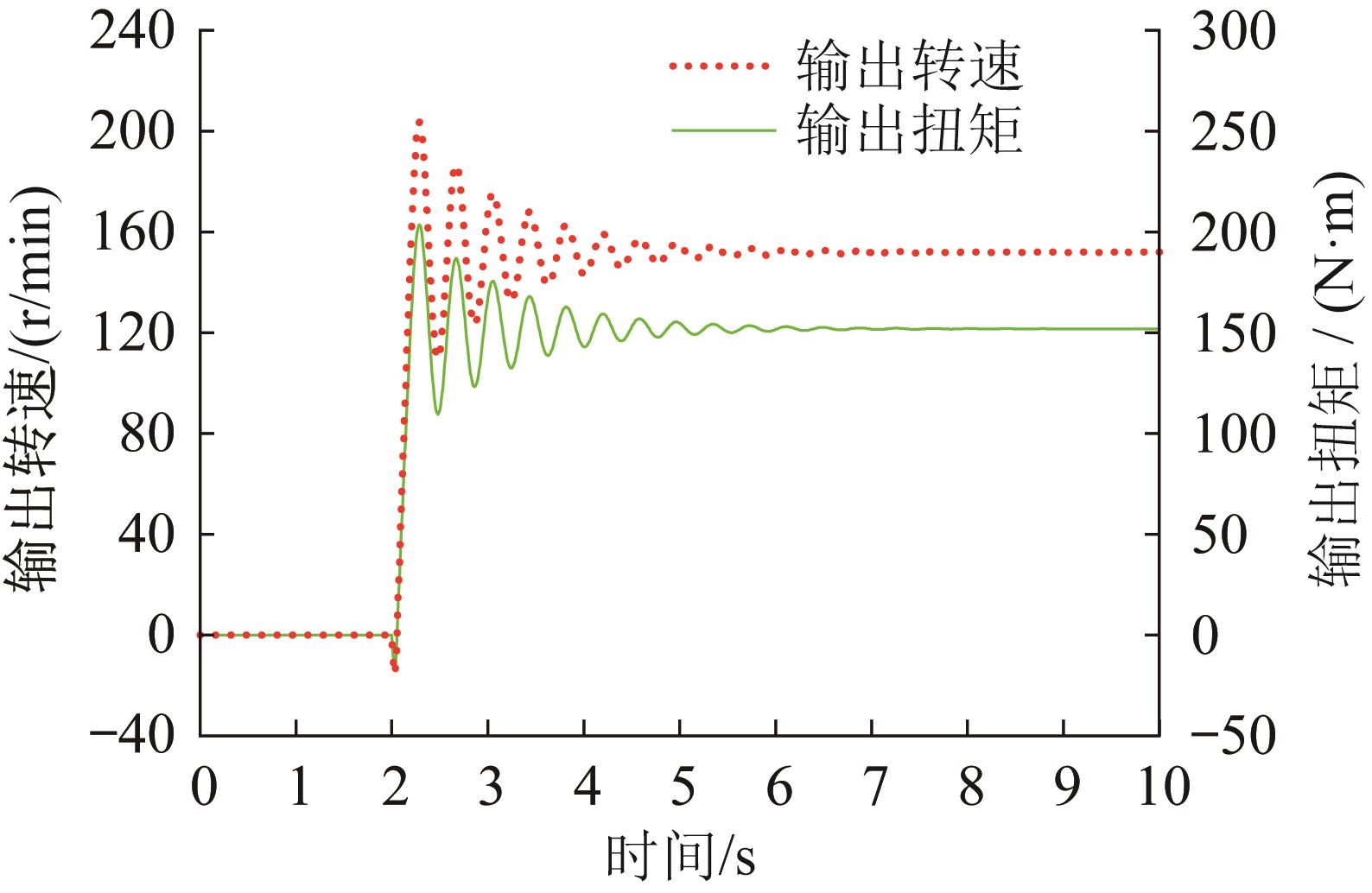

Fig.12 Output speed and output torque curves of hydraulic motor driving second-stage lifting chain

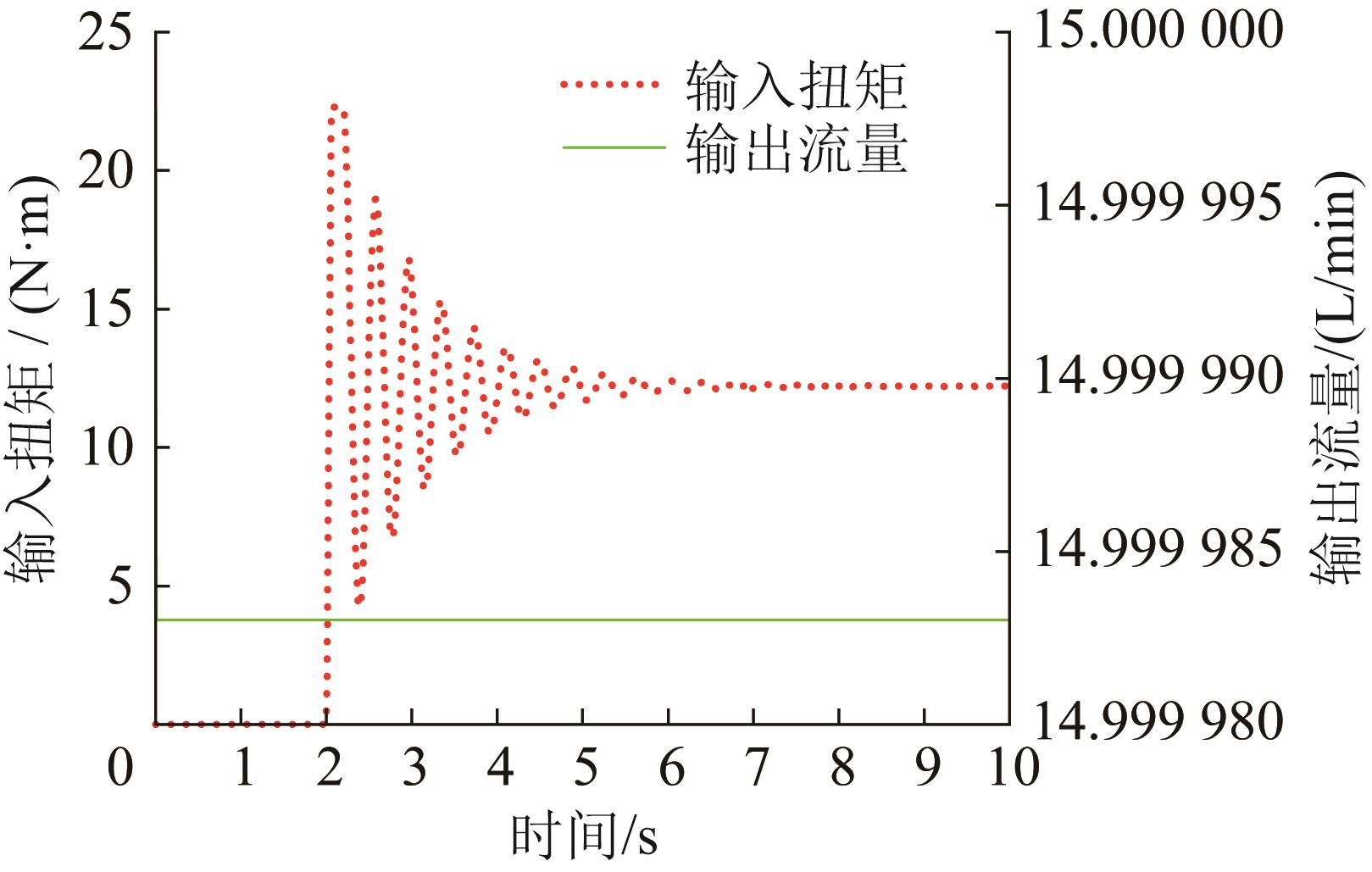

Fig.13 Input torque and output flow curves of hydraulic pump driving lifting device

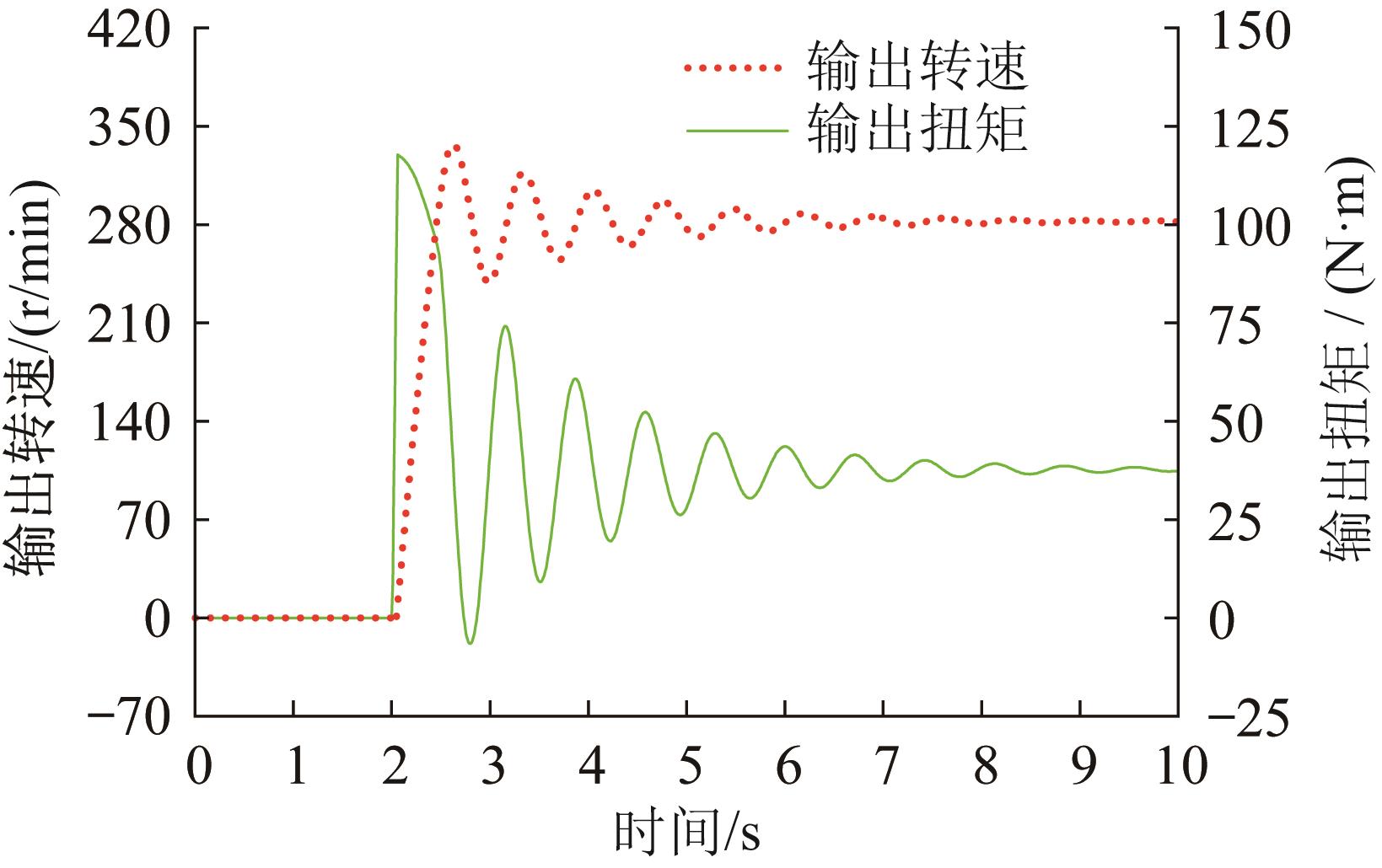

Fig.14 Output speed and output torque curves of hydraulic motor driving lifting device

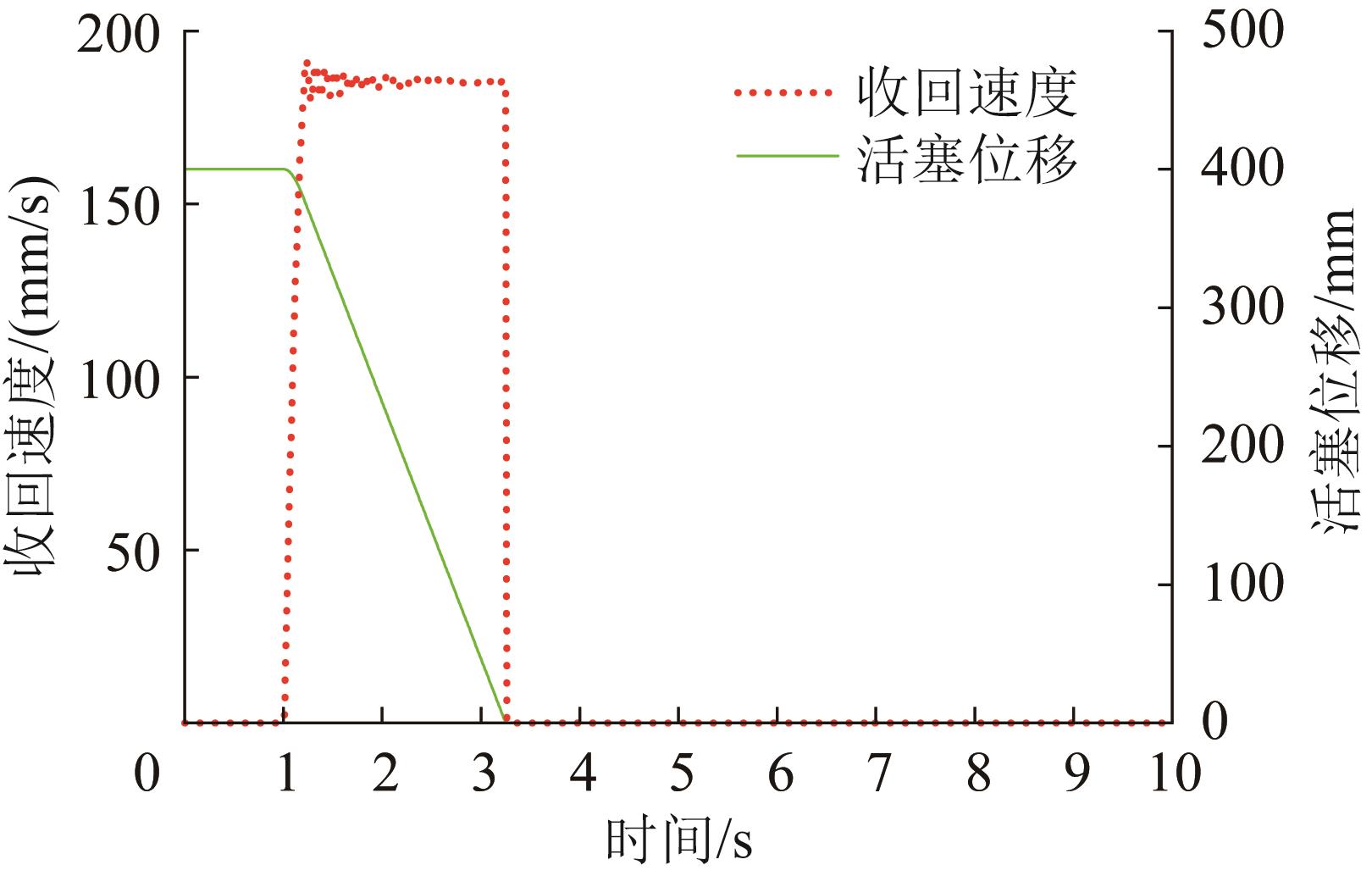

Fig.15 Retraction speed and displacement curves of lifting hydraulic cylinder

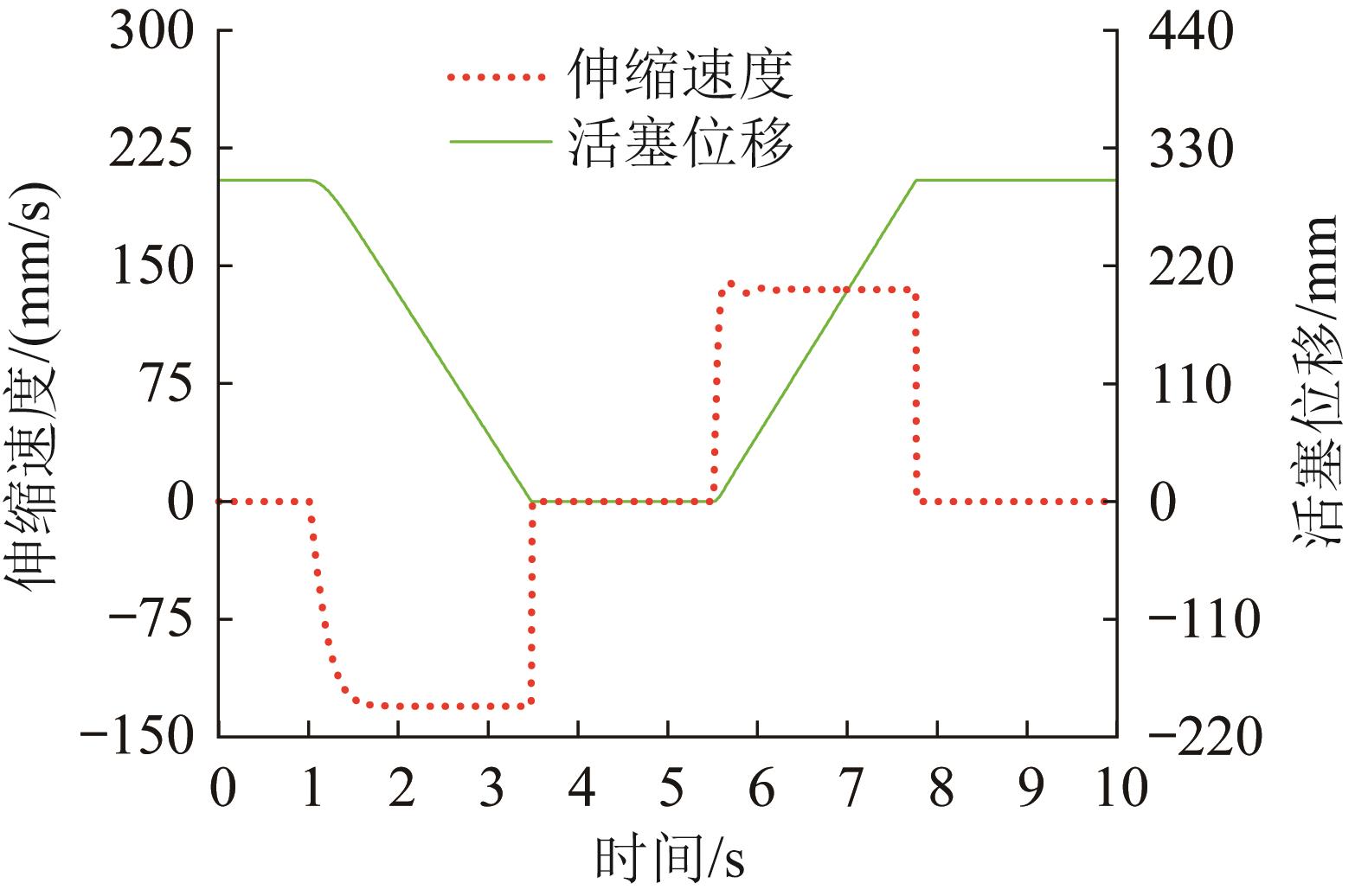

Fig.16 Telescopic speed and displacement curves of inclination angle adjustment hydraulic cylinder

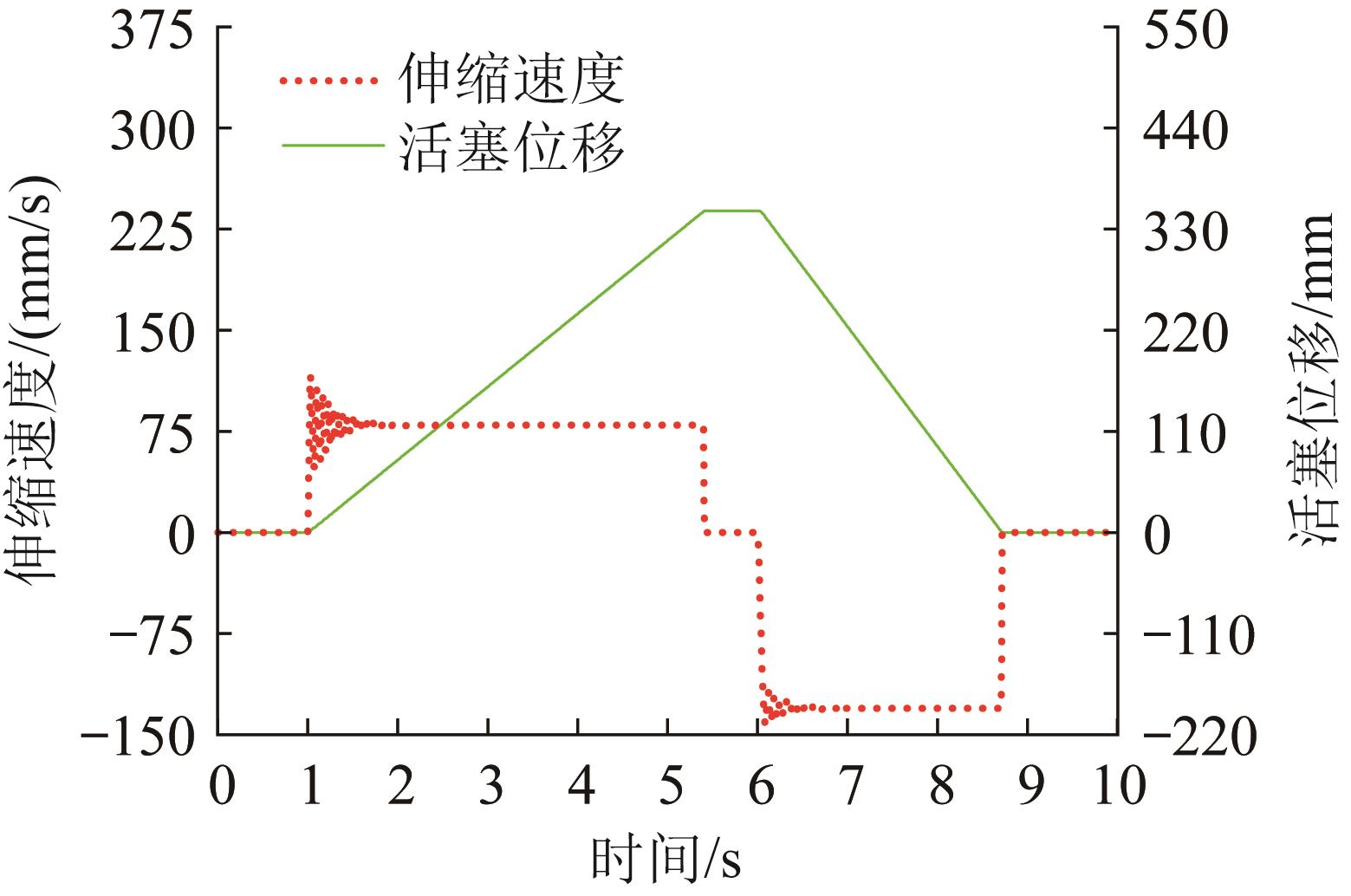

Fig.17 Telescopic speed and displacement curves of dumping hydraulic cylinder

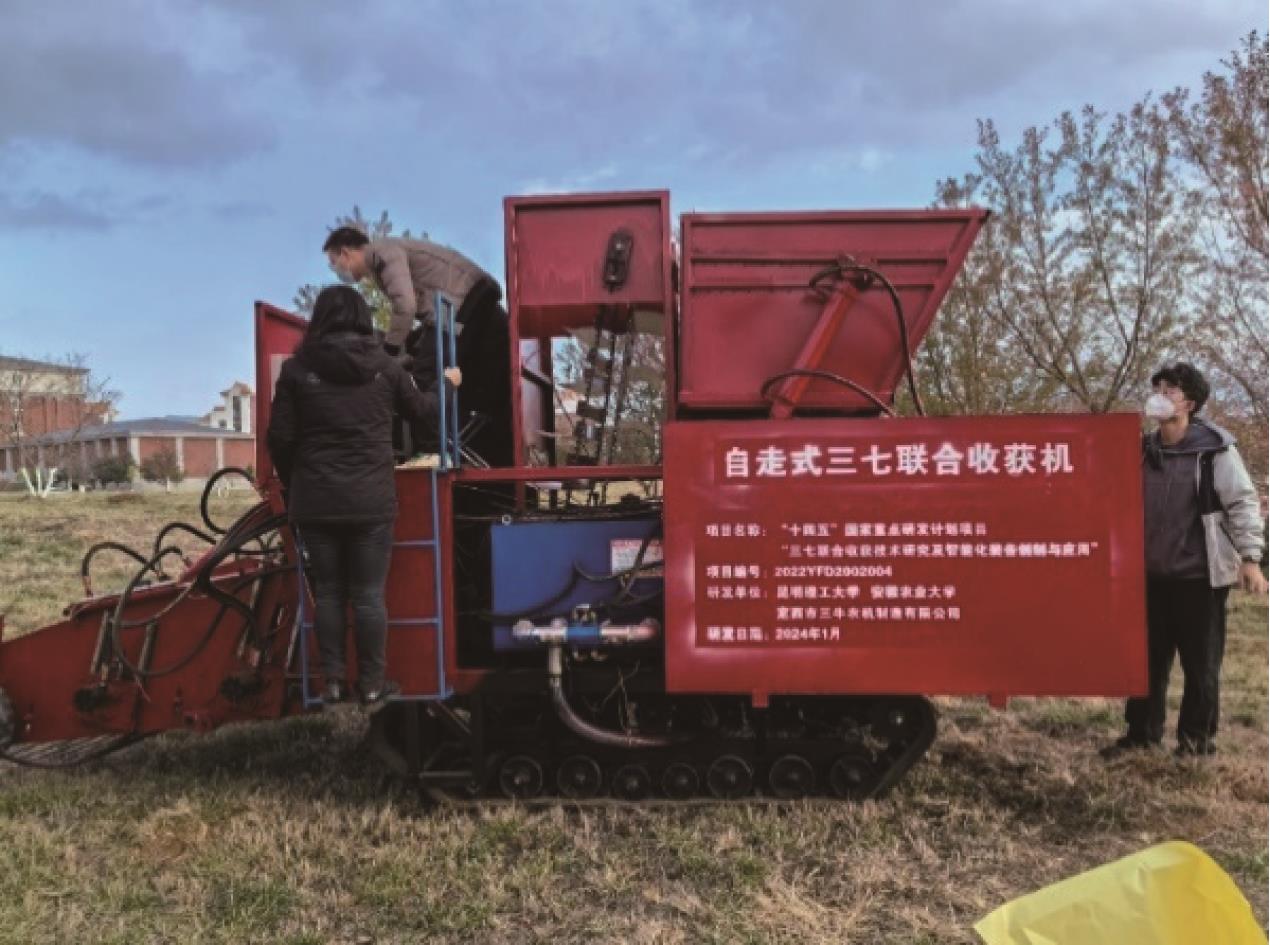

Fig.18 Test site of self-propelled Panax notoginseng combine harvester

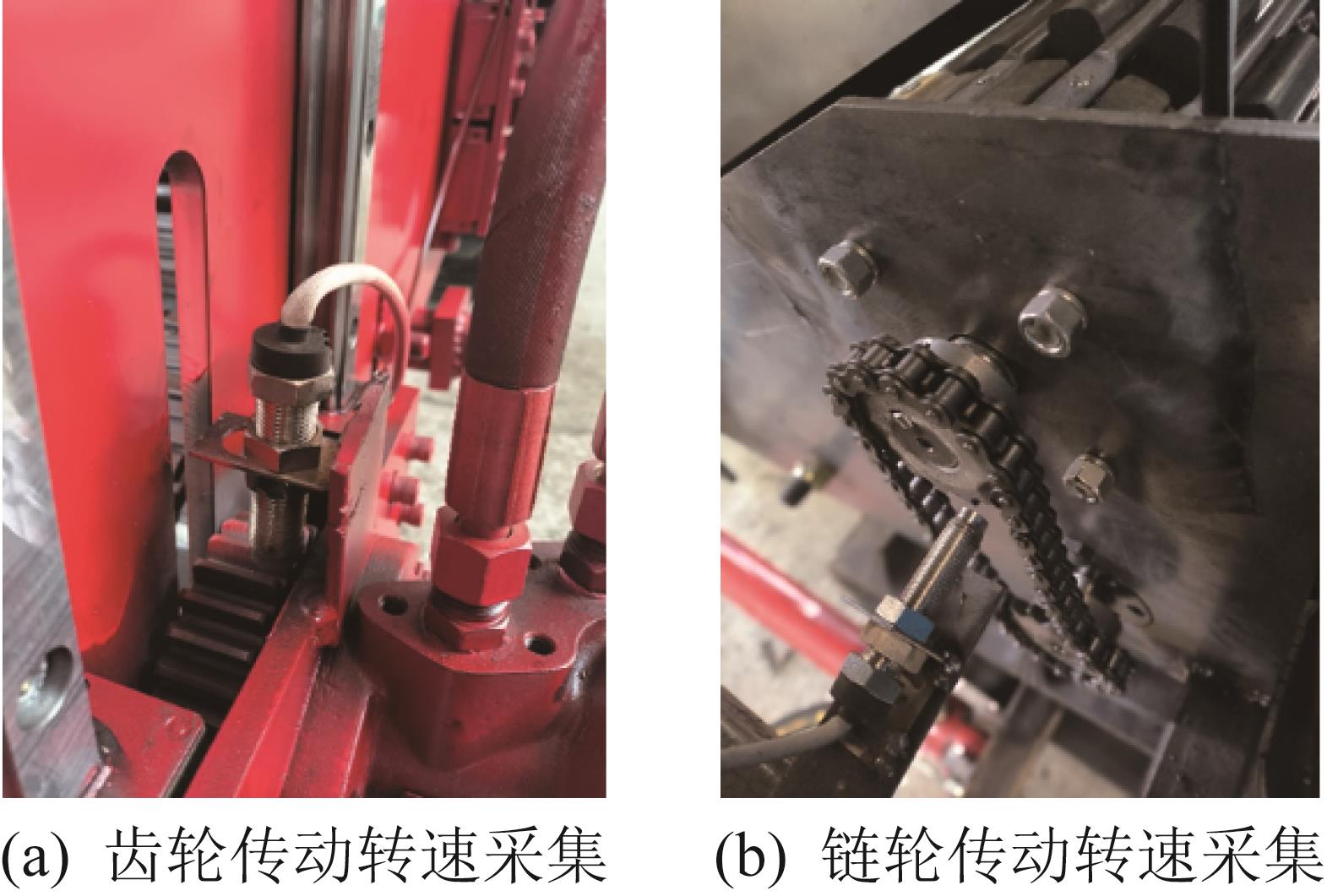

Fig.19 Speed acquisition method for hydraulic motor

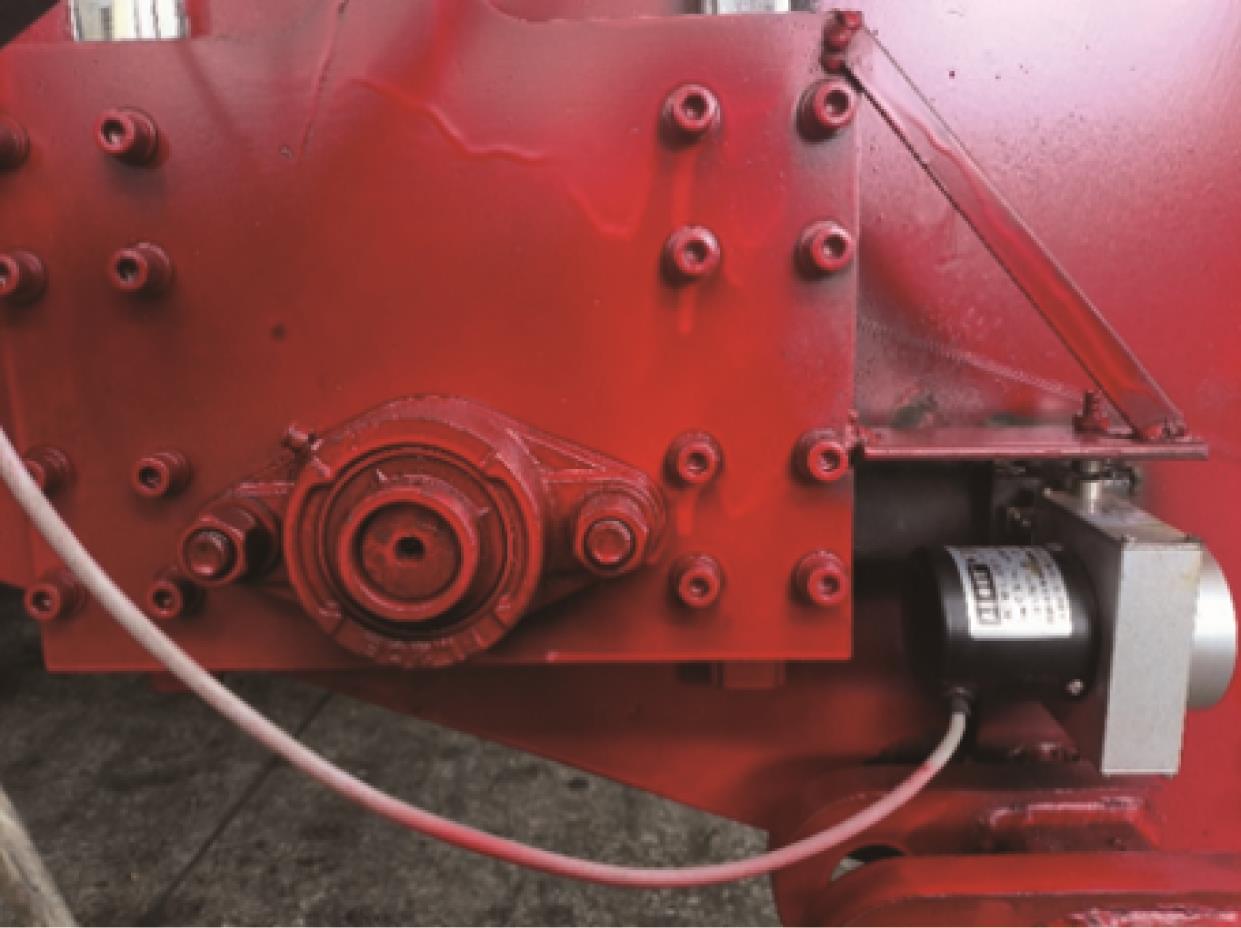

Fig.20 Displacement acquisition method for hydraulic cylinder
试验序号一级升运链驱动液压马达振动轮驱动液压马达二级升运链驱动液压马达提升装置驱动液压马达
平均值115.97117.54140.58265.20
1117.16114.84144.69258.76
2115.82116.79140.57267.92
3116.63120.08137.82270.34
4114.89117.53138.03266.34
5115.34118.47141.78262.66
Table 4 Test results of maximum speed of hydraulic motor
试验序号收回位移/mm收回时间/s收回速度/(mm/s)同步偏差/mm锁止偏差/mm
平均值393.172.22177.272.471.34
1392.452.21177.582.541.30
2396.622.26175.502.271.41
3390.272.19178.212.611.26
4393.952.22177.452.441.38
5392.572.21177.632.491.33
Table 5 Working performance test results of lifting hydraulic cylinder under retracted state
试验序号收回位移/mm收回时间/s收回速度/(mm/s)同步偏差/mm锁止偏差/mm
平均值291.332.39121.833.381.92
1290.102.37122.413.251.83
2292.952.44120.063.561.99
3288.512.32124.362.911.79
4293.262.45119.703.672.06
5291.832.38122.623.491.91
Table 6 Working performance test results of inclination angle adjustment hydraulic cylinder under retracted state
试验序号伸出位移/mm伸出速度/(mm/s)

伸出同步

偏差/mm

伸出锁止

偏差/mm

收回位移/mm收回速度/(mm/s)

收回同步

偏差/mm

收回锁止

偏差/mm

平均值341.5374.251.911.02340.95123.272.121.13
1341.2274.501.881.02340.82123.042.101.11
2340.6374.051.850.95339.56123.932.071.08
3338.9474.661.840.93343.98122.412.051.04
4344.2573.872.031.13338.54124.012.241.25
5342.6274.161.961.09341.85122.972.151.16
Table 7 Working performance test results of dumping hydraulic cylinder
