Journal of ZheJiang University (Engineering Science)  2022, Vol. 56 Issue (4): 764-774    DOI: 10.3785/j.issn.1008-973X.2022.04.016
Water extraction from unmanned aerial vehicle remote sensing images
Yan BIAN(),Yu-sheng GONG*(),Guo-peng MA,Chang WANG
School of Civil Engineering, University of Science and Technology Liaoning, Anshan 114051, China
Download: HTML     PDF(1839KB) HTML
Export: BibTeX | EndNote (RIS)


A new method named automatic segmentation (AUCSN), which combines edge detection algorithm with the object-oriented method, was proposed in order to solve the problems such as noise interference, spectral confusion, segmentation scale error, and water index unavailable which happen in water extraction from unmanned aerial vehicle (UAV) images. An anisotropic diffusion filtering algorithm was used to denoise the image. The Canny edge detection operator was used to extract the edge of the denoised image, and the extraction results were reconstructed with the denoised image. Then an improved absolute mean difference variance ratio method was used to select the optimal segmentation scale for the reconstructed image to conduct multi-scale segmentation. A model combined with the spectral, morphological, and texture feature of the water object was established in order to coarsely extract water objects from the segmented image. The morphological closed operation was used to fill the holes of the coarse extraction results, realizing water extraction. Results show that the AUCSN method can improve the extraction efficiency and the extraction accuracy can reach 96%.

Key wordsunmanned aerial vehicle image      denoising      Canny      multi-scale segmentation      feature extraction      morphology
Received: 09 May 2021      Published: 24 April 2022
CLC:  TP 75
Fund:  国家自然科学基金青年科学基金资助项目(41801294);武汉大学测绘遥感信息工程国家重点实验室珞珈一号特别开放研究基金资助项目(18T07)
Corresponding Authors: Yu-sheng GONG     E-mail:;
Cite this article:

Yan BIAN,Yu-sheng GONG,Guo-peng MA,Chang WANG. Water extraction from unmanned aerial vehicle remote sensing images. Journal of ZheJiang University (Engineering Science), 2022, 56(4): 764-774.

URL:     OR


针对无人机(UAV)影像水体提取出现的噪声干扰、光谱混淆、分割尺度难把握、无法使用水体指数等问题,提出边缘检测算法结合面向对象方法的新水体提取方法(AUCSN). 采用各向扩散滤波算法对影像去噪;采用Canny边缘检测算子对去噪后影像进行边缘提取,提取结果与去噪后影像进行波段重组,利用改进的邻域绝对均值差分方差比法对重组影像选取最优分割尺度,开展多尺度分割. 结合水体对象的光谱、形态、纹理特征建立模型,对分割后影像实现水体粗提取. 将粗提取结果利用形态学闭运算填充孔洞,实现水体提取. 实验结果表明,采用AUCSN方法进行水体提取,不仅提高了提取效率,而且提取精度能够达到96%.

关键词: 无人机影像,  去噪,  Canny,  多尺度分割,  特征提取,  形态学
Fig.1 Experimental data of UAV remote sensing images

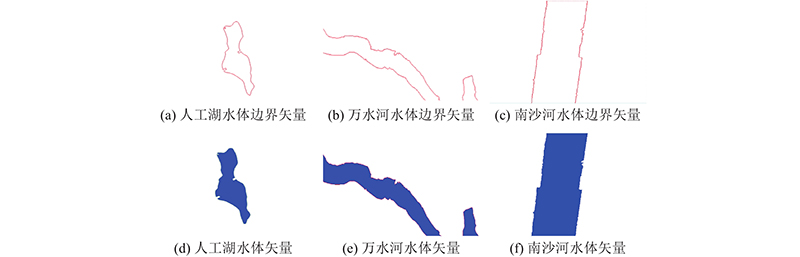

Fig.2 Reference images of water vector information in study area

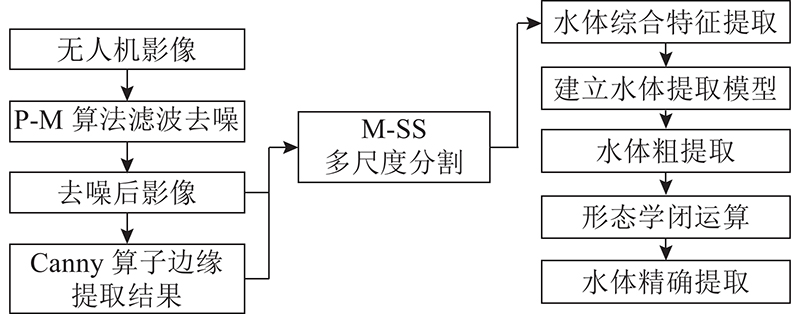

Fig.3 Flow chart of AUCSN water extraction method

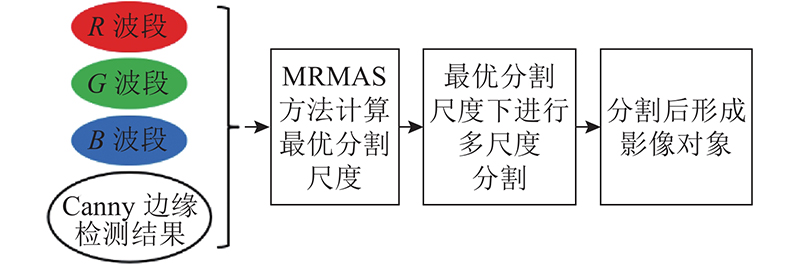

Fig.4 Flow chart of M-SS multi-scale segmentation method

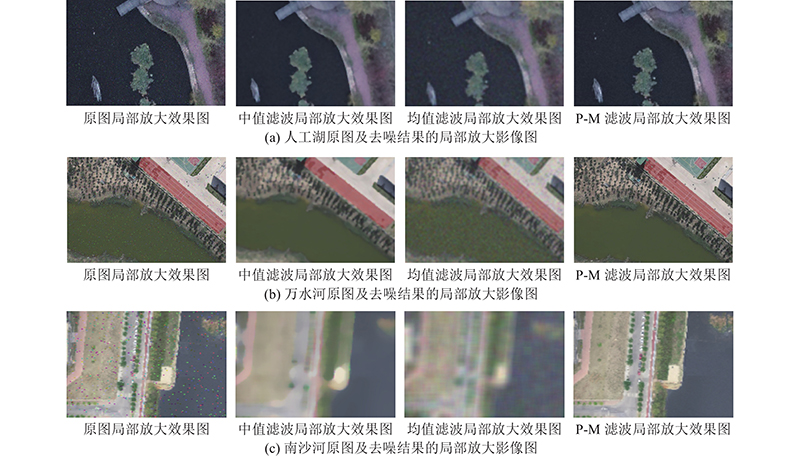

Fig.5 Partially magnified images of denoising effect of experimental data
去噪方法 SSIM
人工湖 万水河 南沙河
中值滤波 0.863 0.795 0.758
均值滤波 0.754 0.731 0.715
P-M滤波 0.976 0.953 0.981
Tab.1 SSIM before and after PSNR of images before and after denoising by three denoising methods
去噪方法 PSNR/dB
人工湖 万水河 南沙河
中值滤波 36.258 35.976 35.683
均值滤波 33.684 35.976 35.541
P-M滤波 38.419 39.186 39.232
Tab.2 PSNR of images before and after denoising by three denoising methods
Fig.6 Edge detection results are superimposed with hand-drawn boundary vectors and their locally magnified images

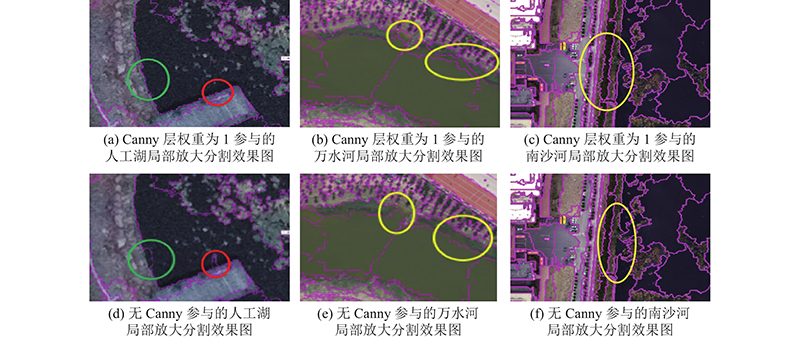

Fig.7 Segmentation renderings with or without Canny
Fig.8 Segmentation renderings with different weights of Canny layer
方法 t/s
人工湖 万水河 南沙河
有Canny参与 54.28 9.73 16.76
无Canny参与 95.36 16.06 27.17
Tab.3 Time consumption with or without Canny involved in multi-scale segmentation
实验区域 M n r μ
人工湖 ≤930 ≥580 ≥2 ≤50
万水河 ≤840 ≥760 ≥15 ≤45
南沙河 ≤820 ≥660 ≥9 ≤41
Tab.4 Threshold setting for AUCSN method

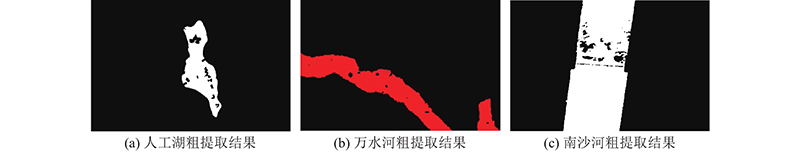

Fig.9 Results of crude extraction of water in study area

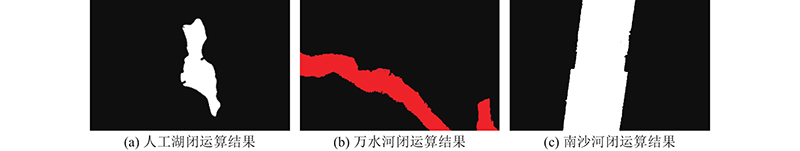

Fig.10 Results of closed operation processing in research area
Fig.11 Results of water extraction by different methods
实验区域 实验方法 P/% Q/% R/% t/s
人工湖 AUCSN方法 96.34 3.66 2.31 87.32
人工湖 无Canny-AUCSN方法 90.46 9.54 11.98 120.67
人工湖 K-Mean方法 85.46 14.54 18.32 53.13
人工湖 文献[12]方法 90.12 9.88 6.43 150.76
万水河 AUCSN方法 97.62 2.38 1.02 39.43
万水河 无Canny-AUCSN方法 89.03 10.97 9.65 59.31
万水河 K-Mean方法 86.62 13.38 26.85 30.11
万水河 文献[12]方法 88.86 11.14 7.85 80.19
南沙河 AUCSN方法 97.47 2.53 1.84 49.65
南沙河 无Canny-AUCSN方法 86.91 4.87 5.89 68.83
南沙河 K-Mean方法 85.73 14.27 9.01 38.74
南沙河 文献[12]方法 87.66 12.34 8.98 95.66
Tab.5 Statistical table of water extraction accuracy and operating efficiency
