Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (10): 1847-1855    DOI: 10.3785/j.issn.1008-973X.2021.10.006

Building boundary optimization method based on object-oriented contour constraint GGVF Snake model
Jing-xin CHANG1(),Xian-jun GAO1,2,*(),Yuan-wei YANG1,Shao-hua LI1,Ping WANG3,4
1. School of Geosciences, Yangtze University, Wuhan 430100, China
2. State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
3. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China
4. Key Laboratory of Earth Observation of Hainan Province, Sanya 572029, China
Download: HTML     PDF(1548KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An object-oriented contour constrained generalized gradient vector flow (GGVF) Snake model for building boundary optimization method was proposed by analyzing the features of buildings and the problems of conventional methods that the irregular boundary problem caused by false classification is pervasive. Each building boundary was automatically extracted as the initial boundary of GGVF Snake based on the initial building results obtained by classification. The circumscribed rectangle of each building boundary was obtained for object clipping in order to extract each building sub-image object. Canny edge detection was performed on each sub-image object to acquire each building boundary result that will be combined with Hough transform to extract linear features. Then the linear features were inputted into the generalized gradient vector flow model’s iterative solution to minimize the energy function. Then the precise of the object-level building contour was enhanced. The experimental results show that the proposed method can automatically obtain the initial building boundary information and improve the automation degree of optimization. The object-level contour detection and the addition of line features help GGVF Snake quickly fit and accurately smooth the building boundary to enhance the contour accuracy. The overall accuracy and comprehensive value of the proposed method are improved compared with other contour optimization methods. Thus the method can be used as an effective post-processing optimization method for the classification principle to improve the building extraction precision.



Key wordshigh-resolution remote sensing image      building extraction      GGVF Snake      Hough transform      Canny operator      contour optimization
Received: 20 November 2020      Published: 27 October 2021
CLC:  TP 753
Fund:  国家自然科学基金资助项目(41872129);自然资源部地理国情监测重点实验室开放基金资助项目(2020NGCM07);武汉大学测绘遥感信息工程国家重点实验室开放基金资助项目(18R04);海南省地球观测重点实验室开放基金资助项目(2020LDE001)
Corresponding Authors: Xian-jun GAO     E-mail: 201500671@yangtzeu.edu.cn;junxgao@yangtzeu.edu.cn
Cite this article:

Jing-xin CHANG,Xian-jun GAO,Yuan-wei YANG,Shao-hua LI,Ping WANG. Building boundary optimization method based on object-oriented contour constraint GGVF Snake model. Journal of ZheJiang University (Engineering Science), 2021, 55(10): 1847-1855.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.10.006     OR     https://www.zjujournals.com/eng/Y2021/V55/I10/1847


面向对象轮廓约束GGVF Snake的建筑物边界优化方法

分析高分辨率遥感影像中建筑物的特征和常用方法提取建筑物存在边界漏检误检导致的边界不规则等问题,提出面向对象轮廓约束广义梯度矢量流(GGVF)Snake模型的建筑物边界优化方法. 在利用分类法获取建筑物轮廓的初始结果基础上,自动提取每个建筑物轮廓线作为GGVF Snake的初始轮廓线,获取各轮廓外接矩形进行对象裁剪,提取每个建筑物的子图对象. 对每个子图对象进行Canny边缘检测,结合Hough变换提取直线特征,输入到广义梯度矢量流模型的迭代求解中快速最小化能量函数,实现对象级建筑物轮廓的精确优化. 实验结果表明,利用提出的方法能够自动获取初始建筑物的轮廓信息,提高优化的自动化程度;基于对象级的边缘检测与直线特征的加入,有助于GGVF Snake快速拟合,准确地平滑建筑物边缘且准确度高. 相对于其他对比方法,本文方法的轮廓优化总体精度和综合值均有提升,可以作为有效提升分类原理获取的建筑物轮廓的优化后处理手段,提高了建筑物提取的精度.


关键词: 高分辨率遥感影像,  建筑物提取,  GGVF Snake,  Hough变换,  Canny算子,  轮廓优化
Fig.1 Example with intermediate results of proposed method

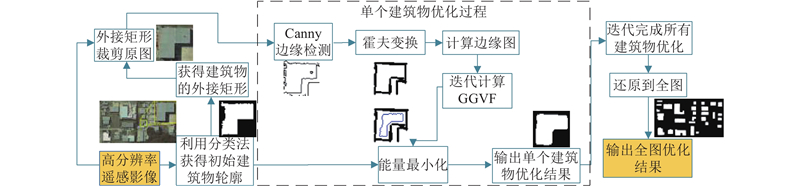

Fig.2 Flow chart of proposed building outline optimization algorithm

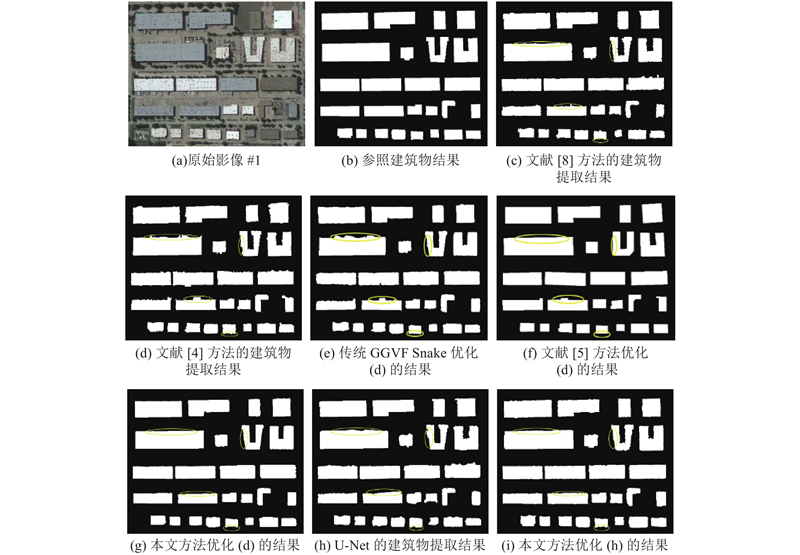

Fig.3 Comparison of building outline optimization methods for image #1

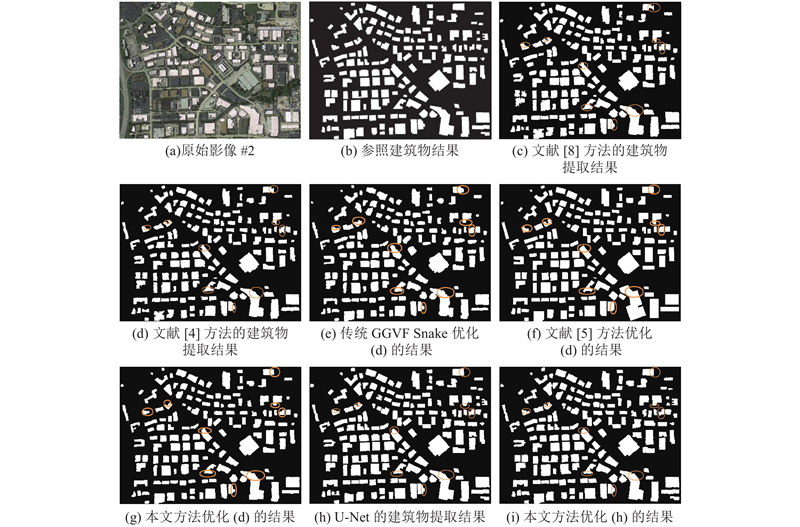

Fig.4 Comparison of building outline optimization methods for image #2
Fig.5 Comparison of building outline optimization methods for image #3
影像编号 对比方法 CM/% CR/% F1/% OA/% CA/%
#1 文献[8]的建筑物提取结果 92.54 98.83 95.58 91.54 15.54
#1 文献[4]的建筑物提取结果 94.82 95.67 95.24 90.93 19.10
#1 传统GGVF Snake优化文献[4]的结果 94.11 97.69 95.87 92.07 24.30
#1 文献[5]优化文献[4]的结果 94.63 96.82 95.71 91.78 23.86
#1 本文方法优化文献[4]的结果 95.81 98.88 97.32 94.78 29.81
#1 U-Net神经网络提取结果 94.85 96.26 95.55 91.49 16.16
#1 本文方法优化U-Net结果 99.36 96.06 97.68 95.47 41.49
#2 文献[8]的建筑物提取结果 89.64 90.73 90.18 82.11 23.73
#2 文献[4]的建筑物提取结果 85.44 93.98 89.50 81.00 17.47
#2 传统GGVF Snake优化文献[4]的结果 85.53 92.20 88.74 79.76 18.11
#2 文献[5]优化文献[4]的结果 88.60 88.06 88.33 79.10 17.52
#2 本文方法优化文献[4]的结果 87.02 96.41 91.47 84.29 19.65
#2 U-Net神经网络提取结果 97.98 92.29 95.05 90.57 17.33
#2 本文方法优化U-Net结果 97.82 93.00 95.35 91.12 38.61
#3 文献[8]的建筑物提取结果 81.89 97.34 88.95 80.10 9.14
#3 文献[4]的建筑物提取结果 79.77 99.31 88.48 79.34 8.90
#3 传统GGVF Snake优化文献[4]的结果 86.41 98.64 92.12 85.40 19.90
#3 文献[5]优化文献[4]的结果 91.36 92.83 92.09 85.34 20.76
#3 本文方法优化文献[4]的结果 98.46 94.72 96.55 93.34 38.06
#3 U-Net神经网络提取结果 82.56 96.78 89.10 80.35 12.05
#3 本文方法优化U-Net结果 86.78 96.96 91.58 84.48 20.01
Tab.1 Objective evaluation of different detection results of Fig.3-5

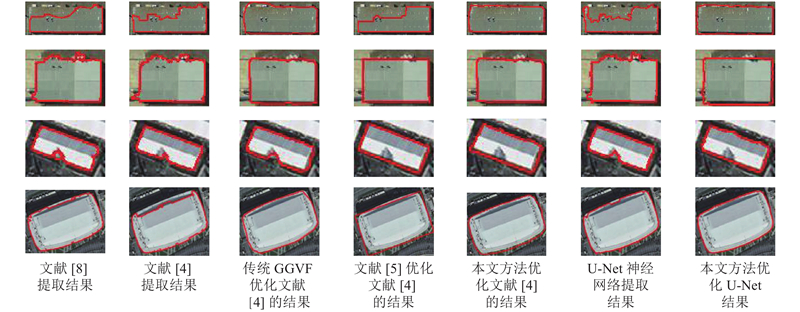

Fig.6 Comparison of optimization results by using different methods for single building
Fig.7 Accuracy comparison of data sets
方法 t /s
影像#1 影像#2 影像#3
传统GGVF Snake 35.21 548.32 465.34
文献[5]方法 3.92 216.45 145.08
本文方法 3.35 75.56 68.45
Tab.2 Efficiency comparison of three optimization methods
