Effects of erosion method and environment on mechanical properties of solidified soft soil
Jun HE1,2(),Sihao LONG1,Yuanjun ZHU1,Shiru LUO1
1. School of Civil Engineering, Architectural and Environment, Hubei University of Technology, Wuhan 430068, China 2. Key Laboratory of Health Intelligent Perception and Ecological Restoration of River and Lake, Ministry of Education, Hubei University of Technology, Wuhan 430068, China
Soda residue (SR)-ground granulated blast furnace slag (GGBS)-carbide slag (CS) and cement were used as solidifiers of soft soil. Different erosion environments (Na2SO4, MgSO4 and seawater) and erosion modes (full immersion, semi-immersion and soil erosion) were set up. Unconfined compressive strength, X-ray diffraction and scanning electron microscope tests were carried out to study the effects of solidifier, erosion mode and environment on the erosion resistance of the solidified soft soil. Results showed that, under the same erosion mode and environment, the integrity and the strength of SR-GGBS-CS solidified soft soil were greater than those of cement-solidified soft soil. The samples in MgSO4 environment were seriously damaged and the strength values were the lowest. The integrity and the strength of cement-solidified soft soil in the semi-immersion mode were better than those in the full-immersion mode. Although the appearance of SR-GGBS-CS solidified soft soil was relatively complete in the semi-immersion mode, the strength in the semi-immersion mode was lower than that in the full-immersion mode. The strength of solidified soft soil was high in soil erosion mode. A large amount of thaumasite was generated in the soaking area of cement-solidified soft soil, contributing to its lowest strength in the full-immersion mode. As for SR-GGBS-CS solidified soft soil, more thaumasite generation and salt crystallization in the non-immersed zone resulted in the lowest strength in the semi-immersion mode. The semi-immersion became the most dangerous erosion mode for SR-GGBS-CS solidified soft soil.
Jun HE,Sihao LONG,Yuanjun ZHU,Shiru LUO. Effects of erosion method and environment on mechanical properties of solidified soft soil. Journal of ZheJiang University (Engineering Science), 2024, 58(9): 1857-1865.

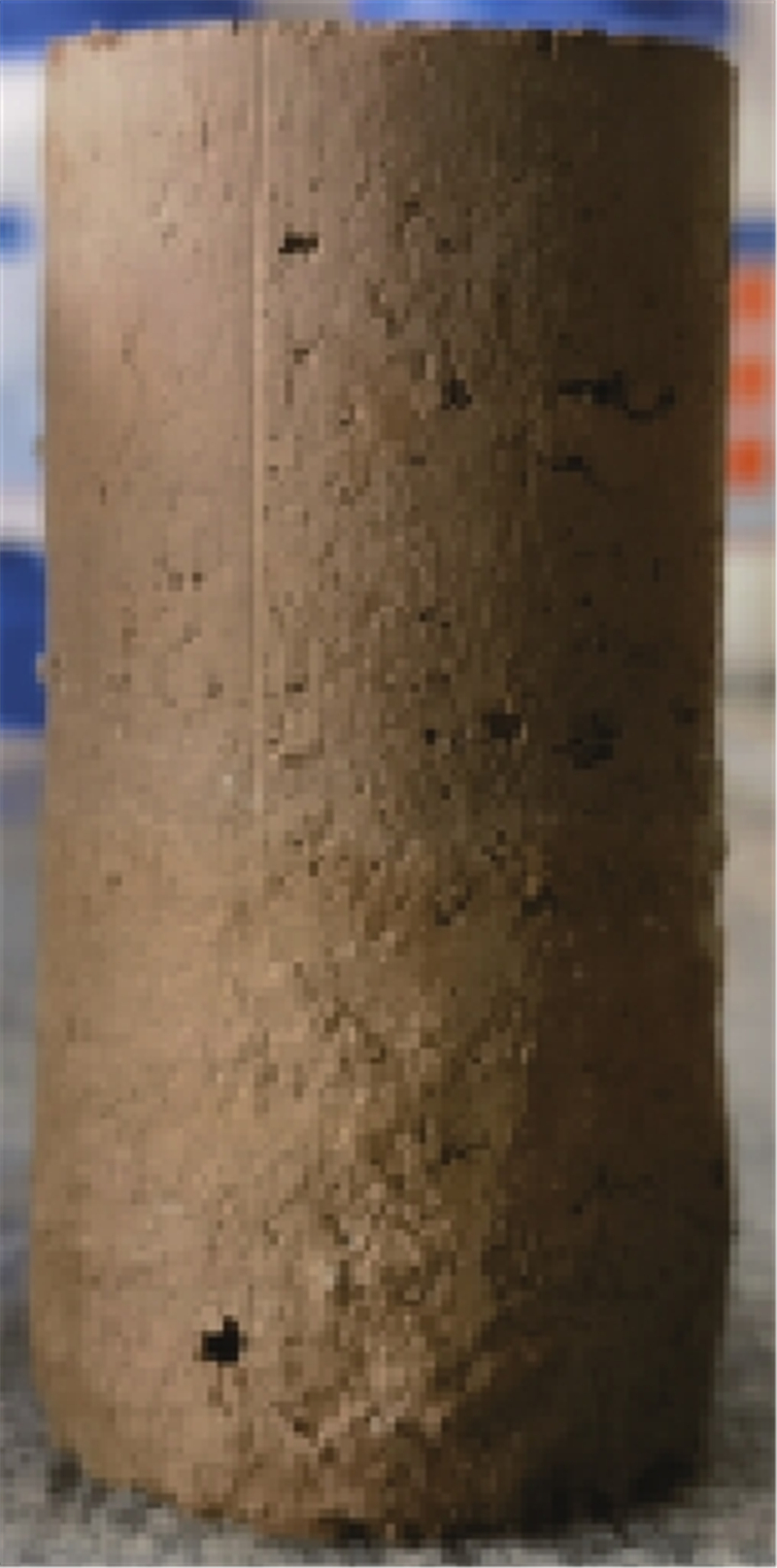

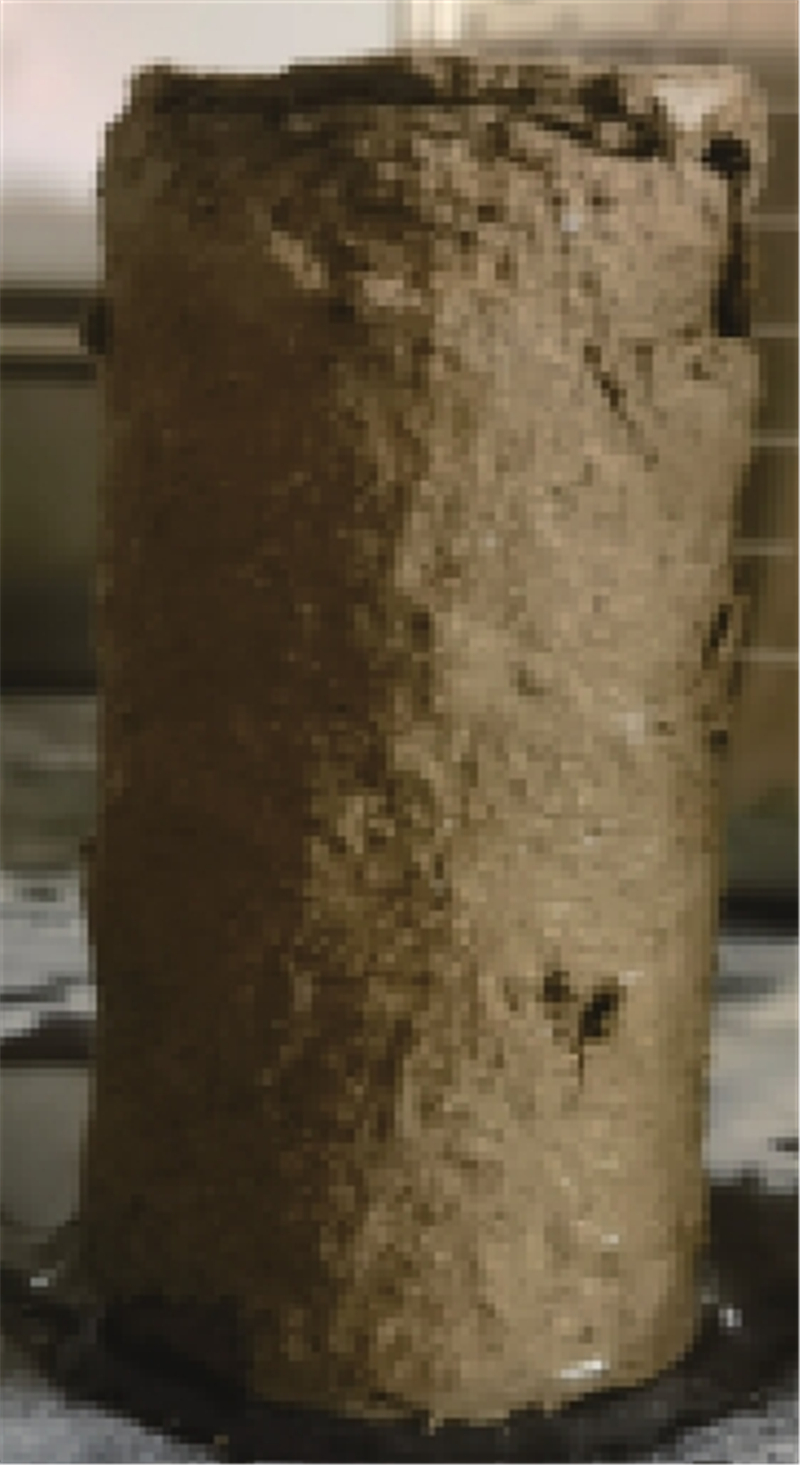

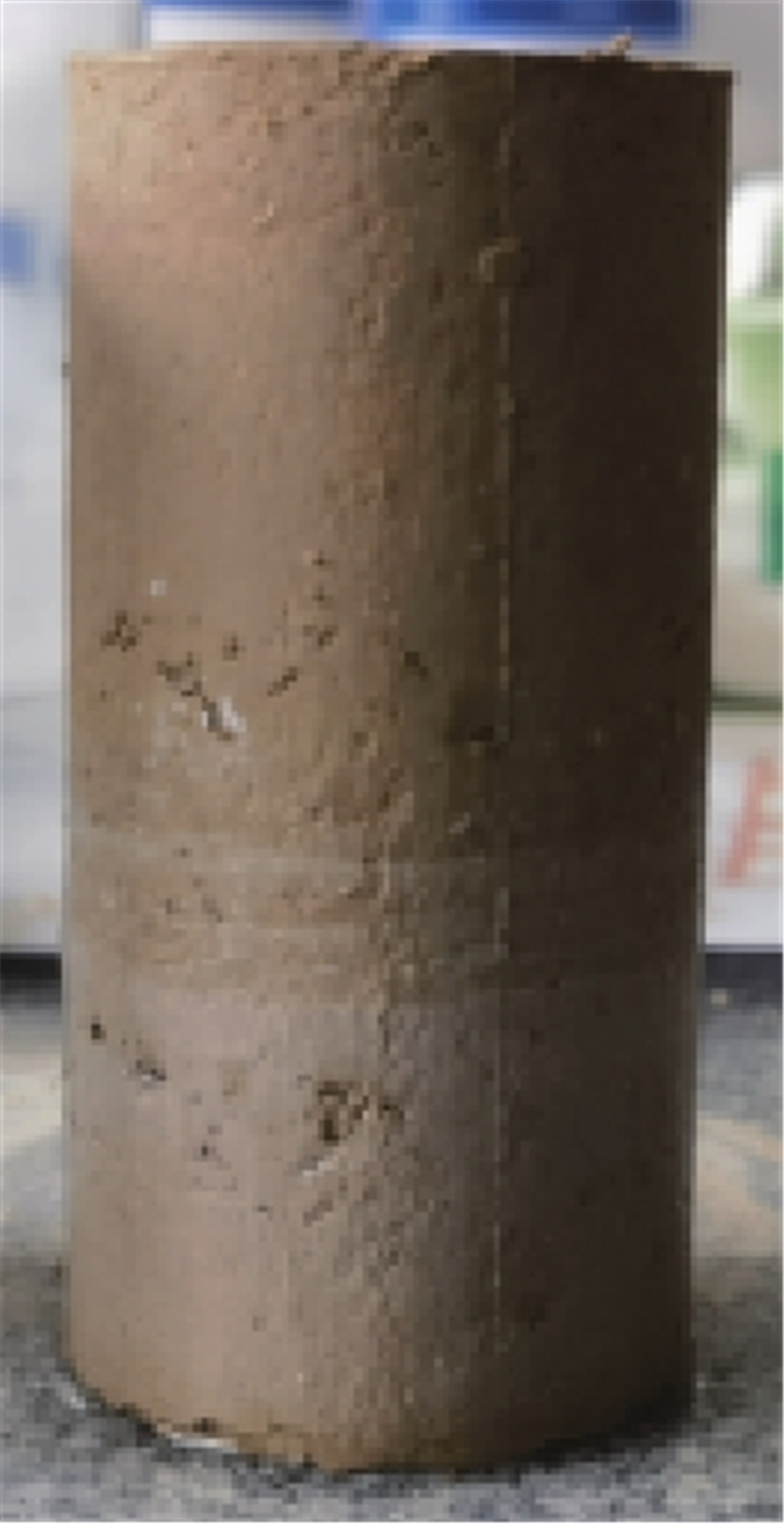

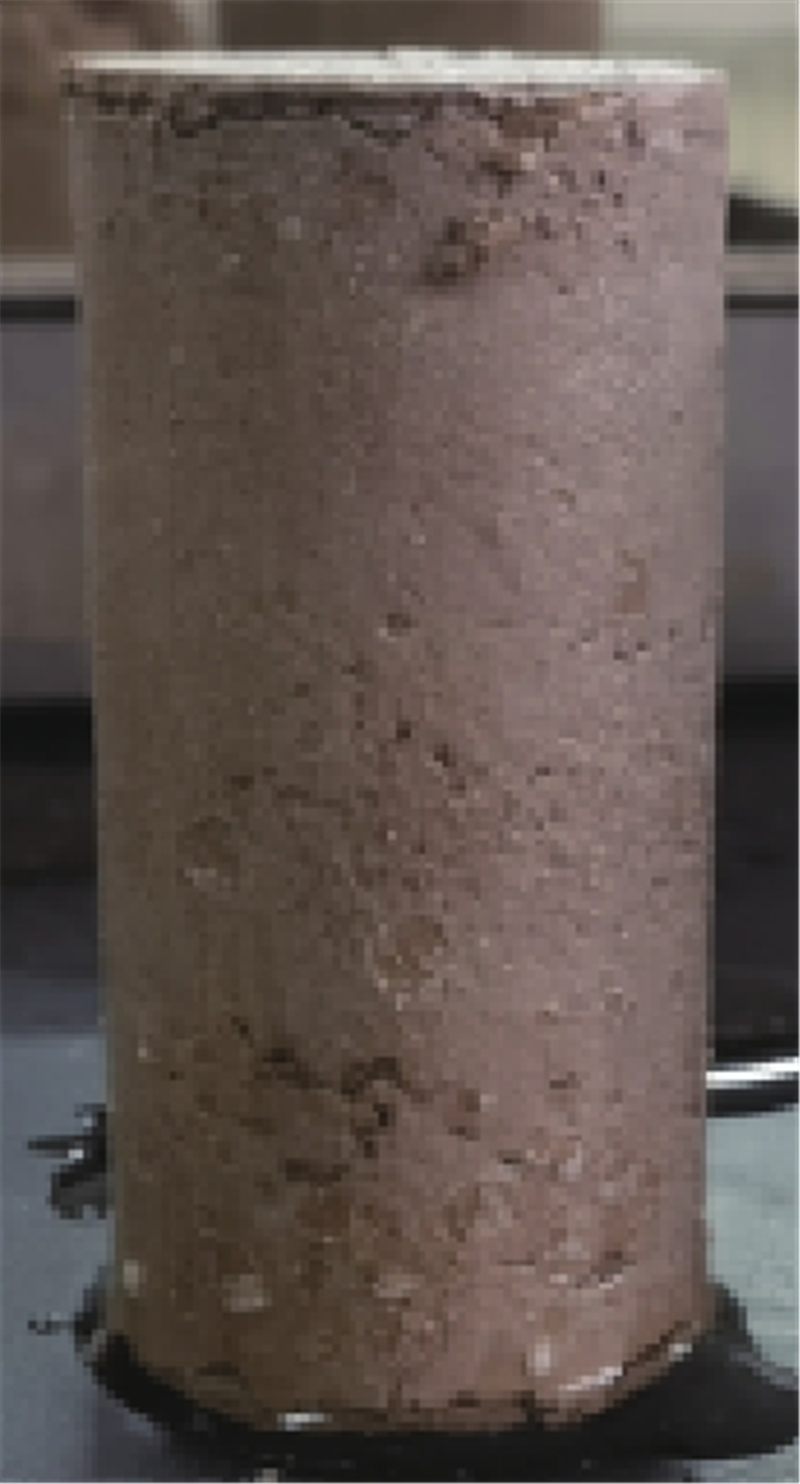

Tab.2Appearance of samples after 28 days erosion under different erosion methods and environments

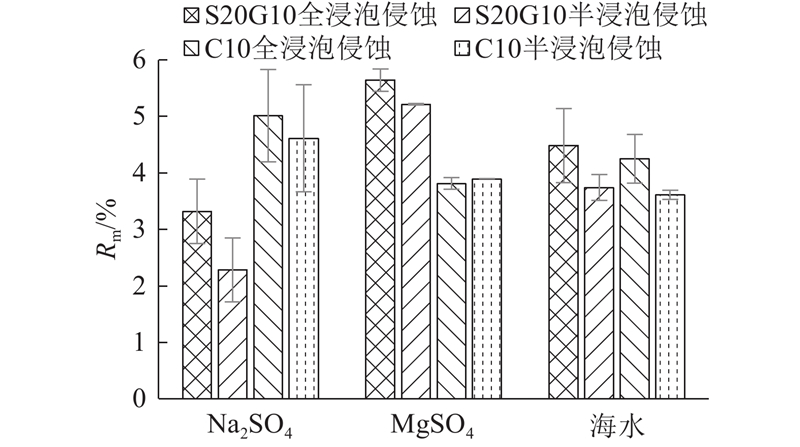

Fig.2Effect of erosion mode and solution on mass of solidified soft soil

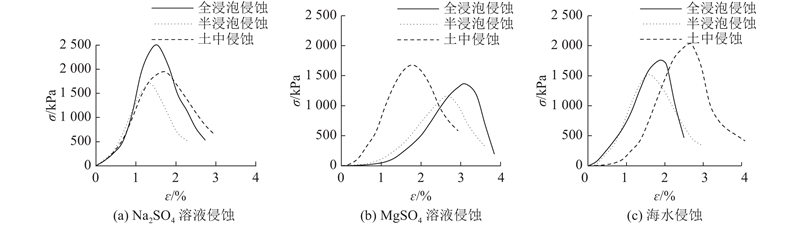

Fig.3Stress-strain curve for sample S20G10 under different erosion methods and environments

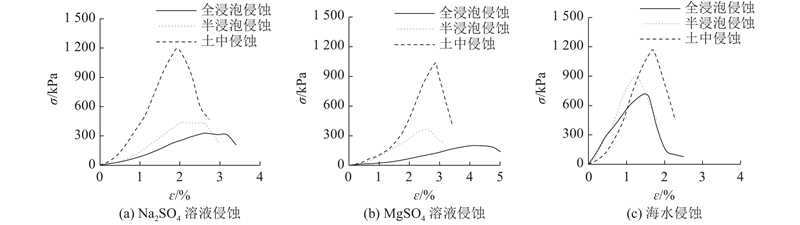

Fig.4Stress-strain curve for sample C10 under different erosion methods and environments

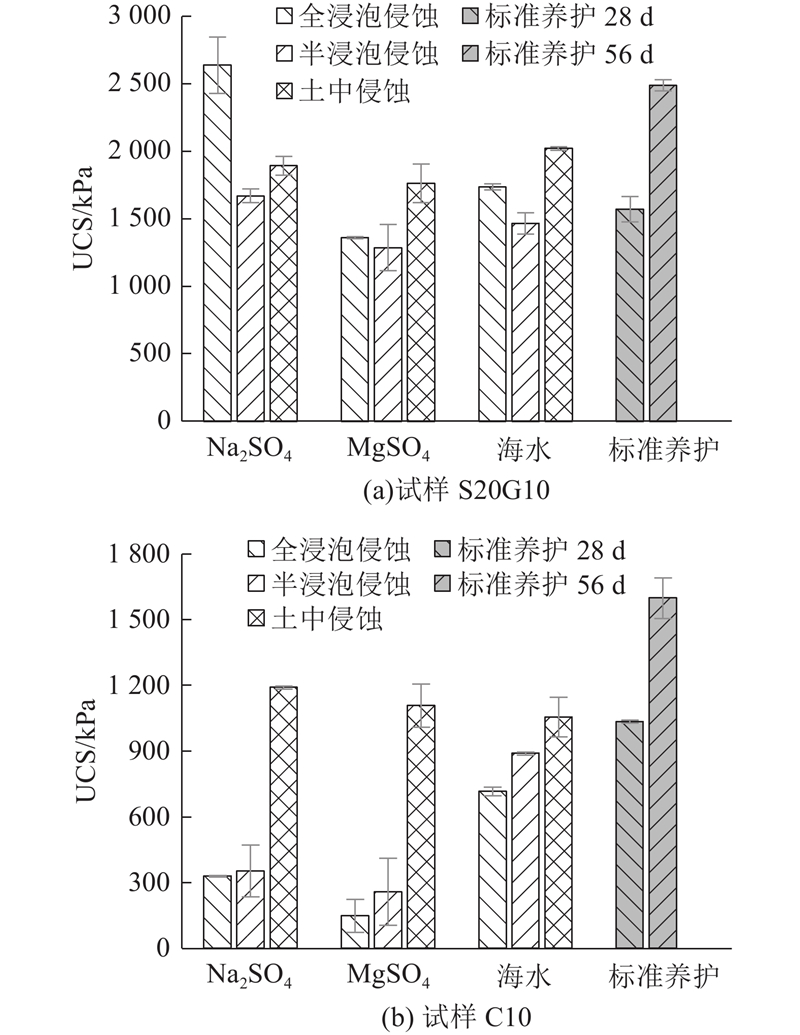

Fig.5Unconfined compression strength of solidified soft soil under different erosion methods and environments
侵蚀方式和环境
试样
外观破损程度
质量变化率
强度
侵蚀溶液一定
S20G10
半浸泡<全浸泡
半浸泡<全浸泡
半浸泡<全浸泡
C10
半浸泡<全浸泡
半浸泡<全浸泡
全浸泡<半浸泡
侵蚀方式一定
S20G10
Na2SO4≈海水<MgSO4
Na2SO4<海水<MgSO4
MgSO4<海水<Na2SO4
C10
海水<Na2SO4< MgSO4
MgSO4≈海水<Na2SO4
MgSO4<Na2SO4<海水
Tab.3Comparison of integrity, mass change rate and strength of samples

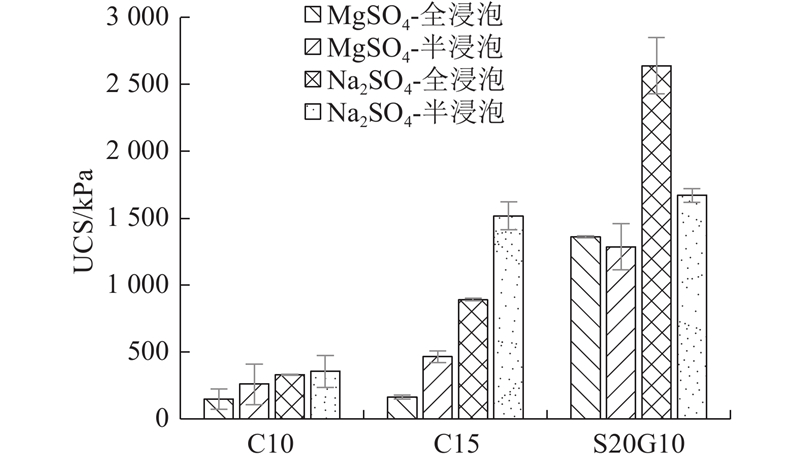

Fig.6Unconfined compression strength of samples with three solidifier mass fractions

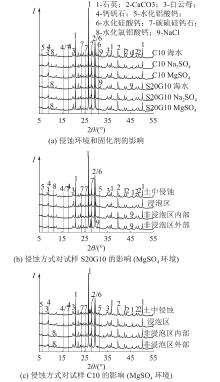

Fig.7XRD patterns of samples under different erosion methods and environments

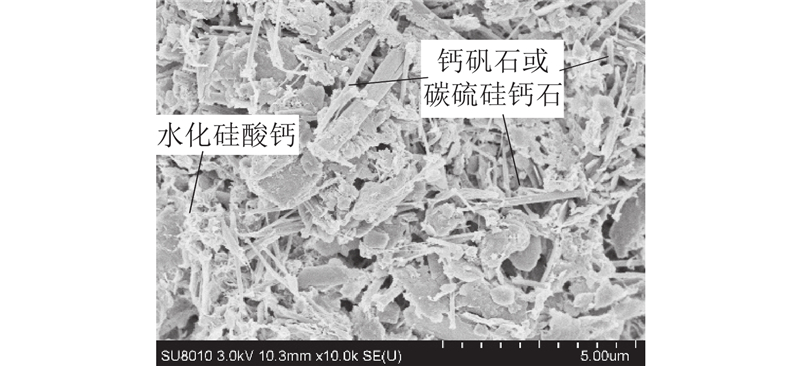

Fig.8SEM photos of S20G10 sample in soaking zone of MgSO4 solution
