Journal of ZheJiang University (Engineering Science)  2022, Vol. 56 Issue (12): 2349-2357    DOI: 10.3785/j.issn.1008-973X.2022.12.004

Surface defect detection algorithm of thrust ball bearing based on improved YOLOv5
Tian-le YUAN1(),Ju-long YUAN1,*(),Yong-jian ZHU2,Han-chen ZHENG1
1. College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
2. College of Mechanical Engineering, Zhejiang University of Science and Technology, Hangzhou 310023, China
Download: HTML     PDF(1216KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An automatic extraction detection area preprocessing and a multi-head self-attention mechanism module in the improved Transformer were proposed, in order to improve the accuracy and recall rate of the surface defect detection of thrust ball bearings, and enhance the anti-interference ability of the model. The proposed module was introduced into the feature network ignoring irrelevant noise information and focusing on the key information, and the extraction ability of small and medium-sized surface defects was improved. Instance normalization was used instead of Batch normalization to improve the convergence speed and detection accuracy during model training. Results show that in the thrust ball bearing surface defect detection dataset, the accuracy rate of the improved YOLOv5 model reaches 87.0%, the recall rate reaches 83.0%, the average precision reaches 86.1%, and the average detection time per image was 14.96 ms. Compared with the YOLOv5s model, the accuracy of the improved model is increased by 1.5%, the recall rate is increased by 7.3%, and the average precision is increased by 7.9%. Compared with the original model, the improved YOLOv5 model has better defect positioning ability and higher accuracy, and can reduce interference of foreign objects in the detection process on detection results. A detection speed of the improved YOLOv5 model can meet the requirements of industrial mass detection.

Key words： deep learning      thrust ball bearing      YOLOV5      Transformer      attention mechanism      surface defect detection.
Received: 10 December 2021      Published: 03 January 2023
CLC:  TP 391.41
Fund:  国家重点研发计划资助项目(2018YFB2000402)；国家自然科学基金资助项目(U1809221)；浙江省基础公益计划资助项目(LGG21E050006)
Corresponding Authors: Ju-long YUAN     E-mail: 435282558@qq.com;jlyuan@zjut.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Tian-le YUAN
Ju-long YUAN
Yong-jian ZHU
Han-chen ZHENG
Cite this article:

Tian-le YUAN,Ju-long YUAN,Yong-jian ZHU,Han-chen ZHENG. Surface defect detection algorithm of thrust ball bearing based on improved YOLOv5. Journal of ZheJiang University (Engineering Science), 2022, 56(12): 2349-2357.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.12.004     OR     https://www.zjujournals.com/eng/Y2022/V56/I12/2349


基于改进YOLOv5的推力球轴承表面缺陷检测算法

为了提高推力球轴承表面缺陷检测的精确率和召回率，增强模型抗干扰能力，提出自动提取检测区域预处理和改进Transformer中的多头自注意力机制模块. 在特征网络引入所提模块，忽略无关噪声信息而关注重点信息，提升中小表面缺陷的提取能力. 使用实例归一化代替批量归一化，提高模型训练时的收敛速度和检测精度. 结果表明，在推力球轴承表面缺陷检测数据集中，改进YOLOv5模型的准确率达到87.0%，召回率达到83.0%，平均精度达到86.1%，平均每张图片检测时间为14.96 ms. 相比于YOLOv5s模型，改进模型的准确率提升1.5%，召回率提升7.3%，平均精度提升7.9%. 与原模型相比，改进YOLOv5模型有更好的缺陷定位能力和较高的准确度，能够减小检测过程中的异物对检测结果造成的干扰，检测速度满足工业大批量检测的要求.


关键词： 深度学习,  推力球轴承,  YOLOv5,  Transformer,  注意力机制,  表面缺陷检测
Fig.1 YOLOv5 network structure

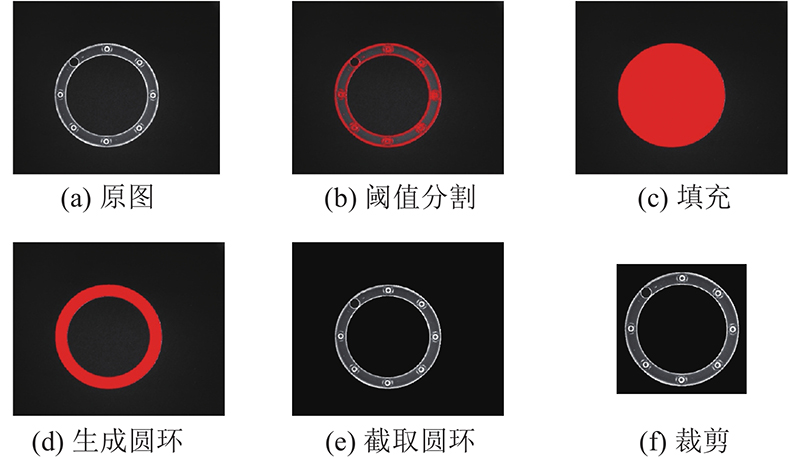

Fig.2 Flow chart of preprocessing for automatic extraction of target area from thrust ball bearing images
Fig.3 Vision Transformer network structure
Fig.4 Improvement of Transformer multi-head self-attention mechanism module
Fig.5 Improve YOLOv5 model structure
Fig.6 Thrust ball bearing surface defect sample
Fig.7 Thrust ball bearing image data enhancement
模型 AP p r mAP@0.5 t/ms
划伤 压印 缺球
YOLOv5s 0.567 0.789 0.988 0.855 0.757 0.782 8.28
YOLOv5m 0.550 0.807 0.991 0.811 0.783 0.783 15.64
Tab.1 Comparison of YOLOv5s and YOLOv5m detection result of bearing
预处理 AP p r mAP@0.5 t/ms
划伤 压印 缺球
无 0.567 0.789 0.988 0.855 0.757 0.782 8.28
有 0.676 0.846 0.986 0.826 0.816 0.836 8.89
Tab.2 Comparison of test results before and after pretreatment of bearing
Fig.8 Comparison of loss convergence before and after improvement
算法 预处理 AP p r mAP@0.5
划伤 压印 缺球
BN 无 0.567 0.789 0.988 0.855 0.757 0.782
IN 无 0.592 0.835 0.994 0.840 0.791 0.807
BN 有 0.676 0.846 0.986 0.826 0.816 0.836
IN 有 0.684 0.855 0.993 0.862 0.792 0.844
Tab.3 Improved comparison of detection results for normalization functions
Fig.9 Model base network structure
实验 模型 算法 AP F1 mAP@0.5
划伤 压印 缺球
1 原 BN 0.676 0.846 0.986 0.821 0.836
2 图5(a) BN 0.666 0.864 0.993 0.821 0.841
3 图5(b) BN 0.698 0.851 0.988 0.831 0.846
4 图5(c) BN 0.566 0.869 0.987 0.814 0.807
5 图5(d) BN 0.714 0.869 0.989 0.832 0.857
6 图5(b) IN 0.715 0.869 0.992 0.845 0.859
7 图5(d) IN 0.717 0.876 0.991 0.850 0.861
Tab.4 Add multi-head self-attention mechanism module detection result comparison
Fig.10 Comparison of detection results of surface defects on bearings before and after YOLOv5s improvement
模型 AP mAP@0.5 t/ms
划伤 压印 缺球
YOLOv3 0.586 0.813 0.981 0.806 34.39
YOLOv3-SPP 0.65 0.815 0.991 0.819 30.73
Faster-RCNN 0.468 0.690 0.984 0.714 124
YOLOv5s 0.676 0.846 0.986 0.836 8.28
本研究 0.717 0.876 0.991 0.861 14.96
Tab.5 Comparison of proposed model detection results with mainstream models
