Free-flow travel time estimation in urban roads based on data sampling method
Yi YU(),Jia-qi ZENG,Dian-hai WANG*()
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
Download: HTML     PDF(1667KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Based on traffic wave theory, free-flow travel time in urban areas was estimated using plate recognition data. The proposed method was accurate, scientific and practical with no need for additional detectors or on-site calculations. With the hypophysis of uniform arrival, travel time was divided into free-flow travel time and delay, and a travel time distribution function was constructed in the traffic signal environment. To solve the non-uniform arrival problem in urban traffic, a data resampling method was proposed to generate travel time data that obey the uniform flow assumption. By fitting the travel time distribution function, the free-flow travel time was estimated. The approach was verified in Hangzhou, China. Results showed that the travel time data after resampling fits the travel time distribution model well. The estimated free-flow travel time is accurate and has fully theoretical support.

Key words： free-flow travel time      travel time distribution      data resampling      urban segment
Received: 06 July 2021      Published: 30 June 2022
CLC:  U 491
Fund:  国家自然科学基金资助项目(52131202, 61773338, 52072340)；山东省重大科技创新工程项目(2019TSLH0203)
Corresponding Authors: Dian-hai WANG     E-mail: eveyu@zju.edu.cn;wangdianhai@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yi YU
Jia-qi ZENG
Dian-hai WANG
Cite this article:

Yi YU,Jia-qi ZENG,Dian-hai WANG. Free-flow travel time estimation in urban roads based on data sampling method. Journal of ZheJiang University (Engineering Science), 2022, 56(6): 1241-1248.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.06.023     OR     https://www.zjujournals.com/eng/Y2022/V56/I6/1241


基于数据采样方法的城市道路自由流行程时间估计

基于交通波模型，提出利用车牌识别数据估计城市道路自由流行程时间. 无需额外架设检测器或现场测算，所提方法具备准确性、科学性、实用性的特点. 基于车辆均匀到达的假设，将行程时间分为自由流行程时间和延误，建立信号影响下的路段行程时间分布函数. 针对现实环境中车流非均匀到达的特点，提出数据重采样方法生成符合均匀流假设的行程时间数据；拟合行程时间分布函数以获得路段自由流行程时间. 在杭州市多个路段的数据验证结果表明，重采样后的行程时间数据较好地拟合了行程时间分布模型，估得的自由流行程时间准确且具备理论支撑.


关键词： 自由流行程时间,  行程时间分布,  数据重采样,  城市道路

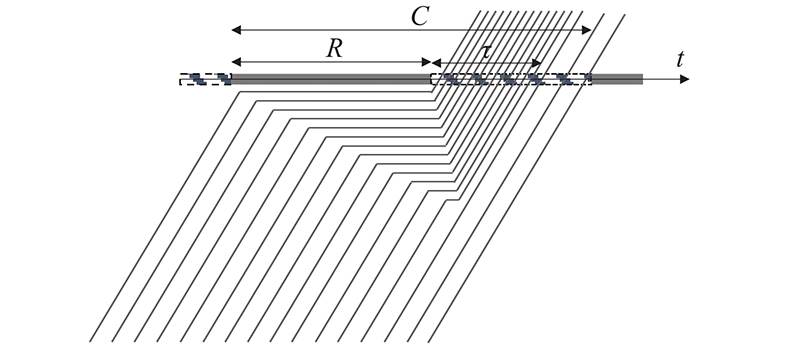

Fig.1 Vehicles’ trajectories in unsaturated condition

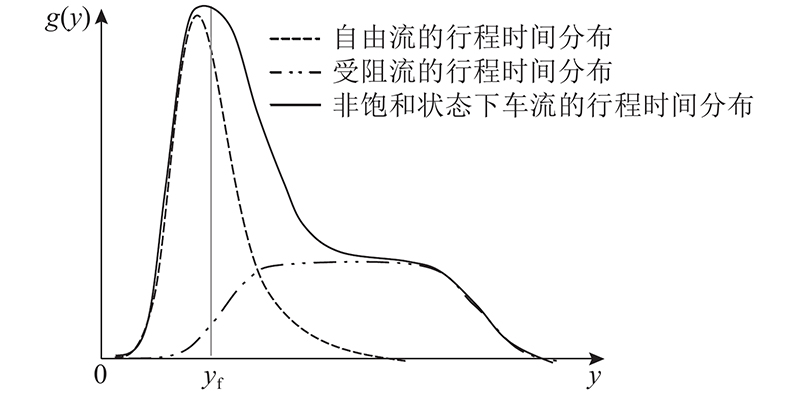

Fig.2 Probability density function of travel time in unsaturated condition

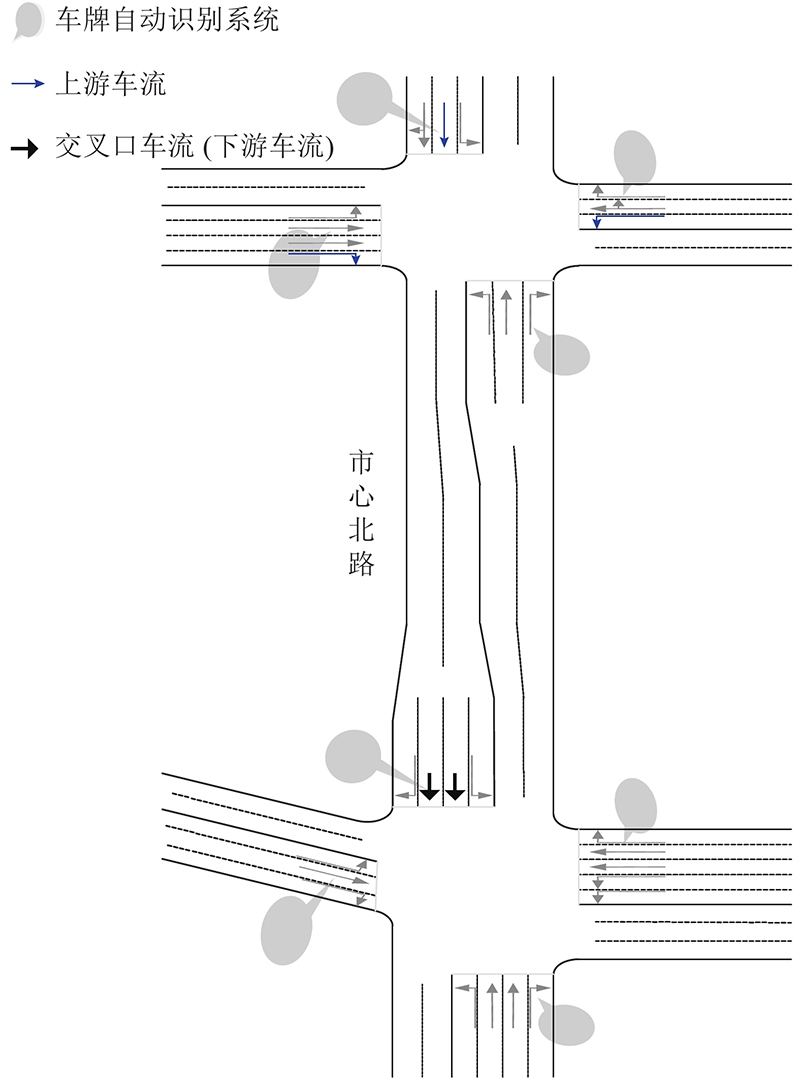

Fig.3 Layout of automatic number plate recognition system

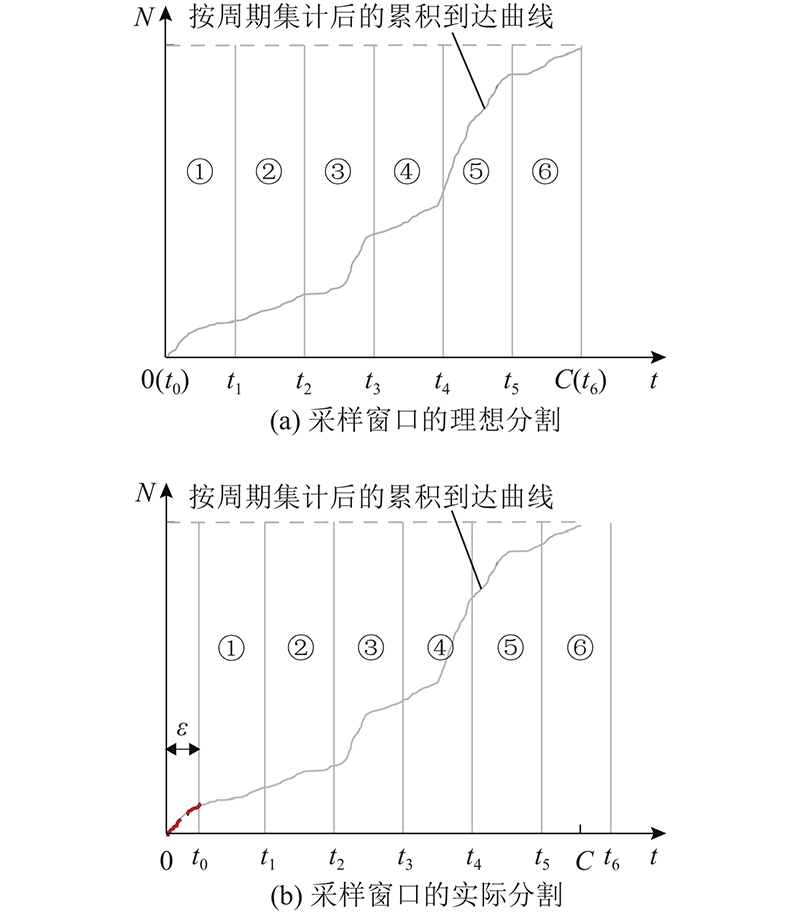

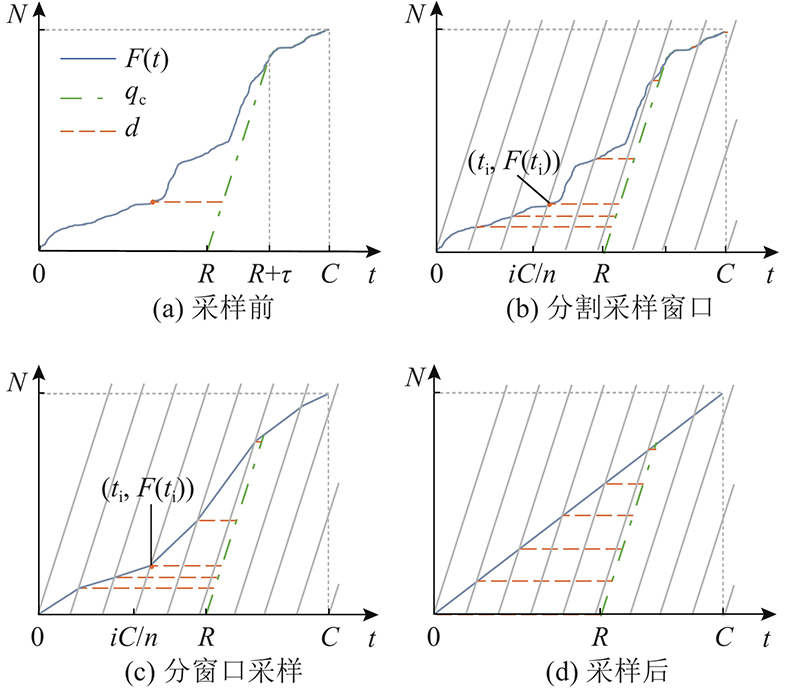

Fig.4 Accumulated arrival and release of vehicles in data sampling process
Fig.5 Influence of free flow travel time value on resampling
Fig.6 Data collection location of selected links
路段编号 L/m C up/s C/s R/s N
1 353 120 120 70 2886
2 382 100 100 60 2470
3 539 120 100 60 2056
4 542 100 120 70 176
Tab.1 Data description of traffic control parameters and ANPR data of selected links

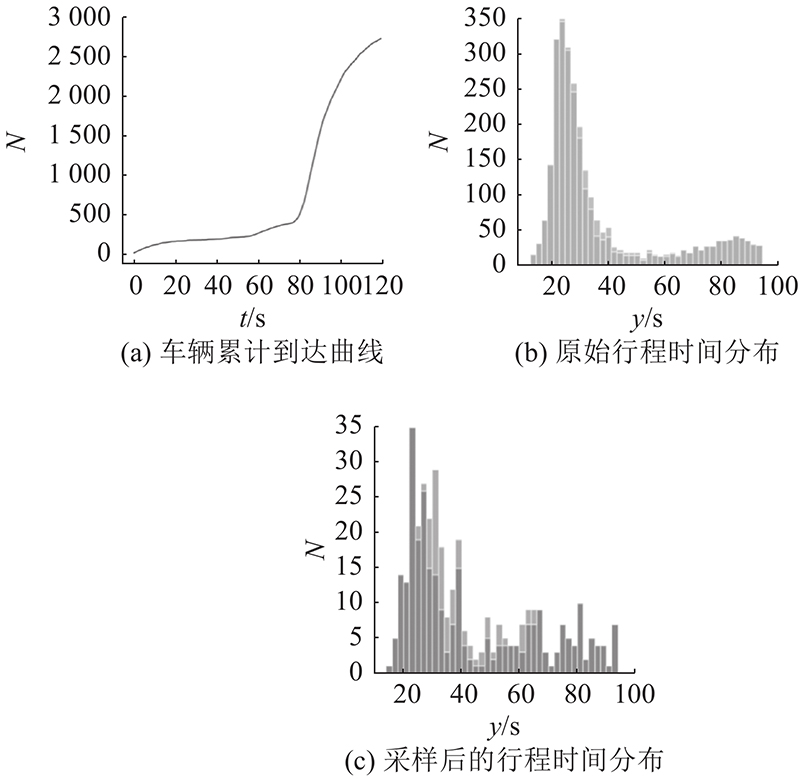

Fig.7 Resampling process and results of travel time data in link 1
路段编号 y/s K-S p 路段编号 y/s K-S p
1 26.0 0.84 3 40.5 0.83
2 27.6 0.06 4 40.3 0.33
Tab.2 Fitting results of free-flow travel time

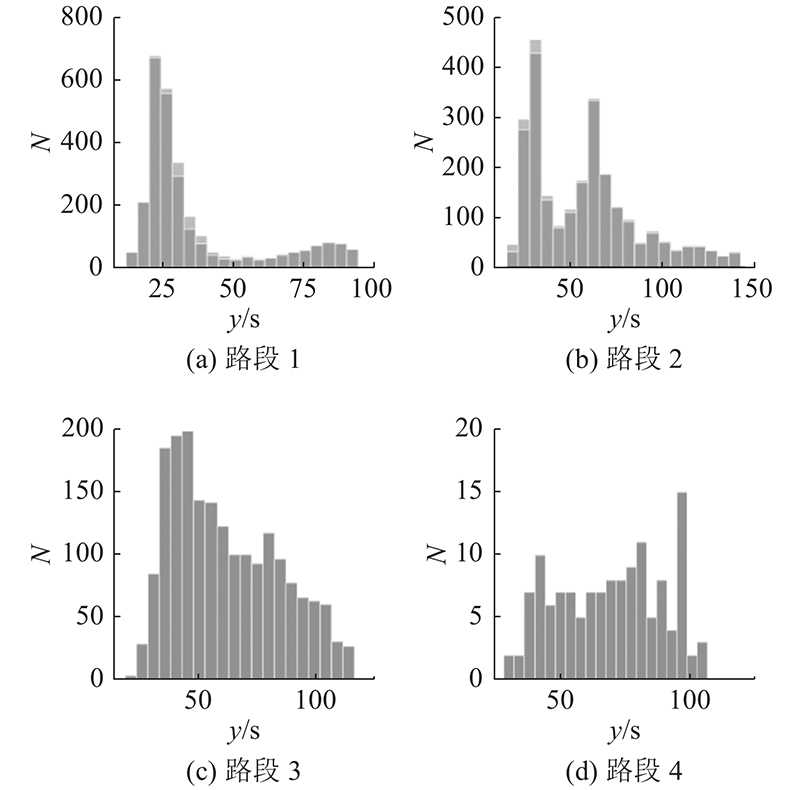

Fig.8 Original travel time distribution of 4 links

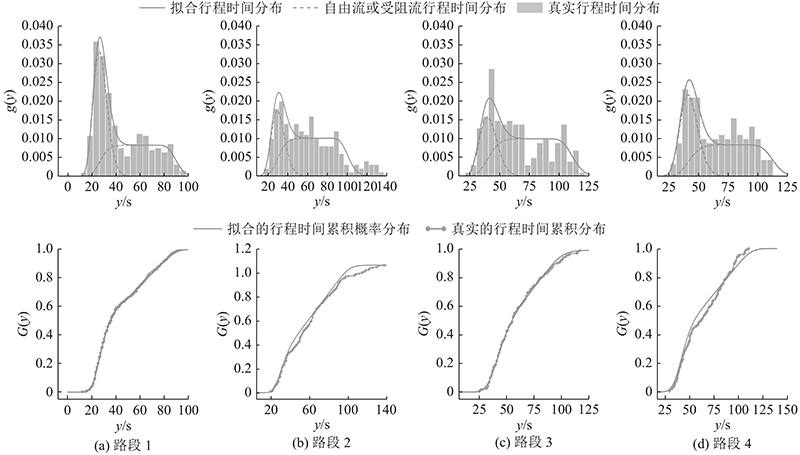

Fig.9 Fitting results of travel time distribution
路段
编号 		y f
方法1） 方法2） 方法3） 本研究
1 36.71 24.5 28.41 26.59
2 33.93 24.33 28.29 28.54
3 64.34 41.29 50.15 41.70
4 59.97 40.29 44.59 40.12
Tab.3 Comparison of free-flow travel time results s

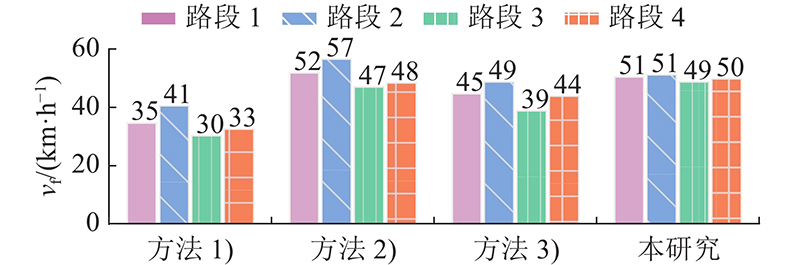

Fig.10 Comparison of free-flow speed results
