Mechanical integrity of cylindrical automotive lithium-ion batteries and modules |
Xue XIA( ),Zhen ZHAO,Jin-jie ZHANG,Liang TANG*( ) |
School of Technology, Beijing Forestry University, Beijing 100083, China |
|
|

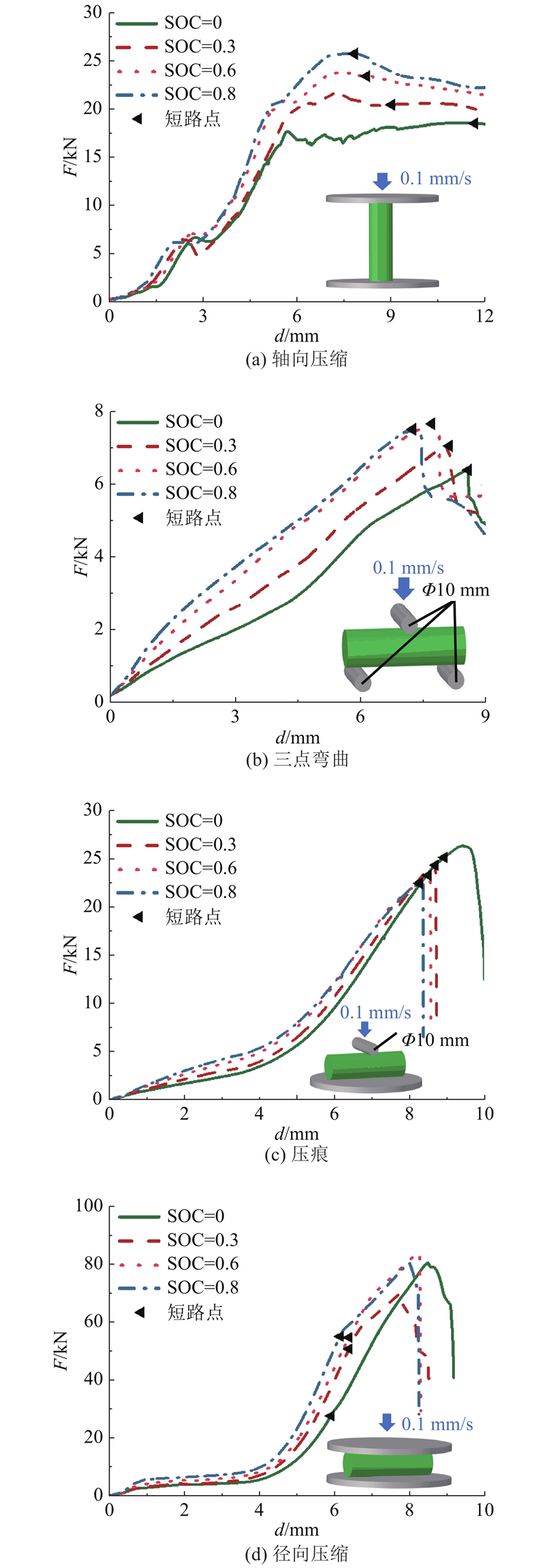

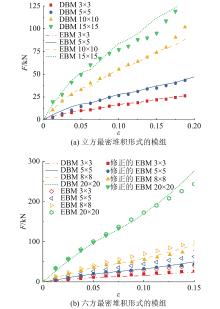

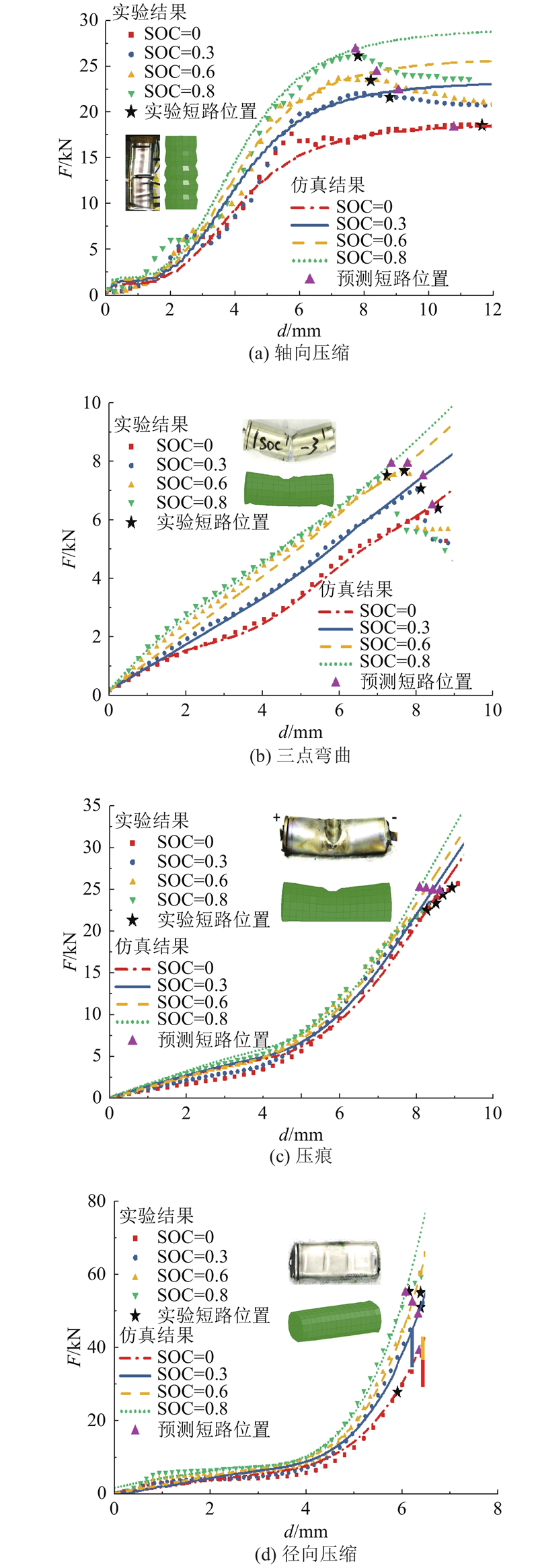

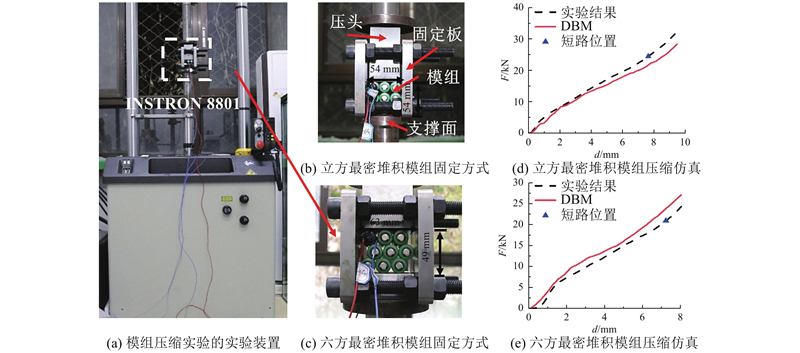

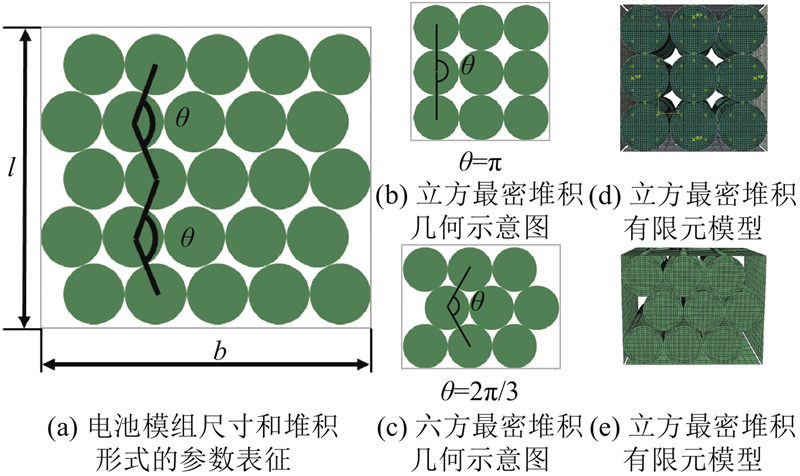

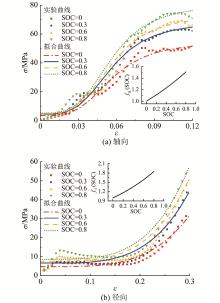

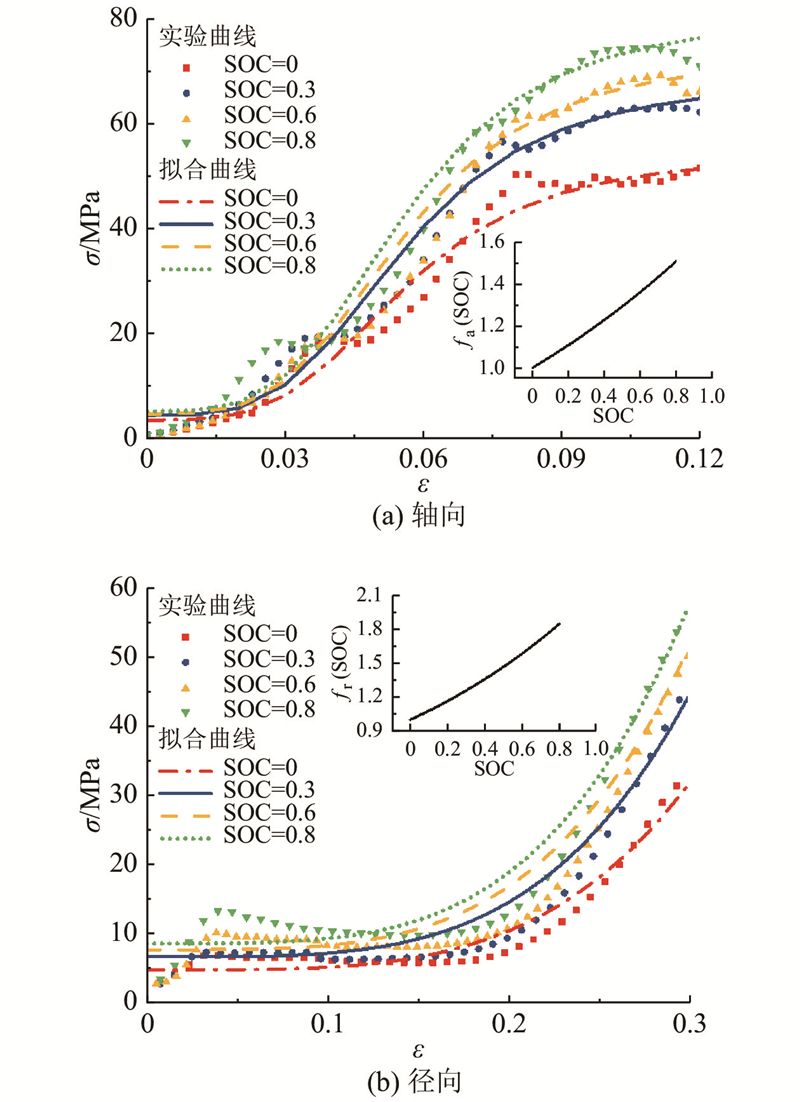

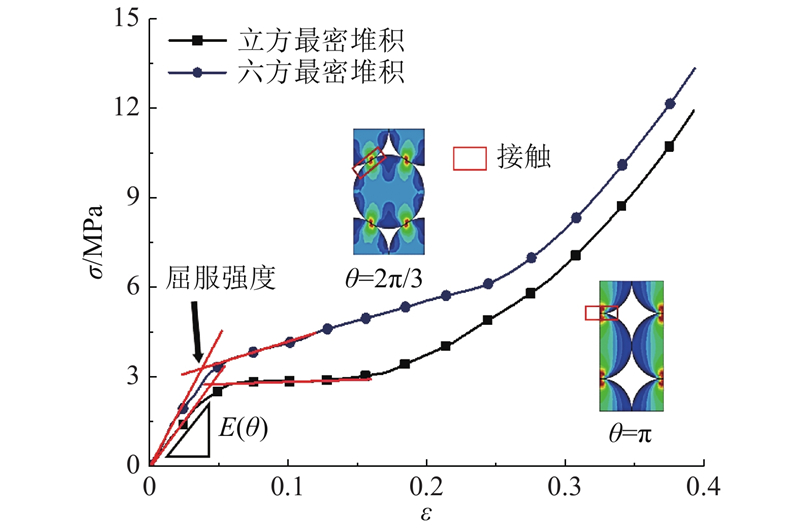

Abstract In order to provide a highly accessible method to explore the mechanical integrity of automotive cylindrical lithium-ion batteries (LIBs) and battery modules, a series of multidirectional loading tests for LIBs at various states of charge (SOC) were conducted to figure out both mechanical and electrochemical response of the LIBs when subjected to mechanical abuse. An homogeneous material model for battery cells was proposed and mechanical model of single LIB with both SOC dependence and anisotropy was established, in terms of the analytic results of experimental data. Two mechanical short-circuit criteria, practical for above-mentioned single LIB model, were proposed and calibrated. Detailed battery module models of two specific packing modes were established based on the single battery model. Homogenization method of the detailed battery module model was illustrated and homogeneous battery module material model was developed. According to the homogeneous material model, homogeneous battery module models of two different packing modes were developed and verified by the mechanical loading experiments of the battery modules. Experimental results show that this homogeneous battery module can predict the performance under multi-direction mechanical abuse precisely with less computing effort.
|
Received: 22 October 2020
Published: 05 November 2021
|
|
Fund: 中央高校基本科研业务费专项资金资助项目(2021ZY69);国家自然科学基金资助项目(51975057);湖北省重点实验室2021 年开放课题资助项目(XDQCKF2021004) |
Corresponding Authors:
Liang TANG
E-mail: xiaxue_buaa@163.com;happyliang@bjfu.edu.cn
|
车用圆柱锂电池及模组的机械完整性
为了获取能高效准确探究锂离子电池(LIBs)及模组机械完整性的方法,通过实验探究各荷电状态(SOC)下圆柱锂电池单体在受到不同方向机械外载作用下的机械响应及电化学失效情况. 基于实验结果提出均质化电池单体材料模型,建立具有SOC相关性、各向异性的电池单体模型,并提出适用于该模型的2种电池单体失效力学判据. 基于该单体模型获取2种典型堆积形式下的电池模组模型,并提出基于该细致模组模型的均质化建模方法,进一步提取出特定堆积方式下的电池模组均质化材料模型,建立相应的均质化电池模组模型,并通过电池模组力学加载实验进行验证. 实验结果显示,该均质化电池模组模型能够高效并准确地预测电池模组在复合机械加载条件下的响应.
关键词:
车辆工程,
锂离子电池,
电动汽车,
有限元模型,
碰撞安全
|
|
[1] |
ABABA S, MARLAIR G, LECOCQ A, et al Safety focused modeling of lithium-ion batteries: a review[J]. Journal of Power Sources, 2016, 306 (11): 178- 192
|
|
|
[2] |
LU L, HAN X, LI J, et al A review on the key issues for lithium-ion battery management in electric vehicles[J]. Journal of Power Sources, 2013, 226 (10): 272- 288
|
|
|
[3] |
BALOGUN M S, LUO Y, QIU W, et al A review of carbon materials and their composites with alloy metals for sodium ion battery anodes[J]. Carbon, 2015, 98 (9): 162- 178
|
|
|
[4] |
WANG L, YIN S, ZHANG C, et al Mechanical characterization and modeling for anodes and cathodes in lithium-ion batteries[J]. Journal of Power Sources, 2018, 392 (5): 265- 273
|
|
|
[5] |
ZHANG J N, LI Q, WANG Y, et al Dynamic evolution of cathode electrolyte interphase (CEI) on high voltage LiCoO2 cathode and its interaction with Li anode [J]. Energy Storage Materials, 2017, 14 (2): 1- 7
|
|
|
[6] |
LIN C, TANG A, MU H, et al. Aging mechanisms of electrode materials in lithium-ion batteries for electric vehicles[EB/OL]. (2015-06-21). https://doi.org/10.1155/2015/104673.
|
|
|
[7] |
XU J, WANG L, GUAN J, et al Coupled effect of strain rate and solvent on dynamic mechanical behaviors of separators in lithium-ion batteries[J]. Materials and Design, 2016, 95 (1): 319- 328
|
|
|
[8] |
PEABODY C, ARNOLD C B The role of mechanically induced separator creep in lithium-ion battery capacity fade[J]. Journal of Power Sources, 2011, 196 (19): 8147- 8153
doi: 10.1016/j.jpowsour.2011.05.023
|
|
|
[9] |
KALNAUS S, KUMAR A, WANG Y, et al Strain distribution and failure mode of polymer separators for Li-ion batteries under biaxial loading[J]. Journal of Power Sources, 2017, 378 (5): 139- 145
|
|
|
[10] |
ZHANG X, SAHRAEI E, WANG K Deformation and failure characteristics of four types of lithium-ion battery separators[J]. Journal of Power Sources, 2016, 327 (7): 693- 701
|
|
|
[11] |
KALNAUS S, WANG Y, TURNER J A Mechanical behavior and failure mechanisms of Li-ion battery separators[J]. Journal of Power Sources, 2017, 348 (3): 255- 263
|
|
|
[12] |
WANG L, YIN S, YU Z, et al Unlocking the significant role of shell material for lithium-ion battery safety[J]. Materials and Design, 2018, 160 (10): 601- 610
|
|
|
[13] |
ZHANG X, WIERZBICKI T Characterization of plasticity and fracture of shell casing of lithium-ion cylindrical battery[J]. Journal of Power Sources, 2015, 280 (1): 47- 56
|
|
|
[14] |
SAHRAEI E, KAHN M, MEIER J, et al Modelling of cracks developed in lithium-ion cells under mechanical loading[J]. RSC Advances, 2015, 98 (5): 80369- 80380
|
|
|
[15] |
XU J, LIU B, WANG L, et al Dynamic mechanical integrity of cylindrical lithium-ion battery cell upon crushing[J]. Engineering Failure Analysis, 2015, 53 (3): 97- 110
|
|
|
[16] |
WANG L, YIN S, XU J A detailed computational model for cylindrical lithium-ion batteries under mechanical loading: from cell deformation to short-circuit onset[J]. Journal of Power Sources, 2018, 413 (12): 284- 292
|
|
|
[17] |
LIU B, ZHAO H, YU H, et al Multiphysics computational framework for cylindrical lithium-ion batteries under mechanical abusive loading[J]. Electrochimica Acta, 2017, 256 (10): 172- 184
|
|
|
[18] |
YUAN C, GAO X, WONG H K, et al A multiphysics computational framework for cylindrical battery behavior upon mechanical loading based on LS-DYNA[J]. Journal of the Electrochemical Society, 2019, 166 (6): 1160- 1169
doi: 10.1149/2.1071906jes
|
|
|
[19] |
LIU B, JIA Y K, LI J, et al Safety issues caused by internal short circuits in lithium-ion batteries[J]. Journal of Materials Chemistry A, 2018, 43 (6): 21475- 21484
|
|
|
[20] |
GAO W K, ZHENG Y, OUYANG M, et al Micro-short circuit diagnosis for series-connected lithium-ion battery packs using mean-difference model[J]. IEEE Transactions on Industrial Electronics, 2018, 66 (3): 2132- 2142
|
|
|
|
