Journal of ZheJiang University (Engineering Science)  2019, Vol. 53 Issue (6): 1130-1138    DOI: 10.3785/j.issn.1008-973X.2019.06.012
Mechanical and Energy Engineering
Design of elderly fall detection system using CNN
Yan LV1,2(),Meng ZHANG1,Wu-hao JIANG1,Yi-hua NI1,*(),Xiao-hong QIAN3
1. School of Engineering, Zhejiang A&F University, Lin’an 311300, China
2. College of Mechanical Engineering, Zhejiang University, Hangzhou 310027, China
3. Enjoyor Research Institute, Enjoyor Co. Ltd, Hangzhou 310030, China
Download: HTML     PDF(1393KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A fall detection model based on convolutional neural network (CNN) was constructed, in order to use portable device to accurately detect the fall of the elderly and to avoid the incompleteness caused by the artificial designed features in traditional algorithms. The three-axis sensor built in the smart phone was used as the data acquisition source; the collected human body posture information was filtered, standardized, and sampled, etc. and then inputted into the designed model. Multi-layer CNN was used to train and optimize the key parameters of the model, combined with gradient descent and adaptive moment estimation optimization methods; the learned deep features were used for samples, classification. The experimental results show that the accuracy of the designed model for fall detection is significantly higher than that of the general machine learning algorithm model. In addition, the evaluation indicators have maintained a high level of stability in the detection of falls and non-falls.



Key wordsfall detection      smart phone sensor      convolutional neural network (CNN)      deep learning
Received: 04 May 2018      Published: 22 May 2019
CLC:  TP 391
Corresponding Authors: Yi-hua NI     E-mail: lvyan@zju.edu.cn;nyh@zafu.edu.cn
Cite this article:

Yan LV,Meng ZHANG,Wu-hao JIANG,Yi-hua NI,Xiao-hong QIAN. Design of elderly fall detection system using CNN. Journal of ZheJiang University (Engineering Science), 2019, 53(6): 1130-1138.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.06.012     OR     http://www.zjujournals.com/eng/Y2019/V53/I6/1130


采用卷积神经网络的老年人跌倒检测系统设计

为了利用便携式设备准确检测老年人的跌倒状况,针对传统算法中人为设计特征造成的不完备性,构建一种基于卷积神经网络(CNN)的老年人跌倒检测模型. 以智能手机内置的三轴传感器作为数据获取源,将采集的人体姿态信息进行滤波、标准化、采样等操作后,输入到所设计的模型中;采用梯度下降和适应性动量优化方法进行多层卷积神经网络训练和优化,获得模型关键参数训练并优化模型关键参数;利用学习到的深层次特征进行样本分类. 实验结果表明:所设计的模型对于跌倒检测的准确率明显高于一般的机器学习算法模型,并且在对跌倒和非跌倒的区分检测中,精确率和召回率都保持了较高的稳定水平.


关键词: 跌倒检测,  手机传感器,  卷积神经网络(CNN),  深度学习
Fig.1 Elderly fall detection process using convolutional neural network (CNN)

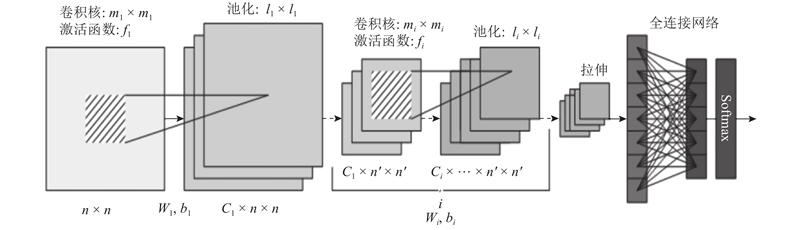

Fig.2 CNN model structure for elderly fall detection
Fig.3 Acquisition process of mobile phone sensor data (Dataset1)

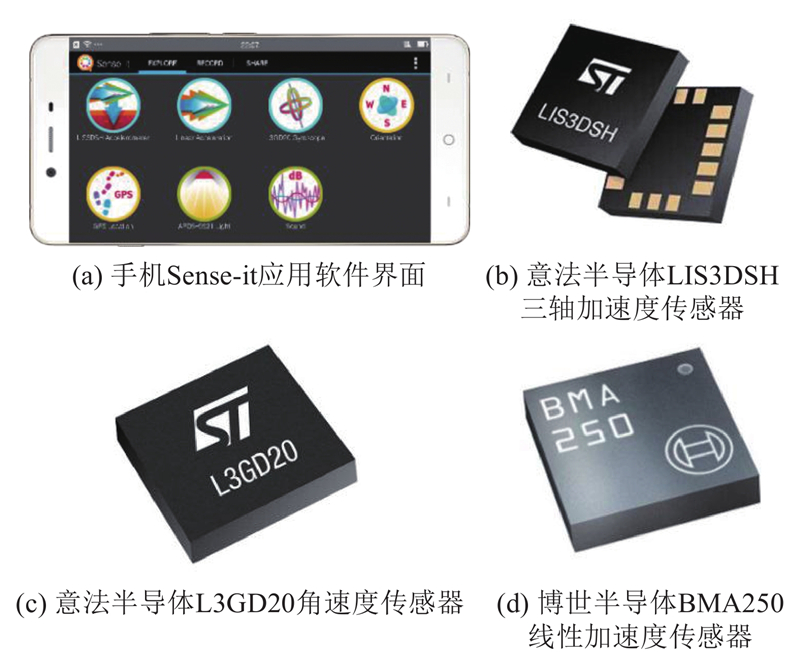

Fig.4 Human 3D motion data acquisition equipments

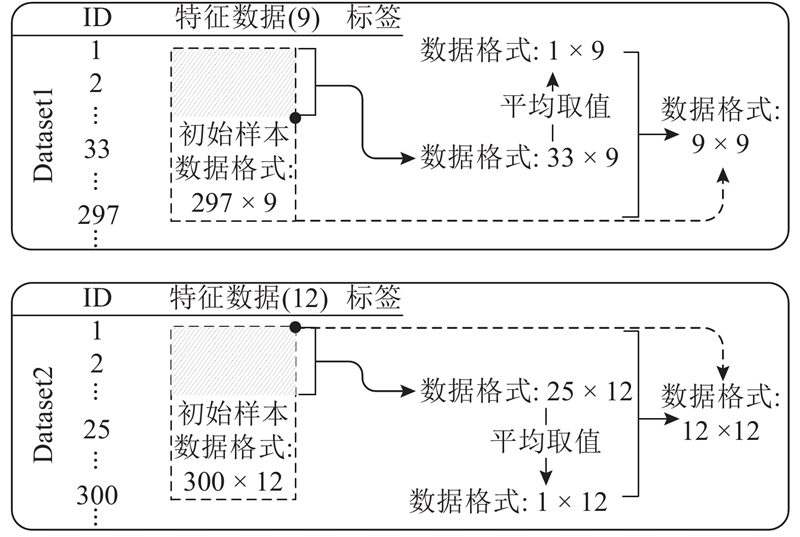

Fig.5 Training sample data format conversion for fall detection
数据集 跌倒样本 非跌倒样本
采样前 采样后 采样前 采样后
Dataset1 328 656 2 072 656
Dataset2 845 1 690 4 155 1 690
Tab.1 Sample size distribution before and after sampling
Fig.6 Structure design of fall detection model using CNN
Fig.7 Fall detection model training data set training results (Dataset1)

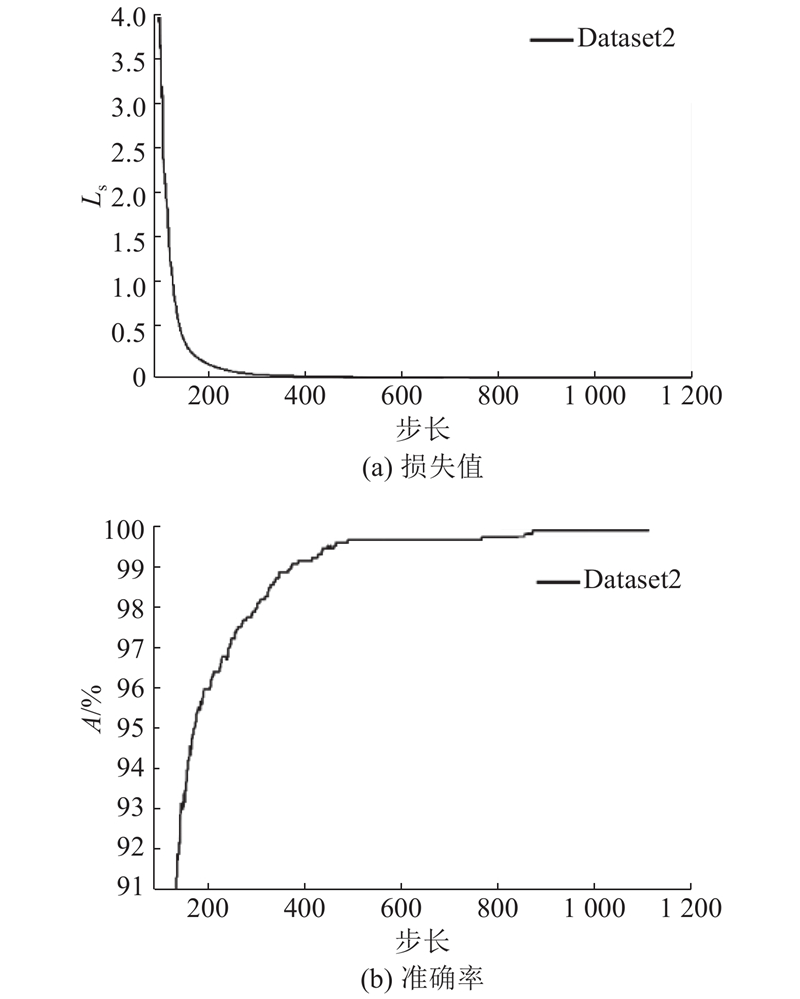

Fig.8 Fall detection model training data set training results (Dataset2)
Fig.9 Detection accuracy of different classification models on fall datasets Dataset1 and Dataset2
%
分类模型 P R F1 A
Dataset1 Dataset2 Dataset1 Dataset2 Dataset1 Dataset2 Dataset1 Dataset2
SVM 93.4 76.8 82.8 92.1 87.8 83.7 88.1 82.2
DT 90.0 80.9 87.9 68.1 88.9 73.9 88.8 76.1
RF 91.3 89.0 88.6 88.5 89.9 88.8 89.8 88.8
GBDT 90.8 86.1 87.0 86.6 88.8 86.4 88.7 86.4
AdaBoost 87.6 79.9 82.7 82.5 85.0 81.2 85.0 80.9
Voting 91.4 84.7 86.7 88.0 89.0 86.3 88.9 86.1
CNN 99.5 100 98.5 99.5 98.9 99.7 99.2 99.8
Tab.2 Comparison of each models detection results using fall datasets Dataset1 and Dataset2

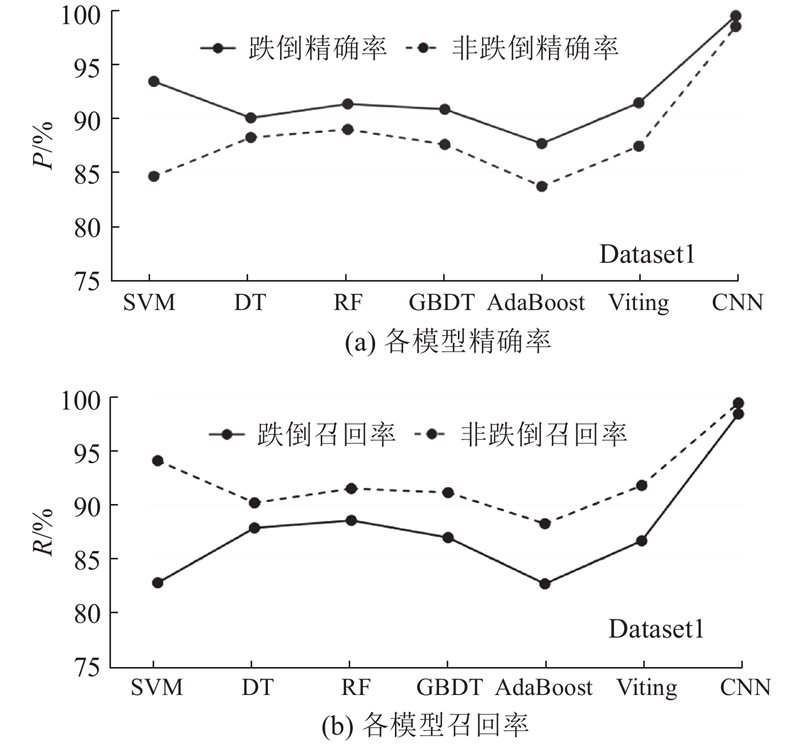

Fig.10 Comparison of accuracy and recall of each model using fall dataset Dataset1

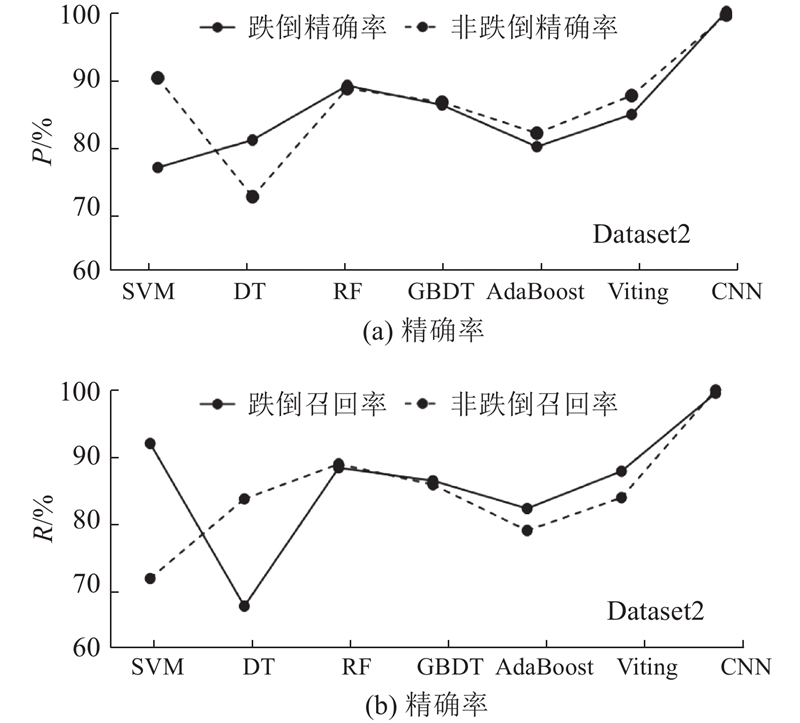

Fig.11 Comparison of accuracy and recall of each model using fall dataset Dataset2
