浙江大学学报(工学版)  2026, Vol. 60 Issue (11): 2513-2522    DOI: 10.3785/j.issn.1008-973X.2026.11.020
土木工程、交通工程
主应力旋转和冻融循环耦合下改性铁尾矿砂的动力学特性
王智超1,2(),姜屏1,*(),王伟1,李娜1,胡星辰1
1. 绍兴市软土地基与建筑结构协同作用重点实验室，绍兴大学 土木工程学院，浙江 绍兴 312000
2. 软弱土与环境土工教育部重点实验室，浙江大学 建筑工程学院，浙江 杭州 310058
Dynamic characteristics of modified iron tailings under coupled principal stress rotation and freeze-thaw cycles
Zhichao WANG1,2(),Ping JIANG1,*(),Wei WANG1,Na LI1,Xingchen HU1
1. Shaoxing Key Laboratory of Interaction between Soft Soil Foundation and Building Structure, School of Civil Engineering, Shaoxing University, Shaoxing 312000, China
2. MOE Key Laboratory of Soft Soils and Geoenvironmental Engineering, College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
 全文: PDF(2846 KB)   HTML
摘要：

为了评估纤维水泥改性铁尾矿砂（FCIT）在主应力旋转作用下的抗冻性，对试样进行0、1、3、5和7次冻融循环. 通过空心圆柱扭剪试验，定义循环应力比和扭剪比. 采用循环应力比和扭剪比分别逐级增加0.25和0.50的加载方式，系统分析不同冻融循环次数下FCIT的动力学响应特性. 结果表明：剪切与扭剪应力-应变滞回曲线在加载过程中逐渐增高，加载后期滞回曲线趋于稀疏，破坏迹象明显，且冻融循环加剧应变增长. 随着冻融循环次数增加，FCIT偏应力和扭剪应力骨干曲线下降，动抗剪强度和动扭剪强度分别下降25%和21%，纤维加筋有效增强抗扭剪能力，减缓性能衰减. FCIT在主应力旋转与冻融循环耦合作用下表现出由塑性蠕变向增量破坏演化的变形特性，验证了安定理论临界应变速率划分标准的适用性. 动弹性模量随加载次数呈先增后减趋势，峰值随冻融循环次数增加而提前. 动弹性模量与动抗剪强度相关性良好，均随冻融循环作用衰减，由此建立动弹性模量预测模型.
关键词： 改性铁尾矿砂;  主应力旋转;  冻融循环;  逐级加载;  动力学特性
Abstract:

To evaluate the frost resistance of fiber cement modified iron tailings (FCIT) under principal stress rotation, the samples were subjected to 0, 1, 3, 5, and 7 freeze-thaw cycles. Hollow cylinder torsional shear tests were performed, defining the cyclic stress ratio and torsional shear ratio. Loading was performed using a loading method where the cyclic stress ratio and torsional shear ratio increased in steps of 0.25 and 0.50, respectively, to systematically analyze the dynamic response characteristics of FCIT under different freeze-thaw cycles. The results indicate that the shear and torsional shear stress-strain hysteresis curves gradually increased during loading, while becoming sparser in the later stages, showing clear signs of failure, with freeze-thaw cycles accelerating strain development. With the increase in freeze-thaw cycles, the backbone curves of deviatoric and torsional shear stress declined, leading to reductions of 25% and 21% in dynamic shear strength and dynamic torsional shear strength, respectively. Fiber reinforcement effectively enhanced torsional resistance and mitigated performance degradation. Under the coupled effects of principal stress rotation and freeze-thaw cycles, FCIT exhibited a deformation evolution from plastic creep to incremental failure, verifying the applicability of the critical strain rate classification standard in stability theory. The dynamic elastic modulus showed a trend of first increasing and then decreasing with loading cycles, with its peak occurring earlier as the number of freeze-thaw cycles increased. A strong correlation was observed between the dynamic elastic modulus and dynamic shear strength, both of which degraded under freeze-thaw cycles. Therefore, a predictive model for the dynamic elastic modulus was established.
Key words: modified iron tailings    principal stress rotation    freeze-thaw cycles    staged loading    dynamic characteristic
收稿日期: 2025-09-13 出版日期: 2026-10-16
CLC:  TP 393
基金资助: 国家自然科学基金资助项目（52179107）；浙江省自然科学基金资助项目（LQ20E080005）.
通讯作者: 姜屏     E-mail: wangzhichao@zju.edu.cn;jiangping@usx.edu.cn
作者简介: 王智超（1998—），男，博士生，从事岩土工程材料研究. orcid.org/0000-0002-4223-2104. E-mail：wangzhichao@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
王智超
姜屏
王伟
李娜
胡星辰

引用本文:

王智超,姜屏,王伟,李娜,胡星辰. 主应力旋转和冻融循环耦合下改性铁尾矿砂的动力学特性[J]. 浙江大学学报(工学版), 2026, 60(11): 2513-2522.

Zhichao WANG,Ping JIANG,Wei WANG,Na LI,Xingchen HU. Dynamic characteristics of modified iron tailings under coupled principal stress rotation and freeze-thaw cycles. Journal of ZheJiang University (Engineering Science), 2026, 60(11): 2513-2522.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.11.020    或    https://www.zjujournals.com/eng/CN/Y2026/V60/I11/2513

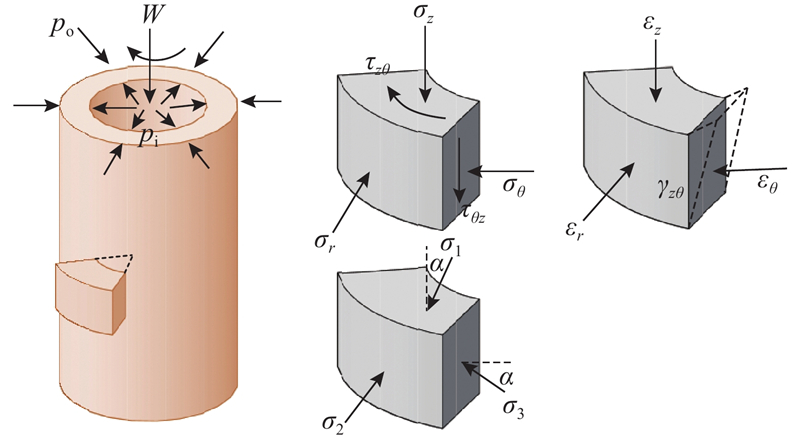

图 1  空心圆柱试样中土单元应力及应变状态示意图
应力分量应变分量
$ {\sigma }_{z}=\dfrac{W}{{\text{π}} \left(r_{{\mathrm{{\mathrm{o}}}}}^{2}-r_{{\mathrm{i}}}^{2}\right)}+\dfrac{{p}_{{\mathrm{{\mathrm{o}}}}}r_{{\mathrm{{\mathrm{o}}}}}^{2}-{p}_{{\mathrm{i}}}r_{{\mathrm{i}}}^{2}}{\left(r_{{\mathrm{o}}}^{2}-r_{{\mathrm{i}}}^{2}\right)} $$ {\varepsilon }_{z}=\dfrac{z}{H} $
$ {\sigma }_{r}=\dfrac{{p}_{{\mathrm{o}}}{r}_{{\mathrm{o}}}+{p}_{{\mathrm{i}}}{r}_{{\mathrm{i}}}}{{r}_{{\mathrm{o}}}+{r}_{{\mathrm{i}}}} $$ {\varepsilon }_{r}=-\dfrac{{u}_{{\mathrm{o}}}-{u}_{{\mathrm{i}}}}{{r}_{{\mathrm{o}}}-{r}_{{\mathrm{i}}}} $
$ {\sigma }_{\theta }=\dfrac{{p}_{{\mathrm{o}}}{r}_{{\mathrm{o}}}-{p}_{{\mathrm{i}}}{r}_{{\mathrm{i}}}}{{r}_{{\mathrm{o}}}-{r}_{{\mathrm{i}}}} $$ {\varepsilon }_{\theta }=-\dfrac{{u}_{{\mathrm{o}}}+{u}_{{\mathrm{i}}}}{{r}_{{\mathrm{o}}}+{r}_{{\mathrm{i}}}} $
$ {\tau }_{z\theta }=\dfrac{T}{2}\left[\dfrac{3}{2{\text{π}} \left(r_{{\mathrm{o}}}^{3}-r_{{\mathrm{i}}}^{3}\right)}+\dfrac{4\left(r_{{\mathrm{o}}}^{3}-r_{{\mathrm{i}}}^{3}\right)}{3{\text{π}} \left(r_{{\mathrm{o}}}^{2}-r_{{\mathrm{i}}}^{2}\right)\left(r_{{\mathrm{o}}}^{4}-r_{{\mathrm{i}}}^{4}\right)}\right] $$ {\gamma }_{z\theta }=\dfrac{\theta \left(r_{{\mathrm{o}}}^{3}-r_{{\mathrm{i}}}^{3}\right)}{3H\left(r_{{\mathrm{o}}}^{2}-r_{{\mathrm{i}}}^{2}\right)} $
表 1  空心圆柱试样的各应力与应变分量计算公式

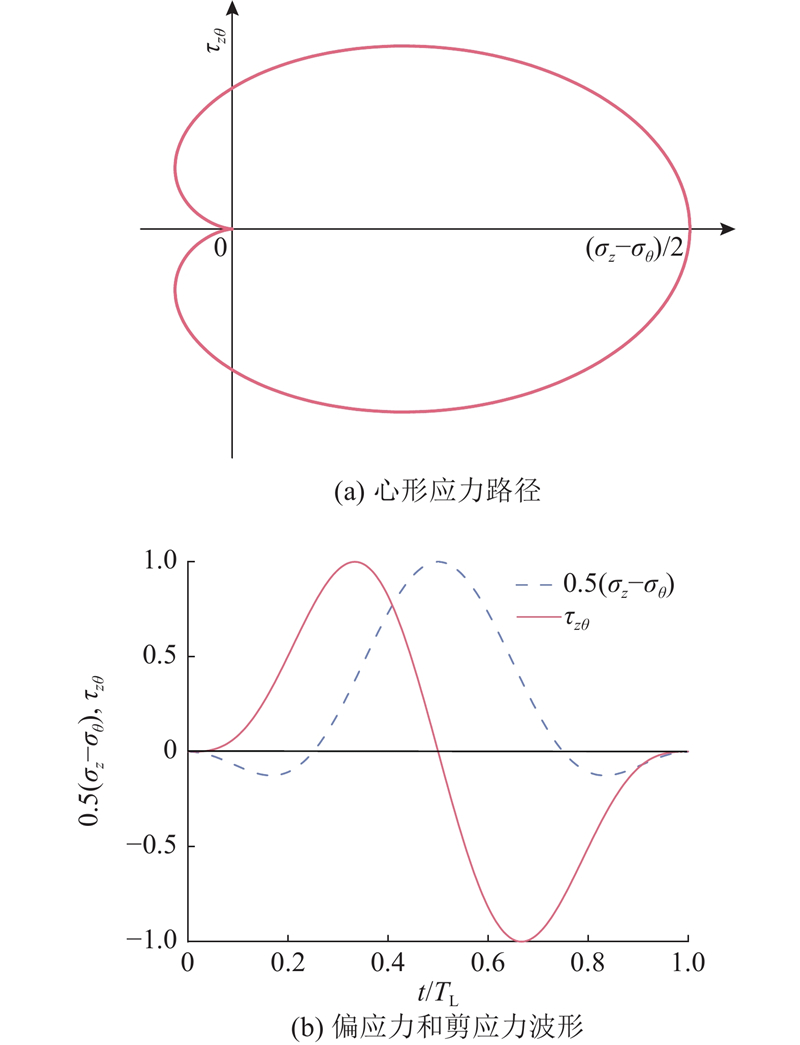

图 2  交通荷载加载波形

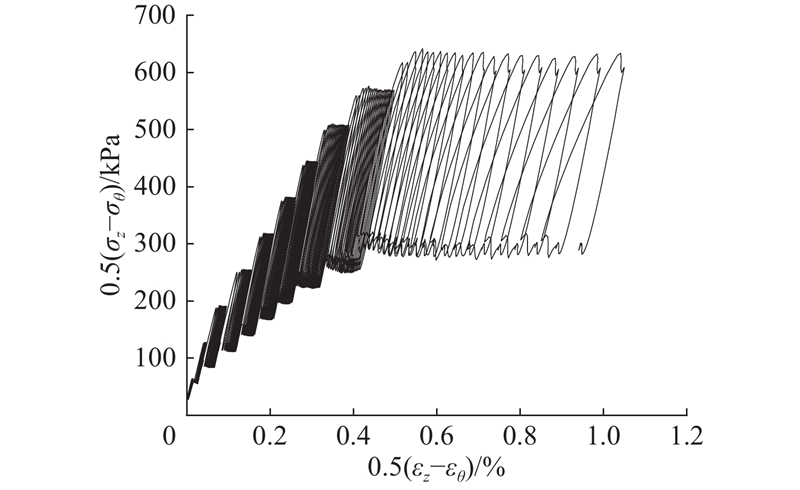

图 3  改性铁尾矿砂的偏应力-应变滞回曲线

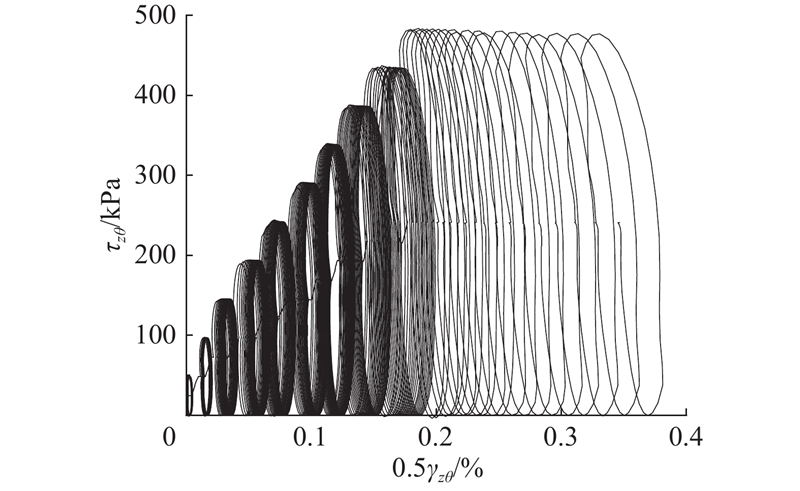

图 4  改性铁尾矿砂的扭剪应力-应变滞回曲线

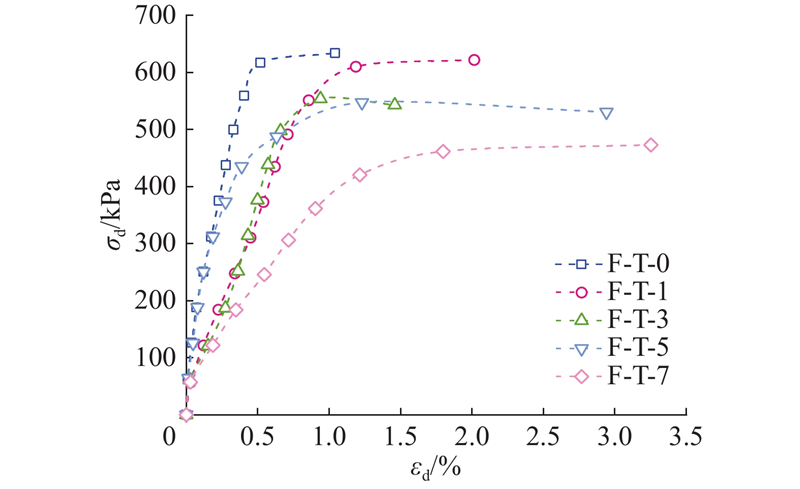

图 5  不同冻融循环次数下改性铁尾矿砂的偏应力骨干曲线

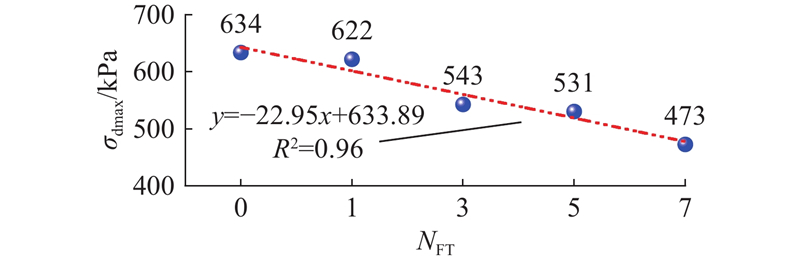

图 6  动抗剪强度随冻融循环次数的变化

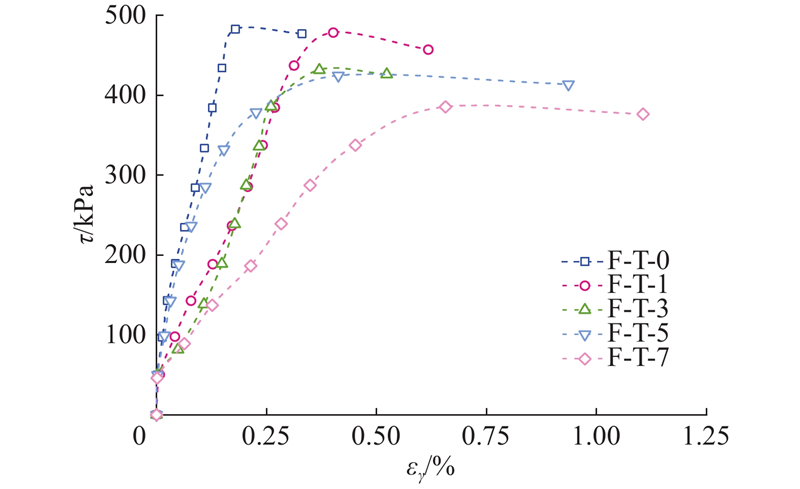

图 7  不同冻融循环次数下改性铁尾矿砂的扭剪应力骨干曲线

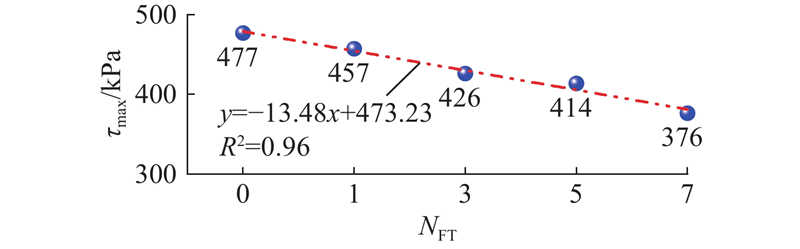

图 8  动扭剪强度随冻融循环次数的变化

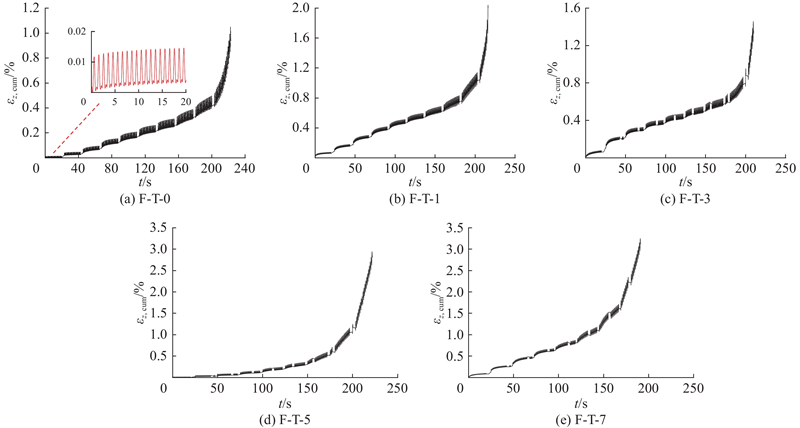

图 9  不同冻融循环次数下改性铁尾矿砂的轴向累积应变滞回曲线

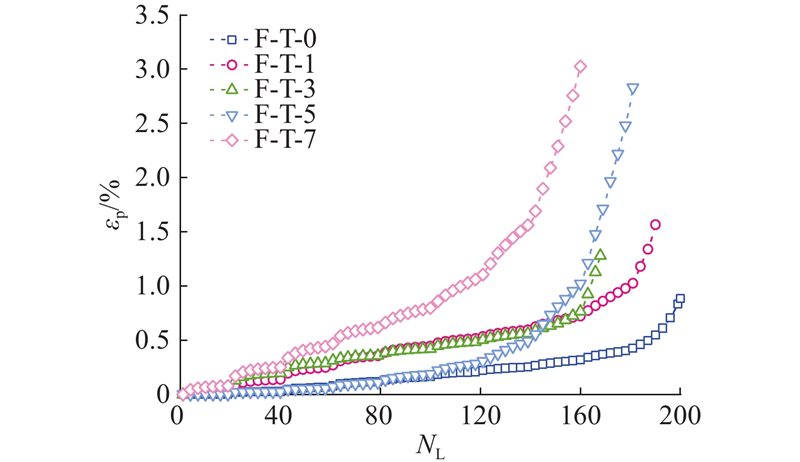

图 10  不同冻融循环次数下的轴向累积塑性应变

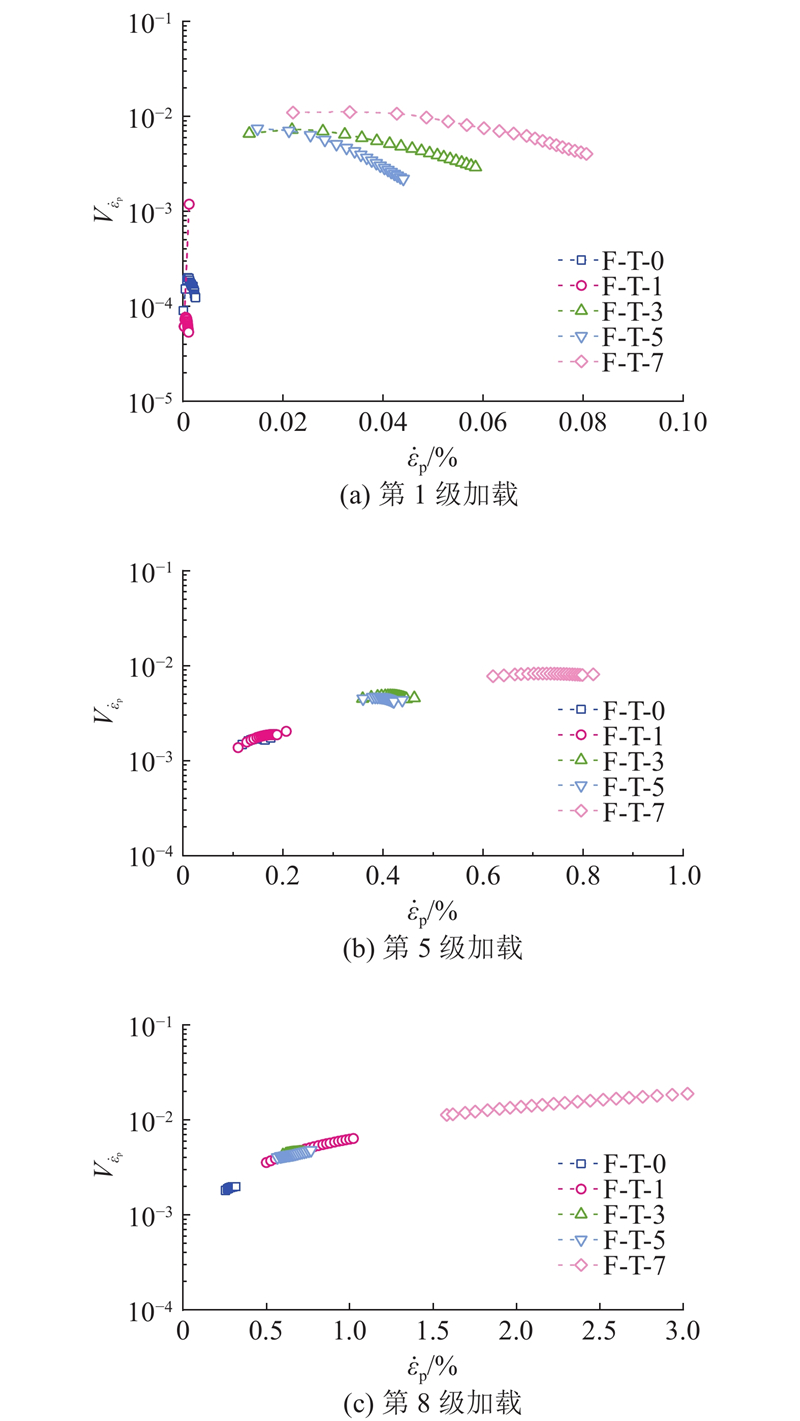

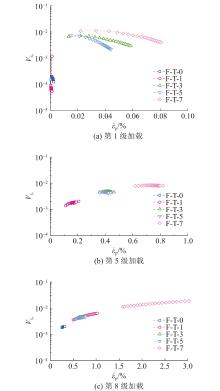

图 11  累积应变速率随累积应变的变化

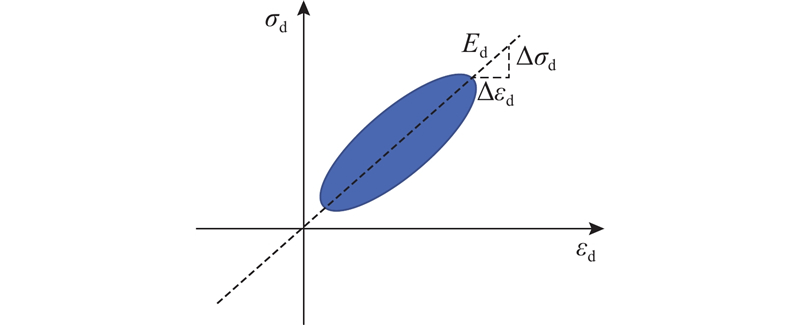

图 12  典型滞回曲圈弹性模量示意图

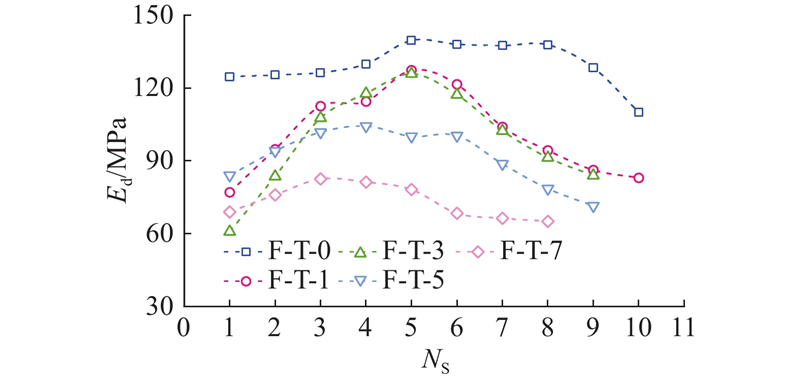

图 13  不同冻融循环次数下的动弹性模量与加载级数的关系

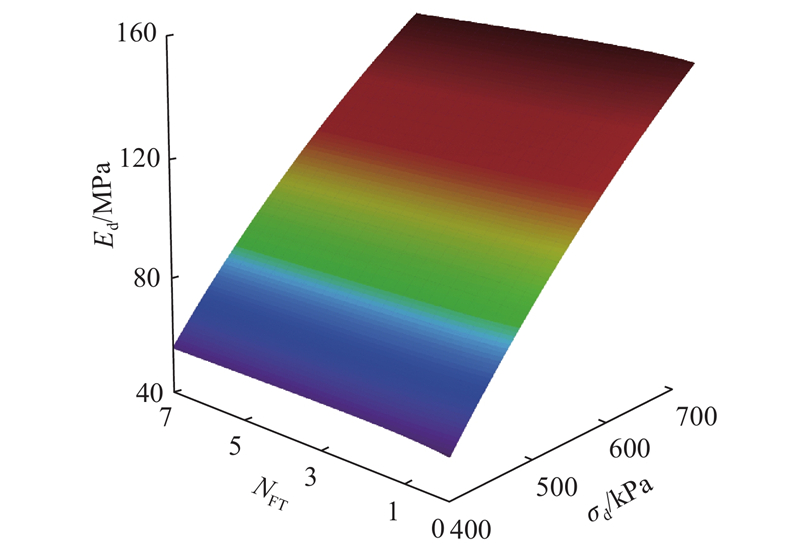

图 14  动弹性模量预测模型
图 15  冻融前后试样SEM图
材料试验类型损伤比例引用
聚丙烯纤维、水泥抗折试验38.7%文献[36]
玻璃纤维、水泥抗折试验74.3%文献[36]
玄武岩纤维UCS40%左右文献[37]
尾矿土三轴试验50%左右文献[38]
聚丙烯纤维、水泥UCS25%, 21%本研究
表 2  不同试验材料及条件下冻融后强度损伤比例
