基于双分支网络的表面肌电信号识别方法

王万良(

),潘杰,王铮,潘家宇

浙江工业大学计算机科学与技术学院，浙江杭州 310023

Recognition method of surface electromyographic signal based on two-branch network

Wanliang WANG(

),Jie PAN,Zheng WANG,Jiayu PAN

College of Computer Science and Technology, Zhejiang University of Technology, Hangzhou 310023, China

全文: PDF(2511 KB) HTML

摘要：

针对目前表面肌电信号(sEMG)手势识别细节信息提取不充分，对相似手势区分困难的问题，提出基于加强二维化特征的双分支网络(ETDTBN)模型. 该模型通过加强二维化方法生成二维特征图，使用多层卷积神经网络(ML-CNN)提取sEMG的空间特征，利用双向门控循环单元(Bi-GRU)提取原始信号的时序特征. 考虑到不同的特征对网络的影响程度不同，引入自适应特征融合机制对不同分支进行融合，强化有用特征并弱化无用特征，提高表面肌电识别的准确率. 实验在电极偏移和不同受试者2种情况下对ETDTBN进行训练与测试，与主流的肌电手势识别模型进行对比. 可知，ETDTBN的总体识别准确率分别为86.95%和84.15%，准确率均为最优，证明了该模型的有效性.

关键词： 表面肌电信号（sEMG）; 手势识别; 加强二维化特征; 双分支网络; 自适应特征融合机制

Abstract:

An enhanced two-dimensional feature based two-branch network (ETDTBN) was proposed aiming at the problems of insufficient detailed information extraction and difficulty in distinguishing similar gestures in surface electromyogram (sEMG) gesture recognition. Discrete features were converted into two-dimensional feature maps by the proposed enhanced two-dimensional method. Then a multi-layer convolutional neural network (ML-CNN) was used to extract the spatial features, while a bidirectional gated recurrent unit (Bi-GRU) was used to extract the temporal features from the original signal. A self-adaptive feature fusion mechanism was introduced to fuse different branches, strengthen useful features and weaken useless features in order to improve the accuracy of sEMG recognition by considering that different features had different degrees of influence on the network. Experiments were used to train and test the ETDTBN in two scenarios of electrode displacement and different subjects comparing with mainstream sEMG gesture recognition models. Results showed that the overall recognition accuracy of ETDTBN were 86.95% and 84.15%, respectively. Both accuracies are optimal, proving the effectiveness of the model.

Key words: surface electromyogram (sEMG) gesture recognition enhanced two-dimensional feature two-branch network self-adaptive feature fusion mechanism

收稿日期: 2023-09-26 出版日期: 2024-10-23

CLC:

TP 393

基金资助: 国家自然科学基金资助项目(51875524, 61873240)；浙江大学CAD&CG国家重点实验室开放课题资助项目(A2210).

作者简介: 王万良（1957—），男，教授，从事人工智能及其自动化、网络控制的研究. orcid.org/0000-0002-1552-5075. E-mail： zjutwwl@zjut.edu.cn

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	作者相关文章
	王万良
	潘杰
	王铮
	潘家宇

引用本文:

王万良,潘杰,王铮,潘家宇. 基于双分支网络的表面肌电信号识别方法[J]. 浙江大学学报(工学版), 2024, 58(11): 2208-2218.

Wanliang WANG,Jie PAN,Zheng WANG,Jiayu PAN. Recognition method of surface electromyographic signal based on two-branch network. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2208-2218.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.11.002 或 https://www.zjujournals.com/eng/CN/Y2024/V58/I11/2208

图 1 ETDTBN的整体结构

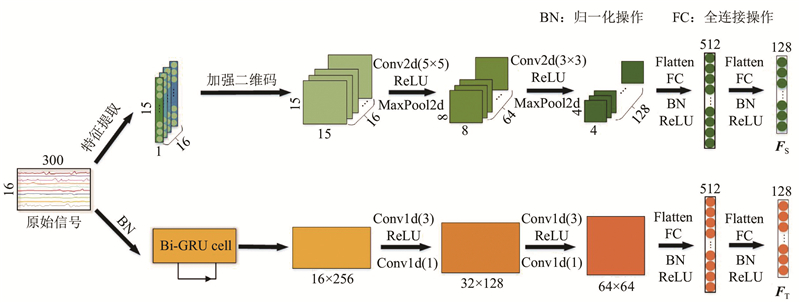

图 2 双分支网络的实现细节

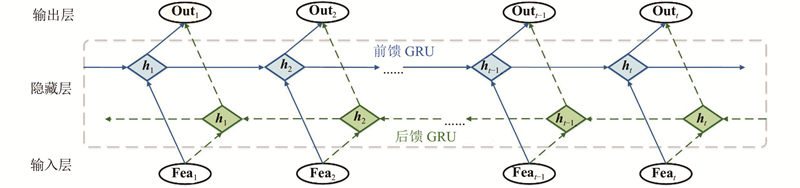

图 3 Bi-GRU的展开结构

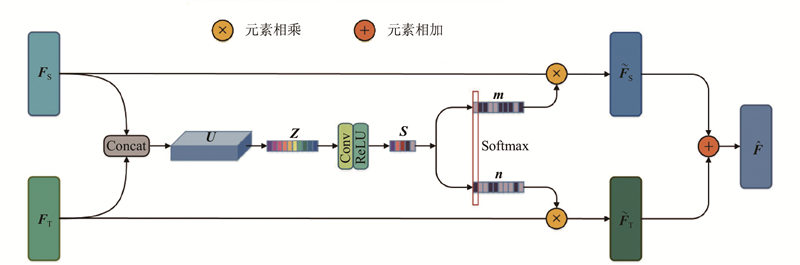

图 4 自适应特征融合结构

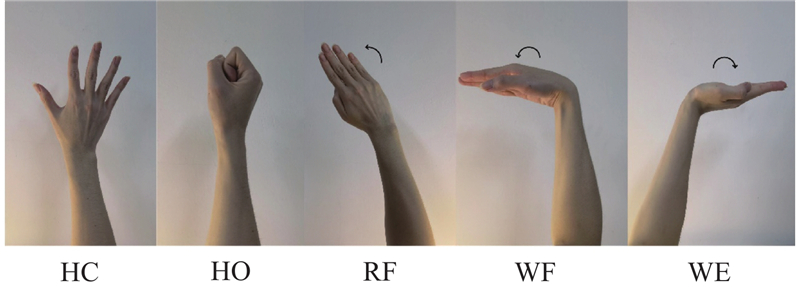

图 5 手势动作的示意图

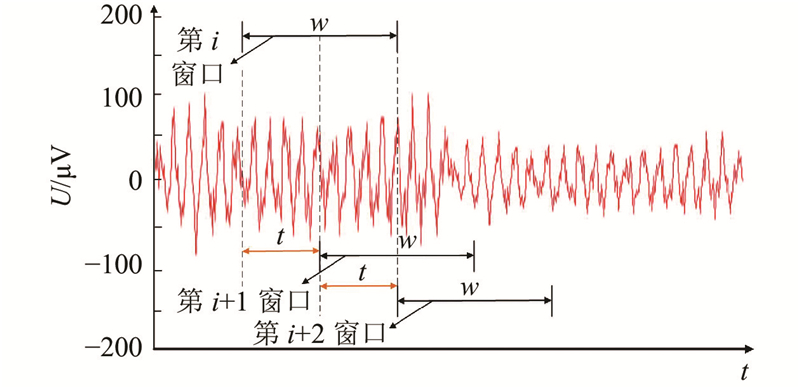

图 6 窗口分析法

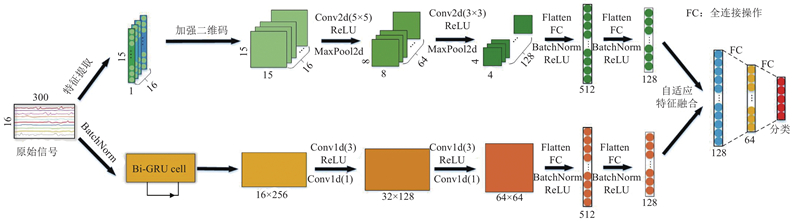

图 7 ETDTBN网络的结构

表 1 ETDTBN网络的结构参数

表 2 电极偏移情况下各方法的识别效果

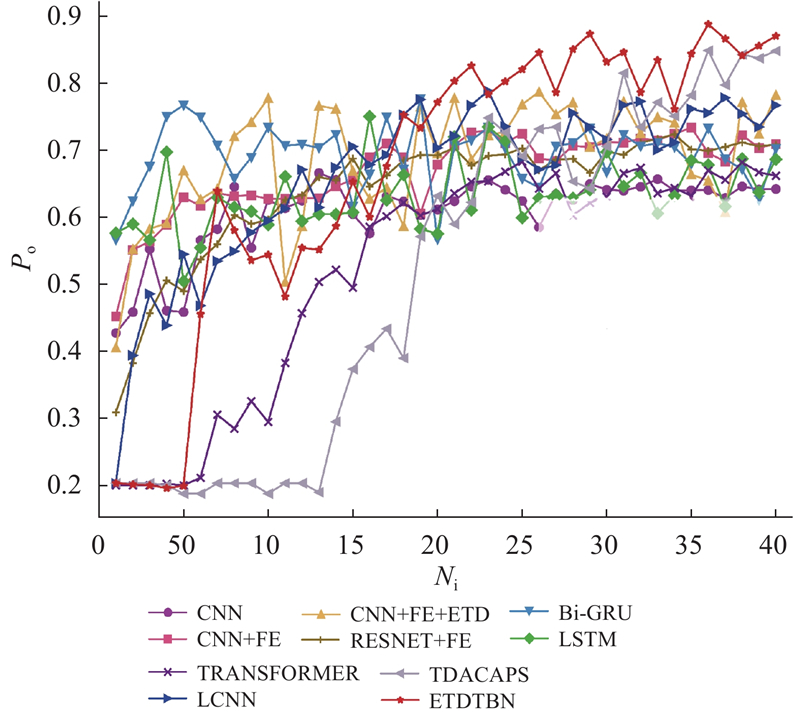

图 8 电极偏移情况下各模型的分类准确率

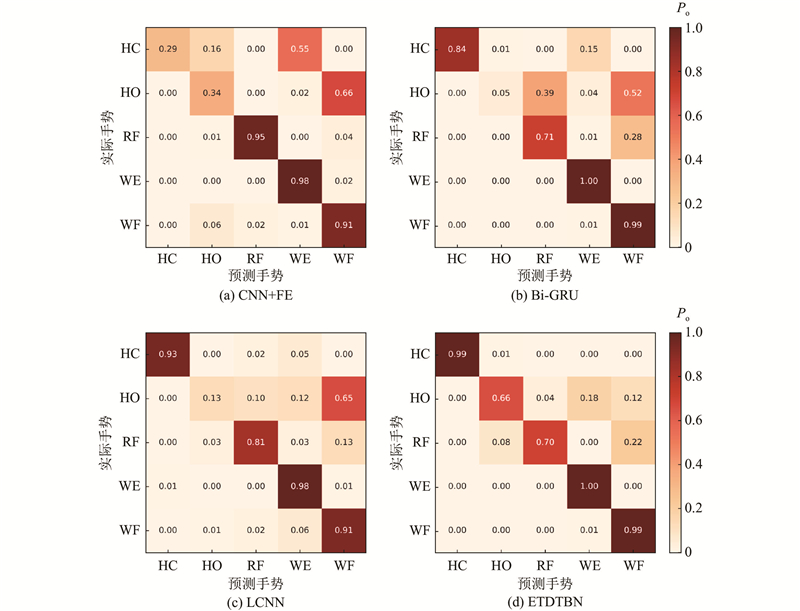

图 9 电极偏移情况下不同模型的混淆矩阵比较
