浙江大学学报(工学版)  2024, Vol. 58 Issue (7): 1346-1356    DOI: 10.3785/j.issn.1008-973X.2024.07.004
计算机与控制工程
精英协同进化的蜉蝣算法
吴慧玲(),刘升*()
上海工程技术大学 管理学院,上海 201620
Elite coevolutionary mayfly algorithm
Huiling WU(),Sheng LIU*()
School of Management, Shanghai University of Engineering Science, Shanghai 201620, China
 全文: PDF(1269 KB)   HTML
摘要:

蜉蝣算法的种群多样性低、寻优性能差,为此提出基于精英协同进化的蜉蝣算法(ECMA). 将雄性蜉蝣种群根据自身种群适应度分为精英种群和普通种群,精英个体进行自我学习以保持种群的多样性,实现高水平的全局搜索;普通个体飞向统一目标进行局部开发,以提高ECMA的收敛速度. 根据婚姻市场理论改进雌性蜉蝣的位置更新,提高ECMA的寻优性能;引入新的自适应重力系数平衡全局搜索和局部开发能力,提高ECMA的收敛精度;引入莱维飞行的跳出策略,避免ECMA陷入局部最优. 基于20个基准测试函数和CEC2019测试函数进行算法的仿真优化分析,与蜉蝣算法以及其他优秀的群智能算法相比,ECMA在寻优精度、收敛速度和稳定性方面均有较大提升.

关键词: 蜉蝣算法精英策略协同进化莱维飞行婚姻市场理论
Abstract:

An elite coevolutionary mayfly algorithm (ECMA) was proposed to resolve the small population diversity and the poor optimization performance of the mayfly algorithm. Firstly, male mayflies were divided into elite and ordinary members based on their fitness performance, then the elite individuals learned from itself to maintain the population diversity and achieve high-level global search, while the ordinary individuals flew toward a unified target for local development to improve the convergence speed of ECMA. Secondly, the position update of female mayflies was improved based on the marriage market theory, thus enhancing the optimization performance of ECMA. Thirdly, a new adaptive gravity coefficient was introduced to establish a balance between the global search and the local development to improve the convergence accuracy of ECMA. Finally, a jump-out strategy of Levy flight was introduced to avoid ECMA falling into a local optimum. Based on 20 benchmark test functions and CEC2019 test functions, the simulation optimization analysis of the algorithm was carried out. Compared with the mayfly algorithm and other excellent swarm intelligence algorithms, ECMA has greatly improved the optimization accuracy, convergence speed and stability.

Key words: mayfly algorithm    elite strategy    coevolution    Levy flight    marriage market theory
收稿日期: 2023-06-01 出版日期: 2024-07-01
CLC:  TP 301.6
基金资助: 国家自然科学基金资助项目(61673258,61075115);上海市自然科学基金资助项目(19ZR1421600).
通讯作者: 刘升     E-mail: 1156250694@qq.com;ls6601@163.com
作者简介: 吴慧玲(1998—),女,硕士生,从事群智能算法优化研究. orcid.org/0009-0007-4956-0470. E-mail:1156250694@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
吴慧玲
刘升

引用本文:

吴慧玲,刘升. 精英协同进化的蜉蝣算法[J]. 浙江大学学报(工学版), 2024, 58(7): 1346-1356.

Huiling WU,Sheng LIU. Elite coevolutionary mayfly algorithm. Journal of ZheJiang University (Engineering Science), 2024, 58(7): 1346-1356.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.07.004        https://www.zjujournals.com/eng/CN/Y2024/V58/I7/1346

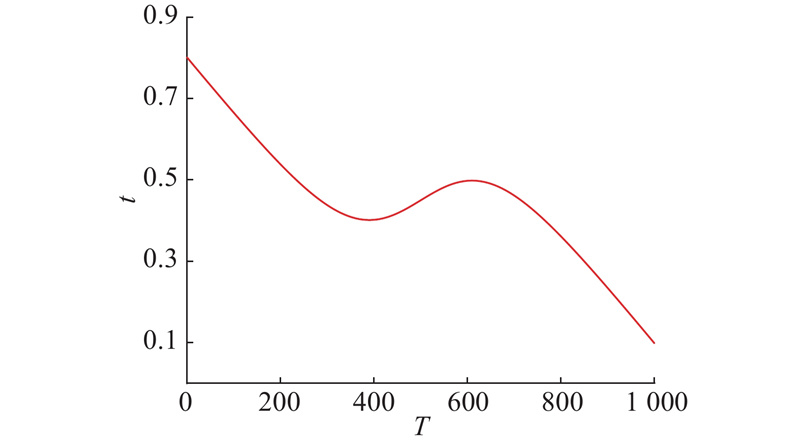

图 1  精英协同进化的蜉蝣算法的重力系数曲线

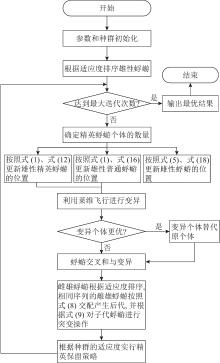

图 2  精英协同进化的蜉蝣算法流程图
类型编号名称维度取值范围最优值
单峰函数F1sphere30[?100,100]0
F2Schwefel’s problem 2.2230[10,10]0
F3Schwefel’s problem 1.230[?100,100]0
F4Schwefel’s problem 2.2130[?100,100]0
F5generalized Rosenbrock’s function30[?30,30]0
F6Step function30[?100,100]0
F7Quartic function30[?1.28,1.28]0
多峰函数F8generalized Schwefel’s problem 2.2630[?500,500]?418.9829d
F9generalized Rastrigin’s function30[?5.12,5.12]0
F10Ackley’s function30[?32,32]0
F11generalized Griewank function30[?600,600]0
F12generalized penalized function30[?50,50]0
F13generalized penalized function30[?50,50]0
F14Shekel’s foxholes function2[?65,65]1
F15Kowalik’s function4[–5,5]0.00030
F16six-hump camel-back function2[?5,5]?1.0316
F17Branin function2[?5,5]0.398
F18Goldstein-Price function2[?2,2]3
F19Hartman’s function3[1,3]?3.86
F20Shekel’s family4[0,10]?10.1532
表 1  基准测试函数
图 3  不同参数组合的性能呈现

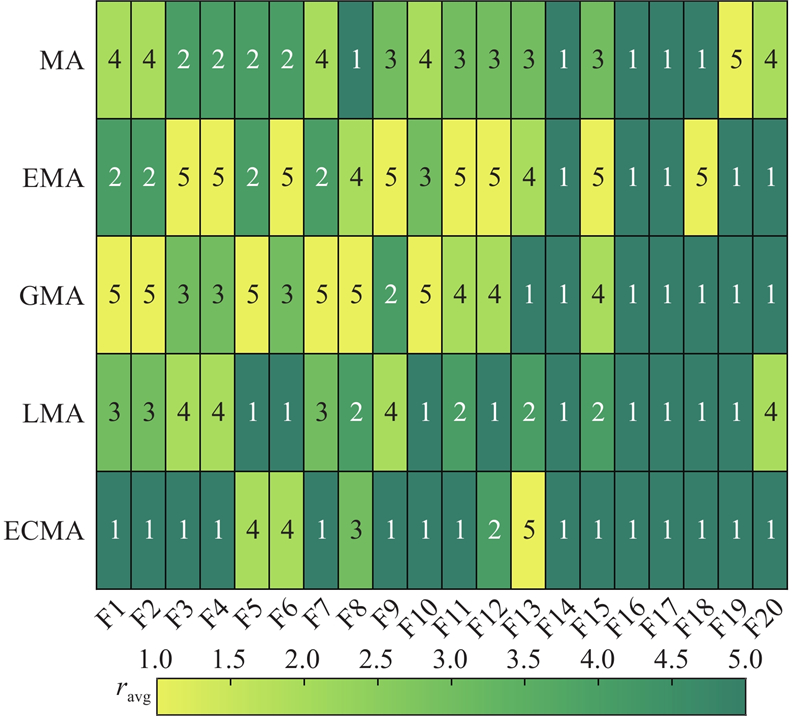

图 4  不同改进策略的蜉蝣算法在基准测试函数上的均值排名
算法函数avgstd函数avgstd函数avgstd函数avgstd
ECMAF100F200F300F400
MA7.02×10?192.33×10?181.24×10?92.41×10?92.49×10?62.56×10?65.21×10?11.89×10?1
WOA8.76×10?1484.79×10?1472.97×10?1041.07×10?1032.27×1041.01×1043.69×1012.94×101
GWO1.53×10?585.75×10?581.32×10?341.69×10?342.34×10?141.13×10?131.29×10?141.88×10?14
PSO1.18×10?85.87×10?89.27×10?21.41×10?14.97×1012.47×1025.92×10?13.59×10?1
SCA1.48×10?23.46×10?21.78×10?53.54×10?53.77×1032.98×1031.91×1011.19×101
ECMAF52.70×1018.15×10?1F62.00×10?12.19×10?1F74.55×10?53.63×10?5F8?9.30×1035.33×102
MA2.92×1012.15×1013.26×10?198.91×10?191.26×10?24.86×10?3?9.55×1035.45×102
WOA2.72×1015.32×10?18.79×10?21.08×10?12.34×10?32.79×10?3?1.15×1041.46×103
GWO2.70×1018.14×10?17.25×10?14.22×10?18.04×10?44.37×10?4?5.89×1039.99×102
PSO4.55×1013.99×1017.95×10?73.62×10?61.86×10?28.72×10?3?6.33×1038.90×102
SCA8.95×1021.64×1034.716.51×10?14.75×10?26.90×10?2?3.93×1032.86×102
ECMAF900F108.88×10?160F1100F127.58×10?36.35×10?3
MA8.694.321.973.77×10?11.19×10?21.06×10?24.15×10?25.84×10?2
WOA003.02×10?152.40×10?151.65×10?39.03×10?38.25×10?31.16×10?2
GWO5.46×10?11.821.60×10?143.22×10?153.50×10?36.81×10?33.95×10?22.44×10?2
PSO5.38×1011.48×1011.258.51×10?14.37×10?23.78×10?21.56×10?12.53×10?1
SCA1.56×1012.12×1011.24×1019.592.32×10?12.23×10?13.555.65
ECMAF132.152.80×10?1F149.98×10?15.39×10?10F153.16×10?43.84×10?5F16?1.036.45×10?16
MA2.54×10?25.74×10?29.98×10?14.12×10?179.76×10?43.66×10?3?1.036.58×10?16
WOA2.11×10?11.64×10?11.821.896.26×10?43.07×10?4?1.036.29×10?11
GWO4.93×10?11.77×10?14.914.573.06×10?36.91×10?3?1.035.61×10?9
PSO1.22×10?13.10×10?14.633.501.07×10?33.66×10?3?1.036.78×10?16
SCA2.47×1038.76×1031.538.92×10?19.50×10?43.46×10?4?1.032.56×10?5
ECMAF173.98×10?10F183.002.03×10?3F19?3.862.68×10?15F20?3.313.63×10?2
MA3.98×10?103.001.14×10?15?3.862.71×10?15?3.295.35×10?2
WOA3.98×10?12.20×10?63.001.97×10?5?3.862.77×10?3?3.241.18×10?1
GWO3.98×10?19.06×10?73.001.23×10?5?3.862.40×10?3?3.249.24×10?2
PSO3.98×10?103.001.08×10?15?3.862.71×10?15?3.275.99×10?2
SCA3.98×10?11.31×10?33.002.62×10?5?3.851.40×10?3?3.041.02×10?1
表 2  不同群智能算法在基准测试函数上的优化结果

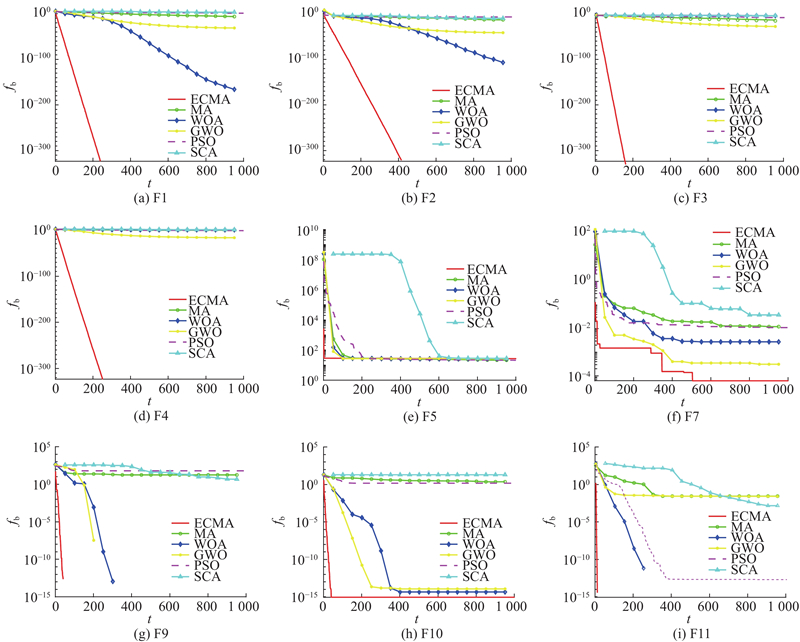

图 5  不同算法在基准测试中数上的收敛效果对比图
函数维度avgstd
MAECMAMAECMA
F15002.41×1027.85×10?2672.87×1010
F110007.95×1031.20×10?2489.83×1020
F25009.36×1011.17×10?1748.150
F21000NaN3.80×10?136NaN2.08×10?135
F45002.96×1011.11×10?1422.276.08×10?142
F410003.36×1015.351.721.25×101
F55002.69×1044.98×1023.34×1033.16×10?1
F510006.66×1059.98×1027.57×1043.08×10?1
F75001.25×1021.13×10?41.87×1011.22×10?4
F710001.21×1028.66×10?51.30×1018.15×10?5
F95004.88×1021.653.32×1013.05
F910002.05×1033.631.47×1024.66
F105001.06×1012.19×10?153.45×10?11.74×10?15
F1010001.19×1013.49×10?153.23×10?11.60×10?15
F115002.31×1021.04×10?13.88×1013.23×10?1
F1110008.25×1023.931.48×1024.96
F125002.73×1018.25×10?13.648.02×10?2
F1210002.71×1018.30×10?14.727.58×10?2
表 3  2种蜉蝣算法在高维基准测试函数上的对比结果
算法函数avgstd函数avgstd
ECMAF215.11×1046.92×103F221.72×1016.60×10-2
MA2.32×10103.95×10102.08×1011.10×101
WOA5.74×10104.70×10101.74×1016.19×10?3
GWO1.07×1081.51×1081.73×1011.40×10?4
PSO8.04×10128.20×10111.23×1043.02×103
SCA4.61×1094.22×1091.75×1014.61×10?2
ECMAF231.27×1011.22×10-10F242.33×1021.01×102
MA1.27×1013.61×10-153.06×1021.19×102
WOA1.27×1017.43×10?75.89×1022.83×102
GWO1.27×1011.79×10?65.40×1012.22×101
PSO1.27×10102.33×1011.04×101
SCA1.27×1018.14×10?51.98×1039.63×102
ECMAF251.664.35×10?1F268.061.56
MA1.694.44×10?18.712.40
WOA1.762.43×10-19.641.15
GWO2.391.97×10?11.16×1012.40×10?1
PSO1.481.59×10?19.989.32×10?1
SCA2.341.87×10?11.11×1017.51×10?1
ECMAF272.40×1021.10×102F284.776.09×10?1
MA2.63×1021.53×1024.828.00×10?1
WOA8.06×1022.53×1025.934.82×10-1
GWO3.53×1022.29×1026.184.47×10-1
PSO5.03×1023.33×1025.231.05
SCA8.50×1022.24×1025.028.29×10-1
ECMAF294.045.49×10?1F301.96×1012.59
MA2.402.30×10?11.98×1012.62
WOA4.839.21×10?12.03×1011.02×10?1
GWO1.12×1029.35×1012.05×1014.52×10?2
PSO4.407.46×10?12.04×1012.02×10?1
SCA2.393.16×10?22.05×1015.89×10?2
表 4  不同群智能算法在CEC2019函数上的优化结果
1 ZERVOUDASKIS K, TSAFARAKIS S A mayfly optimization algorithm[J]. Computers and Industrial Engineering, 2020, 145: 106559
doi: 10.1016/j.cie.2020.106559
2 蒋宇飞, 许贤泽, 徐逢秋, 等. 多策略融合改进的自适应蜉蝣算法[EB/OL]. (2022-10-10)[2023-05-30]. https://doi.org/10.13700/j.bh.1001-5965.2022.0492.
3 王义, 张达敏, 张琳娜, 等 基于黄金正弦与自适应融合的蜉蝣优化算法[J]. 计算机应用研究, 2021, 38 (10): 3072- 3077
WANG Li, ZHANG Damin, ZHANG Linna, et al Mayfly optimization algorithm based on gold sine and adaptive merge[J]. Application Research of Computers, 2021, 38 (10): 3072- 3077
4 LI L L, LOU J L, TSENG M L, et al A hybrid dynamic economic environmental dispatch model for balancing operating costs and pollutant emissions in renewable energy: a novel improved mayfly algorithm[J]. Expert Systems with Applications, 2022, 203: 117411
doi: 10.1016/j.eswa.2022.117411
5 GUO L, XU C, YU T, et al An improved mayfly optimization algorithm based on median position and its application in the optimization of PID parameters of hydro-turbine governor[J]. IEEE Access, 2022, 10: 36335- 36349
doi: 10.1109/ACCESS.2022.3160714
6 ZHAO S, WANG D Elite-ordinary synergistic particle swarm optimization[J]. Information Sciences, 2022, 609: 1567- 1587
doi: 10.1016/j.ins.2022.07.131
7 LIANG B, ZHAO Y, LI Y A hybrid particle swarm optimization with crisscross learning strategy[J]. Engineering Applications of Artificial Intelligence, 2021, 105: 104418
doi: 10.1016/j.engappai.2021.104418
8 LYNN N, SUGANTHAN P N Heterogeneous comprehensive learning particle swarm optimization with enhanced exploration and exploitation[J]. Swarm and Evolutionary Computation, 2015, 24: 11- 24
doi: 10.1016/j.swevo.2015.05.002
9 MENDES R, KENNEDY J, NEVES J The fully informed particle swarm: simpler, maybe better[J]. IEEE Transactions on Evolutionary Computation, 2004, 8 (3): 204- 210
doi: 10.1109/TEVC.2004.826074
10 GONG Y J, ZHANG J. Small-world particle swarm optimization with topology adaptation [C]// Proceedings of the 15th Annual Conference on Genetic and Evolutionary Computation . [S. l.]: ACM, 2013: 25–32.
11 LI T, SHI J, DENG W, et al Pyramid particle swarm optimization with novel strategies of competition and cooperation[J]. Applied Soft Computing, 2022, 121: 108731
doi: 10.1016/j.asoc.2022.108731
12 LIN A, SUN W, YU H, et al Global genetic learning particle swarm optimization with diversity enhancement by ring topology[J]. Swarm and Evolutionary Computation, 2019, 44: 571- 583
doi: 10.1016/j.swevo.2018.07.002
13 BECKER G S A theory of marriage: part I[J]. Journal of Political Economy, 1973, 81 (4): 813- 846
doi: 10.1086/260084
14 陈博文, 邹海 总结性自适应变异的粒子群算法[J]. 计算机工程与应用, 2022, 58 (8): 67- 75
CHEN Bowen, ZOU Hai Self-conclusion and self-adaptive variation particle swarm optimization[J]. Computer Engineering and Applications, 2022, 58 (8): 67- 75
15 SHI Y, EBERHART R. A modified particle swarm optimizer [C]// Proceedings of the IEEE International Conference on Evolutionary Computation . Anchorage: IEEE, 1998: 69-73.
16 季伟东, 徐浩天, 林平 自适应变异粒子群优化算法及在新冠肺炎疫情传播预测中的应用[J]. 小型微型计算机系统, 2021, 42 (3): 472- 477
JI Weidong, XU Haotian, LIN Ping Adaptive mutation particle swarm optimization and its application in predicting the COVID-19 epidemic transmission[J]. Journal of Chinese Computer Systems, 2021, 42 (3): 472- 477
17 陈贵敏, 贾建援, 韩琪 粒子群优化算法的惯性权值递减策略研究[J]. 西安交通大学学报, 2006, 40 (1): 53- 56
CHEN Guimin, JIA Jianyuan, HAN Qi Study on the strategy of decreasing inertia weight in particle swarm optimization algorithm[J]. Journal of Xi'an Jiaotong University, 2006, 40 (1): 53- 56
18 闫群民, 马瑞卿, 马永翔, 等 一种自适应模拟退火粒子群优化算法[J]. 西安电子科技大学学报, 2021, 48 (4): 120- 127
YAN Qunmin, MA Ruiqing, MA Yongxiang, et al Adaptives simulated annealing particles swarm optimization algorithm[J]. Journal of Xidian University, 2021, 48 (4): 120- 127
19 梁田, 曹德欣 基于莱维飞行的改进简化粒子群算法[J]. 计算机工程与应用, 2021, 57 (20): 188- 196
LIANG Tian, CAO Dexin Improved and simplified particle swarm optimization algorithm based on Levy flight[J]. Computer Engineering and Applications, 2021, 57 (20): 188- 196
20 邓佳欣, 张达敏, 何庆, 等 结合莱维飞行和布朗运动的金鹰算法[J]. 系统仿真学报, 2023, 35 (6): 1290- 1307
DEN JiaXin, ZHANG Damin, HE Qing, et al Golden eagle optimizer algorithm combining Levy flight and brownian motion[J]. Journal of System Simulation, 2023, 35 (6): 1290- 1307
21 欧云, 周恺卿, 尹鹏飞, 等 双收敛因子策略下的改进灰狼优化算法[J]. 计算机应用, 2023, 43 (9): 2679- 2685
OU Yun, ZHOU Kaiqing, YIN Pengfei, et al Improved grey wolf optimizer algorithm based on dual convergence factor strategy[J]. Journal of Computer Applications, 2023, 43 (9): 2679- 2685
22 MIRJALILI S, LEWIS A The whale optimization algorithm[J]. Advances in Engineering Software, 2016, 95: 51- 67
doi: 10.1016/j.advengsoft.2016.01.008
23 MIRJALILI S, MIRJALILI S M, LEWIS A Grey wolf optimizer[J]. Advances in Engineering Software, 2014, 69: 46- 61
doi: 10.1016/j.advengsoft.2013.12.007
24 KENNEDY J, EBERHART R. Particle swarm optimization [C]/ / Proceedings of ICNN'95-International Conference on Neural Networks . Perth: IEEE, 1995: 1942–1948.
25 MIRJALILI S SCA: a sine cosine algorithm for solving optimization problems[J]. Knowledge-Based Systems, 2016, 96: 120- 133
doi: 10.1016/j.knosys.2015.12.022
