浙江大学学报(工学版)  2023, Vol. 57 Issue (5): 1038-1049    DOI: 10.3785/j.issn.1008-973X.2023.05.020
电气工程
基于XGBoost扩展金融因子的风电功率预测方法
王永生1,2(),关世杰1,2,刘利民1,2,*(),高静3,许志伟1,2,刘广文1,2
1. 内蒙古工业大学 数据科学与应用学院,内蒙古自治区 呼和浩特 010080
2. 内蒙古自治区基于大数据的软件服务工程技术研究中心,内蒙古自治区 呼和浩特 010080
3. 内蒙古农业大学 计算机与信息学院,内蒙古自治区 呼和浩特 010018
Wind power prediction method based on XGBoost extended financial factor
Yong-sheng WANG1,2(),Shi-jie GUAN1,2,Li-min LIU1,2,*(),Jing GAO3,Zhi-wei XU1,2,Guang-wen LIU1,2
1. School of Data Science and Application, Inner Mongolia University of Technology, Hohhot 010080, China
2. Software Service Engineering Technology Research Center, Hohhot 010080, China
3. School of Computer and Information, Inner Mongolia Agricultural University, Hohhot 010018, China
 全文: PDF(1292 KB)   HTML
摘要:

现有风电功率预测模型的主要输入特征包括气象数据和功率数据, 高精度气象数据获取困难、数据间潜在关系难以表示、预测模型收敛缓慢, 提出基于极端梯度提升回归树算法(XGBoost)扩展金融因子的超短期风电功率预测新方法,以及基于风电时序数据衍生金融因子的预测模型.采用具有较高预测准确率与较快训练速度的XGBoost算法进行预测, 使得预测模型快速收敛.在中国内蒙古某风电场的风电功率数据集与德国Tennet公司风电功率数据集上进行实验验证.实验结果表明,以R2score为例,所提方法与基准方法相比提升约14.71%. 所提方法中的建模与预测合计时间不超过500 ms.

关键词: 风力发电超短期风电功率预测梯度提升回归树XGBoost金融因子
Abstract:

The main input characteristics of the existing wind power prediction models include meteorological data and power data. Aiming at the difficulties such as obtaining high-precision meteorological data, expressing the potential relationships between data, and slow convergence of the prediction models, the work proposed new ultra-short-term wind power prediction method which could extend the financial factors based on extreme gradient boosting regression tree algorithm (XGBoost). A prediction model which could derive financial factors based on wind power timing data was proposed. The application of XGBoost algorithm with high prediction accuracy and fast training speed in prediction could help the prediction model converge quickly. The relevant experiment was conducted for verification with the wind power data set of a wind farm in Inner Mongolia of China and that of Tennet in Germany. The results showed that taking R2 score as an example, the proposed method improved by about 14.71% compared with the benchmark method. The total time for modeling and prediction of the proposed method did not exceed 500 ms.

Key words: wind power generation    ultra-short-term wind power prediction    gradient boosting regression tree    XGBoost    financial factor
收稿日期: 2022-05-06 出版日期: 2023-05-09
CLC:  TP 399
基金资助: 国家自然科学基金资助项目(61962045);内蒙古自治区自然科学基金资助项目(2021LHMS06001, 2019MS03014);内蒙古自治区高等学校科学研究项目(NJZY21321);内蒙古水利发展基金资助项目(NSK202109);内蒙古自治区关键技术攻关计划资助项目(2020GG0094); 内蒙古自治区科技重大专项(2019ZD016)
通讯作者: 刘利民     E-mail: wangys@imut.edu.cn;liulimin789@126.com
作者简介: 王永生(1976—),男,副教授/高级工程师, 博士. 从事时间序列数据分析与挖掘研究. orcid.org/0000-0003-4355-4321. E-mail: wangys@imut.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
王永生
关世杰
刘利民
高静
许志伟
刘广文

引用本文:

王永生,关世杰,刘利民,高静,许志伟,刘广文. 基于XGBoost扩展金融因子的风电功率预测方法[J]. 浙江大学学报(工学版), 2023, 57(5): 1038-1049.

Yong-sheng WANG,Shi-jie GUAN,Li-min LIU,Jing GAO,Zhi-wei XU,Guang-wen LIU. Wind power prediction method based on XGBoost extended financial factor. Journal of ZheJiang University (Engineering Science), 2023, 57(5): 1038-1049.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.05.020        https://www.zjujournals.com/eng/CN/Y2023/V57/I5/1038

图 1  基于XGBoost扩展金融因子的风电功率预测方法模型
图 2  风力发电功率K线图
图 3  XGBoost算法针对风电功率预测图
组别 MAE MSE RMSE AR/% ${ {{R} }^{\text{2} } }$ t1/s
注:数据来源于参考文献[22].
1 2.394 20.563 4.535 87.62 0.836 0.968
2 1.285 9.072 3.012 93.23 0.926 2.173
3 1.086 5.904 2.430 94.36 0.954 2.235
4 0.959 5.716 2.390 94.89 0.954 2.193
5 1.070 5.475 2.339 94.40 0.956 2.259
6 0.932 5.154 2.270 95.24 0.959 3.325
7 0.969 5.183 2.276 94.99 0.960 2.985
8* 1.390 11.700 3.400 - 0.930 >1500
表 1  基于XGBoost拓展金融因子的风电功率预测方法在中国内蒙古某风电场数据集上的实验结果
组别 V/(m·s?1) WDIR/(°) HUM/RH T/℃ pa/kPa ρ/(kg·m?3) Po/MW Pn/MW Pc/MW k d j DIF DEA MACD
1 3 478 3 049 2 399 1 641 1 739 1 599 ? ? ? ? ? ? ? ? ?
2 ? ? ? ? ? ? 4 416 1 590 3 950 ? ? ? ? ? ?
3 ? ? ? ? ? ? ? ? ? 2 249 1 571 1 668 2 971 1 565 2 537
4 1 438 1 329 1 110 754 695 813 2 400 1 675 2 886 ? ? ? ? ? ?
5 537 486 382 346 214 324 ? ? ? 512 431 776 1 268 485 1 130
6 400 418 365 212 259 246 371 452 $\underline{{\rm{751}}}$ 802 579 515 552 288 525
7 ? ? ? ? ? ? 953 1 120 1 834 1 933 1 258 1 447 1 393 824 1 335
表 2  中国内蒙古某风电场数据集中特征的重要性评分
图 4  基于XGBoost拓展金融因子的风电功率预测方法在中国内蒙古某风电场数据集上的预测效果

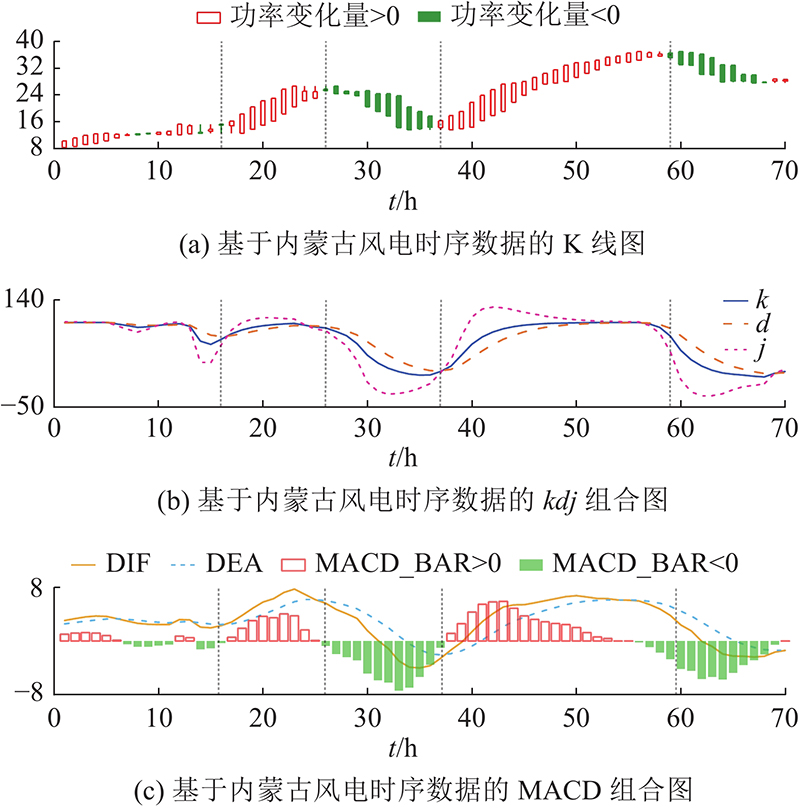

图 5  风力发电功率综合K线图
组别 MAE MSE RMSE
1 0.455 1.182 1.087
2 0.227 0.569 0.754
组别 AR/% ${{{R}}^2}$ t1/s
1 98.87 0.994 14.877
2 98.62 0.992 15.365
表 3  基于XGBoost拓展金融因子的风电功率预测方法在德国Tennet公司风电数据集上的实验结果

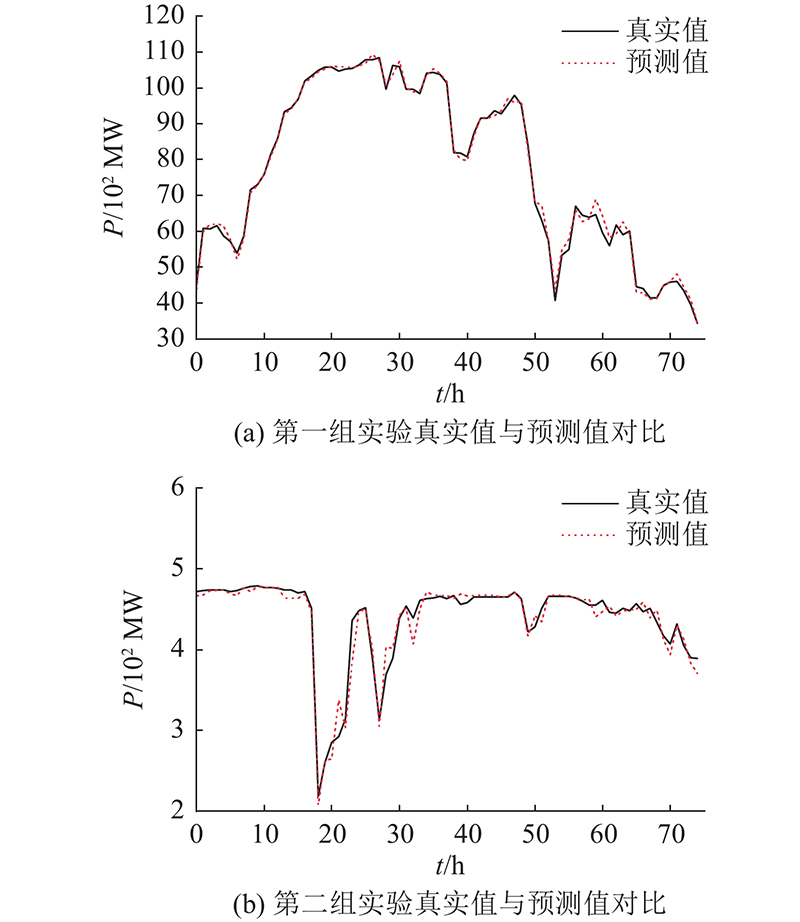

图 6  基于XGBoost拓展金融因子的风电功率预测方法在德国Tennet公司风电数据集上的预测效果
