基于XGBoost的隧道掘进机操作参数智能决策系统设计
王飞(),龚国芳*(),段理文,秦永峰
浙江大学 流体动力与机电系统国家重点实验室,浙江 杭州 310027
XGBoost based intelligent determination system design of tunnel boring machine operation parameters
Fei WANG(),Guo-fang GONG*(),Li-wen DUAN,Yong-feng QIN
State Key Laboratory of Fluid Power and Mechatronic Systems, Zhejiang University, Hangzhou 310027, China
 全文: PDF(1781 KB)   HTML
摘要:

为了实现隧道施工的同质化,提出基于极端梯度提升算法(XGBoost)预测模型的隧道掘进机(TBM)操作参数的智能决策方法. 定义场操作系数指数(FOI)作为替代传统场切深指数(FPI)的围岩级别特征参数,使用XGBoost算法建立预测模型以实现对FOI的预测,对围岩级别进行预测、判断. 通过对优秀司机在特定FOI下TBM操作参数的选择,建立专家模型实现FOI与特定TBM操作参数的关联,实现TBM操作参数的智能决策. 使用引松工程的现场数据进行对比实验,结果表明,设计的TBM操作参数的智能决策系统能够实现对优秀的TBM司机操作参数决策的复现,相比于以FPI为特征参数的传统智能决策系统,新系统的推进速度和刀盘转速两部分的平均相对误差分别下降8.84 %和7.97 %.

关键词: 隧道掘进机(TBM)智能决策场操作系数指数(FOI)极端梯度提升算法(XGBoost)预测
Abstract:

An intelligent determination method was presented for the operating parameters of hard rock tunnel boring machine (TBM) based on extreme gradient boosting (XGBoost) prediction model in order to realize the homogeneity of the tunnel constructions. The field operation index (FOI) was defined as the characteristic parameter of the surrounding rock types in order to replace field penetration index (FPI), and the XGBoost based prediction model was established to realize the accurate prediction of FOI value. The expert model was established to associate the FOI value and the specific TBM operation parameters selected by excellent drivers. Then the intelligent determination of the TBM operation parameters can be accomplished. The experiments on practical engineering data show that the operation parameter can be estimated by the proposed parameters determination system. The experimental results indicated that the mean relative error of thrust speed and cutterhead rotational speed decreased by 8.84 % and 7.97 % compared with the conventional system.

Key words: tunnel boring machine (TBM)    intelligent determination    field operation index (FOI)    extreme gradient boosting (XGBoost)    prediction
收稿日期: 2019-03-26 出版日期: 2020-04-05
CLC:  TH 137
基金资助: 国家重点研发计划资助项目(2017YFB1302600);国家自然科学基金资助项目(51675472);国家“973”重点基础研究发展规划资助项目(2015CB058100);河南省重大科技专项资助项目(161100211100)
通讯作者: 龚国芳     E-mail: tropicalfei@zju.edu.cn;gfgong@zju.edu.cn
作者简介: 王飞(1991—),男,博士生,从事大型隧道掘进装备电液控制及智能化研究. orcid.org/0000-0002-7413-674X. E-mail: tropicalfei@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
王飞
龚国芳
段理文
秦永峰

引用本文:

王飞,龚国芳,段理文,秦永峰. 基于XGBoost的隧道掘进机操作参数智能决策系统设计[J]. 浙江大学学报(工学版), 2020, 54(4): 633-641.

Fei WANG,Guo-fang GONG,Li-wen DUAN,Yong-feng QIN. XGBoost based intelligent determination system design of tunnel boring machine operation parameters. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 633-641.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.04.001        http://www.zjujournals.com/eng/CN/Y2020/V54/I4/633

图 1  引松工程TBM施工总体图

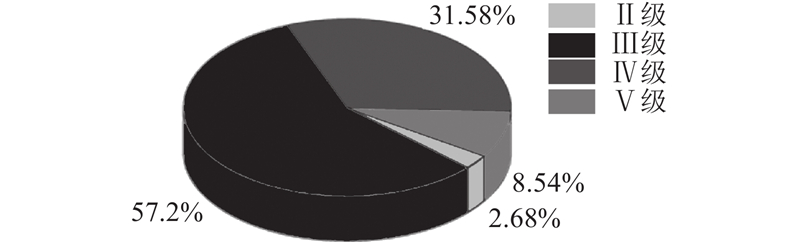

图 2  引松工程中各围岩级别占比
图 3  训练集数据中的贯入度分布状况

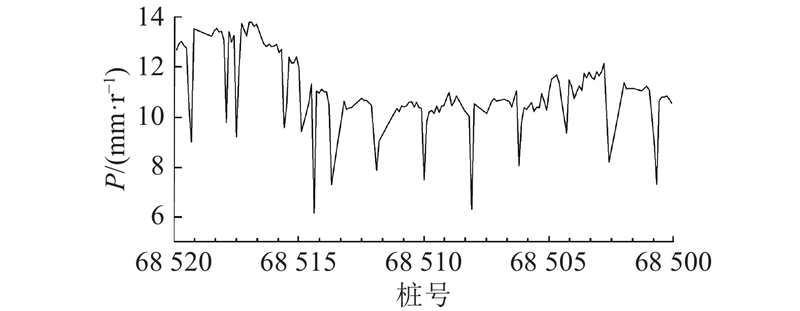

图 4  正常掘进工况下贯入度随掘进里程的变化关系图
图 5  切除起始掘进段前、后的贯入度数据对比

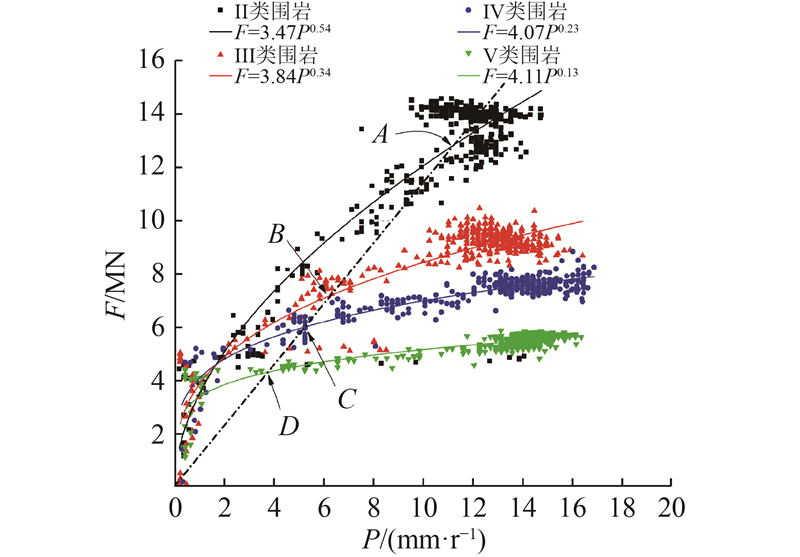

图 6  不同围岩级别条件下的总推进力与贯入度的关系
围岩级别 a b R2
II 3.47 0.54 0.78
III 3.84 0.34 0.84
IV 4.07 0.23 0.83
V 4.11 0.13 0.79
表 1  不同围岩级别下数据拟合参数列表

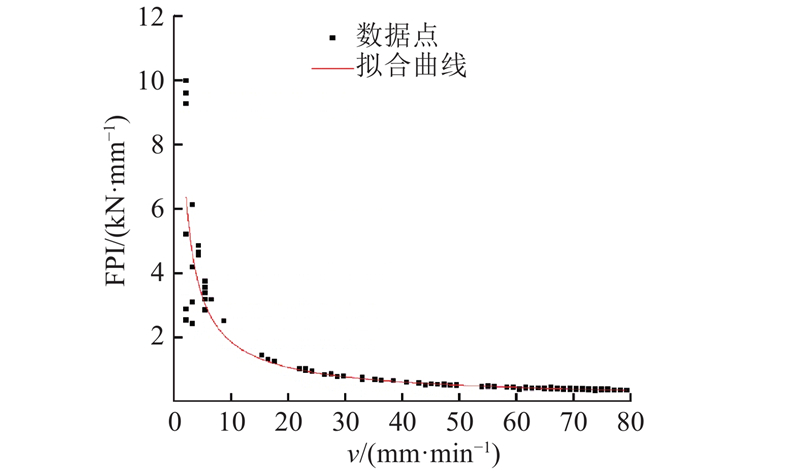

图 7  FPI与推进速度的关系曲线
参数 数值
粒子个数 100
最大迭代次数 100
惯性权重 0.5
加速度权重 0.5
加速度权重 0.5
最小适应度差 0.001
表 2  PSO算法的超参数表

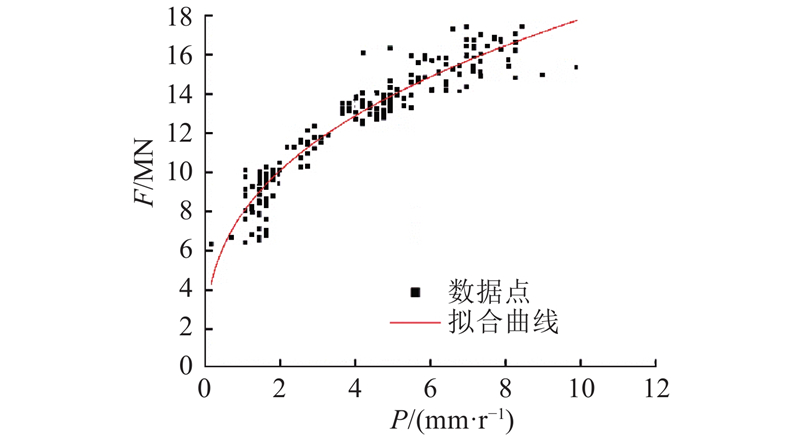

图 8  总推进力与贯入度的关系曲线
图 9  总推进力与操作参数系数的关系曲线

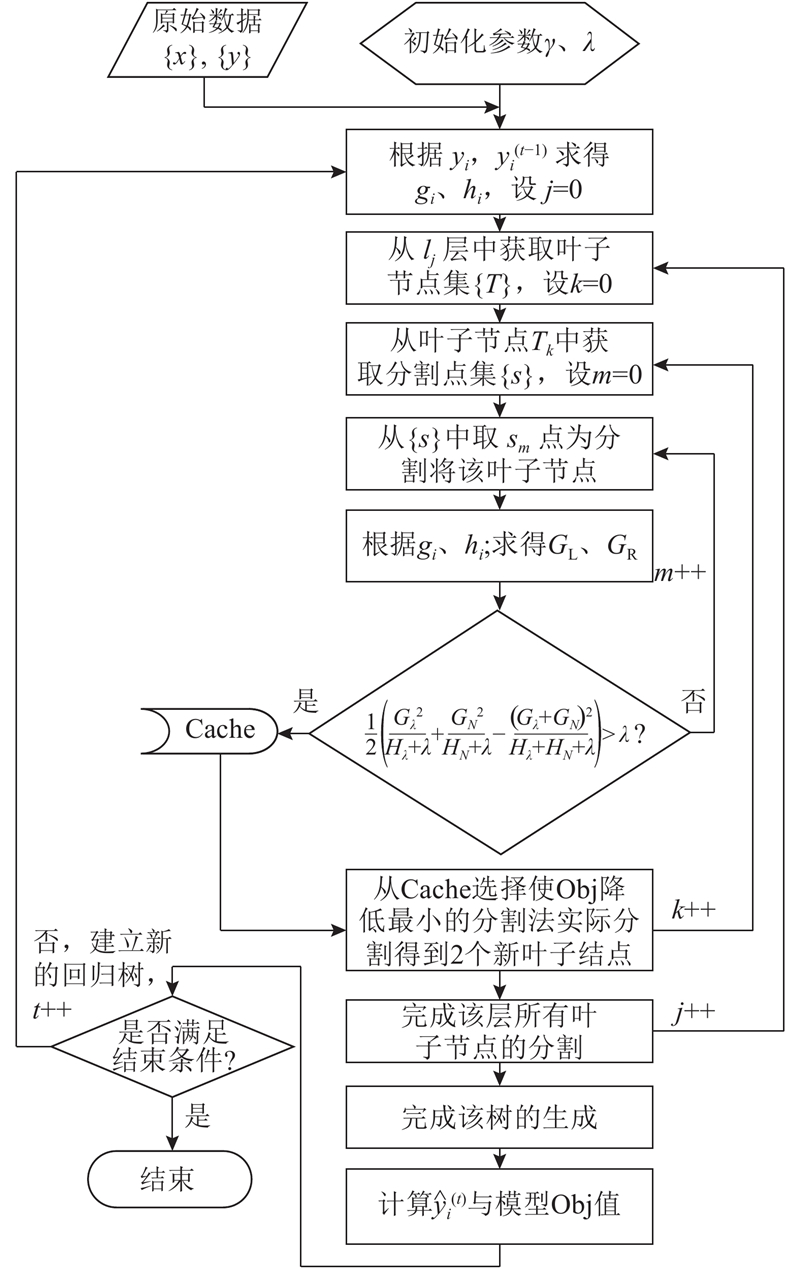

图 10  XGBoost算法流程图

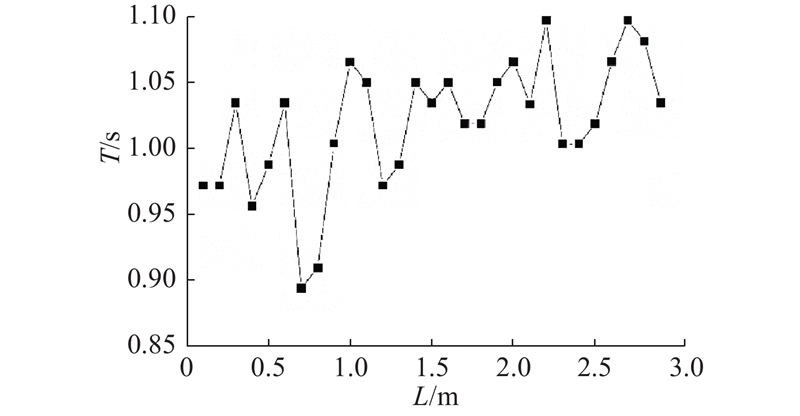

图 11  模型输入长度对模型训练时间的影响

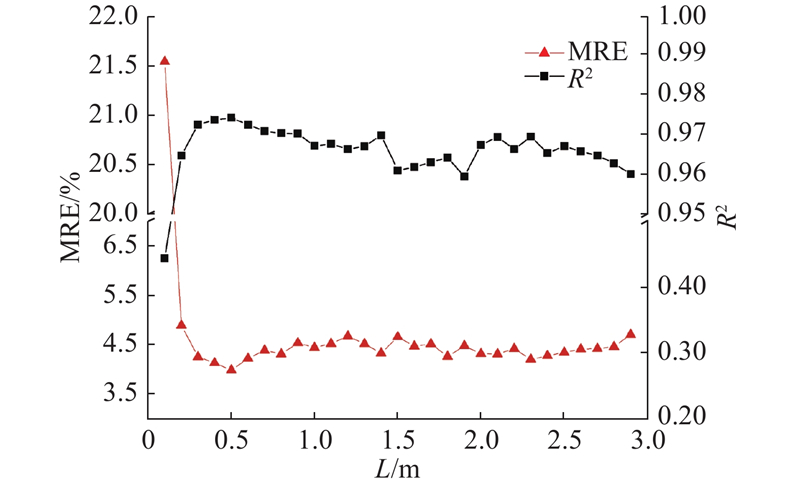

图 12  模型输入长度对平均相对误差和决定系数的影响

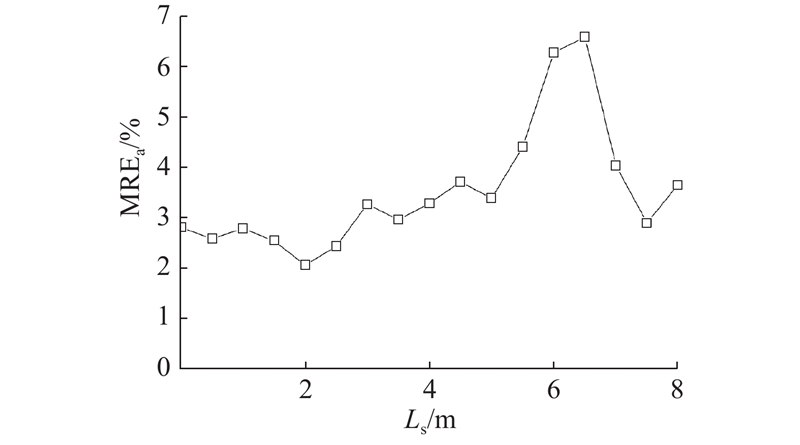

图 13  平均预测精度随模型使用距离的变化
图 14  FOI的预测效果图
图 15  不同FOI条件下司机的操作参数选择
图 16  推进速度的人机决策对比

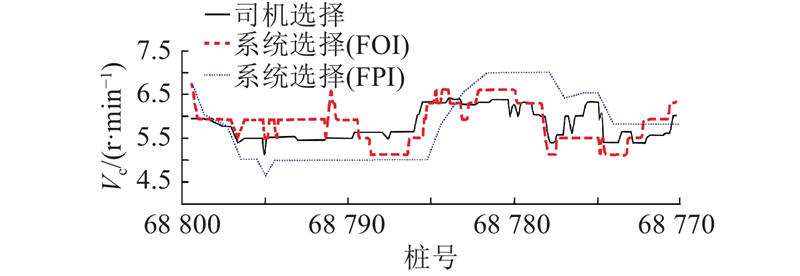

图 17  刀盘转速的人机决策对比
