浙江大学学报(工学版)  2022, Vol. 56 Issue (10): 1958-1966    DOI: 10.3785/j.issn.1008-973X.2022.10.007
自动化技术、信息工程
基于多层级特征自适应融合的图像分割算法
袁小平(),何祥,王小倩,胡杨明
中国矿业大学 信息与控制工程学院,江苏 徐州 221116
Image segmentation algorithm based on multi-level feature adaptive fusion
Xiao-ping YUAN(),Xiang HE,Xiao-qian WANG,Yang-ming HU
School of Information and Control Engineering , China University of Mining and Technology, Xuzhou 221116, China
 全文: PDF(1738 KB)   HTML
摘要:

为了解决传统算法对医学图像分割时精度较低的问题,提出基于多层级特征自适应融合的新型FR-Unet图像分割算法. 在编码器阶段,设计采样加权模块替代传统卷积层,对图像空间信息进行逐层提取和特征融合,获得相邻像素之间的相关性和不同层次的语义信息. 在解码器阶段,设计多层级自适应融合模块,通过非线性跳跃连接逐层提取图像通道信息,自适应地融合邻近连接层的上下文信息,使各层专注不同特征信息的提取. FR-Unet在模型参数量上大幅度减少,让网络在场景部署上得到更好的支持. 实验结果表明,该网络在动物细胞分割、肝脏器官分割、皮肤病变分割等众多任务中均表现突出.

关键词: 图像分割FR-Unet逐层提取采样加权模块多层级自适应融合模块
Abstract:

A novel FR-Unet image segmentation algorithm based on multi-layer feature adaptive fusion was proposed in order to solve the problem of low accuracy when segmenting medical images by traditional algorithms. The sampling weighting module was designed to replace the traditional convolutional layer in the encoder stage. The image spatial information was extracted and fused by layer, and the correlation between neighboring pixels and the semantic information at different levels was obtained. A multi-layer adaptive fusion module was designed in the decoder stage in order to extract image channel information layer by layer through nonlinear jump connections and adaptively fuse the contextual information of neighboring connected layers. Then each layer focuses on the extraction of different feature information. FR-Unet was substantially reduced in the number of model parameters, allowing the network to be better supported in scene deployment. The experimental results show that the network excels in numerous tasks such as animal cell segmentation, liver organ segmentation and skin lesion segmentation.

Key words: image segmentation    FR-Unet    layer-by-layer extraction    sampling weighting module    multi-level adaptive fusion module
收稿日期: 2021-11-08 出版日期: 2022-10-25
CLC:  TP 391
基金资助: 国家科技支撑计划资助项目(2013BAK06B08);江苏省研究生科研与实践创新计划资助项目(SJCX20_0812)
作者简介: 袁小平(1966—),男,教授,从事图像处理的研究. orcid.org/0000-0002-7936-0070. E-mail: 1941@cumt.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
袁小平
何祥
王小倩
胡杨明

引用本文:

袁小平,何祥,王小倩,胡杨明. 基于多层级特征自适应融合的图像分割算法[J]. 浙江大学学报(工学版), 2022, 56(10): 1958-1966.

Xiao-ping YUAN,Xiang HE,Xiao-qian WANG,Yang-ming HU. Image segmentation algorithm based on multi-level feature adaptive fusion. Journal of ZheJiang University (Engineering Science), 2022, 56(10): 1958-1966.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2022.10.007        https://www.zjujournals.com/eng/CN/Y2022/V56/I10/1958

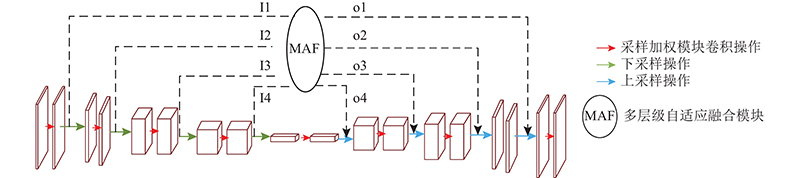

图 1  提出算法模型的总体结构图

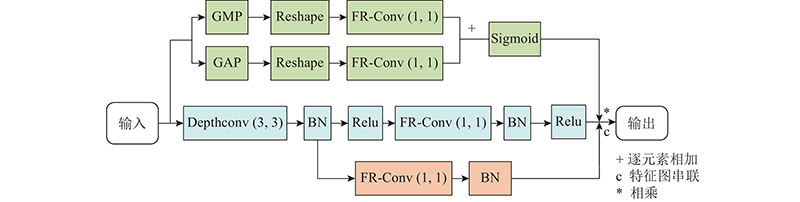

图 2  非对称特征提取的采样加权模块结构图

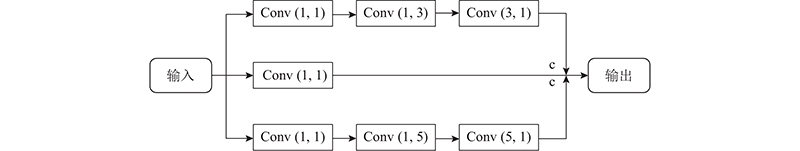

图 3  FR-conv(1,1)卷积层的结构图

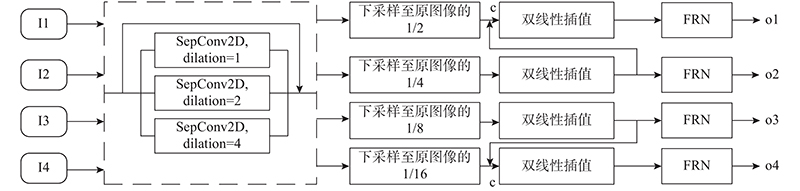

图 4  多层级自适应融合模块的结构图

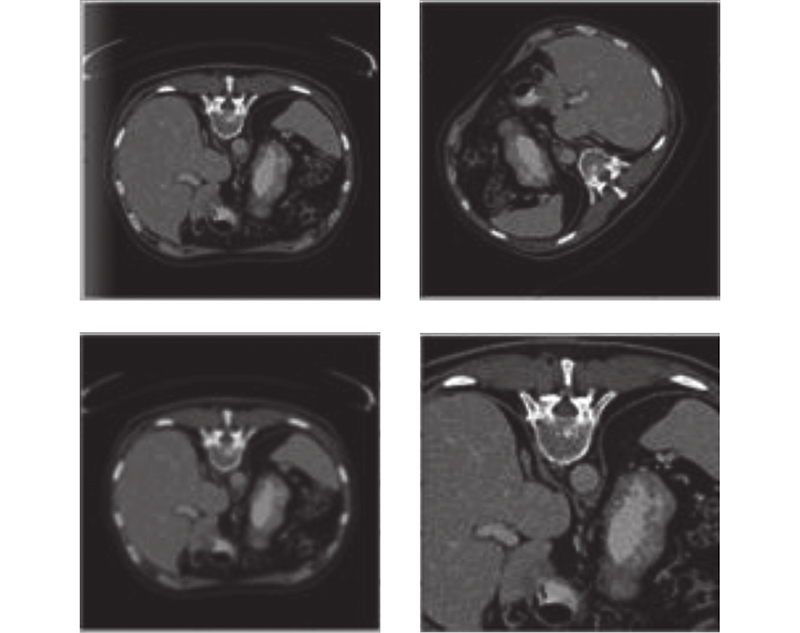

图 5  数据增强示意图

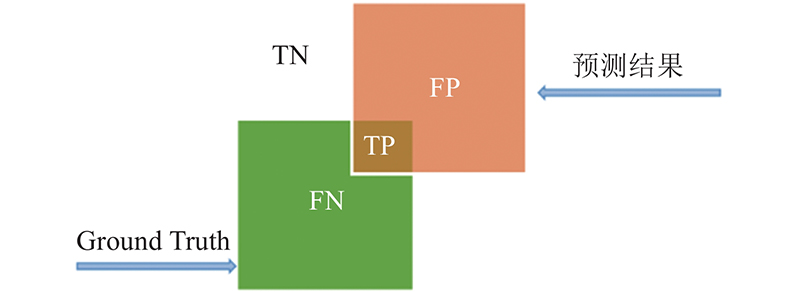

图 6  混淆矩阵示意图

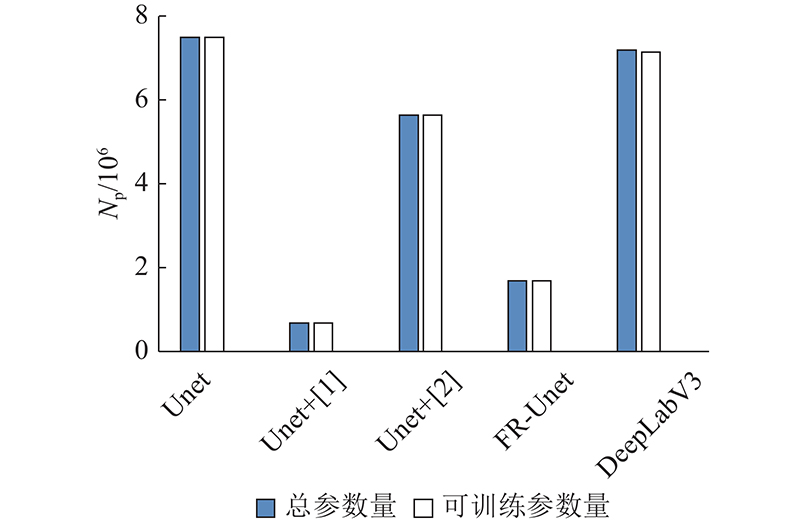

图 7  网络参数对比图
方法 IOU Dice L P tr/ms
FCN 0.7421 0.8320 0.0661 0.8751 67
Unet 0.8705 0.9207 0.0637 0.9187 74
UnetPlus 0.9858 0.9879 0.0020 0.9891 141
DenseASPP 0.9862 0.9898 0.0003 0.9999 588
DeepLabV3 0.9874 0.9898 0.0002 0.9999 626
Base(Unet) 0.8705 0.9207 0.0637 0.9187 74
Base+采样加权模块 0.9584 0.9786 0.0334 0.9467 64
Base+多层级自适应融合模块 0.9650 0.9647 0.0398 0.9374 509
本文方法 0.9898 0.9882 0.0001 0.9992 288
表 1  动物细胞分割任务对比试验和消融研究结果

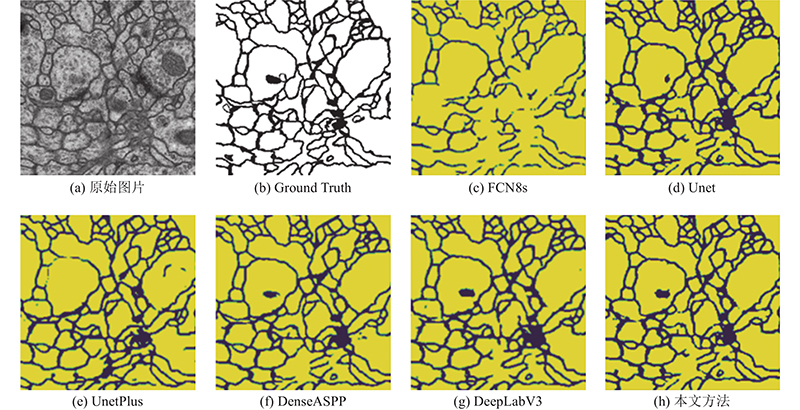

图 8  数据集1在不同算法上的分割对比图
方法 IOU Dice L P tr/ms
FCN 0.7834 0.8473 0.0611 0.8679 65
Unet 0.8388 0.8667 0.0634 0.8786 76
UnetPlus 0.9041 0.9163 0.0502 0.8994 149
DenseASPP 0.9072 0.9474 0.0405 0.9267 592
DeepLabV3 0.9541 0.9513 0.0378 0.9451 631
Base(Unet) 0.8388 0.8667 0.0634 0.8786 76
Base+采样加权模块 0.9127 0.9479 0.0527 0.9114 60
Base+多层级自适应融合模块 0.9433 0.9487 0.0401 0.9421 510
本文方法 0.9437 0.9623 0.0279 0.9536 289
表 2  肝脏分割任务对比试验和消融研究结果

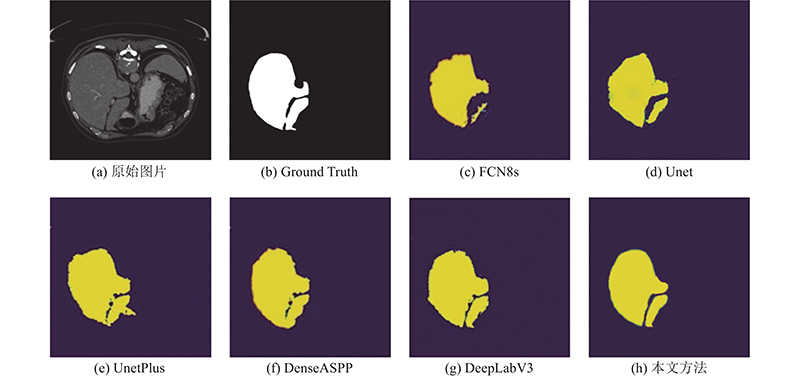

图 9  数据集2在不同算法上的分割对比图

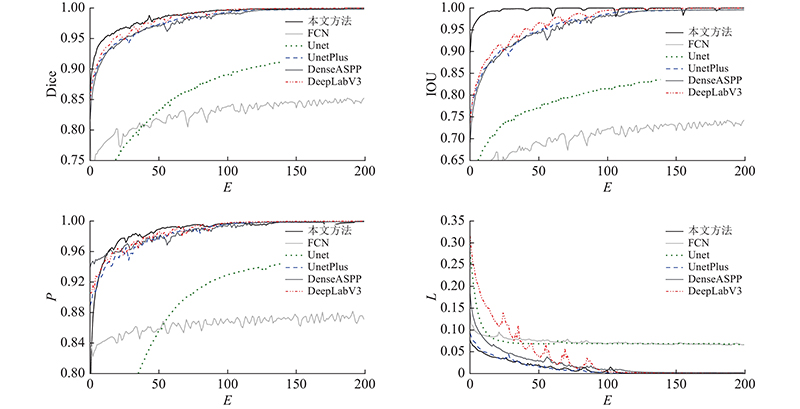

图 10  不同分割算法的客观评价指标图

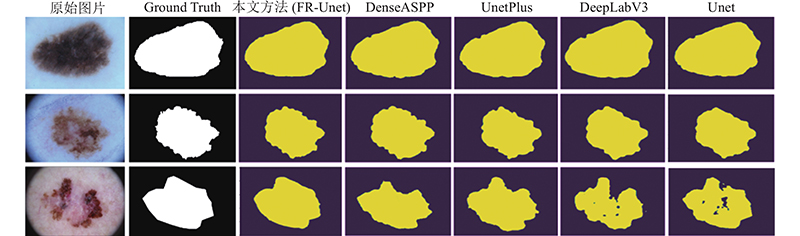

图 11  数据集3在不同算法上的分割对比图
