浙江大学学报(工学版)  2020, Vol. 54 Issue (7): 1401-1410    DOI: 10.3785/j.issn.1008-973X.2020.07.019
交通工程、水利工程、土木工程
外压作用下深海腐蚀缺陷管道的屈曲失稳机理
龚顺风1(),徐勤贵1,周家伟2,王喜鹏1,刘承斌1
1. 浙江大学 结构工程研究所,浙江 杭州 310058
2. 浙江大学建筑设计研究院有限公司,浙江 杭州 310028
Buckle and collapse mechanisms of deep-sea corrosion defect pipes under external pressure
Shun-feng GONG1(),Qin-gui XU1,Jia-wei ZHOU2,Xi-peng WANG1,Cheng-bin LIU1
1. Institute of Structural Engineering, Zhejiang University, Hangzhou 310058, China
2. Architectural Design and Research Institute of Zhejiang University Limited Company, Hangzhou 310028, China
 全文: PDF(2092 KB)   HTML
摘要:

为了研究外压作用下深海腐蚀缺陷管道的屈曲失稳机理,通过深海压力舱小比例模型试验,测得钢管试件发生屈曲失稳时的压力和变形形态. 利用有限元软件ABAQUS建立管道的三维数值模型,模拟外压作用下完好无损管道和腐蚀缺陷管道的准静态屈曲失稳过程,得到钢管的压力-直径变化曲线和变形形态,与试验结果吻合良好. 采用建立的数值模拟方法,分析管道长度、径厚比、初始椭圆率、钢材等级、钢材应变硬化特性和缺陷几何尺寸等因素对腐蚀缺陷管道屈曲失稳的影响. 结果表明,初始椭圆率、缺陷几何尺寸、钢材应变硬化特性是深海腐蚀缺陷管道标准化后失稳压力的主要影响因素,管道长度、径厚比、钢材等级对标准化后失稳压力的影响相对较小.

关键词: 管道腐蚀缺陷屈曲失稳深海外压
Abstract:

The small-scale model experiments for steel tube specimens were conducted in a deep-sea hyperbaric chamber to measure the pressure and deformation configurations when the buckle and collapse occurred in order to analyze the buckle and collapse mechanisms of deep-sea corrosion defect pipes under external pressure. A three-dimensional numerical model of the pipe was established using the finite element software ABAQUS to simulate the quasi-static collapsing process of intact and corrosion defect pipes under external pressure. The pressure-change in diameter response curves and deformation configurations of steel pipes accorded well with the experimental results. The effects of pipe length, diameter-to-thickness ratio, initial ovality, steel grade, strain hardening characteristic of steel and geometric size of defects on the buckle and collapse of corrosion defect pipes were analyzed by using the developed numerical simulation method. Results show that initial ovality, geometric size of defects, and strain hardening characteristic of steel are the major factors affecting the normalized collapse pressure of deep-sea corrosion defect pipes, while the effects of pipe length, diameter-to-thickness ratio, and steel grade on the normalized collapse pressure are comparatively small.

Key words: pipe    corrosion defect    buckle and collapse    deep sea    external pressure
收稿日期: 2019-06-24 出版日期: 2020-07-05
CLC:  TE 973
基金资助: 国家自然科学基金资助项目(51779223,51479176,51009122)
作者简介: 龚顺风(1975—),男,教授,从事深水海底管道研究. orcid.org/0000-0002-4184-9639. E-mail: sfgong@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
龚顺风
徐勤贵
周家伟
王喜鹏
刘承斌

引用本文:

龚顺风,徐勤贵,周家伟,王喜鹏,刘承斌. 外压作用下深海腐蚀缺陷管道的屈曲失稳机理[J]. 浙江大学学报(工学版), 2020, 54(7): 1401-1410.

Shun-feng GONG,Qin-gui XU,Jia-wei ZHOU,Xi-peng WANG,Cheng-bin LIU. Buckle and collapse mechanisms of deep-sea corrosion defect pipes under external pressure. Journal of ZheJiang University (Engineering Science), 2020, 54(7): 1401-1410.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.07.019        http://www.zjujournals.com/eng/CN/Y2020/V54/I7/1401

图 1  屈曲失稳实验装置示意图
试件编号 l/mm c/(°) d/mm
TD1 89 18 1.35
TD2 89 18 1.8
TD3 89 18 2.25
TD4 89 18 2.7
TD5 89 18 3.15
TD6 44.5 18 2.7
TD7 133.5 18 2.7
TD8 178 18 2.7
TD9 89 9 2.7
TD10 89 27 2.7
TD11 89 36 2.7
表 1  试件腐蚀缺陷几何尺寸

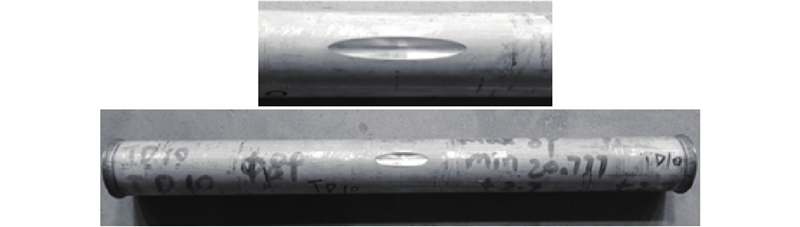

图 2  椭圆形腐蚀缺陷试件
图 3  试验装置与试件变形前后图

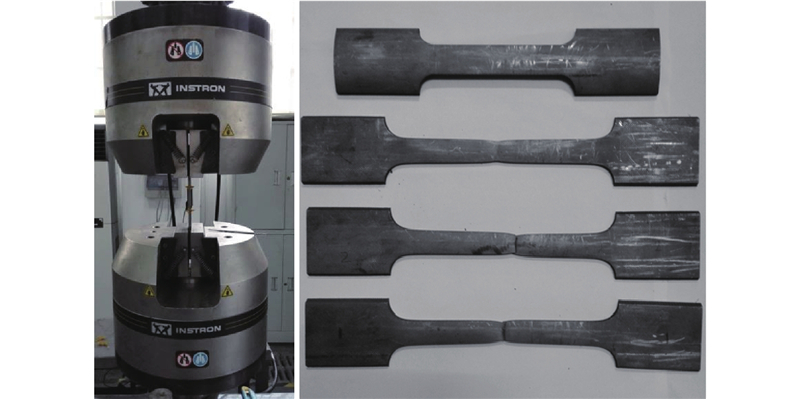

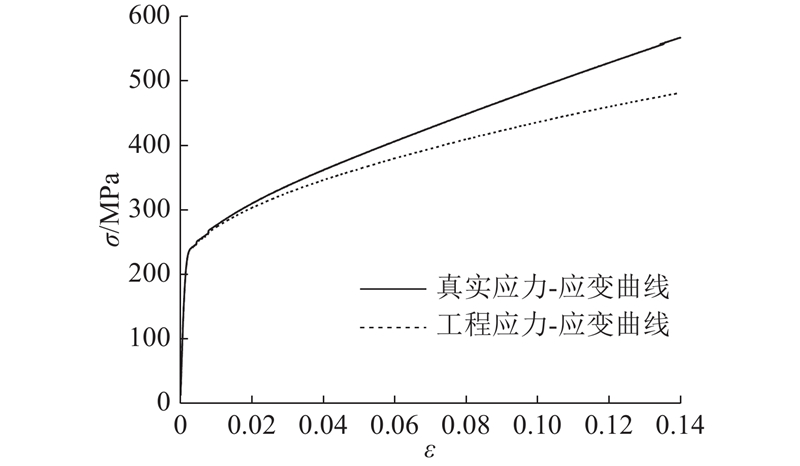

图 4  试件材料的应力-应变曲线

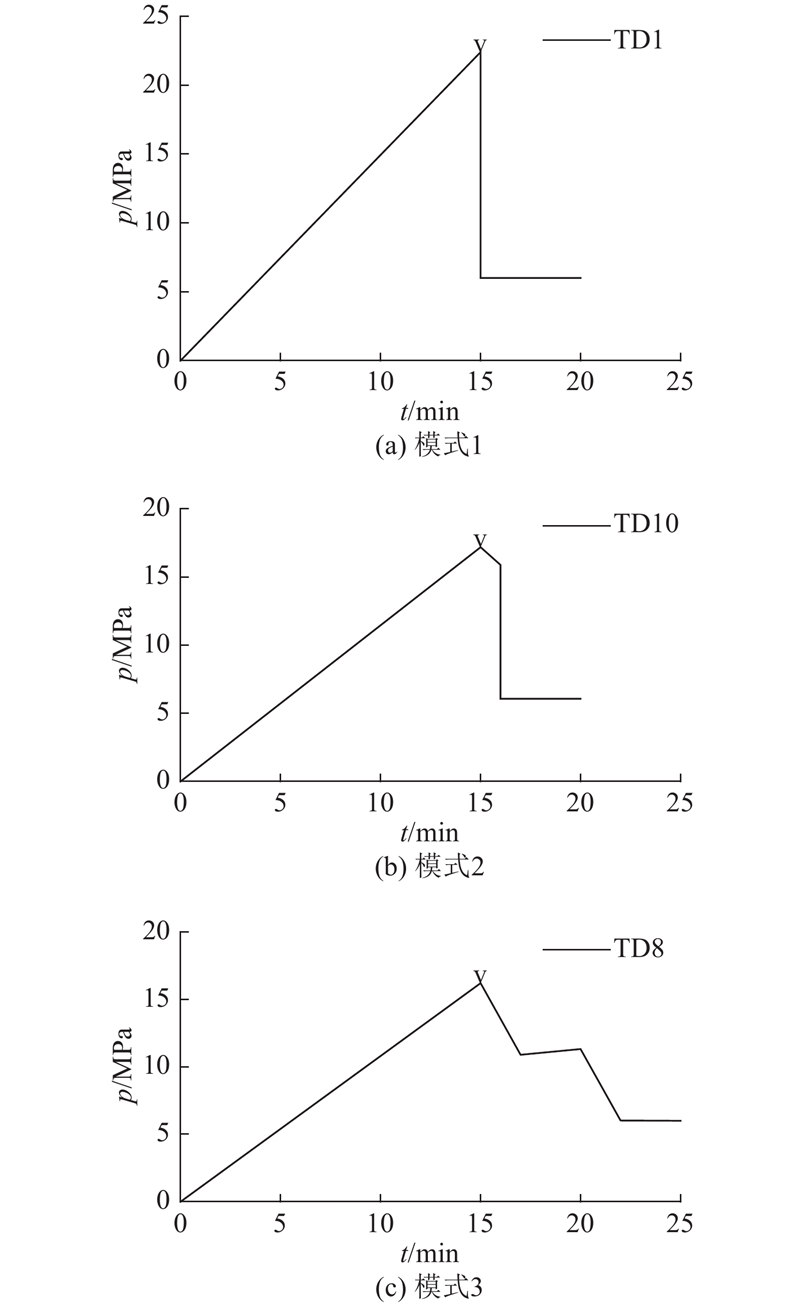

图 5  试件压力-时间变化曲线
试件编号 l/D c/(πD) d/t 失稳模式 pCOR/MPa ${p_{_{ {\rm{COR} } } }}/{\hat p_{_{ {\rm{CO} } } }}$
TD1 1.00 0.05 0.30 模式1 22.41 0.976
TD2 1.00 0.05 0.40 模式1 21.79 0.949
TD3 1.00 0.05 0.50 模式1 19.88 0.866
TD4 1.00 0.05 0.60 模式2 18.27 0.796
TD5 1.00 0.05 0.70 模式2 16.80 0.732
TD6 0.50 0.05 0.60 模式1 21.55 0.939
TD7 1.50 0.05 0.60 模式2 16.70 0.728
TD8 2.00 0.05 0.60 模式3 16.21 0.706
TD9 1.00 0.025 0.60 模式1 20.12 0.877
TD10 1.00 0.075 0.60 模式2 17.19 0.749
TD11 1.00 0.10 0.60 模式2 16.88 0.736
表 2  钢管试件试验结果
图 6  钢管试件变形前、后图
图 7  试件有限元模型

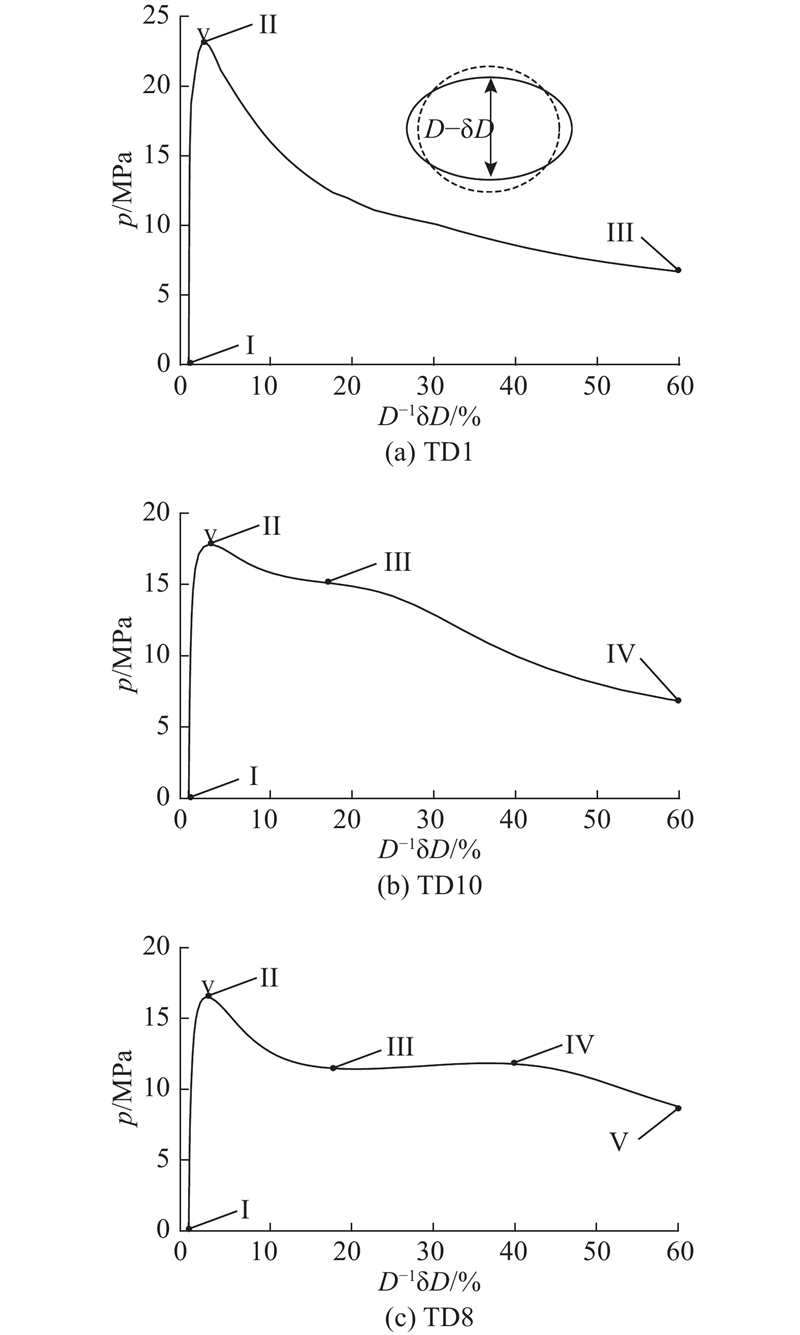

图 8  试件数值模拟压力-直径变化曲线
图 9  试件变形前、后图
试件编号 pCOR/MPa $ {{\hat p}_{_{{\rm{COR}}}}}/{\rm{MPa}}$ e/%
TD1 22.41 22.30 ?0.49
TD2 21.79 21.59 ?0.92
TD3 19.88 20.33 2.26
TD4 18.27 18.67 2.18
TD5 16.80 17.01 1.25
TD6 21.55 21.27 1.30
TD7 16.70 17.19 2.93
TD8 16.21 16.33 0.74
TD9 20.12 19.93 ?0.94
TD10 17.19 17.79 3.49
TD11 16.88 16.90 0.12
表 3  试件失稳压力模拟结果与试验值的比较
图 10  试件变形形态模拟和试验结果的比较
图 11  钢管试件失稳压力和缺陷尺寸的关系

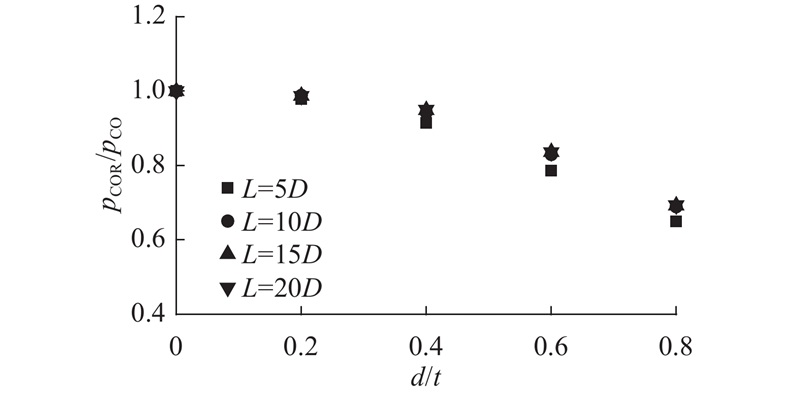

图 12  不同管道长度下失稳压力和缺陷深度的关系
图 13  不同径厚比下失稳压力和缺陷深度的关系
图 14  不同初始椭圆率下失稳压力和缺陷深度的关系

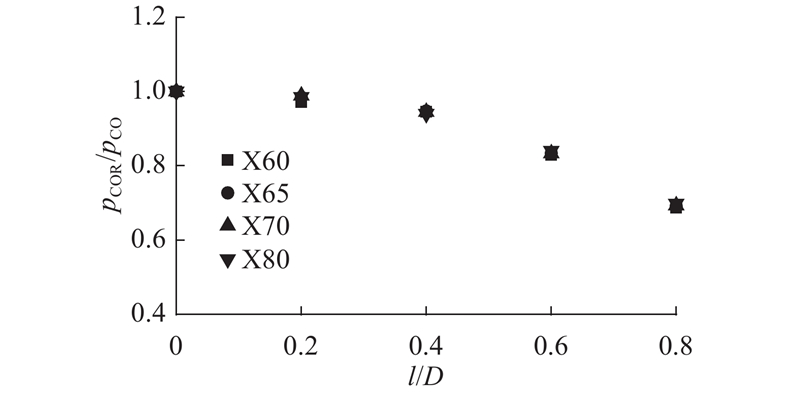

图 15  不同钢材等级下失稳压力和缺陷深度的关系

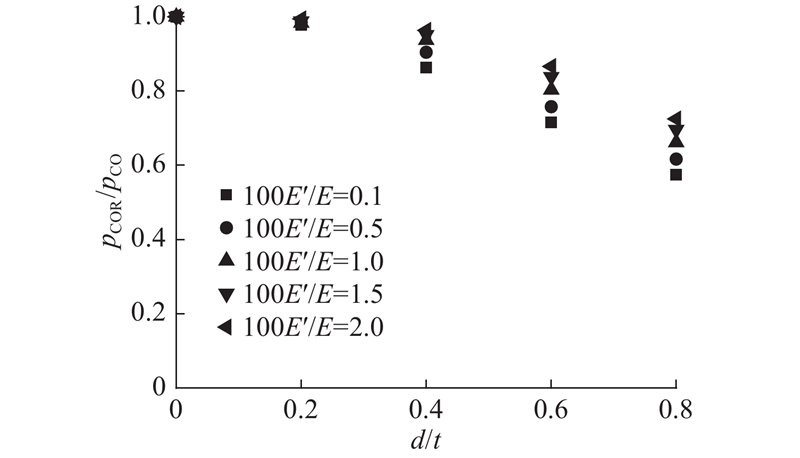

图 16  不同应变硬化特性下失稳压力和缺陷深度的关系
图 17  不同腐蚀缺陷深度下失稳压力和缺陷长度的关系

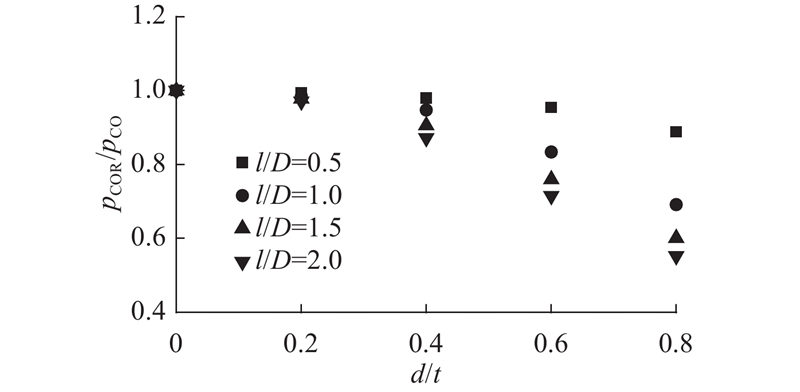

图 18  不同腐蚀缺陷长度下失稳压力和缺陷深度的关系
图 19  不同腐蚀缺陷宽度下失稳压力和缺陷深度的关系
