Chin J Eng Design  2022, Vol. 29 Issue (5): 579-586    DOI: 10.3785/j.issn.1006-754X.2022.00.064
Modeling, Simulation, Analysis and Decision
Study on brake valve performance of hydraulic brake system of wet spraying machine
Ke-jun LI1,2(),Miao-lin CHEN2,Jiang-yin WANG2,Xue-jun YAO2,Min-ya DENG1,Long GAO1
1.School of Materials Science and Engineering, Central South University of Forestry and Technology, Changsha 410000, China
2.Hunan Changyuan Yuecheng Machinery Co. , Ltd. , Changsha 410000, China
Download: HTML     PDF(1537KB)
Export: BibTeX | EndNote (RIS)

Abstract

In order to study the influence of the series double circuit hydraulic brake valve on the braking performance of the wet spraying machine, according to the structure and working principle of the brake valve, taking into account the nonlinear factors such as the steady-state hydrodynamic force, the dynamic model of the hydraulic braking system was established using the bond graph theory. Based on the MATLAB platform, the static and dynamic characteristics of the brake valve were simulated and analyzed, and an experimental platform was built on the wet spraying machine to test its braking performance. The results showed that the output pressure of the brake valve had a proportional characteristic, the brake response of the rear axle was faster than that of the front axle, and the brake pressure of the rear axle was about 0.2 MPa higher than that of the front axle; the design of two-stage braking pressure gradient of the brake valve could meet the braking demand of the wet spraying machine with large kinetic energy difference at high and low speeds; the step response of the brake valve was rapid, the system could become stable within 0.3 s, without obvious pressure overshoot, and the braking performance was stable; in the reset phase of the brake valve, the brake cylinder quickly discharged the oil in the working chamber into the oil tank to release the brake. The test value of brake pressure was basically consistent with the simulation value, which verified the accuracy of the model. The research results can provide reference for parameter matching of braking system and optimization of brake valve structure.

Key words： braking system      brake valve      brake pressure      dynamic modeling      simulation
Received: 06 September 2021      Published: 02 November 2022
CLC:  TH 137.5
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Ke-jun LI
Miao-lin CHEN
Jiang-yin WANG
Xue-jun YAO
Min-ya DENG
Long GAO
Cite this article:

Ke-jun LI,Miao-lin CHEN,Jiang-yin WANG,Xue-jun YAO,Min-ya DENG,Long GAO. Study on brake valve performance of hydraulic brake system of wet spraying machine. Chin J Eng Design, 2022, 29(5): 579-586.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2022.00.064     OR     https://www.zjujournals.com/gcsjxb/Y2022/V29/I5/579


湿喷机液压制动系统制动阀性能研究

为了研究串联式双回路液压制动阀对湿喷机制动性能的影响，根据制动阀结构及工作原理，考虑稳态液动力等非线性因素，采用键合图理论建立了液压制动系统的动力学模型，基于MATLAB平台仿真分析了制动阀的静、动态特性，并在湿喷机上搭建实验平台进行其制动性能测试。结果表明：制动阀输出压力具有比例特性，后桥制动响应快于前桥，且后桥制动压力约大于前桥制动压力0.2 MPa；制动阀双段制动压力梯度的设计可以满足湿喷机在高低速行驶时动能差别较大的制动需求；制动阀阶跃响应迅速，系统能在0.3 s内趋于稳定，且无明显压力超调，制动性能稳定；在制动阀复位阶段，制动油缸将工作腔油液迅速排入油箱，解除制动。制动压力的测试值与仿真值基本吻合，验证了所建模型的准确性。研究结果可以为制动系统的参数匹配和制动阀结构优化提供参考。


关键词： 制动系统,  制动阀,  制动压力,  动力学建模,  仿真

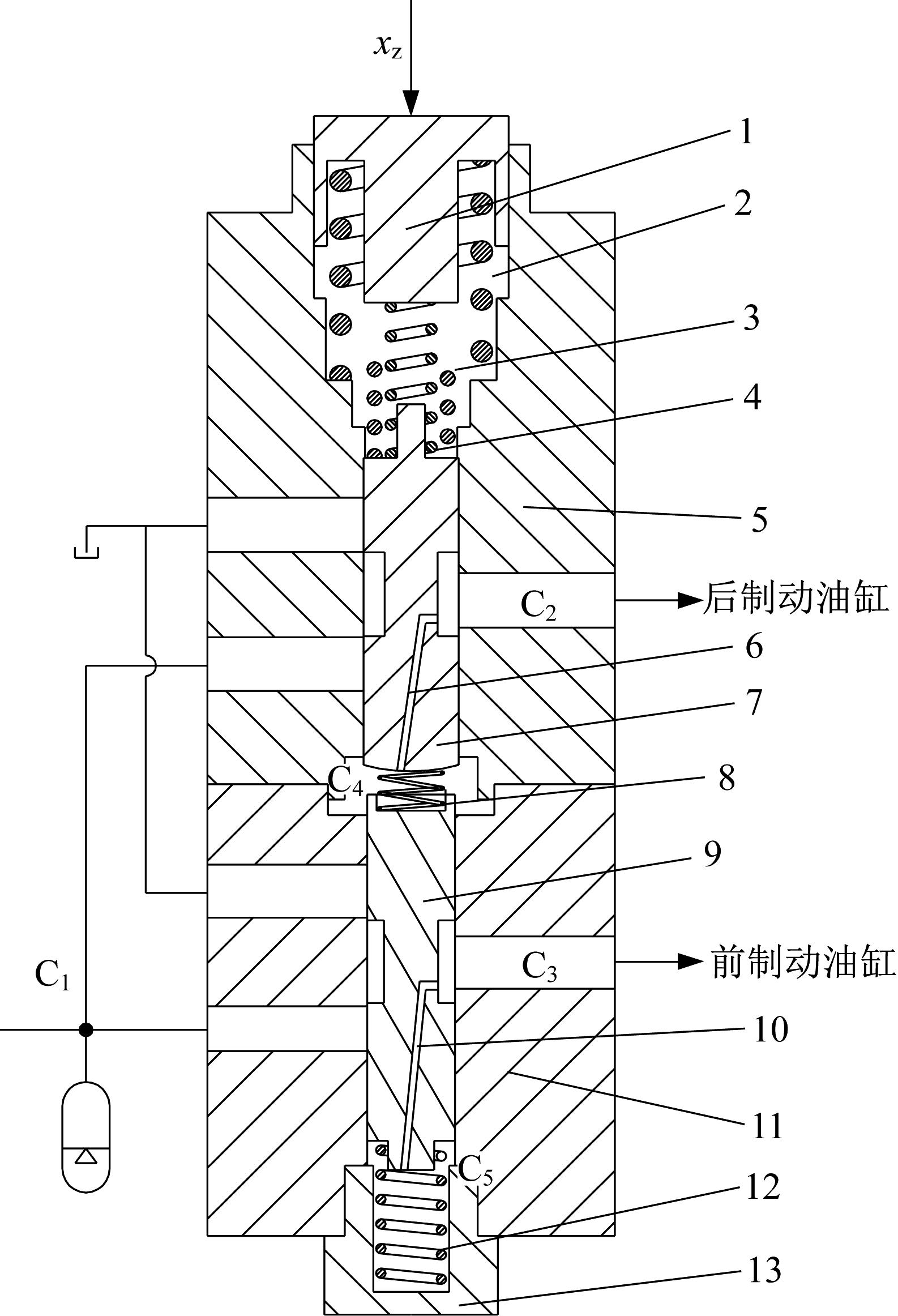

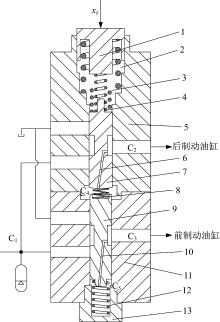

Fig.1 Structure of hydraulic brake valve

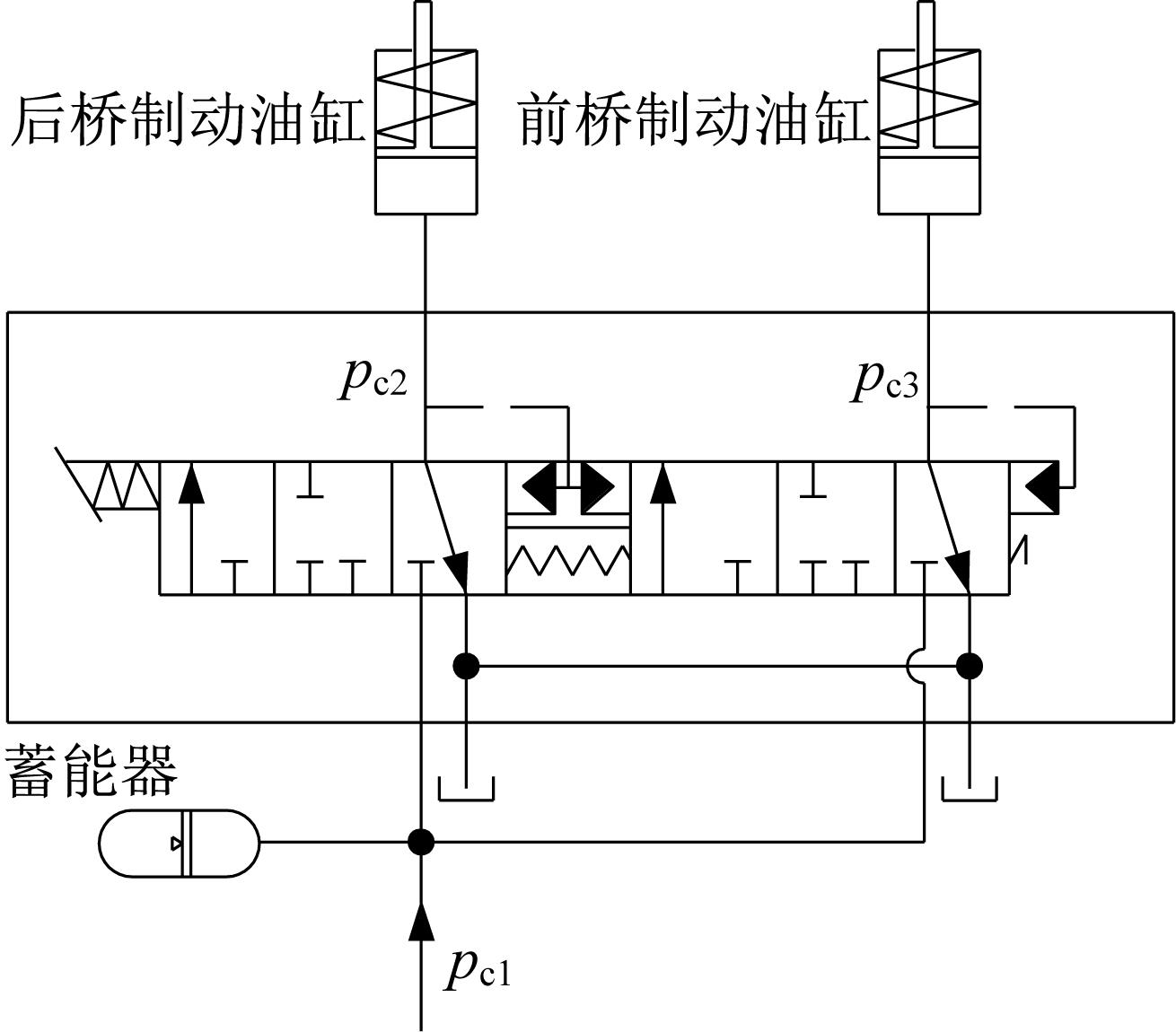

Fig.2 Working principle of hydraulic braking system

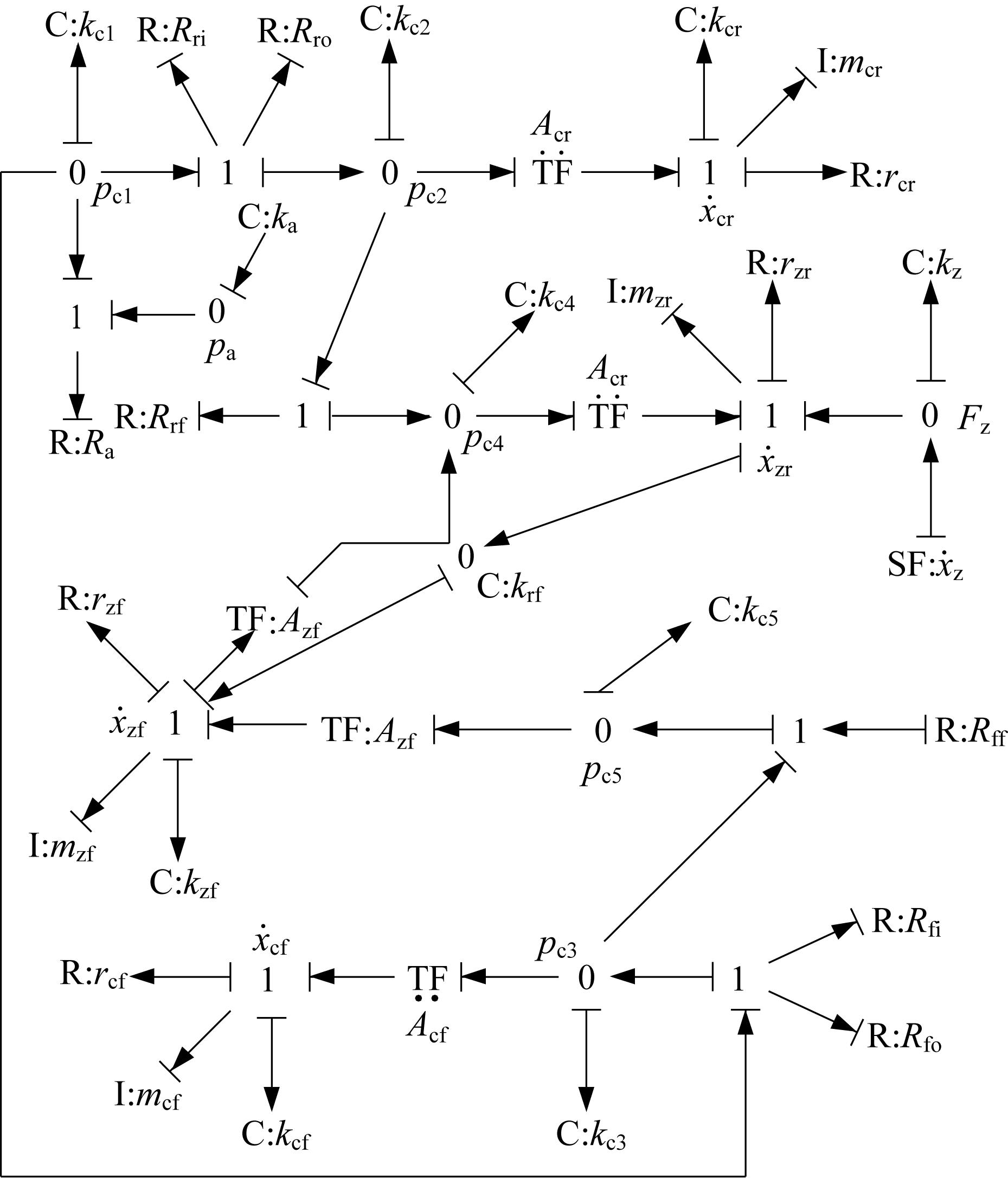

Fig.3 Bond graph model of hydraulic braking system

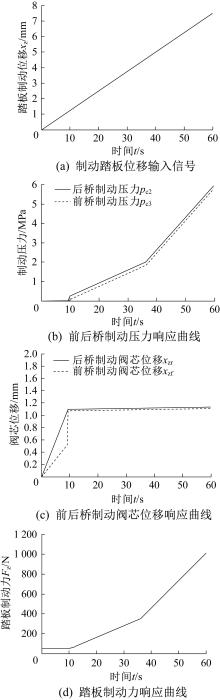

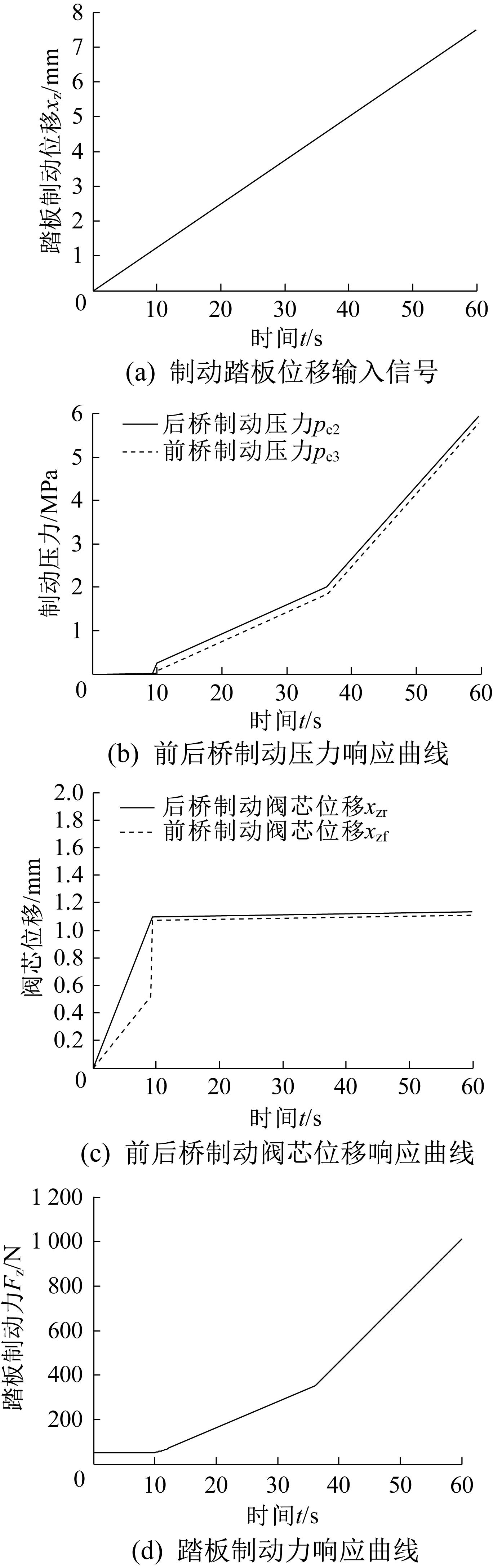

Fig.4 Static response characteristic curve of brake valve

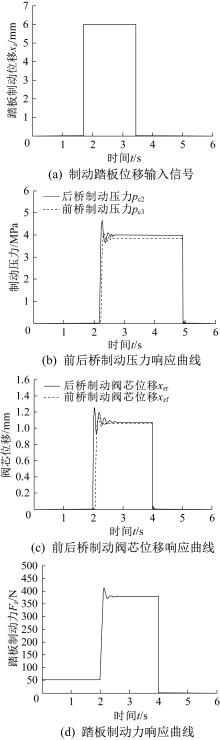

Fig.5 Dynamic response characteristic curve of brake valve

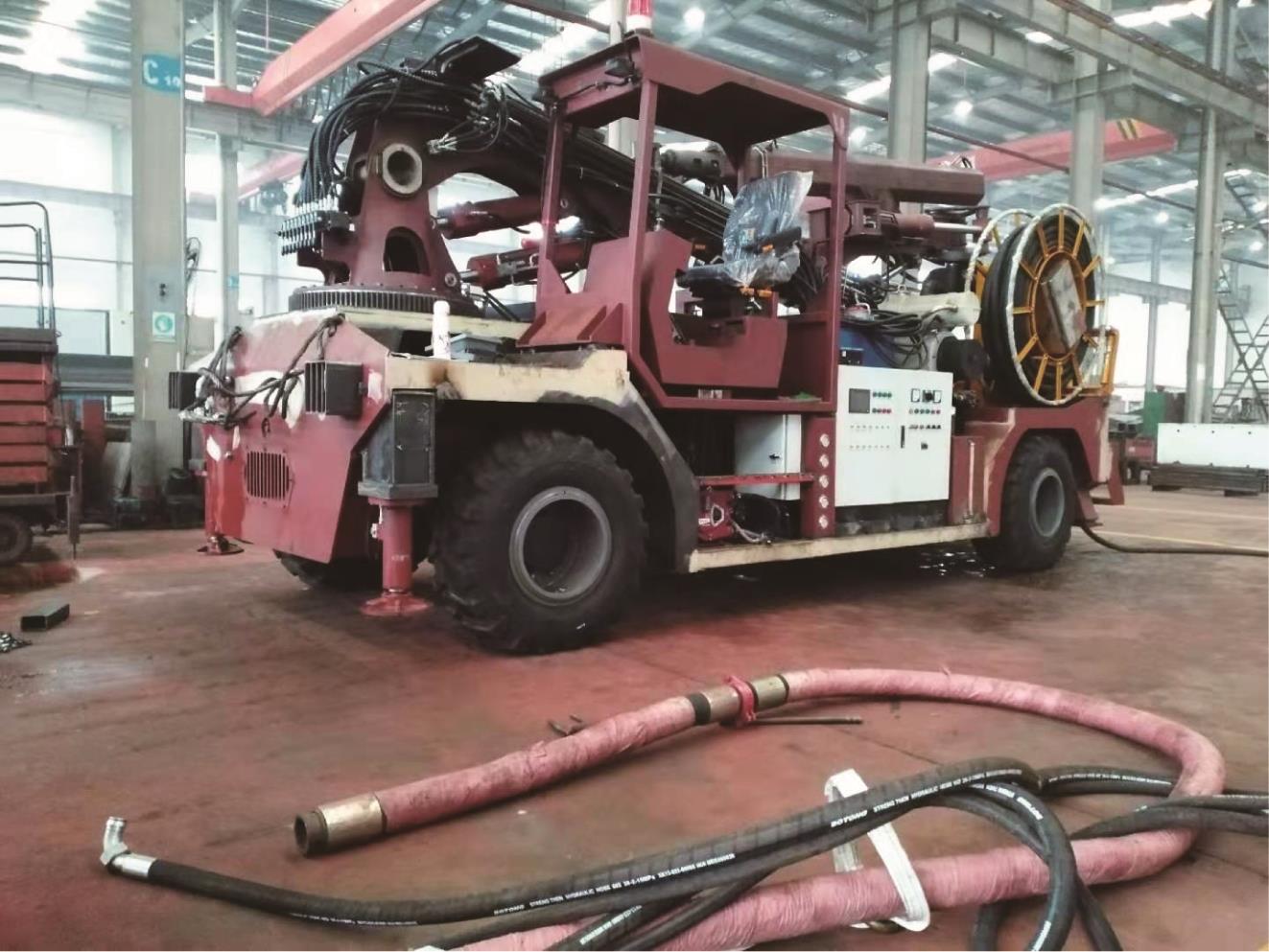

Fig.6 Performance test site of brake valve of hydraulic brake system

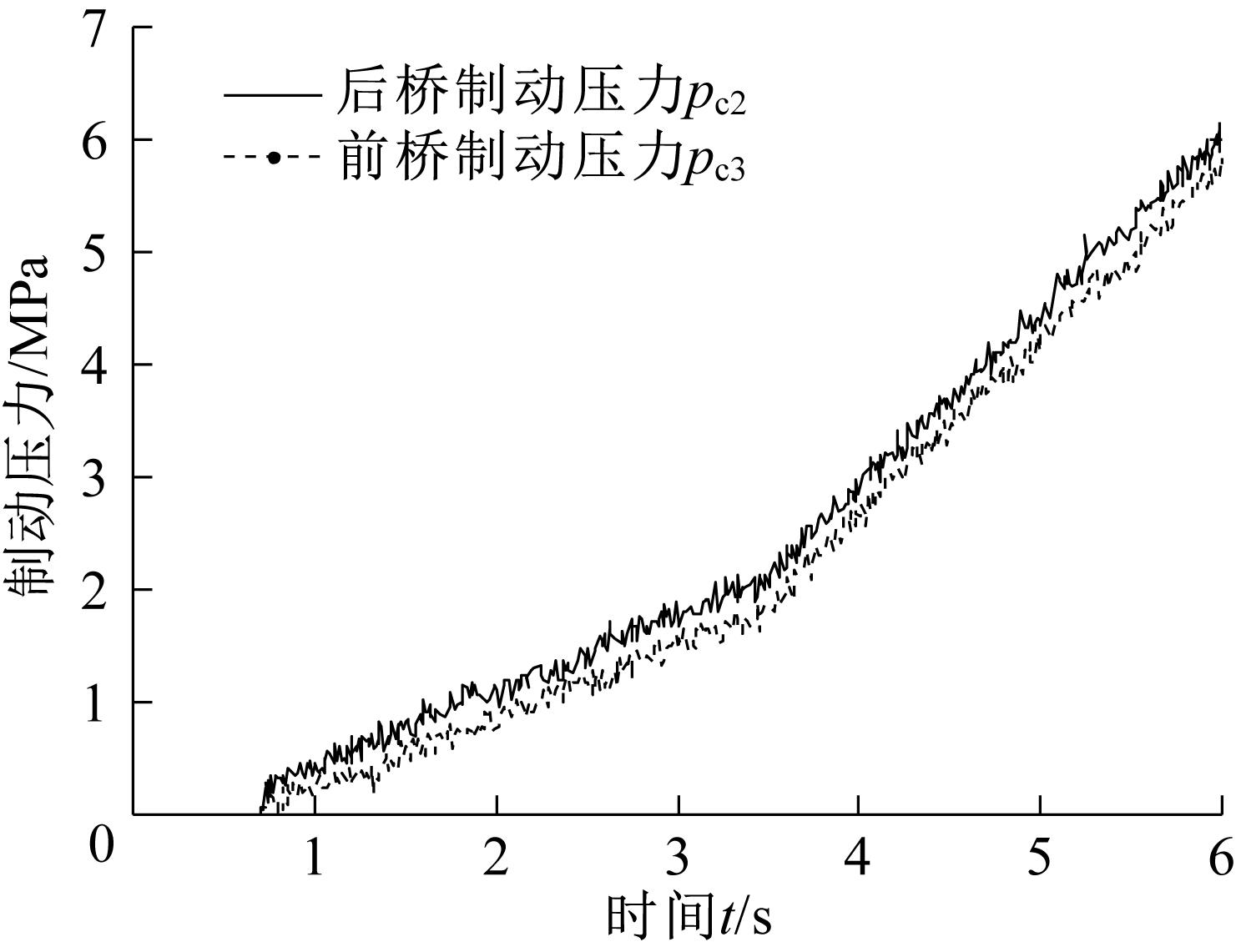

Fig.7 Test results of brake pressure proportional characteristic

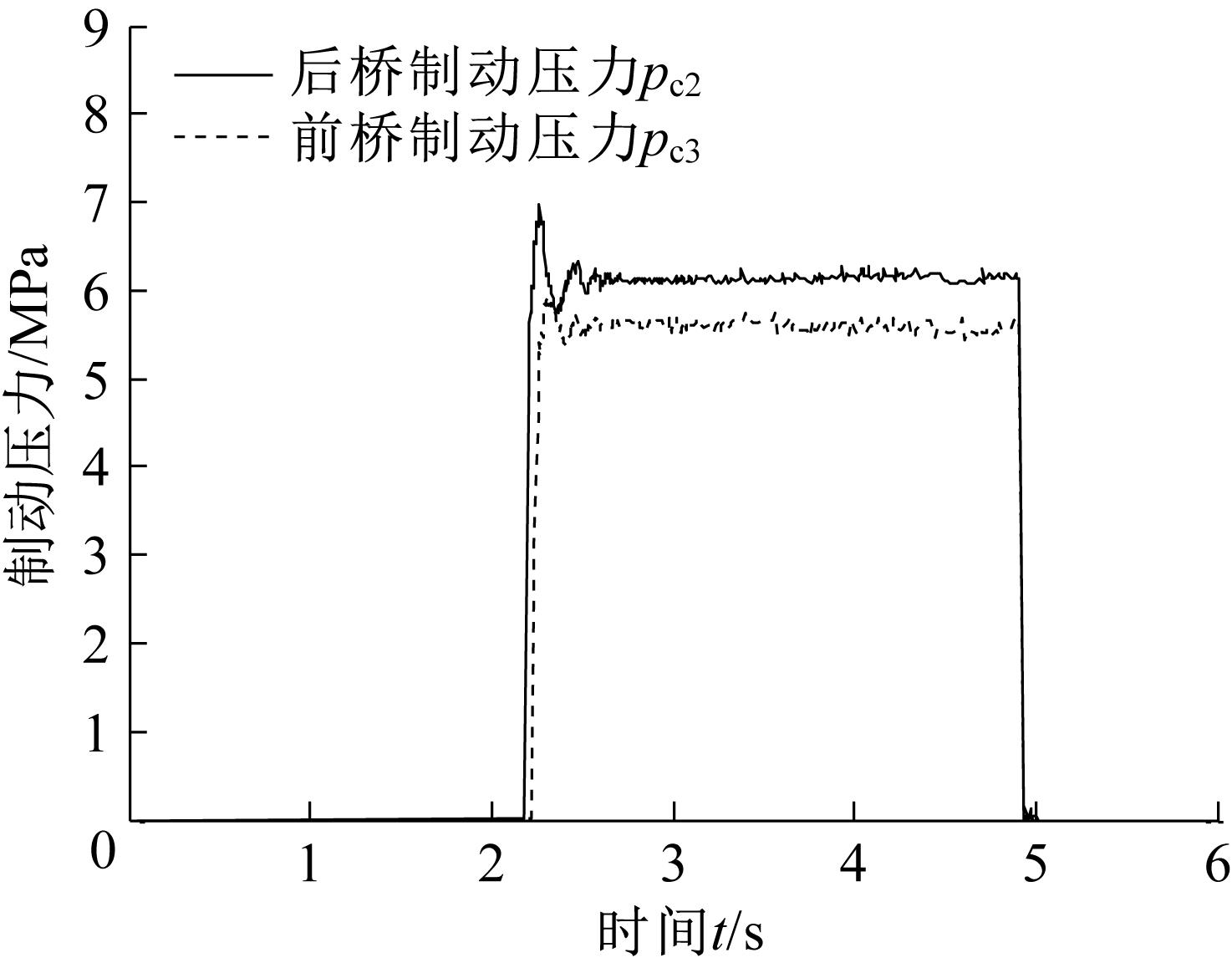

Fig.8 Test results of brake pressure step response
[1]   李静，杨雄，苗卉，等.基于台架试验的电控液压制动系统动态特性［J］.吉林大学学报（工学版），2016，46（1）：15-20.
LI Jing， YANG Xiong， MIAO Hui， et al. Dynamic characteristics of electronic hydraulic brake system based on bench test［J］. Journal of Jilin University （Engineering and Technology Edition）， 2016， 46（1）： 15-20.
[2]   刘杰.胶轮车全液压双回路制动阀静态特性分析［J］.液压与气动，2014（2）：56-60.
LIU Jie. Analysis on static characteristics of full hydraulic dual circuit braking value for rubber tire vehicle［J］. Chinese Hydraulics & Pneumatics， 2014（2）： 56-60.
[3]   宋飞.基于AMESim矿用汽车液压制动系统优化分析［J］. 机械设计与制造，2016（11）：218-222. doi：10.3969/j.issn.1001-3997.2016.11.056
SONG Fei. Optimization analysis of hydraulic braking system in mining truck based on AMESim［J］. Machinery Design & Manufacture， 2016（11）： 218-222.
doi: 10.3969/j.issn.1001-3997.2016.11.056
[4]   余卓平，史彪飞，熊璐，等.集成式电子液压制动系统的复合制动协调控制［J］.同济大学学报（自然科学版）， 2019，47（6）：851-856.
YU Zhuo-ping， SHI Biao-fei， XIONG Lu， et al. Coordinated control of hybrid braking based on integrated-electro-hydraulic brake system［J］. Journal of Tongji University （Natural Science）， 2019， 47（6）： 851-856.
[5]   熊璐，徐松云，余卓平.基于颤振补偿的电子液压制动系统液压力优化控制［J］.机械工程学报，2016，52（12）：100-106. doi：10.3901/jme.2016.12.100
XIONG Lu， XU Song-yun， YU Zhuo-ping. Optimization of hydraulic pressure control system of integrated electro-hydraulic brake system based on chatter-compensation［J］. Journal of Mechanical Engineering， 2016， 52（12）： 100-106.
doi: 10.3901/jme.2016.12.100
[6]   胡东海，何仁，徐晓明，等.电子液压制动系统耗能特性影响因素分析［J］.北京理工大学学报，2018，38（3）：261-266.
HU Dong-hai， HE Ren， XU Xiao-ming， et al. Analysis on influencing factors of energy consumption characteristics of electronic hydraulic braking system［J］. Transactions of Beijing Institute of Technology， 2018， 38（3）： 261-266.
[7]   殷建军，姚圣达，董文龙，等.车辆制动能量回收与馈送ECU系统设计［J］.浙江工业大学学报，2019，47（4）：400-405. doi：10.3969/j.issn.1006-4303.2019.04.008
YIN Jian-jun， YAO Sheng-da， DONG Wen-long， et al. Design of vehicle brake energy recovery and feed ECU system［J］. Journal of Zhejiang University of Technology， 2019， 47（4）： 400-405.
doi: 10.3969/j.issn.1006-4303.2019.04.008
[8]   曾小华，李广含，宋大凤，等.轮毂液驱系统辅助驱动及再生制动控制与仿真［J］.湖南大学学报（自然科学版）， 2017，44（10）：9-16.
ZENG Xiao-hua， LI Guang-han， SONG Da-feng， et al. Control and simulation of auxiliary drive and regenerative brake for hydraulic hub-motor hybrid system［J］. Journal of Hunan University （Natural Sciences）， 2017， 44（10）： 9-16.
[9]   刘德宁.管路布置对制动蓄能器充液性能的影响［J］.煤炭工程，2019，51（4）：94-97.
LIU De-ning. Effect of piping layout on liquid filling performance of brake accumulator［J］. Coal Engineering， 2019， 51（4）： 94-97.
[10]   郭锐，唱荣蕾，赵静一，等.液压制动系统蓄能器充液特性研究［J］.农业机械学报，2014，45（7）：7-12.
GUO Rui， CHANG Rong-lei， ZHAO Jing-yi， et al. Research on accumulator charging characteristics of hydraulic brake system［J］. Transactions of the Chinese Society of Agricultural Machinery， 2014， 45（7）： 7-12.
[11]   郑永生，姚平喜.液压缸双向制动阀的研究［J］.机械设计与制造， 2017（5）：9-12. doi：10.3969/j.issn.1001-3997.2017.05.003
ZHENG Yong-sheng， YAO Ping-xi. Research of a new two-way brake valve of the hydraulic cylinder［J］ Machinery Design & Manufacture， 2017（5）： 9-12.
doi: 10.3969/j.issn.1001-3997.2017.05.003
[12]   陈步童.叉车全动力液压制动系统故障模糊诊断研究［J］. 机械设计，2013，30（6）：1-4. doi：10.3969/j.issn.1001-2354.2013.06.001
CHEN Bu-tong. Fuzzy diagnosis research on fault power hydraulic braking system for forklift［J］. Journal of Machine Design， 2013， 30（6）： 1-4.
doi: 10.3969/j.issn.1001-2354.2013.06.001
[13]   韩义勇，商艺宝，廖升友，等.快速压缩机液压制动活塞回弹现象的优化［J］.中国机械工程，2019， 30（16）：1911-1915.
HAN Yi-yong， SHANG Yi-bao， LIAO Sheng-you， et al. Optimization of hydraulic brake piston springbacks in rapid compression machines［J］. China Mechanical Engineering， 2019， 30（16）： 1911-1915.
[14]   胡均平，李科军.螺旋钻机变幅时机液耦合动力学的键合图建模［J］.中南大学学报（自然科学版），2016，47（2）： 495-502.
HU Jun-ping， LI Ke-jun. Dynamics model of mechanical-hydraulic coupling of auger driller during luffing motion by bond graph［J］. Journal of Central South University （Science and Technology）， 2016， 47（2）： 495-502.
[15]   LIU W， LI L， CAI W， et al. Dynamic characteristics and energy consumption modelling of machine tools based on bond graph theory［J］. Energy， 2020， 212：118767.
