Evaluation of generator side inertia based on electromechanical oscillation of power system

doi:10.3785/j.issn.1008-973X.2025.04.023

Journal of ZheJiang University (Engineering Science)

2025, Vol. 59

Issue (4): 870-878 DOI: 10.3785/j.issn.1008-973X.2025.04.023

Evaluation of generator side inertia based on electromechanical oscillation of power system

Zhiqiang REN1,2(

),Mingxing TIAN1,2,*(

),Yu JIANG1,2,Dongfeng XING1,2

1. School of Automation and Electrical Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2. Rail Transit Electrical Automation Engineering Laboratory of Gansu Province, Lanzhou Jiaotong University, Lanzhou 730070, China

Download:

HTML

PDF(1102KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The connection of new energy power generation equipment to the power generation side leads to the emergence of “weak inertia” characteristics on the power generation side, which affects the safe and stable operation of the system. The synchronous phase measurement unit (PMU) was used to measure the electromechanical oscillation response, and based on the electromechanical oscillation parameter under small perturbation, an inertia assessment method for the power generation side was proposed. Based on the characteristics of the inertia response process, the unbalanced power allocation equation related to the inertia of each generator was derived. Based on the relationship between the small-signal state equation and the characteristic root of the multi-machine system, the formula for calculating the inertia of the generation side of a multi-machine system was derived. The inertia calculation of the generation side of a single-machine system was introduced, and the measurement methods of inertia ratio and the intrinsic oscillation frequency in the inertia calculation formula were described. The correctness of the proposed method was verified by simulation examples of a single-machine system, a dual-machine interconnection system, a WSCC 3-machine 9-node system, and a 10-machine 39-node system. Results show that the generation side inertia evaluation values obtained with the proposed method in several systems are close to the actual values and have good adaptability. The method can be used for power system generation side inertia evaluation.

Key words： power system generation side inertia evaluation inertia response electromechanical oscillation small-signal state equation

Received: 25 January 2024 Published: 25 April 2025

CLC:

TM 71

Fund: 国家自然科学基金资助项目（52167013）；甘肃省自然科学基金重点项目（24JRRA225）；甘肃省自然科学基金资助项目（23JRRA891）.

Corresponding Authors: Mingxing TIAN E-mail: rzqlzjtu@163.com;tianmingxing@mail.lzjtu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Zhiqiang REN
	Mingxing TIAN
	Yu JIANG
	Dongfeng XING

Cite this article:

Zhiqiang REN,Mingxing TIAN,Yu JIANG,Dongfeng XING. Evaluation of generator side inertia based on electromechanical oscillation of power system. Journal of ZheJiang University (Engineering Science), 2025, 59(4): 870-878.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.04.023 OR https://www.zjujournals.com/eng/Y2025/V59/I4/870

基于电力系统机电振荡的发电侧惯量评估

新能源发电设备接入发电侧会导致发电侧呈现“弱惯量”特征，影响系统的安全稳定运行. 利用同步相量测量单元(PMU)测量机电振荡响应，提出基于小扰动下机电振荡参数的发电侧惯量评估方法. 根据惯量响应过程的特点，推导与各发电机惯量有关的不平衡功率分配公式. 根据多机系统小信号状态方程与特征根的关系，推导多机系统发电侧惯量计算公式. 介绍单机系统发电侧惯量的计算方法，阐述惯量计算公式中的惯量比与固有振荡频率的测量方法. 通过单机系统、双机互联系统、WSCC3机9节点系统、10机39节点系统仿真算例验证所提方法的正确性. 结果表明，所提方法在多个系统中的发电侧惯量评估值与实际值接近，具有良好的适应性，可用于电力系统的发电侧惯量评估.

关键词： 电力系统, 发电侧惯量评估, 惯量响应, 机电振荡, 小信号状态方程

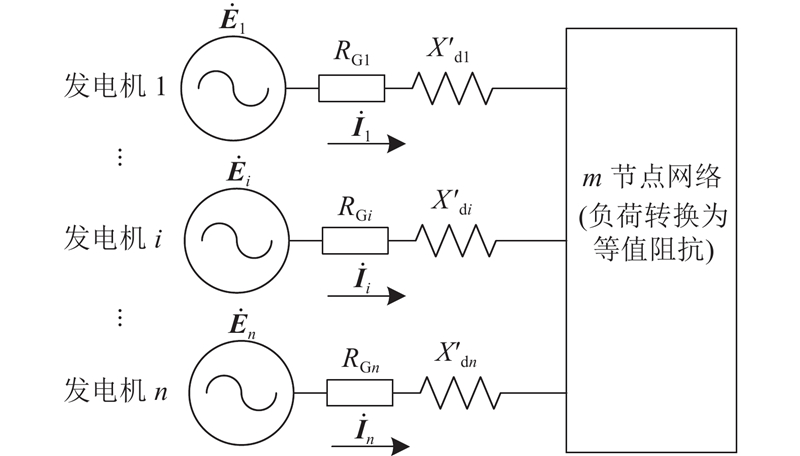

Fig.1 Multi-machine system schematic

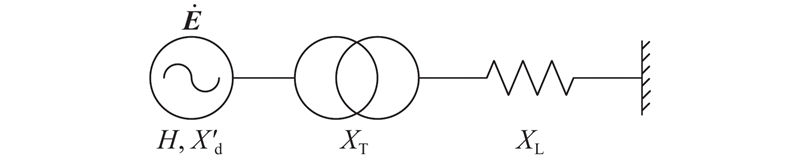

Fig.2 Structural diagram of single-machine infinite bus system

Tab.1 Parameters of single-machine infinity bus system

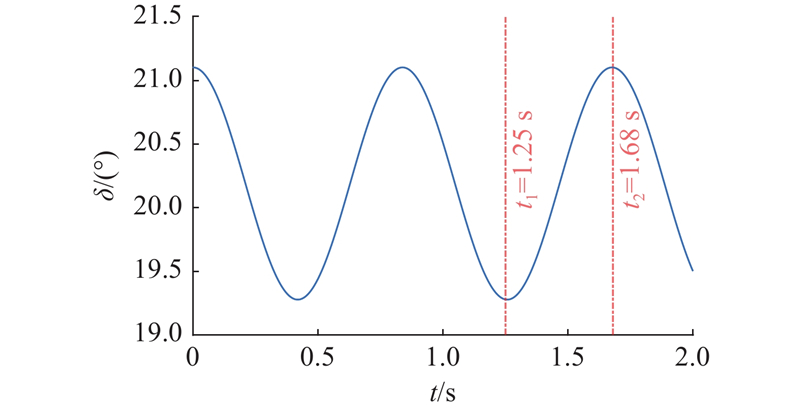

Fig.3 Power angle oscillation curve of single-machine infinite bus system

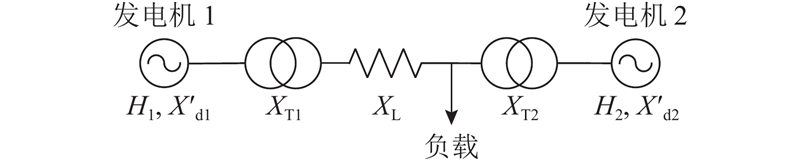

Fig.4 Structural diagram of dual-machine interconnection system

Tab.2 Parameters of dual-machine interconnection system

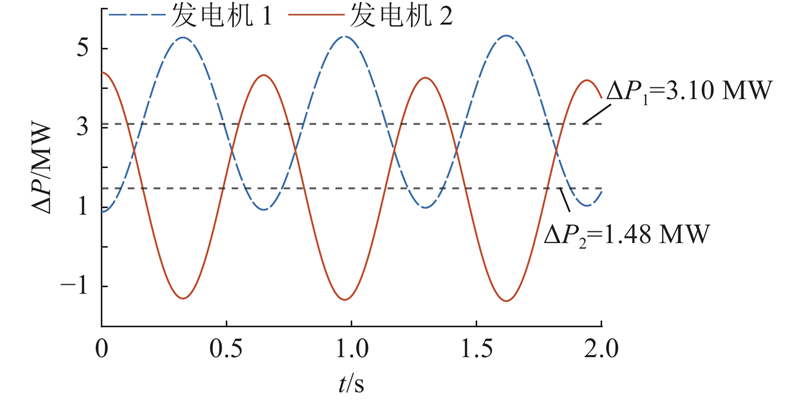

Fig.5 Instantaneous active power change curve of each generator (dual-machine interconnection system)

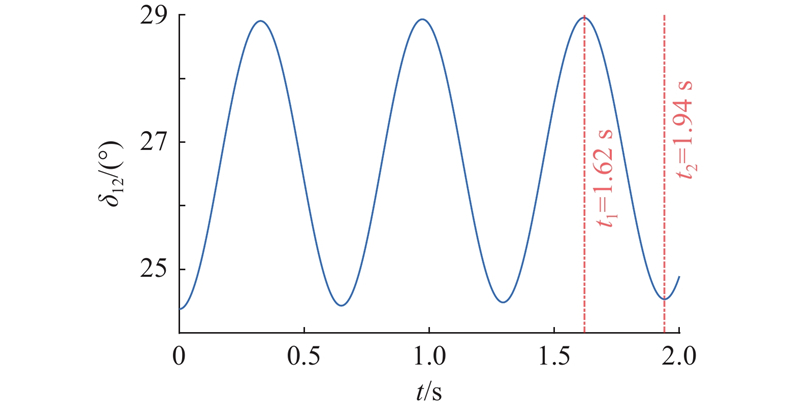

Fig.6 Relative power angle curve between generators for dual-machine interconnection system

Tab.3 Generator inertia evaluation results for dual-machine interconnection system

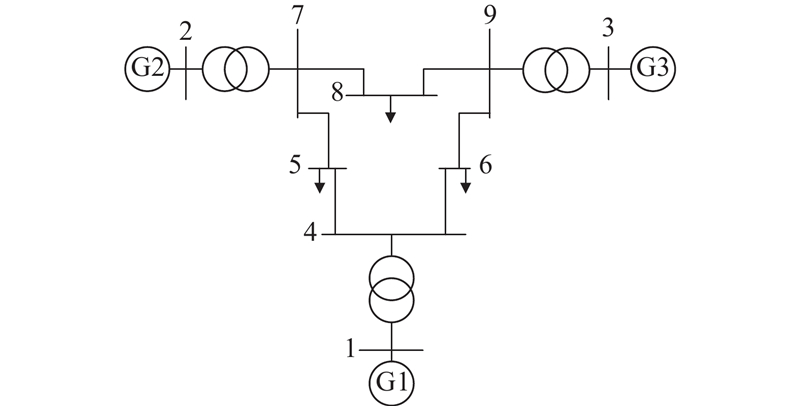

Fig.7 Structural diagram of WSCC 3-machine 9-node system

Tab.4 Generator parameter of WSCC 3-machine 9-node system

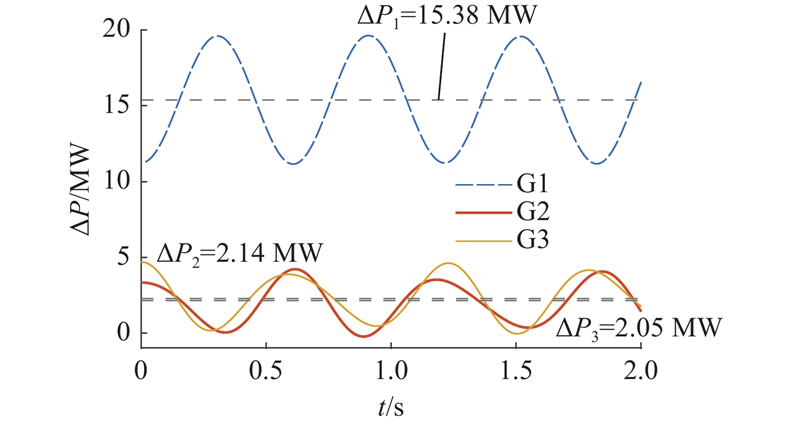

Fig.8 Instantaneous active power change curve of each generator (WSCC 3-machine 9-node system)

Fig.9 Relative power angle curve between generators for WSCC 3-machine 9-node system

Tab.5 Generator inertia evaluation result for WSCC 3-machine 9-node system

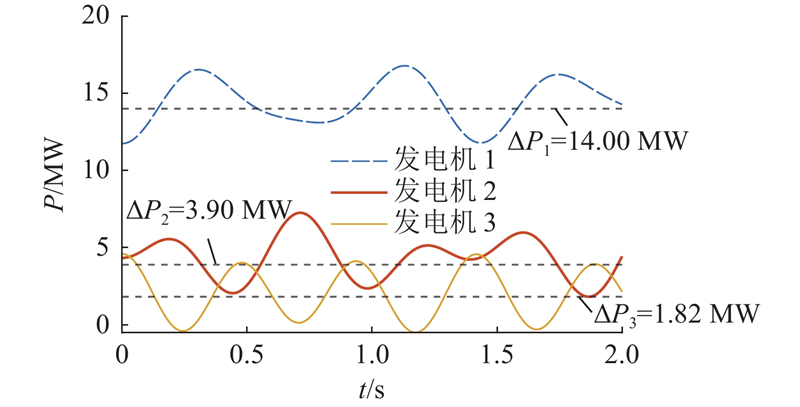

Fig.10 Instantaneous active power change curve of each generator after new energy connection (WSCC 3-machine 9-node system)

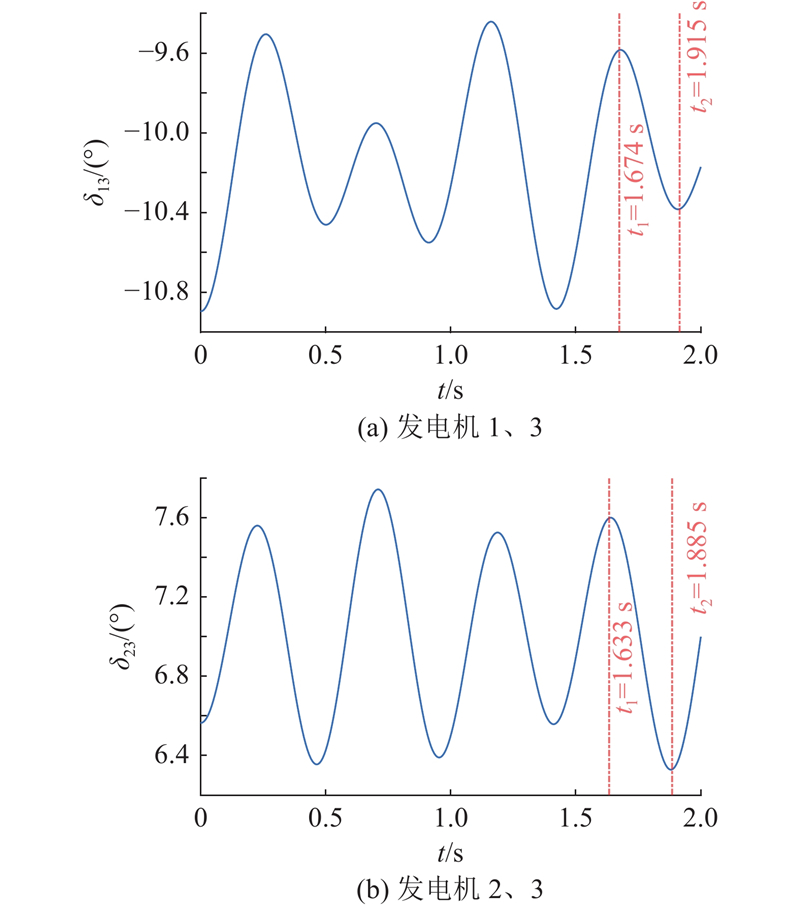

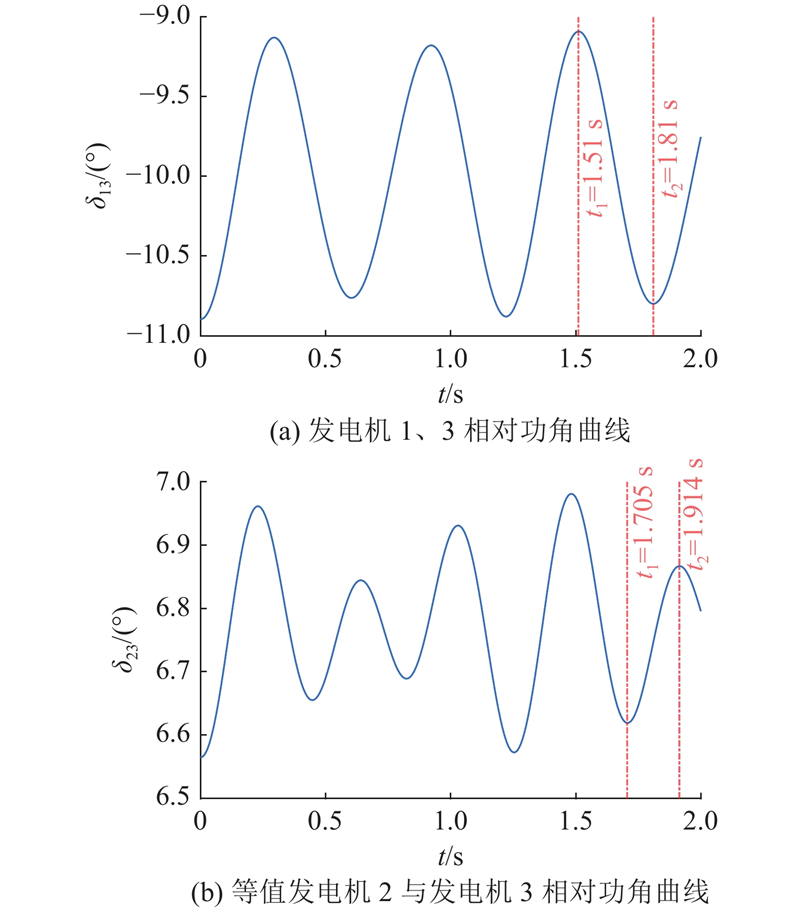

Fig.11 Relative power angle curve between generators for WSCC 3-machine 9-node system (after new energy connection)

Tab.6 Evaluation result of generation side inertia for WSCC 3-machine 9-node system after new energy connection

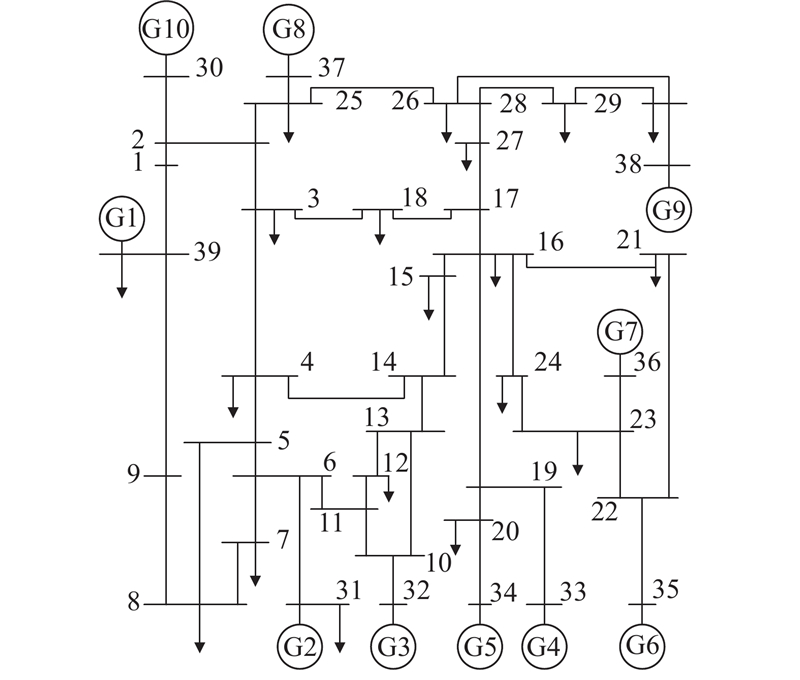

Fig.12 Structural diagram of 10-machine 39-node system

Tab.7 Inertia of generator or equivalent generator (10-machine 39-node system)

Tab.8 Active power change of each generator or equivalent generator (10-machine 39-node system)

Tab.9 Oscillation angular frequency of relative power angle curve (10-machine 39-node system)

Tab.10 Evaluation result of generation side inertia for 10-machine 39-node system


[1]	黄林彬, 辛焕海, 黄伟, 等含虚拟惯量的电力系统频率响应特性定量分析方法[J]. 电力系统自动化, 2018, 42 (8): 31- 38 HUANG Linbin, XIN Huanhai, HUANG Wei, et al Quantitative analysis method of frequency response characteristics for power systems with virtual inertia[J]. Automation of Electric Power Systems, 2018, 42 (8): 31- 38 doi: 10.7500/AEPS20170605010

[2]	王博, 杨德友, 蔡国伟高比例新能源接入下电力系统惯量相关问题研究综述[J]. 电网技术, 2020, 44 (8): 2998- 3007 WANG Bo, YANG Deyou, CAI Guowei Review of research on power system inertia related issues in the context of high penetration of renewable power generation[J]. Power System Technology, 2020, 44 (8): 2998- 3007

[3]	TAN B, ZHAO J, NETTO M, et al Power system inertia estimation: review of methods and the impacts of converter-interfaced generations[J]. International Journal of Electrical Power and Energy Systems, 2022, 134: 107362 doi: 10.1016/j.ijepes.2021.107362

[4]	HEYLEN E, TENG F, STRBAC G Challenges and opportunities of inertia estimation and forecasting in low-inertia power systems[J]. Renewable and Sustainable Energy Reviews, 2021, 147: 111176 doi: 10.1016/j.rser.2021.111176

[5]	CAI G, WANG B, YANG D, et al Inertia estimation based on observed electromechanical oscillation response for power systems[J]. IEEE Transactions on Power Systems, 2019, 34 (6): 4291- 4299

[6]	李东东, 张佳乐, 徐波, 等考虑频率分布特性的新能源电力系统等效惯量评估[J]. 电网技术, 2020, 44 (8): 2913- 2921 LI Dongdong, ZHANG Jiale, XU Bo, et al Equivalent inertia assessment in renewable power system considering frequency distribution properties[J]. Power System Technology, 2020, 44 (8): 2913- 2921

[7]	ZENG F, ZHANG J, ZHOU Y, et al Online identification of inertia distribution in normal operating power system[J]. IEEE Transactions on Power Systems, 2020, 35 (4): 3301- 3304 doi: 10.1109/TPWRS.2020.2986721

[8]	江俊贤, 陈启超, 王菲, 等计及不同控制方式的混合直流多馈入系统电网强度评估[J]. 浙江大学学报: 工学版, 2023, 57 (11): 2305- 2313 JIANG Junxian, CHEN Qichao, WANG Fei, et al Grid strength analysis of hybrid multi-infeed HVDC system considering different control modes[J]. Journal of Zhejiang University: Engineering Science, 2023, 57 (11): 2305- 2313

[9]	林弘毅, 郭潇, 伍梁, 等电力电子装置强风散热模型简化方法及应用[J]. 浙江大学学报: 工学版, 2021, 55 (6): 1159- 1167 LIN Hongyi, GUO Xiao, WU Liang, et al Simplification method and application of thermal model of forced air cooling system for power electronic device[J]. Journal of Zhejiang University: Engineering Science, 2021, 55 (6): 1159- 1167

[10]	CAO X, STEPHEN B, ABDULHADI I F, et al Switching Markov Gaussian models for dynamic power system inertia estimation[J]. IEEE Transactions on Power Systems, 2016, 31 (5): 3394- 3403 doi: 10.1109/TPWRS.2015.2501458

[11]	GUO S, NORRIS S, BIALEK J Adaptive parameter estimation of power system dynamic model using modal information[J]. IEEE Transactions on Power Systems, 2014, 29 (6): 2854- 2861 doi: 10.1109/TPWRS.2014.2316916

[12]	INOUE T, TANIGUCHI H, IKEGUCHI Y, et al Estimation of power system inertia constant and capacity of spinning-reserve support generators using measured frequency transients[J]. IEEE Transactions on Power Systems, 1997, 12 (1): 136- 143 doi: 10.1109/59.574933

[13]	ZHANG J, XU H Online identification of power system equivalent inertia constant[J]. IEEE Transactions on Industrial Electronics, 2017, 64 (10): 8098- 8107 doi: 10.1109/TIE.2017.2698414

[14]	ASHTON P M, SAUNDERS C S, TAYLOR G A, et al Inertia estimation of the GB power system using synchrophasor measurements[J]. IEEE Transactions on Power Systems, 2015, 30 (2): 701- 709 doi: 10.1109/TPWRS.2014.2333776

[15]	WALL P, GONZALEZ-LONGATT F, TERZIJA V. Estimation of generator inertia available during a disturbance [C]// Proceedings of the IEEE Power and Energy Society General Meeting . San Diego: IEEE, 2012: 1–8.

[16]	WALL P, TERZIJA V Simultaneous estimation of the time of disturbance and inertia in power systems[J]. IEEE Transactions on Power Delivery, 2014, 29 (4): 2018- 2031 doi: 10.1109/TPWRD.2014.2306062

[17]	DEL GIUDICE D, GRILLO S Analysis of the sensitivity of extended Kalman filter-based inertia estimation method to the assumed time of disturbance[J]. Energies, 2019, 12 (3): 483 doi: 10.3390/en12030483

[18]	YOU S, LIU Y, KOU G, et al Non-invasive identification of inertia distribution change in high renewable systems using distribution level PMU[J]. IEEE Transactions on Power Systems, 2018, 33 (1): 1110- 1112 doi: 10.1109/TPWRS.2017.2713985

[19]	陈志杰, 杨德友, 赵芳琦随机数据驱动下的两区域系统惯量估计[J]. 东北电力大学学报, 2020, 40 (4): 48- 54 CHEN Zhijie, YANG Deyou, ZHAO Fangqi Two areas system inertia estimation based on ambient data[J]. Journal of Northeast Electric Power University, 2020, 40 (4): 48- 54

[20]	TUTTELBERG K, KILTER J, WILSON D, et al Estimation of power system inertia from ambient wide area measurements[J]. IEEE Transactions on Power Systems, 2018, 33 (6): 249- 257

[21]	CHOW J H, CHAKRABORTTY A, VANFRETTI L, et al Estimation of radial power system transfer path dynamic parameters using synchronized phasor data[J]. IEEE Transactions on Power Systems, 2008, 23 (2): 564- 571 doi: 10.1109/TPWRS.2008.919315

[22]	曹斌, 原帅, 刘家豪, 等考虑频率动态响应实时分区的电力系统惯量在线评估方法[J]. 电网技术, 2023, 47 (3): 930- 941 CAO Bin, YUAN Shuai, LIU Jiahao, et al Power system online inertia estimation considering real-time clustering of frequency dynamic response[J]. Power System Technology, 2023, 47 (3): 930- 941

[23]	闵勇, 陈磊, 刘瑞阔, 等电力系统频率动态中惯量与惯量响应特性辨析[J]. 中国电机工程学报, 2023, 43 (3): 855- 868 MIN Yong, CHEN Lei, LIU Ruikuo, et al Analysis on characteristics of inertia and inertial response in power system frequency dynamics[J]. Proceedings of the CSEE, 2023, 43 (3): 855- 868

[24]	MILANO F, ORTEGA Á Frequency divider[J]. IEEE Transactions on Power Systems, 2017, 32 (2): 1493- 1501 doi: 10.1109/TPEL.2016.2543222

[25]	方万良, 李建华, 王建学. 电力系统暂态分析 [M]. 4版. 北京: 中国电力出版社, 2017: 243–257.

[26]	刘家豪, 王程, 毕天姝面向新能源电力系统频率时空动态的节点等效惯量指标及其应用[J]. 中国电机工程学报, 2023, 43 (20): 7773- 7788 LIU Jiahao, WANG Cheng, BI Tianshu Node equivalent inertia index for temporal-spatial frequency dynamics of renewable energy power system and its applications[J]. Proceedings of the CSEE, 2023, 43 (20): 7773- 7788

[27]	陈亮, 毕天姝, 薛安成, 等基于断路器零阻抗特性的PMU量测状态估计方法[J]. 电力自动化设备, 2014, 34 (5): 105- 110 CHEN Liang, BI Tianshu, XUE Ancheng, et al State estimation based on PMU measurements considering zero-impedance characteristics of circuit breaker[J]. Electric Power Automation Equipment, 2014, 34 (5): 105- 110 doi: 10.3969/j.issn.1006-6047.2014.05.016

[28]	刘方蕾, 毕天姝, 闫家铭, 等基于PMU同步测量的分区惯量估计方法[J]. 华北电力大学学报: 自然科学版, 2020, 47 (3): 19- 26 LIU Fanglei, BI Tianshu, YAN Jiaming, et al Area inertia estimation based on PMU synchronous measurements[J]. Journal of North China Electric Power University: Natural Science Edition, 2020, 47 (3): 19- 26

[29]	刘方蕾, 胥国毅, 刘家豪, 等考虑电网结构和参数的电力系统惯量分布特性[J]. 电力系统自动化, 2021, 45 (23): 60- 67 LIU Fanglei, XU Guoyi, LIU Jiahao, et al Inertia distribution characteristics of power system considering structure and parameters of power grid[J]. Automation of Electric Power Systems, 2021, 45 (23): 60- 67 doi: 10.7500/AEPS20201017005

[30]	LIU M, CHEN J, MILANO F On-line inertia estimation for synchronous and non-synchronous devices[J]. IEEE Transactions on Power Systems, 2021, 36 (3): 2693- 2701 doi: 10.1109/TPWRS.2020.3037265
