Deep learning aided multi-user detection for up-link grant-free NOMA
Yang-zhao CHEN(),Wei-na YUAN*()
School of Information Science and Engineering, East China University of Science and Technology, Shanghai 200237, China
Download: HTML     PDF(931KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A joint active user detection and data detection framework based on deep neural network (DNN) was proposed by combining the symbolic features of transmitted data in order to solve the problem of multi-user detection in uplink grant-free non-orthogonal multiple access (grant-free NOMA). The more general and practical scenario was considered, in which the user was randomly active in each time slot. The DNN solution result was used as a priori input of the modified orthogonal matching pursuit (OMP) algorithm in order to improve the user detection and date detection performance. The simulation results show that the proposed multi-user detection scheme has better user activity and data detection performance than the traditional greedy tracking algorithm and dynamic compressed sensing (DCS) multi-user detection algorithm.



Key wordsmassive machine type communication      grant-free transmission      non-orthogonal multiple access      compressed sensing      deep neural network
Received: 20 May 2021      Published: 24 April 2022
CLC:  TN 929
Fund:  国家自然科学基金资助项目(61501187)
Corresponding Authors: Wei-na YUAN     E-mail: 15957114952@163.com;wnyuan_ice@163.com
Cite this article:

Yang-zhao CHEN,Wei-na YUAN. Deep learning aided multi-user detection for up-link grant-free NOMA. Journal of ZheJiang University (Engineering Science), 2022, 56(4): 816-822.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.04.022     OR     https://www.zjujournals.com/eng/Y2022/V56/I4/816


深度学习辅助上行免调度NOMA多用户检测方法

针对上行免调度非正交多址接入(NOMA)场景中多用户检测的问题,通过结合传输数据的符号特征,提出基于深度神经网络(DNN)的联合活跃用户检测和数据检测框架. 考虑更一般化的实际场景,即用户在每个时隙中随机活跃. 将DNN求解结果作为改进的正交匹配追踪(OMP)算法先验输入,修正提升活跃用户检测和数据检测性能. 仿真结果表明,提出的多用户检测方案比传统的贪婪追踪及动态压缩感知(DCS)多用户检测算法具有更好的用户活跃性及数据检测性能.


关键词: 大规模机器通信,  免调度传输,  非正交多址接入,  压缩感知,  深度神经网络

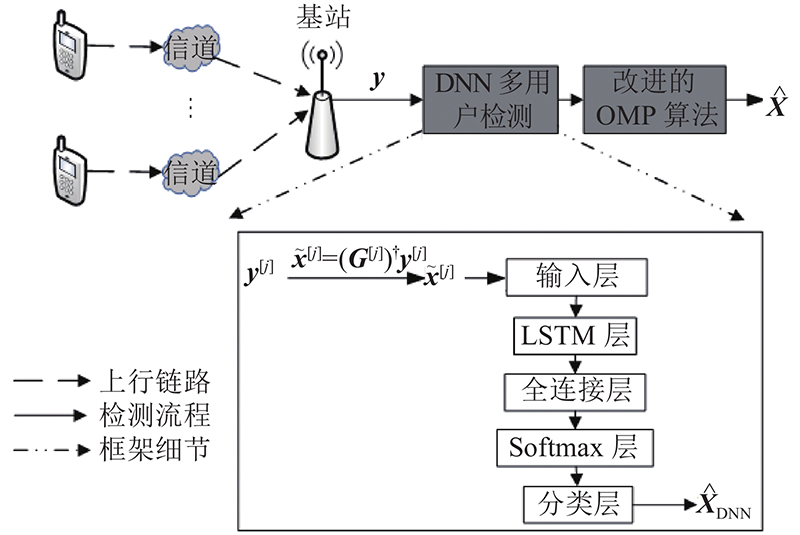

Fig.1 Block diagram of proposed DNN-MUD method
QPSK传输符号 类别
$1 + i$ 1
$1 - i$ 2
$ - 1 + i$ 3
$ - 1 - i$ 4
0 5
Tab.1 Schematic table of transmission symbol feature mapping
参数 参数值
扩频序列长度 100
接入用户数 200
稀疏度 20
调制方式 QPSK
DNN层数 5
学习率 0.01
训练数据量 320000
批量大小 2 000
$ C $ 200
蒙特卡洛仿真次数 100
Tab.2 Simulation parameter table of Grant-free NOMA system

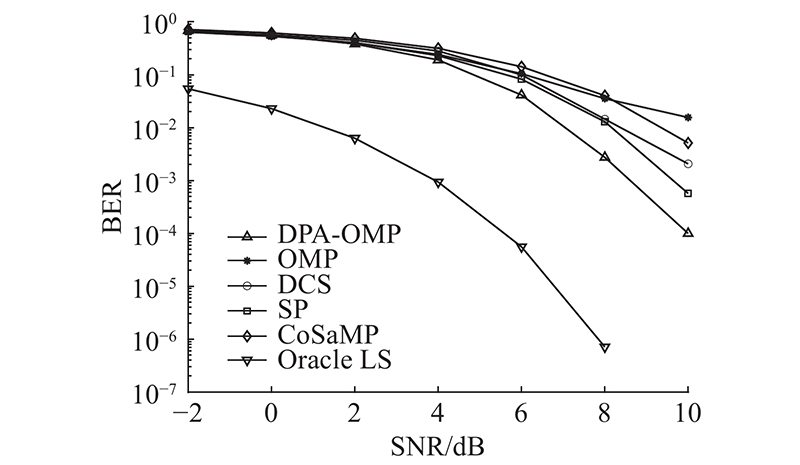

Fig.2 BER performance comparison under different SNR

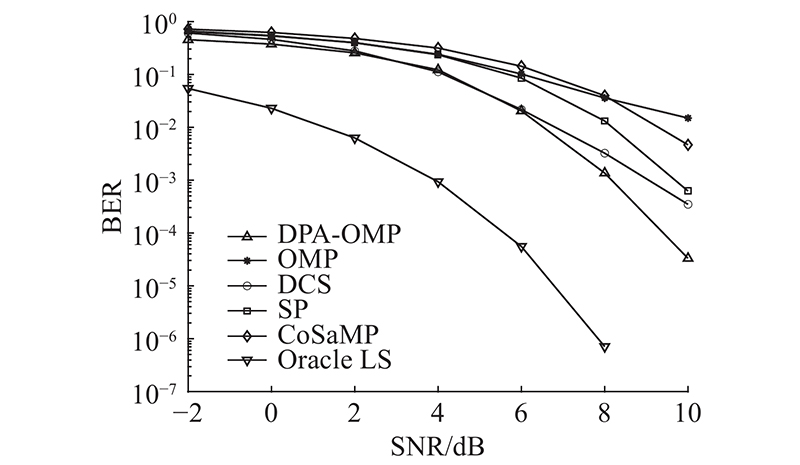

Fig.3 BER performance of different algorithms under different SNR when users are randomly active

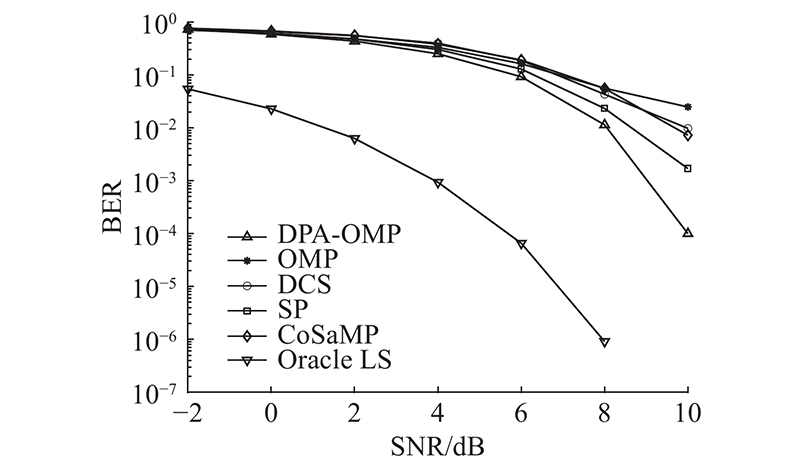

Fig.4 Comparison of BER performance of different algorithms under 300% load conditions

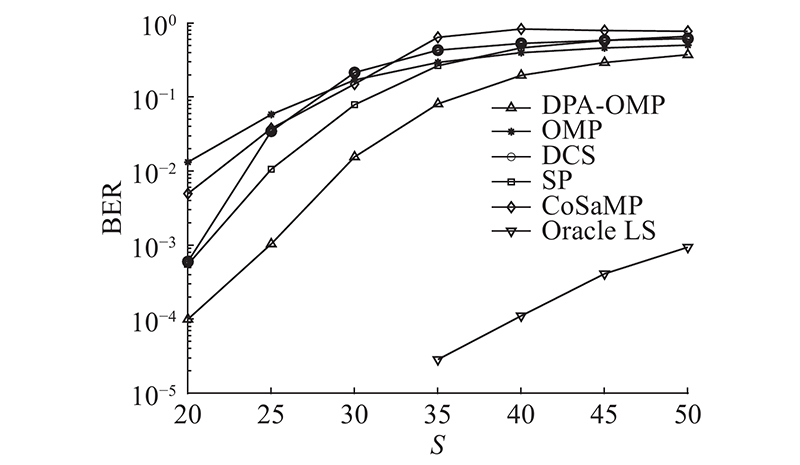

Fig.5 BER performance comparison against sparsity level

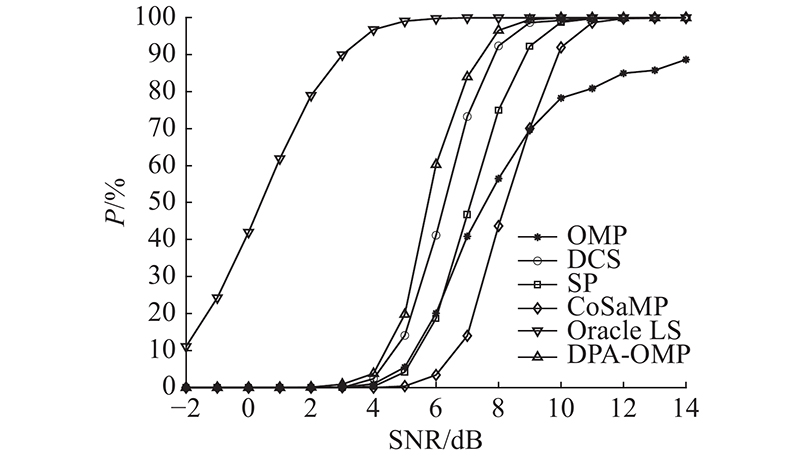

Fig.6 Probability of successful reconstruction of different algorithms under different SNR when users are randomly active
多用户检测算法 $t_{\rm{a}} $/s
LS 0.004 9
OMP 0.063 9
CoSaMP 0.615 7
SP 0.455 8
DCS 0.179 9
DPA-OMP中改进的OMP算法部分 0.048 5
DPA-OMP整体 0.253 5
Tab.3 Simulation running time of different multi-user detection algorithms
