Vehicle routing optimization of two-echelon opening and closing hybrid based on crowdsourcing mode
Guo-wen XIONG1(),Min ZHANG1,2,*(),Wen-xin XU1()
1. School of Mechanical Engineering, Southwest Jiaotong University, Chengdu 610031, China
2. Technology and Equipment of Rail Transit Operation and Maintenance Key Laboratory of Sichuan Province, Chengdu 610031, China
Download: HTML     PDF(1139KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A two-echelon crowdsourcing logistics distribution strategy with optimal transfer stations was proposed, aiming at the problem of insufficient logistics transportation resources and low utilization rate of enterprise and social resources under the state of demand blowout. In the strategy, enterprise vehicles were used to complete the first-level distribution, and social vehicles were used to complete secondary distribution. Considering the customer’s requirements for service time, a mathematical model with time window for vehicle path planning of two-echelon open close hybrid was established to minimize the sum of path cost and service delay penalty cost. According to the characteristics of the model, a discrete sparrow search algorithm based on heuristic strategy was constructed. The operation operator in the iterative process was selected adaptively in the algorithm. The effectiveness of the algorithm was verified by comparing the results of GUROBI exact solver and genetic algorithm optimization example. By comparing various costs under different distribution modes, it is verified that the proposed strategy can effectively reduce logistics transportation costs and improve customer satisfaction.

Key words： demand blowout      two-echelon crowdsourcing logistics      opening and closing hybrid      vehicle routing      discrete sparrow search algorithm
Received: 26 January 2021      Published: 31 December 2021
CLC:  TP 301.6
Fund:  国家重点研发计划资助项目(2020YFB1712200)；中国博士后科学基金资助项目(2020M673279)；四川省科技计划资助项目(2020JDTD0012)
Corresponding Authors: Min ZHANG     E-mail: 969810112@qq.com;zhmzhangmin16@126.com;15883956442@163.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Guo-wen XIONG
Min ZHANG
Wen-xin XU
Cite this article:

Guo-wen XIONG,Min ZHANG,Wen-xin XU. Vehicle routing optimization of two-echelon opening and closing hybrid based on crowdsourcing mode. Journal of ZheJiang University (Engineering Science), 2021, 55(12): 2397-2408.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.12.021     OR     https://www.zjujournals.com/eng/Y2021/V55/I12/2397


基于众包模式的两级开闭混合车辆路径优化

针对在需求井喷状态下的物流运力资源不足和物流企业自身与社会闲散资源利用率不高的问题，提出采用企业车辆完成一级配送，社会车辆完成二级配送的具有最优中转站的两级众包物流配送策略. 考虑客户对服务时间的要求，以路径成本与服务延迟惩罚成本总和最小为优化目标，建立带时间窗的两级开闭混合式车辆路径规划数学模型. 根据模型特点构建基于启发式策略的离散麻雀搜索算法，该算法在迭代过程中可以自适应选择操作算子. 通过与GUROBI精确求解器和遗传算法优化算例的结果对比，验证所提算法的有效性. 对比不同配送模式下的各项成本，结果表明所提策略能够有效降低物流运输成本和提高客户满意度.


关键词： 需求井喷,  两级众包物流,  开闭混合式,  车辆路径,  离散麻雀搜索算法

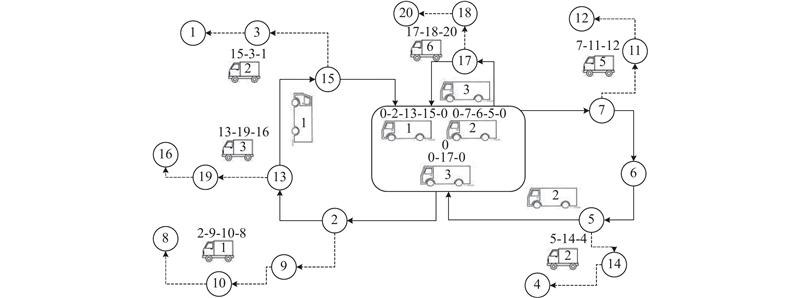

Fig.1 Route diagram of two-echelon crowdsourced vehicles
符号 参数 符号 参数
D 仓库集合 E 企业车辆 e 集合
C 需求点集合 K 众包车辆 k 集合
Q1 企业车辆最大载重 qi 需求点i的需求量
Q2 众包车辆最大载重 qj 需求点 j 的需求量
c1 企业车辆单位距离成本 N 中转站最大数量
c2 众包车辆单位距离成本 M 足够大的实数
c3 单位时间延时惩罚成本 Tij 车辆从 i到 j所需时间
dij 节点 i到节点 j间的距离 Ti 需求点 i期望服务时间
Tab.1 Mathematical model parameters with time windows for vehicle path planning of two echelon open close hybrid
符号 说明 符号 说明
fi、fj 需求点i 、j被选作为中转站，fi、fj=1；否则，fi、fj=0 Ue e被使用， Ue=1；否则，Ue=0
zki k经过中转站 j，zki=1；否则，zki=0 $r_{ij}^e $ e访问中转站i后访问中转站 j， $r_{ij}^e $ =1；否则， $r_{ij}^e $ =0
uk k被使用，uk=1；否则，uk =0 gie e给中转站 j的货物量
ski k经过需求点 j，ski=1；否则，ski=0 lie 消除企业车辆路径子回路的中间变量
$x_{ij}^k $ k访问需求点i后访问需求点 j, $x_{ij}^k $ =1；否则， $x_{ij}^k $ =0 hie e到中转站的时间
Lik 消除众包车辆路径子回路的中间变量 F 企业车辆到达中转站的最大时间
Sijk 需求点i的货物由 k从中转站 j获取 ti 货物到达需求点 i的实际用时
yie、yje e服务中转站 i、j，yie、 yje=1；否则，yie、yje=0 Ri 货物到达需求点 i的延迟时间
y0e e服务配送中心 ，y0e=1；否则，y0e=0 Vim ti?Ti > 0， Vi1 =1;否则， Vi2=0，m∈{1, 2}
Hik k到达客户i所用时间 uie e到中转站 i的时间为企业车辆到达中转站的最大时间，uie =1；否则，uie =0
wj 中转站 j的总货物需求量
Tab.2 Decision variables of mathematical model with time window for vehicle path planning of two-echelon open close hybrid
Fig.2 Sparrow coding

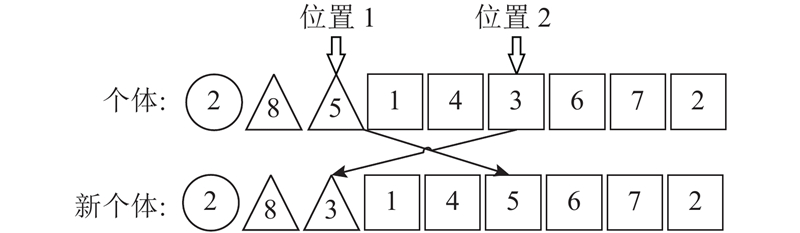

Fig.3 Sparrow follow operation

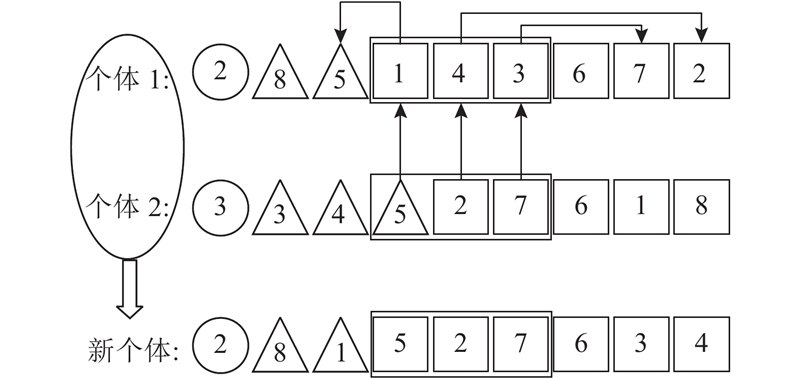

Fig.4 Sparrow escape operation

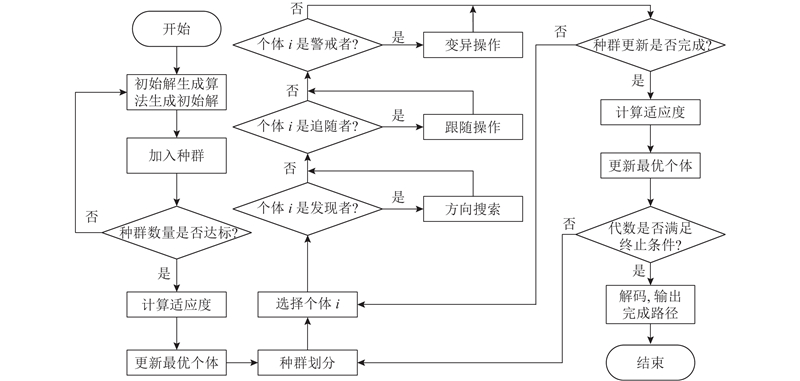

Fig.5 Flow chart of discrete sparrow search algorithm
编号 X/km Y/km q T/h 编号 X/km Y/km q T/h
0 145 215 0 0 16 141 206 2 100 4
1 151 264 1 100 3 17 147 193 1 000 4
2 159 261 700 4 18 164 193 900 3
3 130 254 800 6 19 129 189 2 500 6
4 128 252 1 400 5 20 155 185 1 800 6
5 163 247 2 100 4 21 139 182 700 5
6 146 246 400 3 22 140 213 900 6
7 161 242 800 4 23 160 180 1 000 5
8 142 239 100 3 24 136 196 800 4
9 163 236 500 6 25 143 208 400 3
10 148 232 600 3 26 126 228 900 5
11 128 231 1 200 5 27 150 190 600 6
12 156 217 1 300 5 28 169 202 1 000 6
13 129 214 1 300 6 29 119 178 300 4
14 146 208 300 3 30 128 240 500 5
15 164 208 900 3 31 113 192 600 6
Tab.3 Set2a example data after customer scale expansion
客户规模 GUROBI GA DSSA
f0/元 GAP/% V0/s f1/元 avg1/元 gap′/% V1/s f2/元 avg2/元 gap′/% V2/s
13 169.60 0.00 56 170.45 172.59 0.50 22 169.60 172.10 0.00 19
15 188.86 0.00 38 192.22 195.31 1.78 25 188.86 191.60 0.00 20
17 210.48 0.00 123 210.48 215.51 0.00 28 210.48 215.29 0.00 23
19 243.91 0.00 283 247.34 250.99 1.40 30 245.27 247.14 0.56 28
21 263.33 0.00 322 265.27 276.85 0.74 33 264.68 272.92 0.51 31
23 275.45 5.63 1000 274.50 283.27 ?0.34 34 273.14 282.57 ?0.84 33
25 283.49 9.09 1000 281.93 289.52 ?0.55 36 277.69 285.96 ?2.05 34
27 311.02 17.80 1000 288.00 302.56 ?7.40 37 287.84 297.51 ?7.45 35
29 366.64 26.80 1000 319.23 330.68 ?12.90 38 311.63 323.52 ?15.00 38
31 388.91 28.20 1000 341.27 359.50 ?12.20 41 340.84 356.60 ?12.40 40
平均值 270.17 8.75 582 259.07 267.68 ?2.90 32 257.00 264.52 ?3.67 30
Tab.4 Optimization results of different methods with shortest path as objective
客户规模 GUROBI GA DSSA
f0/元 GAP/% V0/s f1/元 avg1/元 gap′/% V1/s f2/元 avg2/元 gap′/% V2/s
13 188.54 518 0.00 191.11 194.71 1.36 23 191.11 191.11 1.36 20
15 209.64 1000 11.80 219.22 222.27 4.57 25 213.56 215.92 1.87 22
17 230.37 1000 10.30 230.37 234.03 0.00 28 230.37 232.60 0.00 26
19 265.45 818 0.00 269.06 276.32 1.36 31 265.45 271.54 0.00 28
21 292.29 1000 11.80 295.39 301.65 1.06 31 284.86 295.50 ?2.54 30
23 297.44 1000 13.70 309.60 317.50 4.09 34 301.90 310.73 1.50 32
25 303.85 1000 14.70 305.63 322.68 0.59 37 303.37 321.37 ?0.16 36
27 374.49 1000 31.40 312.15 328.75 ?16.60 39 311.73 326.97 ?16.8 37
29 350.51 1000 22.70 358.92 376.46 2.40 40 348.53 368.84 ?0.57 40
31 388.91 1000 28.20 393.46 408.65 1.17 45 379.93 394.84 ?2.31 44
平均值 290.15 934 14.46 288.49 298.30 0.00 33 283.08 292.94 ?1.77 32
Tab.5 Optimization results of different methods considering service delay

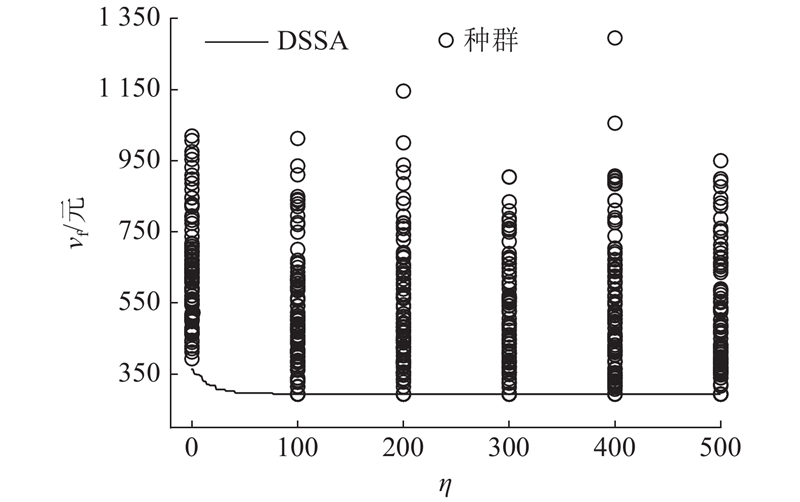

Fig.6 Discrete sparrow search algorithm iterative chart

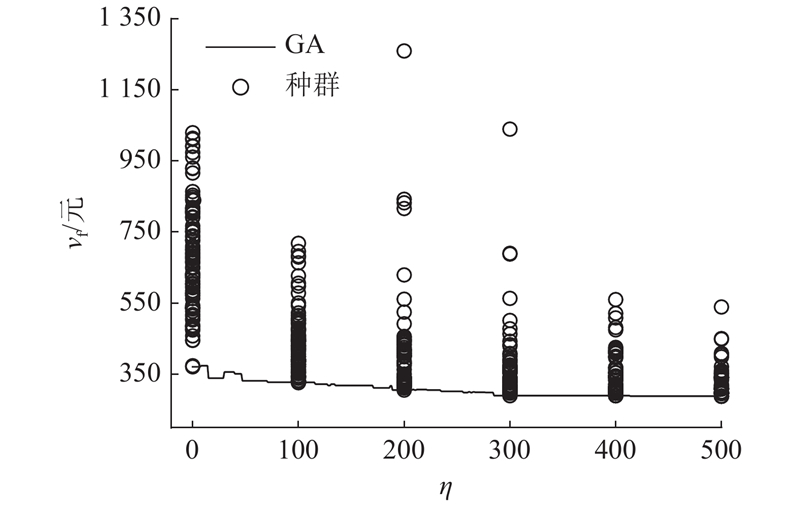

Fig.7 Genetic algorithm iterative chart
c1/元 c2/元 c3 配送模式 C1/元 C2/元 nDL TL/h TC/元
1 1 0 两级开闭混合 59.59 205.10 15 31.43 327.55
1 1 0 两级闭环 87.51 278.22 18 65.60 496.93
1 1 2 两级开闭混合 36.50 226.82 8 10.77 284.86
1 1 0 两级闭环 56.83 325.59 11 21.53 425.48
Tab.6 Optimization results of discrete sparrow search algorithm under different distribution modes

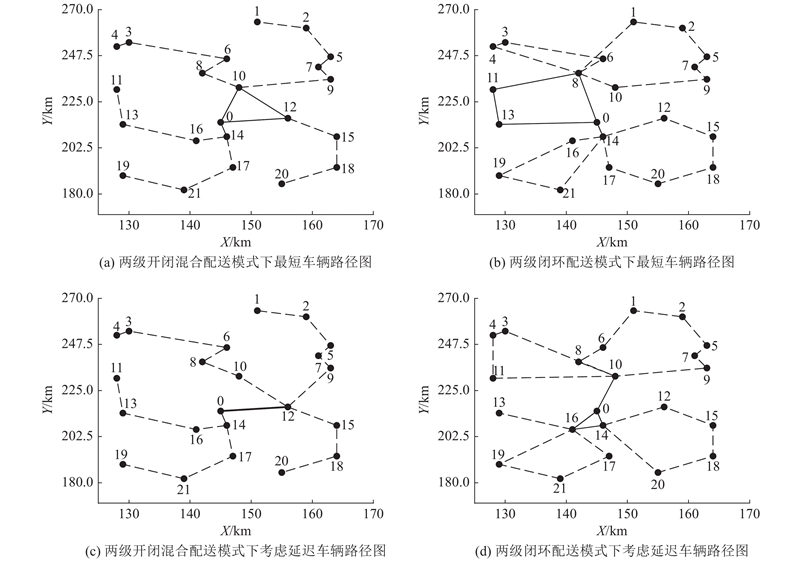

Fig.8 Vehicle route chart of discrete sparrow search algorithm under different distribution modes
