Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (11): 2128-2137    DOI: 10.3785/j.issn.1008-973X.2020.11.008

Deep micro-expression spotting network training based on concept of transition frame
Xiao-feng FU(),Li NIU,Zhuo-qun HU,Jian-jun LI,Qing WU
School of Computer Science and Technology, Hangzhou Dianzi University, Hangzhou 310018, China
Download: HTML     PDF(1231KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A deep convolutional neural network was applied in view of the small sample size of micro-expression databases, in order to spot facial micro-expressions more accurately from videos through transfer learning. A pre-trained deep convolutional neural network model was selected, and the convolutional layers and the pre-trained parameters were reserved. The full connected layer and the classifier were added after these layers to construct a deep binary classification micro-expression spotting network (MesNet). The concept of transition frame and an adaptive recognition algorithm of transition frames were proposed to remove the noisy labels from micro-expression databases that disturbed the network training. Experimental results show that the AUC values of MesNet on CASME II, SMIC-E-HS and CAS(ME)2 reach 0.955 6, 0.933 8 and 0.785 3, respectively. Among three databases, MesNet achieves state-of-the-art results both on CASME II which is a short video database and CAS(ME)2 which is a long video database. It shows that the proposed MesNet has the characteristics of high accuracy and wide application range. Comparison experiment results of the transition frame show that removing the transition frames from original videos when constructing the training set can effectively improve the micro-expression spotting performance of MesNet.

Key words： micro-expression spotting      transfer learning      deep convolutional neural network      binary classification      transition frame
Received: 19 October 2019      Published: 15 December 2020
CLC:  TP 301.6
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xiao-feng FU
Li NIU
Zhuo-qun HU
Jian-jun LI
Qing WU
Cite this article:

Xiao-feng FU,Li NIU,Zhuo-qun HU,Jian-jun LI,Qing WU. Deep micro-expression spotting network training based on concept of transition frame. Journal of ZheJiang University (Engineering Science), 2020, 54(11): 2128-2137.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.11.008     OR     http://www.zjujournals.com/eng/Y2020/V54/I11/2128


基于过渡帧概念训练的微表情检测深度网络

为了更准确地从视频中检测面部微表情，针对微表情数据库样本规模较小的特点，采用迁移学习方法将深度卷积神经网络应用于微表情检测问题. 选取预训练过的深度卷积神经网络模型，保留卷积层及预训练参数，添加全连接层和分类器，构造一个二分类的微表情检测深度网络（MesNet）. 为了去除微表情数据库中影响网络训练的噪声标签，提出过渡帧的概念和自适应识别过渡帧算法. MesNet在CASME II、SMIC-E-HS与 CAS(ME)2数据库上的曲线下面积（AUC）分别达到0.955 6、0.933 8与0.785 3，其中在CASME II短视频数据库和 CAS(ME)2长视频数据库上均取得最优结果，表明MesNet具有高精度和广适用范围的特点；过渡帧对比实验结果表明，构造训练集时从原始视频中去除过渡帧能够有效提高MesNet微表情检测性能.


关键词： 微表情检测,  迁移学习,  深度卷积神经网络,  二分类,  过渡帧
Fig.1 Training flow chart of MesNet
Fig.2 Example of CASME II video clips

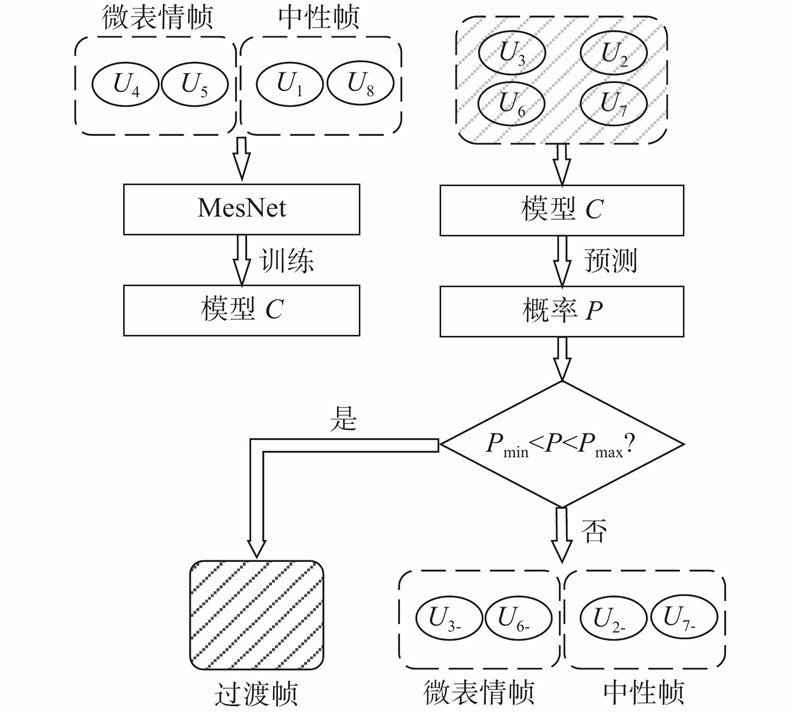

Fig.3 Adaptive algorithm of transition frames recognition

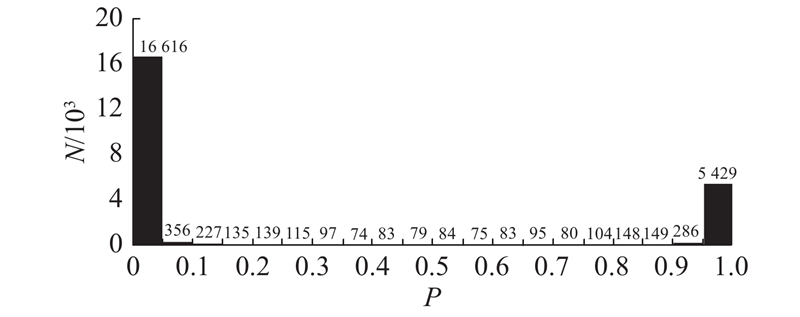

Fig.4 Probability distribution of samples waiting to remove transition frames
Fig.5 Facial landmarks detection
Fig.6 Face alignment coordinates setting
Fig.7 Micro-expression region cropping
Fig.8 Image preprocessing examples of CASME II

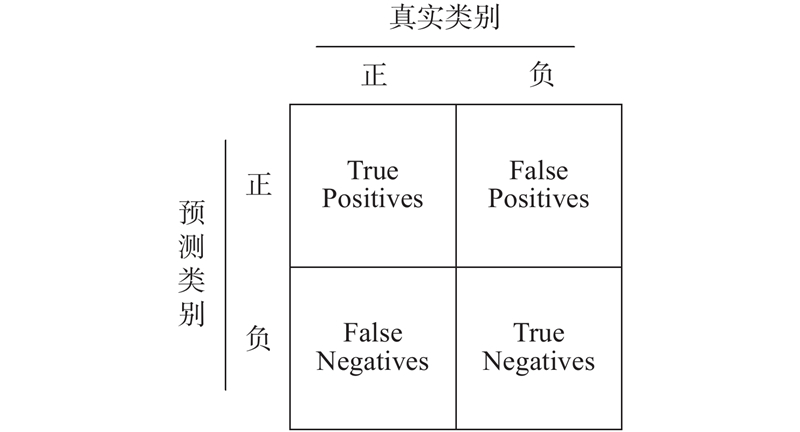

Fig.9 Binary classification confusion matrix
模型 图片输入尺寸 训练迭代次数 模型大小/MB L AUC
MesNet-VGG-19 224×224×3 767 1 096 0.029 0 0.837 7
MesNet-Inception V3 299×299×3 1 239 115 0.028 9 0.920 0
MesNet-Inception V4 299×299×3 1 558 184 0.000 1 0.887 6
MesNet-Res V2-50 224×224×3 124 109 0.008 5 0.787 1
MesNet-Res V2-101 224×224×3 319 182 0.001 5 0.844 8
MesNet-Res V2-152 224×224×3 231 242 0.006 9 0.844 8
MesNet-Inception-Res-V2 299×299×3 5 362 235 0.011 5 0.952 6
Tab.1 Training details and AUC values of various MesNet models on CASME II

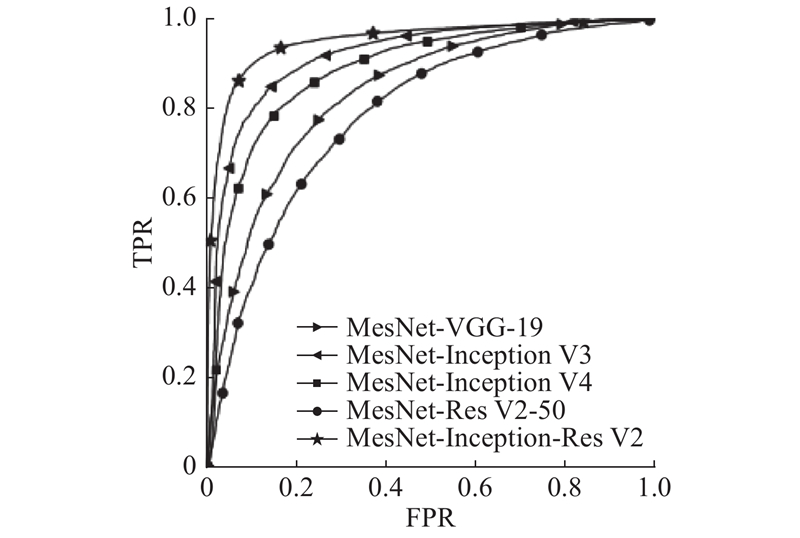

Fig.10 ROC curves of 5 MesNet models on CASME II
方法 AUC
CASME II SMIC-E-HS CAS(ME)2
0% 0.938 6 0.906 2 0.752 8
10% 0.952 6 0.918 0 0.763 9
20% 0.944 9 0.901 7 0.742 1
30% 0.916 2 0.888 3 0.736 1
自适应 0.955 6 0.933 8 0.785 3
Tab.2 AUC values of MesNet using different methods of removing transition frames

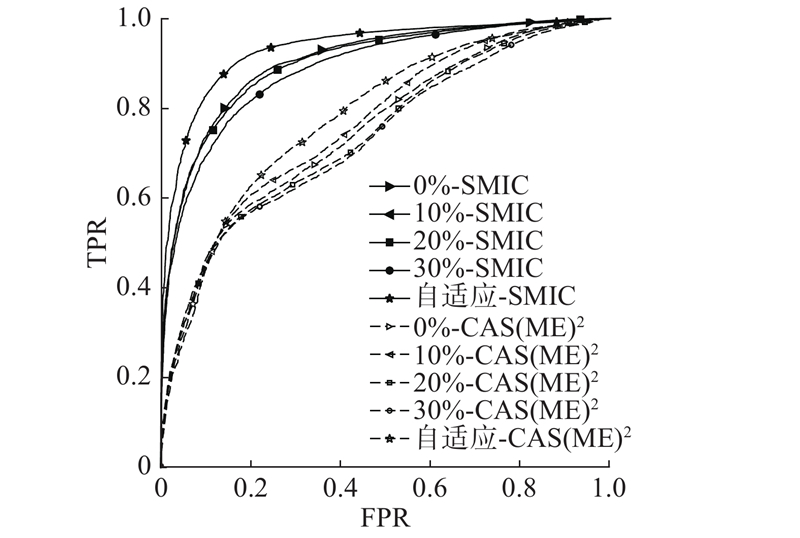

Fig.11 ROC curves of different methods to remove transition frames on SMIC-E-HS and CAS(ME)2
预处理阶段 AUC
CASME II SMIC-E-HS CAS(ME)2
图8（a） 0.613 4 0.574 5 0.532 8
图8（b） 0.770 5 0.721 1 0.603 1
图8（c） 0.938 6 0.906 2 0.752 8
Tab.3 Comparison of AUC values in different stages of preprocessing
方法 Precision Recall F-Measure Accuracy AUC
3D HOG – XT[29] 0.534 1 0.623 5 0.575 4 0.735 5 0.726 1
Frame differences[14] ? ? ? 0.817 5 ?
HOOF[30] ? ? ? ? 0.649 9
LBP[30] ? ? ? ? 0.929 8
CFD[28] ? ? ? ? 0.941 9
MesNet 0.939 6 0.947 8 0.943 7 0.914 6 0.955 6
Tab.4 Performance comparison among MesNet and existing methods on CASME II
方法 Precision Recall F-Measure Accuracy AUC
HOOF[30] ? ? ? ? 0.694 1
LBP[30] ? ? ? ? 0.833 2
Riesz Pyramid[31] ? ? ? ? 0.898 0
CFD[28] ? ? ? ? 0.970 6
MesNet 0.969 0 0.988 5 0.978 7 0.959 6 0.933 8
Tab.5 Performance comparison among MesNet and existing methods on SMIC-E-HS
方法 Precision Recall F-Measure Accuracy AUC
MDMD[32] 0.352 1 0.319 0 0.334 8 0.735 5 0.654 8
LBP[18] ? ? ? ? 0.663 9
MesNet 0.960 2 0.996 2 0.977 9 0.957 0 0.785 3
Tab.6 Performance comparison among MesNet and existing methods on CAS(ME)2
视频 数据库 时长/s 帧总数 Precision Recall F-Measure Accuracy AUC
14_EP09_03 CASME II 0.26 51 0.837 2 1.000 0 0.911 4 0.862 7 0.983 2
31_0401girlcrashing CAS(ME)2 123.7 3 712 0.978 4 1.000 0 0.989 1 0.978 4 0.789 3
Tab.7 Performance comparison between a long video and a short video
