Normal region segmentation of road scene based on spatial context algorithm
Xue-yun CHEN(),Qu YAO*(),Qi-chen DING,Xue-yu BEI,Xiao-qiao HUANG,Xin JIN
School of Electrical Engineering, Guangxi University, Nanning 530000, China
Download: HTML     PDF(1109KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Aiming at the problem of ignoring normal attributes in road scene detection, in order to strengthen the use of spatial context and edge information, a road scene normal region segmentation method combined with spatial context algorithm was proposed, and the road scene was identified as the horizontal and the vertical regions corresponding to the road and the obstacles, respectively. On the basis of the cross-entropy loss function, the obstacle enhancement loss was added to improve the weight distribution of different categories in the training process, and improve the recognition rate of obstacles in small areas. The context improvement algorithm was proposed to optimize the matrix calculation method of the position association graph, reduce the space complexity and improve the calculation efficiency. The edge context module was embedded to reduce noise and strengthen the main edge, enhancing the use of edge information. Experimental results on the self-built dataset and the Cityscapes dataset show that compared with mainstream semantic segmentation methods, the proposed method strengthens the ability of network feature extraction, effectively improves the segmentation accuracy of the road normal region, of which the intersection is 2.1% higher than that of Deeplab, easily and effectively achieving obstacle avoidance tasks.



Key wordsnormal region segmentation      spatial context      edge information      road scene      obstacle enhancement loss
Received: 25 March 2021      Published: 05 November 2021
CLC:  TP 391.4
Fund:  国家自然科学基金资助项目(62061002)
Corresponding Authors: Qu YAO     E-mail: cxy17777@163.com;576661193@qq.com
Cite this article:

Xue-yun CHEN,Qu YAO,Qi-chen DING,Xue-yu BEI,Xiao-qiao HUANG,Xin JIN. Normal region segmentation of road scene based on spatial context algorithm. Journal of ZheJiang University (Engineering Science), 2021, 55(11): 2013-2021.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.11.001     OR     https://www.zjujournals.com/eng/Y2021/V55/I11/2013


结合空间上下文算法的道路场景法线区域分割

针对道路场景检测忽略法线属性的问题,为了加强对空间上下文和边缘信息的利用,提出结合空间上下文算法的道路场景法线区域分割方法,将道路场景识别为路面和障碍物分别对应的水平区域和竖直区域. 在交叉熵损失函数的基础上添加障碍物增强损失,改善训练过程不同分类的权重分配,提高小区域障碍物识别率. 提出上下文改进算法优化位置关联图的矩阵计算方式,减少空间复杂度提高运算效率. 嵌入边缘上下文模块削减噪声并强化主要边缘,加强边缘信息的利用. 在自建数据集和Cityscapes数据集的实验结果表明,与主流的语义分割方法相比,本研究方法加强网络特征提取能力,能有效提高对道路法线区域的分割准确度,相较Deeplab, 交并比提高了2.1%,能简单有效地实现避障任务.


关键词: 法线区域分割,  空间上下文,  边缘信息,  道路场景,  障碍物增强损失

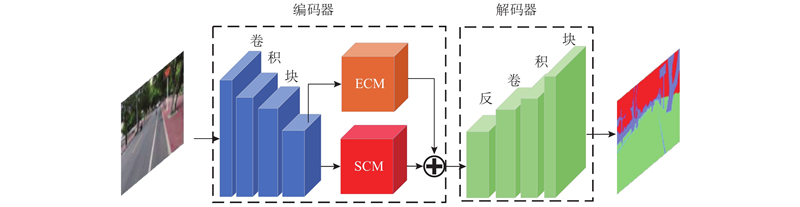

Fig.1 Normal region segmentation network structure diagram
Fig.2 Schematic diagram of context algorithm
Fig.3 Structure diagram of spatial context module
Fig.4 Non-local algorithm structure diagram
Fig.5 Edge context module structure
Fig.6 Comparison diagram of normal detection network experiment
网络 Mean Median RMSE/% P1/% P2/% P3/%
MarrNet[8] 35.18 32.16 38.64 18.38 42.74 61.51
文献[10]方法 28.95 25.43 34.35 35.37 59.26 82.89
本研究算法 25.26 22.57 29.81 41.75 72.68 91.27
Tab.1 Test results comparison of different normal detection network
Fig.7 Fig.7 Comparison diagram of segmentation network experiments
网络 IoU/% MPA/%
FCN[12] 63.43 75.17
UNet[14] 71.25 80.36
PSPnet[15] 70.82 80.04
Deeplab[17] 71.66 82.59
本研究算法 73.76 85.33
Tab.2 Test results of different segmentation networks
网络 IoU/% MPA/%
Backbone 70.58 82.17
Backbone+SCM 72.74 84.66
Backbone+Non-local 72.69 84.40
Backbone+SCM+ECM 73.31 85.57
Backbone+SCM+ECM+Lo 73.76 85.33
Tab.3 Test results of improvement effect of each module
